ICAROS GUARDIAN User manual

ICAROS GUARDIAN
ASSEMBLY INSTRUCTIONS
AssemblyInstructions_ICAROS_Guardian_2024_v3
15.01.2024
ICAROS GmbH
Fraunhoferstraße 5
82152 Martinsried
GERMANY

Contact Details
AssemblyInstructions_ICAROS_Guardian_2024_v3 1
Manufacturer
ICAROS GmbH
Fraunhoferstraße 5
82152 Martinsried
GERMANY
TEL [phone]
MAIL [email protected]
WEB www.icaros.com
Distributor
ICAROS GmbH
Fraunhoferstraße 5
82152 Martinsried
GERMANY
TEL [phone]
MAIL [email protected]
WEB www.icaros.com

Scope of delivery
ICAROS Guardian
Assembly Requirements
2Persons Soft Underlay
Digital Accessoires
Scissors
2AssemblyInstructions_ICAROS_Guardian_2024_v3

This part of the manual guides you through the setup of the ICAROS Guardian.
ICAROS Guardian
3
AssemblyInstructions_ICAROS_Guardian_2024_v3

Take care not to tighten the screws so that you can insert the
box more easily in the next step.
1.1
4
2x
M8x20 1x 1x 1x
Inbus
M5.5
1.2
4x
M6x45 1x 1x
Inbus
M5
AssemblyInstructions_ICAROS_Guardian_2024_v3

1.3
5
2x 1x
1.4
1x 1x 1x
ATTENTION
Before inserting the clips, hand-tighten the screws from step
1.1.
AssemblyInstructions_ICAROS_Guardian_2024_v3

1.5
1x
1.6
4x
2x
M5x40 1x
12x
M8x30 1x
2x
2x
6AssemblyInstructions_ICAROS_Guardian_2024_v3

1.7
7
1x
1.8
1x
ATTENTION
Make sure that the step is mounted so that the closed
side is facing the edge.
Rotate the levers inside the step for 90°in order to lock it.
AssemblyInstructions_ICAROS_Guardian_2024_v3

1.9
8
1x

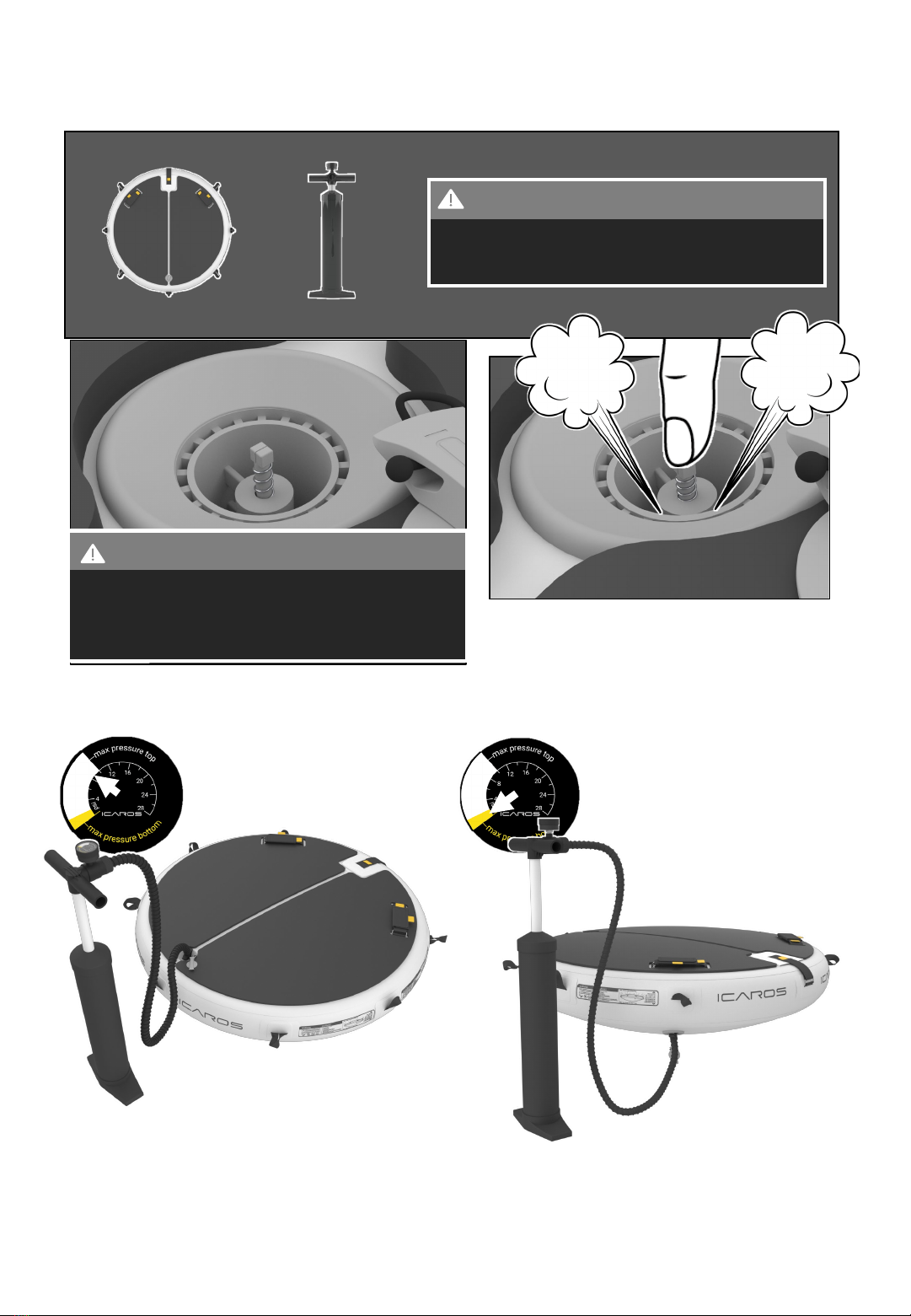

ATTENTION
First inflate the upper and then the lower air chamber.
Never exceed the specified air pressure values for the
respective chamber.
Inflate upper air chamber:
Min.: 0,7 bar
Max.: 1bar
Inflate lower air chamber:
Min.: 0,01 bar
Max.: 0,05 bar
1.9.1 1.9.2
ATTENTION
The valve must be closed before inflation.When the
push button is extended, the valve is closed.To open
or close the valve, press and turn the push button.Press the push button down to allow the
air to escape.
1x
AssemblyInstructions_ICAROS_Guardian_2024_v3

1.10
9
1x 4x 4x 1x
AssemblyInstructions_ICAROS_Guardian_2024_v3

10
This part of the manual will guide you through the setup of the digitally enhanced ICAROS Guardian. Please
note that the CE certification only covers the ICAROS Guardian without digital extension.
2 ICAROS Guardian Digital Accessoires
AssemblyInstructions_ICAROS_Guardian_2024_v3

2.1
11
4x
M6x25 1x 1x
Inbus
M5
2.2
2x
M6x20 1x 1x
Inbus
M4
AssemblyInstructions_ICAROS_Guardian_2024_v3

2.3
1x 1x
2.4
1x 1x
4x
M6x20
12AssemblyInstructions_ICAROS_Guardian_2024_v3

2.5
1x 1x
1x
4x
M6x20
1x
2.5.1 2.5.2 2.5.3
2.5.4 2.5.5 2.5.5
2.5.6
13AssemblyInstructions_ICAROS_Guardian_2024_v3

2.6
14
1x 1x
1x
4x
M6x20
1x 1x
Place the Apple TV device, the multiple
socket outlet and the remote controls of the
Apple TV and the TV in the corresponding
recesses.
Finally, connect the digital devices to each
other and to the power supply.
AssemblyInstructions_ICAROS_Guardian_2024_v3

Thank you
ICAROS GmbH
Fraunhoferstraße 5
82152 Martinsried
GERMANY
TEL [phone]
MAIL [email protected]
WEB www.icaros.com
We are grateful that you have decided to purchase the ICAROS Guardian. The entire ICAROS team wishes
you much success and pleasure in using it.If you require any further information about our products, please feel
free to visit our website, contact us by phone or send us an email. We look forward to helping you.
