INSTRUCTION MANUAL
VHF DIGITAL REPEATER
iFR5300
UR-FR5300
UHF DIGITAL REPEATER
iFR6300
UR-FR6300 IC-FR5300/IC-FR6300

i
IMPORTANT
READ THIS INSTRUCTION MANUAL
CAREFULLY before attempting to operate the re-
peater.
SAVE THIS INSTRUCTION MANUAL– This
manual contains important safety and operating in-
structions for the IC-FR5300/UR-FR5300/IC-FR6300/
UR-FR6300 vhf/uhf digital repeaters.
EXPLICIT DEFINITIONS
WORD DEFINITION
RWARNING! Personal injury, fire hazard or electric
shock may occur.
CAUTION Equipment damage may occur.
NOTE
If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.

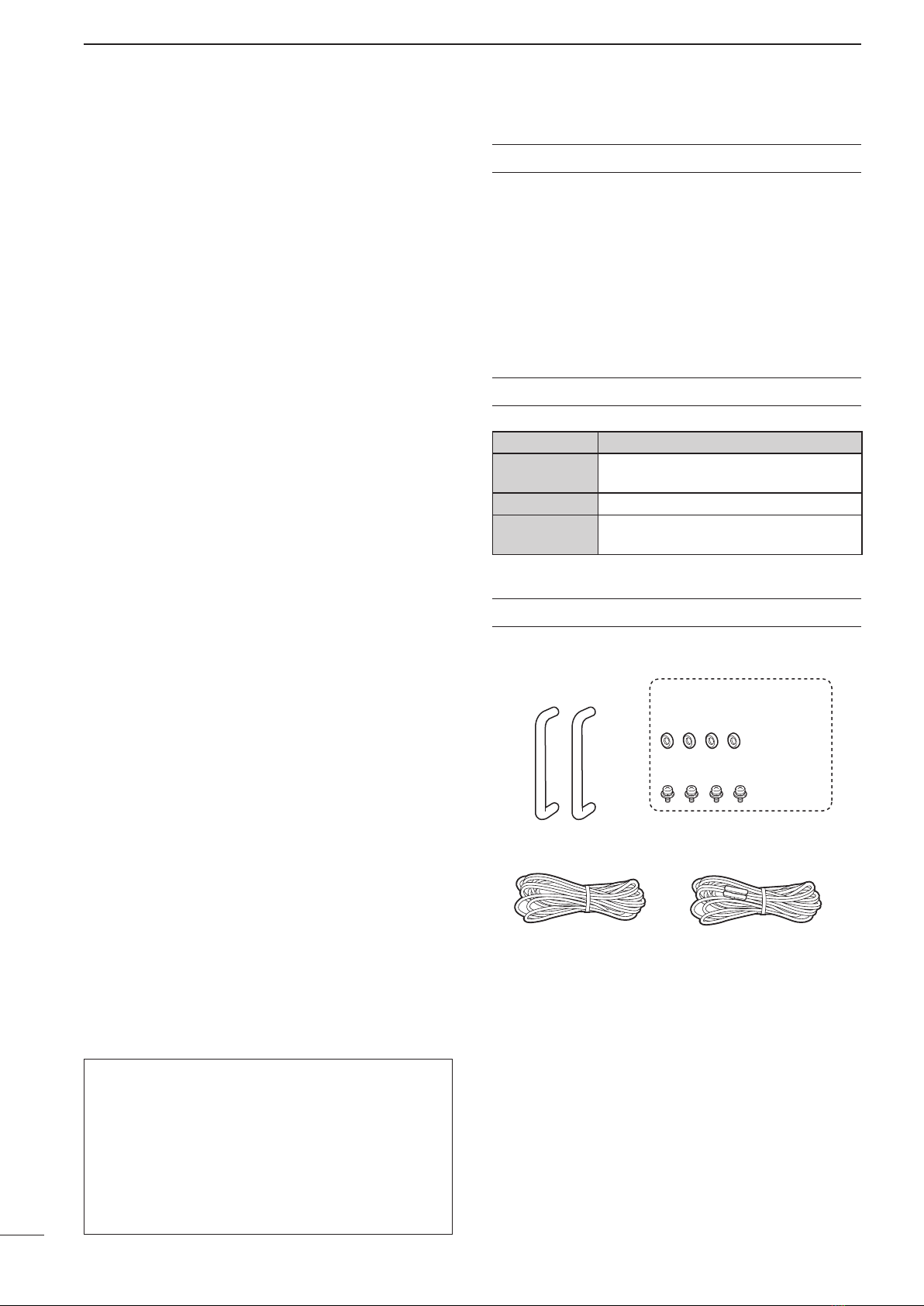

SUPPLIED ACCESSORIES
The following accessories are supplied.
Handles For handles attachment
Spacers
Screws
DC power cable
(OPC-1784)
DC power cable
(CAB-1149)
Icom, Icom Inc. and the Icom logo are registered trademarks
of Icom Incorporated (Japan) in Japan, the United States, the
United Kingdom, Germany, France, Spain, Russia, Australia,
New Zealand, and/or other countries.
All other products or brands are registered trademarks or
trademarks of their respective holders.
Thank you for choosing this Icom product.
This product is designed and built with Icom’ s state
of the art technology and craftsmanship. With proper
care, this product should provide you with years of
trouble-free operation.
DFEATURES
mUp to 2 channels of operation
You can install a channel extension module (op-
tional UR-FR5300/UR-FR6300) into a repeater.
Two channels can be operated on the same re-
peater when a channel extension module is in-
stalled.
mBuilt-in 5-Tone, DTMF encoder & decoder
Multiple signaling systems are built-in as standard.
These systems are fully compatible with Icom F-
series radios.
mDTMF remote control capability
You can control the repeater from a remote location
over the air or over a phone line with DTMF.
mD-Sub 25 pin ACC port equipped
You can use optional equipment through the D-sub
25 pin ACC port on the repeater’s rear panel.
mOnline control and Digital Trunking opera-
tion
Online control and digital trunking operation are
available when the optional UC-FR5300 trunking/
network controller is installed in the repeater.
mOther features
- Wide frequency coverage
<VHF>
IC-FR5300/UR-FR5300
: 136 to 174 MHz
<UHF>
IC-FR6300/UR-FR6300
: 330 to 400 MHz,
400 to 470 MHz,
450 to 512 MHz,
450 to 520 MHz
- PC programmable
- 19 inch rack mount
Icom is not responsible for the destruction or damage
to the Icom transceiver, if the malfunction is because
of:
• Force majeure, including, but not limited to, fires,
earthquakes, storms, floods, lightning, other natu-
ral disasters, disturbances, riots, war, or radioactive
contamination.
• The use of Icom transceivers with any equipment
that is not manufactured or approved by Icom.

ii
RWARNING HIGH VOLTAGE! NEVER touch an an-
tenna or internal antenna connector while transmitting.
This could cause an electrical shock or RF burn.
RWARNING HIGH VOLTAGE! NEVER install the an-
tenna at any place that person easily touch the an-
tenna while transmitting.This could cause an electrical
shock or RF burn.
RWARNING! NEVER apply AC power to the DC
power receptacle on the repeater rear panel. This
could cause a fire or damage the repeater.
RWARNING! NEVER apply more than 16 V DC to
the DC power receptacle on the repeater rear panel.
This could cause a fire or damage the repeater.
RWARNING! NEVER reverse the DC power cable
polarity. This could cause a fire or damage the re-
peater.
RWARNING! NEVER let metal, wire or other objects
contact the inside of the repeater, or make incorrect
contact with connectors on the rear panel. This could
cause an electric shock or damage the repeater.
CAUTION: DO NOT place or leave the repeater in
areas with temperatures below –30°C (–22°F) or above
+60°C (+140°F). Be aware that temperatures can ex-
ceed 80°C (+176°F), resulting in permanent damage
to the repeater if left there for extended periods.
CAUTION: DO NOT place or leave the repeater in ex-
cessively dusty environments. This could damage the
repeater.
CAUTION: DO NOT put anything on top of the re-
peater. This will obstruct heat dissipation.
CAUTION: DO NOT set the repeater’s RF output
power to more than your external linear amplifier’s
maximum input level, if you use one. Otherwise, a high
input could damage the linear amplifier.
CAUTION: DO NOT use non-Icom microphones.
Other manufacturer’s microphones may have differ-
ent pin assignments, and could damage the connector
and/or the repeater.
BE CAREFUL! The heatsink will become hot when
continuously operating the repeater for long periods
of time.
NEVER expose the repeater to rain, snow or any liq-
uids.
NEVER leave the repeater in an insecure place to
avoid use by unauthorized persons.
PRECAUTIONS TABLE OF CONTENTS
IMPORTANT............................................................... i
EXPLICIT DEFINITIONS............................................ i
SUPPLIED ACCESSORIES....................................... i
PRECAUTIONS......................................................... ii
SAFETY TRAINING INFORMATION ....................... iii
INFORMATIONS EN MATIÈRE DE SÉCURITÉ ...... iv
1 PANEL DESCRIPTION............................. 1–3
nFront panel ........................................................ 1
D Function display ............................................ 2
nRear panel......................................................... 2

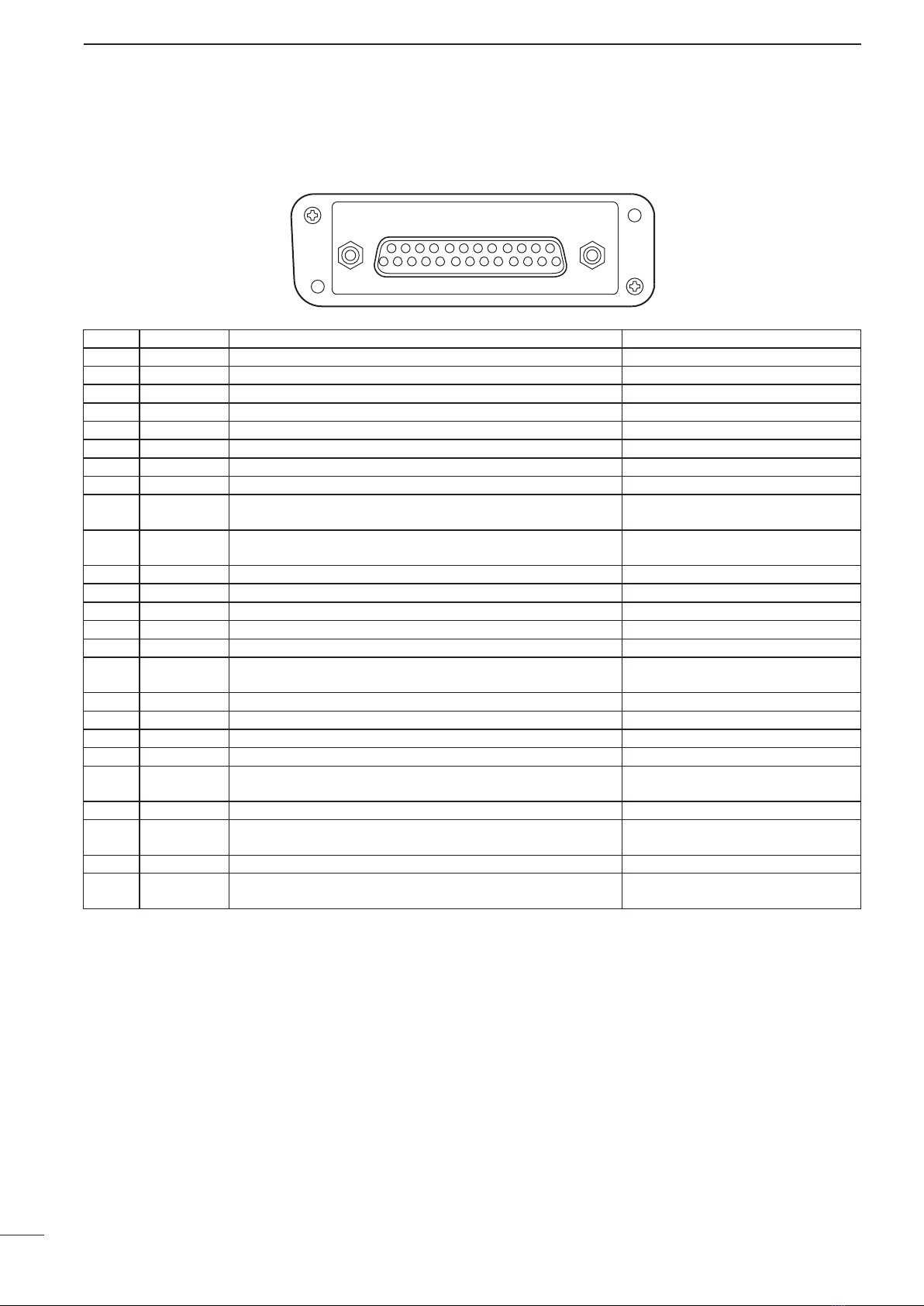

D Accessory connector .................................... 3
2 INSTALLATION AND CONNECTIONS .... 4–6
nUnpacking ......................................................... 4
nSelecting a location........................................... 4
nAntenna connection .......................................... 4

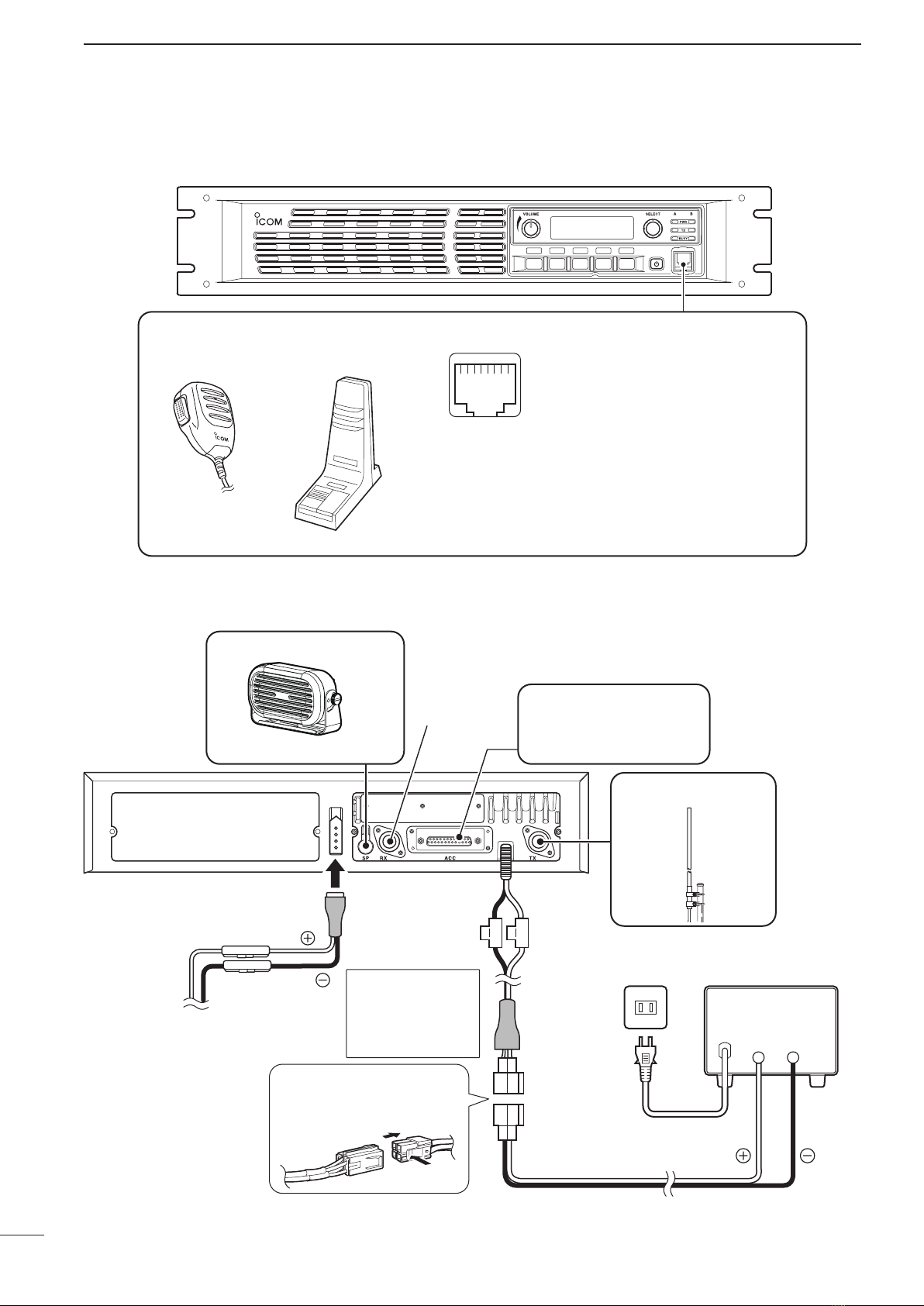

nFront panel connection...................................... 5
nRear panel connection ...................................... 5
nPower supply connection .................................. 6
nMounting the repeater....................................... 6
D Using the supplied handles........................... 6
nFuse replacement ............................................. 6
D Line fuse replacement................................... 6
3 OPERATION ................................................. 7
nReceiving and transmitting................................ 7
D Repeater operation ....................................... 7
D Base station operation .................................. 7
4 MAINTENANCE............................................ 8
nTroubleshooting ................................................. 8
5 OPTIONS ...................................................... 9
6 INFORMATION ........................................... 10
nVoice cording technology ................................ 10
nFCC information .............................................. 10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

iii
SAFETY TRAINING INFORMATION
WARNING
Your Icom radio generates RF electro-
magnetic energy during transmit
mode. This radio is designed for and
classified as “Occupational Use Only,”
meaning it must be used only during
the course of employment by individu-
als aware of the hazards, and the ways
to minimize such hazards.
This radio is NOT intended for use by
the “General Population” in an uncon-
trolled environment.
• For compliance with FCC and IC RF Exposure Re-
quirements, the transmitter antenna installation shall
comply with the following three conditions:
1. The transmitter antenna gain shall not exceed
0 dBi.
2. IC-FR5300/UR-FR5300:
Transmit only when people are at least the recom-
mended minimum distance of 60 centimeters away
from the properly installed antenna. This separa-
tion distance will ensure that there is sufficient dis-
tance from a properly installed externally-mounted
antenna to satisfy the RF exposure requirements
in the applicable RF exposure compliance stan-
dards.
2. IC-FR6300/UR-FR6300:
Transmit only when people are at least the recom-
mended minimum distance of 50 centimeters away
from the properly installed antenna. This separa-
tion distance will ensure that there is sufficient dis-
tance from a properly installed externally-mounted
antenna to satisfy the RF exposure requirements
in the applicable RF exposure compliance stan-
dards.
CAUTION
To ensure that your exposure to RF
electromagnetic energy is within the
FCC and IC allowable limits for occu-
pational use, always adhere to the fol-
lowing guidelines:
• DO NOT operate the radio without a proper antenna
attached, as this may damage the radio and may also
cause you to exceed FCC and IC RF exposure limits.
A proper antenna is the antenna supplied with this
radio by the manufacturer or an antenna specifically
authorized by the manufacturer for use with this radio.
• DO NOT transmit for more than 50% of total radio
use time (“50% duty cycle”). Transmitting more than
50% of the time can cause FCC and IC RF exposure
compliance requirements to be exceeded. The radio
is transmitting when the “TX indicator” lights red.You
can cause the radio to transmit by pressing the “PTT”
switch.
Electromagnetic Interference/Compatibility
During transmissions, your Icom radio generates RF
energy that can possibly cause interference with other
devices or systems.To avoid such interference, turn off
the radio in areas where signs are posted to do so. DO
NOT operate the transmitter in areas that are sensitive
to electromagnetic radiation such as hospitals, aircraft,
and blasting sites.

iv
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
INFORMATIONS EN MATIÈRE DE SÉCURITÉ
AVERTISSEMENT
Votre radio Icom produit une énergie
électromagnétique de radiofré-
quences (RF), en mode de transmis-
sion. Cette radio est conçue pour un
«usage professionnel seulement» et
classée comme tel, ce qui signifie
qu’elle doit être utilisée uniquement
dans le cadre d’un travail par des
personnes conscientes des dangers
et des mesures visant à minimiser
ces dangers. Elle N’EST PAS conçue
pour une «utilisation grand public»,
dans un environnement non
contrôlé.
• Afin de satisfaire aux exigences de la FCC et d’IC
en matière d’exposition aux RF, il est nécessaire que
l’antenne soit installée conformément aux trois condi-
tions suivantes:
1. Le gain de l’antenne du radio émetteur ne doit pas
dépasser 0 dBi.
2. IC-FR5300/UR-FR5300:
Transmettre que lorsque les gens sont au moins
la distance minimale recommandée de 60 cen-
timètres de l'antenne est correctement installé.
Cette distance de sécurité assurera que les per-
sonnes soient placées suffisamment loin d’une
antenne correctement fixée à l’extérieur pour sat-
isfaire aux exigences en matière d’exposition aux
RF, en vertu des normes de conformité applica-
bles.
2. IC-FR6300/UR-FR6300:
Transmettre que lorsque les gens sont au moins
la distance minimale recommandée de 50 cen-
timètres de l'antenne est correctement installé.
Cette distance de sécurité assurera que les per-
sonnes soient placées suffisamment loin d’une
antenne correctement fixée à l’extérieur pour satis-
faire aux exigences en matière d’exposition aux RF,
en vertu des normes de conformité applicables.
MISE EN GARDE
Afin de vous assurer que votre expo-
sition à une énergie électromagné-
tique de RF se situe dans les limites
permises par la FCC et d’IC pour une
utilisation grand public, veuillez en
tout temps respecter les directives
suivantes:
• NE PAS faire fonctionner la radio sans qu’une
antenne appropriée y soit fixée, car ceci risque
d’endommager la radio et causer une exposition
supérieure aux limites établies par la FCC et d’IC.
L’antenne appropriée est celle qui est fournie avec
cette radio par le fabricant ou une antenne spécia-
lement autorisée par le fabricant pour être utilisée
avec cette radio.
• NE PAS émettre pendant plus de 50% du temps
total d’utilisation de l’appareil («50% du facteur
d’utilisation»). Émettre pendant plus de 50% du
temps total d’utilisation peut causer une exposition
aux RF supérieure aux limites établies par la FCC
et d’IC. Lorsque le voyant DEL rouge s’allume,
cette radio est en train d’émettre. La radio émettra
si vous appuyez sur le bouton du microphone.
Interférence électromagnétique et compatibilité
En mode de transmission, votre radio Icom produit de
l’énergie de RF qui peut provoquer des interférences
avec d’autres appareils ou systèmes. Pour éviter de
telles interférences, mettez la radio hors tension dans
les secteurs où une signalisation l’exige. NE PAS faire
fonctionner l’émetteur dans des secteurs sensibles au
rayonnement électromagnétique tels que les hôpitaux,
les aéronefs et les sites de dynamitage.

1
1
PANEL DESCRIPTION
qINTERNAL SPEAKER
Outputs the received audio.
wVOLUME CONTROL [VOLUME] (p. 7)
Adjusts the audio output level.
eSELECTOR DIAL [SELECT]
Rotate to adjust the squelch threshold level, select
the operating channel. (Depending on the preset-
ting.)
rPOWER INDICATOR [POWER]
➥Lights green at ‘A’ module's indicator while the
repeater power is turned ON.
When a channel extension module is installed:
➥Lights green at the selected module indicator
(‘A’ or ‘B’) while the repeater power is turned
ON.
➥Lights orange at the un-selected module indica-
tor (‘A’ or ‘B’) while the repeater power is turned
ON.
tTRANSMIT INDICATOR [TX]
Lights red while transmitting.
yBUSY INDICATOR [BUSY]
Lights green while receiving a signal or when the
noise squelch is open.
About [PWR], [TX] and [BUSY] indicators:
‘A’ and ‘B’ modules indicators are usable for these
indications. ‘A’ module's indicator corresponds to
the original module, and ‘B’ module's indicator cor-
responds to an extended module.
u MICROPHONE CONNECTOR [MIC]
This 8-pin modular jack accepts an optional micro-
phone.
KEEP the [MIC] connector cover attached to the
repeater when an optional microphone is not
used.
qi
q+8 V DC output (Max. 15 mA)
wOutput port for PC programming
eNC
rM PTT (Input port for TX control)
tMicrophone ground
yMicrophone input
uGround
iInput port for PC programming
iPOWER SWITCH [POWER]
➥Push to turn ON the repeater power.
➥Hold down for 3 seconds to turn OFF the re-
peater power.
When a channel extension module is installed:
➥While the repeater power is turned ON, push
to select the desired module to operate the re-
peater as the base station.
• The power indicator of the selected module unit
lights green.
oDEALER-PROGRAMMABLE KEYS
Desired functions can be independently preset by
your dealer.
Ask your dealer for details.
• Because these keys are programmable, the functions
are unique to each unit.
P
0
P
1
P
2
P
3
P
4
qw e
i uo
Function
display
y
t
r
nFront panel
(Front panel view)

2
1
PANEL DESCRIPTION
qDC POWER CONNECTOR (For cooling fans)
Connects to the supplied CAB-1149 DC power
cable from this connector to an external 13.6 V DC
power source to activate the cooling fans.
See page 5 for the connection details.
w EXTERNAL SPEAKER CONNECTOR [SP]
Connects to the optional SP-35.
eRECEIVE ANTENNA CONNECTOR [RX]
Connects to a receive antenna (impedance: 50 ø).
rACCESSORY CONNECTOR [ACC]
Connects to the accessory connector.
• See p. 3 for accessory connector information.
tDC POWER RECEPTACLE
Connects to the supplied OPC-1784 DC power
cable from an external 13.6 V DC power source.
See page 5 for the connection details.
yTRANSMIT ANTENNA CONNECTOR [TX]
Connects to a transmit antenna (impedance: 50 ø).
we ryt
The optional channel extention module
can be installed.
Ask your dealer for details.
The optional trunking/network controller
can be installed.
Ask your dealer for details.
q
q SIGNAL STRENGTH INDICATOR
Indicates the relative signal strength level.
w LOW POWER INDICATOR
Displays when the low output power is selected.
e AUDIBLE INDICATOR
Displays when the channel is in the ‘audible’ (un-
mute) mode.
r GNSS INDICATOR
Displays when the UC-FR5300 is installed, and the
GNSS (Global Navigation Satellite System) posi-
tioning is established.
This indicator can be deactivated using programing
software.
t ALPHANUMERIC DISPLAY
Shows a variety of text or code information.
y KEY ICON
Displays when the key assigned as the [Lock] or
[Tx Disable] key and it is active.
nRear panel
DFunction display
ICOM Inc.
qwer
t
y
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
The repeater rear panel may be different, depending on the repeater’s version.

3
1PANEL DESCRIPTION
DAccessory connector
q!3
!4 @5
* The desired function can be assigned using the optional CS-FR5300 cloning software. Ask your dealer for details.
Pin No. Pin Name Description Specication
1 NC No connection —
2 TXD Input terminal for serial communication data. —
3 RXD Output terminal for serial communication data. —
4RTS Input terminal for request-to-send data. —
5 CTS Output terminal for clear-to-send data. —
6 NC No connection —
7 GND Serial/digital signal ground —
8 MOD IN Modulator input from an external terminal unit. Input level: 300 mV rms
9 DISC OUT Output terminal for AF signals from the AF detector circuit.
Output level is xed, regardless of the [AF] control setting. Output level: 300 mV rms
10 EXT. D/A Output terminal.
The desired function can be assigned.* (Default: Null) —
11 VCC 13.6 V DC output Output current: Less than 100 mA
12 NC No connection —
13 NC No connection —
14 GND Ground —
15 EXT.I/O 15 The desired function can be assigned.* (Default: Null) +5 V pull up, Active=L
16 EXT.I/O 16 The desired function can be assigned.*
(Default: P0 Monitor Output) +5 V pull up, Active=L
17 EXT.I/O 17 The desired function can be assigned.* (Default: Busy Output) +5 V pull up, Active=L
18 EXT.I/O 18 The desired function can be assigned.* (Default: Null) +5 V pull up, Active=L
19 EXT.I/O 19 The desired function can be assigned.* (Default: EPTT Input) +5 V pull up, Active=L
20 NC No connection —
21 EXT.I/O 21 The desired function can be assigned.*
(Default: Analog Audible Output) +5 V pull up, Active=L
22 AF OUT The AF detector Output. —
23 EXT.I/O 23 The desired function can be assigned.*
(Default: Mic Mute Output) +5 V pull up, Active=L
24 EXT.I/O 24 The desired function can be assigned.* (Default: Null) +5 V pull up, Active=L
25 EXT.I/O 25 The desired function can be assigned.*
(Default: Mic Hanger Output) +5 V pull up, Active=L

2
4
INSTALLATION AND CONNECTIONS
nUnpacking
After unpacking, immediately report any damage to
the delivering carrier or dealer. Keep the shipping car-
tons.
For a description and a diagram of accessory equip-
ment included with the repeater, see ‘SUPPLIED AC-
CESSORIES’ on page i of this manual.
nSelecting a location
Select a location for the repeater that allows adequate
air circulation, free from extreme heat, cold, or vibra-
tions, and away from TV sets, TV antenna elements,
radios and other electromagnetic sources.
nAntenna connection
For radio communications, the antenna is a critical
component, along with output power and sensitivity.
Select antenna(s), such as a well-matched 50 øan-
tenna, and feedline. 1.5:1 or better of Voltage Stand-
ing Wave Ratio (VSWR) is recommended for the de-
sired band. Of course, the transmission line should be
a coaxial cable.
CAUTION: DO NOT install the repeater without a
lightning arrestor to help protect the repeater from
lightning.
NOTE: There are many publications that describe
proper antennas and their installation. Check with
your local dealer for more information and recom-
mendations.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

nFront panel connection
P0P1P2P3P4
SM-26 DESKTOP
MICROPHONE
(optional)
MICROPHONE CONNECTOR (Front panel view)
HM-152 HAND
MICROPHONE
(optional)
qi
CAUTION: DO NOT short pin 1 to ground as this can
damage the internal 8 V regulator. DC voltage is applied
to pin 1 for microphone operation. Only Icom micro-
phones are recommended.
q+8 V DC output (Max. 15 mA)
wOutput port for PC programming
eNC
rM PTT (Input port for TX control)
tMicrophone ground
yMicrophone input
uGround
iInput port for PC programming
nRear panel connection
ACC CONNECTOR (p. 3)
Used for external equipment
control.
[RX ANT]
(p. 4)
[TX ANT] (p. 4)
EXTERNAL SPEAKER
RWARNING!
NEVER remove the
fuse-holder from the
DC power recepta-
cle or cable.
4 øexternal speaker.
Black
Red
Blac
k
Red
20 A
fuses
DC power supplyAC outlet
AC cable
Supplied
DC power cable (OPC-1784)
13.6 V; at least 20 A
Black
_
Red
+
qPush
w
RWhen you disconnect the
DC power cable, take care to
not crack of your fingernail.
Supplied
DC power
cable (CAB-1149)*
1 A
fuses
To a 13.6 V
DC power source
*This connection may not be required, depending on the repeater version.
The repeater rear panel may be different, depending on the repeater version.
5
2INSTALLATION AND CONNECTIONS

6
2
INSTALLATION AND CONNECTIONS
nPower supply connection
Make sure the repeater’s power is turned OFF when
connecting a DC power cable.
RWARNING! NEVER apply more than 16 V DC to
the DC power receptacle on the repeater rear panel.
This could cause a fire or damage the repeater.
nMounting the repeater
DUsing the supplied handles
The supplied handles are used when mounting the re-
peater into a 19 inch rack. The handles are installed on
the repeater’s front panel.
qAttach the supplied handles to both sides of the re-
peater’s front panel with the spacers, then tighten
the screws as shown below.
P
0
P
1
P
2
P
3
P
4
Handle
Spacer
Screw
wThe completed installation should look like the illus-
tration below.
P
0
P
1
P
2
P
3
P
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
nFuse replacement
If a fuse blows, or the repeater stops functioning, find
the source of the problem, repair it and then replace
the damaged fuse with a new rated one.
CAUTION: DO NOT replace the fuse with the DC
power cable connected to the repeater. Disconnect
the cable to prevent electric shock and/or equip-
ment damage.
DLine fuse replacement
Fuse rating: 20 A
USE only a 20 A fuse
.
Fuse rating: 1 A
USE only a 1 A fuse.

nReceiving and transmitting
DRepeater operation
Ask your dealer for details of the repeater’s preset-
tings.
➥ When the power is turned ON, the [PWR] indicator
lights green. (p. 1)
➥ The [TX] or [BUSY] indicator lights simultaneously
while transmitting/receiving a signal.
• The [TX] indicator lights red.
• The [BUSY] indicator lights green.
NOTE: A power amplifier protector is built into the
repeater. The protector is activated when the re-
peater temperature becomes extremely high due to
long periods of transmitting to reduce the transmit
output power level. The output power will return to
its normal level when the repeater has cooled
down.
DBase station operation
Receiving
qPush [POWER] to turn ON the power.
wSet the audio and squelch levels.
➥Rotate [SELECT]*1fully counterclockwise in ad-
vance.
➥Rotate [VOLUME] to adjust the audio output
level.
➥Rotate [SELECT]*1clockwise until the noise just
disappears.
ePush [CH Up]*2or [CH Down]*2to select the de-
sired channel.
• When receiving a signal, the [BUSY] indicator lights
green and audio is heard from the speaker.
• Further adjustment of [VOLUME] to a comfortable lis-
tening level may be necessary at this point.
*1When the [SQL Level Up/Down] key function is assigned
to [SELECT].
*2When the [CH Up]/[CH Down] key functions are as-
signed.
Transmitting
qTake the microphone off hook.
wWait for the channel to become clear.
eHold down [PTT] to transmit, then speak into the
microphone at your normal voice level.
rRelease [PTT] to receive.
IMPORTANT:
To maximize the audio quality of the transmitted
signal:
1. Pause briefly after pushing [PTT].
2. Hold the microphone 5 to 10 cm (2 to 4 inch)
from your mouth, then speak at your normal
voice level.
3
7
OPERATION

4
8
MAINTENANCE
nTroubleshooting
The following chart is designed to help you correct
problems that are not equipment malfunctions.
If you are unable to locate the cause of a problem
or solve it through the use of this chart, contact your
nearest Icom Dealer or Service Center.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
PROBLEM POSSIBLE CAUSE SOLUTION REF.
Power does not come
on when [POWER] is
pushed.
• DC power cable is improperly connected.
• Fuse is blown.
• Re-connect the DC power cable correctly.
• Find the cause and repair it, then replace the
fuse with a rated one.
pp.
5, 6
p. 8
No sound comes from
the speaker.
• Volume level is too low.
• The squelch is closed.
• The audio mute function is activated.
• A selective call or squelch function is acti-
vated such as 5-tone call or tone squelch.
• The front speaker is set to OFF.
• Rotate [VOLUME] clockwise to obtain a suit-
able listening level.
• While in the base operating mode, rotate
[SELECT] to counterclockwise to open the
squelch. (When the [SQL Level Up/Down] key
function is assigned to [SELECT].)
• Push [MONI] (if assigned) to turn the audio
mute function OFF.
• Turn OFF the appropriate function.
• Turn ON the front speaker using the optional
CS-FR5000 cloning software. Ask your
dealer for details.
p. 7
p. 7
–
–
–
Sensitivity is low and
only strong signals
are audible.
• Antenna feedline or the antenna connec-
tor has a poor contact or is short-circuited.
• Check and reconnect (or replace if neces-
sary), the antenna feedline or antenna con-
nector.
p. 5
Received audio is un-
clear or distorted.
• Optional voice scrambler is turned OFF.
• Scrambler code is not set correctly.
• Turn ON the optional voice scrambler.
• Reset the scrambler code.
–
–
Output power is too
low.
• Output power is set to Low.
• Power amplifier protection circuit is acti-
vated.
• Push [HIGH/LOW] (if assigned) to select
High power.
• Cool down the repeater or stop accessing the
repeater until it has cooled down.
–
–
No contact possible
with another station.
• The other station is using tone squelch.
• The operation mode is set to the Full-du-
plex mode. (Base station operation)
• Turn the tone squelch function ON.
• Set the operation mode to the Simplex mode,
if the other station is in the Simplex mode.
–
–

5
9
OPTIONS
• SP-35 external speaker
Compact and easy-to-install.
Input impedance: 4 ø
Rated input: 5 W
Maximum input: 7 W
• HM-152 hand microphone
• SM-26 desktop microphone
• UR-FR5300/UR-FR6300 channel extension modules
• UC-FR5300 trunking/network controller
Some options may not be available in some countries.
Please ask your dealer for details.

6
10
INFORMATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
nVoice coding technology
The AMBE+2™ voice coding Technology embodied in
this product is protected by intellectual property rights
including patent rights, copyrights and trade secrets
of Digital Voice Systems, Inc. This voice coding Tech-
nology is licensed solely for use within this Communi-
cations Equipment.
The user of this Technology is explicitly prohibited
from attempting to extract, remove, decompile, re-
verse engineer, or disassemble the Object Code, or in
any other way convert the Object Code into a human-
readable form. U.S. Patent Nos.
#8,595,002, #8,359,197, #8,315,860, #8,200,497,
#7,970,606, and #6,912,495 B2.
nFCC information
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful in-
terference in a residential installation. This equipment
generates, uses and can radiate radio frequency en-
ergy and, if not installed and used in accordance with
the instructions, may cause harmful interference to
radio communications. However, there is no guaran-
tee that interference will not occur in a particular in-
stallation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be
determined by turning the equipment off and on, the
user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit dif-
ferent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV tech-
nician for help.
CAUTION: Changes or modifications to this repeater, not
expressly approved by Icom Inc., could void your authority
to operate this repeater under FCC regulations.

1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
A?????-1EX
Printed in Japan
© 2020 Icom Inc.
