1
1
ACCESSORIES
■Supplied accessories
The following accessories are supplied: Qty.
qFlexible antenna…………………………………………… 1
wBattery pack ……………………………………………… 1
eBelt clip …………………………………………………… 1
rConnector cover (with screw) ……………………… 1 set
Some accessories are not supplied with depending on versions.
■Accessory attachments
DFlexible antenna
Connect the supplied flexible anten-
na to the antenna connector.
CAUTION!
• NEVER HOLD by the antenna
when carrying the transceiver.
• Transmitting without an antenna
may damage the transceiver.
qwe
r
1

2
1ACCESSORIES
ïBattery pack

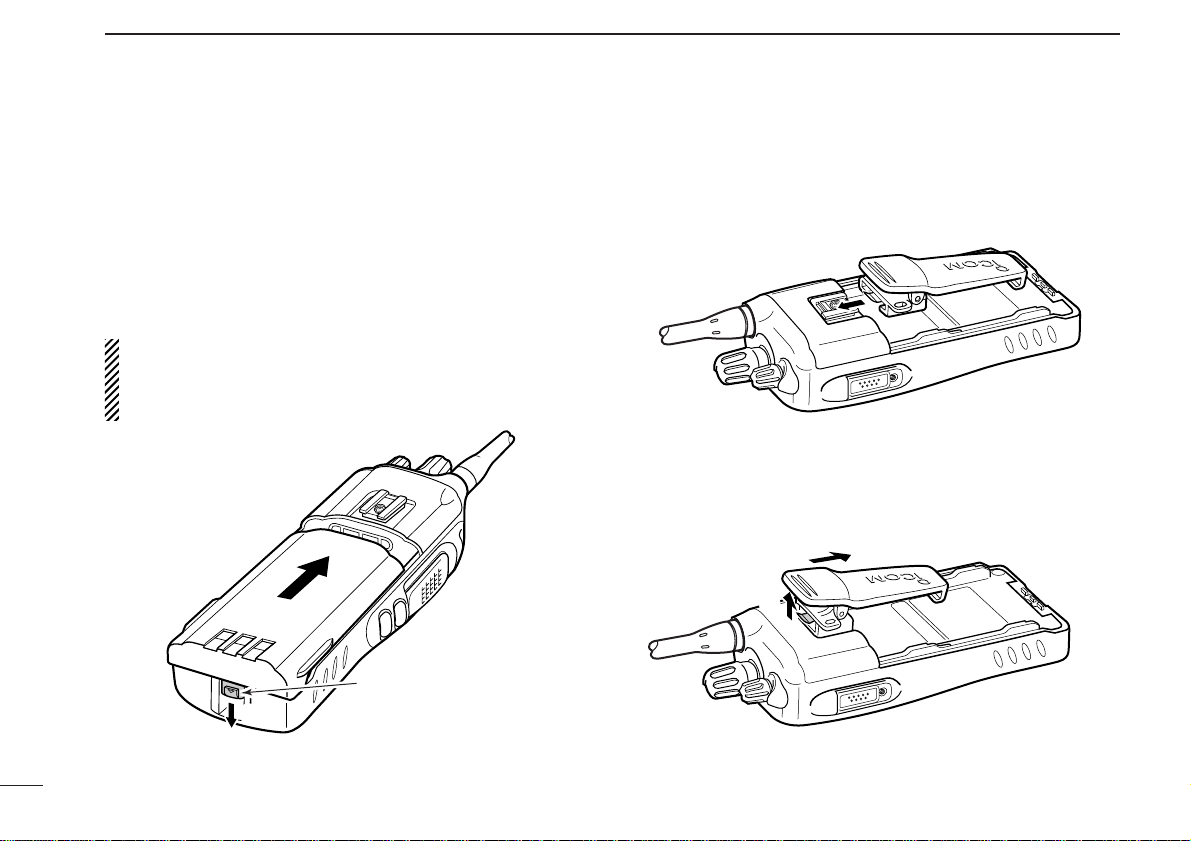

To attach the battery pack:
Slide the battery pack in the direction of the arrow (q), then
lock it with the battery release button.
• Slide the battery pack until the battery release button makes a ‘click’
sound.
To release the battery pack:
Slide the battery release button in the direction of the arrow
(w) as shown below. The battery pack is then released.
NEVER release or attach the battery pack when the trans-
ceiver is wet or soiled. This may result water or dust get-
ting into the transceiver/battery pack and may result in the
transceiver being damaged.
DBelt clip
To attach the belt clip:
qRelease the battery pack if it is attached.
wSlide the belt clip in the direction of the arrow until the belt
clip is locked and makes a ‘click’ sound.
To detach the belt clip:
qRelease the battery pack if it is attached.
wPinch the clip (q), and slide the belt clip in the direction of
the arrow (w).
q
w
q
w
Battery release button

3
1
ACCESSORIES
1
ïConnector cover
Attach the connector cover when the optional speaker-micro-
phone or head-set is not used.
To attach the connector cover:
qInsert the connector cover into the multi-connector.
wTighten the screw.
CAUTION!
Attach the connector cover when the optional speaker-
microphone or head-set is not used.
Otherwise the terminals of the multi-connector may be
shorted by metal object, etc., and this could damage the
transceiver.
To detach the connector cover:
qUnscrew the screw using a phillips screwdriver.
wDetach the connector cover for the speaker-microphone or
head-set connector.
q
w
q
w
Multi-
connector
Connector
cover

4
2PANEL DESCRIPTION
■Front panel

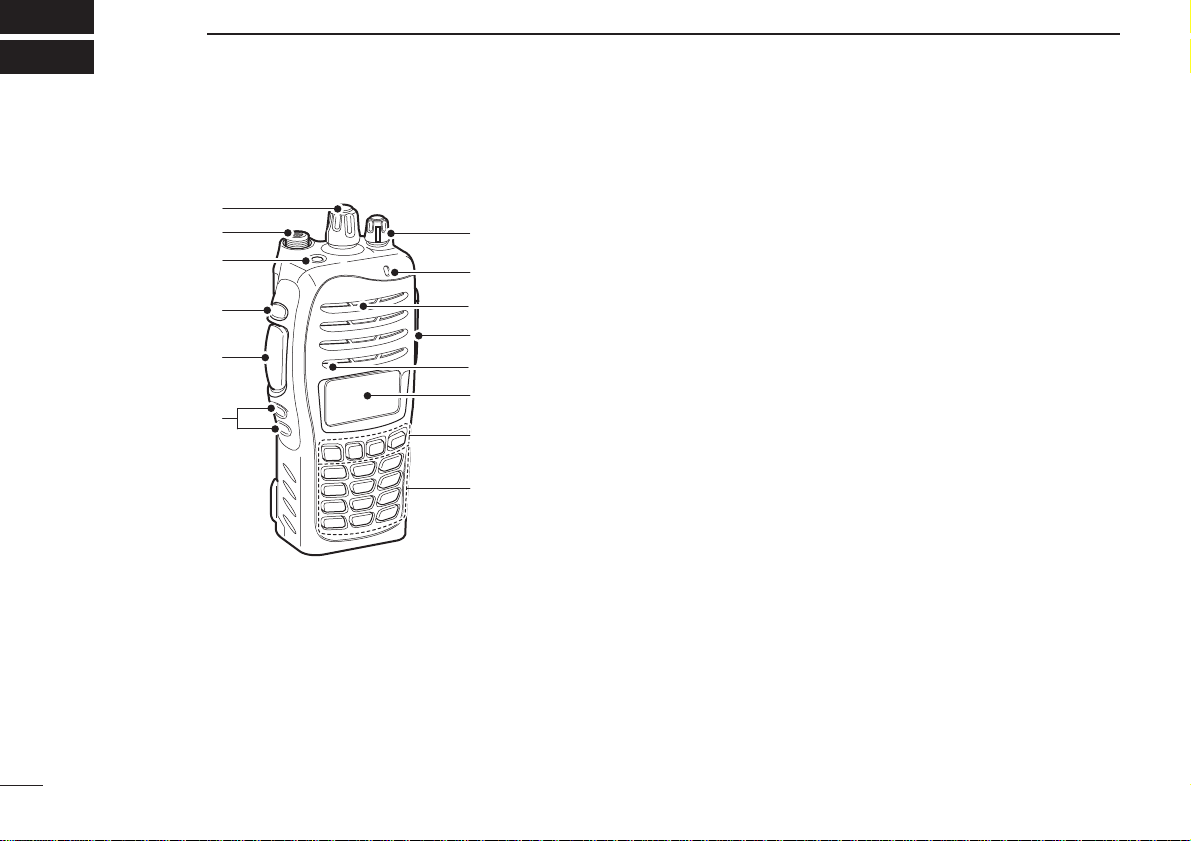

qROTARY SELECTOR
Rotate to select the pre-programmed memory channels or
the operating zone.
(Depending on the pre-setting)
wANTENNA CONNECTOR
Connects the supplied antenna.
eDEALER-PROGRAMMABLE KEY [Emer]
Desired functions can be programmed by your dealer.
((☞ p. 7))
rDEALER-PROGRAMMABLE KEY [Side1]
Desired functions can be programmed by your dealer.
((☞ p. 7))
tPTT SWITCH [PTT]
Push and hold to transmit; release to receive.
yDEALER-PROGRAMMABLE KEYS [Side2]/[Side3]
Desired functions can be programmed independently by
your dealer. ((☞ p. 7))
u10-KEYPAD (Depending on version)
The keypad allows you to enter digits to:
• Select memory channels
• Select tone channels
• Select DTMF codes (during transmit)
• Set TX codes
• Start up with the password
iDEALER-PROGRAMMABLE KEYS [P0] to [P3]
Desired functions can be programmed independently by
your dealer. ((☞ p. 7))
oFUNCTION DISPLAY
Displays a variety of information such as an operating
channel number/name, 2-tone code, DTMF numbers,
selected function, etc.
w
e
t
r
y
q
!1
!0
o
!2
u
i
Microphone
Speaker

5
2
PANEL DESCRIPTION
2
!0 MULTI-CONNECTOR
Connect an optional speaker-microphone.
!1 BUSY/TRANSMIT INDICATOR
➥ Lights green while receiving a signal, or when the
squelch is open.
➥ Lights red while transmitting.
!2 VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjusts the audio
level.

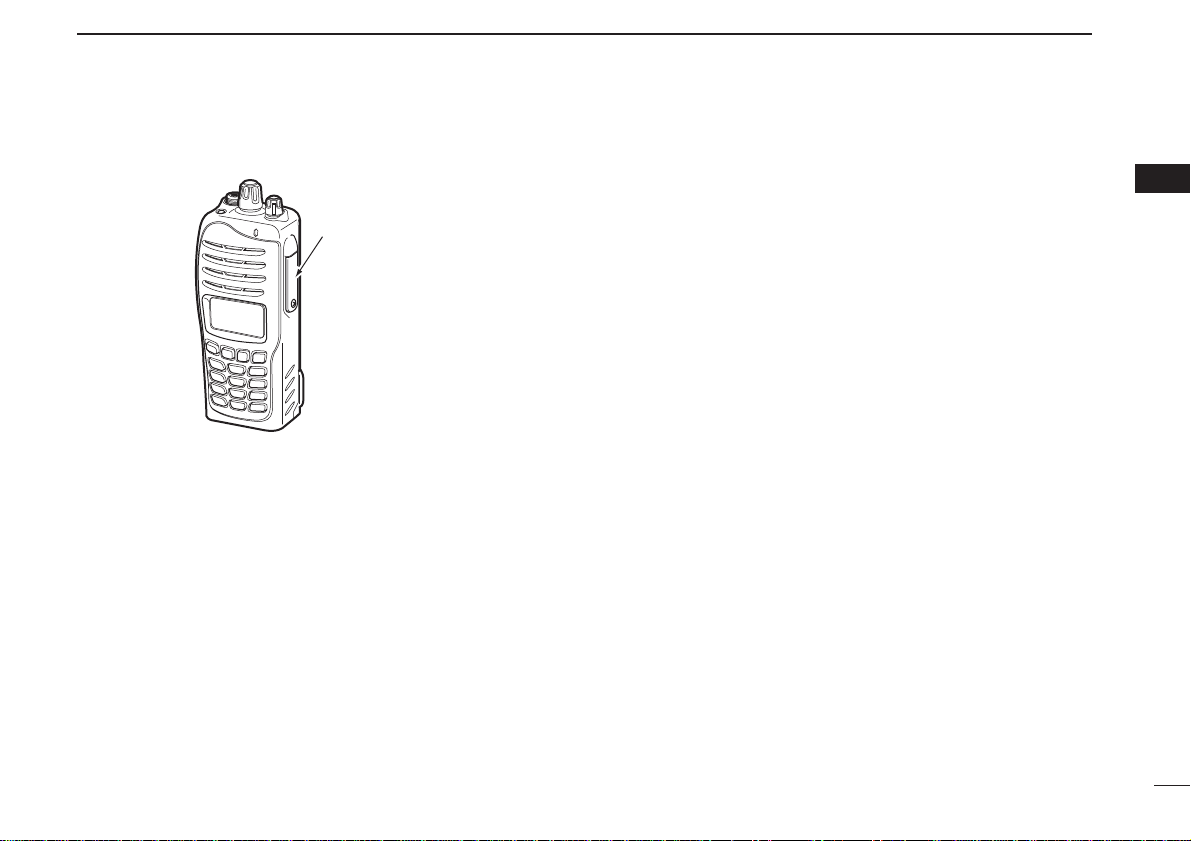

Connector cover
NOTE: Attach the connector
cover when the optional speak-
er-microphone is not used.
See ((☞ p. 3)) for details.

6
2PANEL DESCRIPTION
■Function display

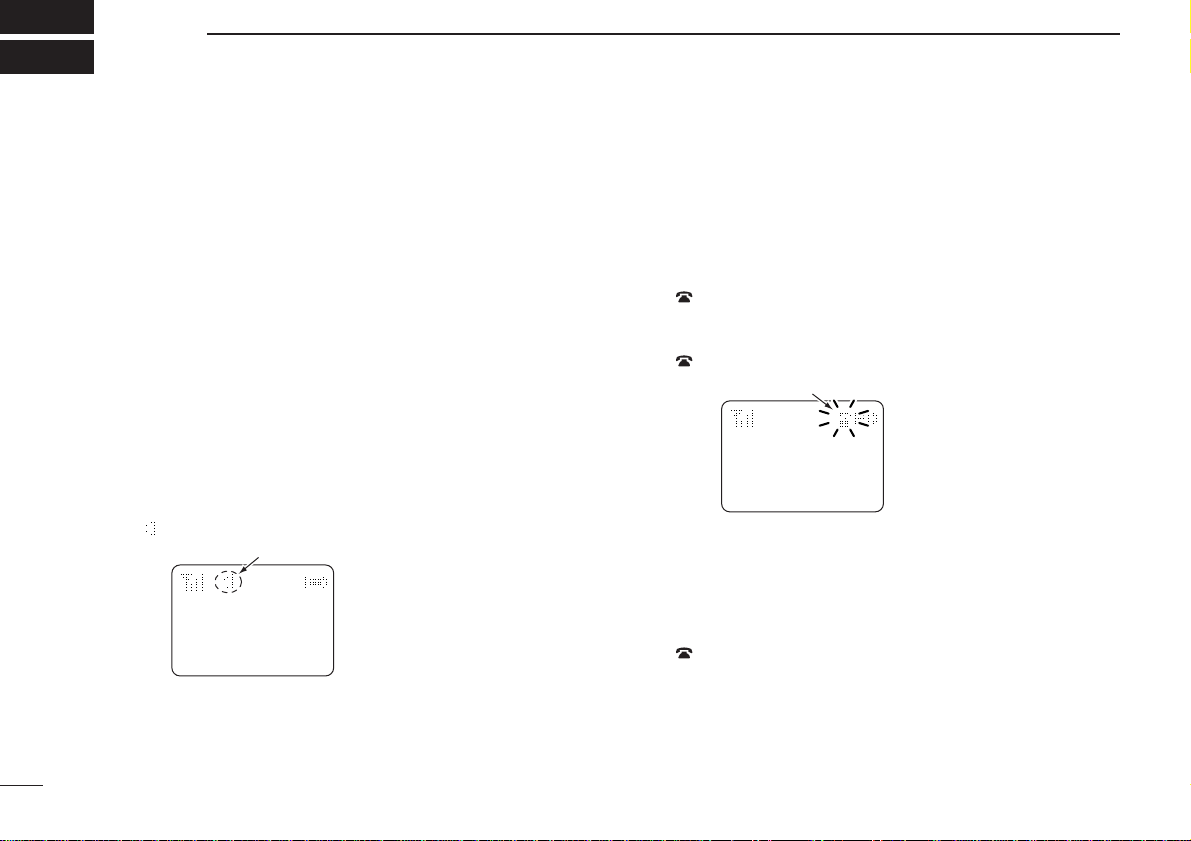

qSIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
wLOW POWER INDICATOR
Appears when low output power is selected.
eAUDIBLE INDICATOR
➥Appears when the channel is in the ‘audible’ (un-mute)
condition.
➥Appears when the specified 2-tone is received.
rCOMPANDER INDICATOR
Appears when the compander function is activated.
tSCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
yBELL INDICATOR
Appears/blinks when the specific 2-tone/DTMF select call
is received, according to the pre-programming.
uCALL CODE MEMORY INDICATOR
Appears when the call code memory is selected.
iBATTERY INDICATOR
Appears or blinks when the battery power decreases to a
specified level.
oALPHANUMERIC DISPLAY
➥Displays an operating channel number, channel name,
Set mode contents, DTMF code, etc.
➥The indication mode can be selected from 1 line or 2
lines. Ask your dealer for details.
• In this instruction manual, the LCD illustration is described
using the 2 lines indication mode.
!0 KEY INDICATOR
Indicate the programmed function of the front panel keys
([P0], [P1], [P2] and [P3]).
SET CALA TXCU TXC
q t iuyrew
o
!0
