INSTRUCTION MANUAL
iM88
VHF MARINE TRANSCEIVER
This device complies with Part 15 of the FCC Rules. Operation is sub-
ject to the follow two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IC-M88-2.qxd 02.11.22 3:25 PM Page A (1,1)

SAFETY TRAINING INFORMATION
Your Icom radio generates RF electromagnetic energy during
transmit mode. This radio is designed for and classified as
“Occupational Use Only”, meaning it must be used only during
the course of employment by individuals aware of the haz-
ards, and the ways to minimize such hazards. This radio is
NOT intended for use by the “General Population” in an un-
controlled environment.
This radio has been tested and complies with the FCC RF exposure limits for
“Occupational Use Only”. In addition, your Icom radio complies with the follow-
ing Standards and Guidelines with regard to RF energy and electromagnetic
energy levels and evaluation of such levels for exposure to humans:
• FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance
with FCC Guidelines for Human Exposure to Radio Frequency Electro-
magnetic Fields.
• American National Standards Institute (C95.1-1992), IEEE Standard for
Safety Levels with Respect to Human Exposure to Radio Frequency Elec-
tromagnetic Fields, 3 kHz to 300 GHz.
• American National Standards Institute (C95.3-1992), IEEE Recommended
Practice for the Measurement of Potentially Hazardous Electromagnetic
Fields– RF and Microwave.
To ensure that your expose to RF electromagnetic en-
ergy is within the FCC allowable limits for occupational
use, always adhere to the following guidelines:
• DO NOT operate the radio without a proper antenna at-
tached, as this may damaged the radio and may also cause
you to exceed FCC RF exposure limits. A proper antenna is the antenna sup-
plied with this radio by the manufacturer or antenna specifically authorized by
the manufacturer for use with this radio.
CAUTION
WARNING
• DO NOT transmit for more than 50% of total radio use time (“50% duty
cycle”). Transmitting more than 50% of the time can cause FCC RF expo-
sure compliance requirements to be exceeded. The radio is transmitting
when the “TX indicator” lights red. You can cause the radio to transmit by
pressing the “PTT” switch.
• ALWAYS use Icom authorized accessories (antennas, batteries, belt clips,
etc.). Use of unauthorized accessories can cause the FCC RF exposure
compliance requirements to be exceeded.
• ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body
when transmitting and only use the Icom belt-clips which are listed on
page 31 when attaching the radio to your belt, etc., to ensure FCC RF ex-
posure compliance requirements are not exceeded. To provide the recipi-
ents of your transmission the best sound quality, hold the antenna at least
5 cm (2 inches) from your mouth, and slightly off to one side.
The information listed above provides the user with the information needed to
make him or her aware of RF exposure, and what to do to assure that this radio
operates with the FCC RF exposure limits of this radio.
Electromagnetic Interference/Compatibility
During transmissions, your Icom radio generates RF energy that can possibly
cause interference with other devices or systems. To avoid such interference,
turn off the radio in areas where signs are posted to do so. DO NOT operate
the transmitter in areas that are sensitive to electromagnetic radiation such as
hospitals, aircraft, and blasting sites.
i
IC-M88-2.qxd 02.11.22 3:24 PM Page ii (1,1)

ii
IN CASE OF EMERGENCY
If your vessel requires assistance, contact other vessels and
the Coast Guard by sending a distress call on Channel 16.
❍USING CHANNEL 16
DISTRESS CALL PROCEDURE
1. “MAYDAY MAYDAY MAYDAY.”
2. “THIS IS ...........................” (name of vessel)
3. Your call sign or other indication of the ves-
sel.
4. “LOCATED AT .....................” (your position)
5. The nature of the distress and assistance re-
quired.
6. Any other information which might facilitate
the rescue.

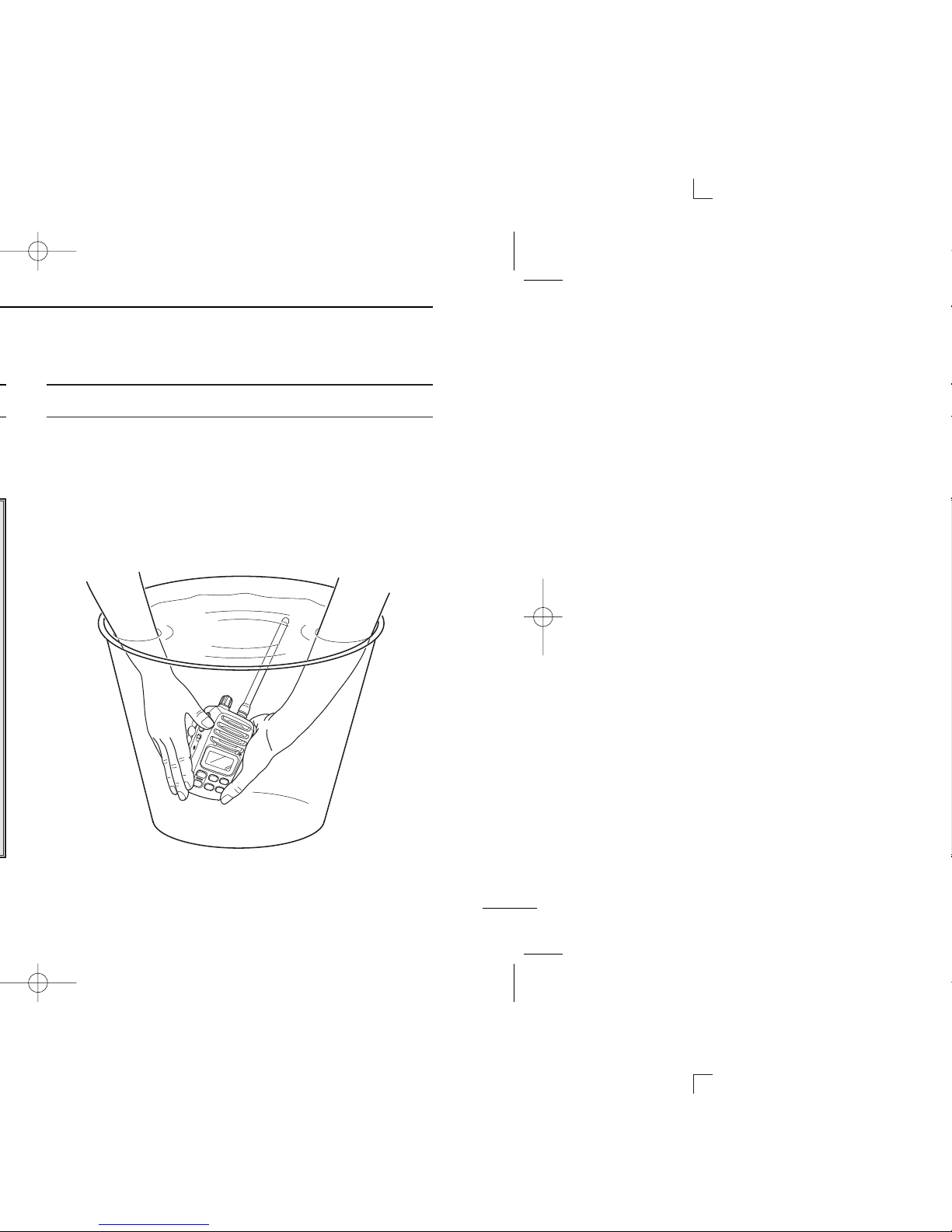

RECOMMENDATION
CLEAN THE TRANSCEIVER THOROUGHLY WITH FRESH
WATER after exposure to saltwater. Otherwise, the trans-
ceiver’s keys, switches and controllers may become inopera-
ble due to salt crystallization.
IC-M88-2.qxd 02.11.22 3:24 PM Page iii (1,1)

iii
FOREWORD
Thank you for purchasing this Icom product. The IC-M88 VHF
MARINE TRANSCEIVER is designed and built with Icom’s state
of the art technology and craftsmanship. With proper care this
product should provide you with years of trouble-free operation.
IMPORTANT
READ ALL INSTRUCTIONS carefully and com-
pletely before using the transceiver.
SAVE THIS INSTRUCTION MANUAL—This in-
struction manual contains important operating instructions for
the IC-M88.
EXPLICIT DEFINITIONS
FEATURES
☞22 free channels for land use
The IC-M88 has 22 free channels reserved for Land use
(146–174MHz). Wide/narrow
channel spacing is program-
mable for each channel, and CTCSS and DTCS signaling
is included.
*Appropriate license may be required.
☞Tough waterproof construction
The IC-M88 is built tough to withstand hazardous and un-
hospitable environments at sea and on land. Even if the
IC-M88 is dropped into water, it’s waterproofing* will pro-
tect it from harm. The compact and durable body meets
the military specifications (MIL-STD).
* Equivalent to JIS waterproof grade 7. (1m depth for 30 minutes)
☞Simple operation
6 clearly labelled buttons on the front panel and the vol-
ume/power knob maximize simplicity of operation. Even
when wearing gloves, the large buttons are easy to oper-
ate. A large, clear LCD with backlighting and backlit but-
tons make night time operation simple.
☞Intrinsically safe (I/S) version available
WORD DEFINITION
RWARNING Personal injury, fire hazard or electric shock
may occur.
CAUTION Equipment damage may occur.
NOTE If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
IC-M88-2.qxd 02.11.22 3:24 PM Page iv (1,1)

PRECAUTION
RWARNING! NEVER connect the transceiver to an
AC outlet. This may pose a fire hazard or result in an electric
shock.
RWARNING! NEVER hold the transceiver so that the
antenna is very close to, or touching exposed parts of the
body, especially the face or eyes, while transmitting. The
transceiver will perform best if the microphone is 5 to 10 cm
(2 to 4 inches) away from the lips and the transceiver is verti-
cal.
NEVER connect the transceiver to a power source other
than the BP-226 or BP-227. Such a connection will ruin the
transceiver.
AVOID using or placing the transceiver in direct sunlight or
in areas with temperatures below –20°C (–4°F) or above
+60°C (+140°F): Marine, below –30°C (–22°F) or above
+60°C (+140°F): LMR.
KEEP the transceiver out of the reach of children.
KEEP the transceiver at least 0.9 meters (3.0 ft) away from
your vessel’s magnetic navigation compass.
iv
BE CAREFUL! The IC-M88 employs waterproof con-
struction, which corresponds to JIS waterproof specification,
Grade 7 (1 m; 3 ft depth for 30 min.). However, once the
transceiver has been dropped, waterproofing cannot be guar-
anteed due to the fact that the transceiver may be cracked,
or the waterproof seal damaged, etc.
MAKE SURE the flexible antenna and battery pack are
securely attached to the transceiver, and that the antenna and
battery pack are dry before attachment. Exposing the inside
of the transceiver to water will result in serious damage to the
transceiver.
For U.S.A. only
CAUTION: Changes or modifications to this device, not
expressly approved by Icom Inc., could void your authority to
operate this device under FCC regulations.
Icom, Icom Inc. and are registered trademarks of Icom Incorporated
(Japan) in the United States, United Kingdom, Germany, France, Spain, Russia
and/or other countries.
IC-M88-2.qxd 02.11.22 3:24 PM Page v (1,1)

v
SAFETY TRAINING INFORMATION ................................... i
IN CASE OF EMERGENCY ............................................... ii
RECOMMENDATION .......................................................... ii
FOREWORD ...................................................................... iii
IMPORTANT ....................................................................... iii
EXPLICIT DEFINITIONS .................................................... iii
FEATURES ......................................................................... iii
PRECAUTION .................................................................... iv
TABLE OF CONTENTS ...................................................... v
1 OPERATING RULES ...................................................... 1
2 SUPPLIED ACCESSORIES AND ATTACHMENTS.... 2–3
3 PANEL DESCRIPTION ............................................... 4–7
■Front, top and side panels............................................ 4
■Function display .......................................................... 6
4 BASIC OPERATION ................................................. 8–12
■Channel selection ........................................................ 8
■Receiving and transmitting ........................................ 10
■Adjusting the squelch level ........................................ 11
■Automatic backlighting ............................................... 11
■Voice scrambler operation ......................................... 11
■Call channel programming ........................................ 12
■Lock function ............................................................. 12
5 SCAN OPERATION ................................................ 13–14
■Scan types ................................................................. 13
■Setting tag channels .................................................. 14
■Starting a scan .......................................................... 14
TABLE OF CONTENTS
6 DUALWATCH/TRI-WATCH .......................................... 15
■Description ................................................................ 15
■Operation ................................................................... 15
7 LAND CHANNEL OPERATION ................................... 16
■LAND Channel Group ............................................... 16
■Function display ......................................................... 16
8 SET MODE ............................................................. 17–21
■SET mode programming ........................................... 17
■SET mode items ........................................................ 18
9 BATTERY CHARGING ........................................... 22–26
■Battery charging ........................................................ 22
■Battery cautions ......................................................... 22
■Optional BP-226 battery case ................................... 24
■AD-100 installation .................................................... 25
■Optional battery chargers .......................................... 26
10 SPEAKER-MICROPHONE .......................................... 27
■HM-138 Description ................................................... 27
■Attachments .............................................................. 27
11 TROUBLESHOOTING ................................................. 28
12 VHF MARINE CHANNEL LIST ................................... 29
13 SPECIFICATIONS .........................................................30
14 QUICK REFERENCE ....................................................31
15 OPTIONS.......................................................................33
IC-M88-2.qxd 02.11.22 3:24 PM Page vi (1,1)

1
1
OPERATING RULES
DPriorities
• Read all rules and regulations pertaining to priorities and
keep an up-to-date copy handy. Safety and distress calls
take priority over all others.
• You must monitor Channel 16 when you are not operating
on another channel.
• False or fraudulent distress calls are prohibited under law.
DPrivacy
• Information overheard but not intended for you cannot law-
fully be used in any way.
• Indecent or profane language is prohibited.
DRadio licenses
(1) SHIP STATION LICENSE
When your craft is equipped with a VHF FM transceiver, you
must have a current radio station license before using the
transceiver. It is unlawful to operate a ship station which is not
licensed.
Inquire through your dealer or the appropriate government
agency for a Ship-Radiotelephone license. This license in-
cludes the call sign which is your craft’s identification for radio
purposes.
(2) OPERATOR’S LICENSE
A restricted Radiotelephone Operator Permit is the license
most often held by small vessel radio operators when a radio
is not required for safety purposes.
The Restricted Radiotelephone Operator Permit must be
posted near the transceiver or be kept with the operator. Only
a licensed radio operator may operate a transceiver.
However, non-licensed individuals may talk over a transceiver
if a licensed operator starts, supervises, ends the call and
makes the necessary log entries.
A current copy of the applicable government rules and regu-
lations is only required to be on hand for vessels in which a
radio telephone is compulsory. However, even if you are not
required to have these on hand it is your responsibility to be
thoroughly acquainted with all pertinent rules and regulations.
NOTE: Even though the IC-M88 is capable of operation
on VHF marine channels 3, 21, 23, 61, 64, 81, 82 and 83,
according to FCC regulations these simplex channels can-
not be lawfully used by the general public in USA waters.
IC-M88-2.qxd 02.11.22 3:24 PM Page 1 (1,1)

2
2SUPPLIED ACCESSORIES AND ATTACHMENTS
DSupplied accessories
The following accessories are supplied: Qty.
• Swivel belt clip . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
• Stopper for the swivel belt clip . . . . . . . . . . . . . . . .1
• Screws for the swivel belt clip . . . . . . . . . . . . . . . .2
• Flexible antenna . . . . . . . . . . . . . . . . . . . . . . . . . .1
• Handstrap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
• Battery pack (BP-227) . . . . . . . . . . . . . . . . . . . . . .1
• AC adapter (BC-147A/E)* . . . . . . . . . . . . . . . . . . .1
• Battery charger (BC-152) . . . . . . . . . . . . . . . . . . .1
*Depending on version
DSwivel belt clip
To attach:
qAttach the stopper to the back of the transceiver.
wClip the belt clip to a part of your belt and insert the stopper to the
belt clip.
eOnce the transceiver is locked in place, it will swivel 360 degrees.
Supplied screws
Stopper
IC-M88-2.qxd 02.11.22 3:24 PM Page 2 (1,1)

3
2
SUPPLIED ACCESSORIES AND ATTACHMENTS
DFlexible antenna
Connect the supplied flexible an-
tenna to the antenna connector.
CAUTION: Transmitting with-
out an antenna may damage
the transceiver.
NEVER HOLD by the antenna
when carrying the transceiver.
To remove:
Turn the transceiver upside down, and then lift up to re-
lease the transceiver from the belt clip.
RRCAUTION!
HOLD THE TRANSCEIVER TIGHTLY, WHEN ATTACHING
OR REMOVING THE TRANSCEIVER FROM THE BELT
CLIP.
If the transceiver is accidentally dropped and the swivel belt
clip’s stopper is scratched or damaged, the swivel belt clip
may not work properly.
DHandstrap
Slide the handstrap through
the loop on the side of the
transceiver as illustrated at
right. Facilitates carrying.
IC-M88-2.qxd 02.11.22 3:24 PM Page 3 (1,1)

4
3PANEL DESCRIPTION
qVOLUME CONTROL [VOL]
Turns power ON and adjusts the audio level.
wANTENNA CONNECTOR (p. 3)
Connects the supplied antenna.
eSPEAKER-MICROPHONE CONNECTOR [SP MIC] (p.27)
Connects the optional speaker-microphone.
rSCAN [SCN•DUAL] (pgs. 14, 15)
•Starts and stops normal or priority scan.
•Enters Watch mode when pushed for 1 sec.
tTRANSMIT POWER/LOCK SWITCH
[H/L•LOCK]
•Selects high, middle or low power when pushed. (p. 10)
•Toggles the lock function ON/OFF when pushed for 1
sec. (p. 12)
yCHANNEL 16 SWITCH [16•9]
•Selects Channel 16 when pushed. (p. 8)
•Selects the call channel when pushed for 1 sec. (p. 8)
•Enters call channel write mode when the call channel is
selected and this switch is pushed for 3 sec. (p. 12)
u
r
t
i
o
!0
q
w
y
e
■Front, top and side panels
[SP MIC] jack cover
NOTE: KEEP the [SP MIC] jack cover
attached to the transceiver when the
speaker-microphone is not in use.
