USER’S MANUAL
www.nordictrack.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. NTCCEX23012.0
Serial No.
Write the serial number in the space
above for reference.
QUESTIONS?
If you have questions, or if parts
are damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-888-936-4266
Mon.–Fri. 7:30 until 16:30 ET
(excluding holidays)
OR E-MAIL US:
[email protected]

2
WARNING DECAL PLACEMENT
TABLE OF CONTENTS
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
NORDICTRACK is a registered trademark of ICON IP, Inc.
This product should
always be used on a
level surface.
This product is not
intended for
therapeutic use.
Misuse of this machine
may result in serious
injury.
Read user’s manual
prior to use and follow
all warnings and
instructions.
Do not allow children
on or around machine.
User weight must not
exceed 275 pounds.
Replace label if
damaged, illegible,
or removed.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
MAINTENANCE AND TROUBLESHOOTING.....................................................22
EXERCISE GUIDELINES ....................................................................24
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. Use the exercise bike only as described in
this manual.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used by
persons weighing more than 275 lbs.
(125 kg).
11. Be careful when mounting and dismounting
the exercise bike.
12. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
13. Always keep your back straight while using
the exercise bike; do not arch your back.
14. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
15. This Class [B] digital apparatus complies
with Canadian ICES-003.

4
Heart Rate Monitor
Seat
Seat Knob
Leveling Knob
Wheel
Pedal/Strap
Console
Handlebar
Seat Post Knob
BEFORE YOU BEGIN
Thank you for selecting the revolutionary
NORDICTRACK®GX 2.5 exercise bike. Cycling is an
effective exercise for increasing cardiovascular fitness,
building endurance, and toning the body. The GX 2.5
exercise bike provides an impressive selection of fea-
tures designed to make your workouts at home more
effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Length: 3 ft. 5 in. (104 cm)
Width: 1 ft. 11 in. (58 cm)

5
M4 x 16mm
Screw (43)–4
M10 x 95mm
Screw (53)–4
M8 Split
Washer (64)–8
M4 x 22mm
Screw (31)–4
M6 x 20mm
Screw (18)–4
M6 Split
Washer (74)–4
M8 x 16mm
Screw (65)–8
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.

6
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materialsuntilyounishallassemblysteps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1. Set a sturdy piece of packing material under the
rear of the Frame (1). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Identify the Rear Stabilizer (3). Note: The Rear
Stabilizer does not have wheels; the Front
Stabilizer (not shown) does have wheels.
Orient the Rear Stabilizer (3) so that the welded
tubes are facing away from the Frame (1).
Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 95mm Screws (53).
Remove the packing material.
1
3
53 Welded
Tubes
1
2. Set a sturdy piece of packing material under the
front of the Frame (1). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Orient the Front Stabilizer (2) so that the wheels
are facing away from the Frame (1).
Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 95mm Screws (53).
Remove the packing material.
2Wheel
253
1

7
3
3. Loosen the Seat Post Knob (27) in the Frame (1)
a few turns.
Orient the Seat Post (6) as shown. Then, insert
the Seat Post into the Frame (1).
Slide the Seat Post (6) upward or downward to
the desired position, and tighten the Seat Post
Knob (27) into an adjustment hole in the Seat
Post.
Move the Seat Post (6) upward or downward
slightly to make sure that the Seat Post Knob
(27) is engaged in one of the adjustment
holes in the Seat Post.
6
Adjustment
Holes
127
4
4. Orient the Seat (23) and the Seat Carriage (24)
as shown.
Attach the Seat (23) to the Seat Carriage (24)
with four M8 x 16mm Screws (65) and four M8
Split Washers (64).
23
24
64
65

8
5
6
6. While a second person holds the Handlebar (5)
near the Upright (4), insert the Pulse Wire (61)
into the hole in the Upright and pull it out of the
top of the Upright.
Tip: Avoid pinching the wires. Attach the
Handlebar (5) to the Upright (4) with four
M6 x 20mm Screws (18) and four M6 Split
Washers (74).
Avoid
pinching
the wires
18
18 74
74
Hole
4
61
5
5. Remove the Seat Knob (26) from the Seat
Carriage (24). Hold the Seat Bracket (30) inside
the Seat Carriage to prevent it from moving.
Next, set the Seat Carriage (24) on the Seat
Post (6). Insert the Seat Knob (26) upward into
the Seat Post, and tighten the Seat Knob into the
Seat Bracket (30) inside the Seat Carriage.
26
30
24
6

9
7
8. Orient the Upright (4) assembly and the Pivot
Cover (12) as shown.
Slide the Pivot Cover (12) upward to the
Handlebar (5). Tip: Bend and flex the Pivot
Cover slightly to slide it over the Handlebar.
Attach the Pivot Cover (12) to the Handlebar (5)
with four M4 x 22mm Screws (31).
43
43
8
12
31
31
4
5
7. While a second person holds the Console (13)
near the Upright (4), connect the console wires
to the Extension Wire (59) and to the Pulse
Wire (61).
Insert the excess wire into the Upright (4) or into
the Console (13).
Tip: Avoid pinching the wires. Attach the
Console (13) to the Upright (4) with four M4 x
16mm Screws (43).
Avoid pinching
the wires
13
61 59 4

10
9
10. Identify the Right Pedal (21).
Using an adjustable wrench, firmly tighten the
Right Pedal (21) clockwise into the Right Crank
Arm (19).
Tighten the Left Pedal (not shown) counter-
clockwise into the Left Crank Arm (not shown).
Adjust the strap on the Right Pedal (21) to the
desired position, and press the ends of the
straps onto the tabs on the Right Pedal. Adjust
the strap on the Left Pedal (not shown) in the
same way.
10
9. Slide the Front Shield Cover (7) upward onto the
Upright (4).
While a second person holds the Upright (4)
near the Frame (1), connect the Extension Wire
(59) to the Main Wire (58).
Insert the Upright (4) into the Frame (1).
Tip: Avoid pinching the wires. Attach the
Upright (4) with four M8 x 16mm Screws (65)
and four M8 Split Washers (64).
Slide the Front Shield Cover (7) downward to the
Frame (1) and press it into place.
Avoid pinching
the wires
64
64
64
65
65
58
59
4
7
1
19
Strap
Tab
21

11
67
11
11. Plug the Power Adapter (67) into the receptacle
on the frame of the exercise bike.
Note: To plug the Power Adapter (67) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 12.
12. Make sure that all parts are properly tightened before you use the exercise bike. After the exercise
bike is assembled, inspect it to make sure that it is assembled correctly and that it functions properly.
Note: Extra parts may be included. Place a mat under the exercise bike to protect the floor or carpet.

12
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the exercise bike has been exposed
to cold temperatures, allow it to warm to room
temperature before you plug in the power adapter.
If you do not do this, you may damage the console
displays or other electronic components.
Plug the power
adapter into the
receptacle on
the frame of the
exercise bike.
Then, plug the
power adapter
into an appropri-
ate outlet that is
properly installed
in accordance with
all local codes and
ordinances.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise
bike rocks slightly
on your floor dur-
ing use, turn one
or both of the lev-
eling feet on the
rear stabilizer until
the rocking motion
is eliminated.
HOW TO ADJUST THE HEIGHT OF THE SEAT
For effective exercise, the seat should be at the proper
height. As you pedal, there should be a slight bend in
your knees when the pedals are in the lowest position.
To adjust the seat,
first loosen the
seat post knob a
few turns. Next,
slide the seat
post upward or
downward to the
desired position,
and then tighten
the knob into an
adjustment hole
in the seat post.
Move the seat
post upward or
downward slightly to make sure that the knob is
engaged in one of the adjustment holes in the seat
post.
HOW TO ADJUST THE HORIZONTAL POSITION OF
THE SEAT
To adjust the
horizontal position
of the seat, first
loosen the seat
knob a few turns.
Then, move the
seat forward or
backward to the
desired position,
and firmly tighten
the knob.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the
pedal straps, first
pull the ends of
the straps off the
tabs on the ped-
als. Then, adjust
the straps to the
desired position,
and press the
ends of the straps
onto the tabs.
HOW TO USE THE EXERCISE BIKE
Knob
Leveling
Feet
Seat Knob
Tab
Strap

13
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. While you exercise, the console will display
continuous exercise feedback. You can also measure
your heart rate using the handgrip heart rate monitor.
The console offers twenty onboard workouts—ten
calorie workouts and ten performance workouts. Each
workout automatically changes the resistance of the
pedals as it guides you through an effective workout.
You can also set a calorie, distance, or time goal.
The console also features an iFit mode that enables
the console to communicate with your wireless network
through an optional iFit module. With the iFit mode,
you can download personalized workouts, create
your own workouts, track your workout results, race
against other iFit users, and access many other fea-
tures. To purchase an iFit module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 14. To use
the sound system, see page 15. To use an
onboard workout, see page 16. To use a set-
a-goal workout, see page 17. To use an iFit
workout, see page 18. To change console set-
tings, see page 20.
Note: If there is a sheet of plastic on the display,
remove the plastic.

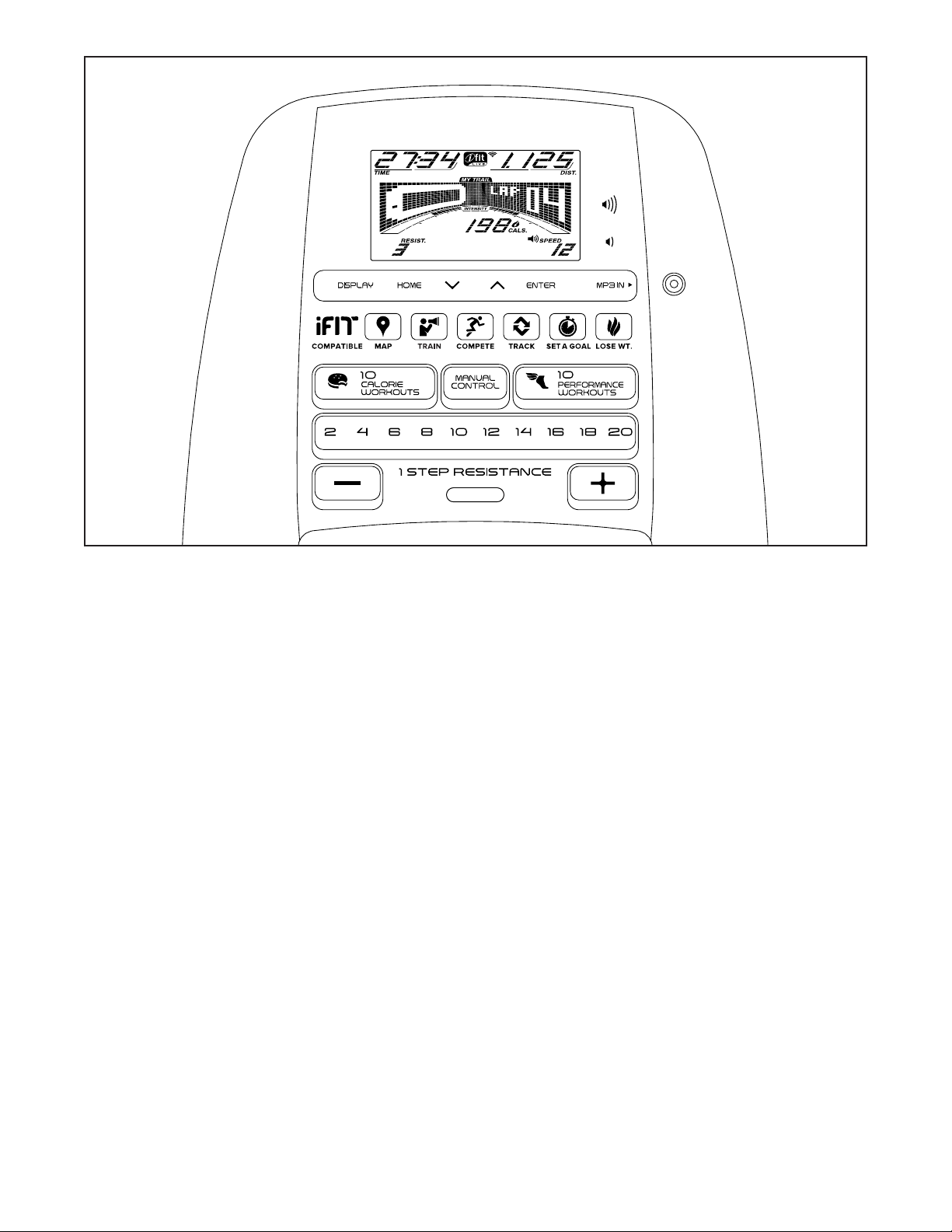

CONSOLE DIAGRAM

14
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
When you turn on the console, the display will turn
on. The console will then be ready for use.
2. Select the manual mode.
Press the Manual Control button on the console to
select the manual mode.
If a wireless iFit module is not inserted into the con-
sole and connected to iFit, the manual mode will be
selected automatically.
3. Change the resistance of the pedals as desired.
As you pedal, change the resistance of the pedals
by pressing the 1 Step Resistance increase and
decrease buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected resis-
tance level.
4. Follow your progress with the display.
The display can show the following workout
information:
Calories (Cals.)—This display mode will show the
approximate number of calories you have burned.
Calories per Hour (Cals./Hr)—This display mode
will show the approximate number of calories you
are burning per hour.
Distance (Dist.)—This display mode will show
the distance that you have pedaled in miles or
kilometers.
Pulse—This display mode will show your heart rate
when you use the handgrip heart rate monitor (see
step 5).
Resistance (Resist.)—This display mode will
show the resistance level of the pedals for a few
seconds each time the resistance level changes.
Speed—This display mode will show your pedaling
speed in miles per hour or kilometers per hour.
Time—When the manual mode is selected, this
display mode will show the elapsed time. When a
workout is selected, this display mode will show the
time remaining in the workout.
The matrix offers several display tabs. Press the
Display button until the desired tab is shown. You
can also press the increase and decrease buttons
next to the Enter button.
Speed—This tab will show a profile of the speed
settings of the workout. A new segment will appear
at the end of each minute.
My Trail—This tab will show a track that represents
1/4 mile (400 m). As you exercise, the flashing
rectangle will show your progress. The My Trail tab
will also show the number of laps you complete.
Calorie—This tab will show the approximate
amount of calories you have burned. The height of
each segment represents the amount of calories
burned during that segment.
As you exercise, the workout intensity level bar
will indicate the approximate intensity level of your
exercise.

15
Press the Home button to return to the default
menu (see HOW TO CHANGE CONSOLE
SETTINGS on page 20 to set the default menu).
If necessary, press the Home button again.
When a wireless iFit module
is connected, the wireless
symbol at the top of the dis-
play will show the strength of
your wireless signal. Four arcs
indicate full signal strength.
To exit the manual mode or a workout, press the
Home button. If necessary, press the Home button
again.
Change the volume level of the con-
sole by pressing the volume increase
and decrease buttons.
5. Measure your heart rate if desired.
If there are
sheets of plas-
tic on the metal
contacts on the
handgrip heart
rate monitor,
remove the plas-
tic. To measure
your heart rate,
hold the handgrip
heart rate monitor
with your palms
resting against
the contacts. Avoid moving your hands or grip-
ping the contacts tightly.
When your pulse is detected, a heart symbol in the
calorie display will flash each time your heart beats,
one or two dashes will appear, and then your heart
rate will be shown. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the contacts tightly. For optimal perfor-
mance, clean the contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
6. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
tone will sound, the console will pause, and the
time will flash in the display. To resume your work-
out, simply resume pedaling.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug your audio
cable into the jack on the console and into a jack on
your MP3 player or CD player; make sure that your
audio cable is fully plugged in.
Next, press the play button on your MP3 player or
CD player. Adjust the volume level using the volume
increase and decrease buttons on the console or the
volume control on your MP3 player or CD player.
Contacts

16
HOW TO USE AN ONBOARD WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
When you turn on the console, the display will turn
on. The console will then be ready for use.
2. Select an onboard workout.
To select an onboard workout, press the 10 Calorie
Workouts button or the 10 Performance Workouts
button repeatedly until the desired workout appears
in the display.
When you select an onboard workout, the display
will show the duration of the workout and the name
of the workout. A profile of the speed settings of the
workout will appear in the matrix.
The maximum resistance level and the maximum
speed for the workout will also appear in the
display.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute seg-
ments. One resistance level and one target speed
is programmed for each segment. Note: The same
resistance level and/or target speed may be pro-
grammed for consecutive segments.
During the
workout,
the profile
on the
speed
tab will
show your
progress.
The flashing segment of the profile represents the
current segment of the workout. The height of the
flashing segment indicates the target speed for the
current segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resis-
tance level and/or target speed is programmed for
the next segment, the resistance level and/or target
speed will appear in the display for a few seconds
to alert you. The resistance of the pedals will then
change.
As you exercise, you will be prompted to keep your
pedaling speed near the target speed for the cur-
rent segment. When an upward-pointing arrow
appears in the display, increase your pace. When
a downward-pointing arrow appears, decrease
your pace. When no arrow appears, maintain
your current pace.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual pedaling
speed may be slower than the target speed.
Make sure to pedal at a speed that is comfort-
able for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the 1 Step Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. The time will flash in the display. To
resume the workout, simply resume pedaling.
4. Follow your progress with the display.
See step 4 on page 14.
5. Measure your heart rate if desired.
See step 5 on page 15.
6. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 15.
Profile

17
HOW TO USE A SET-A-GOAL WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
When you turn on the console, the display will turn
on. The console will then be ready for use.
2. Set a calorie, distance, or time goal.
To set a calorie, distance, or time goal, first press
the Set A Goal button.
Next, press the increase and decrease buttons
next to the Enter button until the name of the
desired goal appears in the display. Then, press
the Enter button.
Then, press the increase and decrease buttons
next to the Enter button to set the desired goal.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute seg-
ments. The target speed for the current segment
will appear in the display at the beginning of each
segment.
As you exercise, keep your pedaling speed near
the target speed. IMPORTANT: The target speed
is intended only to provide motivation. Your
actual pedaling speed may be slower than the
target speed. Make sure to pedal at a speed that
is comfortable for you.
You can manually change the resistance of the
pedals as desired during the workout by pressing
the 1 Step Resistance buttons.
Note: If you manually change the resistance during
a calorie goal workout, the length of the workout
will adjust automatically to ensure that you meet
your calorie goal.
Note: The calorie goal is an estimate of the
number of calories that you will burn during
the workout. The actual number of calories that
you burn will depend on various factors such
as your weight. In addition, if you manually
change the resistance during the workout, the
number of calories you burn will be affected.
The workout will continue in this way until the
calorie, distance, or time goal is reached. To pause
the workout, stop pedaling. The time will pause in
the display. To resume the workout, simply resume
pedaling.
4. Follow your progress with the display.
As you exercise, the calories, time, or distance
display will count down until the desired goal is
reached.
See step 4 on page 14.
5. Measure your heart rate if desired.
See step 5 on page 15.
6. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 15.

18
HOW TO USE AN IFIT WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
When you turn on the console, the display will turn
on. The console will then be ready for use.
2. Insert the iFit module into the console.
To use an iFit workout, insert the iFit module into
the console. To purchase an iFit module at any
time, go to www.iFit.com or see the front cover
of this manual. You must have an iFit module to
use an iFit workout.
Note: To use an iFit module, you must have access
to a computer with an internet connection and a
USB port. You will also need an iFit membership.
To use a wireless iFit module, you must also have
your own wireless network including an 802.11b
router with SSID broadcast enabled (hidden net-
works are not supported).
After you insert the iFit module into the console,
press the Home button. The iFit main screen will
appear in the display.
3. Select a user.
If more than one user is registered on your iFit
account, you can switch users in the iFit main
screen. Press the increase and decrease buttons
next to the Enter button to select a user.
4. Select an iFit workout.
To select an iFit workout, press one of the iFit but-
tons. Before some workouts will download, you
must add them to your schedule on www.iFit.com.
Press the Map button, the Train button, or the Lose
Wt. button to download the next workout of that
type in your schedule.
Press the Compete button to compete in a race
that you have previously scheduled.
Press the Track button to re-run a recent iFit work-
out from your schedule. Next, press the increase
and decrease buttons to select the desired work-
out. Then, press the Enter button to start the
workout.
For more information on the iFit workouts,
please see www.iFit.com.
When you select an iFit workout, the display will
show the duration of the workout and the approxi-
mate number of calories you will burn. The display
may also show the name of the workout. If you
select a competition workout, the display may
count down to the beginning of the race.
Note: The iFit buttons may also run demo work-
outs. To use the demo workouts, remove the iFit
module from the console and press one of the iFit
buttons.
5. Start the workout.
See step 3 on page 16.
During some workouts, the voice of a personal
trainer will guide you through your workout. You
can select an audio setting for your personal trainer
(see HOW TO CHANGE CONSOLE SETTINGS on
page 20).
To stop the workout at any time, stop pedaling. The
time will flash in the display. To resume the work-
out, simply resume pedaling.

19
6. Follow your progress with the display.
See step 4 on page 14.
The My Trail tab will show a map of the trail you are
walking or running or it will show a track and the
number of laps you complete.
During a competition workout, the Compete tab
will show your progress in the race. As you race,
the top line in the matrix will show how much of the
race you have completed. The other lines will show
other competitors. The end of the matrix represents
the end of the race.
7. Measure your heart rate if desired.
See step 5 on page 15.
8. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 15.
For more information on the iFit mode, go to
www.iFit.com.
IMPORTANT: To satisfy exposure compliance
requirements, the antenna and transmitter in the
iFit module must be at least 8 in. (20 cm) from all
persons and must not be near or connected to any
other antenna or transmitter.

20
HOW TO CHANGE CONSOLE SETTINGS
The console features a user mode that allows you to
view usage information, select a unit of measurement,
and adjust the contrast level of the display.
When an iFit module is connected to the console,
you can also use the information mode to choose an
audio setting for the voice of the personal trainer, set a
default menu, check the status of the iFit module, and
check for downloads.
1. Select the information mode.
To select the information mode, press and hold
down the Display button for a few seconds until the
information mode appears in the display.
2. View usage information.
The display will show the total number of hours that
the exercise bike has been used. The display will
also show the total distance (in miles or kilometers)
that has been pedaled on the exercise bike.
3. Select a unit of measurement if desired.
The word ENGLISH for English miles or the word
METRIC for metric kilometers will appear in the
display to indicate the currently selected unit of
measurement.
To change the unit of measurement, press the
Enter button repeatedly to select the desired unit of
measurement.
4. Adjust the contrast level of the display if
desired.
Press the decrease button to view the contrast
level. The currently selected contrast level will
appear in the display. Press the 1 Step Resistance
increase and decrease buttons to adjust the con-
trast level.
5. Determine if an iFit module is connected to the
console.
If an iFit module is connected to the console, the
display will show the words WIFI MODULE or USB
MODULE.
If no module is connected, the display will show
the words NO IFIT MODULE. If no module is con-
nected, go to step 10.
6. Select an audio setting for the voice of the
personal trainer if desired.
Press the decrease button to view the audio setting
for the voice of the personal trainer. The currently
selected audio setting for the voice of the personal
trainer will appear in the display.
To change the audio setting, press the Enter button
repeatedly to turn the voice of the personal trainer
ON or OFF.
