ICON Health & Fitness NordicTrack S50 User manual

USER’S MANUAL
Model No. NETL15819.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Save this
manual for future reference.
Serial
Number
Decal
iconeurope.com
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA

2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE TREADMILL ..............................................................16
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
MAINTENANCE AND TROUBLESHOOTING.....................................................30
EXERCISE GUIDELINES ....................................................................33
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover

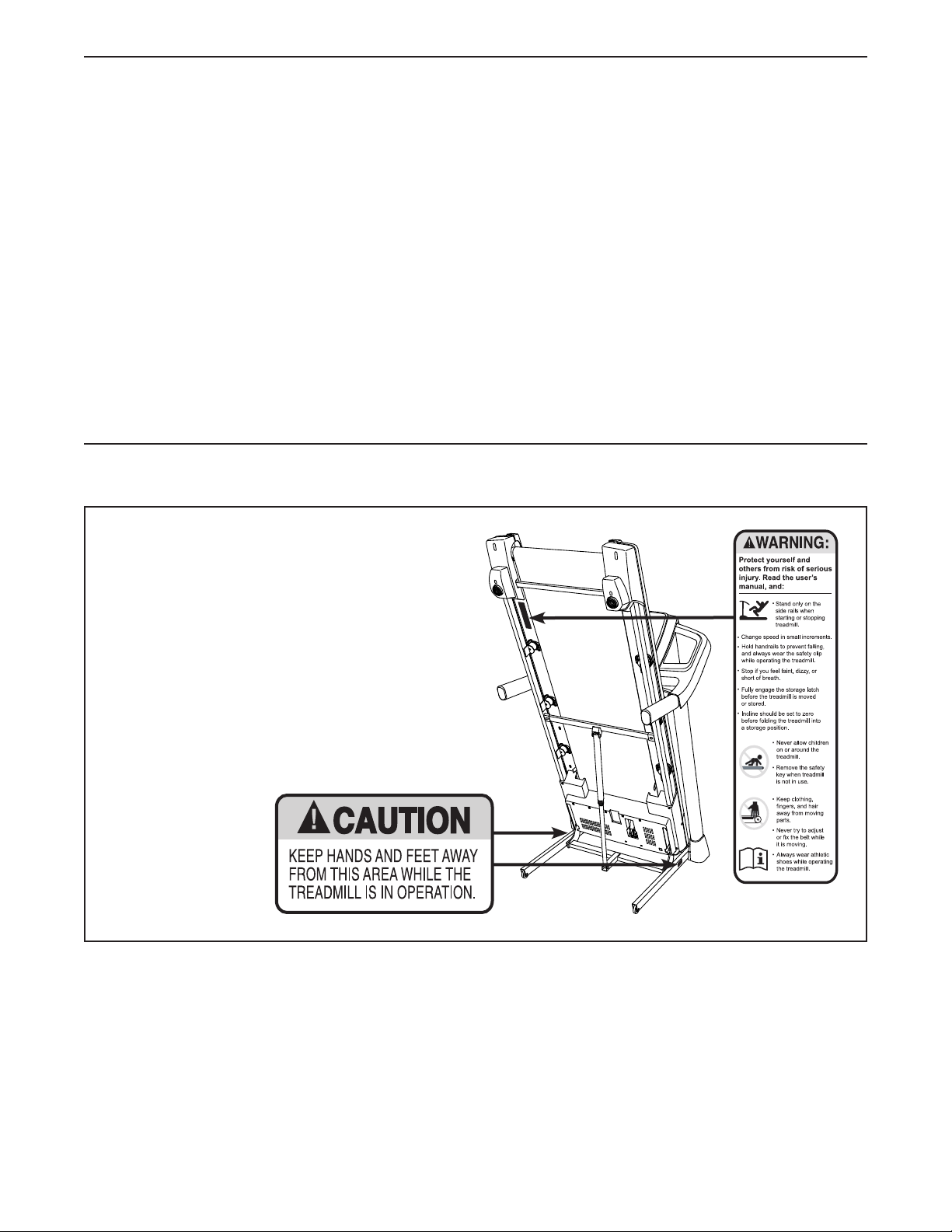

This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call the
telephone number on the front cover of this
manual and request a free replacement decal.
Apply the decal in the location shown. Note:
The decals may not be shown at actual size.
WARNING DECAL PLACEMENT
305284
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. Wi-Fi is a registered trade-
mark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi Alliance. The Bluetooth®word mark and logos are
registered trademarks of Bluetooth SIG, Inc. and are used under license.
TABLE OF CONTENTS

3
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The treadmill is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the treadmill by someone responsible for
their safety.
4. Use the treadmill only as described in this
manual.
5. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
6. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
7. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
8. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
9. Keep children under age 13 and pets away
from the treadmill at all times.
10. The treadmill should be used only by per-
sons weighing 275 lbs. (125 kg) or less.
11. Never allow more than one person on the
treadmill at a time.
12. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
13. When connecting the power cord (see page
16), plug the power cord into an earthed
circuit. No other appliance should be on the
same circuit. When replacing the fuse in the
power cord adapter, insert an ASTA-approved
BS1362, 13-amp fuse into the fuse carrier.
14. If an extension cord is needed, use only a
3-conductor, 14-gauge (2 mm2) cord that is
no longer than 5 ft. (1.5 m).
15. Keep the power cord away from heated
surfaces.
16. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
MAINTENANCE AND TROUBLESHOOTING
on page 30 if the treadmill is not working
properly.)
17. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 18). Always wear the clip while using
the treadmill.
18. Always stand on the foot rails when starting
or stopping the walking belt. Always hold the
handrails while using the treadmill.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS

4
19. When a person is walking on the treadmill,
the noise level of the treadmill will increase.
20. Keep fingers, hair, and clothing away from
the moving walking belt.The treadmill is
capable of high speeds. Adjust the speed in
small increments to avoid sudden jumps in
speed.
21. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
22. Never leave the treadmill unattended while it
is running. Always remove the key, press the
power switch into the off position (see the
drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
23. Do not attempt to move the treadmill until it
is properly assembled. (See ASSEMBLY on
page 7 and HOW TO FOLD AND MOVE
THE TREADMILL on page 29.) You must be
able to safely lift 45 lbs. (20 kg) to move the
treadmill.
24. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position. Do
not operate the treadmill while it is folded.
25. Do not change the incline of the treadmill by
placing objects under the treadmill.
26. Never insert any object into any opening on
the treadmill.
27. Inspect and properly tighten all parts each
time the treadmill is used.
28. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
29. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS

5
Thank you for selecting the new NORDICTRACK®
S 50 treadmill. The S 50 treadmill provides an impres-
sive selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

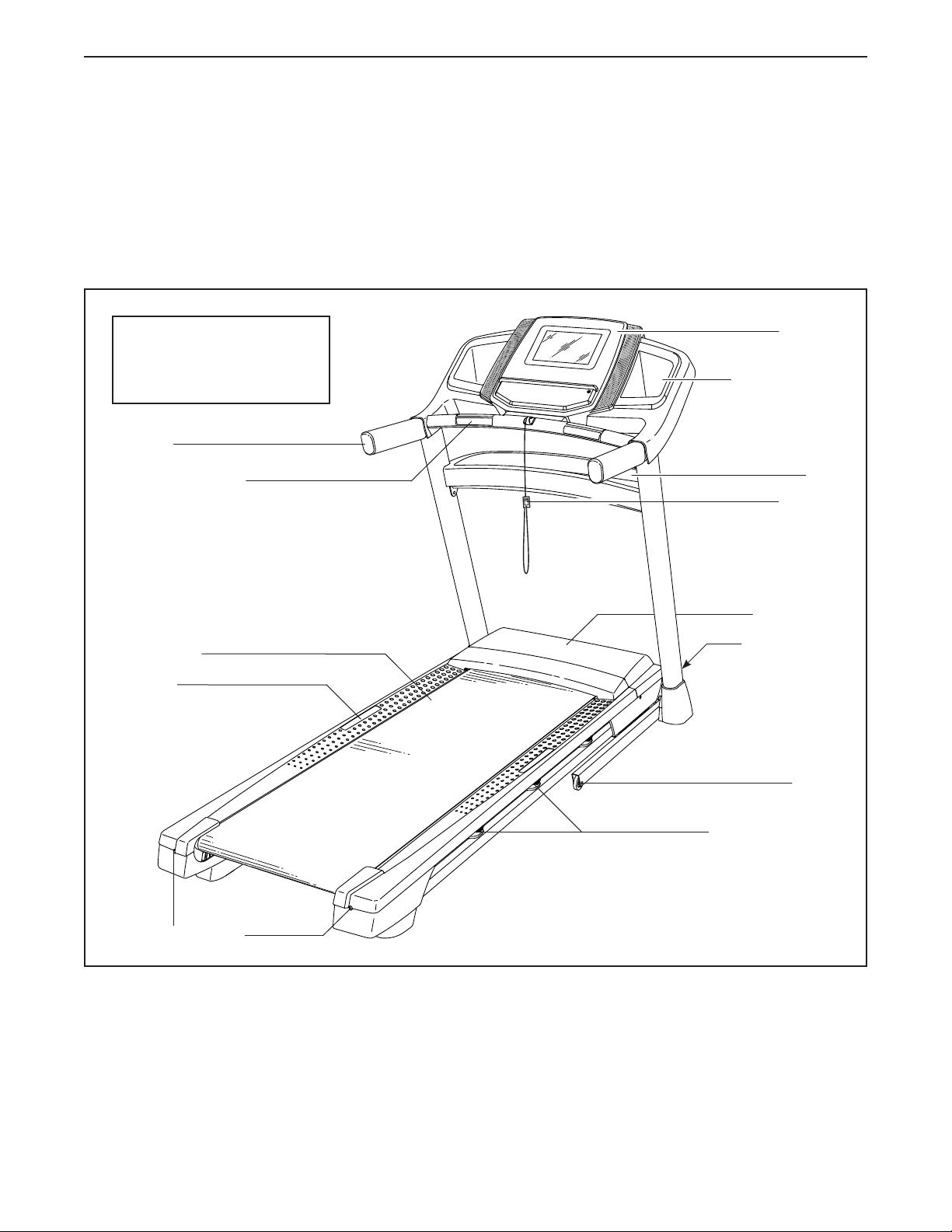

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Heart Rate Monitor
Console
Key/Clip
Tray
Accessory Tray
Power Switch
Walking Belt
Motor Hood
Wheel
Foot Rail
Idler Roller Screws
Platform Cushions
Length: 6 ft. 2 in. (188 cm)
Width: 3 ft. (91 cm)
Weight: 204 lbs. (93 kg)

6
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
#8 x 1/2" Screw
(14)–8
5/16" x 3" Screw (28)–4
#10 x 1 1/4"
Screw (9)–4
1/4" x 1/2"
Screw (4)–4
3/8" Star
Washer (13)–8
5/16" Star
Washer (11)–10
#8 x 1/2" Silver
Screw (10)–1
#10 Star
Washer (5)–4
3/8" x 2 3/8" Screw (7)–4
3/8" x 1 3/4" Screw (62)–2
3/8" x 1 1/4"
Screw (63)–2
#8 x 5/8"
Screw (1)–6

7

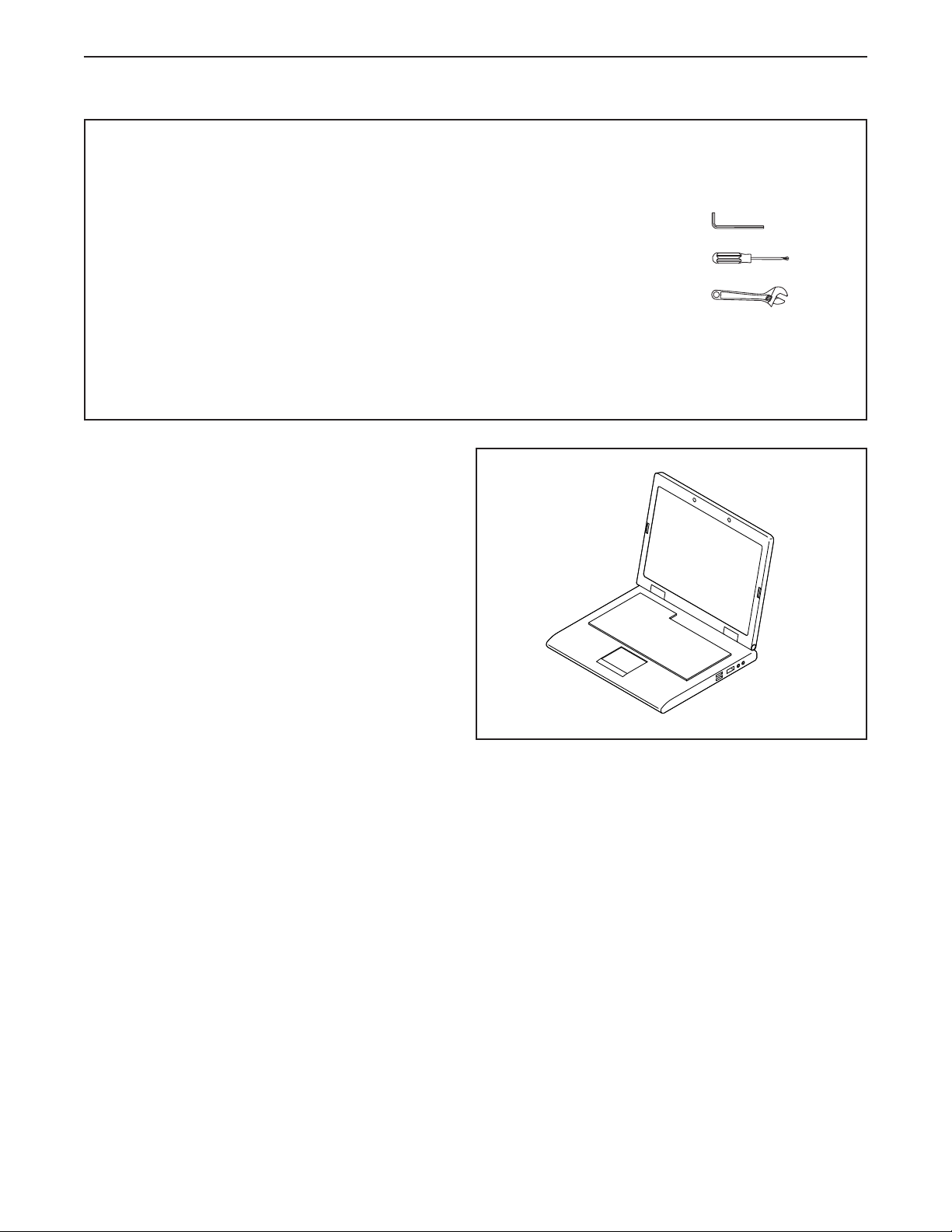

• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex keys
one Phillips screwdriver
one adjustable wrench
To avoid damaging parts, do not use power tools.
ASSEMBLY
1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, call Customer
Service (see the front cover of this manual).
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)
1

8

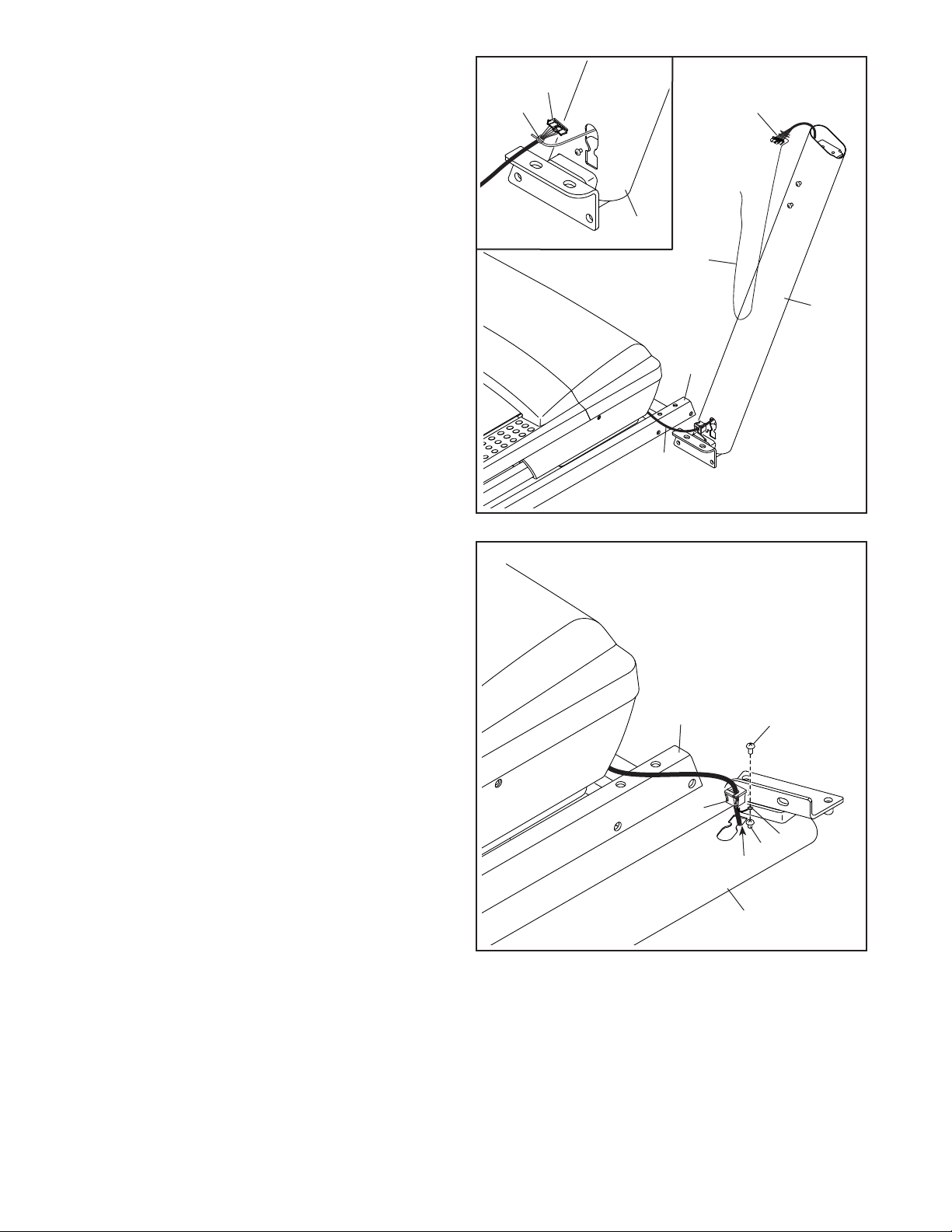

3. Lay the Right Upright (90) near the Base (6).
Press the Grommet (77) into the square hole (B)
in the Right Upright (90). Make sure not to
pinch the ground wire (C).
If there is a screw (D) preattached to the Right
Upright (90), remove and discard it.
Then, attach the ground wire (C) to the Right
Upright (90) with a #8 x 1/2" Silver Screw (10). 6
90
10
90
A
281
77
C
BD
2. Make sure that the power cord is unplugged.
Remove the tie securing the Upright Wire (81) to
the front of the Base (6).
Next, identify the Right Upright (90). Have a
second person hold the Right Upright near the
Base (6).
See the inset drawing. Tie the wire tie (A) in
the Right Upright (90) securely around the end
of the Upright Wire (81). Then, insert the Upright
Wire into the lower end of the Right Upright as
you pull the other end of the wire tie through the
Right Upright.
6
90
81
A
3
81

9
5. Remove and save the four 5/16" x 3/4"
Screws (8).
Identify the Left and Right Base Covers (82, 83).
Slide the Left and Right Base Covers onto the
Left and Right Uprights (89, 90) as shown. Do
not press the Left and Right Base Covers into
place yet.
83
90
82
89
5
4. Hold the Right Upright (90) against the Base (6).
Make sure not to pinch the Upright Wire (81).
Attach the Right Upright (90) with two 3/8" x
2 3/8" Screws (7), a 3/8" x 1 1/4" Screw (63),
a 3/8" x 1 3/4" Screw (62), and four 3/8" Star
Washers (13) as shown; do not fully tighten
the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
4
63
62
6
13 13
90
7
13
81
8
8

10

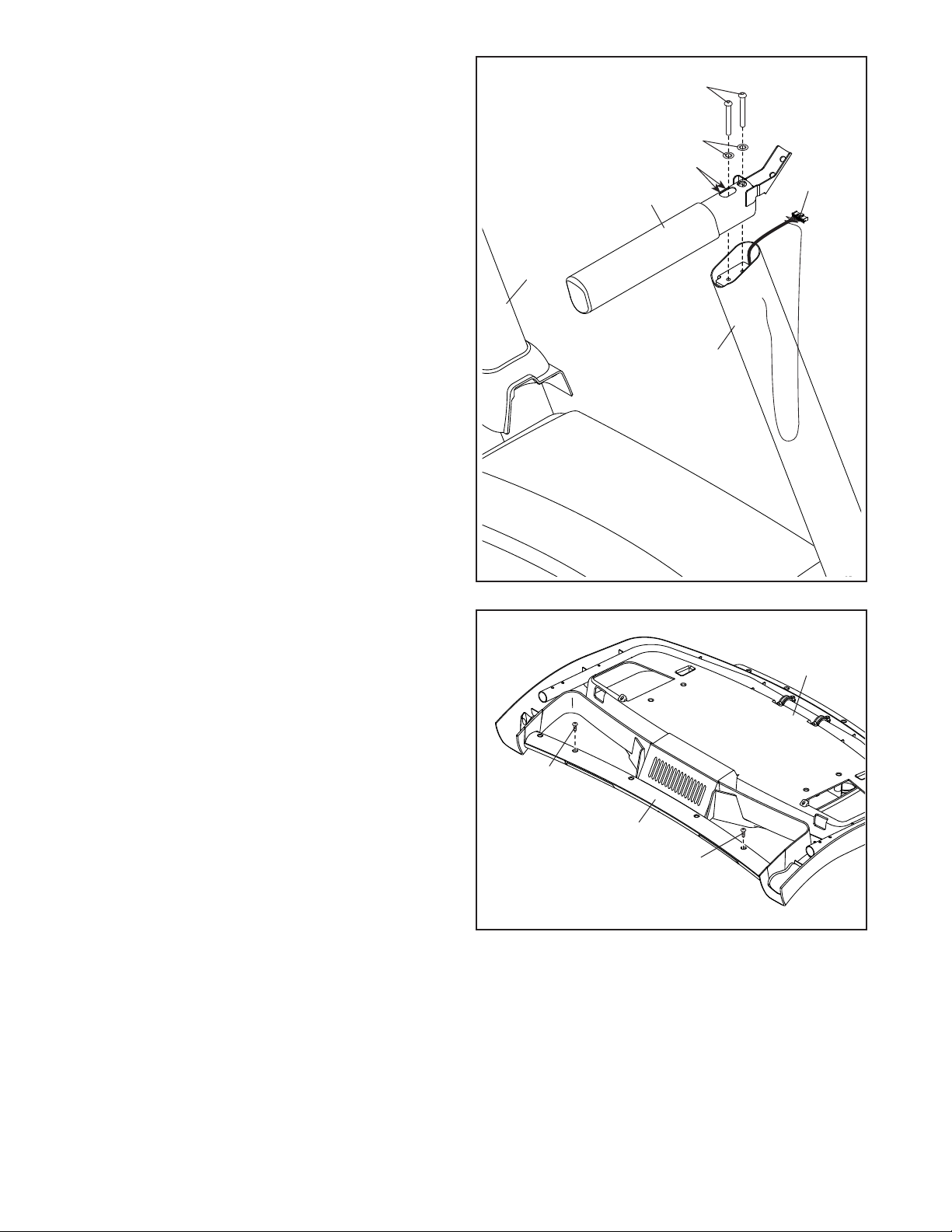

6. If there are four screws (E) preattached inside
the Right and Left Handrails (84, 85), remove
and discard the screws (only one side is shown).
Identify the Right Handrail (84).
Attach the Right Handrail (84) to the Right
Upright (90) with two 5/16" x 3" Screws (28) and
two 5/16" Star Washers (11); start both Screws,
and then tighten them. Make sure not to
pinch the Upright Wire (81).
Attach the Left Handrail (not shown) to the
Left Upright (89) in the same way. Note: There
are no wires on the left side.
11
81
84
28
6
90
89
64
23
F
F
7
7. Set the Console Base (64) face down on a soft
surface to avoid scratching the Console Base.
Remove and discard the two indicated screws
(F). Then, remove the Pulse Crossbar (23).
E

11
23
85
8
8. IMPORTANT: To avoid damaging the Pulse
Crossbar (23), do not use power tools and do
not overtighten the #10 x 1 1/4" Screws (9).
Orient the Pulse Crossbar (23) as shown. Attach
the Pulse Crossbar to the Handrails (84, 85) with
four #10 x 1 1/4" Screws (9) and four #10 Star
Washers (5); start all four Screws, and then
tighten them.
9. With the help of a second person, hold the con-
sole assembly (G) near the Right Handrail (84)
and the Left Handrail (not shown).
Connect the ground wire (H) from the console
assembly (G) to the Console Ground Wire (58)
on the Pulse Crossbar (23).
Then, connect the Upright Wire (81) to the
console wire (I). The connectors should slide
together easily and snap into place. If they
do not, turn one connector and try again. Then,
remove the wire tie (A) from the Upright Wire.
9
G
A
I
81
84
H
23
9
9
5
5
84
58

12
10. Set the console assembly (G) on the Right and
Left Handrails (84, 85). Make sure that no
wires are pinched. Insert the excess Upright
Wire (81) into the Right Upright (90).
Attach the console assembly (G) with four 1/4" x
1/2" Screws (4); do not tighten the Screws yet.
10
11
90
G
4
4
81
85
84
11. Attach the Pulse Crossbar (23) to the console
assembly (G) with six #8 x 5/8" Screws (1); start
all six Screws, and then tighten them.
Next, firmly tighten the four 1/4" x 1/2"
Screws (4).
Then, attach the Right and Left Trays (27, 36)
with four #8 x 1/2" Screws (14).
G
4
423
11
27 36
14 14

13
12
12. Orient the Upright Crossbar (93) as shown.
Carefully slide the Upright Crossbar (93)
between the Left and Right Uprights (89, 90).
Attach the Upright Crossbar (93) with the four
5/16" x 3/4" Screws (8) that you removed in
step 5 and four 5/16" Star Washers (11); start all
four Screws, and then tighten them.
11 811
90 89
93 8
13. Insert the Tray (94) from the front of the treadmill
and set it on the Upright Crossbar (93) as
shown.
Attach the Tray (94) with four #8 x 1/2" Screws
(14); start all four Screws, and then tighten
them.
13
14
93
14
14
94

14
14

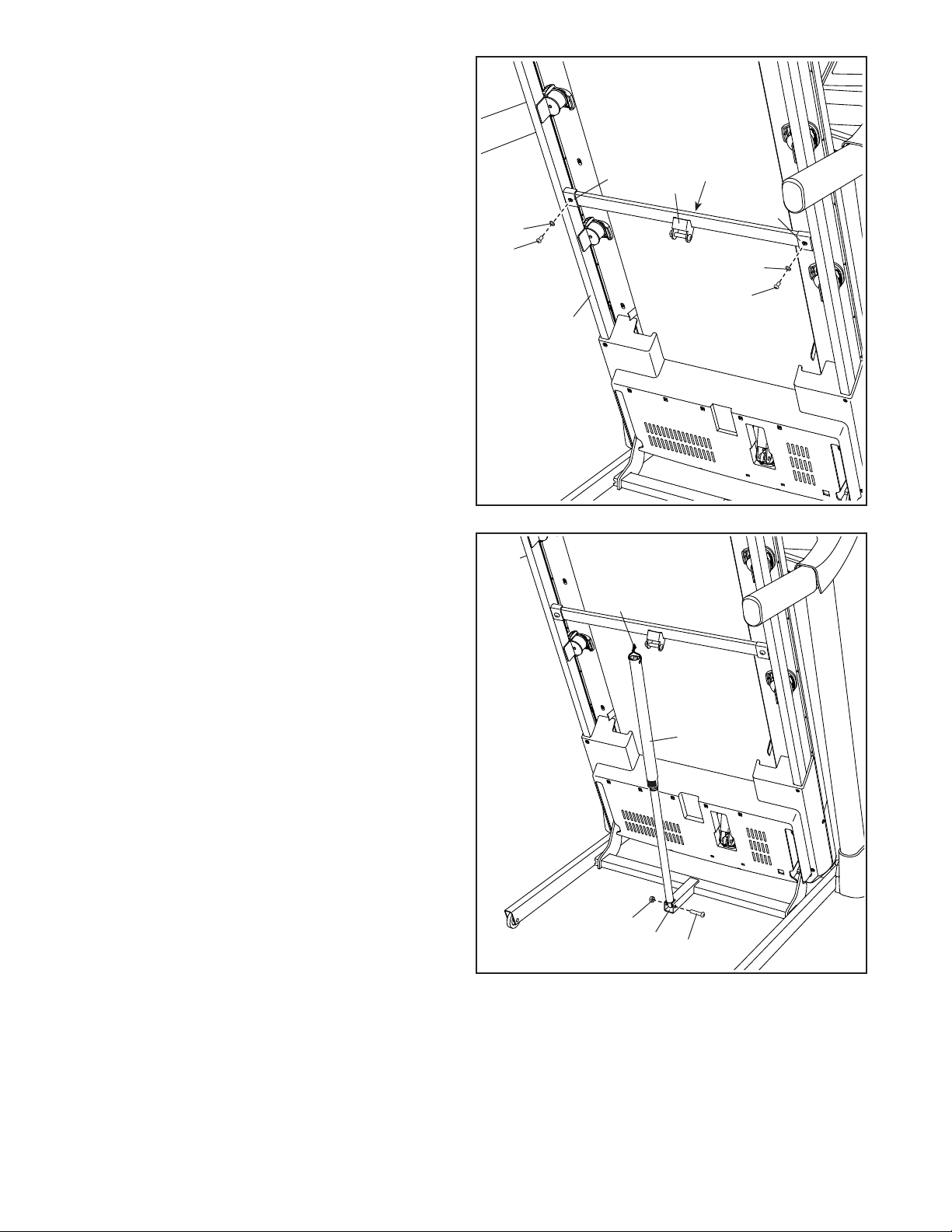

14. Raise the Frame (56) to the upright position.
Have a second person hold the Frame until
step 16 is completed.
Remove the two 5/16" x 3/4" Screws (8) from the
Latch Crossbar (41).
Orient the Latch Crossbar (41) as shown. Make
sure that the “This side toward belt” sticker
(J) is facing the treadmill. Attach the Latch
Crossbar to the brackets (K) on the Frame (56)
with the two 5/16" x 3/4" Screws (8) that you just
removed and two 5/16" Star Washers (11).
56
41 J
8
11
K
K
8
11
15. Remove the 5/16" Nut (34) and the 5/16" x 1 3/4"
Bolt (18) from the bracket on the Base (6).
Next, orient the Storage Latch (26) as shown.
Attach the lower end of the Storage Latch (26)
to the bracket on the Base (6) with the 5/16" x
1 3/4" Bolt (18) and the 5/16" Nut (34).
Then, raise the Storage Latch (26) to a vertical
position, and remove the tie (L).
6
26
18
34
L
15

15
41
31
56
34
26
16
16. Remove the 5/16" Nut (34) and the 5/16" x 2" Bolt
(31) from the bracket on the Latch Crossbar (41).
Align the upper end of the Storage Latch (26)
with the bracket on the Latch Crossbar (41), and
insert the 5/16" x 2" Bolt (31) through the bracket
and the Storage Latch. This will push a spacer
(M) out of the Storage Latch; discard the
spacer.
Next, tighten the 5/16" Nut (34) onto the 5/16" x
2" Bolt (31). Do not overtighten the Nut; the
Storage Latch (26) must be able to pivot.
Then, lower the Frame (56) (see HOW TO
LOWER THE TREADMILL FOR USE on
page 29).
M
17. Firmly tighten the four 3/8" x 2 3/8" Screws
(7), the two 3/8" x 1 3/4" Screws (62), and the
two 3/8" x 1 1/4" Screws (63).
Next, set the Left Inner Base Cover (100) onto
the lower end of the Left Upright (89). Slide the
Left Base Cover (82) downward and press it
onto the Left Inner Base Cover.
Then, set the Right Inner Base Cover (50) onto
the lower end of the Right Upright (90). Slide the
Right Base Cover (83) downward and press it
onto the Right Inner Base Cover.
100
83
82
62
89
7
7
63
62
50
63
17
90
18. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex key in a secure
place; the hex key is used to adjust the walking belt (see page 32). Note: Extra hardware may be included.

16
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of least
resistance for electric current to reduce the risk of
electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended
power cord.
Follow the steps below to plug in the power cord.

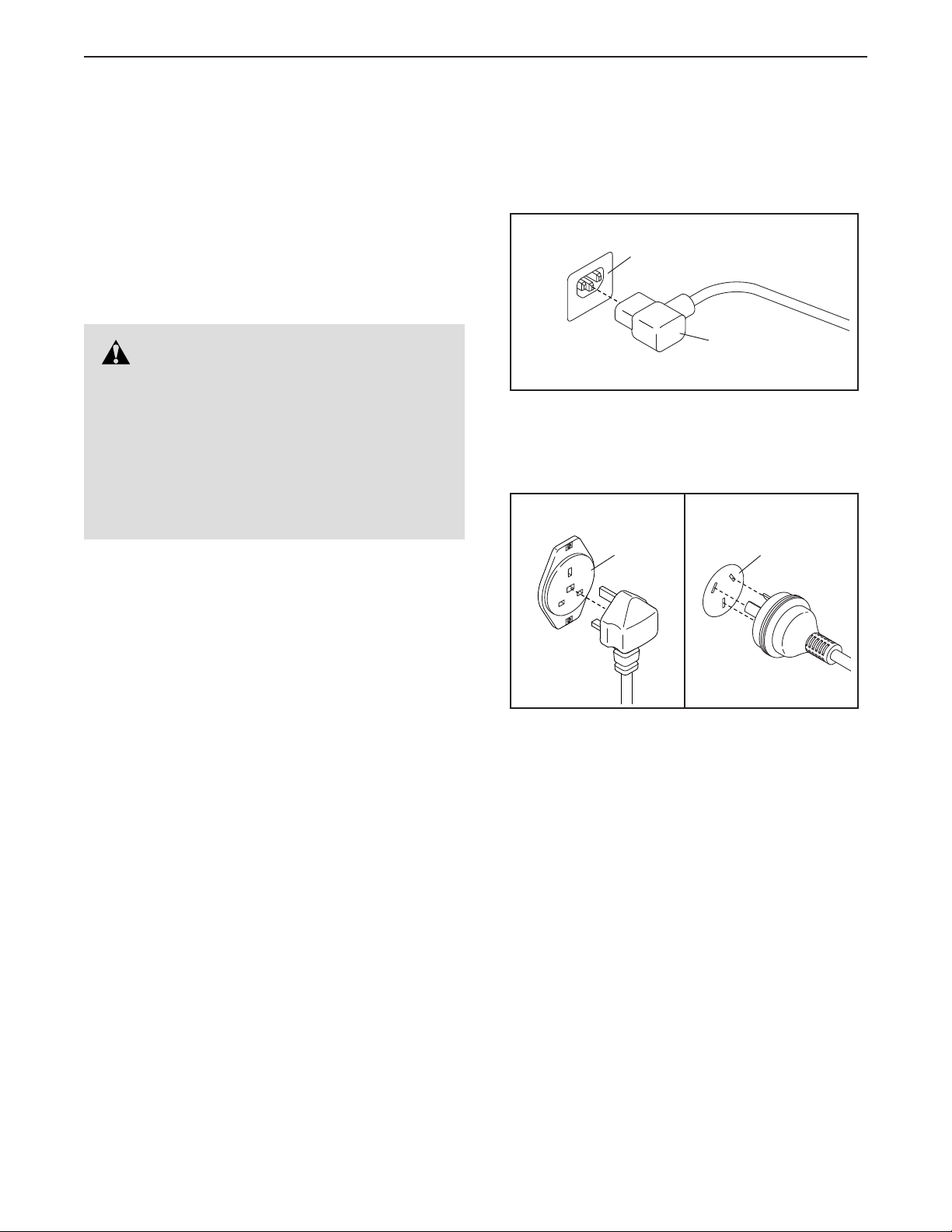

1. Plug the indicated end of the power cord into the
socket on the treadmill.
2. Plug the power cord into an appropriate outlet that
is properly installed and earthed in accordance with
all local codes and ordinances.
IT
FR/SP
UK
GR
RU
HU
Socket on Treadmill
Power Cord
IT
FR/SP
UK
GR
RU
HU
UK
Dubai
DU
GR
RU
HU
CZ
TR
RO
BU
UKR
SW
FR/
SP/
PL/
SK
IT
AUS
AUS
TYPE E
TYPE F
Outlet
UK Australia
Outlet
DANGER: Improper connection of
the equipment-earthing conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product
is properly earthed. Do not modify the plug
provided with the product—if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician.
HOW TO USE THE TREADMILL

17
FEATURES OF THE CONSOLE
The advanced treadmill console offers a selection of
features designed to make your workouts more effec-
tive and enjoyable.
The console features wireless technology that enables
the console to connect to iFit. With iFit, you can access
a large and varied workout library, create your own
workouts, track your workout results, and access many
other features.
When you use the manual mode, you can change the
speed and incline of the treadmill with the touch of a
button. As you exercise, the console will display instant
exercise feedback. You can even measure your heart
rate using the handgrip heart rate monitor or a compat-
ible heart rate monitor. See page 27 for information
about purchasing an optional chest heart rate
monitor.
In addition, the console features a selection of
workouts. Each workout automatically controls the
speed and incline of the treadmill as it guides you
through an effective exercise session.
You can even listen to your favorite workout music or
audio books with the console’s sound system while you
exercise.
To turn on the power, see page 18. To learn how to
use the touch screen, see page 18. To set up the
console, see page 19.
CONSOLE DIAGRAM
ETNT15819

18
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.

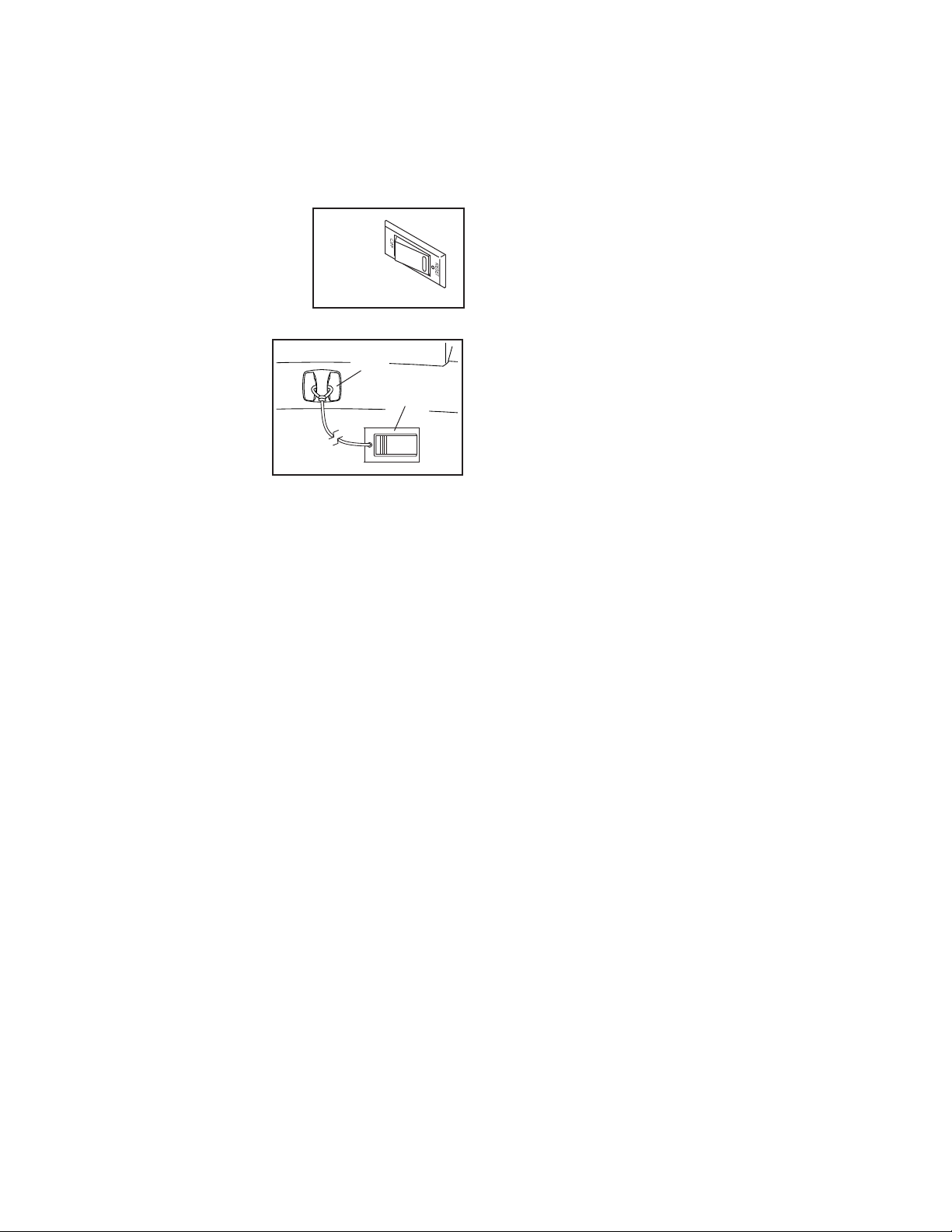

Plug in the power cord (see
page 16. Next, locate the
power switch on the treadmill
frame near the power cord.
Press the power switch into
the reset position.
Next, stand on the
foot rails of the tread-
mill. Find the clip (A)
attached to the key (B),
and slide the clip onto
the waistband of your
clothes. Then, insert
the key into the con-
sole. After a moment,
the displays will light. Note: It may take some time for
the console to be ready for use. IMPORTANT: In an
emergency, the key can be pulled from the console,
causing the walking belt to slow to a stop. Test the
clip by carefully taking a few steps backward; if the
key is not pulled from the console, adjust the posi-
tion of the clip.
Note: The console can display speed and distance
in either miles or kilometers. To find which unit of
measurement is selected, see HOW TO USE THE
EQUIPMENT SETTINGS SECTION on page 25.
For simplicity, all instructions in this section refer to
kilometers.
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you become
familiar with the tablet’s advanced technology:
• The console functions similarly to other tablets.
You can slide or flick your finger against the screen
to move certain images on the screen, such as
the displays in a workout (see step 5 on page 20).
However, you cannot zoom in and out by sliding your
fingers on the screen.
• The screen is not pressure sensitive. You do not
need to press hard on the screen.
• To type information into a text box, touch the text
box to view the keyboard. To use numbers or other
characters on the keyboard, touch the ?123 but-
ton. To view more characters, touch the ~[< button.
Touch the ?123 button again to return to the number
keyboard. To return to the letter keyboard, touch the
ABC button. To use a capital character, touch the
button with an upward-facing arrow. To use multiple
capital characters, touch and hold the arrow button.
To return to the lowercase keyboard, touch the arrow
button again. To clear the last character, touch the
button with a backward-facing arrow and an X.
ETNT15819
B
A
Reset

19
HOW TO SET UP THE CONSOLE
Before using the treadmill for the first time, set up the
console.
1. Connect to your wireless network.
To access the internet, download iFit workouts,
and use several other features of the console, the
console must be connected to a wireless network.
Follow the prompts on the screen to connect the
console to your wireless network.
2. Customize settings.
Fill in the form on the screen to set the console to
display the desired unit of measurement and your
time zone. Note: If you need to change these set-
tings later, see HOW TO USE THE EQUIPMENT
SETTINGS SECTION on page 25.
3. Log into or create an iFit account.
Provide your email address, and follow the prompts
on the screen to sign up for or log into your iFit
account.
4. Tour the console.
The first time you turn on the treadmill, dialogue
boxes on the screen will guide you through the
features of the console.
5. Check for firmware updates.
First, touch your name in the upper-left corner and
touch the Settings button. Next, select the main-
tenance section. Then, touch the Update button
to check for firmware updates using your wireless
network. See HOW TO USE THE MAINTENANCE
SECTION on page 25 for more information.
6. Calibrate the incline system.
First, touch your name in the upper-left corner.
Next, select the settings main menu. Then, select
the maintenance section, touch the Calibrate
Incline button, and then touch the Begin button to
calibrate the incline system. See step 4 on page 26
for more information.
The console is now ready for you to begin working out.
The following pages explain the various workouts and
other features that the console offers.
To use the manual mode, see page 20. To use a
map workout, see page 22. To use a draw your own
map workout, see page 22. To use a distance or
time workout, see page 23.
To use the workout settings section, see page 24.
To use the equipment settings section, see page 25.
To use the maintenance section, see page 25. To
use the wireless network mode, see page 26. To
use the sound system, see page 27. To use the
cushions, see page 28.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use
the treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 32).

20
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 18.
Note: It may take some time for the console to
be ready for use.
IMPORTANT: Do not start the walking belt
until the console displays featured workouts
and Manual Start on the screen. If the console
freezes or stops responding at any time while
you are using the treadmill, step onto the foot
rails and press the Stop button on the console
to stop the walking belt.
2. Select the main menu.
When you turn on the power, the main menu will
appear after the console boots up. If you are in a
workout or the settings menu, touch the back arrow
or the x on the screen to return to the main menu.
Note: If you plan to use a chest heart rate moni-
tor with the console while you exercise, you must
put on the chest heart rate monitor before you
start the walking belt. The console will automati-
cally search for the chest heart rate monitor for
30 seconds when you start the walking belt at the
beginning of each workout.
3. Start the walking belt and adjust the speed.
Touch the Manual Start button in the upper-right
corner of the screen or press the Start button on
the console to start the walking belt. The walk-
ing belt will begin to move at a low speed. As you
exercise, change the speed of the walking belt
as desired by pressing the speed increase and
decrease buttons. Each time you press one of the
buttons, the speed setting will change in small
increments; if you hold down the button, the speed
setting will change more quickly.
If you press one of the numbered speed buttons,
the walking belt will gradually change speed until it
reaches the selected speed setting.
To stop the walking belt, press the Stop button or
tap the middle of the screen. To restart the walking
belt, press the Start button.
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
incline increase and decrease buttons or one of the
numbered incline buttons. Each time you press one
of the buttons, the incline will gradually change until
it reaches the selected incline setting.
Note: The first time you use the treadmill, you must
calibrate the incline system (see step 4 on page 26).
5. Monitor your progress with the display modes.
The console offers several display modes. The
display mode that you select will determine which
workout information is shown. To select the desired
display mode or to view statistics and charts, drag
down on the screen. You can also touch the + but-
ton on the screen to view stats or charts.
As you walk or run on the treadmill, the screen can
show the following workout information:
• The incline level of the treadmill
• Your vertical gain
• Your vertical loss
• The elapsed time
• The approximate number of calories you have
burned
• The approximate number of calories you are
burning per hour
• Your heart rate (see step 6)
• Your average heart rate
• The distance that you have walked or run
