USERʼS MANUAL
Model No. WEEVBE1495.1
Serial No.
Write the serial number in the
space above for reference.
Serial
Number
Decal
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference. www.iconeurope.com
QUESTIONS?
If you have questions, or if there are
missing parts, please contact us:
Call: 08457 089 009
From Ireland: 00 (44) 53 9236102
Website: www.iconsupport.eu
E-mail: [e-mail]
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
Whitwood, West Yorkshire
WF10 5Q
UK
All manuals and user guides at all-guides.com
all-guides.com

2
WARNING DECAL PLACEMENT
WEIDER is a registered trademark of IC N IP, Inc.
This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMP RTANTPRECAUTI NS ................................................................3
BEF REY UBEGIN ......................................................................4
PARTIDENTIFICATI NCHART ..............................................................5
ASSEMBLY ...............................................................................6
ADJUSTMENTS ..........................................................................11
EXERCISEGUIDELINES ...................................................................12

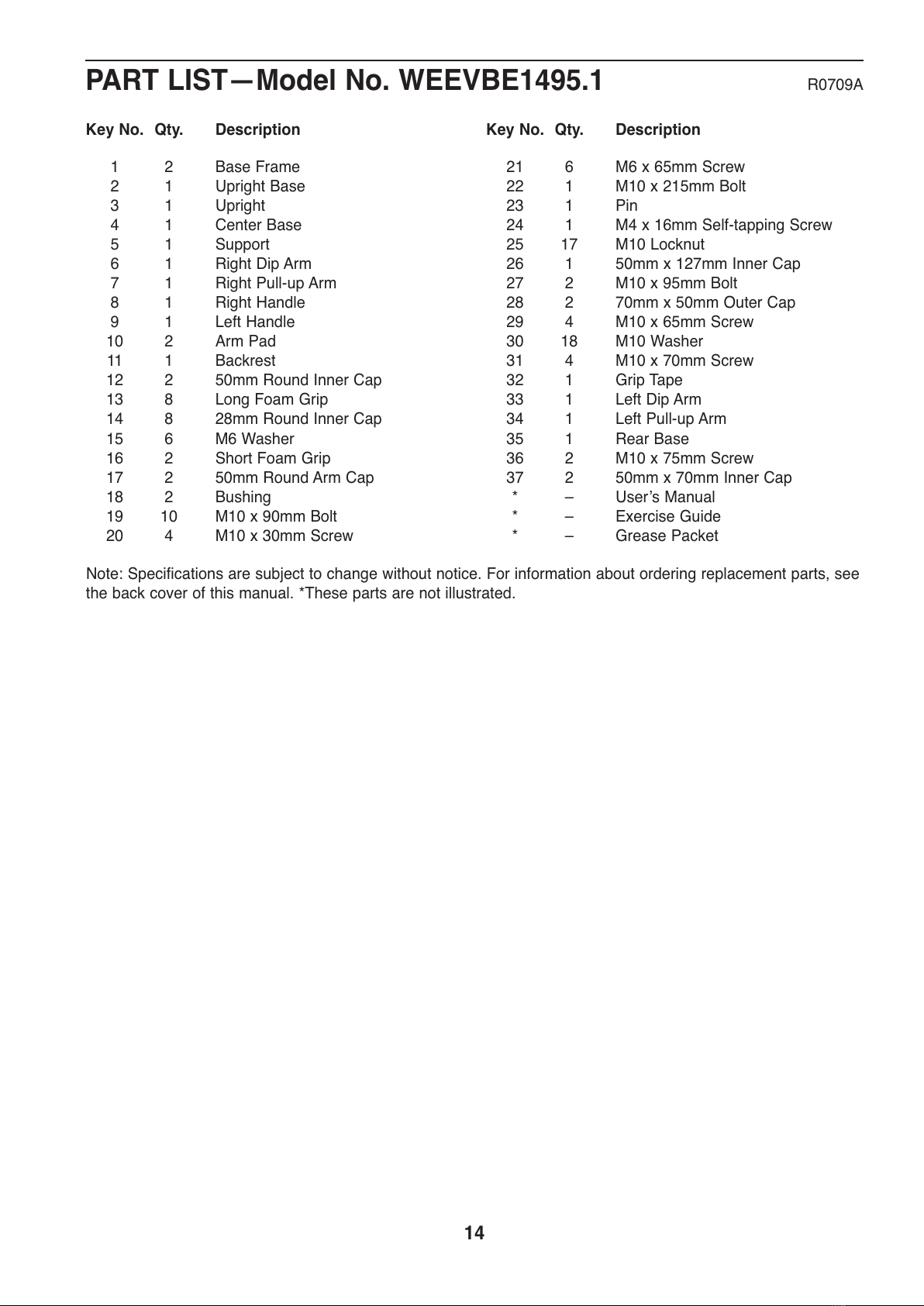

PARTLIST ..............................................................................14
EXPL DEDDRAWING ....................................................................15
RDERINGREPLACEMENTPARTS ..................................................BackCover
All manuals and user guides at all-guides.com

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise rack before using your exercise rack.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Read all instructions in this manual and all
warnings on the exercise rack before using
the exercise rack. Use the exercise rack only
as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the exercise rack are ade-
quately informed of all precautions.
3. The exercise rack is intended for home use
only. Do not use the exercise rack in any
commercial, rental, or institutional setting.
4.
Keep the exercise rack indoors, away from
moisture and dust. Place the exercise rack on
a level surface, with a mat beneath it to pro-
tect the floor or carpet. Make sure that there
is enough clearance around the exercise rack
to mount, dismount, and use the exercise
rack
.
5. Keep children under 12 and pets away from
the exercise rack at all times.
6. Make sure all parts are properly tightened
each time the exercise rack is used. Replace
any worn parts immediately.
7. Always wear athletic shoes for foot protec-
tion while exercising.
8.
The exercise rack is designed to support a
maximum user weight of 300 lbs. (136 kg).
9. The exercise rack is not designed to be used
with weights. Do not use weights or other
forms of resistance with the exercise rack.
10. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cool-
ing down.
IMPORTANT PRECAUTIONS
All manuals and user guides at all-guides.com

4
Pull-up Arm
Arm Pad
Dip Arm
Foot Rest
Backrest
Handles
Handle
Thank you for selecting the versatile WEIDER®PR
PT 800 exercise rack. The exercise rack is designed
to help you develop the major muscle groups of the
upper body. Whether your goal is to tone your body,
build dramatic muscle size and strength, or improve
your cardiovascular system, the exercise rack will help
you to achieve the specific results you want.
For your benefit, read this manual carefully before
using the exercise rack. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please look at the drawing
below and familiarize yourself with the parts that are
labeled.
Upright
BEFORE YOU BEGIN
ASSEMBLED DIMENSI NS:
Height: 7 ft. (213 cm)
Width: 3 ft. 5 in. (104 cm)
Depth: 3 ft. 8 in. (112 cm)
All manuals and user guides at all-guides.com

5
M10 x 90mm Bolt (19)
M10 x 30mm Screw (20)
M10 x 215mm Bolt (22)
M10 x 95mm Bolt (27)
M10 x 65mm Screw (29)
M10 x 70mm Screw (31)
M10 Locknut (25)
M4 x 16mm Self-tapping Screw (24)
M6 Washer (15)
M6 x 65mm Screw (21)
M10 x 75mm Screw (36)
M10 Washer (30)
PART IDENTIFICATION CHART
Refer to the drawings below to identify small parts used in assembly. The number
in parentheses by each drawing is the key number of the part, from the PART
LIST near the end of this manual. IMPORTANT: If you cannot find a part in the
hardware kit, check to see if it has been preassembled.
All manuals and user guides at all-guides.com

6
1.
rient the two Base Frames (1), the Center
Base (4), and the Rear Base (35) as shown.
Make sure that the large warning decal on
the Rear Base is in the position shown.
Attach the Center Base (4) to the two Base
Frames (1) with four M10 x 90mm Bolts (19),
four M10 Washers (30), and four M10 Locknuts
(25). Do not tighten the Locknuts yet.
Attach the Rear Base (35) to the two Base
Frames (1) in the same way.
1
25
1
4
35
1
Large
Warning
Decal
25
30
30
30
30
19
19
ASSEMBLY
To make assembly easier, carefully read the
following information and instructions:
• Assembly requires two persons.
• Because of its weight and size, the exercise rack
should be assembled in the location where it will
be used. Make sure that there is enough clear-
ance to walk around the exercise rack as you
assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• For help identifying small parts, use the PART
IDENTIFICATI N CHART on page 5.
•The following tools (not included) may be required
for assembly:
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver
Assembly may be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Before beginning assembly, make sure
that you understand the information in
the box above.
All manuals and user guides at all-guides.com
all-guides.com

7
3
3
27
25
4
35
19
5
25
2
20
20
3. Attach the Support (5) to the Rear Base (35)
with two M10 x 90mm Bolts (19) and two M10
Locknuts (25). Do not tighten the Locknuts
yet.
Insert the Upright (3) into the Upright Base (2).
Attach the Upright (3) and the Support (5) to the
Upright Base (2) with four M10 x 30mm Screws
(20).
See steps 1–3. Tighten the M10 Locknuts (25).
2
2
2. Attach the Upright Base (2) to the Center Base
(4) with two M10 x 95mm Bolts (27) and two
M10 Locknuts (25). Do not tighten the
Locknuts yet.
All manuals and user guides at all-guides.com

8
4. Attach the Left Handle (9) to the Left Pull-up
Arm (34) with an M10 x 65mm Screw (29), an
M10 x 70mm Screw (31), and two M10
Washers (30).
Press a 50mm Round Inner Cap (12) into the
Left Pull-up Arm (34). Make sure that the thick
side of the Cap is on the side shown.
Attach the Right Handle (8) to the Right Pull-
up Arm (7) in the same way.
5. Insert the Left Pull-up Arm (34) into the Upright
(3).
Attach the Left Pull-up Arm (34) to the Upright
(3) with an M10 x 75mm Screw (36) and an
M10 Washer (30). Do not tighten the Screw
yet.
Attach the Left Pull-up Arm (34) with an M10 x
70mm Screw (31), an M10 Washer (30), and an
M10 Locknut (25). Then, tighten the M10 x
75mm Screw (36).
Attach the Right Pull-up Arm (7) to the
Upright (3) in the same way.
36
31
30 25
9
8
7
30
34
31
30
29
12
Thick
Side
Thick
Side
34
3
4
7
5
All manuals and user guides at all-guides.com

9
6. rient the Right and Left Dip Arms (6, 33) as
shown. Slide the Left Dip Arm onto the Right
Dip Arm.
Attach the Right and Left Dip Arms (6, 33) with
two M10 x 65mm Screws (29), two M10
Washers (30), and two M10 Locknuts (25).
6
6
33
29
7. Apply some of the included grease to the M10 x
215mm Bolt (22).
Attach the Right and Left Dip Arms (6, 33) to
the Upright (3) with the M10 x 215mm Bolt (22)
and an M10 Locknut (25). Do not overtighten
the Locknut; the Dip Arms must pivot easily.
Attach the tether on the Pin (23) to the Upright
(3) with an M4 x 16mm Self-tapping Screw (24).
Insert the Pin (23) into the hole in the Left Dip
Arm (33) and into the Upright (3).
7
30
25
6
3
33
22
25
24
Tether
23
Grease
Hole
All manuals and user guides at all-guides.com

10
9
9. Attach the Backrest (11) to the Upright (3) with
two M6 x 65mm Screws (21) and two M6
Washers (15).
10. Make sure that all parts are properly tightened before you use the exercise rack.
3
11
21
15
15 21
8. Attach an Arm Pad (10) to the Right Dip Arm (6)
with two M6 x 65mm Screws (21) and two M6
Washers (15).
Wet a Short Foam Grip (16) and the indicated
handle on the Right Dip Arm (6) with soapy
water.
Press a Bushing (18), the Short Foam Grip (16),
and a 28mm Round Inner Cap (14) onto the
handle on the Right Dip Arm (6).
Repeat this step for the Left Dip Arm (33).
8
16
18
10
Handle
14
21
15
33
15
6
