GS330 IP Phone Quick Reference Guide

GS330 IP Phone Quick Reference Guide
Page | 2 www.iconcloud.com
Contents
1. Getting Started...................................................................................................................................... 3
About......................................................................................................................................................... 3
Technical Specifications ............................................................................................................................ 3
2. Connecting Your Phone......................................................................................................................... 4
Packing List................................................................................................................................................ 4
Connecting Your Phone ............................................................................................................................ 4
Adjusting the Angle of Your Phone ........................................................................................................... 5
3. Phone Overview.................................................................................................................................... 6
Upper Housing .......................................................................................................................................... 6
Lower Housing .......................................................................................................................................... 8
LCD Screen ................................................................................................................................................ 9
4. Operation ............................................................................................................................................ 11
Making a Call........................................................................................................................................... 11
Answering a Call......................................................................................................................................11
Hold......................................................................................................................................................... 11
Redial ...................................................................................................................................................... 11
Directory Dial ..........................................................................................................................................11
Making a Second Call ..............................................................................................................................11
Transfer a Call (Blind Transfer)................................................................................................................11
Transfer a Call (Supervised Transfer)...................................................................................................... 12
Mute........................................................................................................................................................ 12
Do Not Disturb ........................................................................................................................................12
Conference Call ....................................................................................................................................... 12

GS330 IP Phone Quick Reference Guide
Page | 3 www.iconcloud.com
1. Getting Started
About
The GS330 is a feature rich IP telephone that works with the ICON Cloud ICONnect hosted communications
platform as well as other manufacturer’s systems that support connection of a SIP terminals.
Technical Specifications
Item
Description
Screen
Grayscale LCD with back light 132 x 64 pixels
Feature Keys
4 Soft keys,2 Line keys(dual-color LED)
6 Navigation keys(arrow button, OK button, C button) Volume adjust, Hands-free, Mute,
Headset, Message,
Menu, Directory, Service, Hold, Redial, Conference, Transfer
VoIP Protocol
SIP 2.0
Network Protocols
HTTP, BOOTP, FTP, TFTP, IEEE 802.1Q, *IEEE 802.1X
Codec
G.723.1 (5.3K 6.4K b/s), G.729 A/B(8Kb/s), G.711 A/U, G722 (64Kb/s)
QoS
TOS, Jitter Buffer, VAD, CNG, G.168 (32ms)
Network
2*RJ45 10/100/1000 M Ethernet interfaces(LAN/PC) IP Assignment: Static IP or DHCP
or PPOE PC port support Bridge and Router DNS SRV,STUN, VPN(L2TP), VLAN/QoS,
STUN,DTMF(In-band/RFC2833/SIP INFO)
Conversation Mode
Handset, Headset or Hand-free Mode, RJ11 and 3.5mm headset jack, 9-level volume
adjustment
Call Processing
Line status indicator, Multiple Accounts, Always Forward, Busy Forward, No-answer
Forward Hotline line (Immediately/Delay), Call Waiting, Call Queuing, Line Switching,
Call Forward, Call Transfer, Call Holding, Call Pickup, *Callback One Key Dial, Redial,
Phone directly speed dial, Call record direct dial 3-way conference, SMS, DnD,
Blacklist, Voice mail, Voice Prompt, Voice Message BLF, BLA, Speed dial, P2P(Peer-
to-Peer).
Expansion Interface
EXT: ESM32 programmable button module, support up to 4 ESM32s.
Application
Phone directory with 300 private contacts and 800 enterprise contacts, Call History with
up to 200 missed calls, 200 received calls and 200 dialed calls, Voice mail message
lamp.
Security
Password Login, Encrypted signaling and media (RC4), VPN, 802.1X, VLAN QoS
(802.1pq), *LLDP, TLS, MD5,AES, ROOT/USER Management
Power Supply
Power adapter: AC 100-240V input and DC 12V/1A output PoE (IEEE 802.af)
Physical Features
Storage Temperature: 0℃-60℃Operating Humidity: 10%-90% Size: 287mm x 214mm x
90mm
Net weight:
2.65 lbs.
Certifications
CE, FCC, RoHS

GS330 IP Phone Quick Reference Guide
Page | 4 www.iconcloud.com
2. Connecting Your Phone
Your telephone will be preconfigured to connect to ICON Cloud’s ICONnect hosted communications platform. This
section describes the connection.
Packing List
1 - IP Phone
1 - Handset
1 - Handset Cord
1 - Power adapter
1 - RJ45 cable
1 - CD
1 - Quick Reference Guide
1 - Product certification

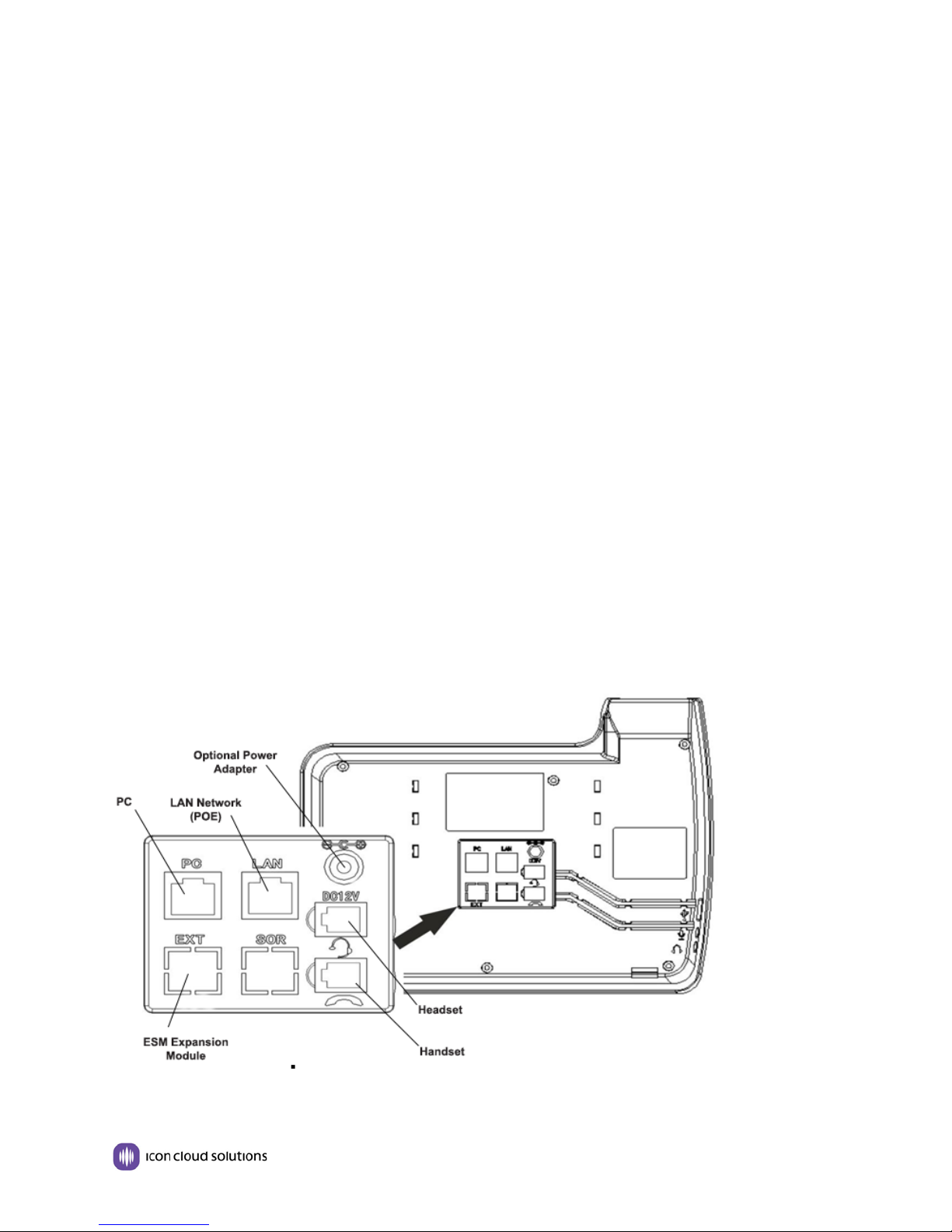

Connecting Your Phone
As illustrated below:
1. Plug your LAN network cable into the LAN connector. If your network is equipped with POE this
connection will also provide power to the phone. If your LAN is not equipped with POE, then you must
also use the power adapter.
2. Use the “PC” port to connect your PC.
3. The station handset is plugged into the jack with the handset icon.
4. If using a headset, plug the headset into the jack labeled with a headset icon.
5. Plug the optional line expansion module into the EXT port.

GS330 IP Phone Quick Reference Guide
Page | 5 www.iconcloud.com
Adjusting the Angle of Your Phone
1. Press the two tabs on either side of the base to adjust the GS330 to the desired angle.

GS330 IP Phone Quick Reference Guide
Page | 6 www.iconcloud.com
3. Phone Overview
Upper Housing
Num
Buttons
Description
1
Headset button: Toggles the headset on or off
Red indicates the feature is enabled.
2
Mute button: Toggles the Mute feature on or off.
Red indicates the feature is enabled.
3
Message button: Typically auto-dials your voice message service.
Red indicates there is an unread voice mail message.
4
Service
Service button: Open or Close the Services menu.
5
Directories
Directories button: Use it to access call logs and corporate directories
6
Menu
Menu button: Allows you to scroll through menus.

GS330 IP Phone Quick Reference Guide
Page | 7 www.iconcloud.com
Num
Buttons
Description
7
Volume button: Controls the volume and other settings.
8
Conference
Conference button: Connect calling / called party to the conference
9
Redial
Redial button: To Redial the last number.
10
Transfer
Transfer button: Transfer a call to another extension or number.
11
Hold
Hold button: Put a call on hold
12
0-9
，
*
，
#
Basic Call Handling: Enter the desired number then press # to complete
the outgoing call. Use the dial pad to naviagate automated menus.
13
Speaker button
Speaker button: Toggles the speakerphone on or off.
Red, steady: Pick up and enter normal call.
14
Softkey
Each displays a softkey function, To activate a softkey, press the softkey
button.
15
16
Line/
Programmable
Buttons
Outside Line Key
1) Red, flashing: There is an incoming call.
2) Red, steady: Pick up and enter normal call.
3) Yellow-green, flashing: Holding call.
4) Yellow-green, steady: Active call. Programmable Keys:
Extension or Programmable Feature
1) Red, steady. Extension is busy / Feature in use.
2) Yellow-green, steady. Extension is idle / Feature idle.
17
C
Back button: Return to the standby interface;
18
Navigation button
“Up”: Open “Speed Call” list;
“Down”: Open “Missed Calls” list:
“Left”: Open “Received Calls” list;
“Right”: Open “Dialed Numbers” list
19
OK
Select an option on the display.
20
Hands-free
Speakerphone
Press to answer a call or place a call in the “hands-free” speakerphone
mode.
21
LCD Screen
480*272 pixel Color high-definition display.
22
Status Light
Red flashing: There are incoming call
；

GS330 IP Phone Quick Reference Guide
Page | 8 www.iconcloud.com
Num
Buttons
Description
Red, steady: Missed Calls, or phone busy;
23
Microphone
Hands free transmit audio
Lower Housing
Num
Buttons
Description
1
Adjustable Stand
Multiple angle stand with built-in wall mount bracket.
2
Stand buttons
Press buttons to adjust angle of the phone.
3
USB
Reserved
4
3.5mm Jack
Headset jack.

GS330 IP Phone Quick Reference Guide
Page | 9 www.iconcloud.com
5
---
Not included with GS330
6
Power
Connect External Power Supply. Not required for POE LAN connections.
7
Headset
Headset connection port.
8
Handset
Handset connection port.
9
EXT Port
Connector for optional EDM expansion module.
10
LAN Port
Connects phone to LAN for communication with telephone server.
11
PC Port
Connect to a local PC.
LCD Screen
Num
Buttons
Description
1
Time & Date
Note, the date shows only if there are not missed calls.
2
Missed Calls
Shows the missed call ICON in the top bar and the number of missed
calls in the call activity area of the display.

GS330 IP Phone Quick Reference Guide
Page | 10 www.iconcloud.com
3
Programmable
Keys
Self Labeling keys used for lines and other features. Line keys will
display real time status information.
Line is available
Line is in DND Mode.
Line is out of service.
Phone is disconnected from LAN.
5
Softkeys
The function of the softkeys will change based on the state of the phone.
In idle mode with no missed calls:
Menu – Access phone settings
Log – View call log.
DND – Toggle on and off Do Not Disturb
Dir – Access the personal and company contact lists.

GS330 IP Phone Quick Reference Guide
Page | 11 www.iconcloud.com
4. Operation
Making a Call
1. Lift the handset or press the Speaker key or press the Headset key.
2. When you hear dial tone, the first outside line LED will light. You can stay on this line or choose another
line to make the call.
3. Enter the telephone number.
4. Press the # key on the dial pad or the SEND soft key or wait five seconds.
5. The call is placed.
6. When finished, return the handset to the cradle, press the speaker key or press the END CALL softkey.
Answering a Call
1. With your phone ringing and one of the Line Keys flashing red,
2. Pickup the handset, or, press the Speaker Key, press the ANS softkey or, press the Headset Key.
3. Note: if you are on an active call and a second call rings in, press the flashing line key that the second call
is ringing in on to answer. Doing so will automatically place the first call on hold.
4. When finished, return the handset to the cradle, press the speaker key or press the END CALL softkey.
Hold
1. While on a call, press the HOLD key or HOLD softkey to place the call on hold.
2. The line on which the call is held will flash green.
3. To retrieve the held call, press the appropriate line button where the call is held.
Redial
1. Press the REDIAL key to view the last number dialed, or,
2. Press the Navigation UP button to view the all call list or press the Navigation DOWN button to view the
missed call list.
3. Once you have selected the desired number press the DIAL softkey.
Directory Dial
1. Press the DIR softkey or the DIRECTORIES key.
2. Navigate to the desired telephone number using the NAVIGATION keys or SOFTKEYS.
3. Press DIAL to complete the call.
Making a Second Call
1. While on an active call, press the HOLD key.
2. Enter the desired phone number.
3. Press # or SEND to complete the call.
Transfer a Call (Blind Transfer)
To transfer a call to another extension or outside line without talking to the transfer recipient:

GS330 IP Phone Quick Reference Guide
Page | 12 www.iconcloud.com
1. Press the TRANSFER button or softkey.
2. Press the BLIND softkey.
3. Enter the number to which you want to transfer the call.
4. Press #, or press SEND, or wait five seconds.
5. The call is transferred.
Transfer a Call (Supervised Transfer)
To transfer a call to another extension or outside line by first talking to the transfer recipient:
1. Press the TRANSFER button or softkey.
2. Enter the number to which you want to transfer the call.
3. Press #, or press SEND, or wait five seconds.
4. When the transfer recipient answers begin speaking.
5. Hang up to complete the transfer.
6. The call is transferred.
Mute
1. While on a call press the MUTE key.
2. The Mute key will light red and the outside parties will not be able to hear you. You can still hear them.
3. Press MUTE a second time to return to a normal two-way conversation.
Do Not Disturb
1. Press the DND softkey.
2. A lock icon will appear on the top line of the display and next to each of the outside line keys. Callers will
be routed to your station voice mailbox (or another extension, or busy tone based on desired programming).
3. Press DND a second time to return to disable DND and return to normal mode.
Conference Call
You can initiate a 3-party conference call.
1. While on an active call, press the CONFERENCE button or the CONFER softkey.
2. The first caller is placed on hold.
3. Dial the phone number of the person you would like to join the conference. After they connect press the
CONFERENCE button or the CONFER softkey to complete the conference call.
4. NOTE: If you hang up, the conference call will end for all parties.
To initiate a conference call with a held call:
1. With a call on hold, dial the phone number of the person you would like to join the conference. After they
connect press the CONFERENCE button or the CONFER softkey.
2. Press the line key with the held call to complete the conference call.
