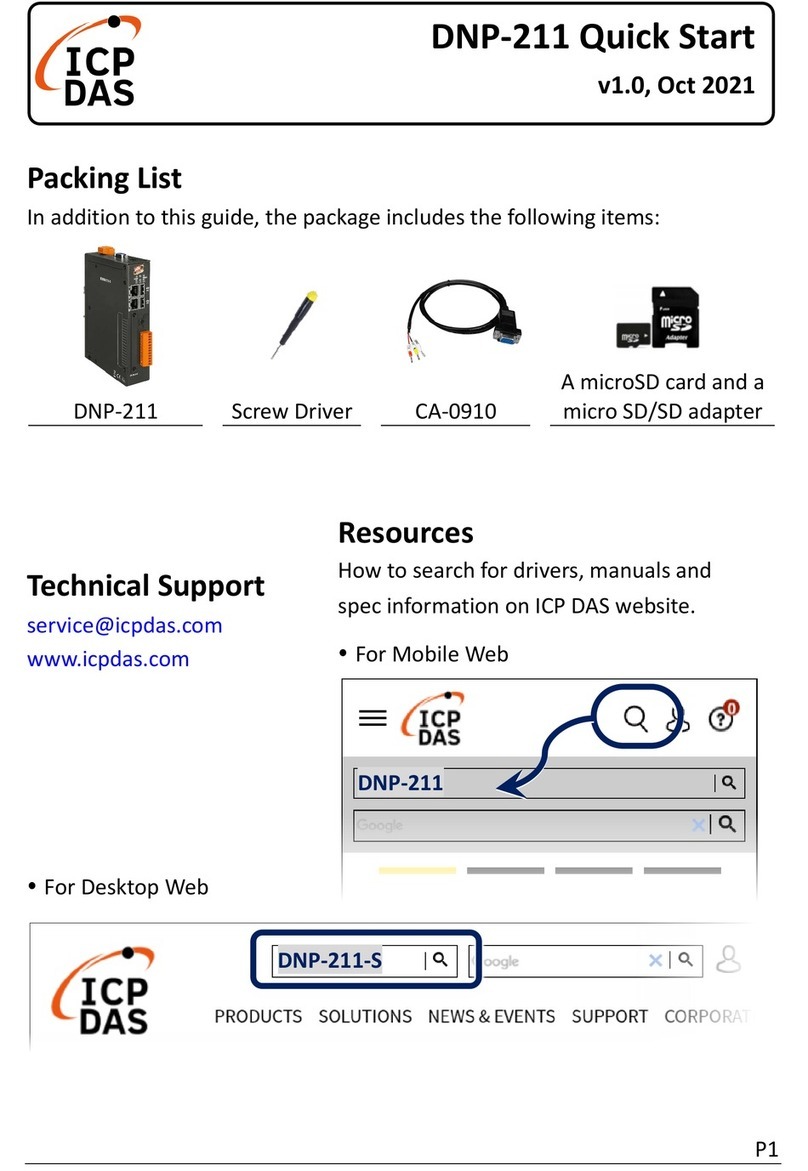

ICP DAS USA DNP-211 User manual

User Manual
Version 1.0.1 Jun 2022
DNP-211
DNP3 Master to Modbus TCP Server Gateway

2
Version 1.0.1 DNP-211 User Manual 2022/06/01
Warranty
All products manufactured by ICP DAS are under warranty
regarding defective materials for a period of one year,
beginning from the date of delivery to the original
purchaser.
Warning
ICP DAS assumes no liability for any damage resulting from
the use of this product. ICP DAS reserves the right to
change this manual at any time without notice. The
information furnished by ICP DAS is believed to be accurate
and reliable. However, no responsibility is assumed by ICP
DAS for its use, nor for any infringements of patents or
other rights of third parties resulting from its use.
Copyright
Copyright © 2021 ICP DAS Co., Ltd. All rights are reserved.
Trademarks
Names are used for identification purposes only and may
be registered trademarks of their respective companies.
Document Revision
Version Author Date Description
1.0.0 Ming 2021/10/06 First Released Revision

3
Version 1.0.1 DNP-211 User Manual 2022/06/01
Contents
1. Introduction............................................................................................4
1.1. DNP3 Introduction ................................................................................4
1.2. Modbus TCP Introduction ...................................................................4
1.3. About DNP-211 .....................................................................................5
1.4. Features....................................................................................................5
1.5. Specifications..........................................................................................5
2. Hardware.................................................................................................7
2.1. Dimensions .............................................................................................7
2.2. Appearance.............................................................................................8
2.3. LED Indicator...........................................................................................9
3. Getting Started With DNP-211 ...........................................................10
3.1. Preparations for Devices....................................................................10
3.2. Hardware Wiring..................................................................................10
3.3. DNP-211 Utility ....................................................................................10
3.3.1. Download DNP-211 Utility............................................................10
3.3.2. DNP-211 Utility Introduction........................................................11
3.4. DNP-211 Reader..................................................................................15
3.4.1. Download DNP-211 Reader..........................................................15
3.4.2. DNP-211 Reader Introduction......................................................15
Appendix A: Modbus Map ............................................................................20
Appendix B: Mapping Rule............................................................................21

4
Version 1.0.1 DNP-211 User Manual 2022/06/01
1. Introduction
1.1. DNP3 Introduction
DNP3 (Distributed Network Protocol 3) is a communication protocol used
between automation components. The protocol is formulated with
reference to IEC 870-5. The purpose is to unify the communication
method of SCADA so that SCADA can use the DNP3 protocol to
communicate with master stations, remote terminal units (RTUs),
intelligent electronic devices (IEDs), etc., and are mainly used in utilities
such as electric and water companies.
The DNP3 protocol has certain of reliability and allows reliable
communications in the adverse environments that electric utility
automation systems are subjected to being specifically designed to
overcome distortion induced by electromagnetic interference (EMI),
aging components, and poor transmission media. A large number of CRC
check codes are used in the protocol to ensure the accuracy of data. It is
suitable for high security, Data communication field of medium speed and
medium amount of data.
1.2. Modbus TCP Introduction
Modbus TCP is a variant of the Modbus family of simple, vendor-neutral
communication protocols intended for supervision and control of
automation equipment. Specifically, it covers the use of Modbus
messaging in an “Intranet” or “Internet” environment using the
TCP/IP protocols. The most common use of the protocols at this time is
for Ethernet attachment of PLC’s, I/O modules, and gateways to other
simple field buses or I/O networks.

5
Version 1.0.1 DNP-211 User Manual 2022/06/01
1.3. About DNP-211
DNP-211 is a gateway that supports DNP3 master and Modbus TCP
server protocol conversion. As long as the master device supports
Modbus TCP protocol, it can connect the existing DNP3 network with the
Ethernet-based master device. For DNP3 network, DNP-211 is a DNP3
master device. It supports several commonly used data groups and
variables and can communicate with slave devices. From the perspective
of Modbus TCP network, DNP-211 is a Modbus TCP server, which can
receive commands from Modbus TCP client, and process these
commands to reply or send related DNP3 data. All DNP3 I/O data and
Modbus mapping can be configured through DNP-211 utility software.
1.4. Features
Read / Write DNP3 outstations via Modbus TCP
Configurable DNP3 Master
Configurable Modbus TCP server
Support Data Group 1, 10, 12, 20, 30, 40, 41
Support Modbus function code 1, 2, 3, 4, 15, 16
Provides Modbus register of connection status of DNP3 outstations
Supports up to 32 DNP3 outstations
Supports up to 16 Modbus client connections
1.5. Specifications
System
CPU Cortex-A8, 1 GHz
SDRAM 512 MB
Flash 512 MB
FRAM 64 KB
LED Indicators PWR (Power), RUN (System run), L1 (Firmware run),
L2 (Modbus TCP connection), L3 (DNP3 connection)
Communication Ports

6
Version 1.0.1 DNP-211 User Manual 2022/06/01
VGA 1 (reserved)
Ethernet RJ-45 x 2, 10/100/1000 Based-TX (Auto-negotiating,
Auto MDI/MDI-X, LED indicators)
USB 2.0 2 (reserved)
Console Port RS-232 (RxD, TxD and GND); Non-isolated
ttyO2 RS-485 (Data+, Data-); Non-isolated
ttyO4 RS-232 (RxD, TxD and GND); Non-isolated
ttyO5 RS-485 (Data+, Data-); 2500 VDC isolated
Protocol
Modbus
Identity Modbus TCP server
Function 1, 2, 3, 4, 15, 16
Connection Max. 16 Modbus TCP clients
DNP3
Identity DNP3 master
Connection Max. 5 MMS clients
Group 1, 10, 12, 20, 30, 40, 41
Data Point
DI: 8192
DO: 8192
Count: 2048
AI: 2048
AO: 2048
Power
Supply Voltage +12 to +48 VDC
Consumption 4.8 W
Connector 3-pin Removable Terminal Block
Mechanism
Dimensions 35 mm x 167 mm x 119 mm
Casing Metal
Installation DIN-Rail
Environment
Operating Temp. -25°C ~ +75°C
Storage Temp -30°C ~ +85°C
Humidity 10 ~ 90% RH, non-condensing

7
Version 1.0.1 DNP-211 User Manual 2022/06/01
2.Hardware

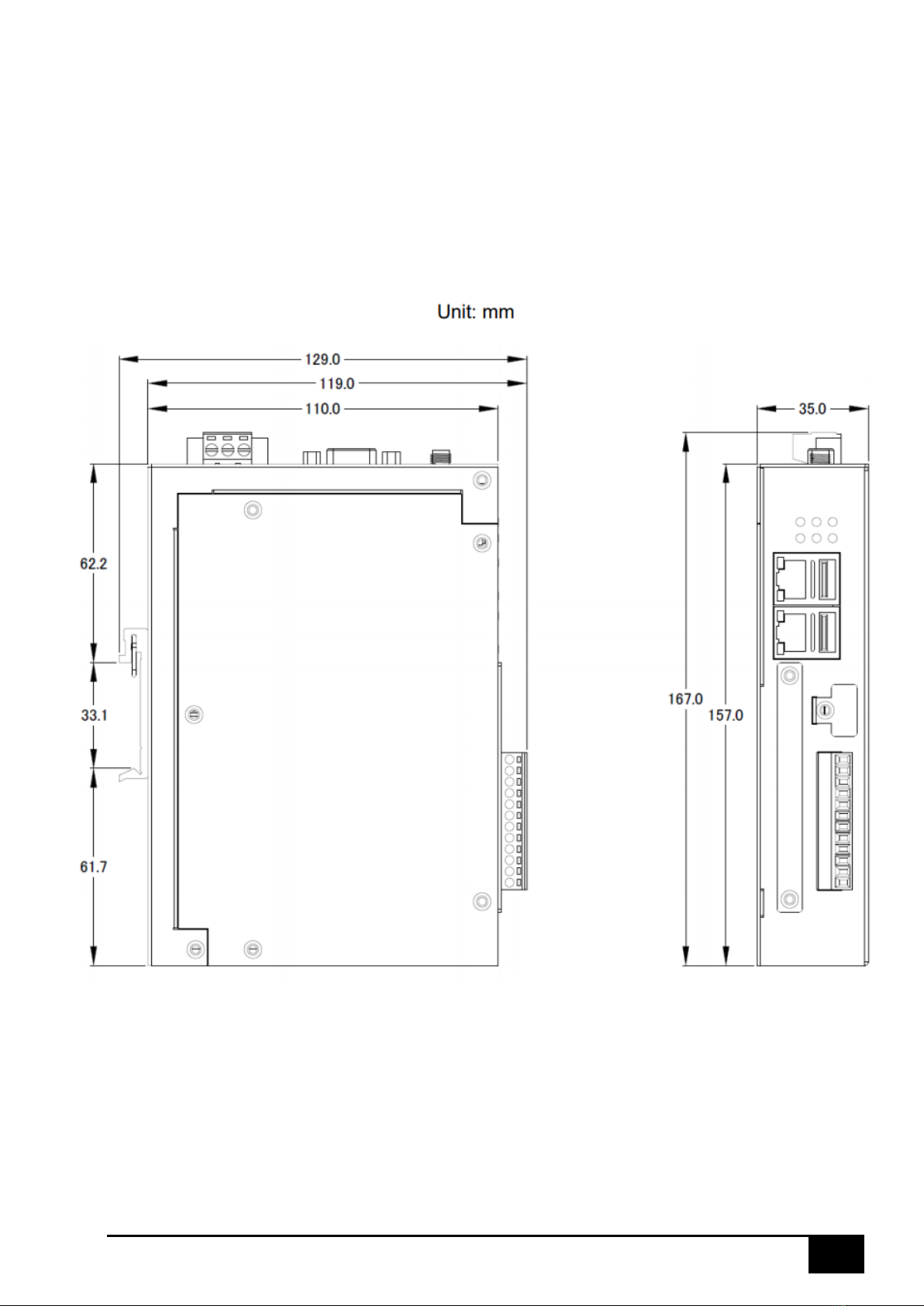

2.1. Dimensions

8
Version 1.0.1 DNP-211 User Manual 2022/06/01

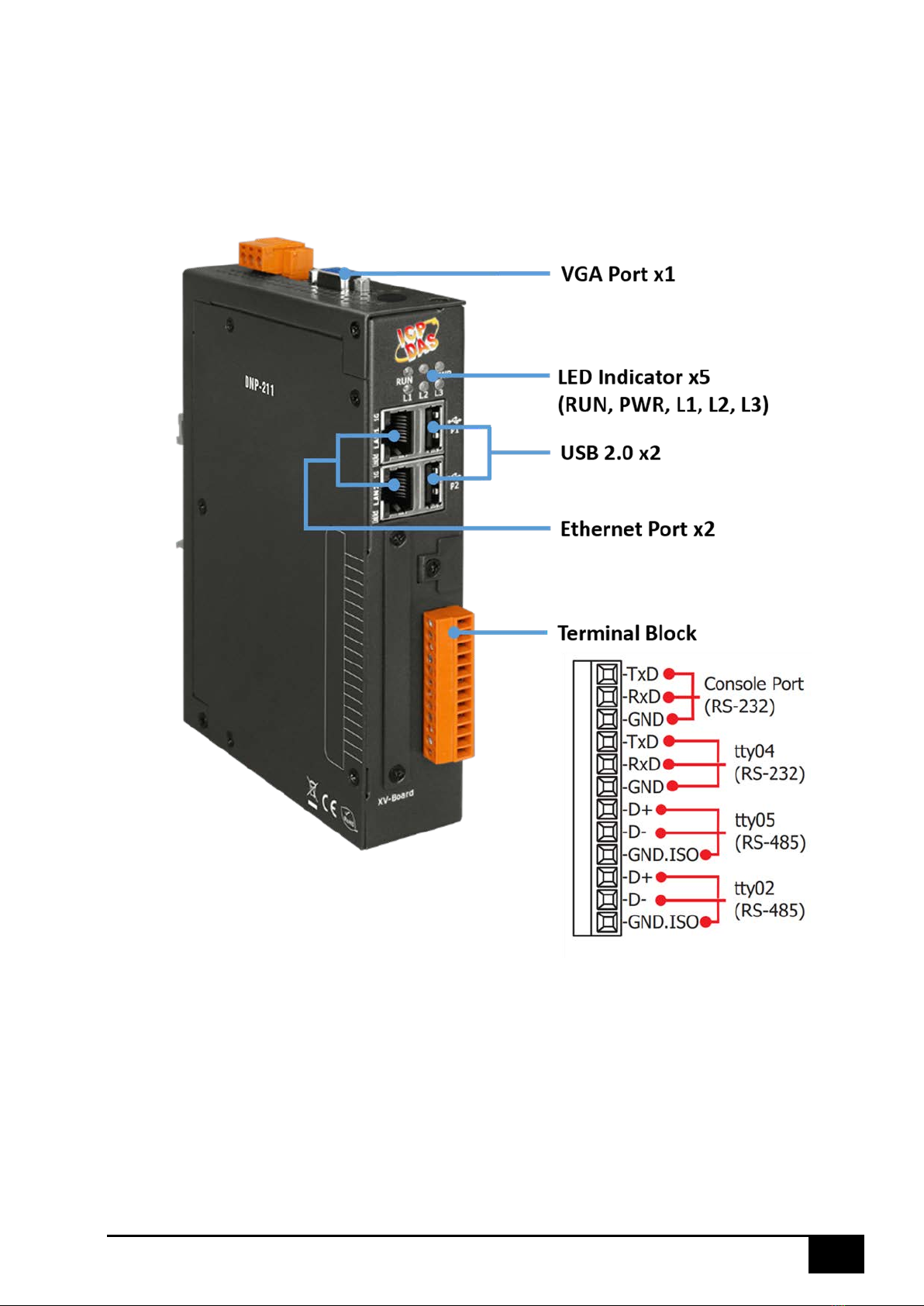

2.2. Appearance

9
Version 1.0.1 DNP-211 User Manual 2022/06/01
2.3. LED Indicator

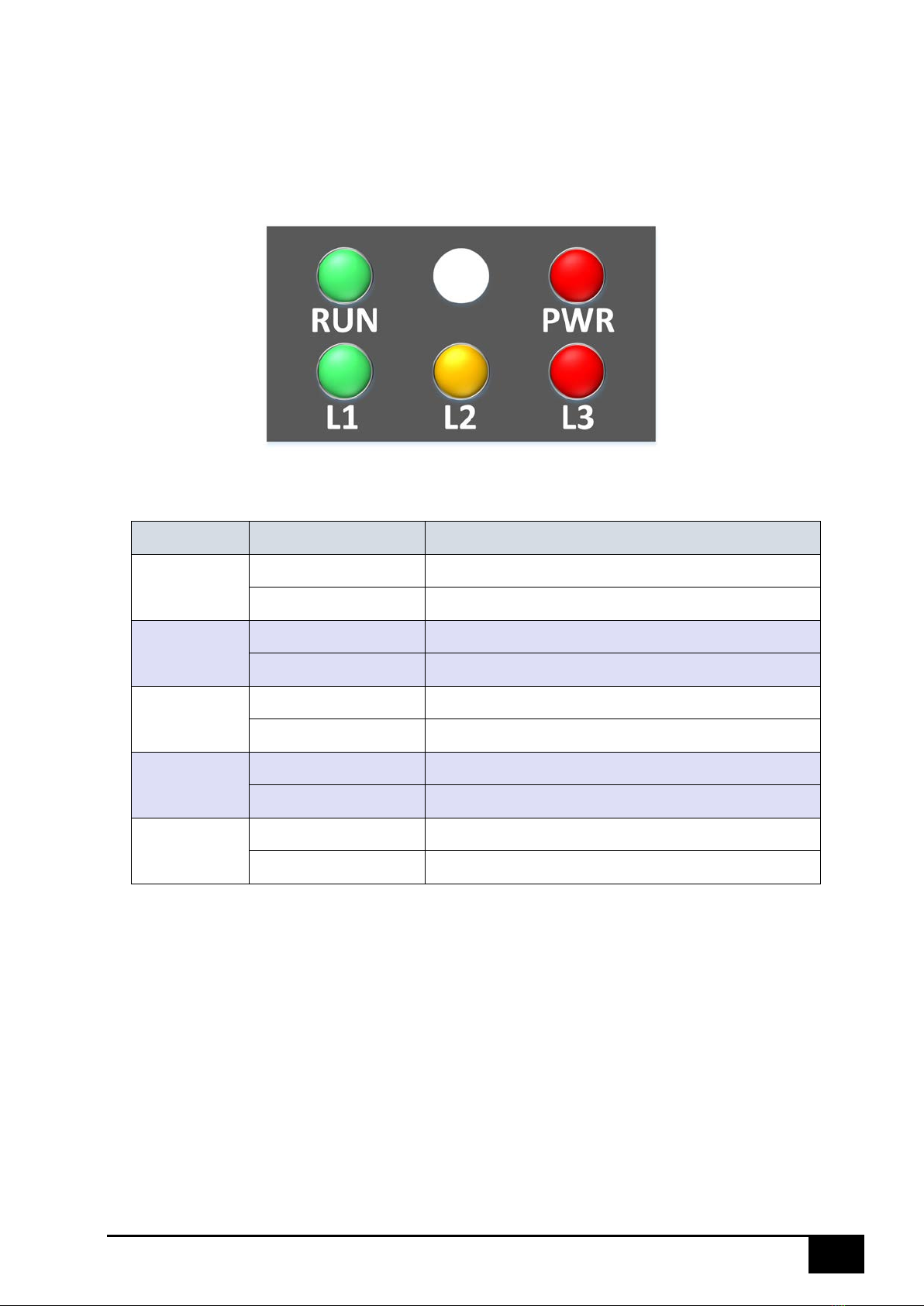

There are five LEDs to indicate the various states of the DNP-211. The
following is the illustration of these five LEDs.
LED Name LED Status Description
PWR ON Power on
OFF Power failure
RUN Blink OS is running
OFF OS stops running
L1 Flash every second Firmware is running
Other Firmware stops running
L2 Flash every 500 ms Modbus TCP disconnected
OFF No Warning
L3 Flash every 500 ms At least one DNP3 outstation disconnected
OFF No Error

10
Version 1.0.1 DNP-211 User Manual 2022/06/01
3. Getting Started With DNP-211
3.1. Preparations for Devices
In addition to the DNP-211, please prepare the following:
1. Power Supply: +12 ~ +48 VDC (Ex: DP-665)
2. Ethernet Hub or Switch (Ex: NS-205)
3. PC/NB: Can connect to the network and set the network
3.2. Hardware Wiring
Connect the DNP-211 with the RJ-45 Ethernet port LAN1 to an Ethernet
hub/switch and PC. You can also link directly the DNP-211 to PC with an
Ethernet cable.
After power is connected, please wait 1 minute for DNP-211 start-up
procedure. When the "RUN"indicator starts flashing and “PWR”
indicator is constantly lit, it represents the boot is complete. After the
module boots successfully, if the "L1" indicator flashes every second, it
means the firmware is running.
3.3. DNP-211 Utility

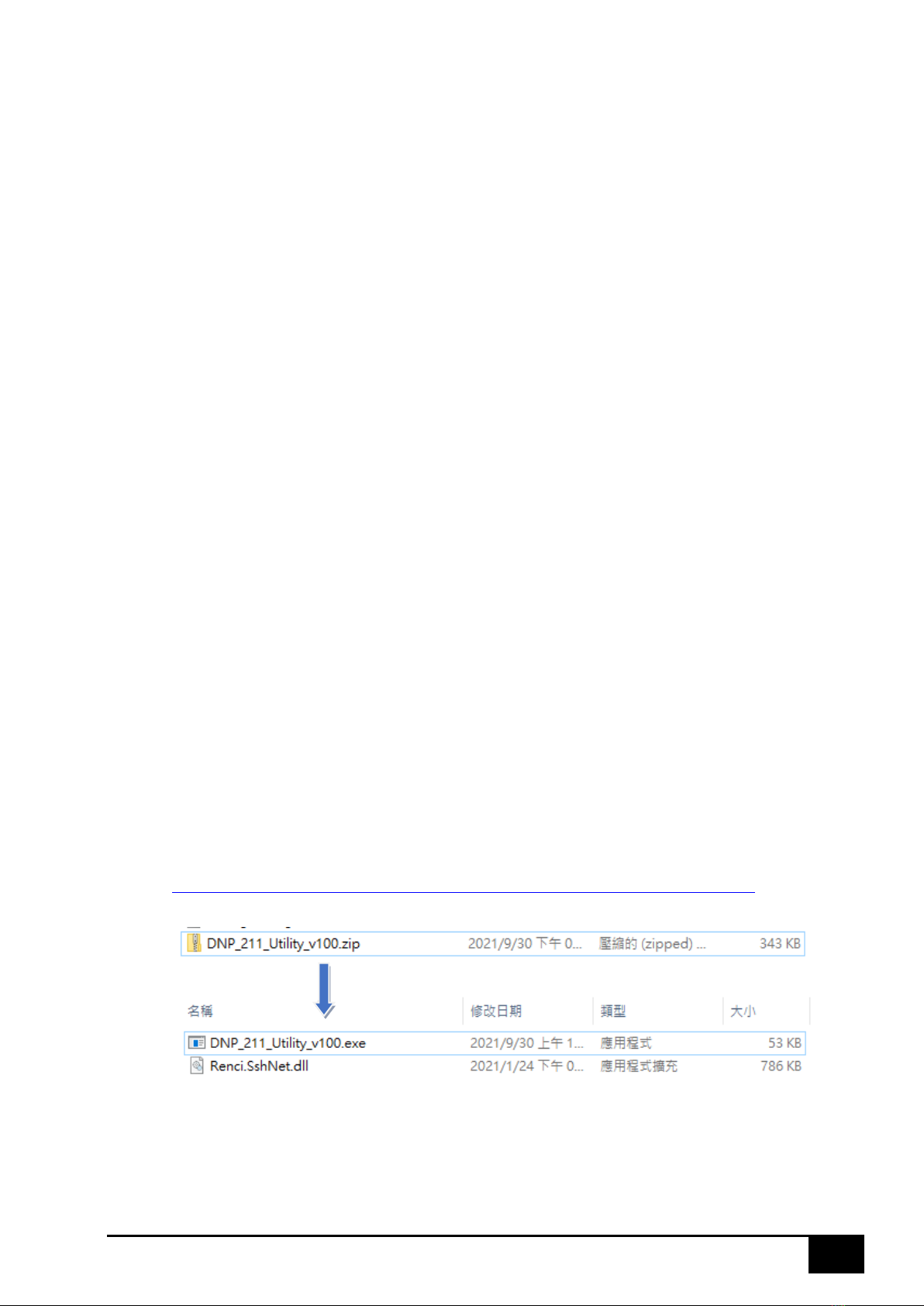

3.3.1. Download DNP-211 Utility
https://www.icpdas.com/en/download/show.php?num=8036&model=DNP-211
Download and install IEC850_211_S_Utility

11
Version 1.0.1 DNP-211 User Manual 2022/06/01
3.3.2. DNP-211 Utility Introduction

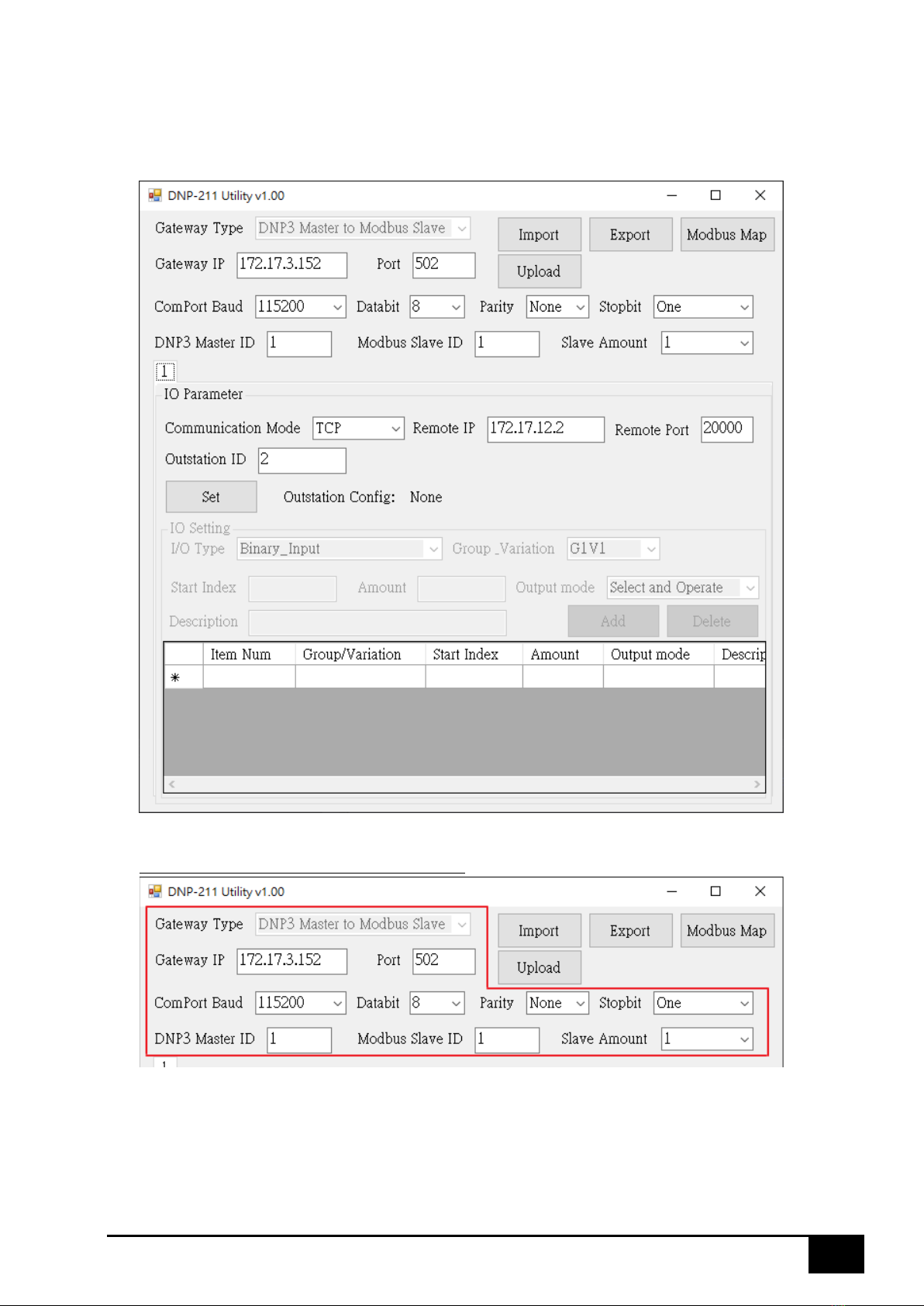

The DNP_211_Utility is as below:
DNP-211 Communication Configure
Gateway Type: Display gateway type of the DNP-211.
Gateway IP: Modbus TCP IP address of the DNP-211 (LAN1 IP).
Port: Modbus TCP port of the DNP-211

12
Version 1.0.1 DNP-211 User Manual 2022/06/01
ComPort Baud: Com port data baud rate of DNP3 side (ttyO2, 4, 5).
Databit: Com port data bit of DNP3 side (ttyO2, 4, 5).
Parity: Com port data parity of DNP3 side (ttyO2, 4, 5).
Stopbit: Com port data stop bit of DNP3 side (ttyO2, 4, 5).
DNP3 Master ID: Master ID, cannot be the same as slave (0 ~ 65519).
Modbus Slave ID: Modbus ID of the DNP-211.
Slave Amount: Number of DNP3 slaves.
DNP3 Outstation Communication Configure
Number tab: Select outstation

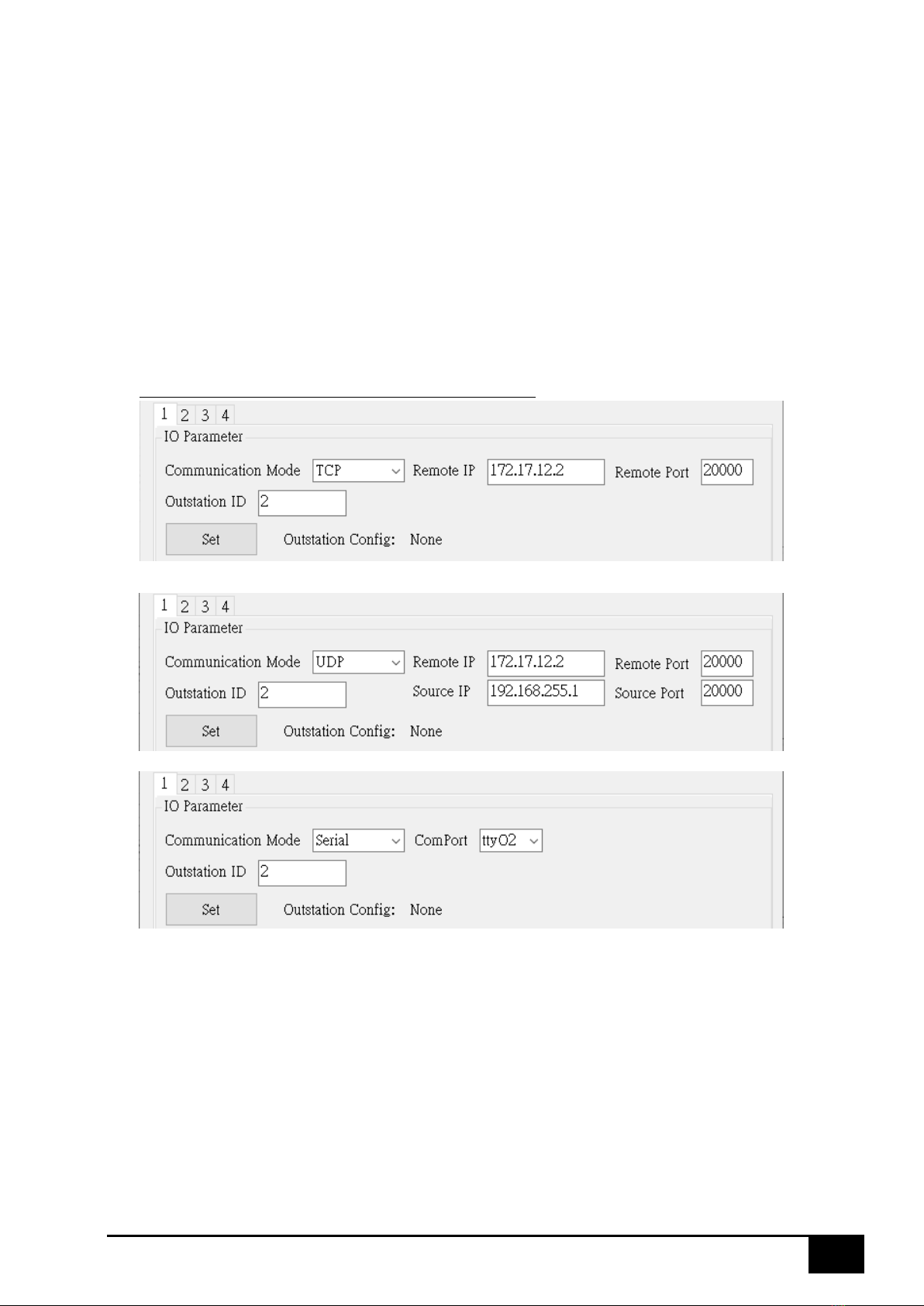

Communication Mode: Select connection mode (TCP, UDP, Serial)
TCP mode:
Remote IP, Remote Port: IP and port of target outstation.
UDP mode:
Remote IP, Remote Port: IP and port of target outstation.
Source IP, Source Port: IP and port of the DNP-211.
Serial mode:

13
Version 1.0.1 DNP-211 User Manual 2022/06/01
ComPort: Select the Com port connected to outstation.
Communication ID: DNP3 outstation ID (0~65519).
Set button: Set the connection parameter of the selected outstation.
Outstation I/O Configure
I/O Type: Added I/O type of the slave (map with Group_Variation)
Group_Variation: Added I/O type of the slave (map with I/O Type)
Start Index: Added I/O start address at the DNP3 slave
Amount: Amount of the I/O item
Output mode: DO / AO output mode (only for write command)
Description: User’s self-filled description
Utility Button
Import: Import the existing GatewayConfig.toml configuration file
Export: Export the current settings to the GatewayConfig.toml

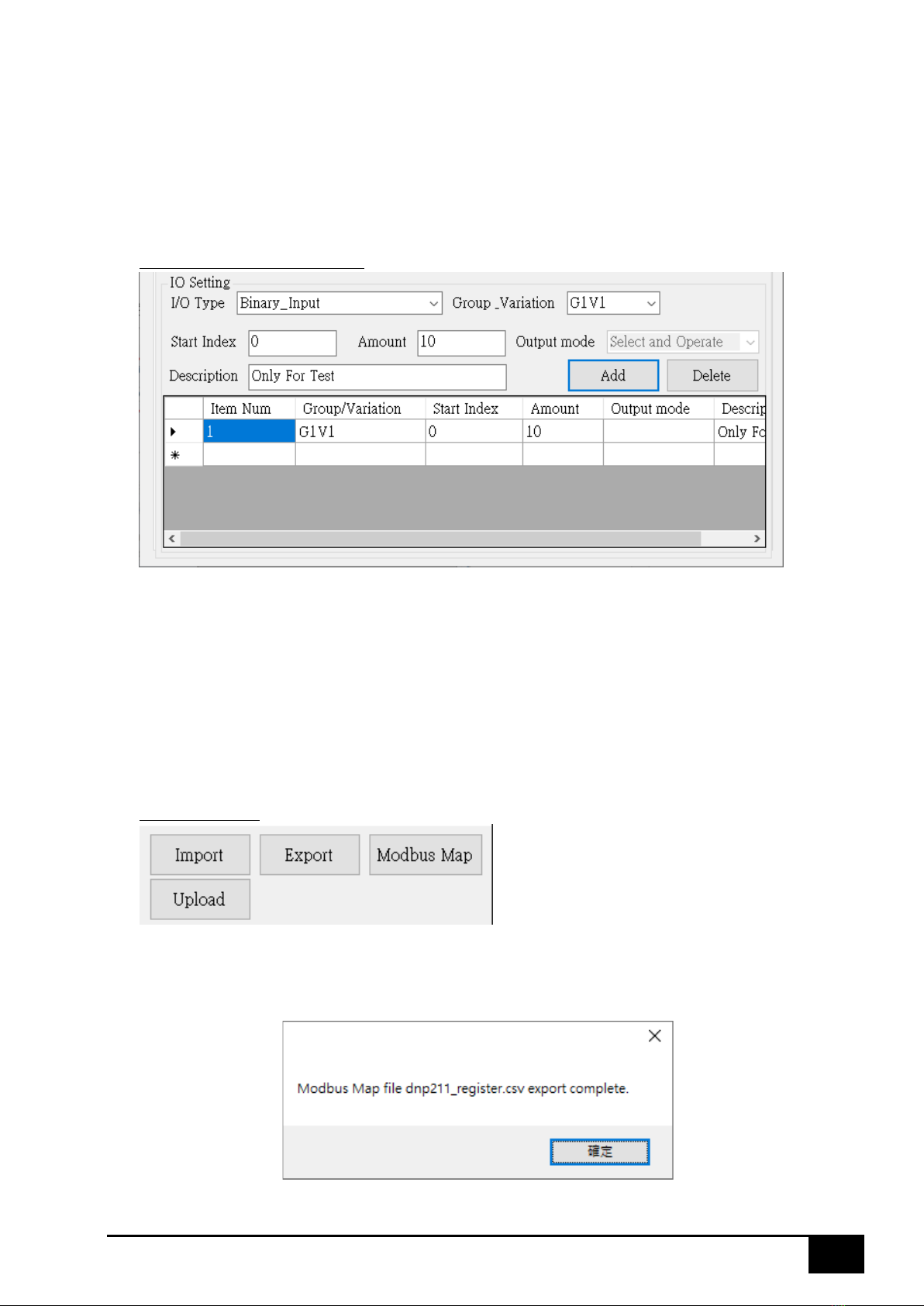

Modbus Map: Generate the currently set Modbus address table

14
Version 1.0.1 DNP-211 User Manual 2022/06/01
Upload: Upload the GatewayConfig.toml configuration file or
d2m_xxxxxxxx.tar.gz firmware file to DNP-211
Note: DNP-211 must be rebooted after upload configuration or
firmware file.

15
Version 1.0.1 DNP-211 User Manual 2022/06/01
3.4.DNP-211 Reader
3.4.1. Download DNP-211 Reader
https://www.icpdas.com/en/download/show.php?num=8036&model=DNP-211
3.4.2. DNP-211 Reader Introduction

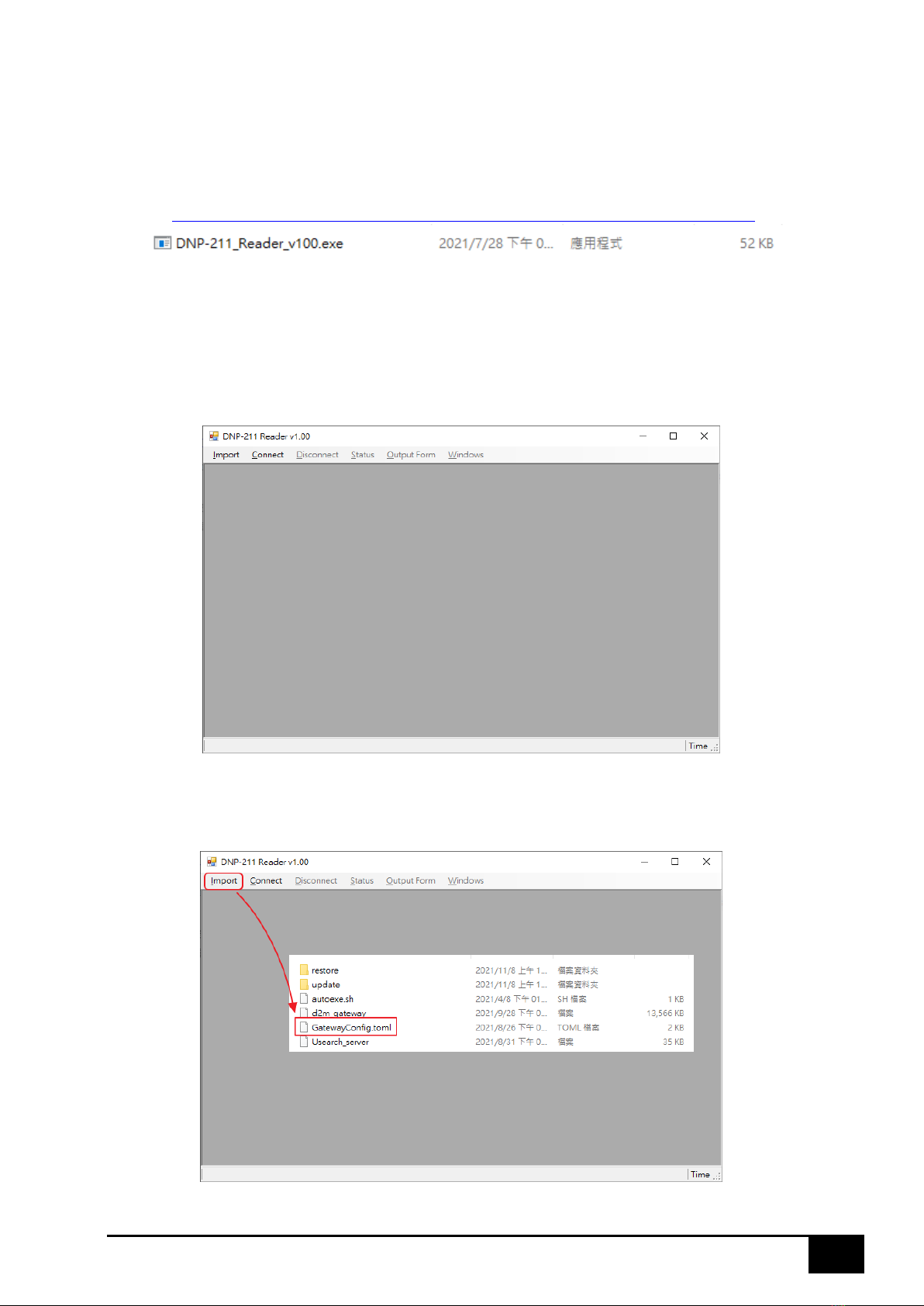

DNP-211 Reader is a simple test utility for DNP-211 module. It can
import the “toml” file produced by DNP-211 Utility and test the
connection and I/O function. The dialog of DNP-211 Reader is as bellow:
First clicked “Import” and selected the configuration file (.toml)
produced by DNP-211 Utility to import.

16
Version 1.0.1 DNP-211 User Manual 2022/06/01

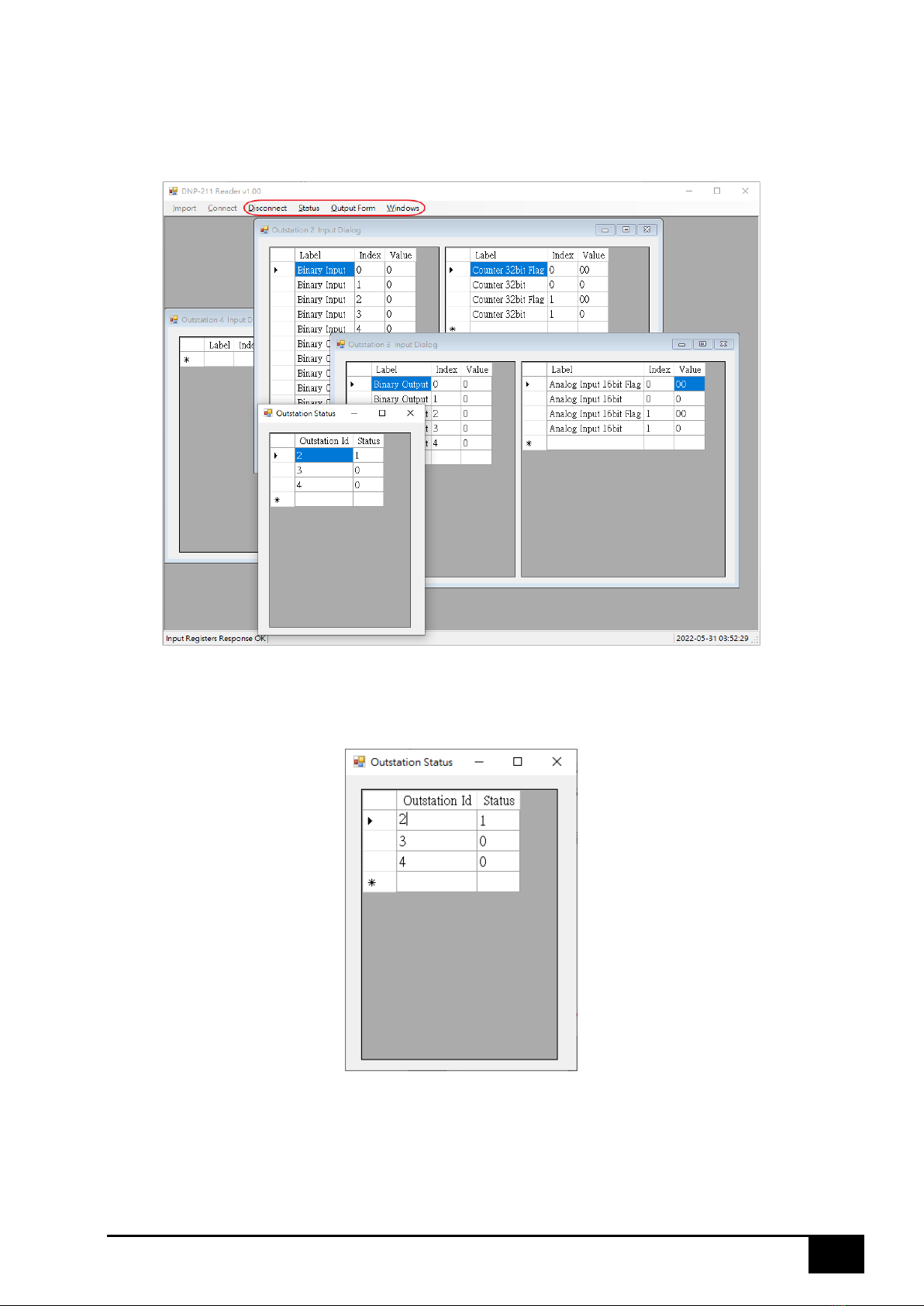

After import the toml file, click “Connect” to connect with DNP-211
module. If successful, DNP-211 Reader will show as below.
Disconnect: Disconnect with PC and DNP-211.
Status: Connection status of all Outstations (Modbus 30001 ~ 30032).
0: The setting of the DNP-211 not includes the Outstation.
1: The Outstation is waiting for connect.
2: The Outstation is On-line.

17
Version 1.0.1 DNP-211 User Manual 2022/06/01

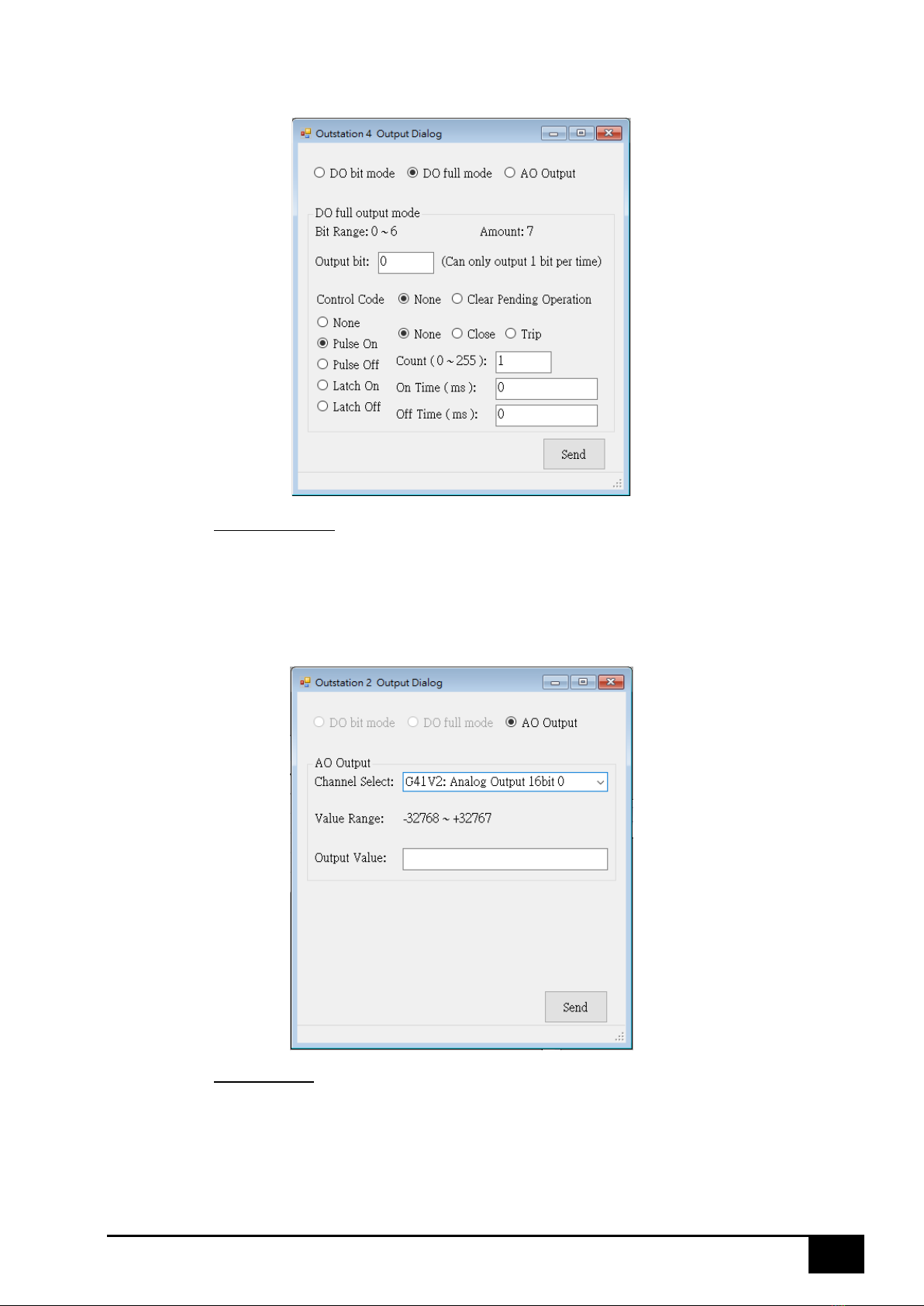

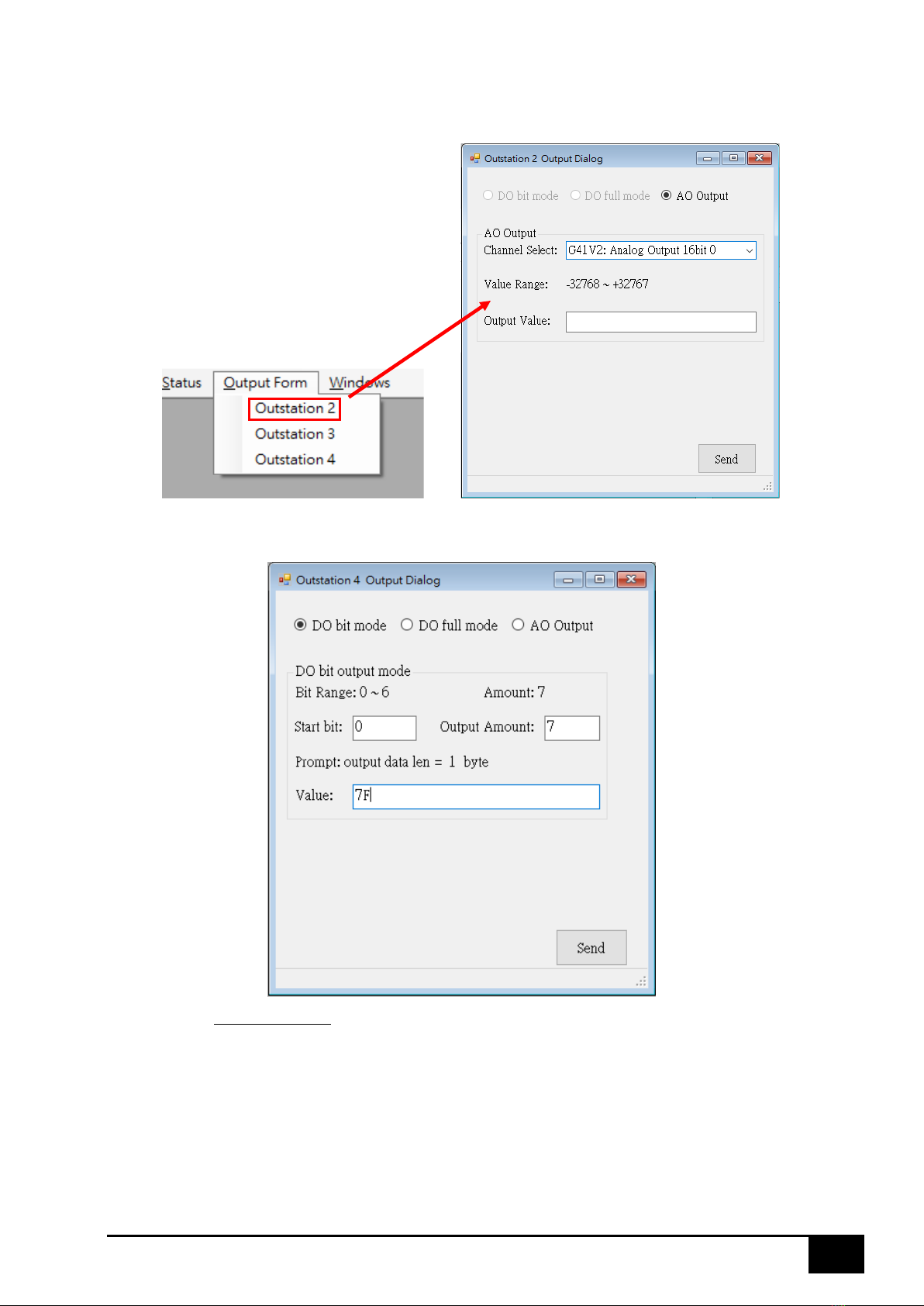

Output Form: Show the output dialog of every Outstation.
There are three output forms, DO bit, DO full and AO output.
DO bit mode:
This mode can output several DO bits simply. As above, there
are 7 DO points, bit0 ~ bit6. Fill the “Start bit” and “Output
Amount” bits and input the output value (hex) such as 7F. Finally
click “Send” to send the command, the “7F”command will
let DO bit0 ~ bit6 all ON.

18
Version 1.0.1 DNP-211 User Manual 2022/06/01
DO full mode:
This mode can output only one DO bit will complex function
as above. This interface only provides command options, as for
the detailed description and support of each function, please
refer to the instruction manual of the user ’s Outstation.
AO Output:
This mode can select AO channel to output. Fill in the
decimal value to be output in the “Output Value” field, and
finally press the “Send” button to output the command.

19
Version 1.0.1 DNP-211 User Manual 2022/06/01

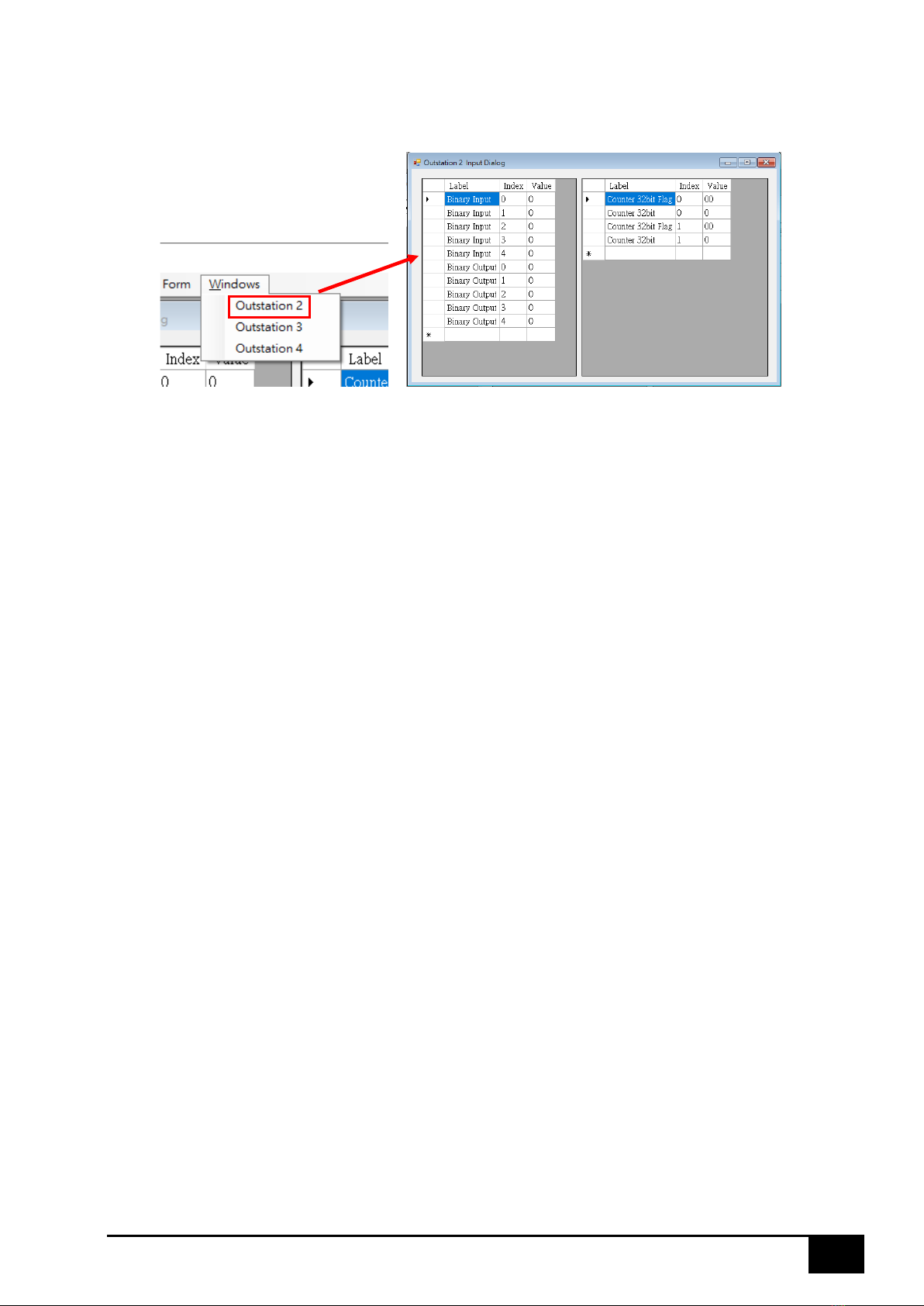

Windows: Show input form of every Outstation.

20
Version 1.0.1 DNP-211 User Manual 2022/06/01
Appendix A: Modbus Map

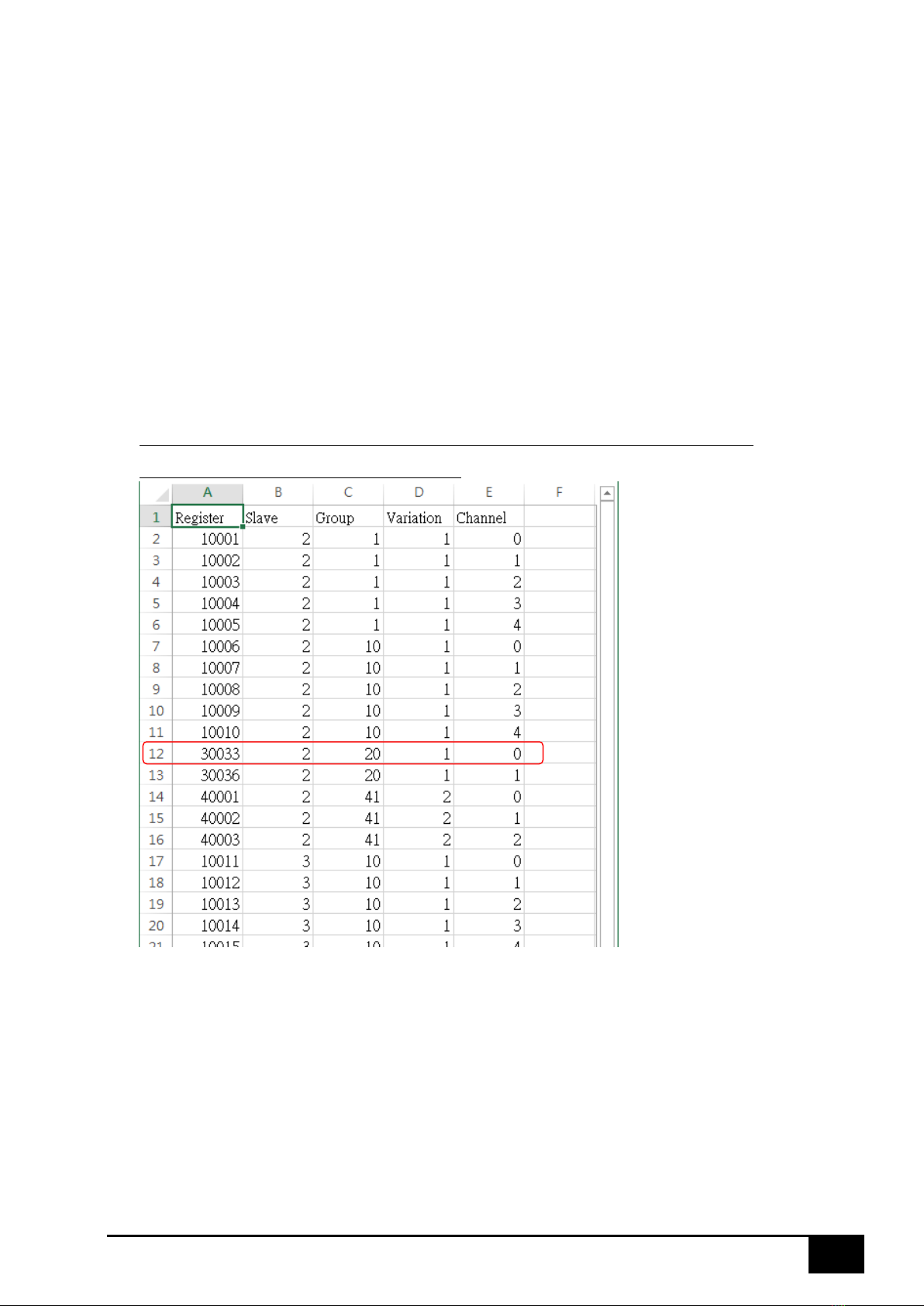

The Modbus Map function of DNP-211 Utility can export the mapping
table of Modbus and DNP3 as below:
Register field: Modbus address, 0xxxx: DO, 1xxxx: DI, 3xxxx: AI, 4xxxx: AO
Slave field: DNP3 Outstation ID
Group field: I/O type of the Outstation
Variation field: Variation of the I/O type
Channel field: I/O channel number
Note: AI address is start from 30033, because 30001 ~ 30032 are the
connection status of all Outstations.
