XP-8000-CE6 Quick Start Guide --- 1
Quick Start for XP-8000-CE6
February 2010, Version 1.0.4
Foreword
The purpose of this Quick Start is to help you quickly start to use the
XP-8000-CE6 and have a rough understanding with processes of
application installation and setting I/O modules.
Table of Contents
1. What's on Your Package? ......................................................................2
2. Preparing for Start-up Your XP-8000-CE6..............................................2
3. Connecting to Power and Peripherals....................................................3
4. Inserting I/O Modules .............................................................................3
5. Localize your XP-8000-CE6 with language options……………………...4
6. Using DCON Utility to Configure I-87K Series I/O Modules ...................4
7. Restore Your XP-8000-CE to Factory Default.....…………………………6
8. Technical Support ..................................................................................8

XP-8000-CE6 Quick Start Guide --- 2
What’s on your package?
Item
Quantity
Model No.
Description
XP-8000-CE6
1
XP-8041-CE6
XP-8041-CE6: 0 slot
XP-8341-CE6: 3 slots
XP-8741-CE6: 7 slots
XP-8341-CE6
XP-8741-CE6
Manual
1
-
Quick Start Guide
(this manual)
CF Card
1
-
Rescue CF Card
CD
1
-
Software and
documents included.
Screw Driver
1
1C016
2.4 mm Screw driver
Preparing for start-up your XP-8000-CE6
1. Power Supply: +10 ~ +30 VDC (Ex: DP-665)
http://www.icpdas.com/products/Accessories/power_supply/power_list.htm
2. Monitor: 640 x 480 ~ 1024 x 768 (or above)
3. USB mouse and USB keyboard

XP-8000-CE6 Quick Start Guide --- 3

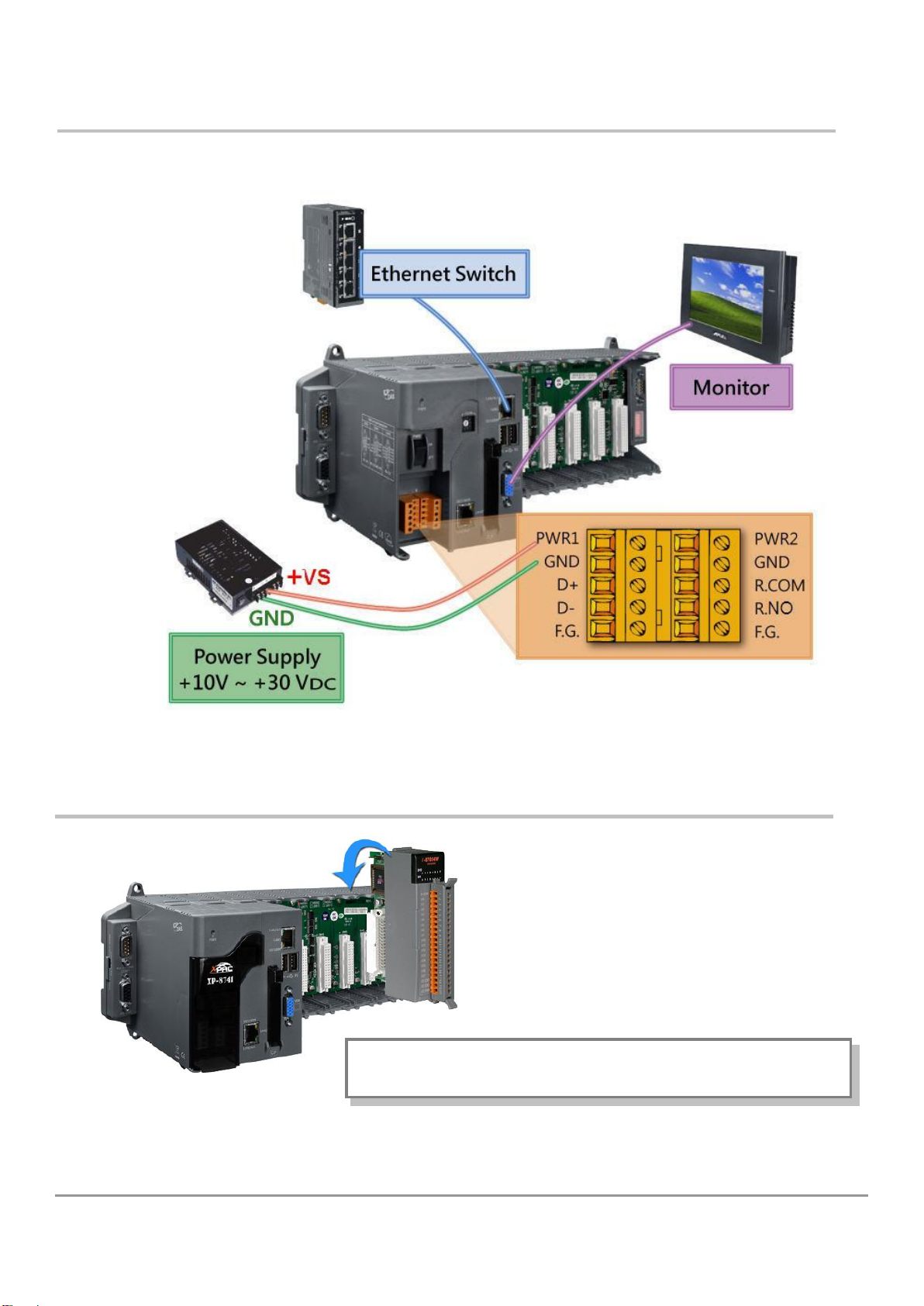

Connecting to power and peripherals
Inserting the I/O module(s)
High profile I-8K and I-87K modules only

XP-8000-CE6 Quick Start Guide --- 4
Localize your XP-8000-CE6 with Language Options
Follow the steps to configure the language options:
1. Start Settings Control Panel.
2. Click on “Regional Settings”.
3. Click on “User Interface Language”.
4. Choose the language used for the menus, dialogs, and alerts.
5. Reboot the device to take effect the setting.
Using DCON Utility to configure I-87K modules
Warning: For supporting XP-8000-CE, DCON Utility should be
version 5.14 or later.
Install DCON Utility in your PC first.
You can have one copy of DCON Utility:
ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/
Configure I-87K modules as the following steps.
1. Double-click on the shortcut on the desktop of PC.
2. Double-click on the shortcut on the desktop of XP-8000-CE6.

XP-8000-CE6 Quick Start Guide --- 5
3. Click on the WIN CE command button
4. In the XPAC_CE tab: type the IP and choose COM port to scan, and
then Connect.
5. Click the name of the module you want to configure it.

XP-8000-CE6 Quick Start Guide --- 6
Restore your XP-8000-CE6 to factory default
Warning: XP-8000-CE6 have to run under normal mode, which means
rotary switch = 0, to restore XP-8000-CE6 to factory default

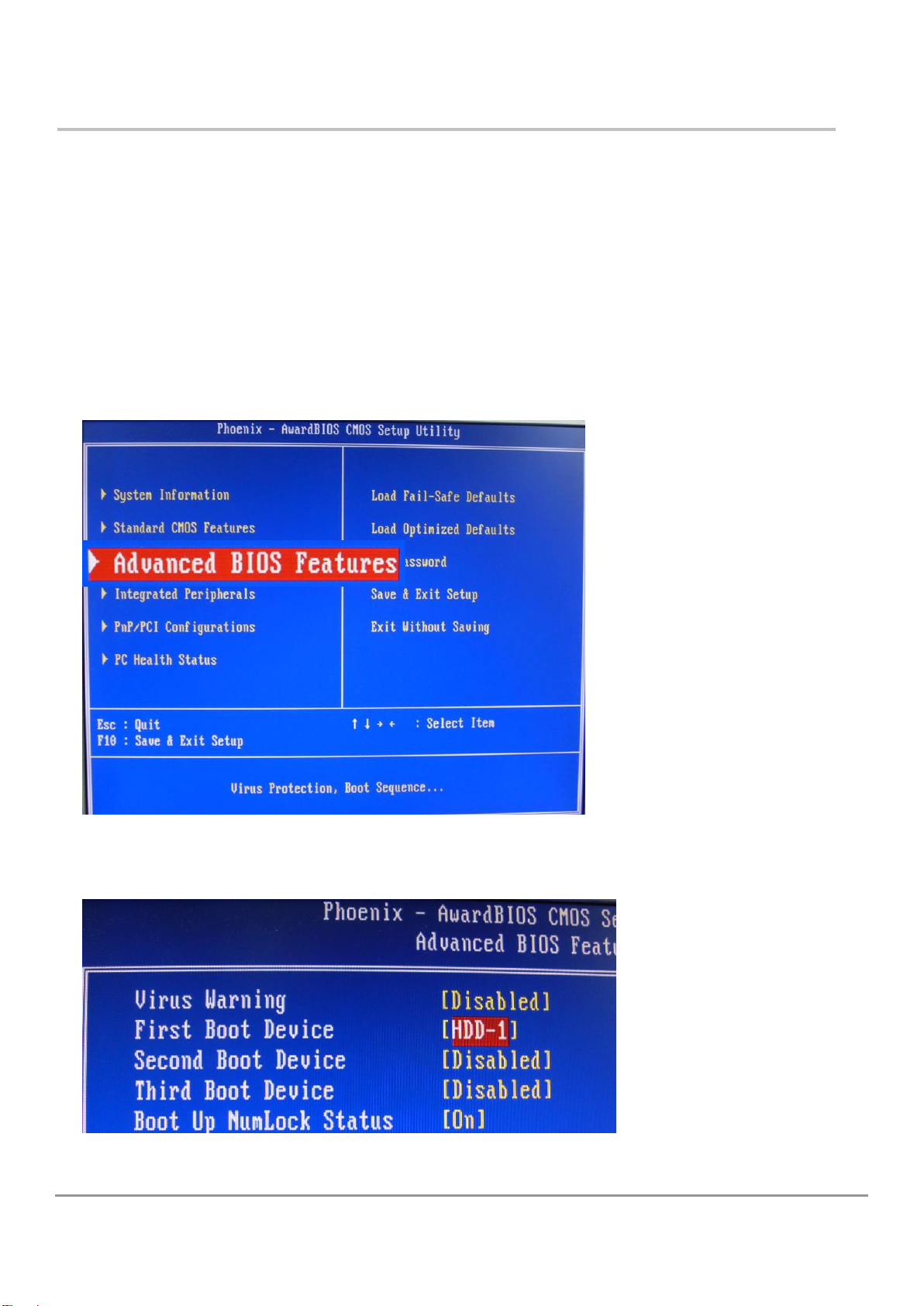

1. Reboot your XP-8000-CE6. While rebooting, press “delete”key to enter
BIOS setup utility.
2. Choose “Advanced BIOS Features”and then press “Enter”key.
3. Set “First Boot Device”as “HDD-1”.

XP-8000-CE6 Quick Start Guide --- 7
4. Return to main menu and select “Save and Exit Setup”.
5. Choose (a)/(1) create XPAC_CE default partition.
6. Wait about several seconds for step 1 and reboot, then choose (b)/(2),
format and restore XPAC_CE to factory default OS and choose (c)/(3)
to reboot. (Refer to above figure.)
7. Repeat step 1 ~ 4 to set “First Boot Device”as “HDD-0”(and reboot
XP-8000-CE6).
The XP-8000-CE6 will set itself default when the first reboot after recovery
procedure. It needs about 1 min.

XP-8000-CE6 Quick Start Guide --- 8
8. After above steps, the XP-8000-CE6 recovery is completed.
Technical support
XP-8000-CE6 User Manual
CD root:\ICPDAS\XP-8000-CE6\Document\User_Manual
CF root:\Document\User_Manual
ftp://ftp.icpdas.com/pub/cd/xp-8000-ce6/document/user_manual
XPAC SDK
CD root:\ICPDAS\XP-8000-CE6\SDK
CF root:\SDK
ftp://ftp.icpdas.com/pub/cd/xp-8000-ce6/sdk/
XPAC SDK API Documents:
CD root:\ICPDAS\XP-8000-CE6\Document\SDK
CF root:\Document\SDK
ftp://ftp.icpdas.com/pub/cd/xp-8000-ce6/document/sdk
XP-8000-CE6 Website
http://www.icpdas.com/products/PAC/xpac_ce/introduction.htm
ICP DAS Service Email Account
[e-mail]

XP-8000-CE6 Quick Start Guide --- 9
XP-8000-CE6 系列快速安裝指南
2010 年2月， 1.0.4 版
前言
本手冊目的在於提供 XP-8000-CE6的使用須知與安裝軟體, 設定 I/O模
組的步驟簡易說明, 希望能幫助您排除對剛接觸 XP-8000-CE6 產生的
疑惑, 在最短的時間內開始使用 XP-8000-CE6.
目錄
1. 產品清單 ............................................................................................10
2. 前置準備..............................................................................................10
3. 連接電腦與周邊....................................................................................11
4. 安裝 I/O 模組 ….................................................................................11
5. 變更系統語言環境………………………………………………………….12
6. 使用DCON Utility設定I-87K模組........................................................12
7. 系統回復…………………………………………………………………….14
8. 技術支援..............................................................................................16

XP-8000-CE6 Quick Start Guide --- 10
產品清單
項目
數量
型號
說明
XP-8000-CE6
1
XP-8041-CE6
硬體模組
XP-8041-CE6: 0 槽
XP-8341-CE6: 3 槽
XP-8741-CE6: 7 槽
XP-8341-CE6
XP-8741-CE6
手冊
1
-
快速安裝指南
(本文件)
CF Card
1
-
系統回復
CD
1
-
內含軟體, 手冊
螺絲起子
1
1C016
2.4 mm ㄧ字螺絲起子
前置準備
4. 電源供應器: +10 ~ +30 VDC (例如: DP-665)
http://www.icpdas.com/products/Accessories/power_supply/power_list.htm
5. 螢幕: 640 x 480 ~ 1024 x 768 (or above)
6. USB 滑鼠與鍵盤

XP-8000-CE6 Quick Start Guide --- 11
連接電源與周邊
安裝 I/O 模組
(僅支援I-8K與I-87K高卡系列I/O模組)

XP-8000-CE6 Quick Start Guide --- 12
變更系統語言環境
依下列步驟變更系統語言環境：
1. 開始 設定 控制台。
2. 點選 “區域設定”。
3. 點選 “使用者介面語言”。
4. 選用於功能表和對話方塊的語言。
5. 重開機以使設定生效。
使用 DCON Utility 設定 I-87K 模組
警告：DCON Utility 5.14 以後的版本才支援 XP-8000-CE
在您的電腦上先安裝 DCON Utility.
取得 DCON Utility:
ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/
以下簡述在 XP-8000-CE6 上設定 I-87K 的步驟.
1. 雙擊電腦桌面上的 ”DCON_Utility”圖示(捷徑).
2. 雙擊 XP-8000-CE6 桌面上的 ”DCON_CE_V600”圖示(捷徑).

XP-8000-CE6 Quick Start Guide --- 13
3. 點擊 WIN CE 按鈕.
4. 在XPAC_CE 標籤頁: 輸入 IP 和選擇欲搜尋的 COM port, 然後按
Connect 鈕.
5. 點擊已被搜尋到的模組名稱, 進入設定畫面.

XP-8000-CE6 Quick Start Guide --- 14
系統回復
XP-8000-CE6 在出貨 CF 中預載系統回復程式, 經過簡單的步驟, 即可將
XP-8000-CE6 回復到出廠預設狀態.
注意：執行系統回復時，請確定狀態為 normal mode (即rotary switch 為0)
1. 重新啟動 XP-8000-CE6. 在啟動時按下鍵盤上的 “delete”按鍵進入
BIOS 設定工具程式.
2. 選擇 “Advanced BIOS Features”並按下 “Enter”按鍵.
3. 將“First Boot Device”設定為 “HDD-1”.

XP-8000-CE6 Quick Start Guide --- 15
4. 選擇 “Save and Exit Setup”, 按下 ”Enter”按鍵.
XP-8000 將重新啟動, 並從 CF 開機.
5. 開機後進入 XP-8000-CE6 回復工具程式, 選擇
(a)/(1), create XPAC_CE default partition.
此約需幾秒鐘，重開機後，選擇(b)/(2), format and restore XPAC_CE to
factory default OS，完成後選(c)/(3)重開機 (請參考上圖)
6. 重複步驟 1 ~ 4, 將“First Boot Device”設定為 “HDD-0”後重開機.
7. 系統回復後第一次重開機, 系統自動進行參數設定, 約需等待 1分鐘. 參

XP-8000-CE6 Quick Start Guide --- 16
數設定完成時, 即回復為出廠狀態.
技術支援
XP-8000-CE6 使用手冊
CD root:\ICPDAS\XP-8000-CE6\Document\User_Manual
CF root:\Document\User_Manual
ftp://ftp.icpdas.com/pub/cd/xp-8000-ce6/document/user_manual
XPAC SDK : XP-8000-CE6 開發套件
CD root:\ICPDAS\XP-8000-CE6\SDK
CF root:\SDK
ftp://ftp.icpdas.com/pub/cd/xp-8000-ce6/sdk/
XPAC SDK API 參考手冊:
CD root:\ICPDAS\XP-8000-CE6\Document\SDK
CF root:\Document\SDK
ftp://ftp.icpdas.com/pub/cd/xp-8000-ce6/document/sdk
XP-8000-CE6 網站
http://www.icpdas.com/products/PAC/xpac_ce/introduction.htm
服務信箱
[email protected]
