idatastart ADS-BZ1 User manual

REVISION DATE
20170124
DOCUMENT NUMBER
NOTICE The manufacturer will accept no responsability for any electrical
damage resulting from improper installation of this product, be that either
damage to the vehicle itself or to the installed device. This device must be in-
stalled by a certified technician. Please review the Installation Guide carefully
before beginning any work.
BEFORE INSTALLATION
1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)
U.S. Patent No. 8,856,780
INSTALL GUIDE
IDLIDSRSBZ1AADSBZ1EN
HARDWARE
ADSBZ1
ACCESSORIES
ADSUSB REQUIRED
COMPATIBLE RFKIT OPTIONAL
DIRECTED SMARTSTART & ADSHRNRSSM01 OPTIONAL
ADSTOOLSMB01 OPTIONAL
FIRMWARE
IDLIDSRSBZ1AADSBZ1
www.idatastart.comAutomotive Data Solutions Inc. © 2017
35777

U.S. Patent No. 8,856,780
VEHICLE LIST - 1 OF 1
MAKE MODEL YEAR INSTALL TYPE
FEATURES
3X LOCK START/STANDALONE MOD. SECURE TAKEOVER DATA IMMOBILIZER BYPASS ARM OEM ALARM DISARM OEM ALARM DOOR LOCK DOOR UNLOCK PRIORITY UNLOCK POWER LIFTGATE PARKING LIGHT CTRL HEATED SEATS CTRL VENTILATED SEATS CTRL RAP SHUTDOWN CTRL TACHOMETER STATUS MONITORING BRAKE PEDAL STATUS MONITORING VSS STATUS MONITORING GLOW PLUG STATUS MONITORING DOOR STATUS MONITORING TRUNK STATUS MONITORING HOOD STATUS MONITORING*
MERCEDES-BENZ
GL Class PTS AT 07-12 2 • • • • • • • • • • • • • • • • • • •
GL Class STD key AT 07-12 1 • • • • • • • • • • • • • • • • • • •
GL Class Diesel PTS AT 07-12 2 • • • • • • • • • • • • • • • • • • • •
GL Class Diesel STD key AT 07-12 1 • • • • • • • • • • • • • • • • • • • •
ML Class PTS AT 06-11 2 • • • • • • • • • • • • • • • • • • •
ML Class STD key AT 06-11 1 • • • • • • • • • • • • • • • • • • •
ML Class Diesel PTS AT 06-11 2 • • • • • • • • • • • • • • • • • • • •
ML Class Diesel STD key AT 06-11 1 • • • • • • • • • • • • • • • • • • • •
R Class PTS AT 06-12 2 • • • • • • • • • • • • • • • • • • •
R Class STD key AT 06-12 1 • • • • • • • • • • • • • • • • • • •
R Class Diesel PTS AT 06-12 2 • • • • • • • • • • • • • • • • • • • •
R Class Diesel STD key AT 06-12 1 • • • • • • • • • • • • • • • • • • • •
* If equipped with a factory hood switch.
NOTES
I This fi rmware covers Automatic Trans-
mission (AT) vehicles only.
II All the covered Push To Start (PTS)
vehicles are equipped with a keyless
authorization system called "Keyless
Go".
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 2 OF 23
• 20170124
DOC.: #35777

U.S. Patent No. 8,856,780
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 3 OF 23
• 20170124
BOX CONTENTS - 1 OF 1
21 3 4
2
1
3
21 3
42 8
1 3 5 7
10
9
6
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
3
6
4
1
2
5
3
6
4
1
2
5
2
1
3
4
42 8
1 3 5 7
10
9
6
7
9
3
10
8
6
4
12
5
2
1
2
1
3
4
2
1
3
4
2
1
3
4
7
9
3
10
8
11 12
6
4
12
5
MODULE
BOX CONTENTS
T-HARNESS 1
2 PIN BLACK CONNECTOR
AFTERMARKET HOOD SWITCH AND CABLE
STICKER 1
EXPANSION PACK
STICKER 2
EXTRA CONNECTOR HOUSING
10 PIN WHITE CONNECTOR
12 PIN BLACK CONNECTOR
PROGRAMMING
BUTTON
LED 1 LED 2
LED LED
RED
BLUE
BLACK
BLACK
RF PORT/WEBLINK PORT
BLACK
BLUE
BLACK
BLACK
TOP VIEW TOP VIEWBOTTOM VIEW
BLACK
USB
BLUE
TELEMATIC
PORT
WHITE
BLACK
EXPANSION PACK ASSEMBLY
BLUE
BLACK
BLACK
XP LED 1 XP LED 2
WEBLINK CABLE (required accessory sold separately)
WEBLINK CABLE
COMPUTER
USB PORT
4 PIN BLACK CABLE
ELECTRONIC IGNITION SWITCH REMOVAL TOOL (accessory sold separately)
IGNITION
SWITCH
ADS-TOOLS-MB01 OR
MERCEDEZ BENZ P/N 639 589 01 07 00
MODULE
WEBLINK PORT
DOC.: #35777

U.S. Patent No. 8,856,780
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 4 OF 23
• 20170124

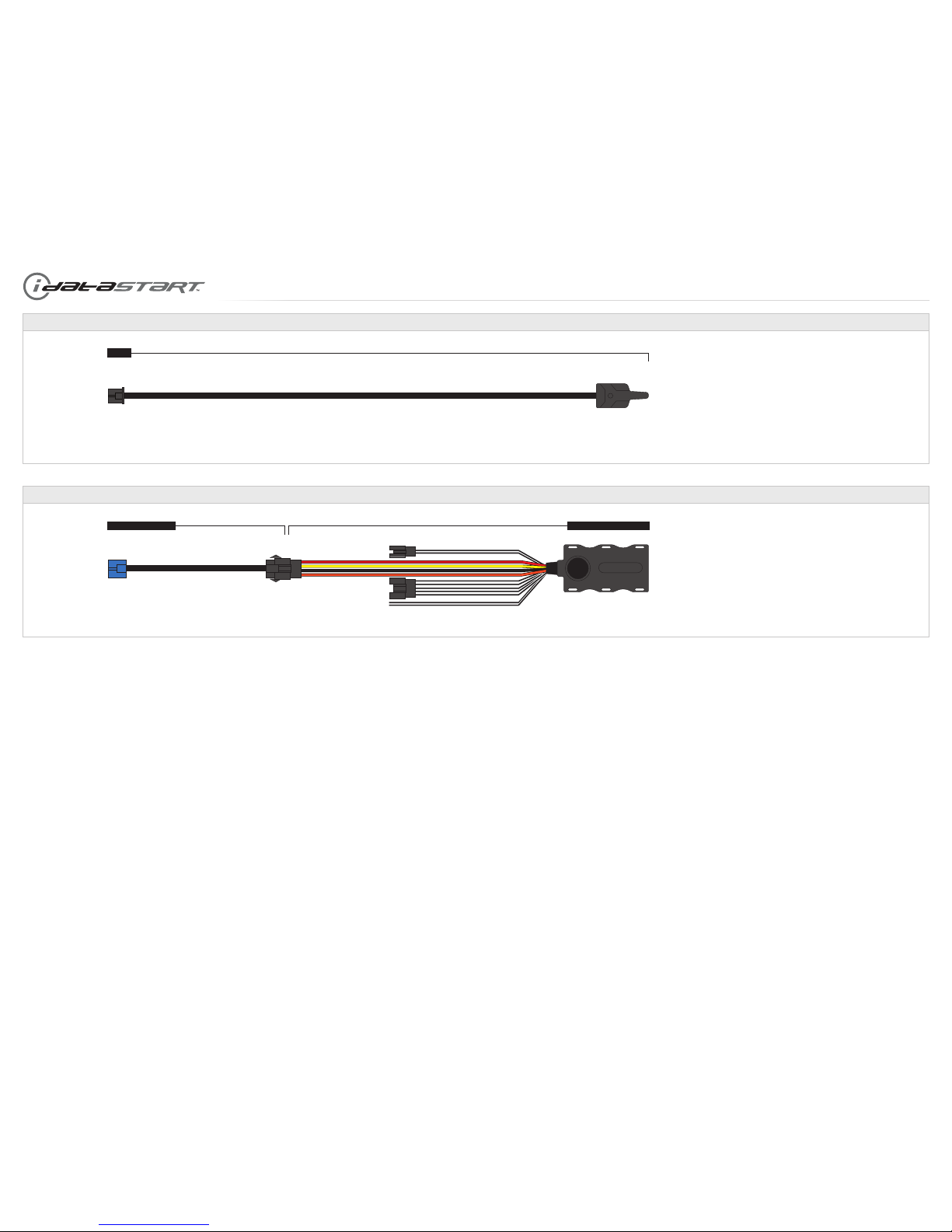

COMPATIBLE ACCESSORIES - 1 OF 1
RF KIT
RF KIT (accessories sold separately)
MODULE
RF PORT
ANTENNA
TELEMATIC KIT (accessories sold separately)
(NC)
(NC)
(NC)
DIRECTED SMARTSTART
ADS-HRN(RS)-SM01
MODULE
TELEMATIC PORT
DOC.: #35777

U.S. Patent No. 8,856,780

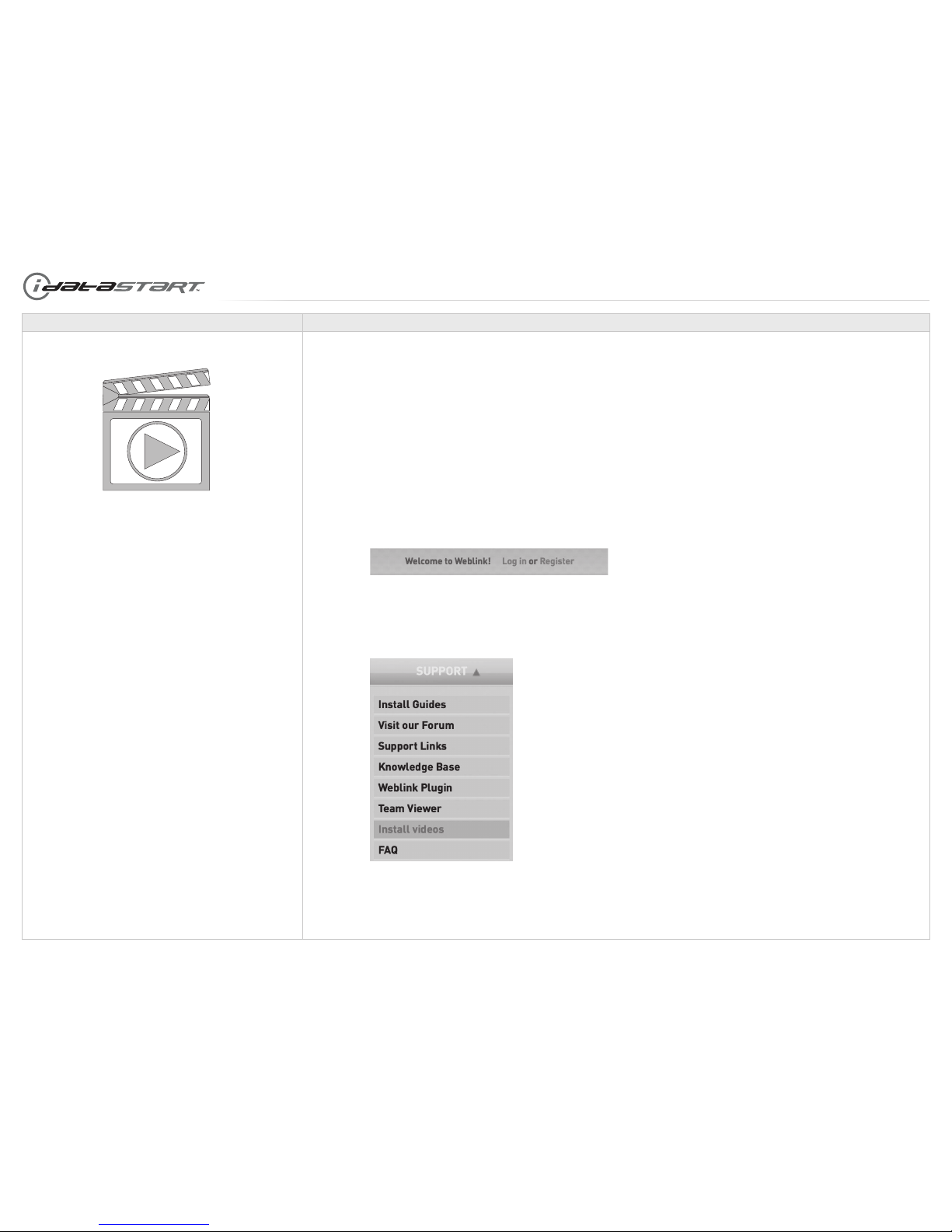

TECHNICAL NOTE - 1 OF 1
IMPORTANT INSTALL VIDEO GALLERY AVAILABLE ONLINE
Before installing this product, consult our Install Video Gallery and watch:
• Vehicle Disassembly Procedure videos
• Module Connection Procedures videos
• Module Programming Procedures videos
To access the videos, simply log in your Weblink user account,
and click on "Install videos" under the "Support" tab.
Then, select a vehicle make, year and model to display the available videos.
Æ
Æ
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 5 OF 23
• 20170124
DOC.: #35777

U.S. Patent No. 8,856,780
A
B
COMPONENT LOCATOR - 1 OF 1
INTERIOR VIEW
DRIVER SIDE VIEW PASSENGER SIDE VIEW
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 6 OF 23
• 20170124
DOC.: #35777

U.S. Patent No. 8,856,780
01
ENGINE
START
STOP
OFF ACC ON STARTSTART
START
02
ENGINE
START
STOP
OFF ACC ON STARTOFF
03
04
05
06
07
08
ENGINE
START
STOP
OFF ACC ON STARTSTART
START
09
10
ENGINE
START
STOP
OFF ACC ON STARTOFF
11
12
13
14
RF
15
16
17

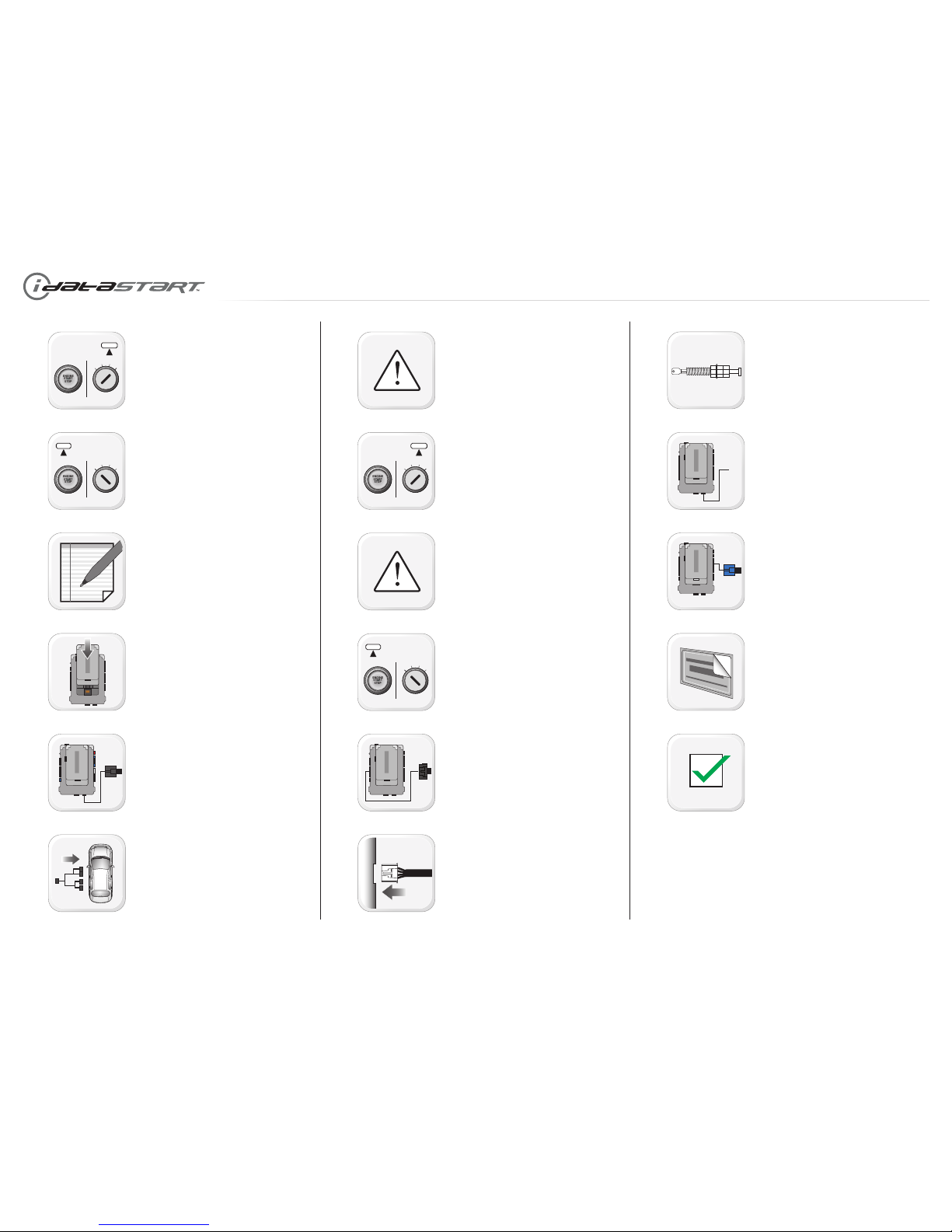

MODULE INSTALLATION PROCEDURE - 1 OF 1
START the vehicle. Verify all vehicle
functionalities. If the vehicle displays error
messages or any malfunction: stop the
installation and service the vehicle.
Turn OFF the vehicle.
Verify all keyfob functionalities (Door Lock,
Door Unlock, Trunk Release and RFID access
if equipped).
Insert the expansion pack in the module.
Connect the module to the computer with the
programming cable (WEBLINK port). Flash
the module with the latest firmware then flash
the expansion pack.
Connect and secure every connector to the
vehicle, as shown in STEP 1 of the WIRING
DIAGRAM.
WARNING: Any vehicle harness that is
disconnected during installation, must be
re-connected before performing any system
tests. Failure to comply will result in vehicle
displaying error messages. An OEM scantool
will be required to clear the error messages.
START the vehicle. Verify all vehicle
functionalities.
WARNING: If the vehicle displays error
messages or any malfunction, stop the
installation, verify every connection and if the
problem persists, call technical support.
Turn OFF the vehicle.
Connect every connector to the module, as
shown in STEP 2 of the WIRING DIAGRAM.
Connect every other connector to the module,
as shown in STEP 3 of the WIRING DIAGRAM.
If the vehicle is not equipped with a factory
hood switch, install an aftermarket hood
switch as shown in STEP 4 of the WIRING
DIAGRAM.
If required, connect a compatible RF Kit to the
RF port of the module.
If required, connect a compatible Telematics
Device to the TELEMATIC port of the module.
Put sticker 1 on a clean and visible surface
in the engine bay and put sticker 2 under the
dashboard near the OBDII connector.
Module installation procedure completed.
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 7 OF 23
• 20170124
DOC.: #35777

U.S. Patent No. 8,856,780
TYPE 1 - WIRING DIAGRAM - 1 OF 1
CONNECT TO VEHICLE
START VEHICLE WITH OEM KEYFOB TO TEST CONNECTIONS
STEP 1
MODULE
07 GRAY/WHITE - HOOD STATUS (-) INPUT
08 GRAY/BLACK (NOT USED)
BLACK 20 PIN
BLACK 6 PIN
BLACK 6 PIN
WHITE 6 PIN
WHITE 6 PIN
BLUE 6 PIN
BLACK 10 PIN
WHITE 10 PIN
1-TO CONNECT THE MODULE: FOLLOW STEPS 1 TO 4
2-TO DISCONNECT THE MODULE: FOLLOW STEPS 4 TO 1
IF NOT EQUIPPED
WITH AN OEM HOOD SWITCH,
INSTALL AN AFTERMARKET HOOD SWITCH
CONNECT TO MODULE
RELAY
B (VEHICLE HARNESS)
A (VEHICLE HARNESS)
B
A
STEP 2
WARNING
CONNECT TO MODULE
CONNECT IF REQUIRED
HOOD SWITCH
STEP 3
STEP 4
BLACK 2 PIN (NOT USED)
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 8 OF 23
• 20170124
DOC.: #35777

U.S. Patent No. 8,856,780
TYPE 2 - WIRE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
MERCEDES-BENZ
GL Class PTS AT 07-12 CanH ~ Black 02 pin 01 Brown/Red (DATA) Trunk, passenger side A
CanL ~ Black 02 pin 02 Brown (DATA) Trunk, passenger side A
GL Class Diesel PTS AT 07-12 CanH ~ Black 02 pin 01 Brown/Red (DATA) Trunk, passenger side A
CanL ~ Black 02 pin 02 Brown (DATA) Trunk, passenger side A
ML Class PTS AT 06-11 CanH ~ Black 02 pin 01 Brown/Red (DATA) Passenger kick panel B
CanL ~ Black 02 pin 02 Brown (DATA) Passenger kick panel B
ML Class Diesel PTS AT 06-11 CanH ~ Black 02 pin 01 Brown/Red (DATA) Passenger kick panel B
CanL ~ Black 02 pin 02 Brown (DATA) Passenger kick panel B
R Class PTS AT 06-12 CanH ~ Black 02 pin 01 Brown/Red (DATA) Passenger kick panel B
CanL ~ Black 02 pin 02 Brown (DATA) Passenger kick panel B
R Class Diesel PTS AT 06-12 CanH ~ Black 02 pin 01 Brown/Red (DATA) Passenger kick panel B
CanL ~ Black 02 pin 02 Brown (DATA) Passenger kick panel B
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 9 OF 23
• 20170124
DOC.: #35777

U.S. Patent No. 8,856,780
TYPE 2 - WIRING DIAGRAM - 1 OF 2
CONNECT TO VEHICLE
START VEHICLE WITH OEM KEYFOB TO TEST CONNECTIONS
STEP 1
MODULE
07 GRAY/WHITE - HOOD STATUS (-) INPUT
08 GRAY/BLACK (NOT USED)
BLACK 2 PIN
BLACK 20 PIN
BLACK 6 PIN
BLACK 6 PIN
WHITE 6 PIN
WHITE 6 PIN
BLUE 6 PIN
BLACK 10 PIN
WHITE 10 PIN
1-TO CONNECT THE MODULE: FOLLOW STEPS 1 TO 4
2-TO DISCONNECT THE MODULE: FOLLOW STEPS 4 TO 1
IF NOT EQUIPPED
WITH AN OEM HOOD SWITCH,
INSTALL AN AFTERMARKET HOOD SWITCH
CONNECT TO MODULE
RELAY
B (VEHICLE HARNESS)
A (VEHICLE HARNESS)
B
A
STEP 2
WARNING
CONNECT TO MODULE
CONNECT IF REQUIRED
HOOD SWITCH
STEP 3
STEP 4
01 PINK/RED - CANH
02 PINK/BLACK - CANL
CAN JUNCTION CONNECTOR
CAN CONNECTORS
C1
01 CANH
02 CANL
SEE MODULE PROGRAMMING PROCEDURE - PTS
TO IDENTIFY THE REQUIRED CAN CONNECTOR.
ONCE IDENTIFIED, DISCONNECT IT FROM THE CAN
JUNCTION CONNECTOR AND CONNECT IT TO C1.
REFER TO WIRE CHART
REFER TO COMPONENT LOCATOR
IF THE REQUIRED CAN CONNECTOR DOES NOT FIT IN C1:
SEE NEXT PAGE FOR INSTRUCTIONS
CONNECT CONNECT
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 10 OF 23
• 20170124
DOC.: #35777

U.S. Patent No. 8,856,780
01 - CANH
02 - CANL
TYPE 2 - WIRING DIAGRAM - 2 OF 2
1- RELEASE RETAINING CLIP OF CAN CONNECTOR.
REMOVE CAN WIRES FROM HOUSING.
2- RELEASE LOCKING MECHANISM.
3- INSERT EMPTY HOUSING IN CAN JUNCTION CONNECTOR
(TO AVOID LOSING IT).
4- INSERT CAN WIRES IN PROVIDED HOUSING.
CONNECT IT WITH C1 HARNESS,
AS SHOWN IN WIRING DIAGRAM.
INSTRUCTIONS TO CHANGE THE HOUSING OF CAN WIRES
(ONLY IF THE CAN CONNECTOR DOES NOT FIT IN C1)
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 11 OF 23
• 20170124
DOC.: #35777

U.S. Patent No. 8,856,780
01
OFF
ACC ON
START
02
OFF
ACC ON
START
03
>>
04
OFF
ACC ON
START
05
06
OFF
ACC ON
START
07
MODULE PROGRAMMING PROCEDURE - STD KEY - 1 OF 1
LED 1 is solid RED. Insert key into ignition.
Turn key to ON position.
Wait, LED 1 will turn solid GREEN then will
turn OFF.
WARNING: If LED 1 flashes RED/GREEN, turn
ignition to OFF position. The vehicle is PTS.
Follow appropriate PTS sections.
START vehicle for 15 seconds. LED 1 will turn
solid RED.
Wait, LED 1 will turn solid GREEN then will
turn OFF.
Turn key to OFF position. Remove key from
ignition.
Module Programming Procedure completed.
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 12 OF 23
• 20170124
DOC.: #35777

U.S. Patent No. 8,856,780
>>
>>
01
ENGINE
START
STOP
STOP ACC ON START
ON
02
03
>>
>>
04
05
ENGINE
START
STOP
STOP ACC ON START
START
06
07
ENGINE
START
STOP
STOP ACC ON START
STOP
08

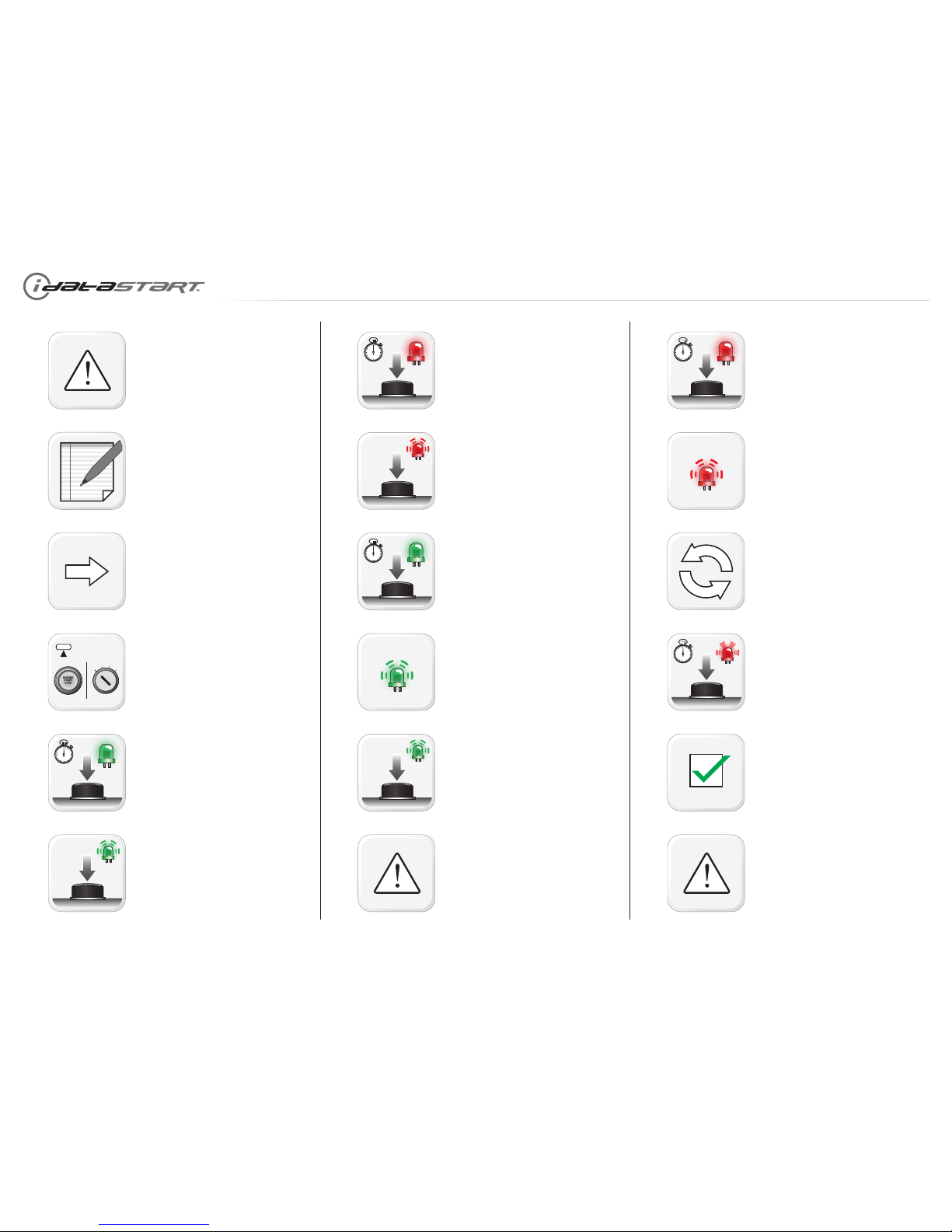

MODULE PROGRAMMING PROCEDURE - PTS - 1 OF 1
One of the connectors of the CAN junction
connector controls the keyless authorization
system (Keyless Go). The following procedure
will allow the module to identify the required
CAN connector.
Have the CAN junction connector accessible.
Identify every CAN connector whose CanH
and CanL wires match the colors listed in the
WIRE CHART.
LED 1 is solid RED. Push start button to ON
position.
Wait, LED 1 will flash RED/GREEN.
Disconnect the first connector of the CAN
junction connector whose CanH and CanL
wires match the colors listed in the WIRE
CHART. Wait 5 seconds.
If the parking lights flash, the required
connector is found. Connect it to the C1
connector as shown in the WIRING DIAGRAM
and go to step 5.
If the parking lights do NOT flash, the required
connector is NOT found. Reconnect it to the
CAN junction connector and repeat step 4 with
another connector.
Wait, LED 1 will turn solid GREEN then will
turn OFF.
START vehicle for 15 seconds. LED 1 will turn
solid RED.
Wait, LED 1 will turn solid GREEN then will
turn OFF.
Push start button to OFF position.
Module Programming Procedure completed.
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 13 OF 23
• 20170124
DOC.: #35777

U.S. Patent No. 8,856,780
>>
01
02
ENGINE
START
STOP
OFF ACC ON START
ON
03
04
ENGINE
START
STOP
OFF ACC ON STARTOFF
05
>>
VALET MODE PROGRAMMING PROCEDURE - 1 OF 1
NOTE: In Valet Mode, the Remote starter is not
functional. Keyless entry, Lock and Unlock will
remain functional. See RF kit user manual for
alternate valet mode programming.
Time restriction. Complete next step within 7
seconds.
Cycle ignition ON five times [5x OFF/ON]
rapidly. Parking Light will flash once [1x].
Wait, Parking Light will flash twice [2x], pause
for 1.5 second, then will flash once [1x] to
indicate that the valet mode is ON or twice [2x]
to indicate that the valet mode is OFF.
Turn ignition to OFF position.
Valet Mode Programming Procedure
completed.
To exit valet mode: repeat steps 1 to 4 then
START vehicle for 15 seconds.
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 14 OF 23
• 20170124
DOC.: #35777

U.S. Patent No. 8,856,780
>>
01
02
ENGINE
START
STOP
OFF ACC ON START
ON
03
04
05
06
>>
07
08
ENGINE
START
STOP
OFF ACC ON STARTOFF
09
ENGINE
START
STOP
OFF ACC ON STARTSTART
START
10

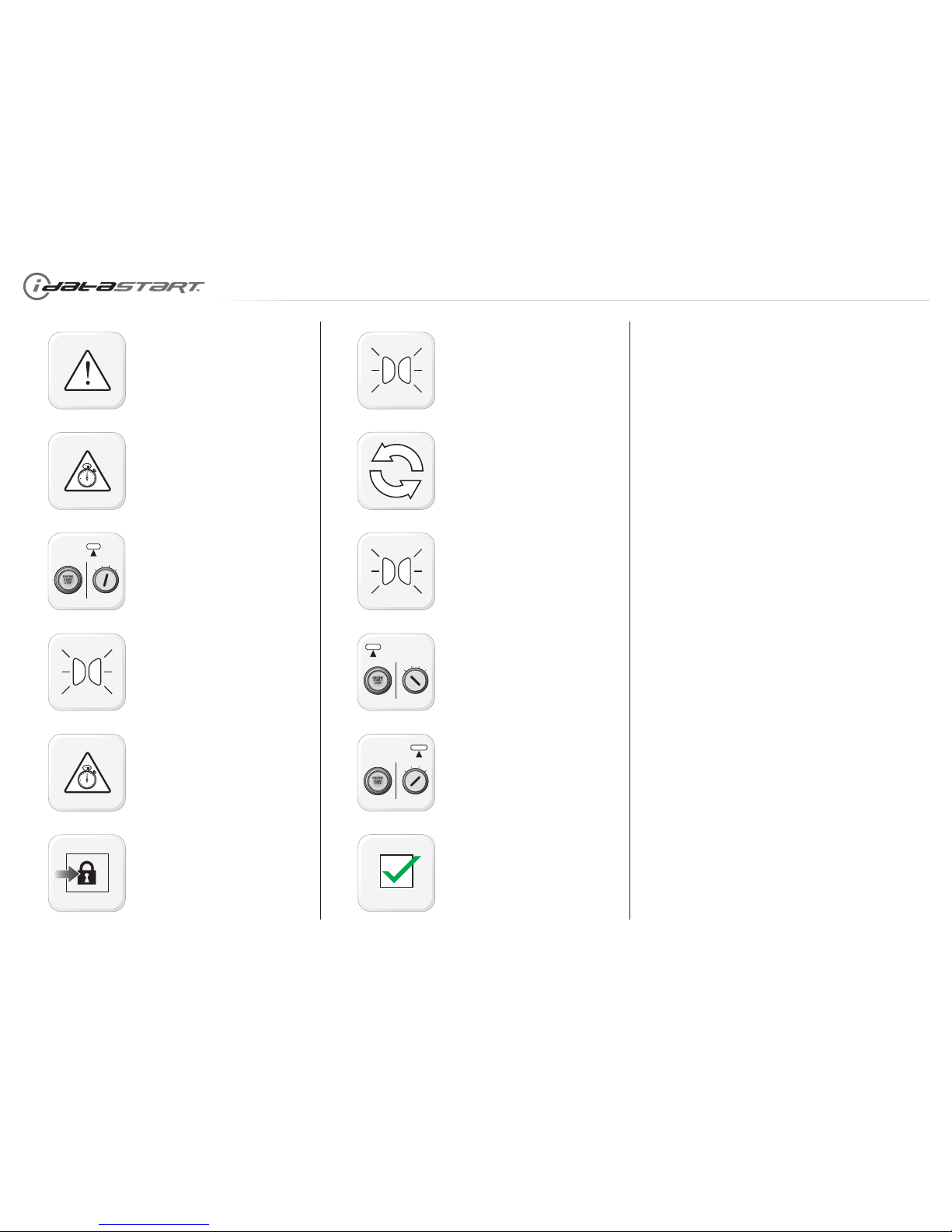

AFTERMARKET REMOTE PROGRAMMING PROCEDURE - 1 OF 1
WARNING: Program aftermarket remotes
before usage. A maximum of four [4x]
aftermarket remotes per system.
Time restriction. Complete next step within 7
seconds.
Cycle ignition ON five times [5x OFF/ON]
rapidly.
Parking Light will flash once [1x].
Time restriction. Complete next step within 5
seconds from previous step.
Press once [1x] on LOCK button of aftermarket
remote.
Parking Light will flash once [1x].
To program additional remotes: repeat steps 4
to 6 using each additional remote.
Wait, Parking Light will flash twice [2x].
Turn ignition to OFF position.
START vehicle for 15 seconds.
Aftermarket Remote Programming Procedure
completed.
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 15 OF 23
• 20170124
DOC.: #35777

U.S. Patent No. 8,856,780
>>
>>
>>
01
ENGINE
START
STOP
OFF ACC ON STARTOFF
02
03 [X]
04
05 [Y]
06
07 [Z]
08 [Z]
09
10
11 [Y]
12
13
14
>>
MODULE NAVIGATION PROCEDURE - 1 OF 1
It is mandatory to exit the Module Navigation
at the end of this procedure. Failure to exit the
Module Navigation will drain vehicle battery.
To exit the Module Navigation at any time:
Follow STEP 13.
Module must be programmed to the vehicle.
Use the Module Navigation Chart on the next
page.
Set ignition to OFF position.
TO ACCESS THE MENUS: Press and hold
programming button until LED 1 turns solid
GREEN.
IN THE MENUS: Press the programming
button as many times as the menu number
indicates. LED 1 will flash GREEN an equal
amount of times continuously.
TO ACCESS THE OPTIONS: Press and hold
programming button until LED 1 turns solid
RED.
IN THE OPTIONS: Press the programming
button as many times as the option number
indicates. LED 1 will flash RED an equal
amount of times continuously.
TO ACCESS THE SETTINGS: Press and hold
programming button until LED 1 turns solid
GREEN.
LED 1 will flash GREEN as many times as
the current (or default) setting number,
continuously.
IN THE SETTINGS: Press the programming
button as many times as necessary to access
your setting. LED 1 will flash GREEN an equal
amount of times continuously.
To return to the MENUS: exit the Module
Navigation and redo the Module Navigation
Procedure.
To save and return to the OPTIONS: Press and
hold programming button until LED 1 turns
solid RED.
LED 1 will flash RED as many times as the
current option number continuously.
Configure every other setting and proceed to
step 13.
MANDATORY: EXIT MODULE NAVIGATION.
Press and hold programming button for 7
seconds. LED 1 will flash RED rapidly. Release
programming button. LED 1 will turn OFF.
Module navigation completed.
Failure to exit the Module Navigation will drain
vehicle battery.
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 16 OF 23
• 20170124
DOC.: #35777

U.S. Patent No. 8,856,780
MODULE NAVIGATION CHART - 1 OF 1
MODULE NAVIGATION CHART:
NOTES
[X] MENUS [Y] OPTIONS [Z] SETTINGS
I Default settings are listed in bold.
01 CONFIGURATION
01 DISARM/UNLOCK BEFORE START 01 OFF
II Make sure the option is covered on the vehicle before
attempting to change the setting.
02 ON
02 RELOCK AFTER START 01 OFF
02 ON
03 RELOCK AFTER SHUTDOWN 01 OFF
02 ON
04 FORCE UNLOCK ALL ON FIRST PRESS 01 OFF
02 ON
05 TAKEOVER 01 ENABLE
02 DISABLE*
06 SECURE TAKEOVER DELAY
01 45 SEC
02 90 SEC
03 03 MIN
04 04 MIN
07 FACTORY KEYLESS RS SEQUENCE
01 DISABLE
02 N/A
03 LOCK + UNLOCK + LOCK
04 LOCK + LOCK + LOCK
08 MODULE RUN TIME
01 03 MIN
02 05 MIN
03 10 MIN
04 15 MIN
05 25 MIN
06 30 MIN
07 35 MIN
08 15 MIN
09 WAIT TO START DELAY
01 02 SEC
02 05 SEC
03 08 SEC
04 10 SEC
05 15 SEC
06 20 SEC
07 25 SEC
08 30 SEC
10-15 N/A 01 N/A
02-07 Technical Support only 01 N/A 01 N/A
*Vehicle will shutdown when a door is opened.
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 17 OF 23
• 20170124
DOC.: #35777

U.S. Patent No. 8,856,780
REMOTE STARTER ERROR CODES - 1 OF 1
REMOTE STARTER ERROR CODES:
NOTES
[X] NUMBER OF PARKING LIGHT FLASHES DIAGNOSTIC
I WARNING: The following applies only when the parking
lights are connected and supported by the system.
01 Engine running.
02 Key in ignition at ON position.
II After a remote starter failure, the parking lights will fl ash
three [3x] times, then will fl ash [X] number times to
indicate an error code. See table.
03 N/A
04 Trunk is open.
05 Foot brake is ON.
06 Hood is open.
07 N/A
08 Tach failure.
09 N/A
10 System is in Valet Mode.
11 CAN communication failure
12 RS not synchronized. Start vehicle with OEM key for 15 sec before trying a new RS sequence.
REMOTE STARTER SHUTDOWN ERROR CODES:
NOTES
[Y] NUMBER OF PARKING LIGHT FLASHES DIAGNOSTIC
I WARNING: The following applies only when the parking
lights are connected and supported by the system.
01 Engine tach signal is lost.
02 N/A
II If the engine shuts down after a remote starter sequence:
Press and hold the Trunk button and the Start button at the
same time for 2.5 seconds when using a 1-WAY remote.
OR
Press once [1x] on button “4” when using a 2-WAY remote.
The parking lights will flash four [4x] times, then will flash
[Y] number times to indicate an error code. See table.
03 Foot brake is ON.
04 Hood is open.
05 Engine RPM limiter is ON.
06 Glow plug timeout error.
07 Vehicle is moving (VSS).
08 Check engine warning light is ON.
09 Low fuel warning light is ON.
10 N/A
11 CAN communication failure during RS sequence.
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 18 OF 23
• 20170124
DOC.: #35777

U.S. Patent No. 8,856,780
MODULE DIAGNOSTICS - 1 OF 1
TEST MODULE
LED 1 STATUS DIAGNOSTIC
I DURING PROGRAMMING
Flashing RED Missing/wrong information from firmware or vehicle.
Solid RED Module waiting for more vehicle information.
Flashing GREEN Additional steps required to complete module programming.
Solid GREEN then OFF Module correctly programmed.
OFF No activity or module already programmed.
II DURING REMOTE START
Flashing RED Module incorrectly programmed.
Solid RED Module incorrectly programmed.
Flashing GREEN Module correctly programmed and operational.
Solid GREEN then OFF Reset in progress.
OFF Invalid ground when running status from remote starter.
III WITH IGNITION OFF
Flashing RED Module incorrectly programmed or connected.
Solid RED Module not programmed. Waiting for more vehicle information.
Flashing GREEN False ground when running status from remote starter.
Solid GREEN then OFF Reset in progress.
OFF Module at rest and ready for a remote start sequence.
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 19 OF 23
• 20170124
DOC.: #35777

U.S. Patent No. 8,856,780
01
02
03
04
05
06
07
08
>>

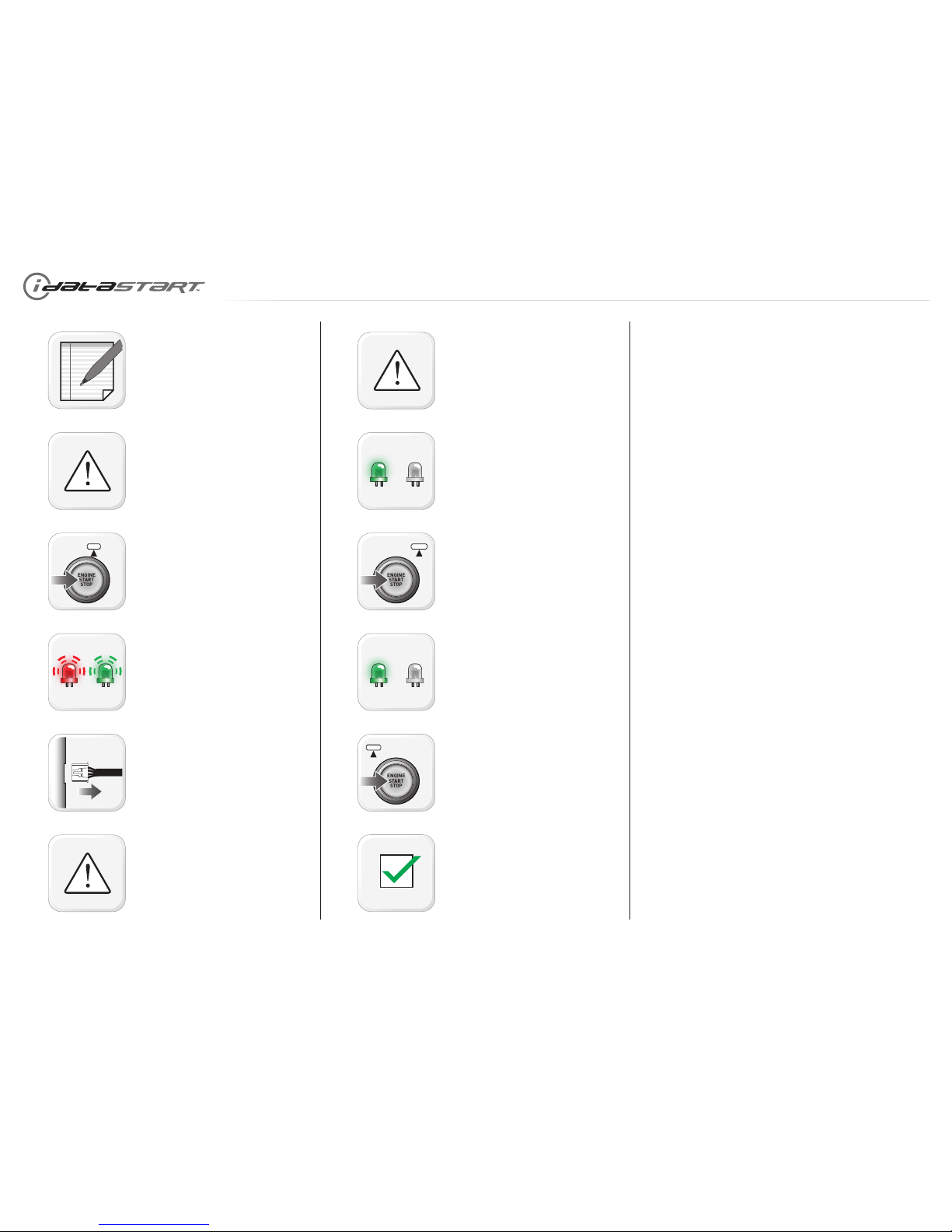

MODULE RESET PROCEDURE - 1 OF 1
Disconnect all connectors from module except
the BLACK 20-PIN connector.
Disconnect the BLACK 20-PIN connector.
PRESS AND HOLD the module’s programming
button while connecting the BLACK 20-PIN
connector.
Wait, LED 1 will flash RED. RELEASE
programming button.
LED 1 will turn RED for 2 seconds.
Module RESET completed.
Reconnect all connectors.
Repeat programming procedure.
Failure to follow procedure may result with a
DTC or a CHECK ENGINE error message.
www.idatastart.comAutomotive Data Solutions Inc. © 2017 IDLIDSRSBZ1AADSBZ1EN
PAGE 20 OF 23
• 20170124
DOC.: #35777
