IDEAL LOGIC+ Combi 24 User manual

USERS GUIDE
RF Electronic Programmable Room Thermostat, 7 day
LOGIC+ Combi, LOGIC Combi & LOGIC Combi E
24, 30, 35
When replacing any part on this appliance, use only spare parts that you can be
assured conform to the safety and performance specification that we require.
Do not use reconditioned or copy parts that have not been clearly authorised by Ideal.
204796-6.indd 1 15/12/2011 14:34:22
back

2
The national regulations and respective safety instructions are to be observed.
Interferences and changes to the device will lead to cancellation of the warranty.
204796-6.indd 2 15/12/2011 14:34:23
back

3
The Ideal Logic Combi RF Programmable Room
Thermostat features the following:
• Summer/WinterTime(GMT/BST)automaticallyupdated
• 7daytimedcontrolofcentralheatingbyOpentherm(saves
energy&reducescostsbyoperatingatlowertemperature)
• RoomTemperatureControl
• RadioFrequencyCommunication(nowiring)
• SimpleUserInterface
• EnglishLanguageboilerfaultmessagesandsuggested
correctiveactions
• Timedpre-heat(tosaveenergyandreducecosts)
• +HoursMode
• HolidayMode
CONTENTS
Controls ..................................................................4
Setting the Time and Date ......................................6
Setting the Program.............................................7,8
Setting the Room Temperature...............................9
Setting to Run in Automatic Mode ........................10
Setting to be Continuously On..............................10
Setting to be Continuously Off..............................10
Setting + Hours.....................................................11
Advanced Features ........................................ 12-17
Battery Replacement............................................18
LOGIC COMBI, LOGIC COMBI E & LOGIC + COMBI
RF Electronic Programmable Room Thermostat, 7 day Instructions
Signal
204796-6.indd 3 15/12/2011 14:34:23
back

4
RF ELECTRONIC PROGRAMMABLE ROOM THERMOSTAT, 7 DAY
Note.
Ifabatterysymbolisblinking,thedisplayisblinkingorthedisplayisblankthenreplacebatteries.
RUN
HOURS
+
7654321
SUNSATFRITHURWEDTUESMON
0 3 6 9 12 15 18 21 24h
Display
Indication of
programmed
day
Indication of
programmed
on time
+/- keys
Control Knob
for program selection
Next Day
Key
Copy Key
OK KeyReset Button
204796-6.indd 4 15/12/2011 14:34:24
back

5
Signal
B
A
RECEIVER UNIT (BOILER MOUNTED)
1. During normal operation light (A) is on for Hot water Operation.
2. During normal operation light (B) is on for Central Heating Operation.
3. If the Reset Button is pressed on the room thermostat the signal lights on the receiver unit will light. If less than
4 lights are on either the room thermostat is too far from the boiler or the batteries in the room thermostat need
replacing.
At the same time “M-050 S-050” is shown on the room thermostat. The number is another indicator of signal
strength - the lower the number the better.
204796-6.indd 5 15/12/2011 14:34:24
back

6
2. Press the and keys to change the Hours to the current time
and to enter press the
OK
key
3. Press the and keys to change the Minutes to the current
time and to enter press the
OK
key
4. Press the and keys to change the Year to the current year
and to enter press the
OK
key
5. Press the and keys to change the Month to the current
month and to enter press the
OK
key (note, January = 1)
6. Press the and keys to change the Day of the Month to the
current day of the month and to enter press the
OK
Key
SETTING THE TIME AND DATE
1. Turn the Control Knob to the “TIME/DATE” position
7. Turn the Control Knob to the required operating condition: “RUN”, “Cont On” or
“Cont Off”
Note.Summer/Wintertimeautomaticallyupdated.
204796-6.indd 6 15/12/2011 14:34:25
back

7
2. Press the and keys to change the Hours gure for Monday’s
1st On Time and to enter press the
OK
key
3. Press the and keys to change the Minutes gure for
Monday’s 1st On Time and to enter press the
OK
key
4. Press the and keys to change the Hours gure for Monday’s
1st Off Time and to enter press the
OK
key
5. Press the and keys to change the Minutes gure for
Monday’s 1st Off Time and to enter press the
OK
key
6. If you do not wish to set any further times for Monday press the Next
Day Key (and move to point 10). Otherwise, press the and
keys to change the Hours gure for Monday’s 2nd On Time and to
enter press the
OK
key
SETTING THE PROGRAM
1. Turn the Control Knob to the “PROGRAM” position
cont...........
204796-6.indd 7 15/12/2011 14:34:25
back

8
7. Press the and keys to change the Minutes gure for
Monday’s 2nd On Time and to enter press the
OK
key
8. Press the and keys to change the Hours gure for
Monday’s 2nd Off Time and to enter press the
OK
key
9. Press the and keys to change the Minutes gure for
Monday’s 2nd Off Time and to enter press the
OK
key
Note. If you would like to set a 3rd On period then continue programming in the
same manner. Otherwise press the Next Day key.
10. If you would like to have the same On and Off times for Tuesday as for Monday then
press the Copy key and then the OK key. To move to Wednesday press the Next
Day key, continuing in the same manner. If you would like to have different times for
Tuesday, then enter them in the same manner as for Monday. When programming for
Sunday is complete turn the control knob to the RUN position to activate the program.
11. Turn the Control Knob to the required operating condition:
“RUN”, “Cont On” or “Cont Off”
204796-6.indd 8 15/12/2011 14:34:25
back

9
SETTING THE ROOM TEMPERATURE
1. Turn the Control Knob to the “SET TEMPERATURE” position
2. Press the and keys to change the Temperature and to enter
press the
OK
key
3. Turn the Control Knob back to the required mode of operation:
“RUN”, “CONT ON” or “CONT OFF”
4. Turn the Control Knob to the required operating condition: RUN, CONT ON or
CONT OFF
204796-6.indd 9 15/12/2011 14:34:25
back

10
SETTING THE RF PROGRAMMABLE ROOM THERMOSTAT TO RUN IN AUTOMATIC MODE
(using the programmed on and off times)
1. Turn the Control Knob to the ‘RUN’ position
SETTING THE RF PROGRAMMABLE ROOM THERMOSTAT TO BE CONTINUOUSLY ON
1. Turn the Control Knob to the ‘CONT ON’ position
SETTING THE RF PROGRAMMABLE ROOM THERMOSTAT TO BE CONTINUOUSLY OFF
1. Turn the Control Knob to the ‘CONT OFF’ position
204796-6.indd 10 15/12/2011 14:34:25
back

11
SETTING +HOURS
1. Turn the Control Knob to the “+ HOURS” position
2. Press the and keys to set the required + Hours time and to enter press the
OK
key. Setting the time to 0 will disable this function.
3. Turn the Control Knob to the required operating condition: RUN or CONT OFF
Note.Useofthe‘+Hours’functionwillensuretheboileroperatescontinuouslyforupto3hours.
Ifusedduringanoffperiod,theboilerwillthenoperateforupto3hours.
Ifusedduringanonperiodlessthan3hourspriortoanoffperiod,itcanextendtheontime.
204796-6.indd 11 15/12/2011 14:34:25
back

12
ADVANCED FEATURES
A. HOLIDAY MODE
1. Ensure the knob is in the “RUN” position then press the key for more than 3
seconds
2. Press the and keys to change the Year to the year the holiday will start in
and to enter press the
OK
key
3. Press the and keys to change the Month to the month the holiday will start
(note, January = 1) and to enter press the
OK
key
4. Press the and keys to change the Day of the Month to the day of the month
the holiday will start and to enter press the
OK
key
5. Press the and keys to set the length of the holiday and to enter press the
OK
key
Todeleteapreviouslysetholidayperiod,changethenumberofdaysto0
cont....
204796-6.indd 12 15/12/2011 14:34:25
back

13
ADVANCED FEATURES
B. TIMED PRE-HEAT
When Domestic Hot Water preheat is switched on the boiler control the boiler will preheat during the timed
on central heating periods so as to provide more efcient water delivery. This function is disabled when the
preheat switch is set to off.
204796-6.indd 13 15/12/2011 14:34:25
back

14
C. OPTIMIsATIOn
This feature provides for greater comfort and economy of operation. The boiler will be switched on earlier than
the programmed heating on time. This provides for the room temperature to be achieved at the programmed
heating on time, rather than some time afterwards. The boiler will automatically only use the minimum energy
required in order to achieve the desired room temperature.
To set an optimisation period, press the ‘Copy’ and ‘Next Day’ keys together for more than 3 seconds. Note
that the programmed heating on time should be set for when the house is required to be at the set temperature
and not to allow for warming up of the property.
The optimisation can then be set between 10 and 60. (Note that 00 = OFF)
It is advised that a setting between 10 and 30 should be used, to ensure the central heating does not switch on
earlier than desired.
This number is multiplied by the difference between the actual temperature and the desired temperature to
determine what time before the start of the 1st on period the heating should be switched on.
EXAMPLE 1:
If the optimisation period is set to 10 and the desired room temperature is 20ºC at 6am and the actual room
temperature is 19ºC then the central heating will switch on (20-19) x 10 = 10 mins early (i.e. at 5.50am)
EXAMPLE 2:
If the optimisation period is set to 30 and the desired room temperature is 20ºC at 6am the actual temperature
is 16ºC then the central heating will switch on (20-16) x 30 = 2 hours early (i.e. at 4.00am)
ADVANCED FEATURES
204796-6.indd 14 15/12/2011 14:34:25
back

15
D. EnGLIsH LAnGuAGE ERROR DEsCRIPTIOn
BOILER ERROR CODE ERROR DISPLAY CORRECTIVE ACTIONS
L1 - OVERHEAT LOCKOUT 1. FILL SYSTEM TO 1.0 BAR
2. BLEED RADIATORS
3. CHECK RADIATOR VALVES OPEN
4. RESET BOILER
L2 - IGNITION LOCKOUT 1. CHECK OTHER GAS APPLIANCES WORK
2. RESET BOILER
L3 - NO WATER FLOW LOCKOUT 1. FILL SYSTEM TO 1.0 BAR
2. BLEED RADIATORS
3. CHECK RADIATOR VALVES OPEN
4. RESET BOILER
L4 - NO WATER FLOW LOCKOUT 1. FILL SYSTEM TO 1.0 BAR
2. BLEED RADIATORS
3. CHECK RADIATOR VALVES OPEN
4. RESET BOILER
L5 - TOO MANY RESETS ON ROOM STAT 1. RESET BOILER
L6 - FAULT 8 1. CONTACT INSTALLER
ADVANCED FEATURES
Boiler fault codes are identied on the display in plain English, they are also supported with a suggested corrective
action to aid diagnostics.
cont....
204796-6.indd 15 15/12/2011 14:34:25
back

16
ADVANCED FEATURES
F1 - LOW WATER PRESSURE 1. FILL SYSTEM TO 1.0 BAR
2. BLEED RADIATORS
F2 - FLAME LOSS 1. CHECK OTHER GAS APPLIANCES WORK
F3 - FAN FAULT 1. CONTACT INSTALLER
F4 - FLOW THERMISTOR FAULT 1. CONTACT INSTALLER
F5 - RETURN THERMISTOR FAULT 1. CONTACT INSTALLER
F6 - OUTSIDE SENSOR FAULT 1. CONTACT INSTALLER
F7 - LOW MAINS VOLTAGE 1. CONTACT ELECTRICITY PROVIDER
F9 - PCB FAULT 1. CONTACT INSTALLER
F0 - NO WATER FLOW THERMISTOR FAULT 1. CONTACT INSTALLER
FA - FLOW/RETURN REVERSED 1. CONTACT INSTALLER
c0 - PCB REPLACED 1. RESET BOILER
c2 - BOILER TYPE CARD FAULT 1. CONTACT INSTALLER
204796-6.indd 16 15/12/2011 14:34:25
back

17
E. OPEnTHERM
F. BuILT In FROsT PROTECTIOn
ADVANCED FEATURES
The unit uses the OpenTherm protocol to control the boiler ow temperature set point in central heating operation. This
means that the boiler will run in its most efcient manner and offer signicant savings in energy over standard room
thermostats. It will also give more accurate and comfortable temperature control in the room where it is installed.
If the room temperature is close to its setpoint then the pump may run for extended periods without switching the burner
on. This is normal operation which reduces gas consumption whilst maintaining the desired room temperature.
If the temperature in the room falls below 5ºC, the boiler will re to maintain the minimum 5ºC setpoint regardless of
whether the timer is in an “off” period or not.
204796-6.indd 17 15/12/2011 14:34:25
back

18
The unit required 2 x AA 1.5V Batteries.
Batteries should operate for approximately 18 months.
Only good quality 1.5V alkaline batteries should be used. DO NOT use re-
chargeable batteries as they only have a terminal voltage of 1.2V nom.

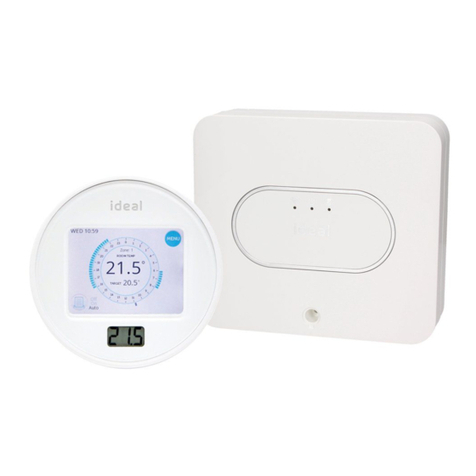

To replace batteries remove battery panel on the front of the room thermostat to
gain access.
Note that if the batteries are removed for more than 30 seconds, the time, date,
and set temperature will be lost.
If the batteries are not replaced and no signal is received by the receiver all 5
lights on the receiver on the boiler will ash on and off.
After 1 hour the boiler will operate in “Emergency Mode” with a continuous, but
reduced temperature until the batteries are replaced.
BATTERY REPLACEMENT
Batteries - 2x 1.5V LR6/AA
204796-6.indd 18 15/12/2011 14:34:26
back

19
204796-6.indd 19 15/12/2011 14:34:26
back

Ideal Boilers Ltd., P.O. Box 103, National Ave, Kingston Upon Hull, HU5 4JN.
Tel. [phone] Fax. [phone]. Registration No. London 322 137.
Ideal Stelrad Group pursues a policy of continuing improvement in the design and performance
of its products. The right is therefore reserved to vary specication without notice.
November 2011 UIN 204796 A06
204796-6.indd 20 15/12/2011 14:34:26
back
