IFM O6P7 Series User manual

Operating instructions
Retro-reflective sensor
O6P7xx
706459 / 00 04 / 2019
UK

2
Contents
1 Preliminary note���������������������������������������������������������������������������������������������������2
1�1 Symbols used ������������������������������������������������������������������������������������������������2
2 Safety instructions �����������������������������������������������������������������������������������������������3
3 Functions and features ����������������������������������������������������������������������������������������4
4 Installation������������������������������������������������������������������������������������������������������������4
5 Operating and display elements ��������������������������������������������������������������������������5
5�1 Stability indication������������������������������������������������������������������������������������������5
6 Electrical connection��������������������������������������������������������������������������������������������6
6�1 PNP ���������������������������������������������������������������������������������������������������������������6
6�2 NPN ���������������������������������������������������������������������������������������������������������������6
7 Settings����������������������������������������������������������������������������������������������������������������7
7�1 Settings on the sensor�����������������������������������������������������������������������������������7
7�1�1 The sensor is to switch when the object is detected ����������������������������7
7�1�2 The sensor is not to switch when the object is detected ����������������������7
7�1�3 Setting the maximum sensitivity �����������������������������������������������������������7
7�1�4 Programming unsuccessful ������������������������������������������������������������������8
7�1�5 Electronic lock ��������������������������������������������������������������������������������������8
7�2 Setting via IO-Link �����������������������������������������������������������������������������������������8
7�2�1 Adjustable parameters��������������������������������������������������������������������������8
7�2�2 Set sensitivity with prismatic reflector / reflective tape and object������10
7�2�3 Setting the maximum sensitivity ���������������������������������������������������������10
8 Operation����������������������������������������������������������������������������������������������������������� 11
9 Maintenance, repair, disposal���������������������������������������������������������������������������� 11
1 Preliminary note
Technical data, approvals, accessories and further information at
www�ifm�com�
1.1 Symbols used
►Instructions
> Reaction, result

3
UK
[…] Designation of keys, buttons or indications
→Cross-reference
Information
Supplementary note�
Important note
Non-compliance may result in malfunction or interference�
2 Safety instructions
• Read this document before setting up the product and keep it during the entire
service life�
• The product must be suitable for the corresponding applications and environ-
mental conditions without any restrictions�
• Only use the product for its intended purpose (→ 3 Functions and features)�
• If the operating instructions or the technical data are not adhered to, personal
injury and/or damage to property may occur�
• The manufacturer assumes no liability or warranty for any consequences
caused by tampering with the product or incorrect use by the operator�
• Installation, electrical connection, set-up, operation and maintenance of the
product must be carried out by qualified personnel authorised by the machine
operator�
• Protect units and cables against damage�
Caution - Use of controls or adjustments or procedures other than those
specified herein may result in hazardous radiation exposure�
Visible laser light; LASER CLASS 1�
EN/IEC 60825-1 : 2007 and EN/IEC 60825-1 : 2014
Complies with 21 CFR 1040 except for deviations
pursuant to Laser Notice No� 50, dated June 2007�

4

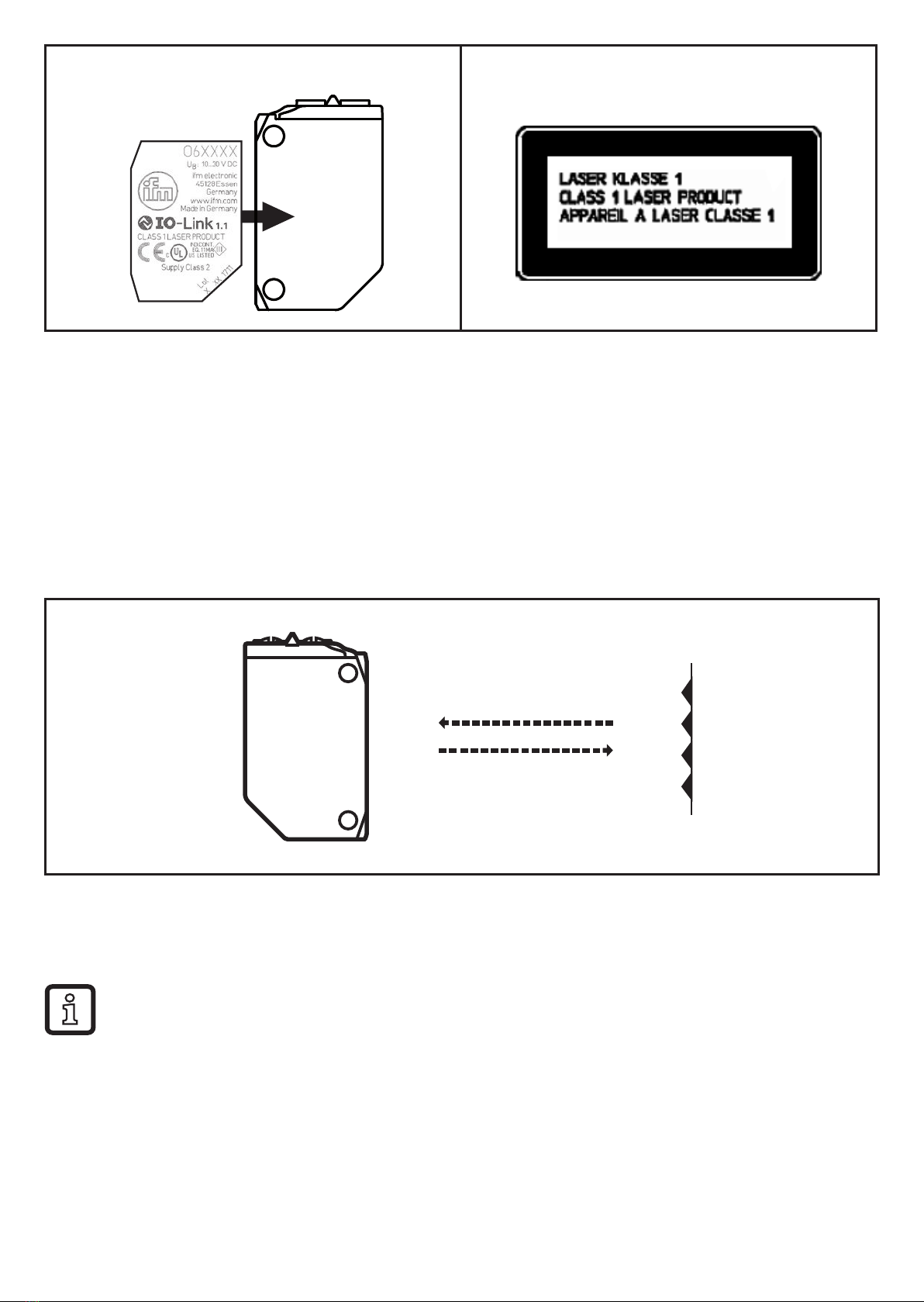

Position of the product label Explanatory label
3 Functions and features
In conjunction with a prismatic reflector or reflective tape the retro-reflective
sensor detects objects and materials without contact and indicates their presence
by a switching signal�
4 Installation
►Fit the prismatic reflector or the reflective tape behind the object to be detected�
►Align the retro-reflective sensor to it and secure it to a bracket�
Maximum range only with accurate alignment�

5
UK
5 Operating and display elements

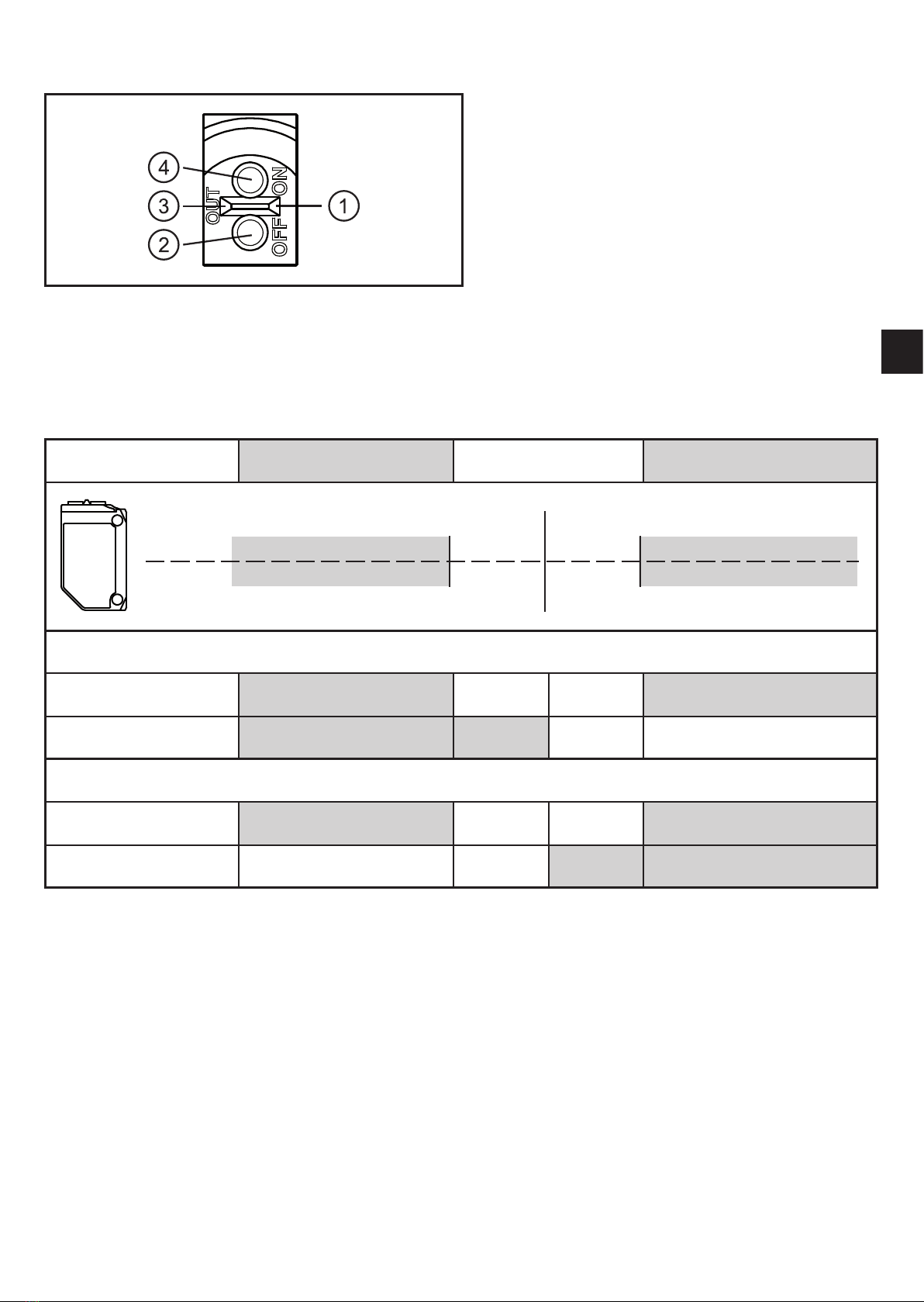

1: LED green - operation, stability
indication
2: OUT OFF button
3: LED yellow - switching output active
4: OUT ON button
5.1 Stability indication
The green LED is on when the supply voltage is applied and the sensor signal is
stable�
Stable signal Switch point Stable signal
Light-on mode
LED green on off off on
LED yellow on on off off
Dark-on mode
LED green on off off on
LED yellow off off on on

6
6 Electrical connection
The unit must be connected by a qualified electrician�
►The national and international regulations for the installation of electri-
cal equipment must be adhered to�
►Ensure voltage supply to EN 50178�
►Disconnect power�
►Connect the unit as follows:
6.1 PNP
M12 pigtail connector Cable
BK: black
BN: brown
BU: blue
Colours to DIN EN 60947-5-2
M8 connector, 3 pole M8 connector, 4 pole
2
1
4
3
6.2 NPN
M12 pigtail connector Cable
L+
L
1
4
3
BK: black
BN: brown
BU: blue
L
BN
BK
BU
L+
Colours to DIN EN 60947-5-2
M8 connector, 3 pole M8 connector, 4 pole
L+
L
1
4
3
2
1
4
3
L+
L
1
4
3

7
UK
7 Settings
7.1 Settings on the sensor
7.1.1 The sensor is to switch when the object is detected

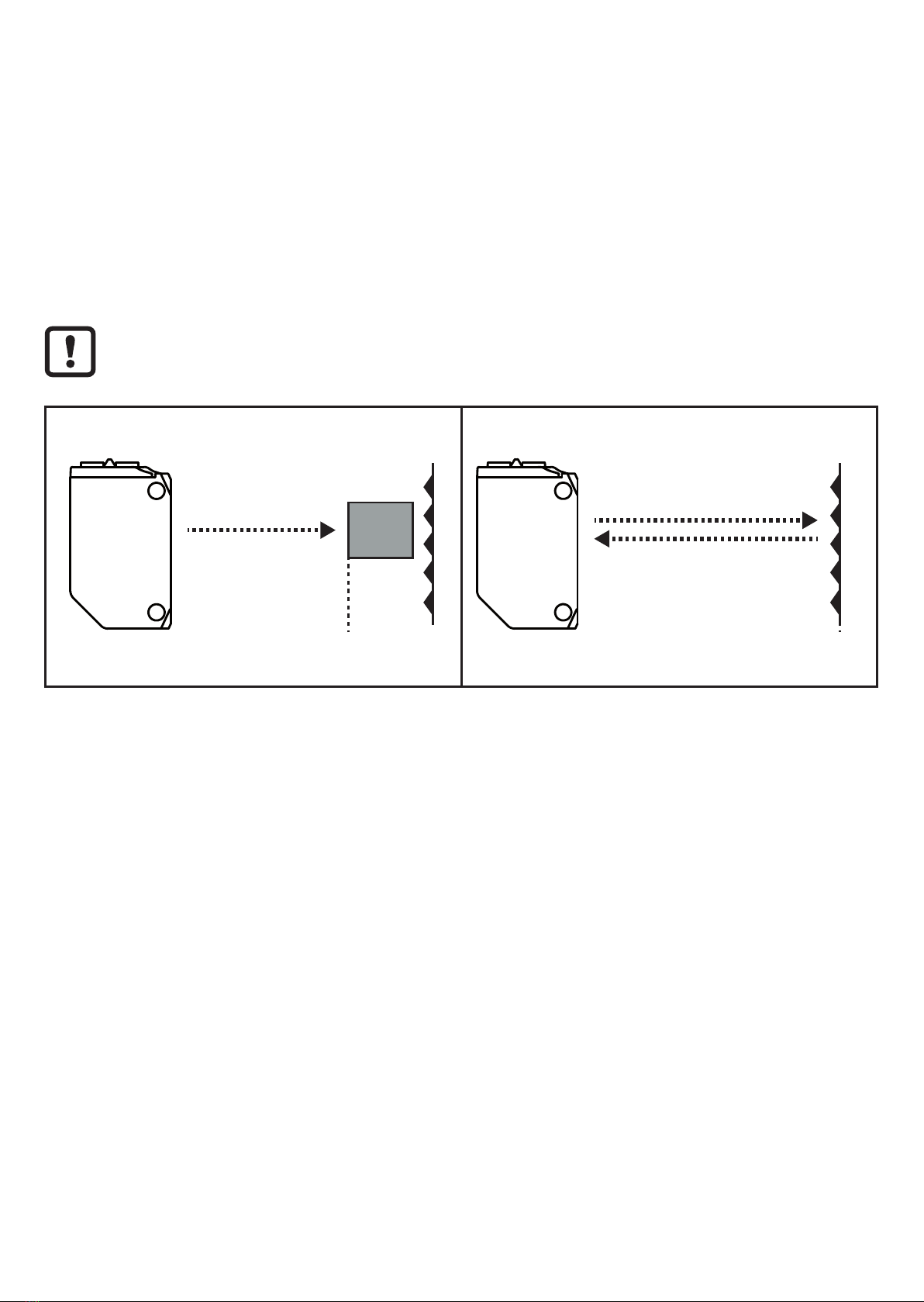

Fig� 1 ►Position the object�
►Press [OUT ON] for > 2 s�
> The yellow LED flashes�
> The setting of the sensitivity
with object is made by releasing
[OUT ON]�
Fig� 2 ►Remove the object�
►Press [OUT OFF]�
> The setting of the sensitivity
without object is made by releasing
[OUT OFF]�
> The yellow LED goes out� Pro-
gramming is completed�
7.1.2 The sensor is not to switch when the object is detected
► Position the object (see Fig. 1) and press [OUT OFF] for > 2s.
► Remove the object (see Fig. 2) and press [OUT ON].
The settings can also be carried out first without object and then with object�
7.1.3 Setting the maximum sensitivity
►Align the sensor so that no light is reflected�
1. The sensor is to switch when the object is detected
►Press [OUT ON] for > 2 s, then [OUT OFF]�
2. The sensor is not to switch when the object is detected
►Press [OUT OFF] for > 2 s, then [OUT ON]�

8
7.1.4 Programming unsuccessful
> The LED flashes quickly, 8 Hz�
• Insufficient difference in measurements�
• Max. programming time (15 min.) exceeded.
7.1.5 Electronic lock
Lock or unlock the buttons
►Press [OUT ON] and [OUT OFF] simultaneously for 10 s�
> Acknowledgement is indicated by a brief change of the LED switching status�
7.2 Setting via IO-Link
This unit has an IO-Link communication interface which enables direct access to
process and diagnostic data� In addition it is possible to set the parameters of the
unit while it is in operation� Operation of the unit via an IO-Link interface requires
an IO-Link master�
With a PC, suitable IO-Link software and an IO-Link adapter cable communication
is possible when the system is not in operation�
The IODDs necessary for the configuration of the unit, detailed information about
process data structure, diagnostic information, parameter addresses and the
necessary information about the required IO-Link hardware and software can be
found at www�ifm�com�
7.2.1 Adjustable parameters
Among others, the following parameters can be set via IO-Link�
A table of all adjustable parameters can be found at www�ifm�com/de/io-
link�
Parameter
name
Values Description Default
SSC1 Param�
SP1
1 ��� 100 Setting switch point in step increment "1"�
After a teach process the resulting value is
displayed�
100
Teach SP1 TP1 1� Part of the teach sequence to set switch
point SP1 by teach on object� Both parts of
the teach sequence for TP1 and TP2 (TP =
teach point) have to be carried out.
N� A�

9
UK
Parameter
name
Values Description Default
Teach SP1 TP2 2� Part of the teach sequence to set switch
point SP1 by teach without object� The
second part of the teach sequence has to
be carried out after the first part�
N� A�
TI Result�State - Idle
- SP1
Success
- Wait for
com-
mand
- Busy
- Error
- Custom
Teach-in status; after successful teach the
value "SP1 Success" is displayed�
N� A�
Sequence
modulation
- OFF
- AUTo
OFF: anti-crosstalk function off
AUTo: anti-crosstalk function on
OFF
SSC1 Config�
Logic
High
active
Low
active
Switch point logic, status for detected object
(High: light-on mode / normally open, Low:
dark-on mode / normally closed)
→Data
sheet value
"Output func-
tion"
SSC1 switch-on
delay
0 ��� 2 Start-up delay; step increment 0�1 s 0
SSC1 switch-off
delay
0 ��� 2 Switch-off delay; step increment 0�1 s 0
Excess gain 0 ��� 5 Excess gain at receiver� N� A�
Transmitter
configuration
- On
- Off
Configuration transmitted light on / off On
Number of
power cycles
0 ���
65535
Number of switching operations (power up)
of the sensor
N� A�
Operating hours 0 ���
65535
Operating hours N� A�

10
7.2.2 Set sensitivity with prismatic reflector / reflective tape and object
►Start the LR DEVICE software�
► Align the retro-reflective sensor to the object (Fig. 1).
►Press [Teach SP1 TP1] in the LR DEVICE software�
►Align the retro-reflective sensor to the prismatic reflector or reflective tape
(Fig. 2).
►Press [Teach SP1 TP2] in the LR DEVICE software�
Either the object can be set first and then the prismatic reflector / reflective
tape, or the other way around�
Fig� 1: Fig� 2:
TP1 TP2
TP1: teach point 1 TP2: teach point 2
7.2.3 Setting the maximum sensitivity
►Start the LR DEVICE software�
►Align the sensor so that no light is reflected�
►Press [Teach SP1 TP1] in the LR DEVICE software�
►Press [Teach SP1 TP2] in the LR DEVICE software�

11
UK
8 Operation
►Check whether the unit operates correctly�
> The green LED is on when the unit is ready for operation�
> Setting the dark-on mode: the output is switched / the yellow LED is lit when an
object is detected�
> Setting the light-on mode: the output is switched / the yellow LED is on when
no object is detected�
9 Maintenance, repair, disposal
►Keep the lens of the sensor free from soiling�
►For cleaning do not use any solvents or cleaning agents which could damage
the plastic parts�
►After use dispose of the unit in an environmentally friendly way in accordance
with the applicable national regulations�
Faulty sensors must only be repaired by the manufacturer�
