IFM E89005 User manual

Operating instructions
Electronic Preset Counter
with two presets
LCD positive, green backlighting
relay outputs
E89005
7390806 / 00 09 / 2017
UK
ecomat 200
E89005
Electronic Preset
Counter
With two presets
Models
LCD positive, green backlighting
english

Electronic Preset Counter E89005
2
Contents
1 Preliminary note � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
1�1 Symbols used� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
1�2 Warning signs used � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
2 Safety instructions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
3 Functions and features � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
3�1 General description � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
3�1�1 Input modes � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
3�1�2 Output operations � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
3�2 Inputs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
3�2�1 INP A, INP B� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
3�2�2 RESET � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
3�2�3 GATE � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
3�2�4 LOCK INPUT � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
3�2�5 MPI� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
3�3 Outputs� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
3�3�1 Active Outputs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
4 Mounting� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
5 Electrical connection� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
5�1 Advice on noise immunity� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9

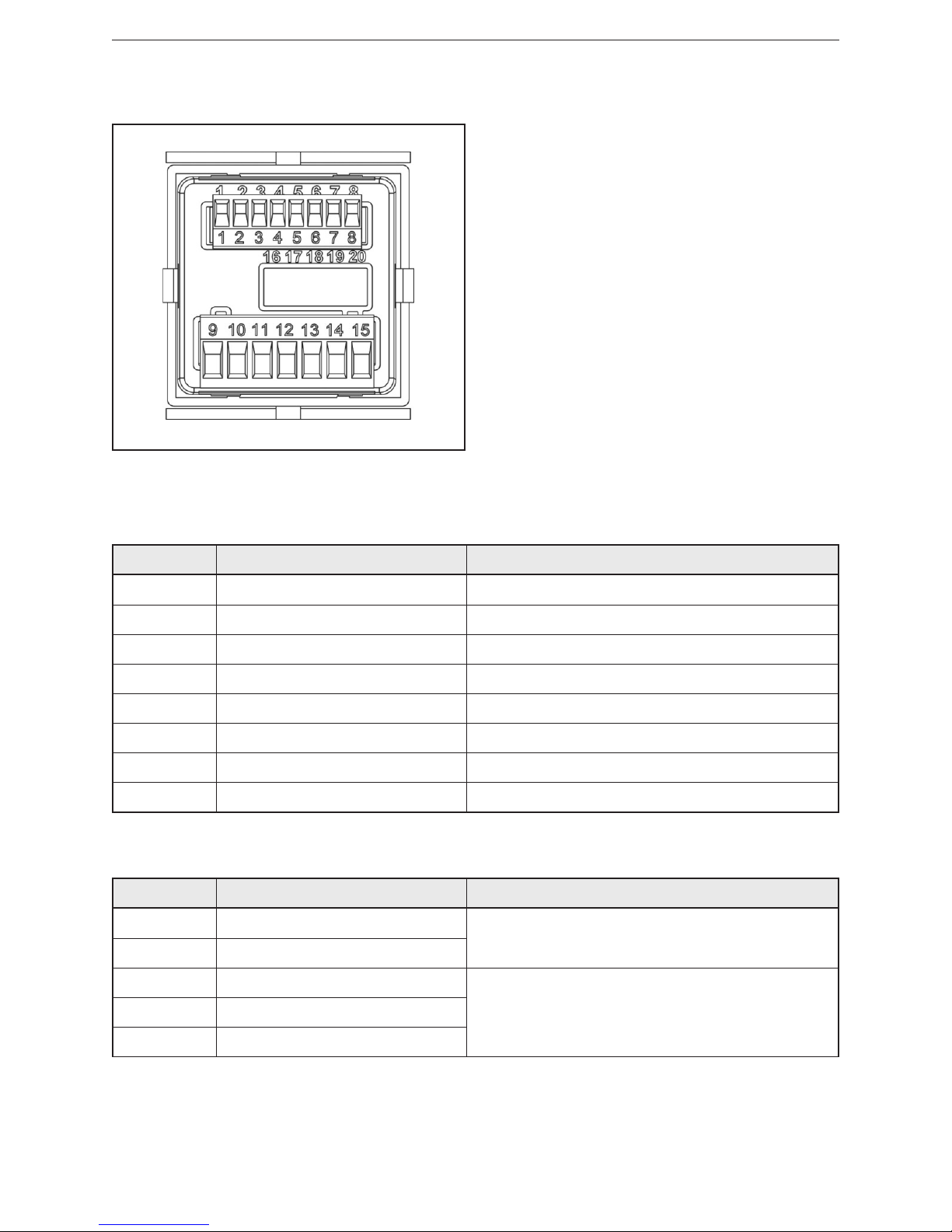

5�2 Connections � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
5�2�1 Signal and control inputs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
5�2�2 Supply voltage and outputs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10

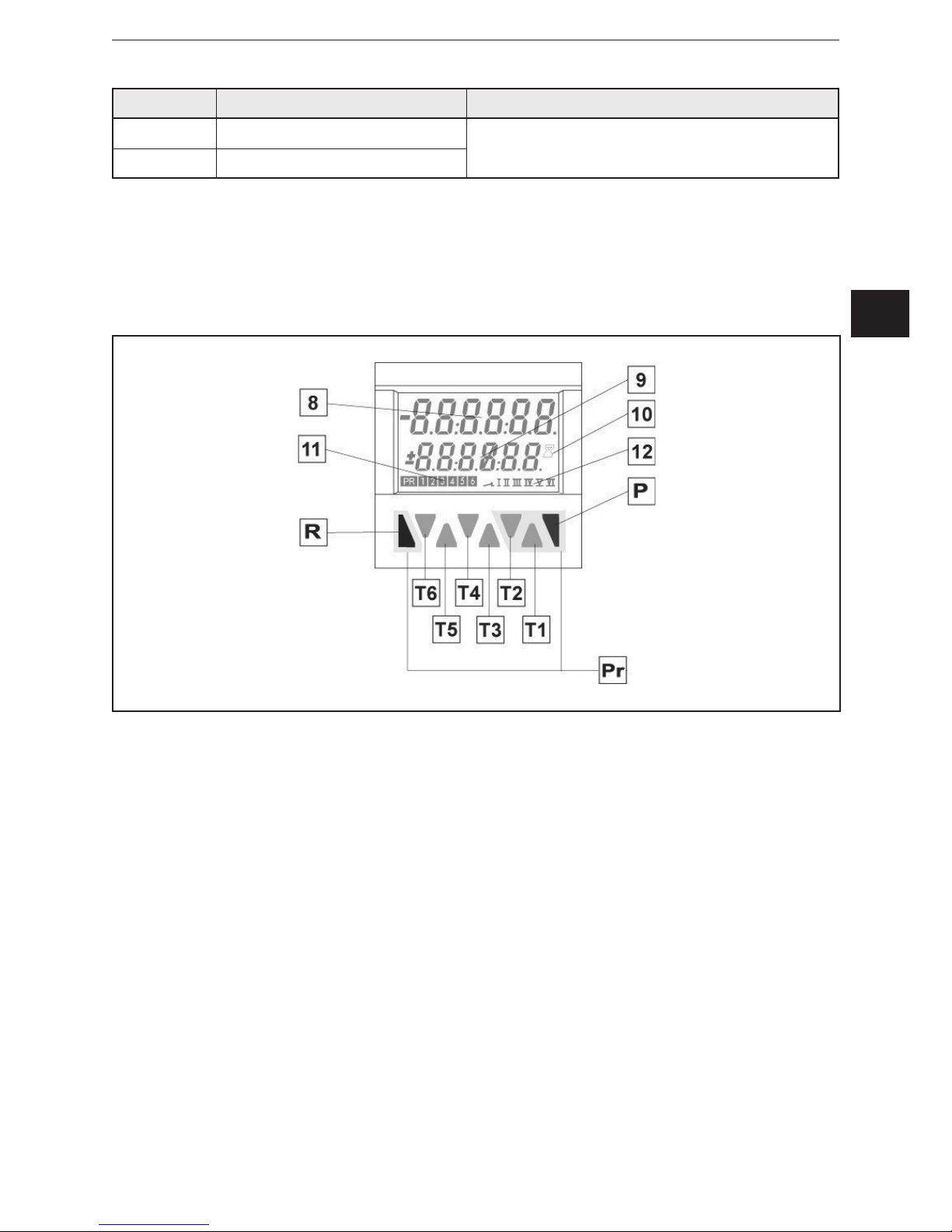

6 Operating and display elements � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �11
6�1 Error message � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �11
7 Programming � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
7�1 Entering the programming � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
7�2 Choice of main menu � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
7�3 Entering a submenu � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
7�4 Selecting the menu items � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
7�5 Setting the menu items� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13
7�6 Accepting the setting � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13

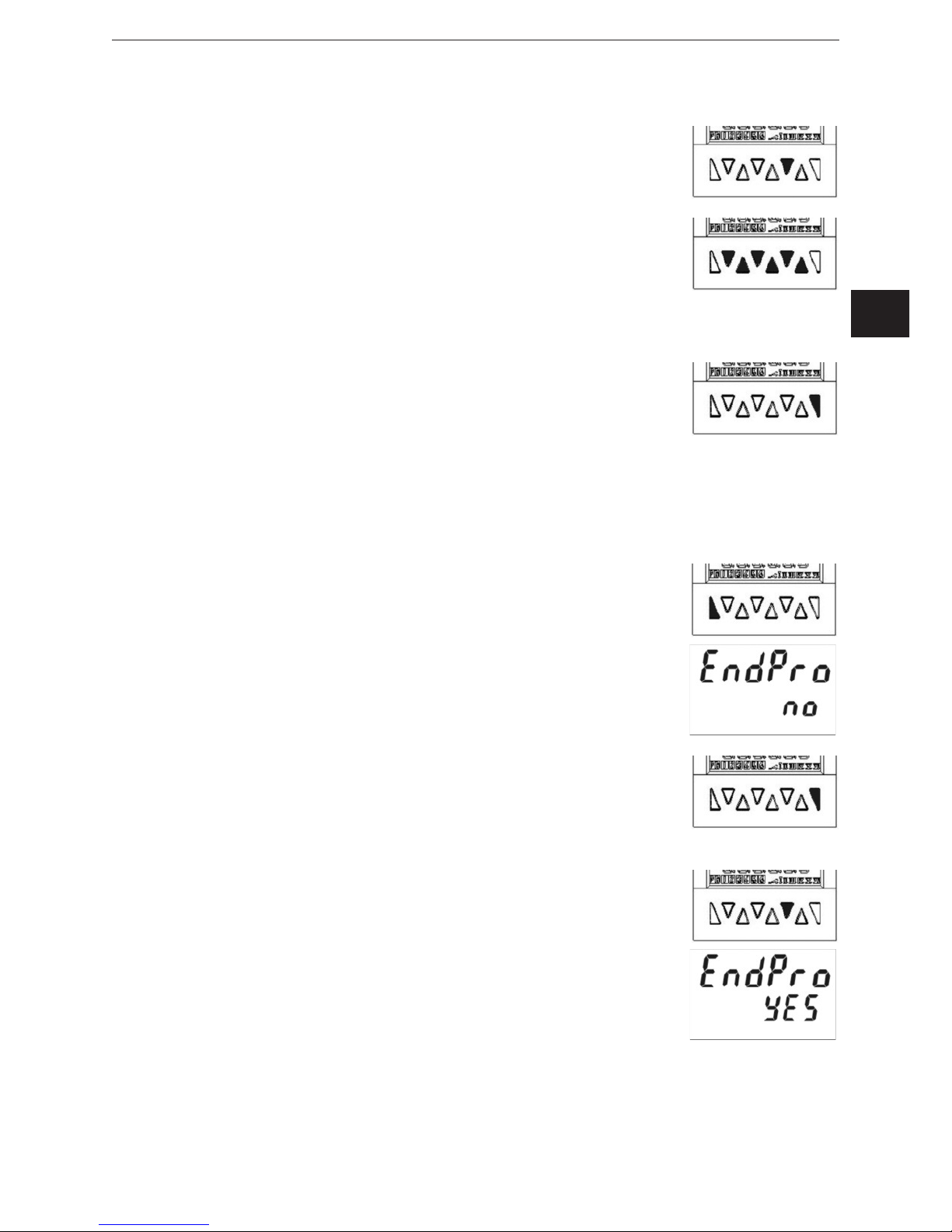

7�7 Ending the programming � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13
7�8 Setting the presets � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
7�8�1 Setting via Decade Keys � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15

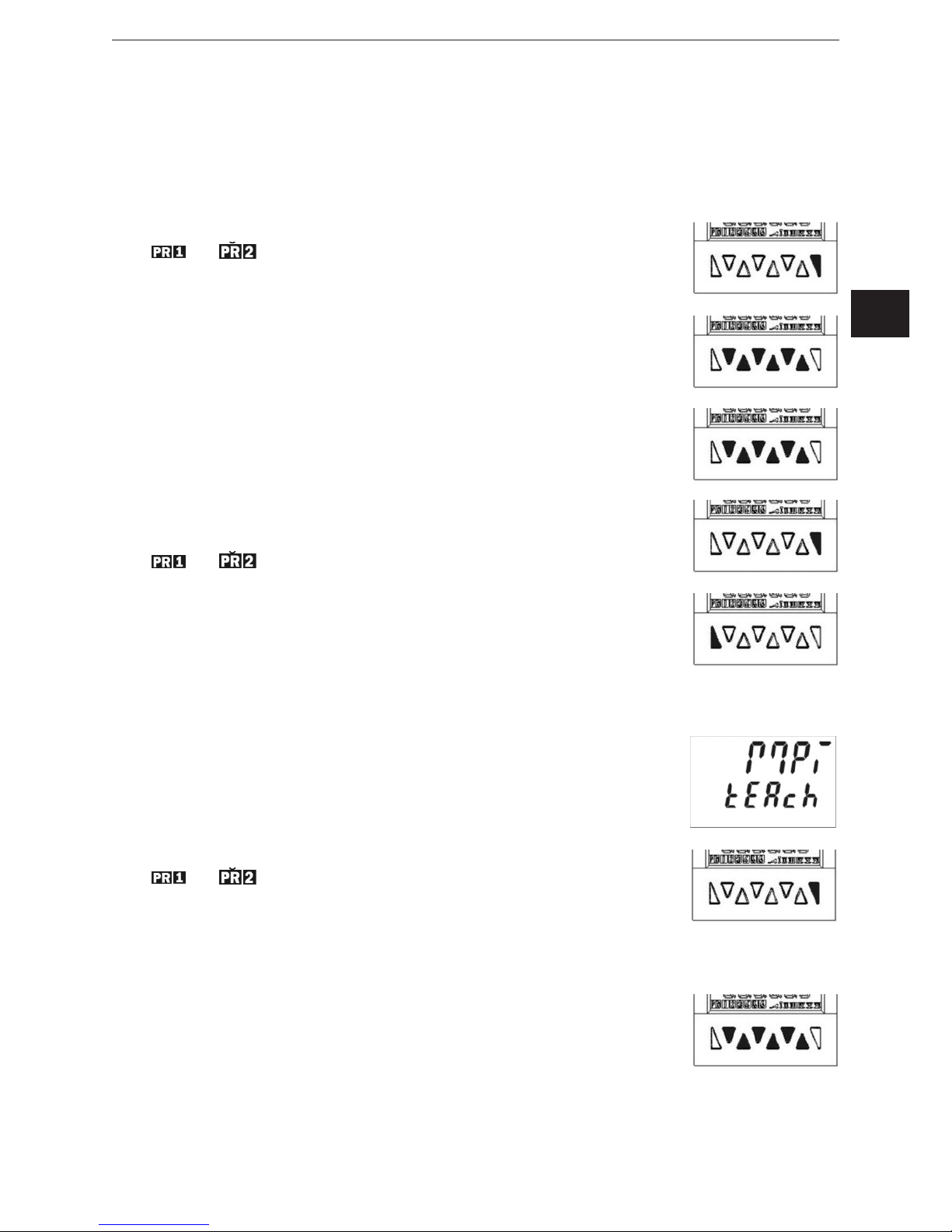

7�8�2 Setting via Teach-in function � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
7�8�3 Setting the tracking presets (trail) � � � � � � � � � � � � � � � � � � � � � � � � � � 16
7�9 Set Function � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 17
8 Parameters � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 18
8�1 Default parameters� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 18
8�2 Table: Default Parameter Sets � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 18
8�3 Setting the basic function of the device � � � � � � � � � � � � � � � � � � � � � � � � � � 19

UK
Electronic Preset Counter E89005
3
8�4 Pulse counter � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20
8�4�1 Input � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20
8�4�2 Mode � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 21
8�4�3 Config� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 23
8�4�4 Reset mode � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 24
8�4�5 Preset 1 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 24
8�4�6 Preset 2 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 25
8�5 Timer � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 27
8�5�1 Input � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 27
8�5�2 Mode � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 28
8�5�3 Config� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 30
8�5�4 Reset mode � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 30
8�5�5 Preset 1 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 31
8�5�6 Preset 2 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 32
8�6 Tacho/Frequency meter � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 34
8�6�1 Input � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 34
8�6�2 Config� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 35
8�6�3 Preset 1 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 36
8�6�4 Preset 2 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 37
9 Diagrams � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 39
9�1 Input modes � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 39
9�1�1 Pulse counting � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 39
9�1�2 Timing� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 41
9�1�3 Frequency meter � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 42
9�2 Output operations� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 43
9�2�1 Add modes � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 43
9�2�2 Sub modes� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 44
9�2�3 Trail modes� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 45
10 Dimensions� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 46
11 Technical data � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 47
11�1 General Data � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 47
11�2 Pulse counter � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 47
11�3 Tacho/Frequency meter � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 47
11�4 Timer� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 48
11�5 Signal and Control inputs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 48
11�6 Outputs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 48
11�6�1 Output 1 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 48
11�6�2 Output 2 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 49
11�7 Supply voltage � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 49
11�8 Sensor supply� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 49
11�9 Climatic Conditions� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 49
11�10 EMC � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 49
11�11 Device safety � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 50
11�12 Mechanical Data� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 50

Electronic Preset Counter E89005
4
11�13 Connections � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 50
12 Maintenance, repair and disposal� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 50
13 Approvals/standards � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 51
14 Attachement � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 51

UK
Electronic Preset Counter E89005
5
1 Preliminary note
Please read this instruction manual carefully before installation and start-up�
Please observe all warnings and advice, both for your own safety and for general
plant safety� If the device is not used in accordance with this instruction manual,
then the intended protection can be impaired�
1.1 Symbols used
►Instructions
> Reaction, result
[…] Designation of keys, buttons or indications
→Cross-reference
Important note
Non-compliance can result in malfunction or interference�
Information
Supplementary note
1.2 Warning signs used
WARNING
Warning of serious personal injury�
Death or serious irreversible injuries may result�
CAUTION
Warning of personal injury�
Slight reversible injuries may result�
NOTE
Warning of damage to property�
2 Safety instructions
Please use the device only if its technical condition is perfect� It should be used
only for its intended purpose�
Please bear in mind safety aspects and potential dangers and adhere to the
operating instructions at all times�
WARNING
If the device is used to monitor machines or processes in which, in the event of
a failure of the device or an error made by the operator, there might be the risk
of damaging the machine or causing an accident to the operators, then it is your
responsibility to take the appropriate safety measures�

Electronic Preset Counter E89005
6
3 Functions and features
The preset counter detects and measures pulses, times and frequencies and
offers a wide variety of different operating modes� At the same time, the preset
counter processes programmed presets�
The application area for this device lies in industrial processes and controls, in the
fields of manufacturing lines for the metal, wood, plastics, paper, glass, textile and
other like industries�
Use for any purpose over and beyond this will be deemed as not in accordance
with its intended purpose and thus not complying with the requirements�
Overvoltages at the terminals of the device must be kept within the limits of Over-
voltage Category II�
The device must only be operated when mounted in a panel in the correct way and
in accordance with the section "Technical Data" (→ 11 Technical data)�
Correct operation of the device requires the mandatory use of the appropriate
external safety fuse� Advice concerning the recommended fuseprotection can be
found under (→ 11.7 Supply voltage)�
The device is not suitable for use in hazardous areas and for areas excluded in EN
61010 Part 1�
3.1 General description
●6-digit multifunction LCD display
●2-line LCD-display with annunciators for both the displayed preset and the
status of the two outputs
●Simultaneous display of the actual value and of the presets or auxiliary
counters
●Backlit display
●Add�/Sub� Preset counter with two presets
●Relay outputs
●Preset entry via the front keys or via the Teach-In function
●Step or tracking preset
●Pulse, frequency, time or batch counter
●Preset counter, Batch counter or Total Counter (cumulative count)
●Set function for pulse and time counter
●Multiplication and division factor (00�0001���99�9999) for pulse counter and
frequency meter
●Averaging and Start Delay for frequency meter
●4-stage RESET-Mode
●3-stage keypad locking (Lock)
●MPI input for Display Latch, Teach-In function or Set function
3.1.1 Input modes
●Pulse counter: cnt�dir, up�dn, up�up, quad, quad2, quad4, A/B, (A-B)/Ax100%
●Timer: FrErun, Auto, InpA�InpB, InpB�InpB
●Frequency meter: A, A-B, A+B, quad, A/B, (A-B)/Ax100%

UK
Electronic Preset Counter E89005
7
3.1.2 Output operations
●Add, Sub, AddAr, SubAr, AddBat, SubBat, AddTot, SubTot, Trail, TrailAr
3.2 Inputs
3.2.1 INP A, INP B
Signal inputs: function acc� to operating mode�
Max� frequency 60 kHz, can be damped in the programming menu to 30 Hz�
●Pulse counter: Count inputs
●Timer: Start input or Start/Stop inputs
●Frequency meter: Frequency inputs
3.2.2 RESET
Dynamic reset input: resets the pulse counter or timer to zero (adding mode)
or to preset value 2 (subtracting mode)� The reset input can be inhibited in the
programming menu�
●Pulse counter: RESET input
●Timer: RESET input
●Frequency meter: no function
3.2.3 GATE
Static gate input: function depending on operating mode�
●Pulse counter: no counting while active
●Timer: no time measurement while active (Gate�hi), no time measurement while
not active (Gate�Lo)�
●Frequency meter: no counting while active
3.2.4 LOCK INPUT
Static keypad lock input for presets or programming� Lock-out level can be set in
the programming menu�
3.2.5 MPI
Input� Programmable as Display Latch, Set or Teach-In input�

Electronic Preset Counter E89005
8
3.3 Outputs
2 relay outputs with potential-free contacts (→ 11.6 Outputs)�
3.3.1 Active Outputs
An active output will be shown on the display�
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
/
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
For safety switching the relay outputs can be inverted, i�e� the relay will be
deenergized when the presets are reached� To do this, the parameters Pr�OUT1
and Pr�OUT2 must be set to
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
(for permanent signal) or
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
or
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
(for timed
signal)� See (→ 2 Safety instructions)�
4 Mounting
CAUTION
Mount the device away from heat sources and avoid direct contact with corrosive
liquids, hot steam or similar�
►Remove mounting clip from the device�
►Insert the device from the front into the panel cut-out, ensuring the front-panel
gasket is correctly seated�
►Slide the fixing clip from the rear onto the housing, until the spring clamps are
under tension and the upper and lower latching lugs have snapped into place�

UK
Electronic Preset Counter E89005
9
5 Electrical connection
WARNING
The device must be disconnected from the power supply, before any installation
or maintenance work is carried out�
AC-powered devices must only be connected to the lowvoltage network via a
switch or circuit breaker�
Installation or maintenance work must only be carried out by qualified personnel�
5.1 Advice on noise immunity
All connections are protected against external sources of interference�
The installation location should be chosen so that inductive or capacitive
interference does not affect the device or its connecting lines! Interference (e�g�
from switchmode power supplies, motors, clocked controllers or contactors) can be
reduced by means of appropriate cable routing and wiring�
Measures to be taken:
►Connect the terminal 2 (GND) with ground�
►Use only shielded cable for signal and control lines�
►Connect cable shield at both ends�
►The conductor cross-section of the cables should be a minimum of 0�4 mm²�
►The shield connection to the equipotential bonding should be as short as
possible and with a contact area as large as possible (low-impedance)�
►Only connect the shields to the control panel, if the latter is also earthed�
►Install the device as far away as possible from noise-containing cables�
►Avoid routing signal or control cables parallel to power lines�
►Cables and their insulation should be in accordance with the intended
temperature and voltage ranges�

Electronic Preset Counter E89005
10
5.2 Connections
9 Connections
9.1 Signal and Control Inputs
N° Designation Function
1 24 VDC/80 mA
Sensor supply
voltage
2 GND (0 VDC) Common connection
Signal and Control
inputs
3 INP A Signal input A
4 INP B Signal input B
5 RESET Reset input
6 LOCK Keypad lock
7 GATE Gate input
8 MPI User input
9.2 Supply voltage and Outputs
9.2.1 Version with relays
N° Designation Function
9 Relay contact C.1
10 Relay contact N.O.1 Output 1
11 Relay contact C.2
12 Relay contact N.O.2
13 Relay contact N.C.2
Output 2
14 AC: 90..260 VAC N~ Supply voltage
15 AC: 90..260 VAC L~ Supply voltage
10 Technical Data
10.1 General Data
Display LCD positive backlite
2 x 6-digit
Digit height upper line 9 mm
lower line 7 mm
special characters 2 mm
Overload/ Blinking, 1 s
Underload Counter loses up to 1 decade
no pulses
Data retention > 10 years, EEPROM
Operation 8 keys
10.2 Pulse counter
Count frequency max. 55 kHz (see section 13.
frequencies typ.)
Response time of the outputs:
Relays
Add/Sub/Trail < 7 ms
With automatic repeat < 7 ms
A/B ; (A-B)/A < 29 ms
10.3 Tacho/Frequency meter
Frequency range 0,01 Hz to 65 kHz (see
section 13. frequencies typ.)
Measuring 76.3 Hz Time interval
principle (period measurement)
> 76.3 Hz Gate time
Gate time approx.13.1 ms
Measuring error < 0.1% per channel
Response time of the outputs:
1-channel operation < 100 ms @ 40 kHz
< 350 ms @ 65 kHz
2-channel operation < 150 ms @ 40 kHz
< 600 ms @ 65 kHz
10.4 Timer
Seconds 0.001 s ... 999 999 s
Minutes 0.001 min ... 999 999 min
Hours 0.001 h .. 999 999 h
h.min.s 00h.00min.01s ...
99h.59min.59s
Min. time measurable 500µs
Measuring error < 50 ppm
Response time of the outputs:
Relays < 7 ms
english
Seite 17
Terminals
5.2.1 Signal and control inputs
Terminal Designation Function
1 24 V DC / 80 mA Sensor supply voltage
2 GND (0 VDC) Common connection signal and control inputs
3INP A Signal input A
4 INP B Signal input B
5 RESET Reset input
6 LOCK Keypad lock
7 GATE Gate input
8 MPI User input
5.2.2 Supply voltage and outputs
Terminal Designation Function
9 Relay contact C1 Output 1
10 Relay contact NO1
11 Relay contact C2 Output 2 (changeover contact)
12 Relay contact NO2
13 Relay contact NC2

UK
Electronic Preset Counter E89005
11
Terminal Designation Function
14 90���260 V AC N Supply voltage
15 90���260 V AC L
NO= normally open
NC = normally closed
C = common
6 Operating and display elements
3 Description
6-digit multifunction LCD display
Easy-to-read 2-line LCD-display with annunciators
for both the displayed preset and the status of the
two outputs
Simultaneous display of the actual value and of the
presets or auxiliary counters
Versions with backlit display
Add./Sub. Preset counter with two presets
Relay or optocoupler outputs
Easy-to-program
Simple preset entry via the front keys or via the
Teach-In function
Step or tracking preset
Pulse, frequency, time or batch counter
Preset counter, Batch counter or Total Counter
(cumulative count)
Set function for pulse and time counter
Multiplication and division factor (00.0001 ..
99.9999) for pulse counter and frequency meter
Averaging and Start Delay for frequency meter
Input modes:
Pulse counter: cnt.dir , up.dn , up.up , quad ,
quad2 , quad4 , A/B , (A-B)/Ax100%
Frequency meter: A , A  B , A + B , quad , A/B ,
(A-B)/Ax100%
Timer: FrErun , Auto , InpA.InpB , InpB.InpB
Output operations:
Add , Sub , AddAr, SubAr , AddBat , SubBat ,
AddTot , SubTot , Trail , TrailAr
4-stage RESET-Mode
3-stage keypad locking (Lock)
MPI input for Display Latch, Teach-In function or
Set function
Supply voltage 90 .. 260 VAC
4 Display/Operating elements
T1-6 Decade key T1  T6
P Prog/Mode key
R Reset key
8 Current count value / main counter
9 Preset value/ Total count/ Batch counter
10 Run display for Timer
11 Shows which preset value is being displayed
12 Shows which preset output is active
Pr Keys necessary for programming the
parameters (highlighted in grey)
5 Inputs
5.1 INP A, INP B
Signal inputs: function acc. to operating mode.
Max. frequency 60 kHz, can be damped in the
programming menu to 30 Hz.
Pulse counter: Count inputs
Frequency meter: Frequency inputs
Timer: Start input or
Start/Stop inputs
5.2 RESET
Dynamic reset input: resets the pulse counter or
timer to zero (adding mode) or to preset value 2
(subtracting mode). The reset input can be inhibited
in the programming menu.
Pulse counter: RESET input
Frequency meter: no function
Timer: RESET input
5.3 GATE
Static gate input: function depending on operating
mode.
Pulse counter: no counting while active
Frequency meter: no counting while active
Timer: no time measurement while
active(Gate.hi)
no time measurement while
not active (Gate.Lo).
5.4 LOCK INPUT
Static keypad lock input for presets or
programming. Lock-out level can be set in the
programming menu.
5.5 MPI
Input. Programmable as Display Latch, Set or
Teach-In input.
english
Seite 5
R
P
T1-6
Reset key [R]
Prog/Mode key [P]
Decade keys [T���]
8
9
10
11
12
Current count value / main counter
Preset value / Total count / Batch counter
Run display for Timer
Shows which preset value is being displayed
Shows which preset output is active
Pr Keys necessary for programming the parameters (highlighted in grey)
[R], [P], [T1], [T2]
6.1 Error message
Err 1
Set value is outside the permitted range�

Electronic Preset Counter E89005
12
7 Programming
7.1 Entering the programming
►Press [R] and [P] simultaneously for 3 s
> The security prompt appears in the display�
Programming can be exited again using [P]�
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
►Press [T2] to continue with the programming�
> The security prompt appears in the display�
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
►Enter the main menu by pressing [P]�
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
7.2 Choice of main menu
►The menus are selected using [T2] (next) and [T1] (back)�
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
7.3 Entering a submenu
►The submenu is opened with [P] and the first menu item is
displayed�
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
7.4 Selecting the menu items
►[P] is used to select a menu item within the sub-menu�
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6

UK
Electronic Preset Counter E89005
13
7.5 Setting the menu items
►[T2] is used to select the individual settings for the menu
items�
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
When setting count values, each decade has a key assigned
to it� Each time the key is pressed, the value increments by
one�
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
7.6 Accepting the setting
►Pressing [P] causes the current setting to be accepted�
Programming then switches to the next menu item�
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
7.7 Ending the programming
During programming, it is possible to exit the programming at each menu item by
pressing the reset key�
►Press [R]�
> The security prompt appears in the display�
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
►Pressing [P] acknowledges this prompt and causes the
programming menu to start again from the beginning�
> The previously-programmed values are preserved�
These can now be changed or checked again�
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
►Pressing [T2] selects the termination of the programming�
> The security prompt appears in the display�
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6

Electronic Preset Counter E89005
14
►Pressing [P] acknowledges this prompt and terminates the
programming�
> The modified settings are saved in the EEPROM�
The text SAVE is displayed for 2 s�
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
The security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
The security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
The security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
The security prompt
appears in the display
Seite 6
Pressing the Prog/Mode key
acknowledges this prompt and
terminates the programming; the
modified settings are saved in
the EEPROM.
The text SAVE is
displayed for 2 s
7.8 Programming Menu
7.8.1 Default parameters
Note: Three default parameter
sets have been permanently
stored; these can be adapted as
required. With each
acknowledgment of the
parameter sets, all parameters
will be reset to the values listed
in the table.
The dEFAuL P.USEr can be
freely programmed.
Menu Parameter Sets
Default setting
Parameter set 1
Default setting
Parameter set 2
Default setting
Parameter set 3
Freely programmable
User settings
Factory settings are highlighted
in grey
7.8.2 Table: Parameter Sets
P.SEt 1 P.SEt 2 P.SET 3
Func Count Count Count
InP.PoL PnP PnP PnP
FiLtEr on oFF oFF
Count Cnt.dir uP.dn Quad
MPi LAtch LAtch Set
Loc.InP ProG ProG ProG
ModE Add Sub TrAiL
FActor 01.0000 01.0000 01.0000
diViSo 01.0000 01.0000 01.0000
dP 0 0 0.00
SEtPt 000000 000000 0000.00
CoLor red.Grn red.Grn red.Grn
rESmd Man.EL Man.EL Man.EL
PrES 1 on on on
Pr.Out 1
t.Out 1 00.10
Pr.Out 2
t.Out 2 00.10 00.10
7.8.3 Setting the Basic Function
Basic function menu
Programming menu
Pulse counter (7.8.4)
Programming menu
Timer/Hour meter (7.8.6)
Programming menu
Tacho/Frequency meter (7.8.5)
english
Seite 7
Complete parameter structure and menues see attachement�

UK
Electronic Preset Counter E89005
15
7.8 Setting the presets
7.8.1 Setting via Decade Keys
In programming mode Preset 2 will always be displayed in the lower line� This is
except for the output operations AddBat, SubBat,AddTot and SubTot�
►Press [P] until the preset to be changed is displayed�
(
Preset 2 and subsequently with
negative direction and when
count < Preset 2
SUB mode output operations:
timed signal at Output 2,
becomes passive with negative
direction and when count <zero
and subsequently with positive
direction and when count > zero
Duration of timed signal of
Output 1, programmable from
00.01 to 99.99 s.
Timed output is post-triggered.
Active:
Relay or optocoupler are
activated when the preset value
is reached.
Passive:
Relay becomes de-energized or
the optocoupler disabled when
the preset value is reached.
7.9 Setting the presets
7.9.1 Setting via Decade Keys
In programming mode Preset 2 will always be
displayed in the lower line. This is except for the
output operations AddBat, SubBat,AddTot and
SubTot.
Press the Prog/Mode key until
the preset to be changed is
displayed - or .
Press any decade key
Display switches to the editor mode
Set the desired preset value
using the decade keys
Press the Prog/Mode key to
confirm the value and save it
Display switches to the editor mode of the
next preset or
Approx. 3 s after the last press of
the decade keys or by pressing
the Reset key the new preset
value will be accepted and the
counter will switch back to
operating mode.
7.9.2 Setting with Teach-In Function
Program the MPI input to tEAch
In programming mode, select the
preset to be changed using the
Prog/Mode key
Briefly activate the MPI (NPN or PNP input logic)
The current count value will be adopted as
the new preset value
The preset value can subsequently be
further modified via the decade keypad.
7.9.3 Setting the tracking presets (trail)
If a tracking preset has been programmed, the
value for Preset 2 can be set either via the decade
keypad or via the Teach-IN function.
However the value for Preset 1 must be entered via
the decade keypad. In this instance, it is not
possible to use the Teach-In function.
7.10 Set Function
Both the pulse counter and the timer can be set to
a default value by means of the Set function.
Programme the MPI input to SEt
Set menu item SEtPt to the
desired value
Briefly activate the MPI (NPN or PNP input logic)
For add. output operations the pulse
counter or timer will be set to the SEtPt
default value
For sub. output operations the pulse
counter or timer will be set to the
difference between the value of Preset 2
and the value of SEtPt .
8 Error message
Err 1 Set value is outside the permitted range
Seite 16
or
Preset 2 and subsequently with
negative direction and when
count < Preset 2
SUB mode output operations:
timed signal at Output 2,
becomes passive with negative
direction and when count <zero
and subsequently with positive
direction and when count > zero
Duration of timed signal of
Output 1, programmable from
00.01 to 99.99 s.
Timed output is post-triggered.
Active:
Relay or optocoupler are
activated when the preset value
is reached.
Passive:
Relay becomes de-energized or
the optocoupler disabled when
the preset value is reached.
7.9 Setting the presets
7.9.1 Setting via Decade Keys
In programming mode Preset 2 will always be
displayed in the lower line. This is except for the
output operations AddBat, SubBat,AddTot and
SubTot.
Press the Prog/Mode key until
the preset to be changed is
displayed - or .
Press any decade key
Display switches to the editor mode
Set the desired preset value
using the decade keys
Press the Prog/Mode key to
confirm the value and save it
Display switches to the editor mode of the
next preset or
Approx. 3 s after the last press of
the decade keys or by pressing
the Reset key the new preset
value will be accepted and the
counter will switch back to
operating mode.
7.9.2 Setting with Teach-In Function
Program the MPI input to tEAch
In programming mode, select the
preset to be changed using the
Prog/Mode key
Briefly activate the MPI (NPN or PNP input logic)
The current count value will be adopted as
the new preset value
The preset value can subsequently be
further modified via the decade keypad.
7.9.3 Setting the tracking presets (trail)
If a tracking preset has been programmed, the
value for Preset 2 can be set either via the decade
keypad or via the Teach-IN function.
However the value for Preset 1 must be entered via
the decade keypad. In this instance, it is not
possible to use the Teach-In function.
7.10 Set Function
Both the pulse counter and the timer can be set to
a default value by means of the Set function.
Programme the MPI input to SEt
Set menu item SEtPt to the
desired value
Briefly activate the MPI (NPN or PNP input logic)
For add. output operations the pulse
counter or timer will be set to the SEtPt
default value
For sub. output operations the pulse
counter or timer will be set to the
difference between the value of Preset 2
and the value of SEtPt .
8 Error message
Err 1 Set value is outside the permitted range
Seite 16
)
Preset 2 and subsequently with
negative direction and when
count < Preset 2
SUB mode output operations:
timed signal at Output 2,
becomes passive with negative
direction and when count <zero
and subsequently with positive
direction and when count > zero
Duration of timed signal of
Output 1, programmable from
00.01 to 99.99 s.
Timed output is post-triggered.
Active:
Relay or optocoupler are
activated when the preset value
is reached.
Passive:
Relay becomes de-energized or
the optocoupler disabled when
the preset value is reached.
7.9 Setting the presets
7.9.1 Setting via Decade Keys
In programming mode Preset 2 will always be
displayed in the lower line. This is except for the
output operations AddBat, SubBat,AddTot and
SubTot.
Press the Prog/Mode key until
the preset to be changed is
displayed - or .
Press any decade key
Display switches to the editor mode
Set the desired preset value
using the decade keys
Press the Prog/Mode key to
confirm the value and save it
Display switches to the editor mode of the
next preset or
Approx. 3 s after the last press of
the decade keys or by pressing
the Reset key the new preset
value will be accepted and the
counter will switch back to
operating mode.
7.9.2 Setting with Teach-In Function
Program the MPI input to tEAch
In programming mode, select the
preset to be changed using the
Prog/Mode key
Briefly activate the MPI (NPN or PNP input logic)
The current count value will be adopted as
the new preset value
The preset value can subsequently be
further modified via the decade keypad.
7.9.3 Setting the tracking presets (trail)
If a tracking preset has been programmed, the
value for Preset 2 can be set either via the decade
keypad or via the Teach-IN function.
However the value for Preset 1 must be entered via
the decade keypad. In this instance, it is not
possible to use the Teach-In function.
7.10 Set Function
Both the pulse counter and the timer can be set to
a default value by means of the Set function.
Programme the MPI input to SEt
Set menu item SEtPt to the
desired value
Briefly activate the MPI (NPN or PNP input logic)
For add. output operations the pulse
counter or timer will be set to the SEtPt
default value
For sub. output operations the pulse
counter or timer will be set to the
difference between the value of Preset 2
and the value of SEtPt .
8 Error message
Err 1 Set value is outside the permitted range
Seite 16
►Press any decade key�
> Display switches to the editor mode�
Preset 2 and subsequently with
negative direction and when
count < Preset 2
SUB mode output operations:
timed signal at Output 2,
becomes passive with negative
direction and when count <zero
and subsequently with positive
direction and when count > zero
Duration of timed signal of
Output 1, programmable from
00.01 to 99.99 s.
Timed output is post-triggered.
Active:
Relay or optocoupler are
activated when the preset value
is reached.
Passive:
Relay becomes de-energized or
the optocoupler disabled when
the preset value is reached.
7.9 Setting the presets
7.9.1 Setting via Decade Keys
In programming mode Preset 2 will always be
displayed in the lower line. This is except for the
output operations AddBat, SubBat,AddTot and
SubTot.
Press the Prog/Mode key until
the preset to be changed is
displayed - or .
Press any decade key
Display switches to the editor mode
Set the desired preset value
using the decade keys
Press the Prog/Mode key to
confirm the value and save it
Display switches to the editor mode of the
next preset or
Approx. 3 s after the last press of
the decade keys or by pressing
the Reset key the new preset
value will be accepted and the
counter will switch back to
operating mode.
7.9.2 Setting with Teach-In Function
Program the MPI input to tEAch
In programming mode, select the
preset to be changed using the
Prog/Mode key
Briefly activate the MPI (NPN or PNP input logic)
The current count value will be adopted as
the new preset value
The preset value can subsequently be
further modified via the decade keypad.
7.9.3 Setting the tracking presets (trail)
If a tracking preset has been programmed, the
value for Preset 2 can be set either via the decade
keypad or via the Teach-IN function.
However the value for Preset 1 must be entered via
the decade keypad. In this instance, it is not
possible to use the Teach-In function.
7.10 Set Function
Both the pulse counter and the timer can be set to
a default value by means of the Set function.
Programme the MPI input to SEt
Set menu item SEtPt to the
desired value
Briefly activate the MPI (NPN or PNP input logic)
For add. output operations the pulse
counter or timer will be set to the SEtPt
default value
For sub. output operations the pulse
counter or timer will be set to the
difference between the value of Preset 2
and the value of SEtPt .
8 Error message
Err 1 Set value is outside the permitted range
Seite 16
►Set the desired preset value using the decade keys�
Preset 2 and subsequently with
negative direction and when
count < Preset 2
SUB mode output operations:
timed signal at Output 2,
becomes passive with negative
direction and when count <zero
and subsequently with positive
direction and when count > zero
Duration of timed signal of
Output 1, programmable from
00.01 to 99.99 s.
Timed output is post-triggered.
Active:
Relay or optocoupler are
activated when the preset value
is reached.
Passive:
Relay becomes de-energized or
the optocoupler disabled when
the preset value is reached.
7.9 Setting the presets
7.9.1 Setting via Decade Keys
In programming mode Preset 2 will always be
displayed in the lower line. This is except for the
output operations AddBat, SubBat,AddTot and
SubTot.
Press the Prog/Mode key until
the preset to be changed is
displayed - or .
Press any decade key
Display switches to the editor mode
Set the desired preset value
using the decade keys
Press the Prog/Mode key to
confirm the value and save it
Display switches to the editor mode of the
next preset or
Approx. 3 s after the last press of
the decade keys or by pressing
the Reset key the new preset
value will be accepted and the
counter will switch back to
operating mode.
7.9.2 Setting with Teach-In Function
Program the MPI input to tEAch
In programming mode, select the
preset to be changed using the
Prog/Mode key
Briefly activate the MPI (NPN or PNP input logic)
The current count value will be adopted as
the new preset value
The preset value can subsequently be
further modified via the decade keypad.
7.9.3 Setting the tracking presets (trail)
If a tracking preset has been programmed, the
value for Preset 2 can be set either via the decade
keypad or via the Teach-IN function.
However the value for Preset 1 must be entered via
the decade keypad. In this instance, it is not
possible to use the Teach-In function.
7.10 Set Function
Both the pulse counter and the timer can be set to
a default value by means of the Set function.
Programme the MPI input to SEt
Set menu item SEtPt to the
desired value
Briefly activate the MPI (NPN or PNP input logic)
For add. output operations the pulse
counter or timer will be set to the SEtPt
default value
For sub. output operations the pulse
counter or timer will be set to the
difference between the value of Preset 2
and the value of SEtPt .
8 Error message
Err 1 Set value is outside the permitted range
Seite 16
►Press [P] to confirm the value and save it�
> Display switches to the editor mode of the next preset�
(
Preset 2 and subsequently with
negative direction and when
count < Preset 2
SUB mode output operations:
timed signal at Output 2,
becomes passive with negative
direction and when count <zero
and subsequently with positive
direction and when count > zero
Duration of timed signal of
Output 1, programmable from
00.01 to 99.99 s.
Timed output is post-triggered.
Active:
Relay or optocoupler are
activated when the preset value
is reached.
Passive:
Relay becomes de-energized or
the optocoupler disabled when
the preset value is reached.
7.9 Setting the presets
7.9.1 Setting via Decade Keys
In programming mode Preset 2 will always be
displayed in the lower line. This is except for the
output operations AddBat, SubBat,AddTot and
SubTot.
Press the Prog/Mode key until
the preset to be changed is
displayed - or .
Press any decade key
Display switches to the editor mode
Set the desired preset value
using the decade keys
Press the Prog/Mode key to
confirm the value and save it
Display switches to the editor mode of the
next preset or
Approx. 3 s after the last press of
the decade keys or by pressing
the Reset key the new preset
value will be accepted and the
counter will switch back to
operating mode.
7.9.2 Setting with Teach-In Function
Program the MPI input to tEAch
In programming mode, select the
preset to be changed using the
Prog/Mode key
Briefly activate the MPI (NPN or PNP input logic)
The current count value will be adopted as
the new preset value
The preset value can subsequently be
further modified via the decade keypad.
7.9.3 Setting the tracking presets (trail)
If a tracking preset has been programmed, the
value for Preset 2 can be set either via the decade
keypad or via the Teach-IN function.
However the value for Preset 1 must be entered via
the decade keypad. In this instance, it is not
possible to use the Teach-In function.
7.10 Set Function
Both the pulse counter and the timer can be set to
a default value by means of the Set function.
Programme the MPI input to SEt
Set menu item SEtPt to the
desired value
Briefly activate the MPI (NPN or PNP input logic)
For add. output operations the pulse
counter or timer will be set to the SEtPt
default value
For sub. output operations the pulse
counter or timer will be set to the
difference between the value of Preset 2
and the value of SEtPt .
8 Error message
Err 1 Set value is outside the permitted range
Seite 16
or
Preset 2 and subsequently with
negative direction and when
count < Preset 2
SUB mode output operations:
timed signal at Output 2,
becomes passive with negative
direction and when count <zero
and subsequently with positive
direction and when count > zero
Duration of timed signal of
Output 1, programmable from
00.01 to 99.99 s.
Timed output is post-triggered.
Active:
Relay or optocoupler are
activated when the preset value
is reached.
Passive:
Relay becomes de-energized or
the optocoupler disabled when
the preset value is reached.
7.9 Setting the presets
7.9.1 Setting via Decade Keys
In programming mode Preset 2 will always be
displayed in the lower line. This is except for the
output operations AddBat, SubBat,AddTot and
SubTot.
Press the Prog/Mode key until
the preset to be changed is
displayed - or .
Press any decade key
Display switches to the editor mode
Set the desired preset value
using the decade keys
Press the Prog/Mode key to
confirm the value and save it
Display switches to the editor mode of the
next preset or
Approx. 3 s after the last press of
the decade keys or by pressing
the Reset key the new preset
value will be accepted and the
counter will switch back to
operating mode.
7.9.2 Setting with Teach-In Function
Program the MPI input to tEAch
In programming mode, select the
preset to be changed using the
Prog/Mode key
Briefly activate the MPI (NPN or PNP input logic)
The current count value will be adopted as
the new preset value
The preset value can subsequently be
further modified via the decade keypad.
7.9.3 Setting the tracking presets (trail)
If a tracking preset has been programmed, the
value for Preset 2 can be set either via the decade
keypad or via the Teach-IN function.
However the value for Preset 1 must be entered via
the decade keypad. In this instance, it is not
possible to use the Teach-In function.
7.10 Set Function
Both the pulse counter and the timer can be set to
a default value by means of the Set function.
Programme the MPI input to SEt
Set menu item SEtPt to the
desired value
Briefly activate the MPI (NPN or PNP input logic)
For add. output operations the pulse
counter or timer will be set to the SEtPt
default value
For sub. output operations the pulse
counter or timer will be set to the
difference between the value of Preset 2
and the value of SEtPt .
8 Error message
Err 1 Set value is outside the permitted range
Seite 16
)
Preset 2 and subsequently with
negative direction and when
count < Preset 2
SUB mode output operations:
timed signal at Output 2,
becomes passive with negative
direction and when count <zero
and subsequently with positive
direction and when count > zero
Duration of timed signal of
Output 1, programmable from
00.01 to 99.99 s.
Timed output is post-triggered.
Active:
Relay or optocoupler are
activated when the preset value
is reached.
Passive:
Relay becomes de-energized or
the optocoupler disabled when
the preset value is reached.
7.9 Setting the presets
7.9.1 Setting via Decade Keys
In programming mode Preset 2 will always be
displayed in the lower line. This is except for the
output operations AddBat, SubBat,AddTot and
SubTot.
Press the Prog/Mode key until
the preset to be changed is
displayed - or .
Press any decade key
Display switches to the editor mode
Set the desired preset value
using the decade keys
Press the Prog/Mode key to
confirm the value and save it
Display switches to the editor mode of the
next preset or
Approx. 3 s after the last press of
the decade keys or by pressing
the Reset key the new preset
value will be accepted and the
counter will switch back to
operating mode.
7.9.2 Setting with Teach-In Function
Program the MPI input to tEAch
In programming mode, select the
preset to be changed using the
Prog/Mode key
Briefly activate the MPI (NPN or PNP input logic)
The current count value will be adopted as
the new preset value
The preset value can subsequently be
further modified via the decade keypad.
7.9.3 Setting the tracking presets (trail)
If a tracking preset has been programmed, the
value for Preset 2 can be set either via the decade
keypad or via the Teach-IN function.
However the value for Preset 1 must be entered via
the decade keypad. In this instance, it is not
possible to use the Teach-In function.
7.10 Set Function
Both the pulse counter and the timer can be set to
a default value by means of the Set function.
Programme the MPI input to SEt
Set menu item SEtPt to the
desired value
Briefly activate the MPI (NPN or PNP input logic)
For add. output operations the pulse
counter or timer will be set to the SEtPt
default value
For sub. output operations the pulse
counter or timer will be set to the
difference between the value of Preset 2
and the value of SEtPt .
8 Error message
Err 1 Set value is outside the permitted range
Seite 16
> Approx� 3 s after the last press of the decade keys or by
pressing [R] key the new preset value will be accepted
and the counter will switch back to operating mode�
Preset 2 and subsequently with
negative direction and when
count < Preset 2
SUB mode output operations:
timed signal at Output 2,
becomes passive with negative
direction and when count <zero
and subsequently with positive
direction and when count > zero
Duration of timed signal of
Output 1, programmable from
00.01 to 99.99 s.
Timed output is post-triggered.
Active:
Relay or optocoupler are
activated when the preset value
is reached.
Passive:
Relay becomes de-energized or
the optocoupler disabled when
the preset value is reached.
7.9 Setting the presets
7.9.1 Setting via Decade Keys
In programming mode Preset 2 will always be
displayed in the lower line. This is except for the
output operations AddBat, SubBat,AddTot and
SubTot.
Press the Prog/Mode key until
the preset to be changed is
displayed - or .
Press any decade key
Display switches to the editor mode
Set the desired preset value
using the decade keys
Press the Prog/Mode key to
confirm the value and save it
Display switches to the editor mode of the
next preset or
Approx. 3 s after the last press of
the decade keys or by pressing
the Reset key the new preset
value will be accepted and the
counter will switch back to
operating mode.
7.9.2 Setting with Teach-In Function
Program the MPI input to tEAch
In programming mode, select the
preset to be changed using the
Prog/Mode key
Briefly activate the MPI (NPN or PNP input logic)
The current count value will be adopted as
the new preset value
The preset value can subsequently be
further modified via the decade keypad.
7.9.3 Setting the tracking presets (trail)
If a tracking preset has been programmed, the
value for Preset 2 can be set either via the decade
keypad or via the Teach-IN function.
However the value for Preset 1 must be entered via
the decade keypad. In this instance, it is not
possible to use the Teach-In function.
7.10 Set Function
Both the pulse counter and the timer can be set to
a default value by means of the Set function.
Programme the MPI input to SEt
Set menu item SEtPt to the
desired value
Briefly activate the MPI (NPN or PNP input logic)
For add. output operations the pulse
counter or timer will be set to the SEtPt
default value
For sub. output operations the pulse
counter or timer will be set to the
difference between the value of Preset 2
and the value of SEtPt .
8 Error message
Err 1 Set value is outside the permitted range
Seite 16
7.8.2 Setting via Teach-in function
►Programme the MPI input to tEAch�
Zählerstand < Null passiv und
anschließend bei positiver
Richtung und Zählerstand > Null
passiv
Dauer des Wischsignals von
Ausgang 2, einstellbar von 00.01
bis 99.99 s.
Wischsignal wird nachgetriggert.
Aktiv:
Relais bzw. Optokoppler werden
bei Erreichen des Vorwahlwerts
angesteuert.
Passiv:
Relais wird bei Erreichen des
Vorwahlwert spannungslos bzw.
der Optokoppler gesperrt.
7.9 Vorwahleinstellung
7.9.1 Einstellung über Dekadentaster
Im Betriebsmode wird in der unteren Zeile immer
Preset 2 angezeigt. Ausnahme sind die
Ausgangsoperationen AddBat, SubBat,AddTot und
SubTot.
Prog/Mode-Taste betätigen bis
die zu ändernde Vorwahl
oder angezeigt wird.
Beliebige Dekadentaste
betätigen
Anzeige schaltet in den Editiermode
Mit Dekadentasten gewünschten
Vorwahlwert einstellen
Prog/Mode-Taste betätigen um
den Wert zu bestätigen und zu
speichern
Anzeige schaltet in den Editiermode der
nächsten Vorwahl oder
Ca. 3 s nach dem letzten
Betätigen der Dekadentasten
oder durch Betätigen der Reset-
Taste wird der neue Vorwahlwert
übernommen und in den
Betriebsmode zurück geschaltet.
7.9.2 Einstellung mit Teach-Funktion
MPI-Eingang auf tEAch
programmieren
Im Betriebsmode mit der
Prog/Mode-Taste die zu
ändernde Vorwahl auswählen
MPI-Eingang (NPN oder PNP-Eingangslogik)
kurzzeitig aktivieren
der aktuelle Zählerstand wird als neuer
Vorwahlwert übernommen
Der Vorwahlwert kann anschließend
weiter mit den Dekadentaster geändert
werden
7.9.3 Einstellung bei Schleppvorwahl
Bei programmierter Schleppvorwahl kann der Wert
für Vorwahl 2 über die Dekadenschalter oder über
die Teach-Funktion eingestellt werden.
Für Vorwahl 1 muss der Wert weiterhin über die
Dekadenschalter eingestellt werden. Hier ist die
Teach-Funktion ausgeschaltet.
7.10 Setz-Funktion
Impulszähler und Zeitzähler können über die
Setzfunktion auf einen Wert voreingestellt werden.
MPI-Eingang auf SEt
programmieren
Menuepunkt SEtPt auf
gewünschten Wert einstellen
MPI-Eingang (NPN oder PNP-Eingangslogik)
kurzzeitig aktivieren
Impulszähler bzw. Zeitzähler wird bei add.
Ausgangsoperationen auf den Wert von
SEtPt voreingestellt, bei sub.
Ausgangsoperationen auf die Differenz
von Vorwahl 2 und den Wert von SEtPt .
8 Fehlermeldung
Err 1 Setzwert außerhalb des erlaubten
Bereichs
Seite 16
►Press [P] until the preset to be changed is displayed�
(
Preset 2 and subsequently with
negative direction and when
count < Preset 2
SUB mode output operations:
timed signal at Output 2,
becomes passive with negative
direction and when count <zero
and subsequently with positive
direction and when count > zero
Duration of timed signal of
Output 1, programmable from
00.01 to 99.99 s.
Timed output is post-triggered.
Active:
Relay or optocoupler are
activated when the preset value
is reached.
Passive:
Relay becomes de-energized or
the optocoupler disabled when
the preset value is reached.
7.9 Setting the presets
7.9.1 Setting via Decade Keys
In programming mode Preset 2 will always be
displayed in the lower line. This is except for the
output operations AddBat, SubBat,AddTot and
SubTot.
Press the Prog/Mode key until
the preset to be changed is
displayed - or .
Press any decade key
Display switches to the editor mode
Set the desired preset value
using the decade keys
Press the Prog/Mode key to
confirm the value and save it
Display switches to the editor mode of the
next preset or
Approx. 3 s after the last press of
the decade keys or by pressing
the Reset key the new preset
value will be accepted and the
counter will switch back to
operating mode.
7.9.2 Setting with Teach-In Function
Program the MPI input to tEAch
In programming mode, select the
preset to be changed using the
Prog/Mode key
Briefly activate the MPI (NPN or PNP input logic)
The current count value will be adopted as
the new preset value
The preset value can subsequently be
further modified via the decade keypad.
7.9.3 Setting the tracking presets (trail)
If a tracking preset has been programmed, the
value for Preset 2 can be set either via the decade
keypad or via the Teach-IN function.
However the value for Preset 1 must be entered via
the decade keypad. In this instance, it is not
possible to use the Teach-In function.
7.10 Set Function
Both the pulse counter and the timer can be set to
a default value by means of the Set function.
Programme the MPI input to SEt
Set menu item SEtPt to the
desired value
Briefly activate the MPI (NPN or PNP input logic)
For add. output operations the pulse
counter or timer will be set to the SEtPt
default value
For sub. output operations the pulse
counter or timer will be set to the
difference between the value of Preset 2
and the value of SEtPt .
8 Error message
Err 1 Set value is outside the permitted range
Seite 16
or
Preset 2 and subsequently with
negative direction and when
count < Preset 2
SUB mode output operations:
timed signal at Output 2,
becomes passive with negative
direction and when count <zero
and subsequently with positive
direction and when count > zero
Duration of timed signal of
Output 1, programmable from
00.01 to 99.99 s.
Timed output is post-triggered.
Active:
Relay or optocoupler are
activated when the preset value
is reached.
Passive:
Relay becomes de-energized or
the optocoupler disabled when
the preset value is reached.
7.9 Setting the presets
7.9.1 Setting via Decade Keys
In programming mode Preset 2 will always be
displayed in the lower line. This is except for the
output operations AddBat, SubBat,AddTot and
SubTot.
Press the Prog/Mode key until
the preset to be changed is
displayed - or .
Press any decade key
Display switches to the editor mode
Set the desired preset value
using the decade keys
Press the Prog/Mode key to
confirm the value and save it
Display switches to the editor mode of the
next preset or
Approx. 3 s after the last press of
the decade keys or by pressing
the Reset key the new preset
value will be accepted and the
counter will switch back to
operating mode.
7.9.2 Setting with Teach-In Function
Program the MPI input to tEAch
In programming mode, select the
preset to be changed using the
Prog/Mode key
Briefly activate the MPI (NPN or PNP input logic)
The current count value will be adopted as
the new preset value
The preset value can subsequently be
further modified via the decade keypad.
7.9.3 Setting the tracking presets (trail)
If a tracking preset has been programmed, the
value for Preset 2 can be set either via the decade
keypad or via the Teach-IN function.
However the value for Preset 1 must be entered via
the decade keypad. In this instance, it is not
possible to use the Teach-In function.
7.10 Set Function
Both the pulse counter and the timer can be set to
a default value by means of the Set function.
Programme the MPI input to SEt
Set menu item SEtPt to the
desired value
Briefly activate the MPI (NPN or PNP input logic)
For add. output operations the pulse
counter or timer will be set to the SEtPt
default value
For sub. output operations the pulse
counter or timer will be set to the
difference between the value of Preset 2
and the value of SEtPt .
8 Error message
Err 1 Set value is outside the permitted range
Seite 16
)
►Briefly activate the MPI (NPN or PNP input logic)�
> The current count value will be adopted as the new preset
value�
Zählerstand < Null passiv und
anschließend bei positiver
Richtung und Zählerstand > Null
passiv
Dauer des Wischsignals von
Ausgang 2, einstellbar von 00.01
bis 99.99 s.
Wischsignal wird nachgetriggert.
Aktiv:
Relais bzw. Optokoppler werden
bei Erreichen des Vorwahlwerts
angesteuert.
Passiv:
Relais wird bei Erreichen des
Vorwahlwert spannungslos bzw.
der Optokoppler gesperrt.
7.9 Vorwahleinstellung
7.9.1 Einstellung über Dekadentaster
Im Betriebsmode wird in der unteren Zeile immer
Preset 2 angezeigt. Ausnahme sind die
Ausgangsoperationen AddBat, SubBat,AddTot und
SubTot.
Prog/Mode-Taste betätigen bis
die zu ändernde Vorwahl
oder angezeigt wird.
Beliebige Dekadentaste
betätigen
Anzeige schaltet in den Editiermode
Mit Dekadentasten gewünschten
Vorwahlwert einstellen
Prog/Mode-Taste betätigen um
den Wert zu bestätigen und zu
speichern
Anzeige schaltet in den Editiermode der
nächsten Vorwahl oder
Ca. 3 s nach dem letzten
Betätigen der Dekadentasten
oder durch Betätigen der Reset-
Taste wird der neue Vorwahlwert
übernommen und in den
Betriebsmode zurück geschaltet.
7.9.2 Einstellung mit Teach-Funktion
MPI-Eingang auf tEAch
programmieren
Im Betriebsmode mit der
Prog/Mode-Taste die zu
ändernde Vorwahl auswählen
MPI-Eingang (NPN oder PNP-Eingangslogik)
kurzzeitig aktivieren
der aktuelle Zählerstand wird als neuer
Vorwahlwert übernommen
Der Vorwahlwert kann anschließend
weiter mit den Dekadentaster geändert
werden
7.9.3 Einstellung bei Schleppvorwahl
Bei programmierter Schleppvorwahl kann der Wert
für Vorwahl 2 über die Dekadenschalter oder über
die Teach-Funktion eingestellt werden.
Für Vorwahl 1 muss der Wert weiterhin über die
Dekadenschalter eingestellt werden. Hier ist die
Teach-Funktion ausgeschaltet.
7.10 Setz-Funktion
Impulszähler und Zeitzähler können über die
Setzfunktion auf einen Wert voreingestellt werden.
MPI-Eingang auf SEt
programmieren
Menuepunkt SEtPt auf
gewünschten Wert einstellen
MPI-Eingang (NPN oder PNP-Eingangslogik)
kurzzeitig aktivieren
Impulszähler bzw. Zeitzähler wird bei add.
Ausgangsoperationen auf den Wert von
SEtPt voreingestellt, bei sub.
Ausgangsoperationen auf die Differenz
von Vorwahl 2 und den Wert von SEtPt .
8 Fehlermeldung
Err 1 Setzwert außerhalb des erlaubten
Bereichs
Seite 16
►The preset value can subsequently be further modified via
the decade keypad�
Preset 2 and subsequently with
negative direction and when
count < Preset 2
SUB mode output operations:
timed signal at Output 2,
becomes passive with negative
direction and when count <zero
and subsequently with positive
direction and when count > zero
Duration of timed signal of
Output 1, programmable from
00.01 to 99.99 s.
Timed output is post-triggered.
Active:
Relay or optocoupler are
activated when the preset value
is reached.
Passive:
Relay becomes de-energized or
the optocoupler disabled when
the preset value is reached.
7.9 Setting the presets
7.9.1 Setting via Decade Keys
In programming mode Preset 2 will always be
displayed in the lower line. This is except for the
output operations AddBat, SubBat,AddTot and
SubTot.
Press the Prog/Mode key until
the preset to be changed is
displayed - or .
Press any decade key
Display switches to the editor mode
Set the desired preset value
using the decade keys
Press the Prog/Mode key to
confirm the value and save it
Display switches to the editor mode of the
next preset or
Approx. 3 s after the last press of
the decade keys or by pressing
the Reset key the new preset
value will be accepted and the
counter will switch back to
operating mode.
7.9.2 Setting with Teach-In Function
Program the MPI input to tEAch
In programming mode, select the
preset to be changed using the
Prog/Mode key
Briefly activate the MPI (NPN or PNP input logic)
The current count value will be adopted as
the new preset value
The preset value can subsequently be
further modified via the decade keypad.
7.9.3 Setting the tracking presets (trail)
If a tracking preset has been programmed, the
value for Preset 2 can be set either via the decade
keypad or via the Teach-IN function.
However the value for Preset 1 must be entered via
the decade keypad. In this instance, it is not
possible to use the Teach-In function.
7.10 Set Function
Both the pulse counter and the timer can be set to
a default value by means of the Set function.
Programme the MPI input to SEt
Set menu item SEtPt to the
desired value
Briefly activate the MPI (NPN or PNP input logic)
For add. output operations the pulse
counter or timer will be set to the SEtPt
default value
For sub. output operations the pulse
counter or timer will be set to the
difference between the value of Preset 2
and the value of SEtPt .
8 Error message
Err 1 Set value is outside the permitted range
Seite 16

Electronic Preset Counter E89005
16
7.8.3 Setting the tracking presets (trail)
If a tracking preset has been programmed, the value for Preset 2 can be set either
via the decade keypad or via the Teach-In function�
However the value for Preset 1 must be entered via the decade keypad� In this
instance, it is not possible to use the Teach-In function�

UK
Electronic Preset Counter E89005
17
7.9 Set Function
Both the pulse counter and the timer can be set to a default value by means of the
Set function�
►Programme the MPI input to SEt�
Zählerstand < Null passiv und
anschließend bei positiver
Richtung und Zählerstand > Null
passiv
Dauer des Wischsignals von
Ausgang 2, einstellbar von 00.01
bis 99.99 s.
Wischsignal wird nachgetriggert.
Aktiv:
Relais bzw. Optokoppler werden
bei Erreichen des Vorwahlwerts
angesteuert.
Passiv:
Relais wird bei Erreichen des
Vorwahlwert spannungslos bzw.
der Optokoppler gesperrt.
7.9 Vorwahleinstellung
7.9.1 Einstellung über Dekadentaster
Im Betriebsmode wird in der unteren Zeile immer
Preset 2 angezeigt. Ausnahme sind die
Ausgangsoperationen AddBat, SubBat,AddTot und
SubTot.
Prog/Mode-Taste betätigen bis
die zu ändernde Vorwahl
oder angezeigt wird.
Beliebige Dekadentaste
betätigen
Anzeige schaltet in den Editiermode
Mit Dekadentasten gewünschten
Vorwahlwert einstellen
Prog/Mode-Taste betätigen um
den Wert zu bestätigen und zu
speichern
Anzeige schaltet in den Editiermode der
nächsten Vorwahl oder
Ca. 3 s nach dem letzten
Betätigen der Dekadentasten
oder durch Betätigen der Reset-
Taste wird der neue Vorwahlwert
übernommen und in den
Betriebsmode zurück geschaltet.
7.9.2 Einstellung mit Teach-Funktion
MPI-Eingang auf tEAch
programmieren
Im Betriebsmode mit der
Prog/Mode-Taste die zu
ändernde Vorwahl auswählen
MPI-Eingang (NPN oder PNP-Eingangslogik)
kurzzeitig aktivieren
der aktuelle Zählerstand wird als neuer
Vorwahlwert übernommen
Der Vorwahlwert kann anschließend
weiter mit den Dekadentaster geändert
werden
7.9.3 Einstellung bei Schleppvorwahl
Bei programmierter Schleppvorwahl kann der Wert
für Vorwahl 2 über die Dekadenschalter oder über
die Teach-Funktion eingestellt werden.
Für Vorwahl 1 muss der Wert weiterhin über die
Dekadenschalter eingestellt werden. Hier ist die
Teach-Funktion ausgeschaltet.
7.10 Setz-Funktion
Impulszähler und Zeitzähler können über die
Setzfunktion auf einen Wert voreingestellt werden.
MPI-Eingang auf SEt
programmieren
Menuepunkt SEtPt auf
gewünschten Wert einstellen
MPI-Eingang (NPN oder PNP-Eingangslogik)
kurzzeitig aktivieren
Impulszähler bzw. Zeitzähler wird bei add.
Ausgangsoperationen auf den Wert von
SEtPt voreingestellt, bei sub.
Ausgangsoperationen auf die Differenz
von Vorwahl 2 und den Wert von SEtPt .
8 Fehlermeldung
Err 1 Setzwert außerhalb des erlaubten
Bereichs
Seite 16
►Set menu item SEtPt to the desired value�
►Briefly activate the MPI (NPN or PNP input logic)�
> For add� output operations the pulse counter or timer will
be set to the SEtPt default value�
For sub� output operations the pulse counter or timer will
be set to the difference between the value of Preset 2 and
the value of SEtPt�
Zählerstand < Null passiv und
anschließend bei positiver
Richtung und Zählerstand > Null
passiv
Dauer des Wischsignals von
Ausgang 2, einstellbar von 00.01
bis 99.99 s.
Wischsignal wird nachgetriggert.
Aktiv:
Relais bzw. Optokoppler werden
bei Erreichen des Vorwahlwerts
angesteuert.
Passiv:
Relais wird bei Erreichen des
Vorwahlwert spannungslos bzw.
der Optokoppler gesperrt.
7.9 Vorwahleinstellung
7.9.1 Einstellung über Dekadentaster
Im Betriebsmode wird in der unteren Zeile immer
Preset 2 angezeigt. Ausnahme sind die
Ausgangsoperationen AddBat, SubBat,AddTot und
SubTot.
Prog/Mode-Taste betätigen bis
die zu ändernde Vorwahl
oder angezeigt wird.
Beliebige Dekadentaste
betätigen
Anzeige schaltet in den Editiermode
Mit Dekadentasten gewünschten
Vorwahlwert einstellen
Prog/Mode-Taste betätigen um
den Wert zu bestätigen und zu
speichern
Anzeige schaltet in den Editiermode der
nächsten Vorwahl oder
Ca. 3 s nach dem letzten
Betätigen der Dekadentasten
oder durch Betätigen der Reset-
Taste wird der neue Vorwahlwert
übernommen und in den
Betriebsmode zurück geschaltet.
7.9.2 Einstellung mit Teach-Funktion
MPI-Eingang auf tEAch
programmieren
Im Betriebsmode mit der
Prog/Mode-Taste die zu
ändernde Vorwahl auswählen
MPI-Eingang (NPN oder PNP-Eingangslogik)
kurzzeitig aktivieren
der aktuelle Zählerstand wird als neuer
Vorwahlwert übernommen
Der Vorwahlwert kann anschließend
weiter mit den Dekadentaster geändert
werden
7.9.3 Einstellung bei Schleppvorwahl
Bei programmierter Schleppvorwahl kann der Wert
für Vorwahl 2 über die Dekadenschalter oder über
die Teach-Funktion eingestellt werden.
Für Vorwahl 1 muss der Wert weiterhin über die
Dekadenschalter eingestellt werden. Hier ist die
Teach-Funktion ausgeschaltet.
7.10 Setz-Funktion
Impulszähler und Zeitzähler können über die
Setzfunktion auf einen Wert voreingestellt werden.
MPI-Eingang auf SEt
programmieren
Menuepunkt SEtPt auf
gewünschten Wert einstellen
MPI-Eingang (NPN oder PNP-Eingangslogik)
kurzzeitig aktivieren
Impulszähler bzw. Zeitzähler wird bei add.
Ausgangsoperationen auf den Wert von
SEtPt voreingestellt, bei sub.
Ausgangsoperationen auf die Differenz
von Vorwahl 2 und den Wert von SEtPt .
8 Fehlermeldung
Err 1 Setzwert außerhalb des erlaubten
Bereichs
Seite 16

Electronic Preset Counter E89005
18
8 Parameters
8.1 Default parameters
Three default parameter sets have been permanently stored; these can be
adapted as required� With each acknowledgment of the parameter sets, all
parameters will be reset to the values listed in the table�
The default parameter set P�USEr can be freely programmed�
Pressing the Prog/Mode key
acknowledges this prompt and
terminates the programming; the
modified settings are saved in
the EEPROM.
The text SAVE is
displayed for 2 s
7.8 Programming Menu
7.8.1 Default parameters
Note: Three default parameter
sets have been permanently
stored; these can be adapted as
required. With each
acknowledgment of the
parameter sets, all parameters
will be reset to the values listed
in the table.
The dEFAuL P.USEr can be
freely programmed.
Menu Parameter Sets
Default setting
Parameter set 1
Default setting
Parameter set 2
Default setting
Parameter set 3
Freely programmable
User settings
Factory settings are highlighted
in grey
7.8.2 Table: Parameter Sets
P.SEt 1 P.SEt 2 P.SET 3
Func Count Count Count
InP.PoL PnP PnP PnP
FiLtEr on oFF oFF
Count Cnt.dir uP.dn Quad
MPi LAtch LAtch Set
Loc.InP ProG ProG ProG
ModE Add Sub TrAiL
FActor 01.0000 01.0000 01.0000
diViSo 01.0000 01.0000 01.0000
dP 0 0 0.00
SEtPt 000000 000000 0000.00
CoLor red.Grn red.Grn red.Grn
rESmd Man.EL Man.EL Man.EL
PrES 1 on on on
Pr.Out 1
t.Out 1 00.10
Pr.Out 2
t.Out 2 00.10 00.10
7.8.3 Setting the Basic Function
Basic function menu
Programming menu
Pulse counter (7.8.4)
Programming menu
Timer/Hour meter (7.8.6)
Programming menu
Tacho/Frequency meter (7.8.5)
english
Seite 7
Pressing the Prog/Mode key
acknowledges this prompt and
terminates the programming; the
modified settings are saved in
the EEPROM.
The text SAVE is
displayed for 2 s
7.8 Programming Menu
7.8.1 Default parameters
Note: Three default parameter
sets have been permanently
stored; these can be adapted as
required. With each
acknowledgment of the
parameter sets, all parameters
will be reset to the values listed
in the table.
The dEFAuL P.USEr can be
freely programmed.
Menu Parameter Sets
Default setting
Parameter set 1
Default setting
Parameter set 2
Default setting
Parameter set 3
Freely programmable
User settings
Factory settings are highlighted
in grey
7.8.2 Table: Parameter Sets
P.SEt 1 P.SEt 2 P.SET 3
Func Count Count Count
InP.PoL PnP PnP PnP
FiLtEr on oFF oFF
Count Cnt.dir uP.dn Quad
MPi LAtch LAtch Set
Loc.InP ProG ProG ProG
ModE Add Sub TrAiL
FActor 01.0000 01.0000 01.0000
diViSo 01.0000 01.0000 01.0000
dP 0 0 0.00
SEtPt 000000 000000 0000.00
CoLor red.Grn red.Grn red.Grn
rESmd Man.EL Man.EL Man.EL
PrES 1 on on on
Pr.Out 1
t.Out 1 00.10
Pr.Out 2
t.Out 2 00.10 00.10
7.8.3 Setting the Basic Function
Basic function menu
Programming menu
Pulse counter (7.8.4)
Programming menu
Timer/Hour meter (7.8.6)
Programming menu
Tacho/Frequency meter (7.8.5)
english
Seite 7
Pressing the Prog/Mode key
acknowledges this prompt and
terminates the programming; the
modified settings are saved in
the EEPROM.
The text SAVE is
displayed for 2 s
7.8 Programming Menu
7.8.1 Default parameters
Note: Three default parameter
sets have been permanently
stored; these can be adapted as
required. With each
acknowledgment of the
parameter sets, all parameters
will be reset to the values listed
in the table.
The dEFAuL P.USEr can be
freely programmed.
Menu Parameter Sets
Default setting
Parameter set 1
Default setting
Parameter set 2
Default setting
Parameter set 3
Freely programmable
User settings
Factory settings are highlighted
in grey
7.8.2 Table: Parameter Sets
P.SEt 1 P.SEt 2 P.SET 3
Func Count Count Count
InP.PoL PnP PnP PnP
FiLtEr on oFF oFF
Count Cnt.dir uP.dn Quad
MPi LAtch LAtch Set
Loc.InP ProG ProG ProG
ModE Add Sub TrAiL
FActor 01.0000 01.0000 01.0000
diViSo 01.0000 01.0000 01.0000
dP 0 0 0.00
SEtPt 000000 000000 0000.00
CoLor red.Grn red.Grn red.Grn
rESmd Man.EL Man.EL Man.EL
PrES 1 on on on
Pr.Out 1
t.Out 1 00.10
Pr.Out 2
t.Out 2 00.10 00.10
7.8.3 Setting the Basic Function
Basic function menu
Programming menu
Pulse counter (7.8.4)
Programming menu
Timer/Hour meter (7.8.6)
Programming menu
Tacho/Frequency meter (7.8.5)
english
Seite 7
Pressing the Prog/Mode key
acknowledges this prompt and
terminates the programming; the
modified settings are saved in
the EEPROM.
The text SAVE is
displayed for 2 s
7.8 Programming Menu
7.8.1 Default parameters
Note: Three default parameter
sets have been permanently
stored; these can be adapted as
required. With each
acknowledgment of the
parameter sets, all parameters
will be reset to the values listed
in the table.
The dEFAuL P.USEr can be
freely programmed.
Menu Parameter Sets
Default setting
Parameter set 1
Default setting
Parameter set 2
Default setting
Parameter set 3
Freely programmable
User settings
Factory settings are highlighted
in grey
7.8.2 Table: Parameter Sets
P.SEt 1 P.SEt 2 P.SET 3
Func Count Count Count
InP.PoL PnP PnP PnP
FiLtEr on oFF oFF
Count Cnt.dir uP.dn Quad
MPi LAtch LAtch Set
Loc.InP ProG ProG ProG
ModE Add Sub TrAiL
FActor 01.0000 01.0000 01.0000
diViSo 01.0000 01.0000 01.0000
dP 0 0 0.00
SEtPt 000000 000000 0000.00
CoLor red.Grn red.Grn red.Grn
rESmd Man.EL Man.EL Man.EL
PrES 1 on on on
Pr.Out 1
t.Out 1 00.10
Pr.Out 2
t.Out 2 00.10 00.10
7.8.3 Setting the Basic Function
Basic function menu
Programming menu
Pulse counter (7.8.4)
Programming menu
Timer/Hour meter (7.8.6)
Programming menu
Tacho/Frequency meter (7.8.5)
english
Seite 7
8.2 Table: Default Parameter Sets
Display Description P.SEt 1 P.SEt 2 P.SET 3 P.USEr
Func Basic function of the device Count Count Count
Freely programmable
User settings
InP.PoL Input polarity PnP PnP PnP
FiLtEr Filter for the signal inputs InpA and InpB on oFF oFF
Count Count input mode Cnt�dir uP�dn Quad
MPi User input LAtch LAtch Set
Loc.InP Lock input ProG ProG ProG
ModE Mode Add Sub TrAiL
FActor Multiplication factor 01�0000 01�0000 01�0000
diViSo Division factor 01�0000 01�0000 01�0000
dP Decimal point 0 0 0�00
SEtPt Set value 000000 000000 0000�00
CoLor Display colour red�Grn red�Grn red�Grn
rESmd Reset mode Man�EL Man�EL Man�EL
PrES 1 Preset 1 on on on
Pr.Out 1 Preset output 1
Pressing the Prog/Mode key
acknowledges this prompt and
terminates the programming; the
modified settings are saved in
the EEPROM.
The text SAVE is
displayed for 2 s
7.8 Programming Menu
7.8.1 Default parameters
Note: Three default parameter
sets have been permanently
stored; these can be adapted as
required. With each
acknowledgment of the
parameter sets, all parameters
will be reset to the values listed
in the table.
The dEFAuL P.USEr can be
freely programmed.
Menu Parameter Sets
Default setting
Parameter set 1
Default setting
Parameter set 2
Default setting
Parameter set 3
Freely programmable
User settings
Factory settings are highlighted
in grey
7.8.2 Table: Parameter Sets
P.SEt 1 P.SEt 2 P.SET 3
Func Count Count Count
InP.PoL PnP PnP PnP
FiLtEr on oFF oFF
Count Cnt.dir uP.dn Quad
MPi LAtch LAtch Set
Loc.InP ProG ProG ProG
ModE Add Sub TrAiL
FActor 01.0000 01.0000 01.0000
diViSo 01.0000 01.0000 01.0000
dP 0 0 0.00
SEtPt 000000 000000 0000.00
CoLor red.Grn red.Grn red.Grn
rESmd Man.EL Man.EL Man.EL
PrES 1 on on on
Pr.Out 1
t.Out 1 00.10
Pr.Out 2
t.Out 2 00.10 00.10
7.8.3 Setting the Basic Function
Basic function menu
Programming menu
Pulse counter (7.8.4)
Programming menu
Timer/Hour meter (7.8.6)
Programming menu
Tacho/Frequency meter (7.8.5)
english
Seite 7
Pressing the Prog/Mode key
acknowledges this prompt and
terminates the programming; the
modified settings are saved in
the EEPROM.
The text SAVE is
displayed for 2 s
7.8 Programming Menu
7.8.1 Default parameters
Note: Three default parameter
sets have been permanently
stored; these can be adapted as
required. With each
acknowledgment of the
parameter sets, all parameters
will be reset to the values listed
in the table.
The dEFAuL P.USEr can be
freely programmed.
Menu Parameter Sets
Default setting
Parameter set 1
Default setting
Parameter set 2
Default setting
Parameter set 3
Freely programmable
User settings
Factory settings are highlighted
in grey
7.8.2 Table: Parameter Sets
P.SEt 1 P.SEt 2 P.SET 3
Func Count Count Count
InP.PoL PnP PnP PnP
FiLtEr on oFF oFF
Count Cnt.dir uP.dn Quad
MPi LAtch LAtch Set
Loc.InP ProG ProG ProG
ModE Add Sub TrAiL
FActor 01.0000 01.0000 01.0000
diViSo 01.0000 01.0000 01.0000
dP 0 0 0.00
SEtPt 000000 000000 0000.00
CoLor red.Grn red.Grn red.Grn
rESmd Man.EL Man.EL Man.EL
PrES 1 on on on
Pr.Out 1
t.Out 1 00.10
Pr.Out 2
t.Out 2 00.10 00.10
7.8.3 Setting the Basic Function
Basic function menu
Programming menu
Pulse counter (7.8.4)
Programming menu
Timer/Hour meter (7.8.6)
Programming menu
Tacho/Frequency meter (7.8.5)
english
Seite 7
Pressing the Prog/Mode key
acknowledges this prompt and
terminates the programming; the
modified settings are saved in
the EEPROM.
The text SAVE is
displayed for 2 s
7.8 Programming Menu
7.8.1 Default parameters
Note: Three default parameter
sets have been permanently
stored; these can be adapted as
required. With each
acknowledgment of the
parameter sets, all parameters
will be reset to the values listed
in the table.
The dEFAuL P.USEr can be
freely programmed.
Menu Parameter Sets
Default setting
Parameter set 1
Default setting
Parameter set 2
Default setting
Parameter set 3
Freely programmable
User settings
Factory settings are highlighted
in grey
7.8.2 Table: Parameter Sets
P.SEt 1 P.SEt 2 P.SET 3
Func Count Count Count
InP.PoL PnP PnP PnP
FiLtEr on oFF oFF
Count Cnt.dir uP.dn Quad
MPi LAtch LAtch Set
Loc.InP ProG ProG ProG
ModE Add Sub TrAiL
FActor 01.0000 01.0000 01.0000
diViSo 01.0000 01.0000 01.0000
dP 0 0 0.00
SEtPt 000000 000000 0000.00
CoLor red.Grn red.Grn red.Grn
rESmd Man.EL Man.EL Man.EL
PrES 1 on on on
Pr.Out 1
t.Out 1 00.10
Pr.Out 2
t.Out 2 00.10 00.10
7.8.3 Setting the Basic Function
Basic function menu
Programming menu
Pulse counter (7.8.4)
Programming menu
Timer/Hour meter (7.8.6)
Programming menu
Tacho/Frequency meter (7.8.5)
english
Seite 7
t.Out 1 Duration of timed signal of output 1 - 00�10 -
Pr.Out 2 Preset output 2
Pressing the Prog/Mode key
acknowledges this prompt and
terminates the programming; the
modified settings are saved in
the EEPROM.
The text SAVE is
displayed for 2 s
7.8 Programming Menu
7.8.1 Default parameters
Note: Three default parameter
sets have been permanently
stored; these can be adapted as
required. With each
acknowledgment of the
parameter sets, all parameters
will be reset to the values listed
in the table.
The dEFAuL P.USEr can be
freely programmed.
Menu Parameter Sets
Default setting
Parameter set 1
Default setting
Parameter set 2
Default setting
Parameter set 3
Freely programmable
User settings
Factory settings are highlighted
in grey
7.8.2 Table: Parameter Sets
P.SEt 1 P.SEt 2 P.SET 3
Func Count Count Count
InP.PoL PnP PnP PnP
FiLtEr on oFF oFF
Count Cnt.dir uP.dn Quad
MPi LAtch LAtch Set
Loc.InP ProG ProG ProG
ModE Add Sub TrAiL
FActor 01.0000 01.0000 01.0000
diViSo 01.0000 01.0000 01.0000
dP 0 0 0.00
SEtPt 000000 000000 0000.00
CoLor red.Grn red.Grn red.Grn
rESmd Man.EL Man.EL Man.EL
PrES 1 on on on
Pr.Out 1
t.Out 1 00.10
Pr.Out 2
t.Out 2 00.10 00.10
7.8.3 Setting the Basic Function
Basic function menu
Programming menu
Pulse counter (7.8.4)
Programming menu
Timer/Hour meter (7.8.6)
Programming menu
Tacho/Frequency meter (7.8.5)
english
Seite 7
Pressing the Prog/Mode key
acknowledges this prompt and
terminates the programming; the
modified settings are saved in
the EEPROM.
The text SAVE is
displayed for 2 s
7.8 Programming Menu
7.8.1 Default parameters
Note: Three default parameter
sets have been permanently
stored; these can be adapted as
required. With each
acknowledgment of the
parameter sets, all parameters
will be reset to the values listed
in the table.
The dEFAuL P.USEr can be
freely programmed.
Menu Parameter Sets
Default setting
Parameter set 1
Default setting
Parameter set 2
Default setting
Parameter set 3
Freely programmable
User settings
Factory settings are highlighted
in grey
7.8.2 Table: Parameter Sets
P.SEt 1 P.SEt 2 P.SET 3
Func Count Count Count
InP.PoL PnP PnP PnP
FiLtEr on oFF oFF
Count Cnt.dir uP.dn Quad
MPi LAtch LAtch Set
Loc.InP ProG ProG ProG
ModE Add Sub TrAiL
FActor 01.0000 01.0000 01.0000
diViSo 01.0000 01.0000 01.0000
dP 0 0 0.00
SEtPt 000000 000000 0000.00
CoLor red.Grn red.Grn red.Grn
rESmd Man.EL Man.EL Man.EL
PrES 1 on on on
Pr.Out 1
t.Out 1 00.10
Pr.Out 2
t.Out 2 00.10 00.10
7.8.3 Setting the Basic Function
Basic function menu
Programming menu
Pulse counter (7.8.4)
Programming menu
Timer/Hour meter (7.8.6)
Programming menu
Tacho/Frequency meter (7.8.5)
english
Seite 7
Pressing the Prog/Mode key
acknowledges this prompt and
terminates the programming; the
modified settings are saved in
the EEPROM.
The text SAVE is
displayed for 2 s
7.8 Programming Menu
7.8.1 Default parameters
Note: Three default parameter
sets have been permanently
stored; these can be adapted as
required. With each
acknowledgment of the
parameter sets, all parameters
will be reset to the values listed
in the table.
The dEFAuL P.USEr can be
freely programmed.
Menu Parameter Sets
Default setting
Parameter set 1
Default setting
Parameter set 2
Default setting
Parameter set 3
Freely programmable
User settings
Factory settings are highlighted
in grey
7.8.2 Table: Parameter Sets
P.SEt 1 P.SEt 2 P.SET 3
Func Count Count Count
InP.PoL PnP PnP PnP
FiLtEr on oFF oFF
Count Cnt.dir uP.dn Quad
MPi LAtch LAtch Set
Loc.InP ProG ProG ProG
ModE Add Sub TrAiL
FActor 01.0000 01.0000 01.0000
diViSo 01.0000 01.0000 01.0000
dP 0 0 0.00
SEtPt 000000 000000 0000.00
CoLor red.Grn red.Grn red.Grn
rESmd Man.EL Man.EL Man.EL
PrES 1 on on on
Pr.Out 1
t.Out 1 00.10
Pr.Out 2
t.Out 2 00.10 00.10
7.8.3 Setting the Basic Function
Basic function menu
Programming menu
Pulse counter (7.8.4)
Programming menu
Timer/Hour meter (7.8.6)
Programming menu
Tacho/Frequency meter (7.8.5)
english
Seite 7
t.Out 2 Duration of timed signal of output 1 - 00�10 00�10
factory settings are highlighted in grey
Complete parameter structure and menues see attachement�

UK
Electronic Preset Counter E89005
19
8.3 Setting the basic function of the device
Pressing the Prog/Mode key
acknowledges this prompt and
terminates the programming; the
modified settings are saved in
the EEPROM.
The text SAVE is
displayed for 2 s
7.8 Programming Menu
7.8.1 Default parameters
Note: Three default parameter
sets have been permanently
stored; these can be adapted as
required. With each
acknowledgment of the
parameter sets, all parameters
will be reset to the values listed
in the table.
The dEFAuL P.USEr can be
freely programmed.
Menu Parameter Sets
Default setting
Parameter set 1
Default setting
Parameter set 2
Default setting
Parameter set 3
Freely programmable
User settings
Factory settings are highlighted
in grey
7.8.2 Table: Parameter Sets
P.SEt 1 P.SEt 2 P.SET 3
Func Count Count Count
InP.PoL PnP PnP PnP
FiLtEr on oFF oFF
Count Cnt.dir uP.dn Quad
MPi LAtch LAtch Set
Loc.InP ProG ProG ProG
ModE Add Sub TrAiL
FActor 01.0000 01.0000 01.0000
diViSo 01.0000 01.0000 01.0000
dP 0 0 0.00
SEtPt 000000 000000 0000.00
CoLor red.Grn red.Grn red.Grn
rESmd Man.EL Man.EL Man.EL
PrES 1 on on on
Pr.Out 1
t.Out 1 00.10
Pr.Out 2
t.Out 2 00.10 00.10
7.8.3 Setting the Basic Function
Basic function menu
Programming menu
Pulse counter (7.8.4)
Programming menu
Timer/Hour meter (7.8.6)
Programming menu
Tacho/Frequency meter (7.8.5)
english
Seite 7
Pressing the Prog/Mode key
acknowledges this prompt and
terminates the programming; the
modified settings are saved in
the EEPROM.
The text SAVE is
displayed for 2 s
7.8 Programming Menu
7.8.1 Default parameters
Note: Three default parameter
sets have been permanently
stored; these can be adapted as
required. With each
acknowledgment of the
parameter sets, all parameters
will be reset to the values listed
in the table.
The dEFAuL P.USEr can be
freely programmed.
Menu Parameter Sets
Default setting
Parameter set 1
Default setting
Parameter set 2
Default setting
Parameter set 3
Freely programmable
User settings
Factory settings are highlighted
in grey
7.8.2 Table: Parameter Sets
P.SEt 1 P.SEt 2 P.SET 3
Func Count Count Count
InP.PoL PnP PnP PnP
FiLtEr on oFF oFF
Count Cnt.dir uP.dn Quad
MPi LAtch LAtch Set
Loc.InP ProG ProG ProG
ModE Add Sub TrAiL
FActor 01.0000 01.0000 01.0000
diViSo 01.0000 01.0000 01.0000
dP 0 0 0.00
SEtPt 000000 000000 0000.00
CoLor red.Grn red.Grn red.Grn
rESmd Man.EL Man.EL Man.EL
PrES 1 on on on
Pr.Out 1
t.Out 1 00.10
Pr.Out 2
t.Out 2 00.10 00.10
7.8.3 Setting the Basic Function
Basic function menu
Programming menu
Pulse counter (7.8.4)
Programming menu
Timer/Hour meter (7.8.6)
Programming menu
Tacho/Frequency meter (7.8.5)
english
Seite 7
Pressing the Prog/Mode key
acknowledges this prompt and
terminates the programming; the
modified settings are saved in
the EEPROM.
The text SAVE is
displayed for 2 s
7.8 Programming Menu
7.8.1 Default parameters
Note: Three default parameter
sets have been permanently
stored; these can be adapted as
required. With each
acknowledgment of the
parameter sets, all parameters
will be reset to the values listed
in the table.
The dEFAuL P.USEr can be
freely programmed.
Menu Parameter Sets
Default setting
Parameter set 1
Default setting
Parameter set 2
Default setting
Parameter set 3
Freely programmable
User settings
Factory settings are highlighted
in grey
7.8.2 Table: Parameter Sets
P.SEt 1 P.SEt 2 P.SET 3
Func Count Count Count
InP.PoL PnP PnP PnP
FiLtEr on oFF oFF
Count Cnt.dir uP.dn Quad
MPi LAtch LAtch Set
Loc.InP ProG ProG ProG
ModE Add Sub TrAiL
FActor 01.0000 01.0000 01.0000
diViSo 01.0000 01.0000 01.0000
dP 0 0 0.00
SEtPt 000000 000000 0000.00
CoLor red.Grn red.Grn red.Grn
rESmd Man.EL Man.EL Man.EL
PrES 1 on on on
Pr.Out 1
t.Out 1 00.10
Pr.Out 2
t.Out 2 00.10 00.10
7.8.3 Setting the Basic Function
Basic function menu
Programming menu
Pulse counter (7.8.4)
Programming menu
Timer/Hour meter (7.8.6)
Programming menu
Tacho/Frequency meter (7.8.5)
english
Seite 7
Pressing the Prog/Mode key
acknowledges this prompt and
terminates the programming; the
modified settings are saved in
the EEPROM.
The text SAVE is
displayed for 2 s
7.8 Programming Menu
7.8.1 Default parameters
Note: Three default parameter
sets have been permanently
stored; these can be adapted as
required. With each
acknowledgment of the
parameter sets, all parameters
will be reset to the values listed
in the table.
The dEFAuL P.USEr can be
freely programmed.
Menu Parameter Sets
Default setting
Parameter set 1
Default setting
Parameter set 2
Default setting
Parameter set 3
Freely programmable
User settings
Factory settings are highlighted
in grey
7.8.2 Table: Parameter Sets
P.SEt 1 P.SEt 2 P.SET 3
Func Count Count Count
InP.PoL PnP PnP PnP
FiLtEr on oFF oFF
Count Cnt.dir uP.dn Quad
MPi LAtch LAtch Set
Loc.InP ProG ProG ProG
ModE Add Sub TrAiL
FActor 01.0000 01.0000 01.0000
diViSo 01.0000 01.0000 01.0000
dP 0 0 0.00
SEtPt 000000 000000 0000.00
CoLor red.Grn red.Grn red.Grn
rESmd Man.EL Man.EL Man.EL
PrES 1 on on on
Pr.Out 1
t.Out 1 00.10
Pr.Out 2
t.Out 2 00.10 00.10
7.8.3 Setting the Basic Function
Basic function menu
Programming menu
Pulse counter (7.8.4)
Programming menu
Timer/Hour meter (7.8.6)
Programming menu
Tacho/Frequency meter (7.8.5)
english
Seite 7
Parameters and submenues of the basic functions
●Pulse counter (→ 8.4)
●Timer/Hour meter (→ 8.5)
●Tacho/Frequency meter (→ 8.6)

Electronic Preset Counter E89005
20
8.4 Pulse counter
8.4.1 Input
Submenues for the signal and control inputs�
Display Description
Submenu Value
InP.PoL Input polarity
PnP PNP: switching to Plus for all inputs in common
nPn NPN: switching to 0 V for all inputs in common
FiLtEr Filter for the signal inputs InpA and InpB
oFF Maximum count frequency
on Damped to approx� 30 Hz (for control with mechanical contacts)
Count Count input mode
Cnt.Dir Count/Direction
INP A: count input
INP B: count direction input
uP.dn Differential counting [A-B]
INP A: count input add
INP B: count input sub
uP.uP Totalising [A+B]
INP A: count input add
INP B: count input add
quAd Quadrature input
INP A: count input 0°
INP B: count input 90°
quA2 Quadrature with pulse doubling
INP A: count input 0°
INP B: count input 90°
Each pulse edge of INP A will be counted
quA4 Quadrature x4
INP A: count input 0°
INP B: count input 90°
Each pulse edge of INP A and INP B will be counted�
A / B Ratio measurement [A/B]
Inp A: count input A
Inp B: count input B
A % b Percentage differential counting
[(A-B) / A in %]
Inp A: count input A
Inp B: count input B
