IFM E30406 User manual

Installation Instructions
Voltage converter
E30406
704697 / 00 11 / 2009
UK

2
Safety instructions1
Please read this document prior to set-up of the unit. Ensure that the product is•
suitable for your application without any restrictions.
If the operating instructions or the technical data are not adhered to, personal•
injury and/or damage to property can occur.
Functions and features2
The unit provides a 24 V voltage for the supply of sensors in electrical systems
with an operating voltage lower than 24 V.
Electrical connection3
The unit must be connected by a qualified electrician.
The national and international regulations for the installation of electrical
equipment must be adhered to.
Voltage supply according to EN 50178, SELV, PELV.
Disconnect power.►
Connect the unit as follows:►
4
1
3
2
E30406
4
1
3
2OUT2
L+
L
OUT1
OUT2
OUT1
1 Socket M12 connection to the sensor
2 Plug M12 connection to supply voltage

3
UK

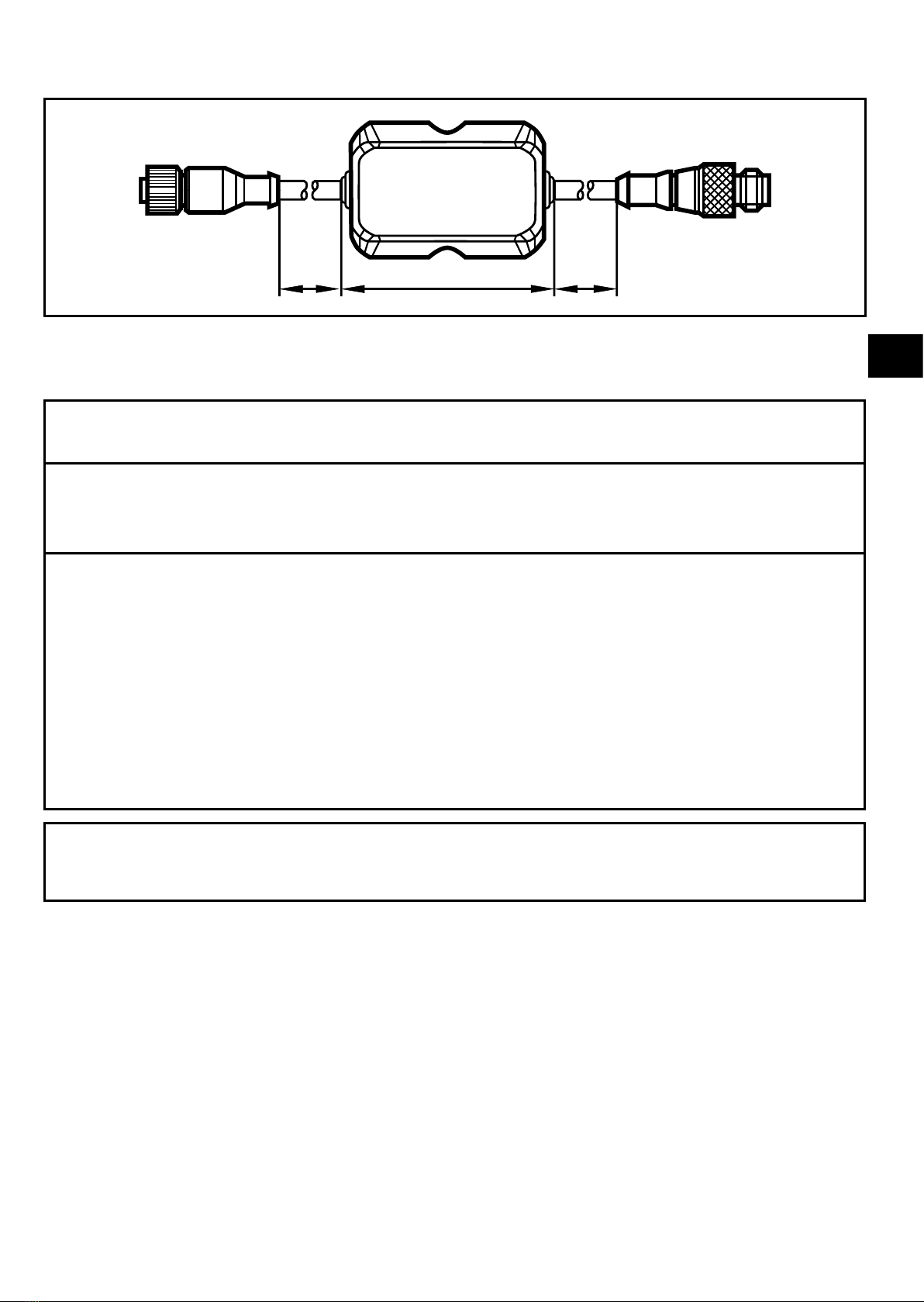

Scale drawing4
58
1 m
1 m
Technical data5
Input voltage [V]..................................................................................................... 9...27 DC
Current consumption max. [mA]..................................................................................... 500
Sensor supply
Supply voltage [V] .................................................................................................... 24 DC
Operating current max. [mA] ......................................................................................... 125
Materials.................................................................................................... housing: PBT GF
cable: PUR; connector housing: TPU orange;
sealing: Viton; nut: brass nickel-plated
Protection ................................................................................................................ IP 40, III
Ambient temperature [°C] ....................................................................................... -25...70
EMC EN 61000-4-2 ESD: ..................................................................................... 4 / 15 kV
EN 61000-4-3 HF radiated: ................................................. 30 V/m (80...1000 MHz)
EN 61000-4-4 Burst: .................................................................. 2 kV coupling clamp
EN 61000-4-6 HF conducted: .................................................. 10 V (0.15...80 MHz)
Further information at
www.ifm.com →Select your country →Data sheet direct:
