iGenix IG0500 User manual

USER MANUAL
IG0500

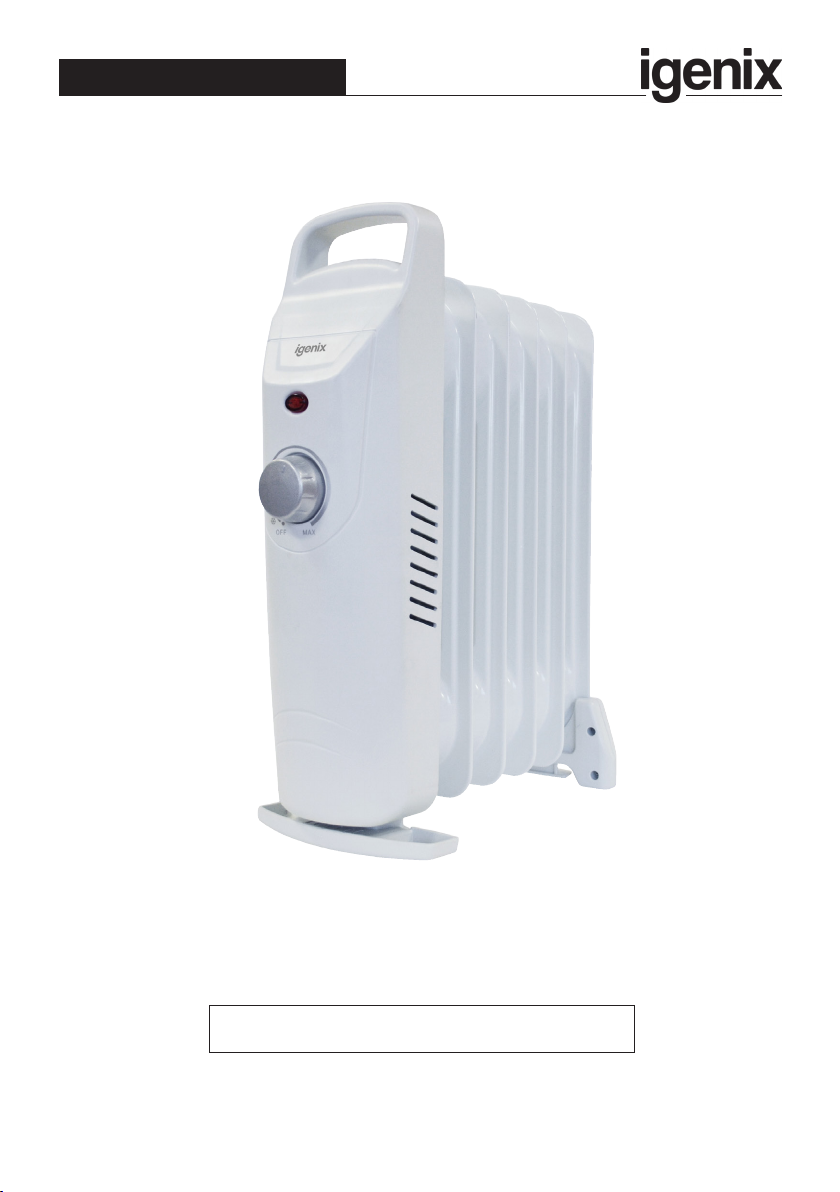

0.5kW Mini Oil Filled Radiator
Please read these instructions carefully before use and retain for future reference
Before switching on your appliance,
always check for any damage which may have been caused in transit
Batch code:
IMPORTANT: THIS PRODUCT IS ONLY SUITABLE
FOR WELL INSULATED SPACES OR OCCASIONAL USE

2
CONTENTS
Safefty instructions..................................................................3-4
Specications................................................................................4
Technical Specications..............................................................5
Appliance Overview...................................................................6
Operation instructions ..........................................................6-7
Cleaning & Maintenance ............................................................7
Plug Fuse Replacement ..............................................................7
Troubleshooting...........................................................................8
Disposal information ..................................................................8
Igenix Warranty .................................................................. 10-11

3
SAFETY INSTRUCTIONS
Important: Read and follow all of the instructions even if you
feel you are familiar with the product, and nd a place to keep this
manual handy for future reference.
1. This appliance can be used by children aged from 8 years and
above if they have been given supervision or instruction
concerning the use of the appliance in a safe way and understand
the hazards involved.
2. Cleaning and user maintenance shall not be made by children
unless they are older than 8 years and supervised.
3. Keep the appliance and its cord out of reach of children aged
less than 8 years.
4. Children shall not play with the appliance.
5. Appliances can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the
hazards involved.
6. Do not immerse the radiator or cord in water or any other
liquid. Do not use in a bathroom, near water, or outdoors.
7. When the radiator is turned on for the rst time, operate it at
maximum temperature for at least 2 hours. During this time,
make sure you are in a well ventilated area while the “new smell”
is burnt off. This is completely normal and is not a cause
for concern.
8. It is normal for the radiator to make “cracking” noises when it is
heating up and cooling down.
9. Do not use the radiator for anything other than its intended use.
10. Never leave the radiator unattended whilst in use.
11. Do not pull on the cord to disconnect the plug from the
wall socket.
12. Do not use the radiator to dry washing.

4
13. Do not use the radiator if the power cord or plug is damaged.
14. Do not replace the power cord or any other parts yourself.
15. Never rest the power cable on the hot ns of the radiator.
16. Always ensure that the radiator is positioned at least 50cm away
from furniture or other objects.
17. The radiator should not be used if it has been dropped or if
there are visible signs of damage.
18. This radiator is for household indoor use only. Never use
it outdoors.
19. Never use the radiator on its side; it must always be
used upright.
20. Before moving or attempting to clean the radiator, allow it
to cool down completely.
21. The radiator should not be placed directly under a xed
power socket.
22. The radiator is lled with a precise quantity of oil and repairs
requiring it to be opened must be carried out by the
manufacturer. If the radiator leaks, contact the manufacturer.
23. This product contains oil and must be disposed of correctly.
Do not dispose with general household waste. Take it to your
nearest waste management center for processing.
24. The use of an extension lead is not recommended, as overheating
of the extension lead may occur during radiator operation.
SPECIFICATION
SupplyVoltage: 220-240V ~ 50Hz
Maximum Output: 500W

5
Technical specication
Item Symbol Value Unit Item Unit
Heat output
Nominal heat output Pnom 0,225 kW
Minimum heat output Pmin 0 kW
(indicative)
Minimum continuous Pmax,c 0,225 kW
heat output
Auxiliary electricity consumption
At nominal heat output elmax N/A kW
At minimum heat output elmin N/A kW
In standby mode elsb N/A kW
Type of heat input, for electric storage local
space heaters only (select one)
manual heat charge control, with N/A
integrated thermostat
manual heat charge control with N/A
room and/or outdoor temperature
feedback
electronic heat charge control with N/A
room and/or outdoor temperature
feedback
fan assisted heat output N/A
Type of heat output/room temperature
control (select one)
single stage heat output and no room [no]
temperature control
Two or more manual stages, no room [no]
temperature control
with mechanic thermostat room [yes]
temperature control
with electronic room temperature [no]
control
electronic room temperature control [no]
plus day timer
electronic room temperature control [no]
plus week timer
Other control options (multiple selections
possible)
room temperature control, with [no]
presence detection
room temperature control, with open [no]
window detection
with distance control option [no]
with adaptive start control [no]
with working time limitation [no]
with black bulb sensor [no]

6
OPERATING INSTRUCTIONS
IMPORTANT
When the radiator is in use, it should always be kept vertical (handle should be at the top). Putting the
radiator in any other position could be dangerous and cause a potential re hazard.
Using your Radiator for the First Time
• When the radiator is turned on for the rst time, operate at its maximum heat setting for at least
two hours. Ensure you are in a well ventilated area during this time as the heater will give off a “new”
smell.This is completely normal.
• The radiator will make cracking noises when it is rst turned on and when it is turned off and
cooling down.
APPLIANCE OVERVIEW
Indicator light
Thermostat and
on/off control knob
Control panel
Front supportRear support
Assembly method
Figure 2. Figure 3. Figure 4.
Take out the radiator and all the parts from packing carton.
1. Turn the radiator upside down, as shown in Figure 2
2. Insert front supporting foot into the slot on the control panel, as shown in gure 3
3. Clip in the back foot along the slot of the last radiator n, as shown in gure 4
4. Finally, turn the correct way up to stand on its feet.
Figure 1.

7
Location of the Radiator
• The radiator should be positioned where you most need the warmth.
• It is recommended to place the radiator underneath the coldest window in the room as this helps
to increase the convective movement of the heat.
• Do not locate the radiator underneath a xed power point.
• Always ensure that the radiator is placed at least 50cm away from furniture, curtains, walls etc.
Plugging in the Radiator
Before plugging the radiator into the mains, ensure that your supply voltage is the same as what is shown
on the rating plate of the radiator.Try to avoid contact between the radiator and clothes, household linen,
furniture, inammable material and the power socket.
Turning on and Using the Radiator
1. Turn on the radiator by turning the control knob clockwise.
2. Set the thermostat knob to the MAX setting.
3. When the desired room temperature has been reached, turn back the thermostat dial until
the indicator lamp goes out.
4. To turn the radiator off, turn the knob anti-clockwise until in the ‘Off’ position. Never leave plugged
in when not in use.
Fuse Replacement (Class I)
This appliance must be earthed. Remove the central screw on the plug and
open the shell. Take out the fuse and replace with a new fuse of the same Amp.
Install the shell again and tighten the screws.
CLEANING AND MAINTENANCE
Before attempting any cleaning or maintenance on the radiator, allow it to cool completely and ensure
that the plug is removed from the socket.
To clean the radiator, use a soft damp cloth without any abrasives or detergents on. If the radiator is not
going to be used for a long period of time, wrap the cable around the cable tidy and store the radiator
in a dry place. Storing the radiator in a damp environment could cause the radiator to rust and/or will
effect the electronics in the radiator which is not covered by your warranty.

8
DISPOSAL INFORMATION
The European Directive 2012/19/EU on Waste Electrical and
Electronic Equipment (WEEE), requires that old household
electrical appliances must not be disposed of in normal unsorted
municipal waste.
Old appliances must be collected separately in order to optimise
the recovery and recycling of the materials they contain and reduce the impact
on human health and the environment.
The crossed out “wheeled bin” symbol on the product reminds you of your
obligation, that when you dispose of the appliance it must be separately collected.
Consumers should contact their local authority or retailer for information
concerning the correct disposal of their old appliance.
Problem Possible Cause Solution
The radiator 1. Not properly plugged into the 1. Plug in rmly.
does not work. mains wall socket. 2. Check fuse or breaker.
2. No electricity in the mains wall socket.
The room is 1.Thermostat is set too low. 1.Turn up the thermostat.
too cold. 2. Draft from windows or door. 2. Block up any drafts with draft
excluders.
The room is 1.Thermostat is set too high. 1.Turn the Thermostat down to reduce
too hot. the room temperature.
If you are having problems with your appliance, please use our troubleshooting guide below. If you are
unable to resolve the issue using the guide please ring our Customer Service Department on
01473 271 272. Please have the model code, batch number and purchase information available.
TROUBLESHOOTING

9

10
lgenix Warranty Terms & Conditions
This product is guaranteed for a period of 12 months as standard from the date of purchase
against mechanical and electrical defects.You can extend your warranty for a further 12 months by
registering your product.
Upon registration we will cover your product for a period of 24 months from the original purchase
date against any mechanical or electrical defects.
To qualify for the warranty, the product must be used for domestic household use only and in
accordance with the instructions in the user manual.Any misuse of the product will result in the
warranty being void.
The warranty does not cover accidental damage, misuse, neglect, tampering or incorrect adjustment
or installation.
The warranty will be rendered invalid if the product is resold, has had its serial number removed
(or has an invalid serial number), or if an unauthorised person has carried out any repairs or
alterations.
The warranty does not cover accessories or consumable parts that require replacement under
normal use. This includes shelving, dials, lters, belts and trays etc.
In the unlikely event of a breakdown please refer to the Troubleshooting guide in your user manual
and check all plugs, fuses and the electricity supply.
If you still require assistance please contact our Customer Service department on
01473 271 272 or write to us at the following address:
Customer Service Department
38 Bluestem Road, Ransomes Europark
Ipswich, IP3 9RR
Please quote the Product Code which begins ‘IG’ or ‘DF’ and the Batch Code beginning ‘5’ and give
details of the exact fault.We will then decide whether to repair or replace the item.
Before we arrange the repair or replacement you will be required to return a copy of your proof
of purchase. Please retain your original.
If an item is replaced within the agreed warranty period, the warranty for the replacement item will
be calculated from the purchase date of the original.
In the event that the product is inspected and no fault is found or the product is not within the
guarantee period you will be charged for the repair and any carriage costs.

11
Thank you for choosing lgenix
As a valued customer we would like to offer you a FREE 2 year warranty to cover your product
against any electrical or mechanical defects.
This means that in the unlikely event you develop a fault or problem with your product we will
happily repair or replace the item free of charge.
To qualify for the 2 year warranty you must register your product within 30 days of purchase.The
full Terms & Conditions of our warranty policy are shown on the opposite page.They are also
available on our website. www.igenix.co.uk
To register your product, please complete all sections of the form below and return to us at the
following address: lgenix, 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR.
Alternatively you can visit the lgenix website and complete the form online.
Customer Details:
Title: First Name Surname:
Address:
Post Code:
Email:
Telephone:
Product Information:
Product Code (Beginning IG or DF): Product Description:
Batch Number (Beginning 5): Serial Number (If applicable):
Date of Purchase:
Retailer Name:
Retailer Location:
Please tick here to conrm you have read and accept our Terms & Conditions
Please tick here if you DO NOT wish to receive marketing information from us
Customer Signature: Date:

38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR
Tel. [phone]
Disclaimer: Igenix operate a policy of continual improvement and development.
We therefore reserve the right to change/alter the specication and appearance of our appliances without prior notice.
All diagrams and images shown in this manual are for illustration purposes only.
