Ignition Xo8 LED Fx Strobe User manual

Xo8 LED Fx Strobe IP65 800W
stroboscope
User manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
15.02.2018, ID: 421761 (V2)

Table of contents
1 General notes............................................................................................................................ 4
1.1 Further information........................................................................................................ 4
1.2 Notational conventions................................................................................................. 4
1.3 Symbols and signal words........................................................................................... 4
2 Safety instructions................................................................................................................. 6
3 Features....................................................................................................................................... 8
4 Installation................................................................................................................................. 9
5 Starting up............................................................................................................................... 11

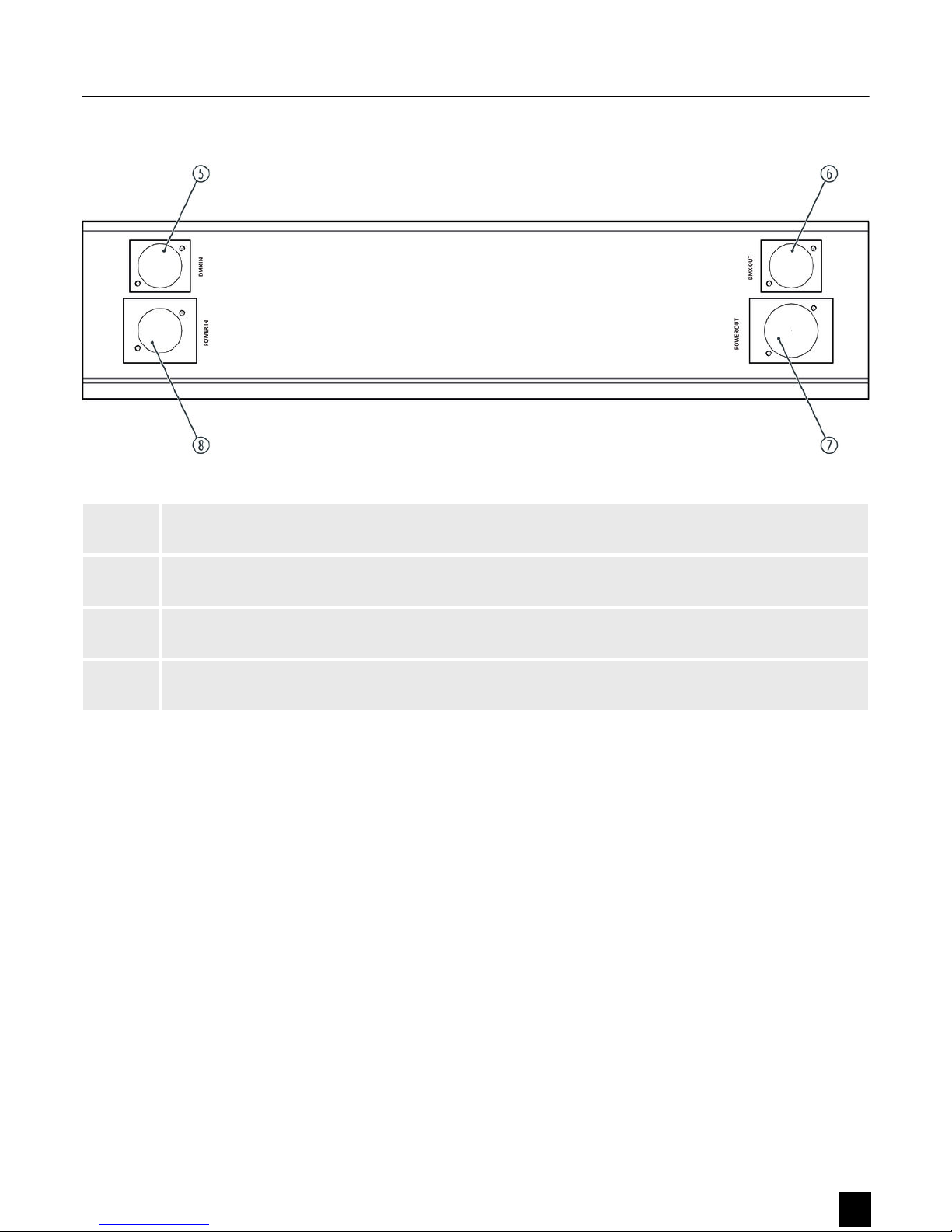

6 Connections and controls................................................................................................ 12
7 Operating................................................................................................................................. 14
7.1 Starting the device....................................................................................................... 14
7.2 Main menu...................................................................................................................... 15
7.2.1 Operating mode ‘DMX’............................................................................................ 19
7.2.2 Operating mode ‘Slave’........................................................................................... 19
7.2.3 Operating mode ‘Stand-alone’............................................................................. 19

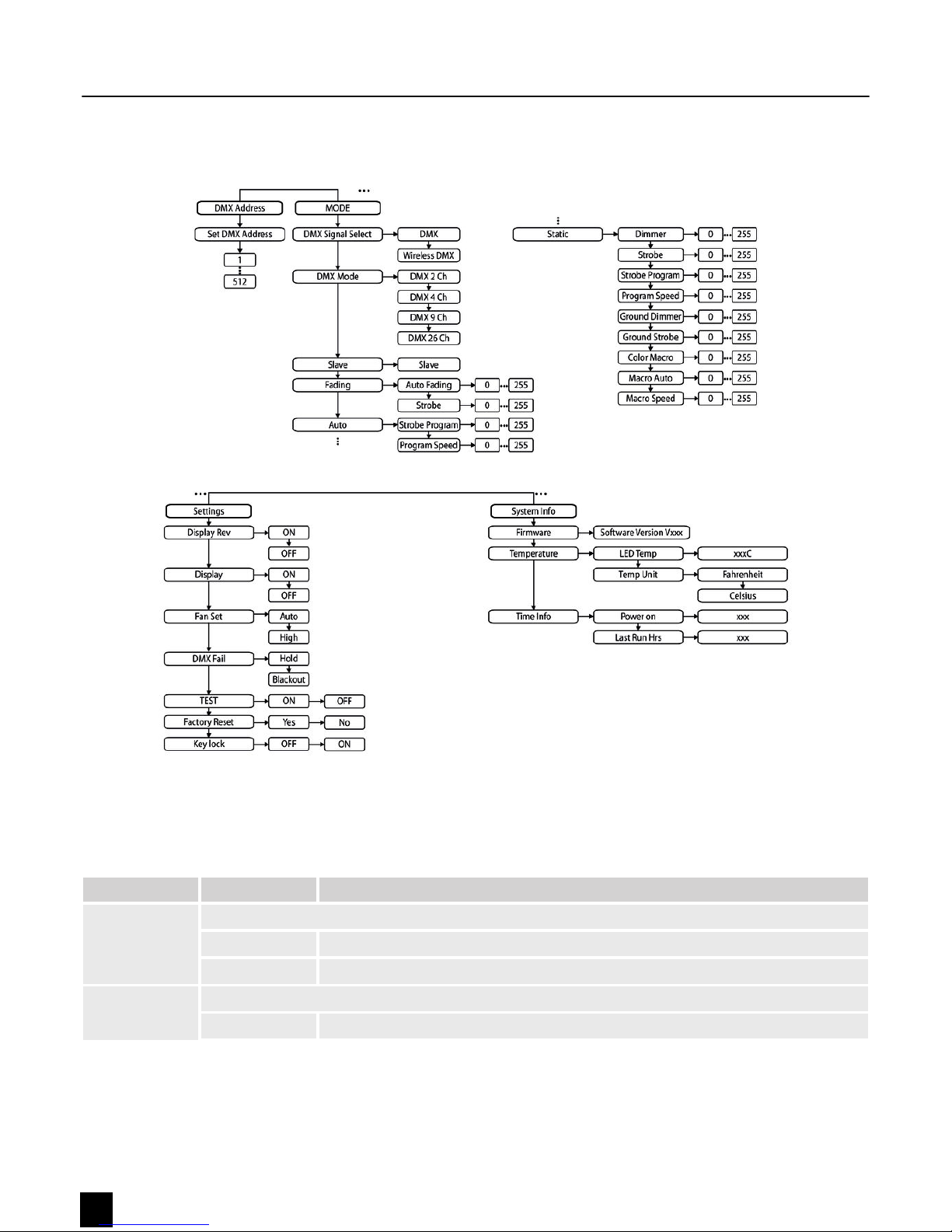

7.3 Menu overview.............................................................................................................. 20
7.4 Functions in 2-channel DMX mode........................................................................ 20
7.5 Functions in 4-channel DMX mode........................................................................ 21
7.6 Functions in 9-channel DMX mode........................................................................ 22
7.7 Functions in 26-channel DMX mode..................................................................... 24
8 Technical specifications.................................................................................................... 27
9 Plug and connection assignments............................................................................... 28
10 Troubleshooting................................................................................................................... 29
11 Cleaning.................................................................................................................................... 30
12 Protecting the environment........................................................................................... 31
Table of contents
Xo8 LED Fx Strobe IP65 800W 3
stroboscope

1 General notes
This manual contains important instructions for the safe operation of the unit. Read
and follow the safety instructions and all other instructions. Keep the manual for
future reference. Make sure that it is available to all those using the device. If you sell
the unit please make sure that the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are
subject to change.
1.1 Further information
On our website (www.thomann.de) you will find lots of further information and
details on the following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the
topics of interest for you quickly.
Online guides Our online guides provide detailed information on technical
basics and terms.
Personal
consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the
customer service will gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’, ‘OFF’.
1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words
that are used in this manual.
Letterings
Displays
General notes
4Xo8 LED Fx Strobe IP65 800W
stroboscope

Signal word Meaning
DANGER! This combination of symbol and signal word indicates
an immediate dangerous situation that will result in
death or serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates
a possible dangerous situation that can result in death
or serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates
a possible dangerous situation that can result in mate-
rial and environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – suspended load.
Warning – danger zone.
General notes
Xo8 LED Fx Strobe IP65 800W 5
stroboscope

2 Safety instructions
This device is intended to be used as an electronic illumination effect using LED tech-
nics. The device is designed for professional use and is not suitable for use in house-
holds. Use the device only as described in this user manual. Any other use or use
under other operating conditions is considered to be improper and may result in per-
sonal injury or property damage. No liability will be assumed for damages resulting
from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intel-
lectual abilities and having corresponding knowledge and experience. Other persons
may use this device only if they are supervised or instructed by a person who is
responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and
are not within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the
like) from the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Hazardous voltage
The wiring, as well as all maintenance and repair work on the electrical
installation of the device must only be performed by qualified electrical
personnel. Failure to do so may result in electric shock and risk of fire
and loss of life.
Before starting work on the electrical installation, the device must be
turned volt-free.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present.
Never remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are
missing or damaged.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
Intended use
Safety
Safety instructions
6Xo8 LED Fx Strobe IP65 800W
stroboscope

WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive
persons should avoid looking at strobe lights.
NOTICE!
Risk of fire
Do not block areas of ventilation. Do not install the device near any
direct heat source. Keep the device away from naked flames.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet)
matches the voltage rating of the device and that the AC outlet is pro-
tected by a residual current circuit breaker. Failure to do so could result
in damage to the device and possibly injure the user.
Unplug the device before electrical storms occur and when it is unused
for long periods of time to reduce the risk of electric shock or fire.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly
react with the coating of your parquet, linoleum, laminate or PVC floor
and after some time cause permanent dark stains.
In case of doubt, do not put the rubber feet directly on the floor, but use
felt-pad floor protectors or a carpet.
Safety instructions
Xo8 LED Fx Strobe IP65 800W 7
stroboscope

3 Features
Special features of the device:
n4 separately controllable white light LED segments (each 200 W)
n32 RGB LEDs for the backlight
nStand-alone and DMX mode operation (4 different modes)
nEasy operation via display and buttons on the unit
nBuilt-in automatic show programmes
nMaster / Slave mode
nRugged aluminium housing
nProtection class IP65 allows outdoor operation
n2.4 GHz W-DMX module for wireless DMX control
Equipment with protection class IP65 are dust-tight and completely protected
against contact (first code number). They are also protected against splash water
from any angle (second code digit). That is why this equipment can also be used out-
doors. Event technology equipment is generally only designed for temporary use
however (event lighting) and not for permanent use outdoors.
The specified protection class does not make a statement about the weather resist-
ance of the equipment (resistance to changing ambient conditions as well as against
the effects of sunlight and UV rays).
The seals and screw connections of the equipment must be checked regularly to
ensure a fault-free operation. In cases of doubt, consult a specialist workshop in due
time.
Information about protection class
IP65
Features
8Xo8 LED Fx Strobe IP65 800W
stroboscope

4 Installation
Unpack and carefully check that there is no transportation damage before using the
unit. Keep the equipment packaging. To fully protect the device against vibration,
dust and moisture during transportation or storage use the original packaging or
your own packaging material suitable for transport or storage, respectively.
DANGER!
Hazardous voltage
The wiring, as well as all maintenance and repair work on the electrical
installation of the device must only be performed by qualified electrical
personnel. Failure to do so may result in electric shock and risk of fire
and loss of life.
Before starting work on the electrical installation, the device must be
turned volt-free.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules
that apply in your country. Always secure the device with a secondary
safety attachment, such as a safety cable or a safety chain.
NOTICE!
Risk of overheating
Always ensure sufficient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a
safe and stable position and that the weight of the device does not
exceed the maximum permissible load capacity of the stand.
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not
use ordinary microphone cables.
Never connect the DMX input or output to audio devices such as mixers
or amplifiers.
Installation
Xo8 LED Fx Strobe IP65 800W 9
stroboscope

The quick lock openings on the housing bottom are used for secure attachment of
the supplied Omega brackets. Here you can attach the flight adapters (such as the
supplied C-hooks). The safety rope must pass through the notches on the bottom
case as shown in the following figure.
You can install the unit in hanging or standing position. When in use, the device must
always be attached to a solid surface or an approved truss.
Always work from a stable platform whenever installing, moving or servicing the
unit. In doing so, the area underneath the unit must be cordoned off.
1 Quick lock openings for Omega brackets
2 Openings for safety cable
Mounting options
Installation
10 Xo8 LED Fx Strobe IP65 800W
stroboscope

5 Starting up
Create all connections while the device is off. Use the shortest possible high-quality
cables for all connections. Take care when running the cables to prevent tripping
hazards.
Connect the DMX input of the device to the DMX output of a DMX controller or
another DMX device. Connect the output of the first DMX device to the input of the
second one, and so on to form a daisy chain. Always ensure that the output of the
last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼W).
When you configure a group of devices in master/slave mode, the first unit will con-
trol the other units for an automatic, sound-activated, synchronized show. This func-
tion is ideal when you want to start a show immediately. Connect the DMX output of
the master device to the DMX input of the first slave device. Then connect the DMX
output of the first slave device to the DMX input of the second slave device and so
on.
Please note that this device must not be connected to a dimmer.
Connections in DMX mode
Connections in master/slave mode
Starting up
Xo8 LED Fx Strobe IP65 800W 11
stroboscope

6 Connections and controls
1 Adjustable LED panel
2 Locking screw for the LED panel
3 Radio antenna
4 Control panel with display membrane button
[MENU]
Activates the main menu and toggles between menu items. Closes an opened submenu.
[UP]
Navigates upwards in a menu list. Increases the displayed value by one.
[DOWN]
Navigates downwards in a menu list. Decreases the displayed value by one.
[ENTER]
Selects an option of the respective operating mode, confirms the set value.
Overview
Connections and controls
12 Xo8 LED Fx Strobe IP65 800W
stroboscope

5[DMX IN]
DMX input (IP65 design)
6[DMX OUT]
DMX output (IP65 design)
7[POWER OUT]
Connection supply voltage outgoing (Power Twist IP65)
8[POWER IN]
Connection supply voltage incoming (Power Twist IP65)
Rear panel
Connections and controls
Xo8 LED Fx Strobe IP65 800W 13
stroboscope

7 Operating
7.1 Starting the device
Connect the device to the power supply to start operation. After a few seconds, the
display indicates that a reset is in progress. The device is then ready for use. The dis-
play shows the operating mode that was selected when the unit was last powered
off.
Operating
14 Xo8 LED Fx Strobe IP65 800W
stroboscope

7.2 Main menu
Press [MODE] to activate the main menu. Use [UP] or [DOWN] to select a submenu.
When the display shows the desired submenu press [ENTER] to open it up. To close
the main menu, press [MODE]. The stored values are displayed in white in the display.
Changed values are displayed in red until they are confirmed with [ENTER].
All previously made settings are retained even when you disconnect the device from
the power grid. To restart with default values, use the function ‘Factory Reset’.
The following table shows the setting options.
Main menu Menu level 2 Menu level 3 Menu level 4
Meaning
‘DMX Address’ ‘Set DMX address’ 001…512 Setting the DMX address
‘MODE’ ‘DMX Signal Select’ Selection of the DMX transmission type
‘DMX’ DMX via cable
‘Wireless DMX’ DMX via radio transmission
‘DMX Mode’ Selecting a DMX mode
‘DMX 2 Ch’ 2-channel DMX mode
‘DMX 4 Ch’ 4-channel DMX mode
‘DMX 9 Ch’ 9-channel DMX mode
‘DMX 26 Ch’ 26-channel DMX mode
‘Slave’ ‘Slave’ Operating mode ‘Slave’
‘Fading’ Fade and stroboscope effects
‘Auto Fading’ 0…255 Automatic Fade effect
‘Strobe’ 0…255 Strobe effect
‘Auto’ ‘Strobe Program’ Stroboscope programme
0…5 No function
6…13 Stroboscope pro-
gramme 1
14…21 Stroboscope pro-
gramme 2
22…29 Stroboscope pro-
gramme 3
30…37 Stroboscope pro-
gramme 4
38…45 Stroboscope pro-
gramme 5
Operating
Xo8 LED Fx Strobe IP65 800W 15
stroboscope

Main menu Menu level 2 Menu level 3 Menu level 4
Meaning
46…53 Stroboscope pro-
gramme 6
54…61 Stroboscope pro-
gramme 7
62…69 Stroboscope pro-
gramme 8
70…255 Reserved
‘Program Speed’ 0…255 Running speed strobo-
scope programme,
increasing
‘Static’ ‘Dimmer’ 0…255 Setting the overall
brightness
‘Strobe’ 0…5 Open strobe
6…10 Closed strobe
6…10 Random Pulse effect
with increasing speed
34…56 Ramp-up effect with
increasing speed
57…79 Random Ramp-down
effect with increasing
speed
80…102 Random strobe effect
with increasing speed
103…127 Strobe-break effect
with decreasing dura-
tion of interruptions
128…250 Strobe effect with
increasing speed
251…255 Open strobe
‘Strobe Program’ 0…255
‘Program Speed’ 0…255 Running speed strobo-
scope programme,
increasing
‘Ground Dimmer’ 0…255 Brightness of coloured
backlight (0 % to
100 %)
‘Ground Strobe’ 0…255 Strobe effect for the
coloured backlight,
increasing speed
Operating
16 Xo8 LED Fx Strobe IP65 800W
stroboscope

Main menu Menu level 2 Menu level 3 Menu level 4
Meaning
‘Color Macro’ Colour macro for the backlight
0…5 Backlight off
6…13 Red
14…21 Amber
22…29 Warm yellow
30…37 Yellow
38…45 Green
46…53 Turquoise
54…61 Cyan
62…69 Blue
70…77 Lavender
78…85 Mauve
86…93 Magenta
94…101 Pink
102…109 Warm white
110…117 White
118…125 Cold white
126…127 Colour change halted
128…191 Colour change effect,
increasing speed
192…255 Colour transition effect,
increasing speed
‘Macro Auto’ Automatic show for the backlight
0…5 No automatic show
6…30 Automatic show 1
31…55 Automatic show 2
56…80 Automatic show 3
81…105 Automatic show 4
106…130 Automatic show 5
131…155 Automatic show 6
156…180 Automatic show 7
181…205 Automatic show 8
Operating
Xo8 LED Fx Strobe IP65 800W 17
stroboscope

Main menu Menu level 2 Menu level 3 Menu level 4
Meaning
206…230 Automatic show 9
231…255 Automatic show 10
‘Macro Speed’ 0…255 Running speed auto-
matic show, increasing
‘Settings’ ‘Display Rev’ Display inversion
‘ON’ On, display is rotated by 180°
‘OFF’ Off, normal display
‘Display’ Automatic display shutdown when not in use
‘ON’ Enabled
‘OFF’ Disabled
‘DMX Fail’ Device behaviour on DMX signal failure
‘Hold’ Retaining last settings
‘Blackout’ Blackout
‘Fan Set’ Fan speed
‘Auto’ Fan speed constantly high
‘High’ Automatic fan speed control
‘Wireless DMX’ Wireless DMX control
‘No’ Disabled
‘Yes’ Enabled
‘Test’ Automatic self test
‘OFF’ Off
‘ON’ On
‘Factory Reset’ Reset to factory defaults
‘OFF’ Off
‘ON’ Starting
‘Key lock’ Key lock
‘OFF’ Automatic key lock deactivated
‘ON’ Automatic key lock activated. The display goes
dark after 30 seconds, then the buttons are
locked. To unlock the keys, press successively
[ENTER], [UP], [DOWN], [UP], [DOWN] and then
[ENTER] again.
‘System Info’ ‘Firmware’ ‘Software Version xxx’ Show firmware version of the device
Operating
18 Xo8 LED Fx Strobe IP65 800W
stroboscope

Main menu Menu level 2 Menu level 3 Menu level 4
Meaning
‘Temperature’ ‘LED Temp’ Show device temperature
‘Temp Unit’ Unit selection for device temperature
‘Celsius’
‘Fahrenheit’
‘Time Info’ Operating hours display
‘Power on’ Total operating hours
‘Last Run Hrs’ Operating hours since last power up
7.2.1 Operating mode ‘DMX’
In DMX mode, the display shows the set DMX mode in its top row and the DMX start
address set in the lower part. The display flashes if no DMX signal is received.
7.2.2 Operating mode ‘Slave’
In Slave mode, the display shows in the lower part ‘Operating Mode: SLAVE’. The dis-
play flashes if no control signal is received.
7.2.3 Operating mode ‘Stand-alone’
In Stand-alone mode, the display in its lower part shows how the device is currently
set:
n‘Operating Mode: Fading’: Automatic Fade effect
n‘Operating Mode: AUTO’: Automatic stroboscope programmes
n‘Operating Mode: STATIC’: Freely configurable effects and colour for the backlight
n‘Operating Mode: Sound’: Sound control
Operating
Xo8 LED Fx Strobe IP65 800W 19
stroboscope

7.3 Menu overview
7.4 Functions in 2-channel DMX mode
Channel Value Function
1 Strobe effect
0…10 Blackout
11…250 Strobe effect with increasing speed
2 Colour macro for the backlight
0…5 Backlight off
Operating
20 Xo8 LED Fx Strobe IP65 800W
stroboscope
