iGPSPORT iGS52 User manual
iGS520 User Manual
2/22
Contents
User Manual
....................................................................................................................................................
3
Buttons.......................................................................................................................................................... 3
Icon descriptions........................................................................................................................................3
Initial setups................................................................................................................................................ 4
Connect GPS cycling computer with APP........................................................................................ 5
Connect with sensors............................................................................................................................... 6
Install the standard mount.................................................................................................................... 7
Start to ride.................................................................................................................................................. 8
Navigation.................................................................................................................................................... 9
Workouts....................................................................................................................................................10
Indoor.......................................................................................................................................................... 11
Settings
...........................................................................................................................................................
12
Display settings........................................................................................................................................12
Language settings...................................................................................................................................15
Backlight settings....................................................................................................................................15
Time settings............................................................................................................................................ 16
Other settings........................................................................................................................................... 16
Reset.............................................................................................................................................................17
Charging..................................................................................................................................................... 18
Cycling data export................................................................................................................................ 18
Common wheel diameter parameters............................................................................................ 19
Data.............................................................................................................................................................. 20
Specifications
...............................................................................................................................................
21
Contact Us
.....................................................................................................................................................
22
Disclaimer...................................................................................................................................................22
iGS520 User Manual
3/22
User Manual
Buttons
Icon descriptions
Satellite Signal
Record/Pause
Time
Bluetooth
Battery
Speed
Heart Rate
Cadence
Power
Trainer
iGS520 User Manual
4/22

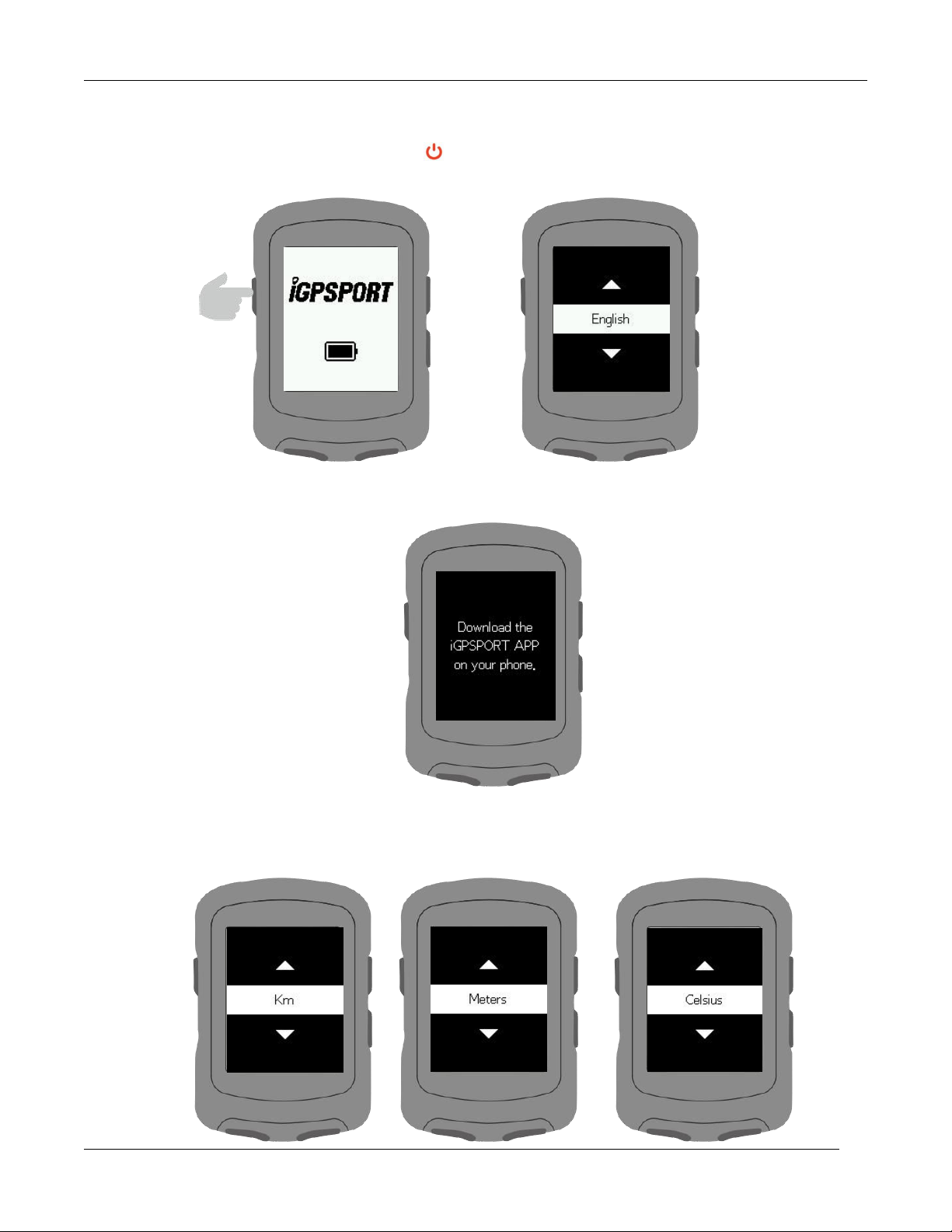

Initial setups
Press and hold the power button
to turn on the device and select your language.
Phone Pairing Notification.
Set speed and distance, altitude, temperature units.
iGS520 User Manual
5/22

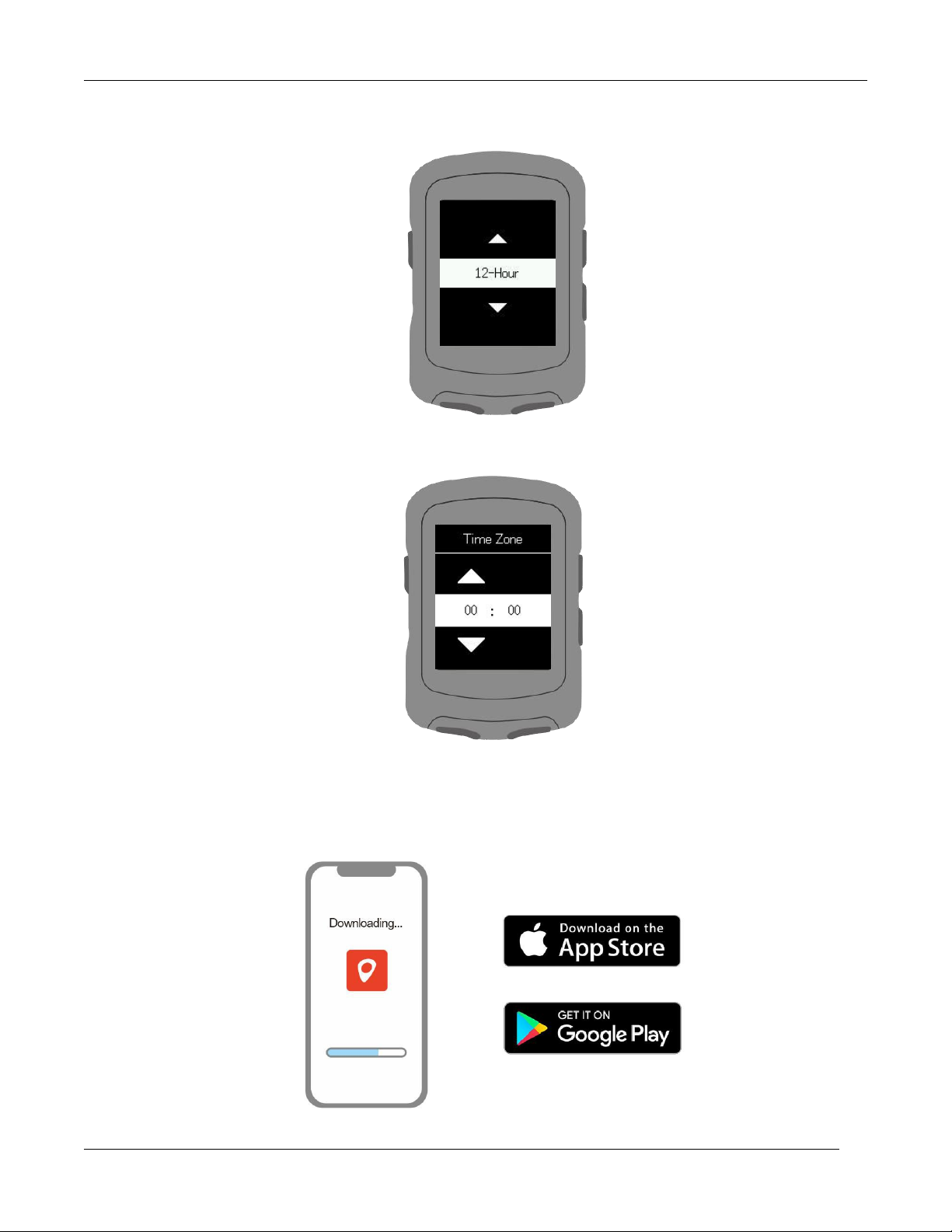

Set time formats.
Set Time Zone.
Connect GPS cycling computer with APP
Download iGPSPORT APP.（Make sure Bluetooth is on）
iGS520 User Manual
6/22
Press
to enter Main Menu.
Select Pair Phone then press
Connect with sensors
Select Sensors then activate sensor and hold near the device.
Select Add Sensor.
iGS520 User Manual
7/22
Select a sensor and press to save.
Saved sensors will connect automatically to the device.
Select a saved sensor to forget, connect, set wheel size, set crank length or calibrate.
Install the standard mount
Use the included zip ties to attach to the bike stem.
To ensure proper installation and fixation, please use the iGPSPORT base or out-front
bike mount.
iGS520 User Manual
8/22
Start to ride
Wait for the device to search for satellites outdoors. Press to enter Ride page.
Press
to start or pause this activity.
Press
to count laps, then press
or
to exit the lap counting page.
iGS520 User Manual
9/22

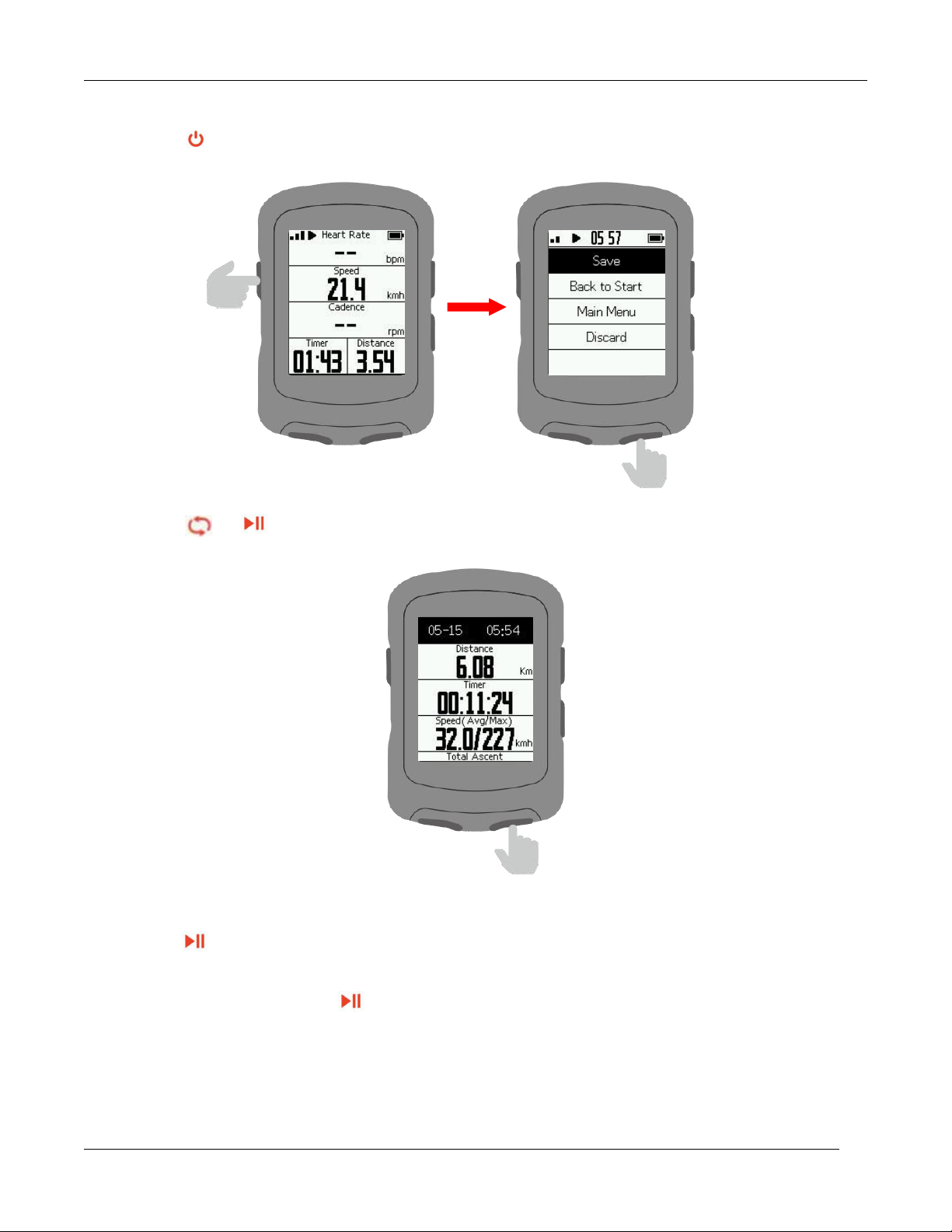

Press
to enter the menu on ride page and select Save to save the activity.
Press
or
to exit the data display screen.

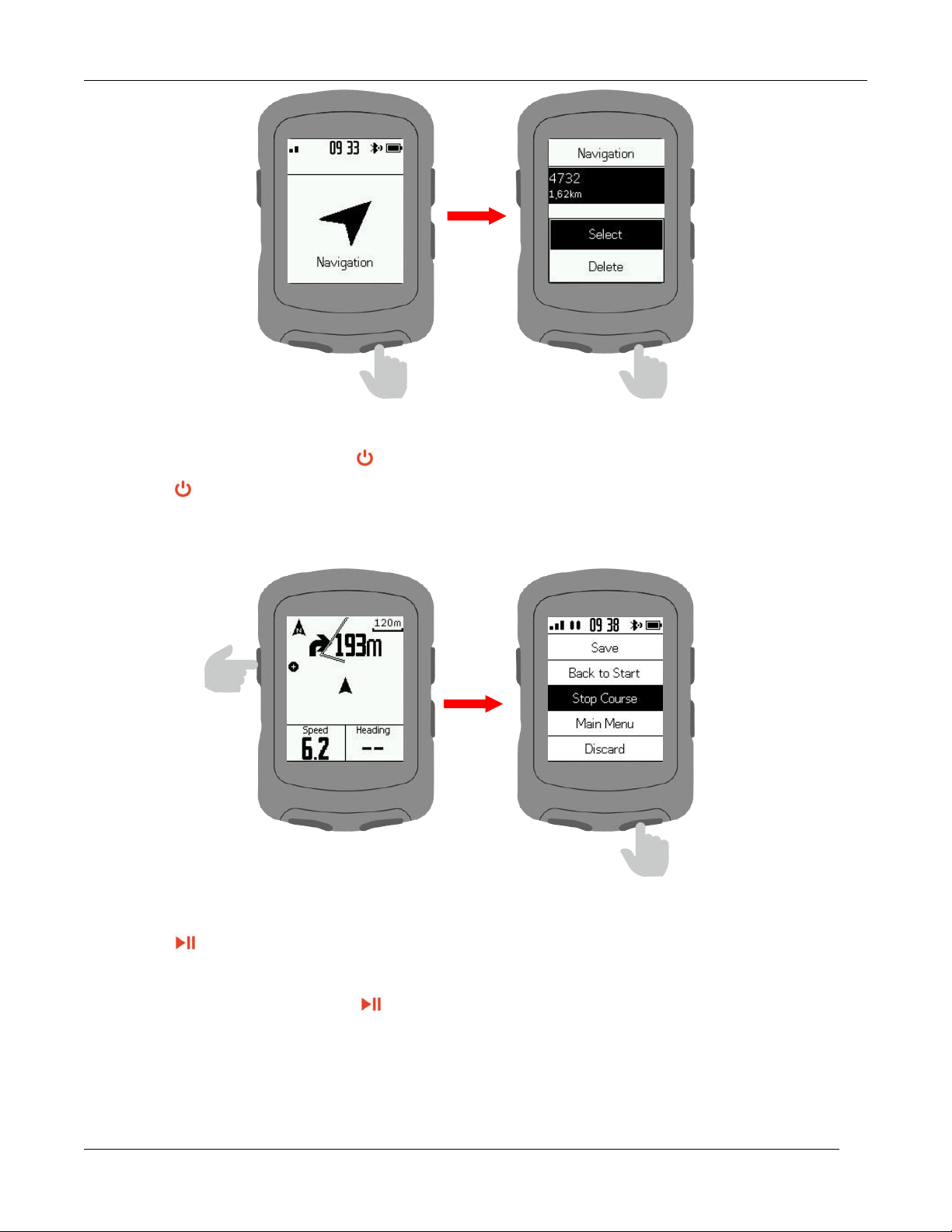

Navigation
Press to enter Navigation.
Download a route from iGPSPORT APP.
Select a route, and press to start the navigation.
iGS520 User Manual
10/22
Zoom in route by pressing in Navigation page.
Press to enter the menu and select Back to Start to return to your starting point.
Select Stop Course to stop the navigation.

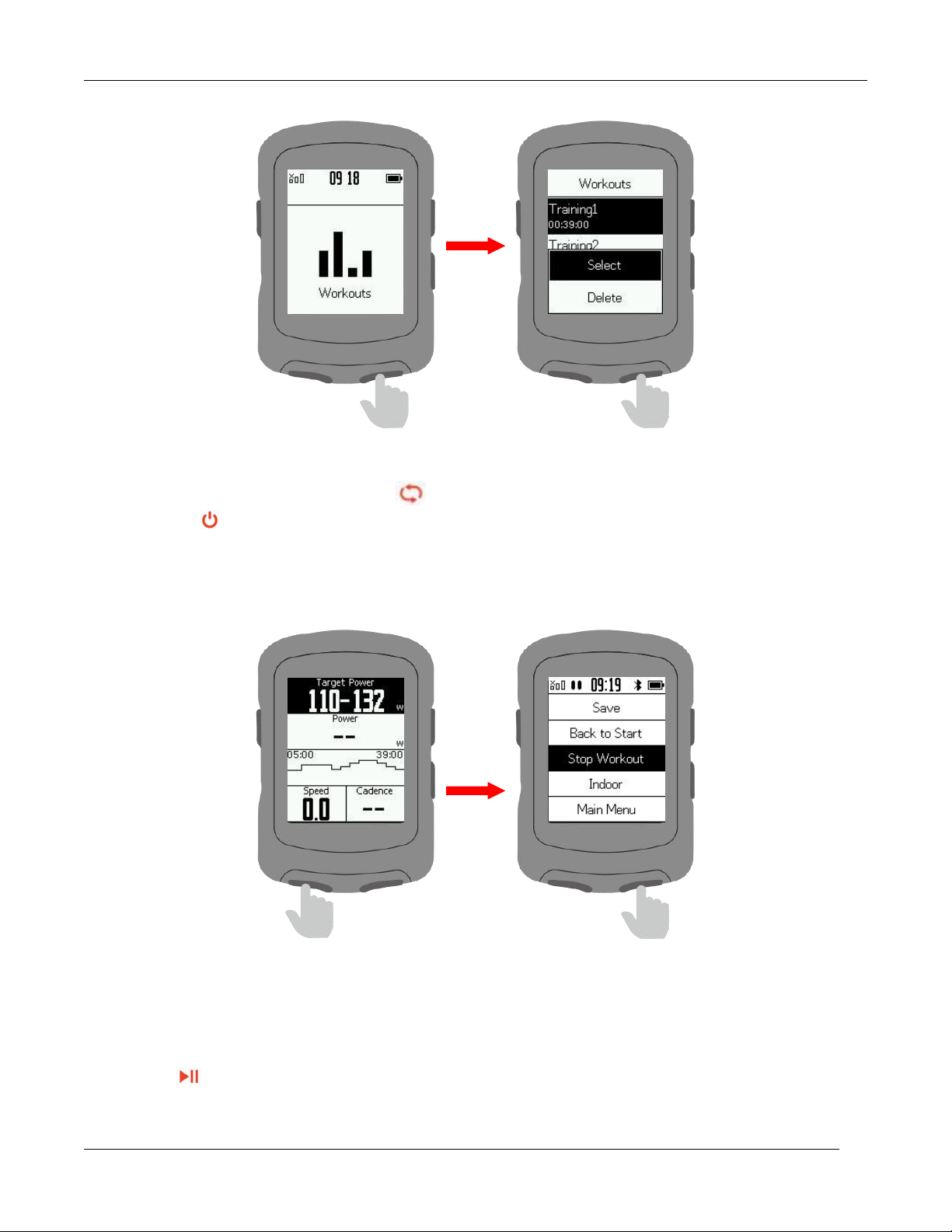

Workouts
Press to enter your workout list.
Download a workout from iGPSPORT APP.
Select a workout and press to start.
iGS520 User Manual
11/22
On the Workouts page, press
to end a workout step and begin the next one.
Press to enter the menu and select Stop Workout to stop.
Select Indoor to switch to indoor workouts.
Indoor
Press to start indoor cycling. Under Indoor, satellite positioning and automatic
pause functions are turned off.
iGS520 User Manual
12/22
Save your record and exit Indoor mode.
Settings
Display settings
Select Settings in Main Menu, press enter.
Select Pages, press to enter.
iGS520 User Manual
13/22
Select a page, press to enter
(Note: Road, Commute, Tour, Climbing, Navigation are the page names)
Data Page: Set the data display screen.
Up: The page moves forward one position.
Down: The page moves back one position.
Home: Set it as the main page. It will automatically go back to this page on data display screen.
Hide: Hide the page.
Press
or
to select number of frames on the data display screen and press
to confirm.
iGS520 User Manual
14/22
Press
or
to select a frame and press to confirm.
Select a frame item and press to confirm.
Select an item and press to confirm.
iGS520 User Manual
15/22
Language settings
Select Language and press to enter.
Select your language and press to confirm.
Backlight settings
Select Backlight and press to enter.
Select Mode and press to switch the backlight mode. (Auto: Backlight turns on
automatically at night).
Select Keys and press to switch the button wake-up time of the backlight.
Select Brightness and press to switch backlight brightness.
iGS520 User Manual
16/22
Time settings
Select Time and press to enter.
Select Time and press to switch time format.
Select Time Zone and press to enter.
Press or to set hour and press to confirm.
Press or to set minute and press to confirm.
Other settings
Select Other and press to enter.
iGS520 User Manual
17/22
Press to turn on/off Auto Start, Auto Pause, Smart Record, Key Tones, Battery
Save, Auto Power Off.
Smart Record: Reduce the frequency of device recording and only key points of
position, speed or heart rate will be recorded.
Battery Save: Automatically adjust device settings to extend battery life, which will
reduce the accuracy of recording.
Reset
Select System and press to enter.
Select Reset: This restores default settings. History will not be deleted.
Select Delete All: This restores default settings and clears all history.
iGS520 User Manual
18/22

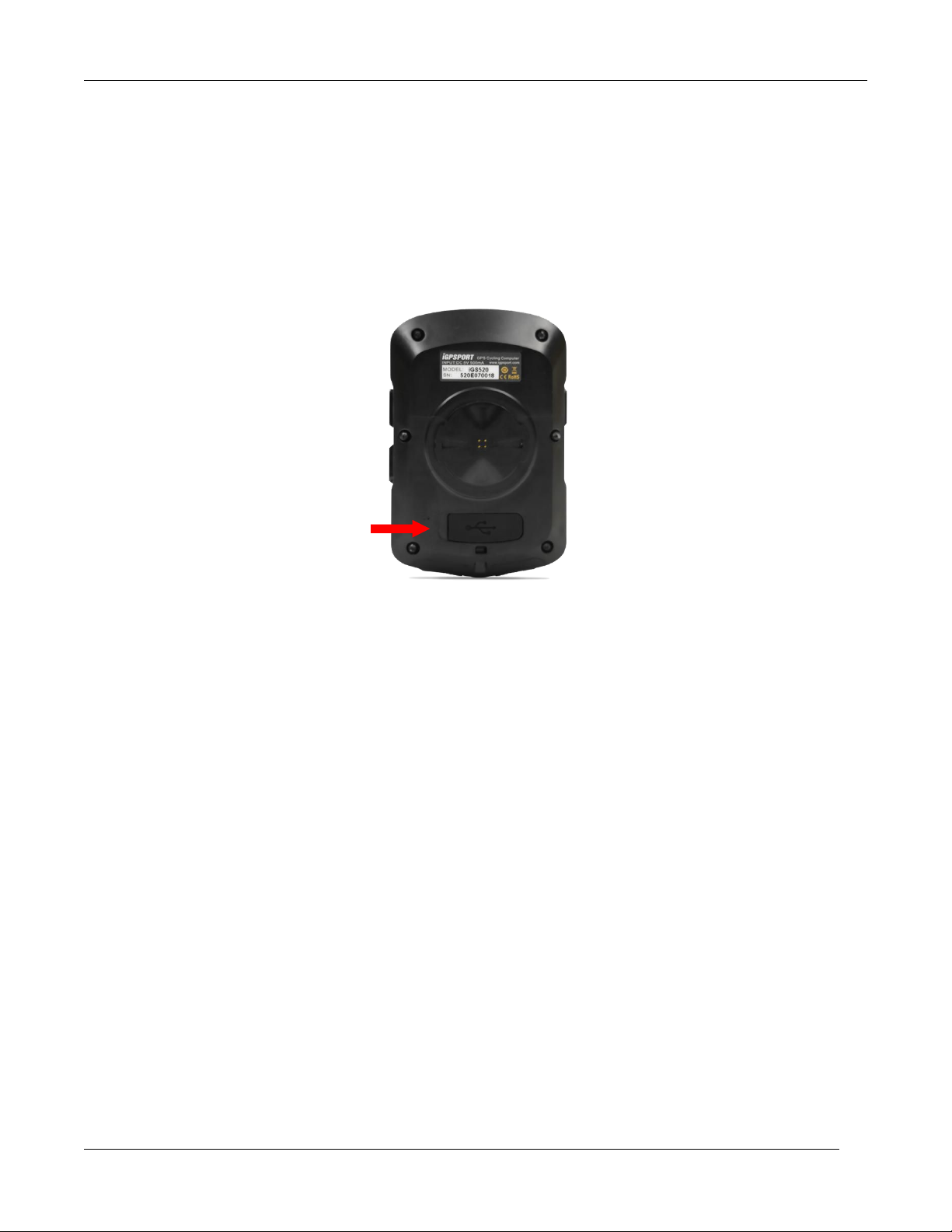

Charging
Unplug the USB waterproof plug from the left side.
Plug the USB cable into an AC adapter or a computer USB port.
After the device is charged, the USB waterproof plug needs to be plugged.
Notes:
1) Please use DC5V standard power adapter. It takes about 2 hours for full charging.
2) The device supports power-on charging (during charging, the device works normally
and can record cycling data).
3) Do not overstretch the USB rubber plug to keep its waterproof and dustproof
performance.
Cycling data export
Turn off the device and plug the USB cable into an AC adapter or a computer USB port.
Open the removable hard disk of the PC, open the iGPSPORT folder, and open the
Activity folder.
Copy and export the Fit file in the Activity folder.
iGS520 User Manual
19/22
Common wheel diameter parameters
Wheel Size
L (mm)
Wheel Size
L (mm)
12 × 1.75
935
26 × 1.25
1953
14 × 1.5
1020
26 × 1-1/8
1970
14 × 1.75
1055
26 × 1-3/8
2068
16 × 1.5
1185
26 × 1-1/2
2100
16 × 1.75
1195
26 × 1.40
2005
18 × 1.5
1340
26 × 1.50
2010
18 × 1.75
1350
26 × 1.75
2023
20 × 1.75
1515
26 × 1.95
2050
20 × 1-3/8
1615
26 × 2.00
2055
22 × 1-3/8
1770
26 × 2.10
2068
20 × 1-1/2
1785
26 × 2.125
2070
24 × 1
1753
26 × 2.35
2083
24 × 3/4 Tubular
1785
26 × 3.00
2170
24 × 1-1/8
1795
26 × 1
2145
24 × 1-1/4
1905
27 × 1-1/8
2155
24 × 1.75
1890
26 × 1-1/4
2161
24 × 2.00
1925
26 × 1-3/8
2169
24 × 2.125
1965
29 × 2.1
2288
26 × 7/8
1920
29 × 2.2
2298
26 × 1(59)
1913
29 × 2.3
2326
26 × 1(65)
1952
650 × 35A
2090
iGS520 User Manual
20/22
Wheel Size
L (mm)
Wheel Size
L (mm)
650 × 38A
2125
700 × 28C
2136
650 × 38B
2105
700 × 30C
2170
700 × 18C
2070
700 × 32C
2155
700 × 19C
2080
700C Tubular
2130
700 × 20C
2086
700 × 35C
2168
700 × 23C
2096
700 × 38C
2180
700 × 25C
2105
700 × 40C
2200
Data
Classification
Data
Speed
Speed, Avg Speed, Max Speed, Lap Speed, Pre Lap Spd, Lap Max Spd;
Cadence
Cadence, Avg Cad, Max Cad, Lap Cad, Pre Lap Cad, Lap Max Cad;
Heart Rate
Heart Rate, Avg HR, Max HR, Lap HR, Pre Lap HR, Lap Max HR, HR Zone
HR%, Avg HR%, Max HR%, Lap HR%, Pre Lap HR%;
Power
Power, Avg Pwr, Max Pwr, Lap Pwr, Pre Lap Pwr, Lap Max Pwr, Pwr Zone, Pwr3s,
Pwr10s, Pwr30s, Pwr %FTP, Pwr IF, Pwr NP, Pwr TSS, Watt/Kg, kilojoules,
Pwr Balance, TQ.Effect., Ped.Smooth.,
Distance
Distance, Ascent Dist, Descent Dist, Lap Dist, Pre Lap Dist, Odometer, Dist.to Go;
Elevation
Elevation, Grade, VAM, VAM 30s, Total Ascent, Total Descent, Max Elevation, Min
Elevation, VAM+ Avg, VAM- Avg, VAM+ Max, VAM- Max, Avg Grade+, Avg
Grade-, Max Grade+, Max Grade-, Lap Elev+, Lap VAM+，Lap Grade+;
Timer
Elapsed Time, Timer, Laps, Lap Time;
More
Time of Day, Sunrise, Sunset, Temperature, Accuracy, Heading，Calories;
