iHome iH5 User manual

Model iH5
The Home System
For Your iPod®
Music
Photos
Extras
Settings
Shuffle Songs
Backlight

Table of Contents
A Consumer Guide to Product Safety ............................................................................................................................3-5
Safety Instructions
FCC Information
Getting Started ................................................................................................................................................................6-7
iPod® Inserts
Install AC Adaptor
Install AM loop antenna
Install/Replace Backup Battery
Install/Replace the Remote Control Battery (iH5r)
Controls and Indicators ...........................................................................................................................................8
Clock Display ...........................................................................................................................................9
Setting Up the iH5 ...........................................................................................................................................................10-11
Setting Clock Time
Setting Alarm Time
Charging your iPod®..........................................................................................................................................11
Listening to your iPod®..........................................................................................................................................11-12
Listening to a non-docking iPod® or other portable audio devices....................................................................................12
Listening to Radio .................................................................................................................................................13
Alarm Operation ......................................................................................................................................................................13
Sleep Operation.........................................................................................................................................................14
Snooze/Dimmer Operation ...............................................................................................................................................14
Line Out Operation ...........................................................................................................................................................................14
Troubleshooting ........................................................................................................................................................... 15-16
Warranty Information ...........................................................................................................................................................17
2

3
A Consumer Guide to Product Safety
When used in the directed manner, this unit has been designed and manufactured to ensure your personal
safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and
operating instructions carefully before installation and use, and keep these instructions handy for future reference.
Take special note of all warnings listed in these instructions and on the unit.
1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl,
kitchen sink, laundry tub, swimming pool or in a wet basement.
2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper
ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block
ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet,
that may impede the flow of air through the ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other
appliances (including amplifiers) that produce heat.
4. Power Sources – The unit should be connected to a power supply only of the type described in the
operating instructions or as marked on the appliance.
5. Power-Cord Protection – Power supply cords should be routed so that they are not likely to be walked
on or pinched by items placed upon or against them. It is always best to have a clear area from where the
cord exits the unit to where it is plugged into an AC outlet.
6. Cleaning – The unit should be cleaned only as recommended. See the Maintenance section of this manual
for cleaning instructions.

4
7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled
into any openings or vents located on the product.
8. Attachments – Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection – Unplug the unit from the wall outlet and disconnect the
antenna or cable system during a lightning storm or when it is left unattended and unused for long
periods of time. This will prevent damage to the product due to lightning and power-line surges.
10.Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this
can result in a risk of fire or electric shock.
11.Damage Requiring Service – The unit should be serviced by qualified service personnel when:
A. the power supply cord or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.
12.Antenna – Do not connect an external antenna to the unit (other than that provided).
13.Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month or
longer, the power cord should be unplugged from the unit to prevent damage or corrosion.
14.Servicing – The user should not attempt to service the unit beyond those methods described in the user’s
operating instructions. Service methods not covered in the operating instructions should be referred to
qualified service personnel.
Questions? Visit www.ihomeaudio.com
For operating instructions: 1-877-ihome01(1-877-466-6301)
For any other questions: 1 800-288-2972
A Consumer Guide to Product Safety

5
FCC Information
This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These
limits provide reasonable protection against radio and TV interference in a residential area.
However, your equipment might cause TV or radio interference even when it is operating properly. To eliminate
interference you can try one or more of the following corrective measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the radio or TV.
• Use outlets on different electrical circuits for the equipment and the radio or TV.
Consult your dealer or an experienced radio/television technician if the problem still exists.
Modifying or tampering with your system’s internal components can cause a malfunction and might invalidate
the system’s warranty and void your FCC authorization to operate it.
Questions? Visit www.ihomeaudio.com
For operating instructions: 1-877-ihome01(1-877-466-6301)
For any other questions: 1 800-288-2972
A Consumer Guide to Product Safety
This device complies with part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference.

To place an insert:
1. Select the insert for your iPod® (see chart above). Using the
correct insert ensures the proper fit for your iPod®.
2. Gently press the iPod® insert into the dock.
3. Carefully place your iPod® into the dock.
4. To remove/replace an insert, first remove your iPod®, then
grip the insert and pull gently upwards.
Install AM loop antenna
Snap AM loop antenna into antenna base provided. Next, plug
the AM loop antenna into the connector located on the back of
the unit for AM band radio operation. For best reception, please
move the AM antenna 12” away from the unit and iPod®.
Install AC Adaptor
Connect the of AC adaptor cable plug into the jack on the back
of the system, then plug the AC adaptor into the wall outlet.
Getting Started
6
Thank you for purchasing the iHome iH5 Stereo Home System for your iPod®. Designed specifically to work
with your docking iPod®, this system provides high quality audio and radio performance that brings out the best
in your music.
Please read this instruction book carefully before operating the iH5, and keep it for future reference.
iPod® Inserts
Your iH5 comes with 4 removable inserts to ensure your iPod® fits properly in the dock on the top of the system.
use with iPod Shuffle
NOTE: iH5 will NOT
charge iPod Shuffle
Use with iPod Mini iPod 3Gen 10-15 GB
iPod 3Gen 20 GB
iPod 4Gen 20 GB
iPod Photo 30 GB
Shuffle Insert Mini Insert Thin iPods Insert Thick iPods Insert
iPod 3Gen 30 GB
iPod 3Gen 40 GB
iPod 4Gen 40 GB
iPod Photo 40 GB
iPod Photo 60 GB
AM antenna
Base
Music
Photos
Extras
Settings
Shuffle Songs
Backlight
DC 15V 1A
time clock sleep
DST
out in line outline in

7
Getting Started

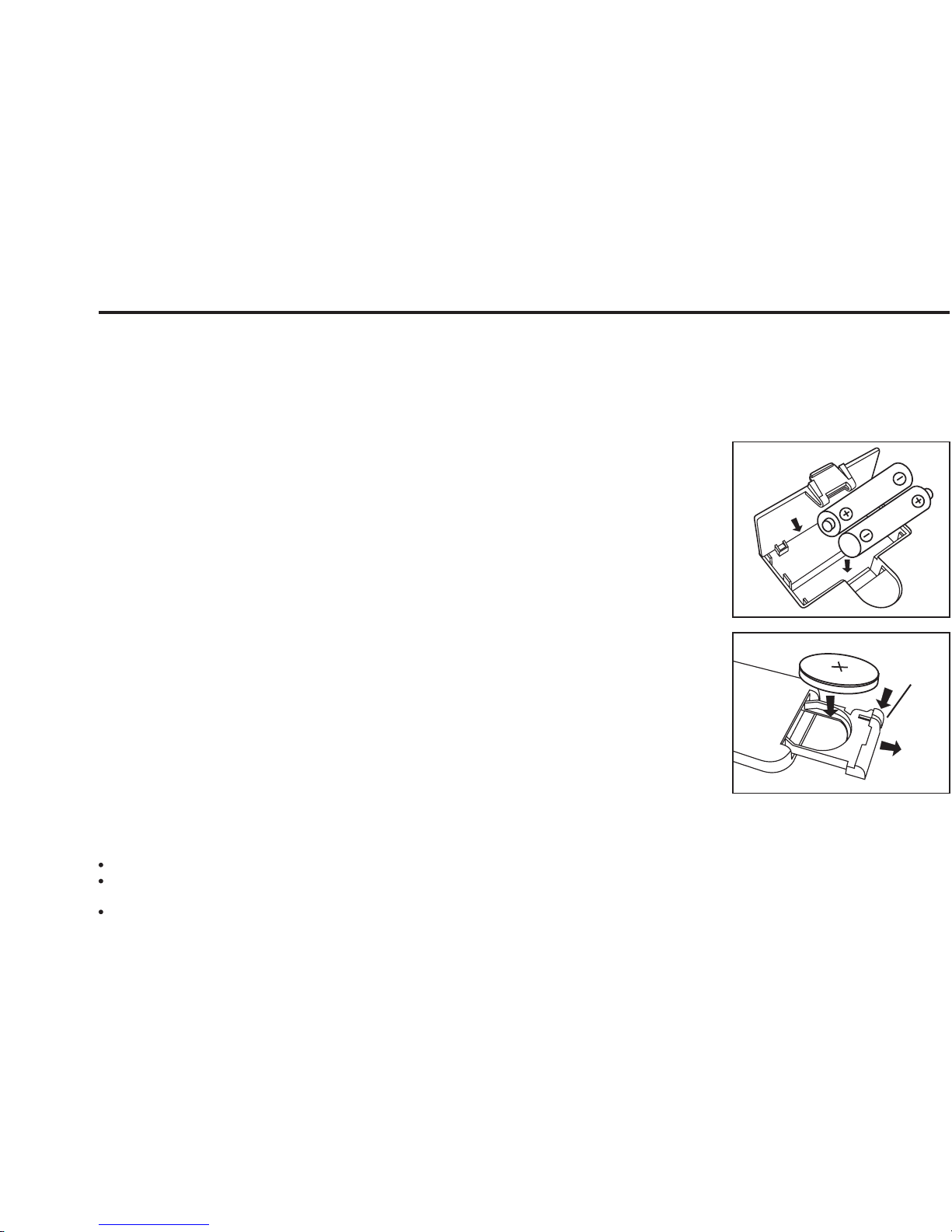

Install/Replace Backup Battery
The iH5 uses a backup battery system to provide continuous alarm operation and clock settings in the event of a power
failure. If the Backup Battery has been installed and a power failure occurs or the AC cord is accidentally disconnected,
the display will not remain lit, but the current time and alarm time settings will be temporarily maintained. Otherwise, you
must reset the time and alarm settings.
Two backup batteries are already installed prior to shipping to keep the clock running. If the unit has no display or the
Battery Low Icon located on the left of the display is flashing, it is time to replace the backup batteries.
1. Please make sure the AC adaptor is connected. Otherwise all settings may be lost
during battery replacement.
2. Open the battery compartment cover located on the bottom of the unit.
3. Insert 2 “AA” batteries, checking that the polarity ( + and – ends of the batteries) matches
the drawing inside the battery compartment. We recommend the use of alkaline batteries
for longer life. Different types of batteries or new and used batteries are not to be mixed.
4. Close the compartment cover.
Batteries information:
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon -zinc) or rechargeable (nickel-cadmium) batteries.
Install/Replace the Remote Control Battery (Remote Control included
with iH5R and iH5RC models only)
The remote control battery is already installed in the factory. When the remote control stops
operating or its range seems reduced, it is time to replace it with a new one.
1. The battery door is located on the back end of the unit.
2. Squeeze and pull to release the battery door latch and take out the battery holder.
3. Insert a “CR2032” 3-volt lithium battery. Make sure the polarity (the + and – side of the
battery) is correct.
4. Replace the battery holder back in the remote control.
NOTE: PLEASE DISCARD BATTERIES PROPERLY
Maintenance
Place the unit on a level surface away from sources of direct sunlight or excessive heat.
Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material
should be placed between it and the furniture.
Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzine,
thinner or similar materials can damage the surface of the unit.
Battery
door
latch

8
Controls and Indicators
Volume Wheel 
 Dock
iPod Button 
Settings Wheel
Radio Button  AM/FM Select Button
Sleep Button
Alarm On/Off Button 
Alarm Set Button 
Wake-To Button 
Alarm Reset/Power Off Button
Snooze/Dimmer Button 
Speaker Port
AC Adaptor Jack Line in Jack
Time Zone Button  Clock Adjust Button
Sleep Volume Button
Line Out Jack 
FM Antenna
AM Loop Antenna socket 
DST Switch
DC 15V 1100mA
timeclock sleep
DST
out in line inline out
Radio Button
Play/Pause Button
Power On/Off Button
Button
Button
AM/FM Select Button
Snooze/Dimmer Button
Volume+ Button
Volume_Button
Remote Control*
*Remote Control included
with iH5R and iH5RC models only

9

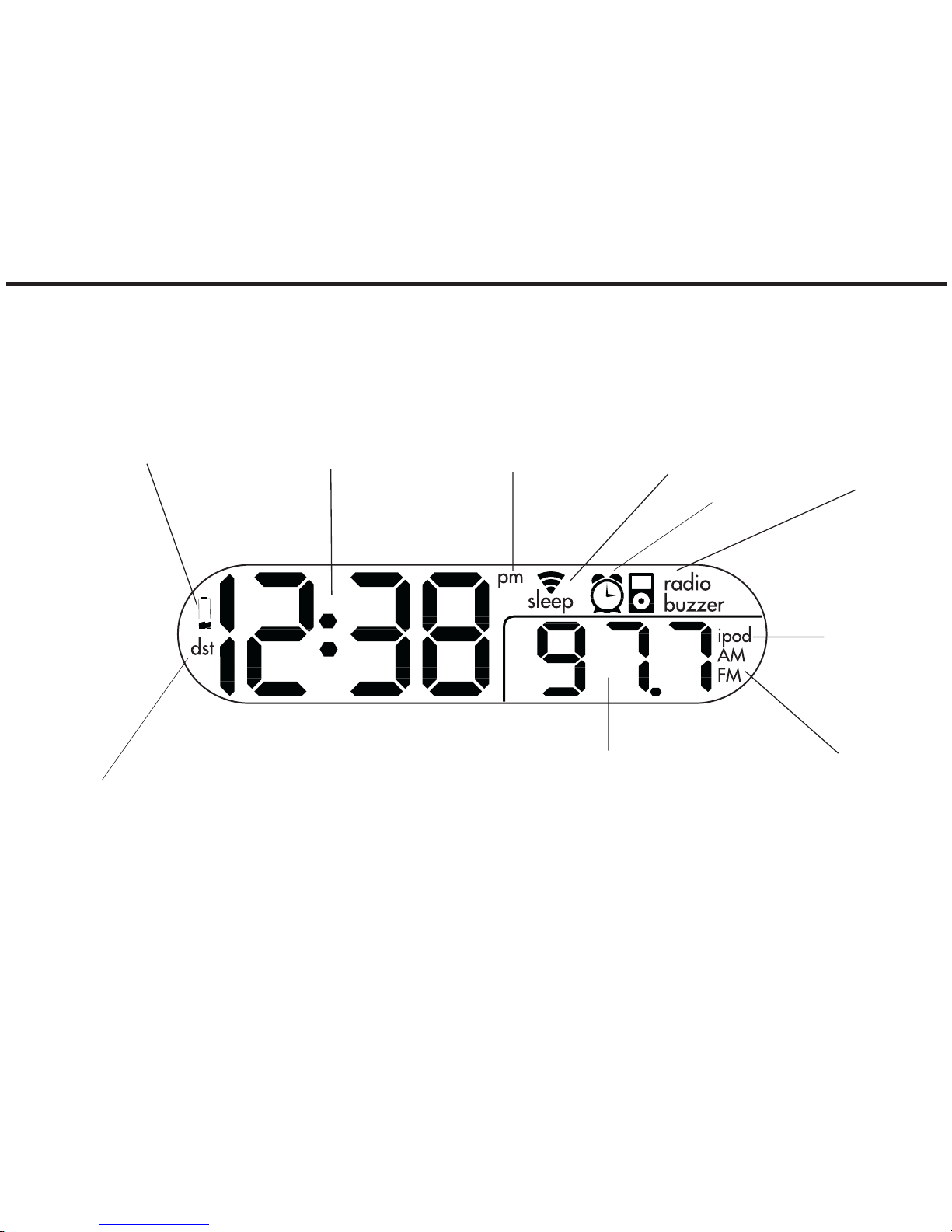

Clock Display
Alarm Armed
Daylight Savings Time
Battery Low Indicator Time/Alarm Display PM Indicator Sleep Display Wake To Indicator:
iPod, Radio, Buzzer,
Radio Frequency AM/FM Indicator
iPod Indicator

10
Setting Up the iH5
Your iH5 Home System comes from the factory preset to Eastern Standard Time. Just follow these simple steps
to match the setting to where you live.
1. Depending on your location and whether or not DST (Daylight Savings Time) is in effect, set the DST
Switch located on the back of the unit to +1 or -1 to activate the DST adjustment feature. Activating the +1
switch will advance the time one hour.
2. Press and hold the  Time Zone Button located on the back of the unit for approx. 2 seconds until the
Time Zone Indicator at the lower right hand side of the display shows “Z-?”. Turn the  Setting Knob to
select the time zone.
Z-01 Atlantic
Z-02 Eastern
Z-03 Central
Z-04 Mountain
Z-05 Pacific
Z-06 Alaska
Z-07 Hawaii
3. Press the  Time Zone Button again to exit the setting mode. You should hear 2 beeps indicating the time
zone has been set.
4. If for any reason the time showing is not correct, please see Setting Clock Time to set the clock.
Setting Clock Time
1. Press and hold the  Clock Adj Button located on the back of the unit for 2 seconds until the display
flashes. Turn the  Setting Knob until the current time is displayed. Remember to set the correct AM or
PM (an icon in the upper right hand corner of the display is the PM indicator).
2. Press the  Clock Adj Button again to exit the clock setting mode. You should hear 2 beeps indicating the
clock time is set.

11
Setting Up the iH5
Setting Alarm Time
1. Press and hold the  Alarm Set Button for 2 seconds until the display flashes. Turn the  Setting Knob
until the desired alarm time is displayed. Remember to set the correct AM or PM (an icon to the right of the
time display is the PM indicator).
2. Press the  Wake-To Button to select the alarm buzzer, iPod® or radio to wake to. A corresponding Wake
Icon will light up for the selected Wake-To sound.
3. Press the  Alarm Set Button again to exit the setting mode. You should hear 2 beeps indicating the alarm
time and wake to mode are set.
Note: Once you set the alarm time, the alarm will be automatically armed. The Alarm Icon and Wake Icon will
appear to indicate the alarm is armed.
Charging your iPod®
Note: Please make sure you are using the correct insert for your iPod® (see chart on page 6) and that it is
properly docked into the iH5. Failure to do so may damage your iPod®.
1. When you dock your iPod®, it will go to standby mode then
turn off. While your iPod® is docked in the system, it recharges
(until fully charged). Note that iPod® Shuffles will NOT charge.
1. When the iPod® is docked and in standby mode, press the
 iPod Button on the iH5 (or Play/Pause Button on
the remote control) to play it. The iPod Icon will appear on
the iH5 LCD display, showing iPod® Playing mode.
2. Press the  iPod Button again to pause play; press again
to resume play.
3. Turn the  Volume Knob on the iH5 (or Volume+ and
Volume– Button on the remote control) to adjust the
system volume.
Listening to your iPod®
Music
Photos
Extras
Settings
Shuffle Songs
Backlight

12
Listening to a non-docking iPod® or other portable audio devices
If you are using an iPod® without a docking port or other MP3 player or other portable audio device, you still
can play it through the iH5 via the Line-in Jack.
NOTE: To use the Line in Jack, make sure no iPod®is docked in the iH5.
1. Plug one end of the audio patchcord (included) into the headphone or line-out jack on your device and the
other end of the patchcord into the iH5  Line-in Jack, located on the back of the unit.
2. Press the  iPod Button on the iH5 (or Play/Pause Button on the remote control). The AU Icon will
appear, indicating AUX playing mode.
3. Turn on and play your device.
4. Use the  Volume Knob on the iH5 (or Volume+ and Volume– Button on the remote control) to
adjust the system volume. You may need to adjust your device volume, too.
5. To turn off the unit, press the  Alarm Reset/Power Off Button (or Power On/Off Button on the
remote control). Please remember to turn off your device, too.
Listening to your iPod®
4. Press or Button on remote control to go to the next or previous track. Press and hold while track
is playing for high speed forward or reverse music search of the current track.
5. To turn off the unit, press the  Alarm Reset/Power Off Button or Power On/Off Button on remote
control to turn it off. iPod® will continue charging while in the dock.
Note: After docking the iPod or pressing the Alarm Reset/Power Off Button, the iPod button will be
disabled for a few seconds to prevent improper operation.

13
Alarm Operation
Listening to Radio
Note: Extend FM wire antenna fully for best FM reception. AM loop antenna should be placed up to 12” away
from the unit for best reception. Rotate the AM loop antenna as required for best AM reception.
1. Press the  Radio Button on the iH5 (or the remote control) to play the radio. The radio frequency appears
at the lower right corner of the display.
2. Press the  AM/FM Button on the iH5 (or the remote control) to select AM or FM band.
3. Turn the  Setting Knob on the iH5 (or or Button on the remote control) to tune in the desired
station. Press the or Button on the remote control again to Auto scan to the next clear station.
Hold for seek mode.
4. Turn the  Volume Knob on the iH5 (or Volume+ and Volume– Button on the remote control) to
adjust the system volume.
5. To turn off the unit, press the  Alarm Reset/Power Off Button (or Power On/Off Button on the
remote control) to turn it off.
The iH5 Home System features “Sure Alarm”. If a power failure occurs or the AC cord is accidentally disconnected,
the unit will change to Buzzer alarm to wake you up (provided you have installed back up batteries).
This unit features Gentle Waking, which gradually increases the alarm volume (except for the buzzer alarm).
NOTE: TO WAKE TO iPOD®, YOUR iPOD®MUST BE PROPERLY DOCKED AND OFF (NOT IN PLAY
MODE) OR NO ALARM WILL SOUND.
1. Set the alarm time per Setting Alarm time. To preview the alarm time, just press the  Alarm Set Button
once.
2. You can change the sound mode you wish to wake to at any time by pressing the  Wake-To Button.
3. Press the  Alarm On/Off Button to arm or disarm the alarm.
4. When the alarm is sounding, press the  Power Off/Alarm Reset Button on the iH5 (or Power On/Off
Button on the remote control) to turn the alarm OFF. The alarm will come on again the next day at the
same time.
5. To stop the alarm from coming on the following day, press the  Alarm On/Off Button to turn it OFF. The
Alarm Icon and Wake Icon will disappear to indicate the alarm is disarmed.
6. If the alarm is not turned off after it sounds it will play for approximately 1 hour then turn off automatically.
This cycle will repeat every 24 hours unless the controls are changed.
Note: When you select Wake To iPod®, please make sure your iPod® has enough songs to play for 1 hour,
otherwise please set the iPod® repeat mode to ON.
Note: If you select Wake To iPod® but no iPod® is present, the iH5 will automatically switch to buzzer alarm.

14
Snooze/Dimmer Operation
Sleep Operation
1. While listening to your iPod® or the radio, press the  Sleep Button to enter sleep mode. The unit will
automatically turn off after the selected time. Sleep mode has a Gentle Sleep feature which gradually lowers
the volume.
2. You can adjust the sleep timer from 120, 90, 60, 30 or 15 minutes by pressing the  Sleep Button again.
Pressing the Sleep Button while sleep is set to 15 minutes will turn off the unit.
3. When the display changes back to show the real time, pressing the Sleep Button once will show the
sleep time remaining. Pressing it again will change sleep time to the next lowest increment.
4. You can also adjust the sleeping volume without affecting the alarm volume by pressing the  Sleep Volume
Button located on the back of the iH5. Please remember that once you adjust your listening volume by turning
the  Volume Wheel on the iH5 (or Volume+ and Volume– Button on the remote control), it will
reset the sleep volume, so you may need to adjust it again.
5. To stop listening at any time, press the  Alarm Reset/Power Off Button (or Power On/Off Button
on the remote control).
1. Press the  Snooze/Dimmer Button on the iH5 (or the remote control) after the alarm sounds. The alarm
will go off and will come on again in approx. 9 minutes. You may repeat this cycle several times during the 1
hour alarm cycle.
2. During normal operation, press the  Snooze/Dimmer Button to control the brightness of the LCD display.
Line Out Operation
You can connect the iH5 to another line-level device such as an amplifier or recording device through the  Line
Out Jack located at the back of the unit. The volume setting on the iH5 does not affect the line level. Adjust
volume level using the volume control on the device you connnect to.

15
Troubleshooting
Symptom Possible Problem Solution
Unit doesn’t respond
(no power) AC adaptor isn’t plugged into a wall outlet or the connector is not plugged into the
power supply jack on the back of the unit
Plug the AC adaptor into a wall outlet and plug the connector
into the supply jack on the unit
Wall outlet is not functioning. Plug another device into the same outlet to confirm the outlet
is working
iPod does not dock
properly Using no or wrong iPod insert Make sure the dock insert is the proper fit for your iPod
iPod didn’t install properly Remove your iPod from the dock and check for obstruction
on the connectors in the dock and on your iPod. Then reseat
it in the dock.
Battery Low icon
always flashing Batteries are weak Replace with new batteries
Batteries were not installed properly Check to make sure the polarity ( + and – ends) matches
the diagram in the battery compartment
iPod does not
respond to the unit iPod is not installed properly Remove your iPod from the dock and check for obstruction on the connectors in the dock and on your iPod. Then reseat
it in the dock.
Your iPod software is too old Upgrade software on your iPod. For details visit
http://www.apple.com/ipod/download
iPod is locked up Please make sure your iPod is working properly before
docking into the unit. Please refer to your iPod manual for
details.
Using 1st or 2nd generation iPod, iPod
Shuffle or other devices. iH5 cannot control those iPods or other devices.

16
Troubleshooting
Symptom Possible Problem Solution
iPod didn’t charge up iPod is not installed properly Remove your iPod from the dock and check for obstruction
on the connectors in the dock and on your iPod. Then reseat
it in the dock.
iPod is locked up/ frozen
iPod battery has problem
Please make sure your iPod is working properly before
docking into the unit. Please refer to your iPod manual for
details.
No AM band radio
sound but others OK AM loop antenna is not connected to the unit Plug the AM loop antenna connector to the jack on the back of the unit
AM band radio is very
noisy AM loop antenna isn’t located properly Move the AM loop antenna away from the main unit and
rotate it for best reception
Sound is distorted Volume level is set too high Decrease the volume
Sound source is distorted If the iPod original sound source (MP3) is of poor quality,
distortion and noise are easily noticed with high-power
speakers. Try a different audio source such as a music CD.
If you are using an external sound source like older generation
of iPod or iPod Shuffle, try reducing the output volume on
the device itself. Also try turning bass boost OFF.
Remote Control didn’t
work Battery weak Replace current battery with new battery
Remote Control is not pointed toward to
the iH5 Point the Remote Control toward the iH5, move within 10 feet of the unit.
Unit gets warm after
extended play at high
volume
This is normal Turn unit off for awhile or lower volume

Limited 90-Day Warranty Information
iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI Technologies), warrants this product to be
free from defects in workmanship and materials, under normal use and conditions, for a period of 90 days from the date of
original purchase.
Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased.
Should this fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty period,
SDI Technologies will repair or, at its discretion, replace this product without charge (except for a $10.00 charge for handling,
packing, return UPS/postage, and insurance). This decision is subject to verification of the defect or malfunction upon delivery
of this product to the Factory Service Center listed below. The product must include proof of purchase, including date of
purchase. The fee for service after the warranty period or without proof of purchase is $30.00.
Before returning this product for service, please first replace the batteries (if applicable) with fresh ones, as exhausted or
defective batteries are the most common cause of problems encountered.
If service is still required:
1. Remove the batteries (if applicable) and pack the unit in a well padded, heavy corrugated box.
2. Enclose a photocopy of your sales receipt, credit card statement, or other proof of the date of purchase, if within the warranty
period.
3. Enclose a check or money order payable to the order of SDI Technologies, for the sum of $10.00 ($30.00 after the warranty
period).
4. Send the unit prepaid and insured, to the Factory Service Center listed below.
Consumer Repair Department
SDI Technologies Inc.
1330 Goodyear Dr.
El Paso, TX 79936-6420
NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products
which have been damaged by negligence, misuse or accident, or which have been modified or repaired by unauthorized
persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to CD’s or tape cassettes (if
applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the owner.
This warranty is valid only in the United States of America and does not extend to owners of the product subsequent to the
original purchaser. Any applicable implied warranties are also limited to 90 days, and SDI Technologies will not be liable for
consequential damages. (Some states do not allow limitations on implied warranties or exclusion of consequential damages,
so these restrictions may not apply to you.) This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
Questions? Visit www.ihomeaudio.com
For operating instructions: 1-877-ihome01(1-877-466-6301)
For any other questions: 1 800-288-2972.
IH5IB-060205 Printed in China
