IKEA Sladda User manual

SLADDA

ENGLISH 4
DANSK 15
SUOMI 26
SVENSKA 37

4
ENGLISH
CONTENTS
1. INTRODUCTION 4
2. LIST OF PARTS 5
3. ASSEMBLE YOUR BICYCLE 6
4. TEST YOUR BICYCLE BEFORE RIDING 13
5. FOR YOUR SAFETY 14
6. CARE AND MAINTENANCE 15
1. INTRODUCTION
SLADDA is a sustainable and durable bicycle that
is easy to adapt to your everyday needs and
requires minimal maintenance.
The bicycle uses a belt drive system instead of a
regular chain. The belt is long lasting and easy
to maintain, since it will not rust and it does not
need to be lubricated with oil. That means no
harmful substances for the environment as well
as a cleaner bicycle, which is practical if you
keep your bicycle indoors.
This booklet contains all you need to know
about your bicycle, including how to assemble
it, test it before riding and keep it in good
condition. Should any parts need to be replaced
at any point in the future there is a full list of
components and how to order them.
* This bicycle has a rear wheel coaster brake
and automatic gears, which have been specially
chosen to limit the use of cables. It is important
that you familiarize yourself with the braking
system of the bike. If you are not used to the
back-pedal method of braking, you will nd
instructions in the Test Your Bike Before Riding
section on how to use this technique.

5
1 ICOMP knob connection and washer short (S:146902, W:146968)
2 ICOMP knob connection and washer long (S:147927, W:146968)
3 Handle bar (naked) (151271)
4 Grip (151278)
5 Handle bar stem with screws (151279)
6 Brake cable, complete (28”:151333, 26”:151340)
7 Left brake lever with bell (screw and adjuster included) (151280)
8 Right brake lever with/without bell (screw and adjuster included) (151281)
9 Bell (151282)
10 Tyre (28”:151343, 26”:151344)
11 Inner tube with valve (28”:151316, 26”:151331)
12 Brake disc with 6 screws (151346)
13 Brake pads, with spring and lock pin (152505)
14 Brake caliper with screws (152504)
15 Saddle (STD:151347, NA:152541)
16 Seat post (28”:151348, 26:151354)
17 Seat post clamp with screw (151355)
18 Front and rear sprockets (28”:151357, 26”:151358)
19 Drive belt (151356)
20 Belt protection (28”:151359, 26:151361)
21 Front wheel, complete. With rim tape. With/without inner-tube, tyre, brake-disc, reectives
(28”:151284, 26”:151317)
22 Rear wheel, complete. With rim tape, nuts. With/without inner-tube, tyre, reectives, sprocket
(28”:152507, 26”:151365)
23 Mud guards, complete. Front and rear, with screws (28:151366, 26:151368)
24 Kick stand (28:151370 26:151371)
25 Quick release front wheel, complete (152508)
26 Pedal with reector (STD:151364, AU:152506)
27 Crank right (151362)
28 Crank left (151363)

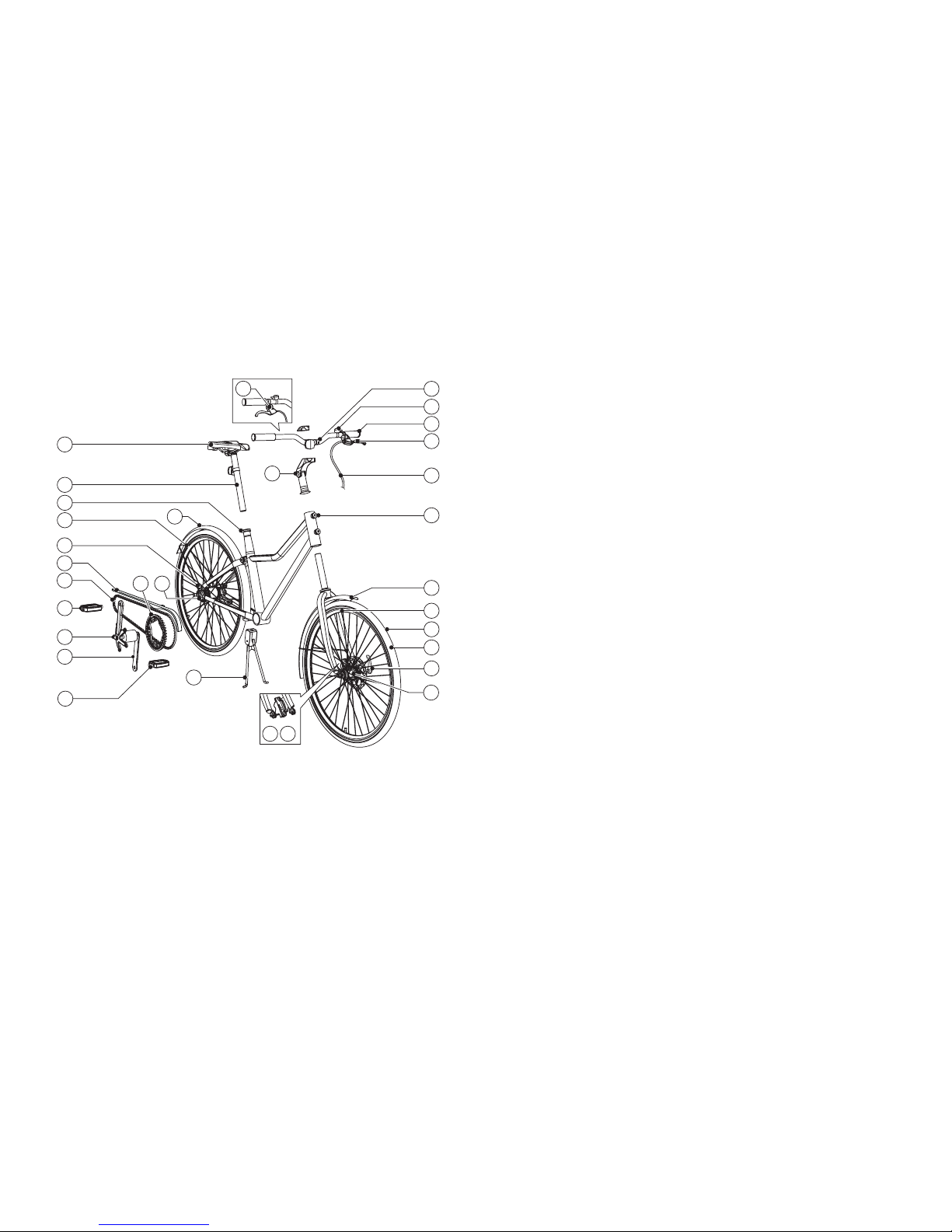

2. BIKE PARTS & COMPONENTS
1
11
21
23
12
10
25
2
4
3
9
8
6
7
5
1314
15
16
17
22
18
18
24
19
20
26
26
27
28
23

6

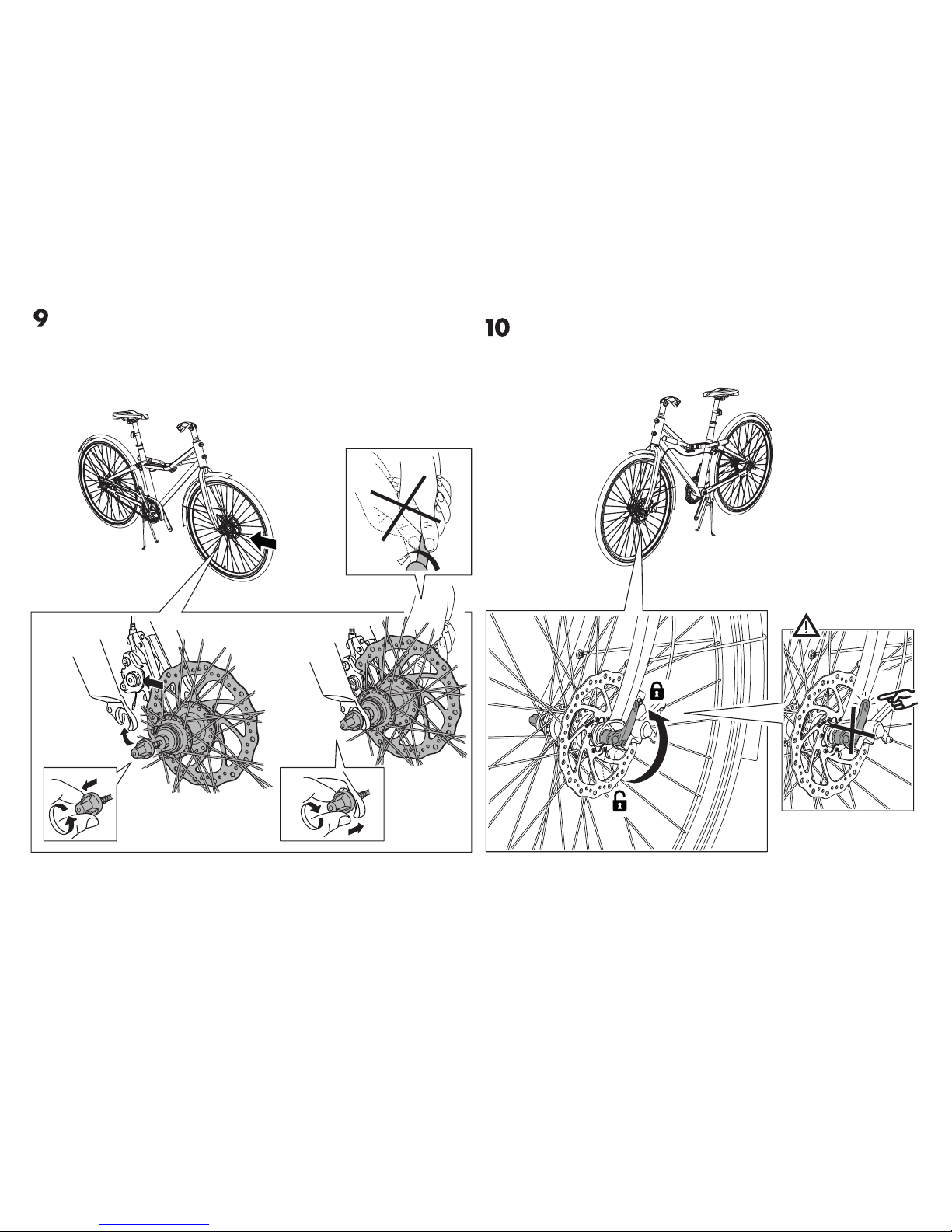

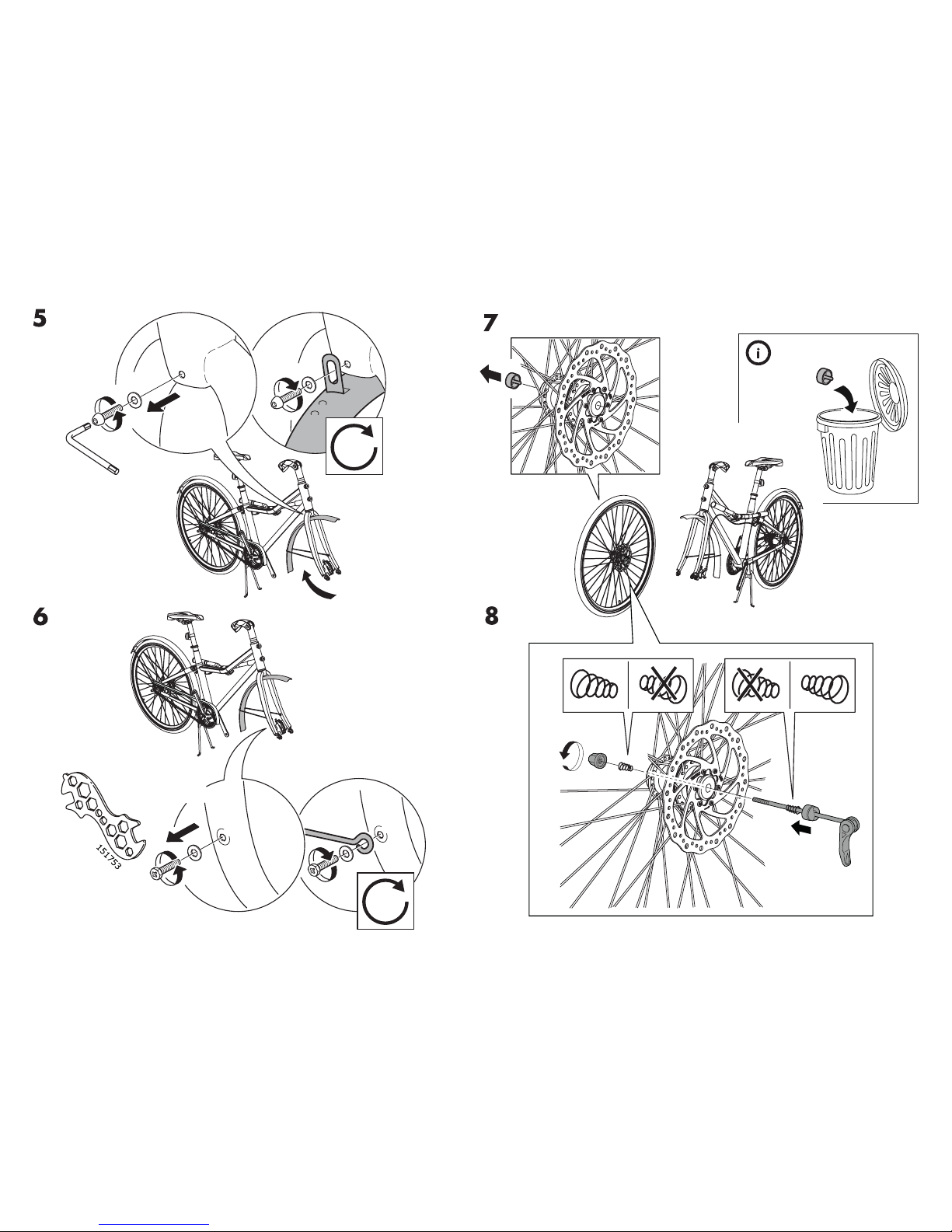

3. ASSEMBLE YOUR BIKE
1x 1x 1x1x
100092 108490 152131 151753

7
100092
5Nm
152131
20Nm

8
100092
4Nm
2x
4Nm

9

10
100092
100092
10Nm
12Nm
108490

11

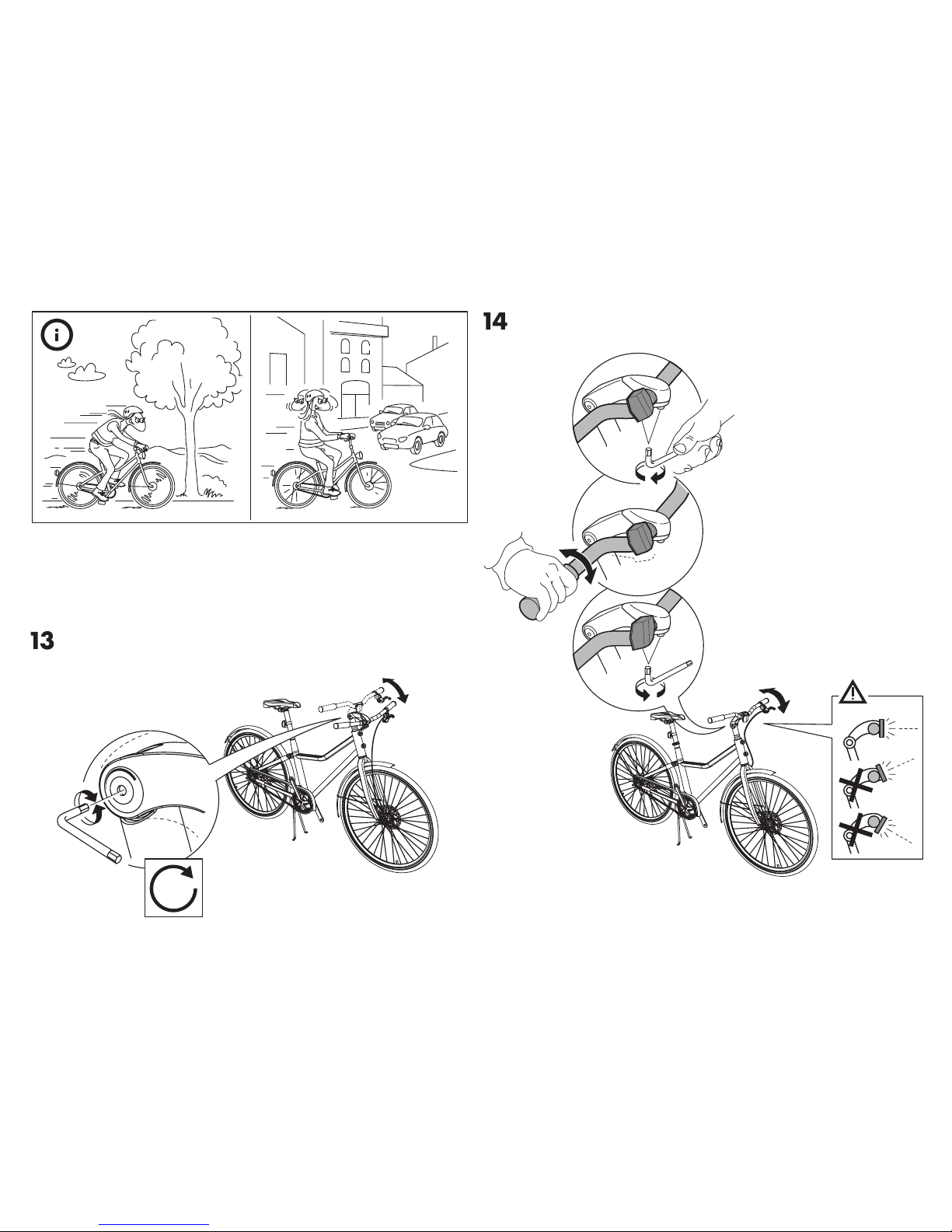

A low positioned handlebar will give you
more of a “racing” position, which is comfortable
if you are cycling longer distances and makes it
easier to go fast since wind resistance decreas-
es. But it also puts more pressure on your wrists
and limits your ability to see behind you and to
the side.
A high positioned handlebar will give you
more of a “classic” riding posture, where you
have the best visibility of trafc around you. This
posture is also better when riding with a child in
the child seat as it allows better contact between
you. It does however make cycling uphill a little
more difcult.
108490
17Nm
108490

12
R
20Nm
151753
L
151753
20Nm

13
Adjust the saddle to a comfortable height
(see illustration). Test that you have the right
height by sitting on the saddle with your heel
on the lower pedal and your leg fully extended.
Your leg should be almost straight, and if it is
too bent you need to raise the saddle. If it is dif-
cult to reach the lower pedal comfortably you
need to lower the saddle.
Before riding your bicycle you should perform
a safety check on level ground and away from
heavy trafc. It is important that you ensure
all parts are fastened and working properly
and that you are familiar with the controls and
features of your bike, such as the rear wheel
coaster brake and automatic gears. There are
two gears that shift automatically depending on
the speed at which you are cycling.
1. CHECK THE TYRES
Make sure that the tyres are inated to the
recommended pressure limit using a tyre pump
with a gauge. The pressure should not exceed
the recommended limit as stated on the tyre.
It is better to use a hand or foot pump rather
than a service station pump as over ination can
cause the tyre to blow out.
2. CHECK THE SADDLE
Make sure that the saddle is in line with the
centre of the bike and that the handlebar is at
90 degrees to the wheel. Check that it is tight-
ened sufciently so that it will not twist out of
alignment.
3. CHECK THE BRAKES
Check that the front wheel brake is working
properly. Ride the bike at slow speed and apply
the front wheel brake using the hand lever. The
bike should come to an immediate stop. Make
sure you can apply full braking force on the hand
brake without the brake lever touching the han-
dlebar. If not, your brakes may need adjusting.
Do not test the full braking force when riding at
fast speed since it can cause your front wheel to
stop turning and your bike to ip over.
Check that the rear wheel coaster brake is
working properly. Start with the pedal cranks in
an almost horizontal position, and apply pres-
sure downwards on the back pedal. The more
pressure you apply, the greater the braking
force.
Please note that the brake lever on the
handle bar controls the front wheel brake
and the coaster brake controls the rear
wheel brake.
4. CHECK REFLECTORS, LIGHTS AND
ACCESSORIES
Check that reectors are positioned correctly.
Make sure that your front and rear lights and
any other accessories are working properly. Test
the bell on the handlebar.
WARNING: As with all mechanical components,
the bicycle is subjected to wear and high stress.
Different materials and components may react
to wear or stress fatigue in different ways. If the
design life of a component has been exceeded, it
may suddenly fail possibly causing injuries to the
rider. Any form of cracks, scratches or change of
colouring in highly stressed areas indicate that
the life of the component has been reached and
it should be replaced.
4. TEST YOUR BIKE BEFORE RIDING

14
5. FOR YOUR SAFETY
• Always wear a bicycle helmet when riding
your bike to reduce the risk of head injuries
if you are involved in a road accident. Make
sure your bicycle helmet ts you properly
and that it meets the required safety
standards.

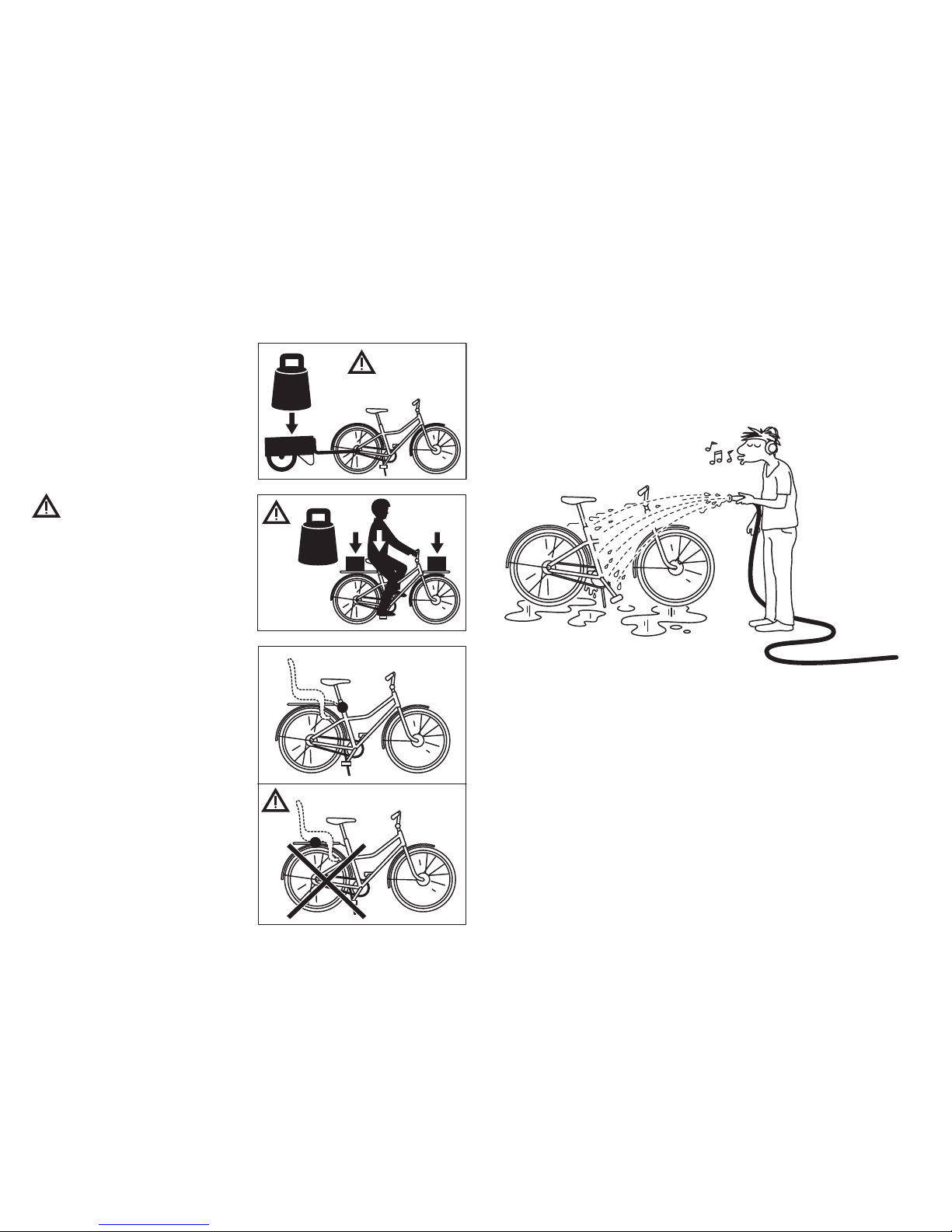

•WARNING! This bicycle is intended for
use on roads and bicycle paths and not
for performing stunts, jumps or off-road
use. Riding this bike in a way or in an
environment for which it is not suitable may
put you at risk of injury and may damage
the bicycle.
WARNING
•Observe your national bicycle laws and
regulations regarding bicycle lighting,
riding on pavements/roads or cycle
paths, helmet laws, child carrier laws
and trafc laws. It is your responsibility
to be aware of the laws that are
applicable in your country.
• After you have ridden your bike the rst 20
km (approx 12 miles) we advise that you
once again check that all screws and ttings
are secured, and re-tighten if necessary.
• Increase your visibility by wearing bright
clothing or a reective vest for cycling in
foggy conditions or at night.
• Take extra precautions when you ride in
wet weather since the grip of your tyres are
greatly reduced. Apply your brakes earlier
and more gradually than when riding in dry
conditions.
•WARNING! Reectors are not a substitute
for required lights. Riding in dark conditions
or at times of poor visibility without
adequate lighting and reectors is hazardous
and may result in serious injury or death.
The SLADDA bike is designed to require minimal
maintenance but here are a few tips on how to
keep your bicycle in top condition.
Simply clean your bicycle with water, or with
a mild detergent and a non-abrasive sponge if
very dirty.
To replace parts (e.g. worn brake pads or
broken parts from an accident) please call IKEA
Customer Service or contact your local IKEA
store. Use only genuine original replacement
parts. If you use anything other than geniune
replacement parts you may compromise the
safety of your bicycle. A complete list of parts
and components with article numbers are
included in this manual.
Make sure that all ttings are tightened
regularly. Please contact IKEA or professional
bike store if you need to adjust the belt to the
recommended tension of 100Nm. A complete list
of parts and components with article numbers
are included in this manual.
Note! If you have any questions about the care
and/or maintenance of your bicycle, please
contact IKEA.
6. CARE AND MAINTENANCE
A
B
A + B= Max 60 kg/132 lbs
Max
160 kg
352 lbs

15
DANSK
INDHOLDSFORTEGNELSE
1. INDLEDNING 15
2. LISTE OVER DELE 16
3. MONTER DIN CYKEL 17
4. TEST DIN CYKEL, FØR DU KØRER PÅ DEN 24
5. AF HENSYN TIL DIN SIKKERHED 25
6. PLEJE OG VEDLIGEHOLDELSE 25
1. INLEDNING
SLADDA er en bæredygtig og holdbar cykel, der
er nem at tilpasse til dine hverdagsbehov og
kræver et minimum af vedligeholdelse.
Cyklen er fremstillet med et drivremsystem,
ikke en almindelig kæde. Drivremmen er hold-
bar og nem at vedligeholde, fordi den ikke rust-
er og ikke skal smøres med olie. Det betyder, at
miljøet ikke bliver udsat for skadelige stoffer, og
cyklen bliver mindre snavset. Det er praktisk,
hvis du opbevarer cyklen indendørs.
Denne folder indeholder alt, hvad du har brug
for at vide om din cykel, herunder hvordan du
samler den, tester den, før du cykler på den, og
holder den i god stand. Hvis du på et tidspunkt i
fremtiden får brug for at udskifte dele, inde-
holder folderen også en komplet liste over kom-
ponenterne, og hvordan du bestiller dem.
Cyklen har bagbremse og automatiske gear,
der er valgt for at begrænse brugen af kabler.
Det er vigtigt, at du sætter dig ind i, hvordan
cyklens bremsesystem fungerer. Hvis du ikke
er vant til at bruge en bagbremse, kan du nde
anvisninger i at bruge den i afsnittet Test din
cykel, før du kører på den.

16
1 ICOMP integreret befæstningspunkt og spændeskive, kort (S:146902, W:146968)
2 ICOMP integreret befæstningspunkt og spændeskive, lang (S:147927, W:146968)
3 Styr (151271)
4 Håndtag (151278)
5 Styrstamme med skruer (151279)
6 Bremsekabel, komplet (28”:151333, 26”:151340)
7 Venstre bremsehåndtag med ringeklokke (inkl. skrue og regulator) (151280)
8 Højre bremsehåndtag med/uden ringeklokke (inkl. skrue og regulator) (151281)
9 Ringeklokke (151282)
10 Dæk (28”:151343, 26”:151344)
11 Slange med ventil (28”:151316, 26”:151331)
12 Bremseskive med 6 skruer (151346)
13 Bremseklodser med fjeder og låsestift (152505)
14 Bremsekaliber med skruer (152504)
15 Sadel (STD:151347, NA:152541)
16 Sadelpind (28”:151348, 26:151354)
17 Sadelpindklemme med skrue (151355)
18 Kædehjul, for og bag (28”:151357, 26”:151358)
19 Drivrem (151356)
20 Rembeskyttelse (28”:151359, 26:151361)
21 Forhjul, komplet. Med fælgbånd. Med/uden slange, dæk, bremseskive, reekser
(28”:151284, 26”:151317)
22 Baghjul, komplet. Med fælgbånd, møtrikker. Med/uden slange, dæk, reekser, kædehjul
(28”:152507, 26”:151365)
23 Skærme, komplette. For og bag, med skruer (28:151366, 26:151368)
24 Støtteben (28:151370 26:151371)
25 Lynkobling, forhjul, komplet (152508)
26 Pedal med reeks (STD:151364, AU:152506)
27 Højre pedalarm (151362)
28 Venstre pedalarm (151363)
2. CYKELDELE OG -KOMPONENTER
1
11
21
23
12
10
25
2
4
3
9
8
6
7
5
1314
15
16
17
22
18
18
24
19
20
26
26
27
28
23

17
3. SÅDAN SAMLER DU CYKLEN
1x 1x 1x1x
100092 108490 152131 151753

18
100092
5Nm
152131
20Nm

19
100092
4Nm
2x
4Nm

20
