IKEA BCF228/64 User manual

FROSTIG
BCF228/64
GB

ENGLISH 4

Contents
Safety information 4
Product description 6
Control panel 8
First use 10
Daily use 11
Helpful hints and tips 13
Care and cleaning 14
What to do if… 15
Technical data 16
Installation 16
Environmental concerns 18
IKEA GUARANTEE 18
Subject to change without notice
Safety information
In the interest of your safety and to ensure
the correct use, before installing and first us-
ing the appliance, read this user manual
carefully, including its hints and warnings. To
avoid unnecessary mistakes and accidents, it
is important to ensure that all people using
the appliance are thoroughly familiar with its
operation and safety features. Save these in-
structions and make sure that they remain
with the appliance if it is moved or sold, so
that everyone using it through its life will be
properly informed on appliance use and
safety.
For the safety of life and property keep the
precautions of these user's instructions as the
manufacturer is not responsible for damages
caused by omission.
Children and vulnerable people safety
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or in-
struction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.
• Keep all packaging well away from chil-
dren. There is risk of suffocation.
• If you are discarding the appliance pull the
plug out of the socket, cut the connection
cable (as close to the appliance as you
can) and remove the door to prevent play-
ing children to suffer electric shock or to
close themselves into it.
• If this appliance featuring magnetic door
seals is to replace an older appliance hav-
ing a spring lock (latch) on the door or lid,
be sure to make that spring lock unusable
before you discard the old appliance. This
will prevent it from becoming a death trap
for a child.
General safety
Warning!
Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of
obstruction.
• The appliance is designed exclusively for
domestic use.
• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household as explained in this instruction
booklet.
• Do not use a mechanical device or any ar-
tificial means to speed up the thawing
process.
• Do not use other electrical appliances
(such as ice cream makers) inside of refrig-
erating appliances, unless they are ap-
proved for this purpose by the manufactur-
er.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is con-
tained within the refrigerant circuit of the
appliance, a natural gas with a high level
of environmental compatibility, which is
nevertheless flammable.
• During transportation and installation of
the appliance, be certain that none of the
components of the refrigerant circuit be-
come damaged.
ENGLISH 4

If the refrigerant circuit should become
damaged:
– avoid open flames and sources of igni-
tion
– thoroughly ventilate the room in which
the appliance is situated
• It is dangerous to alter the specifications or
modify this product in any way. Any dam-
age to the cord may cause a short-circuit,
fire and/or electric shock.
Warning! Any electrical component
(power cord, plug, compressor) must be
replaced by the After Sales Service agent or
qualified service personnel.
1. Power cord must not be lengthened.
2. Make sure that the power plug is not
squashed or damaged by the back of
the appliance. A squashed or dam-
aged power plug may overheat and
cause a fire.
3. Make sure that you can come to the
mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not
insert the power plug. There is a risk of
electric shock or fire.
6. You must not operate the appliance
without the lamp cover
1)
of interior
lighting.
• This appliance is heavy. Care should be
taken when moving it.
• Do not remove nor touch items from the
freezer compartment if your hands are
damp/wet, as this could cause skin abra-
sions or frost/freezer burns.
• Avoid prolonged exposure of the appli-
ance to direct sunlight.
•Bulb lamps
2)
used in this appliance are
special purpose lamps selected for house-
hold appliances use only. They are not
suitable for household room illumination.
Daily Use
• Do not put hot pot on the plastic parts in
the appliance.
• Do not store flammable gas and liquid in
the appliance, because they may explode.
• Do not place food products directly
against the air outlet on the rear wall.
3)
• Frozen food must not be re-frozen once it
has been thawed out.
• Store pre-packed frozen food in accord-
ance with the frozen food manufacturer's
instructions.
• Appliance's manufacturers storage recom-
mendations should be strictly adhered to.
• Do not place carbonated or fizzy drinks in
the freezer compartment as it creates pres-
sure on the container, which may cause it
to explode, resulting in damage to the ap-
pliance.
• Ice lollies can cause frost burns if consumed
straight from the appliance.
Care and cleaning
• Before maintenance, switch off the appli-
ance and disconnect the mains plug from
the mains socket.
• Do not clean the appliance with metal ob-
jects.
• In case of accidental frost built-up (the
product is a no frost type), do not use
sharp objects to remove frost from the ap-
pliance. Use a plastic scraper.

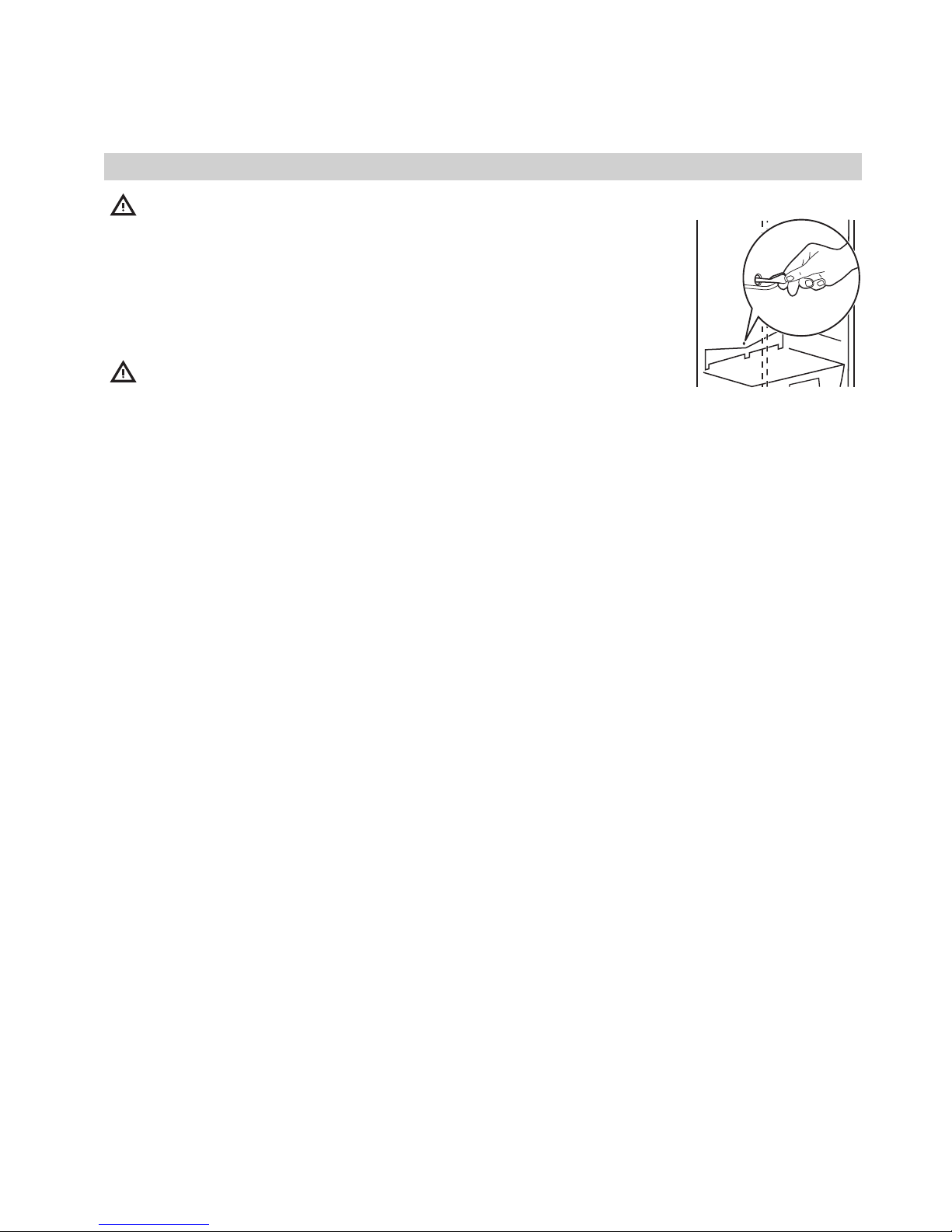

• Regularly examine the drain in the refrig-
erator for defrosted water. If necessary,
clean the drain. If the drain is blocked, wa-
ter will collect in the bottom of the appli-
ance.
Installation
Important! For electrical connection carefully
follow the instructions given in the specific
paragraph.
• Unpack the appliance and check if there
are damages on it. Do not connect the ap-
pliance if it is damaged. Report possible
damages immediately to the After Sales
Service (refer to "Service"). In that case re-
tain packing.
1) If the lamp cover is foreseen
2) If the lamp is foreseen
3) If the appliance is Frost Free
ENGLISH 5

• It is advisable to wait at least four hours
before connecting the appliance to allow
the oil to flow back in the compressor.
• Adequate air circulation should be around
the appliance, lacking this leads to over-
heating. To achieve sufficient ventilation
follow the instructions relevant to installa-
tion.
• Wherever possible the back of the product
should be against a wall to avoid touching
or catching warm parts (compressor, con-
denser) to prevent possible burn.
• The appliance must not be located close to
radiators or cookers.
• Make sure that the mains plug is accessible
after the installation of the appliance.
Service
• Any electrical work required to do the
servicing of the appliance should be car-
ried out by a qualified electrician or com-
petent person.
• This product must be serviced by the After
Sales Service, and only genuine spare
parts must be used. The service numbers
are listed in the Service information.
Environment Protection
This appliance does not contain gasses which
could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The
appliance shall not be discarded together
with the urban refuse and rubbish. The insu-
lation foam contains flammable gases: the
appliance shall be disposed according to the
applicable regulations to obtain from your
local authorities. Avoid damaging the cooling
unit, especially at the rear near the heat ex-
changer. The materials used on this appli-
ance marked by the symbol are recycla-
ble.
Product description
Carefully read the operating instructions be-
fore using the appliance.
ENGLISH 6

1 2
3
5
6
8
10
12
9
4
7
11
1Fan
2Led light
3Butter and cheese compartment with lid
4Can shelves
5Bottle shelf
6Freezing drawer
7Freezer drawers
8Control panel
9Rating plate
10 Vegetable drawer
11 Storage shelves
12 Bottle rack
Least cold zone
Intermediate temperature zone
Coldest zone
ENGLISH 7

Control panel
1 2 3 4 5 6
1ON/OFF switch
2Freezer temperature regulator
3Fridge-Freezer temperature indication
button
4Display
5Function button
Alarm reset switch
6Fridge temperature regulator
Display
1 2 3 5 6 74
1Fridge compartment indicator
2Freezer compartment indicator
3Positive or negative temperature indica-
tor
4Temperature indicator
5Action Freeze function
6Shopping function
7Fan function
Switching on
After plugging the plug into the power outlet,
if the display is not illuminated, press ON/
OFF switch.
As soon as the appliance is turned on, the
following signals will appear on the control
panel:
• Positive or negative temperature indicator
will be positive, indicating that the temper-
ature is positive
• the temperature flashes, the background of
the display is red and you will hear a buz-
zer.
Press Function button and the buzzer will go
off (also refer to "Excessive temperature
alarm" ) .
Set the desired temperature (refer to "Tem-
perature regulation").
Switching off
The appliance is shut off by pressing ON/
OFF switch for more than 1 second.
After this, a countdown of the temperature
from -3 -2 -1 will be shown.
When the appliance is switched off, Display
also goes off.
ENGLISH 8

Temperature Indication
Each time the Fridge-Freezer temperature in-
dication button is pressed, the display indi-
cates in sequence:
1. – The Fridge compartment indicator is
on.
– The display indicates the latest set tem-
perature for the fridge.
2. – The Freezer compartment indicator is
on.
4)
– The display indicates the latest set tem-
perature for the freezer.
Functions menu
Each time Function button is pressed, the fol-
lowing functions are activated in a clockwise
direction:
• Action Freeze function
• Shopping function
•Fanfunction
• no symbol: normal operation.
Important! You can set one function ON at
any time.
To set the functions OFF, press the Function
button several times until no icon appears.
Temperature regulation
The temperature within the appliance is con-
trolled by the Temperature regulator.
The temperature of the fridge compartment
may be regulated by rotating the Fridge
temperature regulator, and may vary be-
tween more or less +2°C and +8°C.
The temperature of the freezer compartment
may be regulated by rotating the Freezer
temperature regulator, and may vary be-
tween more or less -15°C and -24°C.
By turning the Temperature regulator, the
display flashes and shows the desired tem-
perature.
For a correct storage of the food the follow-
ing temperatures should be set:
+5°C in the fridge
-18°C in the freezer.
After having set the desired temperature, if
the Temperature regulator is not rotated
within 5 seconds, the latest set temperature
for the freezer compartment will be shown.
To operate the appliance, proceed as fol-
lows:
• turn the Temperature regulator clockwise
to obtain the maximum coldness
• turn the Temperature regulator counter-
clockwise to obtain the minimum coldness.
The intermediate position is usually the most
suitable.
However, the exact setting should be chosen
keeping in mind that the temperature inside
the appliance depends on:
• room temperature
• how often the door is opened
• the quantity of food stored
• the location of the appliance.
Shopping Function
If you need to insert a large amount of warm
food, for example after doing the grocery
shopping, we suggest activating the Shop-
ping function to chill the products more rap-
idly and to avoid warming the other food
which is already in the refrigerator.
The Shopping function is activated by press-
ing Function button (several times if necessa-
ry) until the corresponding icon appears .
The Shopping function shuts off automatically
after approximately 6 hours.
During the Shopping function also the fan in-
side the refrigerator compartment is auto-
matically activated.
Important! The fan inside the refrigerator
compartment is automatically activated also
when the room temperature is high (over
32°C), even though the Shopping function is
not activated.
It is possible to de-activate the function at
any time by pressing Function button (refer to
"Functions Menu").
4) In normal conditions.
ENGLISH 9

Fan Function
The function is activated by pressing the
Function button (several times if necessary)
until the corresponding icon appears .
In this condition the fan works continuosly.
It is possible to deactivate the function at any
time by pressing the Function button until the
icon goes out of view.
Important! If the function is activated
automatically the fan icon is not shown (refer
to "Daily use").
The activation of the fan function increases
the energy consumption.
Action Freeze Function
To freeze fresh foods, you will need to acti-
vate the Action Freeze function. Press Func-
tion button (several times if necessary) until
the corresponding icon appears.
This function stops automatically after 52
hours.
It is possible to deactivate the function at any
time by pressing Function button (refer to
"Functions Menu").
Excessive temperature alarm
An increase in the temperature in the freezer
compartment (for example due to a power
failure) is indicated by:
• flashing temperature
• freezer compartment flashing (Freezer
compartment indicator / Door open alarm
indicator)
• red illumination of display
• sounding of buzzer
When normal conditions are restored:
• the acoustic signal shuts off
• the temperature value continues to flash
• the display illumination remains red.
When you press Function button / Alarm re-
set switch to deactivate the alarm, the high-
est temperature reached in the compartment
appears on indicator for some seconds.
At this point the flashing stops and the dis-
play illumination changes over from red to
white.
During the alarm, the buzzer can be switched
off by pressing Function button / Alarm reset
switch.
The illumination of the display remains red
until normal storage conditions are restored.
First use
Cleaning the interior
Before using the appliance for the first time,
wash the interior and all internal accessories
with lukewarm water and some neutral soap
so as to remove the typical smell of a brand-
new product, then dry thoroughly.
Important! Do not use detergents or abra-
sive powders, as these will damage the finish.
ENGLISH 10

Daily use
Accessories
Egg tray
x1
Ice tray
x1
Freezer blocks
x2
Movable shelves
The walls of the refrig-
erator are equipped
with a series of run-
ners so that the safety
glass shelves can be
positioned as desired.
Important! Do not
move the glass shelf
above the vegetable
drawer to ensure correct air circulation.
Positioning the door shelves
To permit storage of
food packages of var-
ious sizes, the door
shelves can be placed
at different heights.
To make these adjust-
ments proceed as fol-
lows: gradually pull
upwards the shelf until
it comes free (1), re-
move it by pushing towards inside (2), then
reposition as required.
Vegetable Drawer
The drawer is suitable
for storing fruit and
vegetables.
There is a separator
inside the drawer that
can be placed in dif-
ferent positions to al-
low for the subdivision best suited to person-
al needs.
There is a grille (if foreseen) on the bottom of
the drawer to separate the fruit and vegeta-
bles from any humidity that may form on the
bottom surface.
All parts inside the drawer can be removed
for cleaning purposes.
Fan
The refrigerator com-
partment is equipped
with a device that al-
lows for rapid cooling
of foods and more
uniform temperature
in the compartment.
This device activates
by itself when needed,
for example for a
quick temperature recovering after door
opening or when the ambient temperature is
high.
Allows you to switch on the device manually
when needed (refer to "Fan Function").
1
2
ENGLISH 11

Important! The device stops when the door is
open and restarts immediately after the door
closing.
Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh food activate the Action
Freeze function at least 24 hours before plac-
ing the food to be frozen in the freezer com-
partment.
Place the fresh food to be frozen in the upper
drawer, as this is the coldest point.
The maximum amount of food that can be
frozen in 24 hours is specified on the rating
plate, a label located on the inside of the ap-
pliance.
The freezing process lasts 24 hours: during
this period do not add other food to be fro-
zen.
Freezing Calendar
3-6
1-2
10-12
3-4
10-12
3-6
10-12
3-6
10-12
3-6
The symbols show different types of frozen
goods.
The numbers indicate storage times in
months for the appropriate types of frozen
goods. Whether the upper or lower value of
the indicated storage time is valid depends
on the quality of the foods and treating be-
fore freezing.
Storage of frozen food
When first starting-up or after a period out of
use, before putting the products in the com-
partment let the appliance run at least 12
hours on the Action Freeze setting.
If large quantities of food are to be stored,
remove all drawers from appliance and
place food on glass shelf to obtain the best
performance.
Important! In the event of accidental
defrosting, for example due to a power
failure, if the power has been off for longer
that the value shown in the technical
characteristics chart under "rising time", the
defrosted food must be consumed quickly or
cooked immediately and then re-frozen
(after cooling).
Thawing
Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator com-
partment or at room temperature, depending
on the time available for this operation.
Small pieces may even be cooked still frozen,
directly from the freezer: in this case, cooking
will take longer.
Ice-cube production
This appliance is equipped with one tray for
the production of ice-cubes.
1. Fill the tray with water.
2. Put the tray in the freezer compartment
Important! Do not use metallic instruments to
remove the tray from the freezer.
Freezer Blocks
Two freezer blocks are supplied in the freez-
er; this increase the length of time for which
food will keep in the event of a power failure
or breakdown.
ENGLISH 12

Helpful hints and tips
Hints for energy saving
• Do not open the door frequently or leave it
open longer than absolutely necessary.
• If the ambient temperature is high, the
temperature regulator is on the higher set-
ting and the appliance is fully loaded, the
compressor may run continuously, causing
frost or ice on the evaporator. If this hap-
pens, turn the temperature regulator to-
ward lower settings to allow automatic de-
frosting and so a saving in electricity con-
sumption.
Hints for fresh food refrigeration
To obtain the best performance:
• Do not store warm food or evaporating
liquids in the refrigerator.
• Do cover or wrap the food, particularly if it
has a strong flavour.
• Position food so that air can circulate freely
around it.
Hints for refrigeration
• Meat (all types) : wrap in polythene bags
and place on the glass shelf above the
vegetable drawer.
For safety, store in this way only one or
two days at the most.
• Cooked foods, cold dishes, etc.: these
should be covered and may be placed on
any shelf.
• Fruit and vegetables: these should be thor-
oughly cleaned and placed in the drawer.
• Butter and cheese: these should be placed
in special airtight containers or wrapped in
aluminium foil or polythene bags to ex-
clude as much air as possible.
• Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.
• Bananas, potatoes, onions and garlic: if
not packed, must not be kept in the refrig-
erator.
Hints for freezing
To help you make the most of the freezing
process, here are some hints:
• The maximum quantity of food which can
be frozen in 24 hours is shown on the rat-
ing plate.
• The freezing process takes 24 hours. No
further food to be frozen should be added
during this period.
• Freeze only top quality, fresh and thor-
oughly cleaned foodstuffs.
• Prepare food in small portions to enable it
to be rapidly and completely frozen and to
make it possible subsequently to thaw only
the quantity required.
• Wrap up the food in aluminium foil or pol-
ythene and make sure that the packages
are airtight.
• Do not allow fresh, unfrozen food to touch
food which is already frozen, thus avoiding
a rise in temperature of the latter.
• Lean foods store better and longer than
fatty ones; salt reduces the storage life of
food.
• Water ices, if consumed immediately after
removal from the freezer compartment,
can possibly cause the skin to be freeze
burnt.
• It is advisable to show the freezing in date
on each individual pack to enable you to
keep tab of the storage time.
Hints for storage of frozen food
To obtain the best performance from this ap-
pliance, you should:
• Make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer.
• Make sure that frozen foodstuffs are trans-
ferred from the foodstore to the freezer in
the shortest possible time.
• Do not open the door frequently or leave it
open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly
and cannot be refrozen.
• Do not exceed the storage period indica-
ted by the food manufacturer.
ENGLISH 13

Care and cleaning
Caution! Before carrying out any
maintenance operation, disconnect the
power supply.
This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging
must therefore only be carried out by author-
ized technicians.
Warning! The accessories and parts of
the appliance are not suitable for
washing in a dishwasher.
Periodic cleaning
The equipment has to be cleaned regularly:
• clean the inside and accessories with luke-
warm water and some neutral soap.
• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.
• rinse and dry thoroughly.
Important! Do not pull, move or damage any
pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as this will dam-
age the surface and leave a strong odour.
Clean the condenser (black grill) and the
compressor at the back of the appliance with
a brush . This operation will improve the per-
formance of the appliance and save electrici-
ty consumption.
Important! Take care of not to damage the
cooling system.
Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage
the plastics used in this appliance. For this
reason it is recommended that the outer cas-
ing of this appliance is only cleaned with
warm water with a little washing-up liquid
added.
After cleaning, reconnect the equipment to
the mains supply.
Defrosting of the refrigerator
Frost is automatically
eliminated from the
evaporator of the re-
frigerator compart-
ment every time the
motor compressor
stops, during normal
use. The defrost water
drains out through a
trough into a special
container at the back of the appliance, over
the motor compressor, where it evaporates.
It is important to periodically clean the de-
frost water drain hole in the middle of the re-
frigerator compartment channel to prevent
the water overflowing and dripping onto the
food inside. Use the special cleaner provi-
ded, which you will find already inserted into
the drain hole.
No defrosting of the freezer
The freezer compartment of this model, on
the other hand, is a "no frost" type. This
means that there is no buildup of frost when
it is in operation, neither on the internal walls
nor on the foods.
The absence of frost is due to the continuous
circulation of cold air inside the compartment,
driven by an automatically controlled fan.
Periods of non-operation
When the appliance is not in use for long pe-
riods, take the following precautions:
1. Disconnect the appliance from electricity
supply.
2. Remove all food.
3. Defrost, if foreseen
4. Clean the appliance and all accessories.
5. Leave all doors ajar to prevent unpleas-
ant smells.
If the cabinet will be kept on, ask somebody
to check it once in a while to prevent the food
inside from spoiling in case of a power fail-
ure.
ENGLISH 14

What to do if…
Caution! Before troubleshooting,
disconnect the power supply.
Only a qualified electrician or competent
person must do the troubleshooting that is
not in this manual.
Important! There are some sounds during
normal use (compressor, refrigerant
circulation).
Problem Possible cause Solution
The appliance is noisy. The appliance is not installed
properly.
Check if the appliance stands
stable (all the feet should be on
the floor).
The appliance does not
operate. The lamp does
not operate.
The appliance is switched off. Switch on the appliance.
The plug is not connected to
the mains socket correctly.
Connect the plug to the mains
socket correctly.
The appliance has no power.
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains socket.
Contact a qualified electrician.
The lamp does not work. The lamp is defective. Refer to "Replacing the lamp".
The compressor oper-
ates continually.
The temperature is not set cor-
rectly.
Set a higher temperature.
The door is not closed correct-
ly.
Refer to "Closing the door".
The door has been opened
too frequently.
Do not keep the door open lon-
ger than necessary.
The food temperature is too
high.
Let the food temperature de-
crease to room temperature
before storage.
The room temperature is too
high.
Decrease the room tempera-
ture.
Water flows on the rear
plate of the refrigerator.
During the automatic defrost-
ing process, frost defrosts on
the rear plate.
This is correct.
Water flows into the re-
frigerator.
The water outlet is clogged. Clean the water outlet.
Products prevent that water
flows into the water collector.
Make sure that products do not
touch the rear plate.
Water flows on the
ground.
The melting water outlet does
not flow in the evaporative
tray above the compressor.
Attach the melting water outlet
to the evaporative tray.
ENGLISH 15

Problem Possible cause Solution
The temperature in the
appliance is too low/
high.
The temperature regulator is
not set correctly.
Set a higher/lower tempera-
ture.
If your appliance is still not working properly
after making the above checks, contact the
After Sales Centre. You can find the list at the
end of this manual.
Replacing the lamp
The appliance is equipped with a longlife
LED interior light.
Only service is allowed to replace the lighting
device. Contact your Service Center .
Closing the door
1. Clean the door gaskets.
2. If necessary, replace the defective door
gaskets. Contact the After Sales Service.
Technical data
Dimensions
Height 1827 mm
Width 540 mm
Depth 552 mm
Net Volume
Fridge 228 Litre
Freezer 64 Litre
Defrost System
Fridge auto
Freezer auto
Star Rating
Rising Time 21 hours
Freezing Capacity 8 kg/24h
Energy Consumption 0,893 kWh/24h
Noise Level 39 dB (A)
Energy Class A+
The technical informa-
tion are situated in the
rating plate on the in-
ternal left side of the
refrigerator compart-
ment and in the ener-
gy label.
Installation
Caution! Read the "Safety Information"
carefully for your safety and correct
operation of the appliance before installing
the appliance.
Important! Refer to the assembly instructions
for the installation.
Location
To ensure best performance, install the appli-
ance well away from sources of heat such as
radiators, boilers, direct sunlight etc. Make
sure that air can circulate freely around the
back of the cabinet.
ENGLISH 16

Positioning
This appliance can be installed in a dry, well
ventilated indoor (garage or cellar) also, but
for optimum performance install this appli-
ance at a location where the ambient tem-
perature corresponds to the climate class in-
dicated on the rating plate of the appliance:
Climate class Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Electrical Connection
Caution! Any electrical work required to
install this appliance should be carried
out by a qualified electrician or competent
person.
Warning! This appliance must be
earthed.
The manufacturer declines any liability
should these safety measures not be ob-
served.
1 2
3
4
5
Important! The wires in the mains lead are
coloured in accordance with the following
code:
1
Green and Yellow: Earth
3
Brown: Live
5
Blue: Neutral
As the colours of the wires in the mains lead
of this appliance may not correspond with
the coloured markings identifying the termi-
nals in your plug, proceed as follows:
1. Connect the wire coloured green and yel-
low to the terminal marked either with the
letter “E“ or by the earth symbol or
coloured green and yellow.
2. Connect the wire coloured blue to the ter-
minal either marked with the letter “N“ or
coloured black.
3. Connect the wire coloured brown to the
terminal either marked with the “L“ or col-
oured red.
4. Check that no cut, or stray strands of wire
is present and the cord clamp
4
is secure
over the outer sheath.
5. Make sure the electricity supply voltage is
the same as that indicated on the appli-
ance rating plate.
6. Switch on the appliance.
The appliance is supplied with a 13 amp
plug fitted
2
. In the event of having to
change the fuse in the plug supplied, a 13
amp ASTA approved (BS 1362) fuse must be
used.
Warning! A cut off plug inserted into a
13 amp socket is a serious safety (shock)
hazard. Ensure that it is disposed of safely.
ENGLISH 17

Environmental concerns
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead it
should be taken to the appropriate collection
point for the recycling of electrical and
electronic equipment. By ensuring this
product is disposed of correctly, you will help
prevent potential negative consequences for
the environment and human health, which
could otherwise be caused by inappropriate
waste handling of this product. For more
detailed information about recycling of this
product, please contact your local council,
your household waste disposal service or the
shop where you purchased the product.
Packaging materials
The materials with the symbol are recy-
clable. Dispose the packaging in a suitable
collection container to recycle it.
IKEA GUARANTEE
How long is the IKEA guarantee valid?
This guarantee is valid for five (5) years from
the original date of purchase of Your appli-
ance at IKEA, unless the appliance is named
LAGAN in which case two (2) years of guar-
antee apply. The original sales receipt is re-
quired as proof of purchase. If service work is
carried out under guarantee, this will not ex-
tend the guarantee period for the appliance,
Which appliances are not covered by the
IKEA five (5) years guarantee?
The range of appliances named LAGAN and
all appliances purchased in IKEA before 1st
of August 2007
Who will execute the service?
IKEA service provider will provide the service
through its own service operations or author-
ized service partner network.
What does this guarantee cover?
The guarantee covers faults of the appliance,
which have been caused by faulty construc-
tion or material faults from the date of pur-
chase from IKEA. This guarantee applies to
domestic use only. The exceptions are speci-
fied under the headline “What is not covered
under this guarantee?” Within the guarantee
period, the costs to remedy the fault e.g. re-
pairs, parts, labour and travel will be cov-
ered, provided that the appliance is accessi-
ble for repair without special expenditure.
On these conditions the EU guidelines (Nr.
99/44/EG) and the respective local regula-
tions are applicable. Replaced parts become
the property of IKEA.
What will IKEA do to correct the problem?
IKEA appointed service provider will exam-
ine the product and decide, at its sole discre-
tion, if it is covered under this guarantee. If
considered covered, IKEA service provider or
its authorized service partner through its own
service operations, will then, at its sole dis-
cretion, either repair the defective product or
replace it with the same or a comparable
product.
What is not covered under this guarantee?
• Normal wear and tear.
ENGLISH 18

• Deliberate or negligent damage, damage
caused by failure to observe operating in-
structions, incorrect installation or by con-
nection to the wrong voltage, damage
caused by chemical or electro-chemical re-
action, rust, corrosion or water damage in-
cluding but not limited to damage caused
by excessive lime in the water supply,
damage caused by abnormal environmen-
tal conditions.
• Consumable parts including batteries and
lamps.
• Non-functional and decorative parts which
do not affect normal use of the appliance,
including any scratches and possible color
differences.
• Accidental damage caused by foreign ob-
jects or substances and cleaning or un-
blocking of filters, drainage systems or
soap drawers.
• Damage to the following parts: ceramic
glass, accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been
caused by production faults.
• Cases where no fault could be found dur-
ing a technician’s visit.
• Repairs not carried out by our appointed
service providers and/or an authorized
service contractual partner or where non-
original parts have been used.
• Repairs caused by installation which is
faulty or not according to specification.
• The use of the appliance in a non-domestic
environment i.e. professional use.
• Transportation damages. If a customer
transports the product to their home or
other address, IKEA is not liable for any
damage that may occur during transport.
However, if IKEA delivers the product to
the customer's delivery address, then dam-
age to the product that occurs during this
delivery will be covered by this guarantee.
• Cost for carrying out the initial installation
of the IKEA appliance. However, if an IKEA
service provider or its authorized service
partner repairs or replaces the appliance
under the terms of this guarantee, the serv-
ice provider or its authorized service part-
ner will re-install the repaired appliance or
install the replacement, if necessary.
This restriction do not apply to fault-free
work carried out by a qualified specialist us-
ing our original parts in order to adapt the
appliance to the technical safety specifica-
tions of another EU country.
How country law applies
The IKEA guarantee gives You specific legal
rights, which covers or exceed local de-
mands. However these conditions do not limit
in any way consumer rights described in the
local legislation
Area of validity
For appliances which are purchased in one
EU country and taken to another EU country,
the services will be provided in the frame-
work of the guarantee conditions normal in
the new country. An obligation to carry out
services in the framework of the guarantee
exists only if the appliance complies and is
installed in accordance with:
• the technical specifications of the country in
which the guarantee claim is made;
• the Assembly Instructions and User Manual
Safety Information;
The dedicated After Sales Service for IKEA
appliances:
Please do not hesitate to contact IKEA After
Sales Service to:
1. make a service request under this guar-
antee;
2. ask for clarification on installation of the
IKEA appliance in the dedicated IKEA
kitchen furniture. The service won’t pro-
vide clarifications related to:
– the overall IKEA kitchen installation;
– connections to electricity (if machine
comes without plug and cable), to wa-
ter and to gas since they have to be
executed by an authorized service en-
gineer.
ENGLISH 19

3. ask for clarification on user manual con-
tents and specifications of the IKEA appli-
ance.
To ensure that we provide you with the best
assistance, please read carefully the Assem-
bly Instructions and/or the User Manual sec-
tion of this booklet before contacting us.
How to reach us if You need our service
Please refer to the last page of this manual
for the full list of IKEA appointed contacts
and relative national phone numbers.
Important! In order to provide You with a
quicker service, we recommend that You use
the specific phone numbers listed at the end
of this manual. Always refer to the numbers
listed in the booklet of the specific appliance
You need an assistance for. Before calling us,
assure that You have to hand the IKEA article
number (8 digit code) for the appliance of
which you need our assistance.
Important! SAVE THE SALES RECEIPT! It is
Your proof of purchase and required for the
guarantee to apply. Note that the receipt
reports also the IKEA article name and
number (8 digit code) for each of the
appliances you have purchased.
Do You need extra help?
For any additional questions not related to
After Sales of your appliances, please con-
tact our nearest IKEA store call centre. We
recommend you read the appliance docu-
mentation carefully before contacting us.
ENGLISH 20
