Before rst use
Your safety and that of others is
paramount.
Remove cardboard protection
pieces, protective lm and
adhesive labels from accessories.
Check the appliance for any
transport damage.
To avoid any damage do
not place any weights on the
appliance. Do not expose the
appliance to atmospheric agents.
This manual and the appliance
itself provide important safety
warnings, to be read and
observed at all times.
This is the attention symbol,
pertaining to safety, which
alerts users to potential risks to
themselves and others.
All safety warnings are preceded
by the attention symbol and the
following terms:
DANGER: indicates a
hazardous situation which, if
not avoided, will cause serious
injury.
WARNING: Indicates a
hazardous situation which, if
not avoided, could cause serious
injury.
All safety warnings give specic
details of the potential danger/
warning present and indicate how
to reduce risk of injury, damage
and electric shock resulting from
improper use of the appliance.
Carefully observe the following
instructions.
Precautions and general
recommendations
• The electrical installation and
the electrical connection must
be carried out by a qualied
technician according to the
manufacturer’s instructions
and in compliance with the
local safety regulations. Do not
repair or replace any part of
the appliance unless specically
stated in the user manual.
• The appliance must be
disconnected from the power
supply before carrying out any
installation work.
WARNING: Failure to install
the screws or xing device in
accordance with these instructions
may result in electrical hazards.
Safety Information
Contents
GB
ENGLISH
Safety Information 4
Use 7
Product description 8
Control panel 8
Cleaning and maintenance 8
What to do if ... 10
Technical data 11
Environmental concerns 12
IKEA GUARANTEE 13

5ENGLISH
• Earthing of the appliance is
compulsory. (Not possible for
class II hoods identied by the
symbol on the dataplate).
• Do not pull the power supply
cable in order to unplug the
appliance.
• The electrical components must
not be accessible to the user
after installation.
• Do not touch the appliance
with any wet part of the body
and do not operate it when
barefoot.
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the appliance
in a safe way and understand
the hazards involved. Children
shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
• All other maintenance services
must be carried out by a
specialised technician.
• When drilling through the wall
pay attention not to damage
electric connections and/or
pipes.
• Air vents must always discharge
to the outside.
• The manufacturer rejects all
responsibilities for any damage
caused by improper use or
wrong settings.
• Appropriate maintenance
and cleaning ensure the good
working order and the best
performance of the appliance.
Regularly clean all stubborn
surface dirt to avoid grease
build up. Remove and clean
or change the lter regularly.
This must be completed in
accordance with the “Cleaning
and maintenance” instructions
provided.
• Never ame cook food (ambé)
under the appliance. Using free
ames might cause re.
• Failure to observe the
instructions for cleaning the
hood and replacing the lters
may result in a re.
• Exhaust air must not be vented
through a ue used for removal
of fumes produced by gas
combustion appliances or other
combustible materials, but must
have a separate outlet. All
national regulations governing
extraction of fumes must be
observed.
• There shall be adequate
ventilation if the hood is being
used at the same time as other
appliances using gas or other
combustible materials. The
negative pressure of the room

6ENGLISH
must not exceed 4 Pa (4x 10-5
bars). For this reason ensure
that the room is well ventilated.
In case of doubts, please consult
an autorized service assitance
center or similar qualied
person.
• Do not leave frying pans
unattended when frying, as the
frying oil may catch re.
• Before touching the light bulbs,
ensure that they are cold.
• Do not use or leave the hood
without the light bulb correctly
tted, as this may cause electric
shock.
• The hood is not a work surface,
therefore do not place any
objects on top of it or overload
it.
• During all installation and
maintenance operations wear
appropriate working gloves.
• This appliance is not suitable for
outdoor use.
WARNING: when the hob is in
use, accessible parts of the
hood may become hot.
Installation and connection
In the event of problems, contact
the Authorized Service Centre. To
prevent any damage, only remove
the appliance from its packaging
at the time of installation.
Preparing for installation
WARNING: this is a heavy
product; the hood should only
be lifted and installed by two or
more people.
The minimum distance between
the hob and the bottom part of the
hood must not be less than 65 cm
for burning gas or other fuels and
50cm for electric cookers.
Before installation also check the
minimum distances stated in the
manual of the cooker.
If the installation instructions for the
cooker specify a greater distance
between cooker and hood, this
distance must be observed.
Electrical connection
Make sure the power voltage
specied on the appliance rating
plate is the same as the mains
voltage.
This information can be found
on the inside of the hood, under
the grease lter. Power cable
replacement (type H05 VV-F)
must be carried out by a qualied
electrician. Contact an authorized
service centre.
If the hood is tted with an electric
plug, connect the plug to a socket
complying with current regulations,
located in an accessible place.

7ENGLISH
The hood has been designed to be
installed and used either as a “Extraction
installation”, or as a “Recirculation
installation”.
Extraction installation (see symbol
in installation booklet)
Cooking steam is sucked and channelled
outside the house through a discharge duct
(not supplied), tted to the hood steam
outlet.
Ensure that the discharge duct is correctly
tted to the air outlet, unit using an
appropriate connection system.
Important: If already installed, remove the
charcoal lter/s.
Recirculation installation
(see symbol in installation booklet)
The air is ltered through one or more the
charcoal lters, and then resent into room.
Important: Ensure appropriate air
circulation around the hood.
Important: If the hood is supplied without
charcoal lters, these must be tted before
the hood can be used. Filters are available
in IKEA shops.
The hood should be installed away from
particularly dirty areas, windows, doors and
heat sources.
The accessories for wall xing are not
included because walls made of different
materials require different types of xing
accessories. Use xing systems suitable for
the walls of your home and the weight of
the appliance. For more details, contact a
specialized dealer.
Keep this booklet for future consultation.
WARNING: if no plug is tted
(direct wiring to the mains), or
if the socket is not located in an
accessible place, a qualied
electrician should install a
standardised double pole power
switch that will enable complete
isolation from the mains in case of
category III overvoltage conditions,
in accordance with wiring rules.
Use

ENGLISH 8
Product description
1Chimney.
2Control Panel.
3Light.
4 Grease lter.
1
2
3
4
Control panel
A B C D E F
AMotor OFF button
BExtraction power 1 selection button.
CExtraction power 2 selection button.
DExtraction power 3 selection button.
EExtraction power 4 selection button.
Timed for 5 minutes
FLight ON/OFF button.
WARNING:
- Never use steam cleaning equipment.
- Disconnect the appliance from the power
supply.
IMPORTANT: do not use corrosive or
abrasive detergents. If any of these products
accidentally comes into contact with the
appliance, clean immediately with a damp
cloth.
• Clean the surfaces with a damp cloth.
If it is very dirty, add a few drops of
washing up detergent to the water.
Finish off with a dry cloth.
IMPORTANT: do not use abrasive sponges
or metallic scrapers or scourers. Over time,
these can ruin the surface.
• Use detergents specically designed for
cleaning the appliance and follow the
manufacturer instructions.
IMPORTANT: clean the lters at least
monthly to remove any oil or grease
residuals.
To clean the grease lter
The metal grease lter has an unlimited life
and must be washed once a month by hand
or dishwasher at low temperature and with
Cleaning and maintenance

ENGLISH 9
a short cycle. With cleaning in a dishwasher
the grease lter may become dull; this does
not effect its ltering capacity.
Grease lter maintenance:
1. Disconnect the hood from the electric
power supply.
2 Remove the grease lters: pull the spring
release handle downwards, then remove
the lter.
3. After cleaning the grease lter, remount
in reverse order ensuring the entire
extraction surface is covered.
Charcoal lter maintenance (if the hood is
installed in recirculation mode)
1. Disconnect the hood from the electric
power supply.
2. Remove the grease lter as previously
indicated in the grease lter chapter.
3. Remove charcoal lter holder
4. Remove/add charcoal lter
5. Hook the carbon lter rstly to the metal
tab at the back on the hood.
6. Fix it at the front with the two knobs.
7. Ret the grease lter.
Unlike traditional charcoal lters, this
charcoal lter can be washed and
reactivated.
With normal hood use, the lter should
be cleaned once a month. The best way
to clean the lter is in a dishwasher at
the highest temperature possible, using
a normal dishwasher detergent. To avoid
particles of food or dirt settling on the
lter during washing and giving rise to
unpleasant smells, it is advisable to wash
the  lter on its own. After washing, dry the
lter in the oven at 100°C for 10 minutes to
reactivate it.The lter will retain its odour-
absorbing capacity for three years, after
which it will have to be replaced.
Lamp maintenance
The hood is equipped with a lighting system
based on LED technology.
The LEDs guarantee an optimum lighting,
a duration up to 10 times as long as the
traditional lamps and allow to save 90%
electrical energy.
For replacement, contact the Authorized
Service Centre.

10ENGLISH
Before contacting the Authorized Service
Centre:
Switch the appliance on again to see if the
problem has disappeared. If not, switch it off
again and repeat the operation after an hour.
If your appliance still does not work properly
after carrying out the checks listed in the
troubleshooting guide and switching the
appliance on again, contact the Authorized
Service Centre, clearly explaining the problem
and specifying:
Problem Possible cause Solution
The appliance does not
work
There is no mains
electrical power
Check for the presence of mains
electrical power.
Turn off the appliance and restart it to
see if the faults persists.
The appliance is not
connected to the
electrical supply
Check if the appliance is connected to
the electrical supply.
Turn off the appliance and restart it to
see if the faults persists.
The hood’s suction level
is not enough
The suction speed is too
low
Check the suction speed and adjust as
necessary.
The grease lters are
dirty 4
Check that the lters are clean
If not, clean the lters in the dishwasher.
The anti-odors lters are
dirty
Check that the anti-odour lters are
properly washed as recommended
The air vents ar e
obstructed
Check the air vents for any obstructions
and remove as necessary.
The light does not work The LED is broken 3For replacement, contact the Authorized
Service Centre.
• the type of fault;
• the model;
• the type and serial number of the appliance
(given on the rating plate);
• the Service number (the number after the
word SERVICE on the rating plate inside the
appliance).
What to do if ...

798
452
696 (734)
1195 (1262)
277
LED
1X7W
Strip Led
65
50
25,3Kg
43.3
0.7
35.1
42.7
416.0
458.0
750.0
152.0
7
203.0
0.49
0.0
61. 0
ENGLISH 11

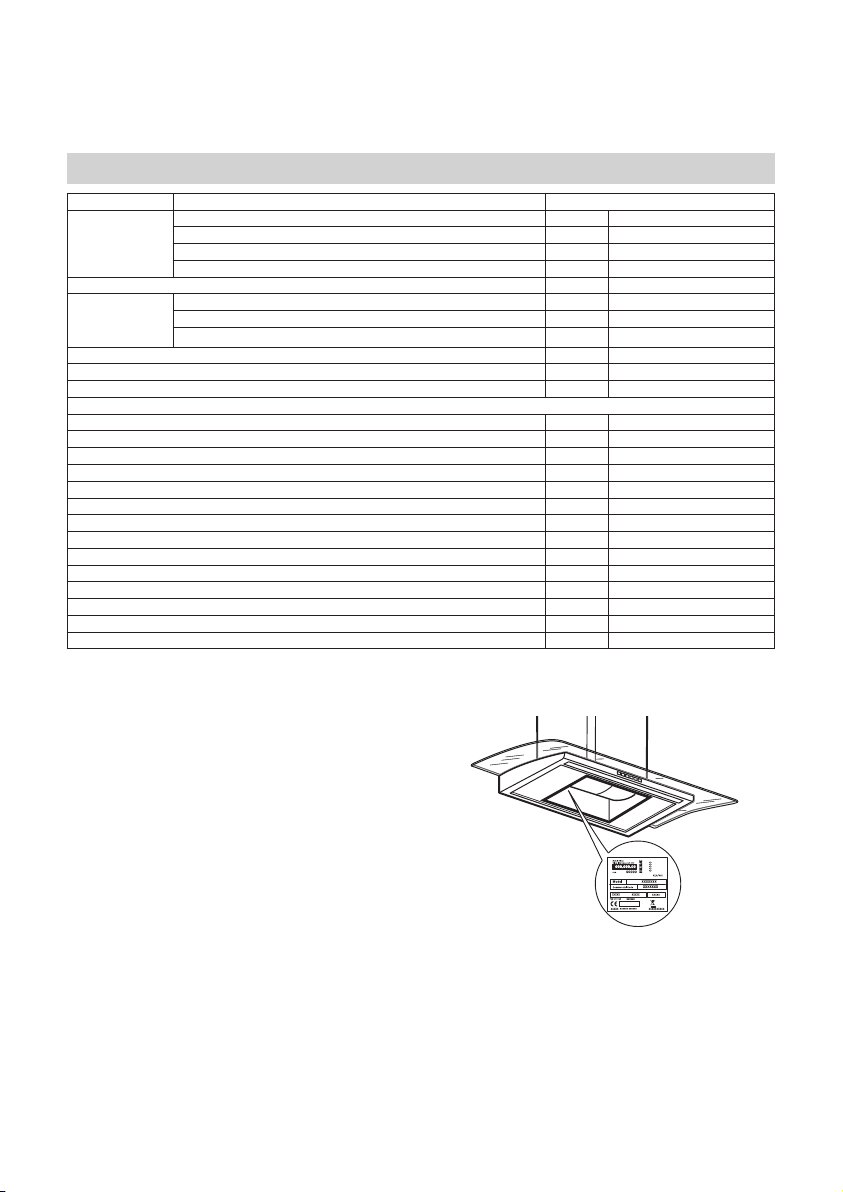

Technical data
The technical information is situated in
the rating plate on the internal side of the
appliance.
Type of product Wall mounted hood
Dimensions
Width mm
Depth mm
Height min mm
Height max mm
Total power W
Lamps info
Type
Number & Power W
Socket
Installation minimum height - gas hob cm
Installation minimum height - elec hob cm
Product Weight Kg
Additional Product Information compliant to commission regulation (EU) No 66/2014
Model identier BALANSERAD 903-889-64
Annual Energy Consumption kWh/a
Time increase factor
Fluid Dynamic Efciency %
Energy Efciency Index
Measured air ow rate at best efciency point m³/h
Measured air pressure at best efciency point Pa
Maximum air ow m³/h
Measured electric power input at best efciency point W
Nominal power of the lighting system W
Average illumination of the lighting system on the cooking surface lux
Power consumption in standby mode W
Power consumption off mode W
A-waighted Sound Power Emission at maximum speed dB(A)

12ENGLISH
Environmental concerns
Disposal of packing
The packing material is 100% recyclable and
is marked with the recycle symbol . The
various parts of the packing must therefore be
disposed of responsibly and in full compliance
with local authority regulations governing
waste disposal.
Scrapping the product
-This appliance is marked in compliance
with European Directive 2012/19/EU, Waste
Electrical and Electronic Equipment (WEEE).
-By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise
be caused by inappropriate waste handling
of this product.
The symbol on the product or on the
accompanying documentation indicates that
it should not be treated as domestic waste but
must be taken to an appropriate collection
centre for the recycling of electrical and
electronic equipment.
Scrapping of household appliances
• This appliance is manufactured with
recyclable or reusable materials. Dispose of
it in accordance with local waste disposal
regulations. Before scrapping, cut off the
power supply cable.
• For further information on the treatment,
recovery and recycling of household
electrical appliances, contact your
competent local authority, the collection
service for household waste or the store
where you purchased the appliance.
Energy saving tips
• Switch ON the hood at minimum speed
when you start cooking and kept it running
for few minutes after cooking is nished.
• Increase the speed only in case of large
amount of smoke and vapour and use boost
speed(s) only in extreme situations.
• Replace the charcoal lter(s) when
necessary to maintain a good odour
reduction efciency.
• Clean the grease lter(s) when necessary to
maintain a good grease lter efciency.
• Use the maximum diameter of the ducting
system indicated in this manual to optimize
efciency and minimize noise.
Declaration of conformity n
This appliance has been designed,
manufactured and marketed in compliance
with:
-safety objectives of the “Low Voltage”
Directive 2014/35/EU;
-the eco design requirements of european
regulations n. 65/2014, and n. 66/2014 in
conformity to the european standard en
61591 ;
-the protection requirements of Directive
“EMC” 2014/30/EU.
Electrical safety of the appliance can only be
guaranteed if it is correctly connected to an
approved earthing system.

13ENGLISH
How long is the IKEA guarantee valid?
This guarantee is valid for ve years from the
original date of purchase of your appliance
at IKEA. The original sales receipt, is required
as proof of purchase. If service work is carried
out under guarantee, this will not extend the
guarantee period for the appliance.
Which appliances are not covered by the
IKEA ve (5) years guarantee?
The range of appliances named LAGAN and
all appliances purchased in IKEA before 1st of
August 2007.
Who will execute the service?
IKEA service provider will provide the
service through its own service operations or
authorized service partner network.
What does this guarantee cover?
The guarantee covers faults of the appliance,
which have been caused by faulty construction
or material faults from the date of purchase
from IKEA. This guarantee applies to domestic
use only. The exceptions are specied under
the headline “What is not covered under this
guarantee?” Within the guarantee period,
the costs to remedy the fault e.g. repairs,
parts, labour and travel will be covered,
provided that the appliance is accessible for
repair without special expenditure. On these
conditions the EU guidelines (Nr. 99/44/
EG) and the respective local regulations
are applicable. Replaced parts become the
property of IKEA.
What will IKEA do to correct the problem?
IKEA appointed Service Provider will examine
the product and decide, at its sole discretion,
if it is covered under this guarantee. If
considered covered, IKEA Service Provider
or its authorized service partner through its
own service operations, will then, at its sole
discretion, either repair the defective product
or replace it with the same or a comparable
product.
What is not covered under this guarantee?
• Normal wear and tear.
IKEA GUARANTEE
• Deliberate or negligent damage, damage
caused by failure to observe operating
instructions, incorrect installation or by
connection to the wrong voltage, damage
caused by chemical or electrochemical
reaction, rust, corrosion or water damage
including but not limited to damage caused
by excessive lime in the water supply,
damage caused by abnormal environmental
conditions.
• Consumable parts including batteries and
lamps.
• Non-functional and decorative parts which
do not affect normal use of the appliance,
including any scratches and possible color
differences.
• Accidental damage caused by foreign
objects or substances and cleaning or
unblocking of lters, drainage systems or
soap drawers.
• Damage to the following parts: ceramic
glass, accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been
caused by production faults.
• Cases where no fault could be found during
a technician’s visit.
• Repairs not carried out by our appointed
service providers and/or an authorized
service contractual partner or where non-
original parts have been used.
• Repairs caused by installation which is faulty
or not according to specication.
• The use of the appliance in a non-domestic
environment i.e. professional use.
• Transportation damages. If a customer
transports the product to his home or
another address, IKEA is not liable for any
damage that may occur during transport.
However, if IKEA delivers the product to the
customer’s delivery address, then damage
to the product that occurs during this
delivery will be covered by IKEA.

14ENGLISH
• Cost for carrying out the initial installation of
the IKEA appliance.
However, if an IKEA appointed Service
Provider or its authorized service partner
repairs or replaces the appliance under
the terms of this guarantee, the appointed
Service Provider or its authorized service
partner will reinstall the repaired appliance
or install the replacement, if necessary.
• This does not apply within Ireland, customer
should contact the local IKEA dedicated
after sales line or the appointed Service
Provider for further information.
(just for GB)
These restrictions do not apply to fault-free
work carried out by a qualied specialist
using our original parts in order to adapt the
appliance to the technical safety specications
of another EU country.
How country law applies
The IKEA guarantee gives you specic legal
rights, which cover or exceed all the local legal
demands. However these conditions do not
limit in any way consumer rights described in
the local legislation.
Area of validity
For appliances which are purchased in one EU
country and taken to another EU country, the
services will be provided in the framework of
the guarantee conditions normal in the new
country.
An obligation to carry out services in the
framework of the guarantee exists only if
the appliance complies and is installed in
accordance with:
- the technical specications of the country in
which the guarantee claim is made;
-the Assembly Instructions and User Manual
Safety Information.
The dedicated AFTER SALES for IKEA
appliances
Please don’t hesitate to contact IKEA
appointed Authorized Service Centre to:
• make a service request under this
guarantee;
• ask for clarications on installation of the
IKEA appliance in the dedicated IKEA
kitchen furniture;
• ask for clarication on functions of IKEA
appliances.
To ensure that we provide you with the best
assistance, please read carefully the Assembly
Instructions and/or the User Manual before
contacting us.
How to reach us if you need our service
Please refer to the last page of
this manual for the full list of IKEA
appointed Authorized Service Centre
and relative national phone numbers.
i
In order to provide you a quicker
service, we recommend to use the
specic phone numbers listed on this
manual. Always refer to the numbers
listed in the booklet of the specic
appliance you need an assistance for.
Please also always refer to the IKEA
article number (8 digit code) and 12
digit service number placed on the
rating plate of your appliance.
i
SAVE THE SALES RECEIPT!
It is your proof of purchase and required
for the guarantee to apply. The sales
receipt also reports the IKEA name and
article number (8 digit code) for each of
the appliances you have purchased.
Do you need extra help?
For any additional questions not related
to After Sales of your appliances please
contact your nearest IKEA store call centre.
We recommend you read the appliance
documentation carefully before contacting us.

15
BELGIË - BELGIQUE - BELGIEN
Telefoon/Numéro de téléphone/Telefon-Nummer: 026200311
Tarief/Tarif/Tarif: Lokaal tarief/Prix d’un appel local/Ortstarif
Openingstijd: Maandag - Vrijdag 8.00 - 20.00
Heures d’ouverture: Lundi - Vendredi 8.00 - 20.00
Öffnungszeiten: Montag - Freitag 8.00 - 20.00
БЪЛГАРИЯ
Телефонен номер: 02 4003536
Тарифа: Локална тарифа
Работно време: понеделник - петък 8.00 - 20.00
ČESKÁ REPUBLIKA
Telefonní číslo: 225376400
Sazba: Místní sazba
Pracovní doba: Pondělí - Pátek 8.00 - 20.00
DANMARK
Telefonnummer: 70150909
Takst: Lokal takst
Åbningstid: Mandag - fredag 9.00 - 20.00
Lørdag 9.00 - 18.00
(Åbent udvalgte søndage, se IKEA.dk)
DEUTSCHLAND
Telefon-Nummer: 06929993602
Tarif: Ortstarif
Öffnungszeiten: Montag - Freitag 8.00 - 20.00
ΕΛΛΑΔΑ
Τηλεφωνικός αριθμός: 2109696497
Χρέωση: Τοπική χρέωση
Ώρες λειτουργίας: Δευτέρα - Παρασκευή 8.00 - 20.00
ESPAÑA
Teléfono: 913754126 (España Continental)
Tarifa: Tarifa local
Horario: Lunes - Viernes 8.00 - 20.00
EESTI
http://www.ikea.com
FRANCE
Numéro de téléphone: 0170480513
Tarif: Prix d’un appel local
Heures d’ouverture: Lundi - Vendredi 9.00 - 21.00
HRVATSKA
Broj telefona: 0800 3636
Tarifa: Lokalna tarifa
Radno vrijeme: Ponedjeljak - Petak 8.00 - 20.00
ÍSLAND
Símanúmer: 5852409
Kostnaður við símtal: Almennt mínútuverð
Opnunartími: Mánudaga - Föstudaga 9.00 - 17.00
ITALIA
Telefono: 0238591334
Tariffa: Tariffa locale
Orari d’apertura: Lunedì - Venerdì 8.00 - 20.00
LATVIJA
http://www.ikea.com
LIETUVIŲ
Telefono numeris: (0) 520 511 35
Skambučio kaina: Vietos mokestis
Darbo laikas: Nuo pirmadienio iki
penktadienio 8.00 - 20.00
LUXEMBOURG
Numéro de téléphone: 035220882569
Tarif: Prix d’un appel local
Heures d’ouverture: Lundi - Vendredi 8.00 - 18.00
MAGYARORSZÁG
Telefon szám: (06-1)-3285308
Tarifa: Helyi tarifa
Nyitvatartási idő: Hétfőtől Péntekig 8.00 - 20.00
NEDERLAND
Telefoon: 0900-235 45 32 en/of 0900 BEL IKEA
0031-50 316 8772 international
Tarief: Geen extra kosten. Alleen lokaal tarief.
Openingstijd: Maandag t/m - Vrijdag 8.00 - 21.00
Zaterdag 9.00 - 21.00
Zondag / Feestdagen 10.00 - 18.00
NORGE
Telefon nummer: 2 3 5 0 0112
Takst: Lokal takst
Åpningstider: Mandag - fredag 8.00 - 20.00
ÖSTERREICH
Telefon-Nummer: 01360 2771461
Tarif: Ortstarif
Öffnungszeiten: Montag - Freitag 8.00 - 20.00
POLSKA
Numer telefonu: 225844203
Stawka: Koszt połączenia według taryfy
operatora
Godziny otwarcia: Poniedziałek - Piątek 8.00-20.00
PORTUGAL
Telefone: 213164011
Tarifa: Tarifa local
Horário: Segunda - Sexta 9.00 - 21.00
REPUBLIC OF IRELAND
Phone number: 016590276
Rate: Local rate
Opening hours: Monday - Friday 8.00 - 20.00
ROMÂNIA
Număr de telefon: [phone]
Tarif: Tarif local
Orar: Luni - Vineri 8.00 - 20.00
РОССИЯ
Телефонный номер: 84957059426
Стоимость звонка: Местная стоимость звонка
Время работы: Понедельник - Пятница 9.00 - 21.00
(Московское время)
SCHWEIZ - SUISSE - SVIZZERA
Telefon-Nummer/Numéro de téléphone/Telefono: 0225675345
Tarif/Tarif/Tariffa: Ortstarif/Prix d’un appel local/Tariffa locale
Öffnungszeiten: Montag - Freitag 7.30-12.00/13,00-17,30
Heures d’ouverture: Lundi - Vendredi 7.30-12.00/13,00-17,30
Orario d’apertura: Lunedì - Venerdì 7.30-12.00/13,00-17,30
SLOVENSKO
Telefónne číslo: [phone]
Cena za hovor: Cena za miestny hovor
Pracovná doba: Pondelok až piatok 8.00 - 20.00
SLOVENIJA
http://www.ikea.com
SRBIJA
Број телефона: 011 7 555 444
стопа: lokalna курс
Радно време: Понедељак - субота 9.00 - 20.00
недеља 9.00 - 18.00
SUOMI
Puhelinnumero: 0981710374
Hinta: Yksikköhinta
Aukioloaika: Maanantaista perjantaihin8.00 - 20.00
SVERIGE
Telefon nummer: 0775-700 500
Taxa: Lokal samtal
Öppet tider: Måndag - Fredag 8.30 - 20.00
Lördag - Söndag 9.30 - 18.00
UNITED KINGDOM
Phone number: 02076601517
Rate: Local rate
Opening hours: Monday - Friday 8,30am - 6,30pm
Saturday 8,30am - 5,30pm
Sunday 9,30am - 3,30pm

© Inter IKEA Systems B.V. 2017 23244 AA-2044585-4
LIB0140199B Ed.10/18
