IKEA UNDERVERK 804.432.11 User manual

AA-2118939-5
© Inter IKEA Systems B.V. 2019 23199
991.0576.597_05 - 220916
D00005794_04

ENGLISH 4
4
2
1345
Please refer to the last page
of this manual for the full list
of IKEA appointed Authorized
Service Centre and relative
national phone number
2
1345

5 ENGLISH
Contents
Safety information 4
Product description 8
Care and cleaning 9
What to do if... 11
Technical data 12
Energy efficiency 13
Environment concerns 14
IKEA GUARANTEE 14
Safety information
For your safety and correct operation of the appliance, read
this manual carefully before installation and use. Always
keep these instructions with the appliance even if you move or
sell it. Users must fully know the operation and safety features
of the appliance.
The wire connection has to be done by specialized
technician.
• The manufacturer will not be held liable for any damages
resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and
the extractor hood is: for electrical hob 500mm and for gas
hob 650mm.
• If the instructions for installation for the gas hob specify a
greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated
on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply
guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of
minimum diameter 120 mm. The route of the flue must be
as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying
combustion fumes (boilers, fireplaces, etc.).

6 ENGLISH
• If the extractor is used in conjunction with non-electrical
appliances (e.g. gas burning appliances), a sufficient degree
of aeration must be guaranteed in the room in order to
prevent the backflow of exhaust gas. When the cooker hood
is used in conjunction with appliances supplied with energy
other than electric, the negative pressure in the room must
not exceed 0,04 mbar to prevent fumes being drawn back
into the room by the cooker hood.
• The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other
fuels.
• If the supply cord is damaged, it must be replaced from the
manufacturer or its service agent.
• Connect the plug to a socket complying with current
regulations, located in an accessible place.
• With regards to the technical and safety measures to be
adopted for fume discharging it is importat to closely follow
the regulations provided by the local authorities.
WARNING: Before installing the Hood, remove the
protective films.
• Use only screws and small parts in support of the hood.
WARNING: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
• Connect the hood to the power net by using a bipolar switch
having a contact gap of at least 3 mm.
• Do not look directly at the light through optical devices
(binoculars, magnifying glasses…).
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning

7 ENGLISH
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
• Children should be supervised to ensure that they do not
play with the appliance.
• The appliance is not to be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction
Accessible parts may become hot when used with cooking
appliances.
• Clean and/or replace the Filters after the specified time
period (Fire hazard).
• There shall be adequate ventilation of the room when the
range hood is used at the same time as appliances burning
gas or other fuels (not applicable to appliances that only
discharge the air back into the room).

8 ENGLISH
Use
• Switch off or unplug the appliance
from the mains supply before
carrying out any maintenance work.
• The top of the hood must not to be used
as a shelf.
• The extractor hood has been
designed exclusively for domestic
use to eliminate kitchen smells.
• Never use the hood for purposes
other than for which it has been
designed.
• Never leave high naked flames under
the hood when it is in operation.
• Adjust the flame intensity to direct
it onto the bottom of the pan only,
making sure that it does not engulf
the sides.
Deep fat fryers must be continuously
monitored during use: overheated oil
can burst into flames.
Installation modes
The hood has been designed to be installed
and used either as a “Exhaust mode”, or as
a “Recirculation mode”.
Exhaust mode (see symbol
9
min 471 mm
max 861 mm
min 569 mm
max 861 mm
min 471 mm
max 861 mm
min 569 mm
max 861 mm
in
installation booklet)
Cooking steam is sucked and
channelled outside the house through
a discharge duct (not supplied), fitted to
the hood steam outlet.
Ensure that the discharge duct is
correctly fitted to the air outlet, unit
using an appropriate connection
system.
Recirculation mode (see symbol
9
min 471 mm
max 861 mm
min 569 mm
max 861 mm
min 471 mm
max 861 mm
min 569 mm
max 861 mm
in installation booklet)
The air is filtered through one or more
the charcoal filters, and then resent into
room.
Important: Ensure appropriate air
circulation around the hood.
Important: If the hood is supplied
without charcoal filters and installed on
recirculation mode, these must be fitted
before the hood can be used. Filters are
available in shops.
The hood should be installed away from
particularly dirty areas, windows, doors
and heat sources.
The accessories for wall fixing are not
included because wall made of different
materials require different types of
fixing accessories. Use fixing systems
suitable for the walls of your home and
the weight of the appliance. For more
details, contact a specialized dealer.
Keep this booklet for future
consultation.

9 ENGLISH

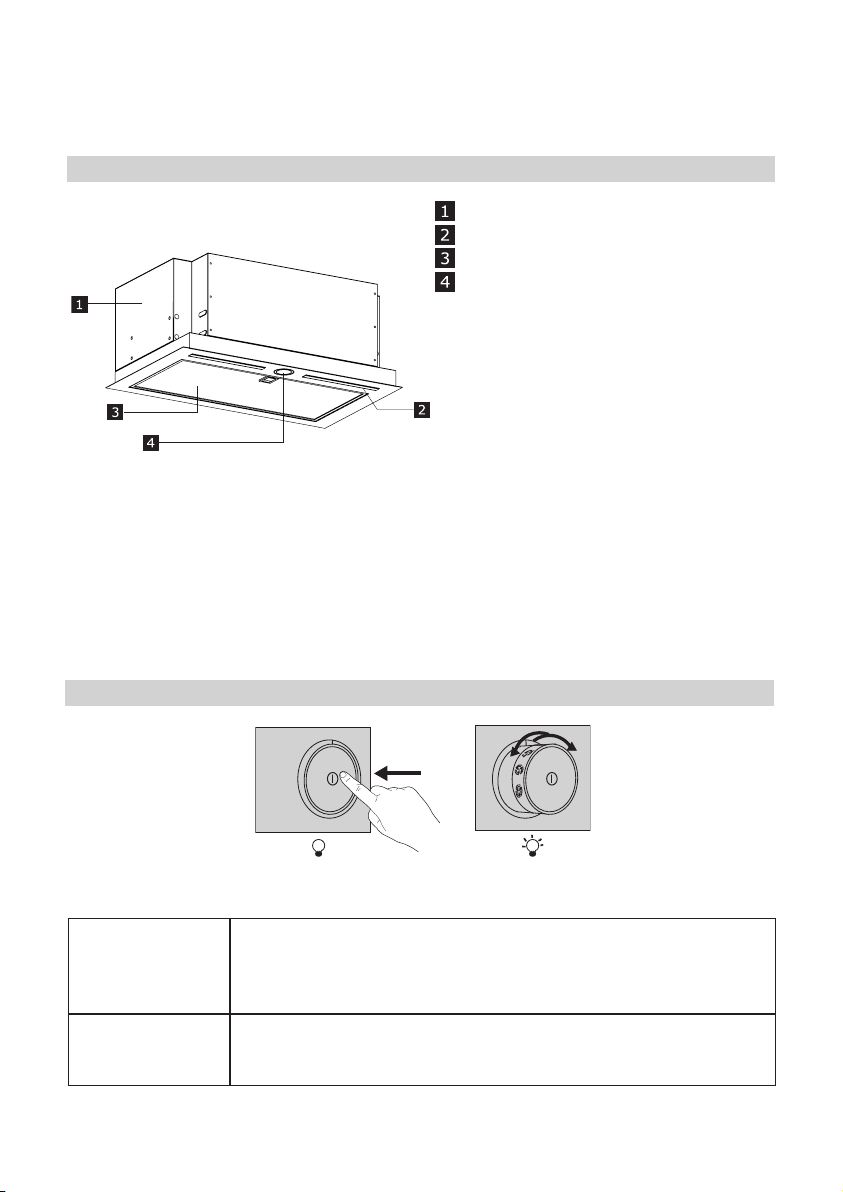

Product description
Hood body
LED Lighting
Grease filter
Control panel
Control Panel
Lights
To turn the lights on, press the dial and release it so that it pops
out of its housing.
To turn the lights o, push the dial back inwards, returning it to
the o position.
Motor
Speed
Adjustment
Press the dial and release it so that it pops out of its housing, then
turn the dial to select one of the available suction speeds.

10 ENGLISH
Care and cleaning
Switch off or unplug the appliance
from the mains supply before carrying out
any maintenance work.
IMPORTANT Clean the hood using a damp
cloth and a neutral liquid detergent.
Long Life Charcoal Filter (Green)
The anti-odour filter can be washed and
regenerated every 3-4 months (or more
frequently if the hood is subject to intensive
use), up to a Max. of 8 regeneration cycles (in
case of particularly intensive use it is recom-
mended that you do not exceed 5 cycles).
Regeneration procedure:
• Wash in the dishwasher at a MAX
temperature of 70° or hand wash in hot
water without using abrasive sponges
(do not use detergents!).
• Dry in the oven at a MAX temperature
of 70° for 2 hours (it is recommended to
read carefully the user manual and the
assembly instruction of the oven of your
own).
• Switch ON the hood at minimum speed when you start cooking and keep it running for
few minutes after cooking is finished.
• Increase the speed only in case of large amount of smoke and vapour and use boost
speed(s) only in extreme situations.
• Replace the charcoal filter(s) when necessary to maintain a good odour reduction ef-
ficiency.
• Clean the grease filter(s) when necessary to maintain a good grease filter efficiency.
• Use the maximum diameter of the ducting system indicated in this manual to optimize
efficiency and minimize noise.
General hints

11 ENGLISH

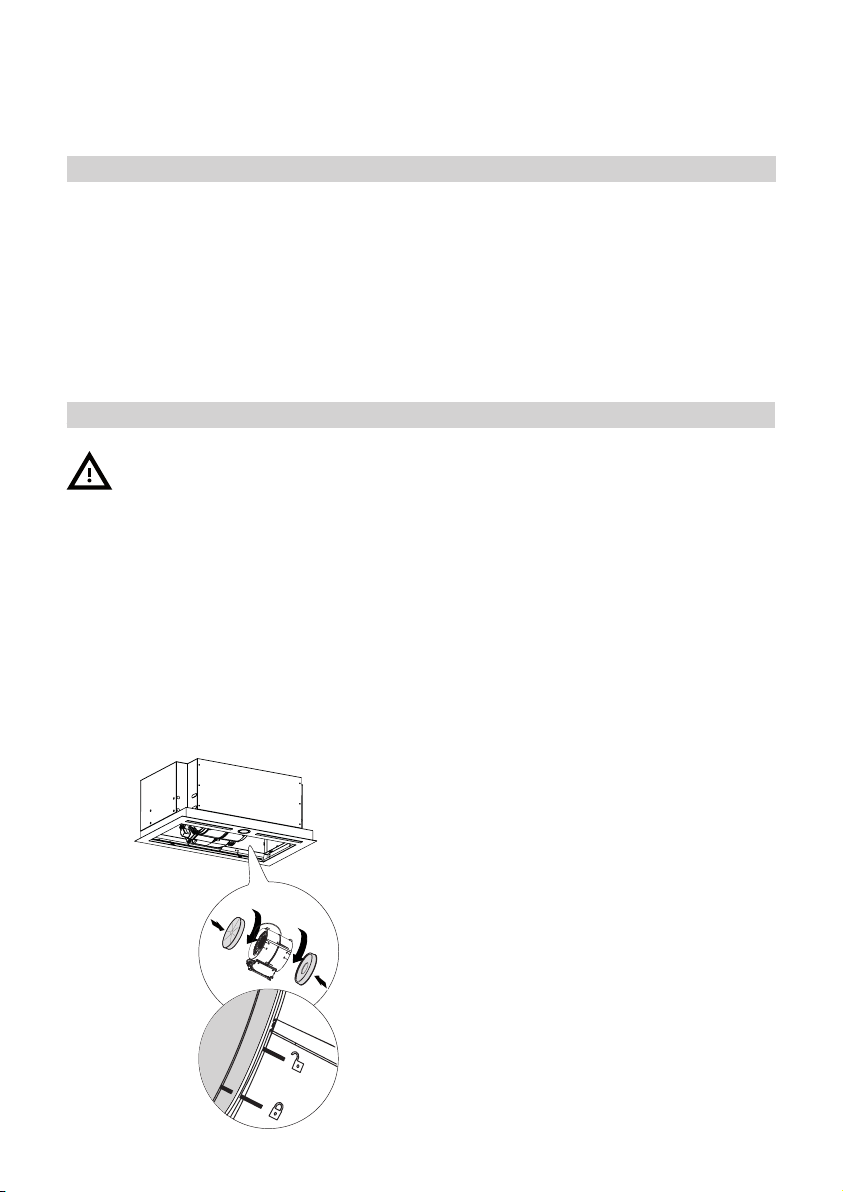

Grease Filters
Clean or replace the filters continuously ac-
cording to below time intervals, to maintain
good performance of the hood and to
prevent a potential fire hazard, caused by
excessive grease build-up.
The grease filters must be cleaned every 2
months of operation, or more frequently
for particularly heavy usage, and can be
washed in a dishwasher.
Replacing the lamps
For Replacement please contact an Author-
ized Service Center.

12 ENGLISH
What to do if...
If there is a fault, first try to find a solution
to the problem yourself. If you cannot find a
solution to the problem yourself, contact an
authorized service center.
If you operated the appliance wrongly,
or the installation was not carried out
according to the Assembly instructions, the
visit from the Authorized Service Centre
technician may not take place free of
charge, even during the warranty period.
Before contacting the Authorized Service Centre:
Switch the appliance on again to see if the problem has disappeared. If not, switch it off
again and repeat the operation after an hour.
If your appliance still does not work properly after carrying out the checks listed in the trou-
bleshooting guide and switching the appliance on again, contact the Authorized Service
Centre, clearly explaining the problem and specifying:
• the type of fault;
• the model;
• the type and serial number of the appliance (given on the rating plate).
PROBLEM POSSIBLE CAUSE SOLUTION
Appliance not stable The appliance is not correctly installed Follow the Installation instruction
enclosed to the appliance.
Appliance is not in horizontal
position The appliance is not correctly installed Follow the Installation instruction enclosed to the appliance.
Performance in terms of oil cap-
ture are not satisfying Oil and grease on metal lters or charcoal lters. Follow the cleaning frequency of lters as described in the user manual
Appliance does not work The appliance is not correctly con-
nected
Verify that the main cable is connected
to the motor group or the plug is con-
nected to the socket
The light does not work The LED is broken You can replace the lamp without con-
tact the Authorized Service Centre.
Noise of hood is higher than
customer expectation.
Air outlet diameter in the wall is too
small, causing a pressure drop and
an increase in motor speed.
Follow the Installation instruction
enclosed to the appliance.
Product is installed in recirculation
mode.
Product in recirculation mode(and
using a charcoal lter) will generate an
higher noise than a product in extra-
tion mode.
More than one bend in the ventila-
tion duct.
If the exhaust system in the build-
ing has multiple bend in or a long
distance, this can increase the noise of
the product.

13 ENGLISH
This appliance has been designed,
manufactured and marketed in compliance
with the E.E.C. Directives.
The technical information is situated in
the rating plate on the internal side of the
appliance.
Technical Data
Unit Value
Product Type Built-in hood
Dimensions
Width mm 599
Depth mm 358
Height min/max mm 245
Airow max* - Exhaust m3/h 630
Noise max* - Exhaust dBA 64
Airow max* - Recirculating m3/h 365
Noise max* - Recirculating dBA 79
Total Power W256
Lamps info
Type LED BAR
Number & Power 2 x 3W
Socket N/A
Installation minimum height - gas hob mm 650
Installation minimum height - elec hob mm 500
Net Weight Kg 11 - 12
* Maximum speed (boost excluded).

14 ENGLISH
Energy efficiency
Product Information according to EU n°66/2014 Unit Value
Model identier
UNDERVERK
804.432.11
004.432.10
Annual Energy Consumption kWh/a 38,5
Time increase factor 0,7
Fluid Dynamic Eciency 34,8
Energy Eciency Index 41,8
Measured air ow rate at best eciency point m3/h 373,0
Measured air pressure at best eciency point Pa 448
Maximum air ow m3/h 630,0
Measured electric power input at best eciency point W133,5
Nominal power of the lighting system W6
Average illumination of the lighting system on the cooking surface lux 220
Measured power consumption in standby mode WN/A
Measured power consumption o mode W0,00
Sound power level at maximum speed (boost excluded) dBA 64
Normative references:
EN/IEC 61591
EN/IEC 60704-1
EN/IEC 60704-2-13
EN/IEC 60704-3
EN 50564
Energy saving
The appliance contains features which help
you save energy during everyday cooking.

15 ENGLISH
Environment concerns
IKEA GUARANTEE
Maintenance
• The symbol on the product or on
its packaging indicates that this product
may not be treated as household waste.
Instead it shall be handed over to the ap-
plicable collection point for the recycling
of electrical and electronic equipment.
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environ-
ment and human health, which could
otherwise be caused by inappropriate
waste handling of this product.
For more detailed information about
How long is the IKEA guarantee valid?
This guarantee is valid for five (5) years –
two (2) years if the appliance is named LA-
GAN or TILLREDA - from the original date of
purchase of your appliance at IKEA or from
the installation date with maximum limit of
three months from the purchase date.
The original sales receipt, is required as
proof of purchase.
If service work is carried out under guar-
antee, this will not extend the guarantee
period for the appliance.
Once a warranted product has been re-
placed, the replaced product warranty will
be valid for the balance period from date of
original purchase invoice
Who will execute the service?
IKEA service provider will provide the ser-
vice through its own service operations or
authorized service partner network.
What does this guarantee cover?
• The guarantee covers faults of the appli-
ance, which have been caused by faulty
recycling of this product, please contact
your local city office, your household
waste disposal service or the shop
where you purchased the product.
Packaging materials
The materials with the symbol are re-
cyclable. Dispose the packaging in suitable
collection containers to recycle it.
construction or material faults from the
date of purchase from IKEA or from the
installation date with maximum limit of
three months from the purchase date.
• This guarantee applies to domestic use
only.
• The exceptions are specified under the
headline “What is not covered under this
guarantee?” Within the guarantee period,
• The costs to remedy the fault e.g. repairs,
parts, labour and travel will be covered,
provided that the appliance is accessible
for repair without special expenditure.
On these conditions the respective local
regulations are applicable.
• Replaced parts become the property of
IKEA.
• In case of non-repairable product, the
retail value of the replacement will not
exceed the purchase price that was paid
by the customer
What will IKEA do to correct the prob-
lem?
• IKEA appointed Service Provider will ex-

16 ENGLISH
amine the product and decide, at its sole
discretion, if it is covered under this guar-
antee. If considered covered, IKEA Service
Provider or its authorized service partner
through its own service operations, will
then, at its sole discretion, either repair
the defective product or replace it with
the same or a comparable product.
What is not covered under this guaran-
tee?
• Normal wear and tear.
• Deliberate or negligent damage, damage
caused by failure to observe operat-
ing instructions, incorrect installation
or by connection to the wrong voltage,
damage caused by chemical or elec-
trochemical reaction, rust, corrosion or
water damage including but not limited
to damage caused by excessive lime in
the water supply, damage caused by
abnormal environmental conditions.
• Consumable parts including batteries
and lamps.
• Non-functional and decorative parts
which do not affect normal use of the
appliance, including any scratches and
possible colour differences.
• Accidental damage caused by foreign
objects or substances and cleaning or
unblocking of filters, drainage systems or
soap drawers.
• Damage to the following parts: ceramic
glass, accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been
caused by production faults.
• Cases where no fault could be found dur-
ing a technician’s visit.
• Repairs not carried out by our appointed
service providers and/or an authorized
service contractual partner or where non-
original parts have been used.
• Repairs caused by installation which is
faulty or not according to specification
• The use of the appliance in a non-domes-
tic environment i.e. professional use.
• Transportation damages. If a customer
transports the product to his home or
another address, IKEA is not liable for any
damage that may occur during transport.
However, if IKEA delivers the product to
the customer’s delivery address, then
damage to the product that occurs dur-
ing this delivery will be covered by IKEA.
• Damage resulting from power outage,
power surges or dips, fluctuating voltage
or improper voltage All workout parts are
not covered by the guarantee e.g.: filters
and cleanliness.
• Cost for carrying out the initial installa-
tion of the IKEA appliance. However, if
an IKEA appointed Service Provider or
its authorized service partner repairs or
replaces the appliance under the terms
of this guarantee, the appointed Service
Provider or its authorized service partner
will reinstall the repaired appliance or
install the replacement, if necessary.
• All plumping and electrical installation,
are not the responsibility of IKEA, and
customer must complete these work
before the execution work.
How country law applies
The IKEA guarantee gives you specific legal
rights, which cover or exceed all the local
legal demands. However these conditions
do not limit in any way consumer rights
described in the local legislation.
Area of validity
This warranty is valid only in the country
where the product has been purchased; the
services will be provided in the framework
of the guarantee conditions.

17 ENGLISH
An obligation to carry out services in the
framework of the guarantee exists only if
the appliance complies and is installed in
accordance with:
- the technical specifications of the country
in which the guarantee claim is made;
- the Assembly Instructions and User
Manual Safety Information.
The dedicated AFTER SALES for IKEA ap-
pliances
Please don’t hesitate to contact IKEA ap-
pointed After Sales Service Provider to:
• make a service request under this guar-
antee;
• ask for clarifications on installation of the
IKEA appliance in the dedicated IKEA
kitchen furniture;
• ask for clarification on functions of IKEA
appliances.
To ensure that we provide you with the best
assistance, please read carefully the Assem-
bly Instructions and/or the User Manual
before contacting us.
How to reach us if You need our service
Please refer to the last page of this manual
for the full list of IKEA appointed contacts
and relative national phone numbers.
In order to provide you a quicker service,
we recommend to use the specific phone
numbers listed on this manual. Always
refer to the numbers listed in the book-
let of the specific appliance you need an
assistance for.
Please also always refer to the IKEA arti-
cle number (8 digit code) placed on the
rating plate of your appliance.
SAVE THE SALES RECEIPT!
It is your proof of purchase and required for
the guarantee to apply. The sales receipt
also reports the IKEA name and article
number (8 digit code) for each of the appli-
ances you have purchased.

UNITED ARAB EMIRATES
Toll free:
Web:
800 4532
www.IKEA.com
: يناجم مقر
:
QATAR
Toll free:
Web:
e-mail:
800 4532
www.IKEA.qa
Ik[email protected]
: يناجم مقر
:
:
EGYPT
Hotline:
Web:
e-mail:
16576
www.IKEA.eg
[e-mail]
: نخاسلا طخلا
:
:
STATE OF KUWAIT
Contact centre:
Web:
e-mail:
[phone]
www.IKEA.com.kw
[email protected]
:
:
:
JORDAN
Contact centre:
Web:
[phone]
www.IKEA.jo
:
:
KINGDOM OF SAUDI ARABIA
Contact centre:
Our phone lines are open:
Saturday - Thursday
Friday
92000-4532
09:00 AM - 10:00 PM
2:00 PM - 10:00 PM
:
: ةحوتفم انيدل فتاهلا طوطخ
سيمخلا - تبسلا
ةعمجلا موي
BAHRAIN
Contact centre:
Our telephone lines are open
all day
80001120
09:00 AM - 10:00 PM
:
مويلا لاوط ةحوتفم انيدل فتاهلا طوطخ
& OMAN
MAROC
UNITED ARAB EMIRATES
Toll free:
Web:
800 4532
www.IKEA.com
: يناجم مقر
:
QATAR
Toll free:
Web:
e-mail:
800 4532
www.IKEA.qa
[e-mail]
: يناجم مقر
:
:
EGYPT
Hotline:
Web:
e-mail:
16576
www.IKEA.eg
[e-mail]
: نخاسلا طخلا
:
:
STATE OF KUWAIT
Contact centre:
Web:
e-mail:
[phone]
www.IKEA.com.kw
[email protected]om.kw
:
:
:
JORDAN
Contact centre:
Web:
[phone]
www.IKEA.jo
:
:
KINGDOM OF SAUDI ARABIA
Contact centre:
Our phone lines are open:
Saturday - Thursday
Friday
92000-4532
09:00 AM - 10:00 PM
2:00 PM - 10:00 PM
:
: ةحوتفم انيدل فتاهلا طوطخ
سيمخلا - تبسلا
ةعمجلا موي
BAHRAIN
Contact centre:
Our telephone lines are open
all day
80001120
09:00 AM - 10:00 PM
:
مويلا لاوط ةحوتفم انيدل فتاهلا طوطخ
UNITED ARAB EMIRATES
Toll free:
Web:
800 4532
www.IKEA.com
: يناجم مقر
:
QATAR
Toll free:
Web:
e-mail:
800 4532
www.IKEA.qa
[e-mail]
: يناجم مقر
:
:
EGYPT
Hotline:
Web:
e-mail:
16576
www.IKEA.eg
[e-mail]
: نخاسلا طخلا
:
:
STATE OF KUWAIT
Contact centre:
Web:
e-mail:
[phone]
www.IKEA.com.kw
[email protected]om.kw
:
:
:
JORDAN
Contact centre:
Web:
[phone]
www.IKEA.jo
:
:
KINGDOM OF SAUDI ARABIA
Contact centre:
Our phone lines are open:
Saturday - Thursday
Friday
92000-4532
09:00 AM - 10:00 PM
2:00 PM - 10:00 PM
:
: ةحوتفم انيدل فتاهلا طوطخ
سيمخلا - تبسلا
ةعمجلا موي
BAHRAIN
Contact centre:
Our telephone lines are open
all day
80001120
09:00 AM - 10:00 PM
:
مويلا لاوط ةحوتفم انيدل فتاهلا طوطخ
[phone]
www.IKEA.com
برﻐﻣﻟا
