Safety information
For your own safety and correct operation of the appliance,
please read this manual carefully before installation and op-
eration. Always keep these instructions together with the
appliance, even if it is sold or transferred to third parties. It is
important that users are familiar with all the appliance's op-
erating and safety characteristics.
Connection of the wiring must be performed by a specialist
technician.
• The manufacturer cannot be held responsible for any damage
resulting from incorrect or inadequate installation.
• The minimum safety distance between the cooker hob and the
extractor hood is: for electrical hob 500mm and for gas hob
500mm.
• If the gas hob installation instructions specify a distance
greater than that indicated above, this must be taken into ac-
count.

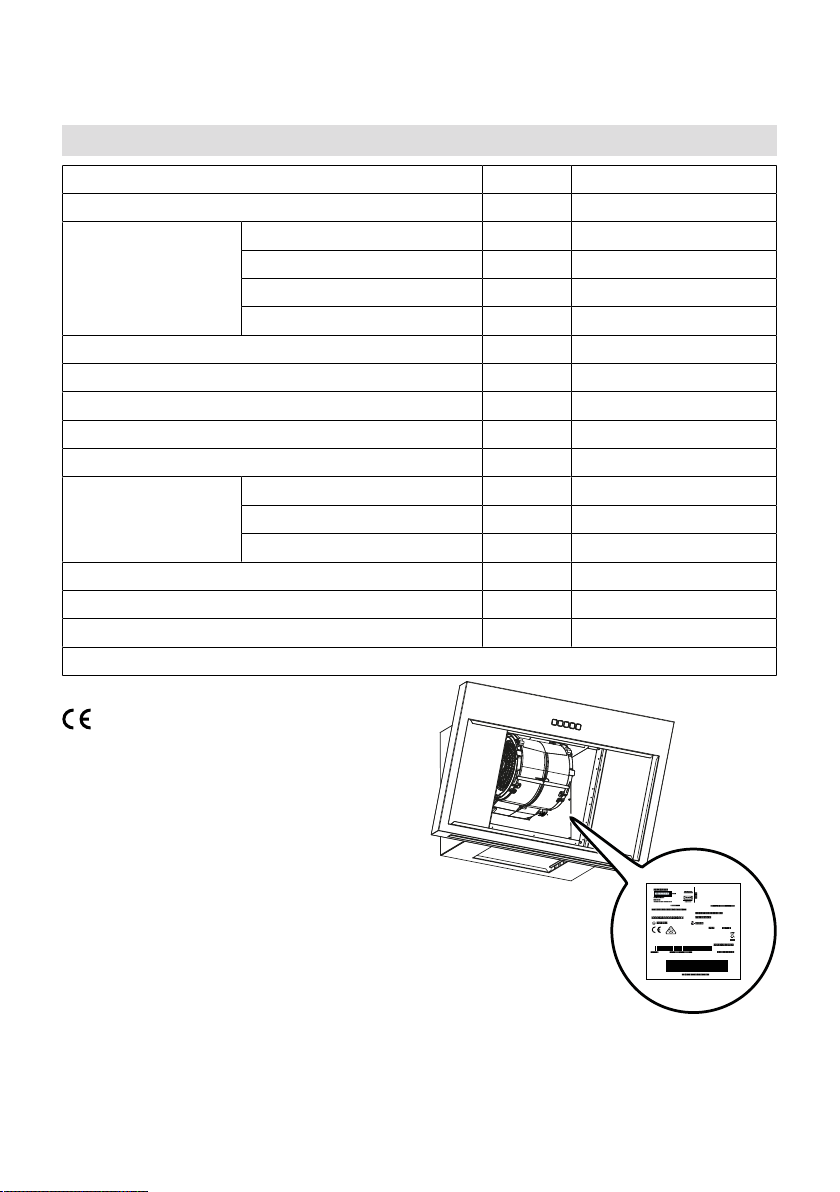

• Check that the mains voltage corresponds to that indicated on
the rating plate fixed to the inside of the hood.
• The cut-out devices must be installed in the fixed system ac-
Contents
Safety information 4
General information 8
Product description 10
Control panel 10
General tips 11
Cleaning and maintenance 11
What to do if... 12
Technical data 13
Environmental aspects 14
IKEA guarantee 14
4

cording to the wiring system regulations.
• For Class I appliances, check that the domestic power supply
has a suitable earthing connection.
• Connect the hood to the flue with a pipe with a minimum dia-
meter of 120 mm. The fume path must be as short as possible.
• All the regulations regarding air discharge must be complied
with.
• Do not connect the extractor hood to exhaust ducts carrying
combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appli-
ances (e.g. gas burning appliances), a sufficient degree of
ventilation must be guaranteed in the room in order to pre-
vent the backflow of exhaust gas. When the cooker hood is
used in conjunction with appliances supplied with energy
other than electricity, the negative pressure in the room must
not exceed 4 Pa mbar to prevent fumes being drawn back into
the room by the cooker hood.
• The air must not be discharged into a flue that is used for ex-
hausting fumes from appliances burning gas or other fuels.
• The power cord, if damaged, must be replaced by the manu-
facturer or by a service technician.
• Connect the plug to a socket complying with current regula-
tions, located in an accessible place.
• Regarding the technical and safety measures to be adopted
for fume discharging it is important to strictly follow the regu-
lations provided by the local authorities.
WARNING: Before installing the hood, remove the protective
films.
• Use only screws and small parts of a type suitable for the hood.
ENGLISH 5

WARNING: failure to install the screws or fixing devices in ac-
cordance with these instructions may result in electrical haz-
ards.
• Connect the hood to the power supply by means of a bipolar
switch with a distance between the contacts of at least 3 mm.
• Do not look directly at the light through optical devices (bin-
oculars, magnifying glasses…).
• Do not flambé under the hood; risk of fire.
• This appliance can be used by children aged from 8 years and
above and by persons with reduced physical, sensory or men-
tal capabilities or lacking in experience and knowledge if they
have been given supervision or instruction concerning use of
the appliance in a safe way and if they understand the hazards
involved. Children must not play with the appliance. Cleaning
and maintenance by the user must not be performed by chil-
dren, unless they are supervised.
• Children should be supervised to ensure that they do not play
with the appliance.
• The appliance is not to be used by persons (including children)
with reduced physical, sensory or mental capabilities, or lack-
ing in experience and knowledge, unless they have been given
supervision or instruction.
The accessible parts may become hot when used with cook-
ing appliances.
• Clean and/or replace the filters after the time specified (fire
hazard).
• There must be adequate ventilation of the room when the
hood is used at the same time as appliances burning gas or
other fuels (not applicable to appliances that only discharge
the air back into the room).
• Kitchen hoods and other cooking fume extractors can affect
ENGLISH 6

the safe operation of appliances which burn gas or other fuels
(including those in other rooms) due to the backflow of com-
bustion gases. These gases can cause carbon monoxide pois-
oning. After installing a kitchen extractor hood or any other
cooking fume extractor, make sure that the gas appliances are
tested by a certified technician to guarantee that there is no
backflow of combustion gases.
ENGLISH 7

General information
Use
• Switch off or unplug the appliance from the
mains supply before carrying out any main-
tenance work.
• The top of the hood must not to be used as
a shelf.
• The extractor hood has been designed ex-
clusively to eliminate cooking smells in do-
mestic use.
• Never use the extractor hood for purposes
other than those for which it was designed.
• Never leave high flames under the ex-
tractor hood when it is on.
• Adjust the flame intensity to direct it onto
the bottom of the pan only, making sure
that it does not engulf the sides.
• Deep fat fryers must be continuously mon-
itored during use: overheated oil can burst
into flames.
Installation method
The hood has been designed for installation
and use in the "suction version" or in the "air
recirculation version".
Extraction version (see symbol in the
installation instructions)
Cooking steam is suctioned and channelled
outside the house through a discharge duct
(not supplied), fitted to the hood steam
outlet. Make sure that the outlet duct is
properly installed at the air outlet, using a
suitable connection system.
Air recirculation version (see symbol in
the installation instructions)
The air is filtered through one or more
carbon filters, and then resent into the room.
Important: Ensure appropriate air circulation
around the hood.
Important: If the hood is supplied without
carbon filters and installed on recirculation
mode, these must be fitted before the hood
can be used. The filters are commercially
available.
The hood should be installed away from
particularly dirty areas, windows, doors and
heat sources. Wall mounting accessories are
not included as they vary depending on the
wall material. Use fixing systems suitable for
the walls of your home and for the weight of
the appliance. For further details, contact a
specialist dealer. Keep this booklet for future
consultation.
ENGLISH 8

Filters alarm
When the filter alarm is activated, the
following messages will appear over time:
Grease filter must be cleaned:
“A” key flashes once per second. For
maintenance see paragraph Care and
cleaning.
Anti-odour filter must be cleaned:
“A” key flashes twice per second. For
maintenance see paragraph Care and
cleaning.
Once the filters have been regenerated reset
the alarm signal (see paragraph Control
Panel).
ENGLISH 9

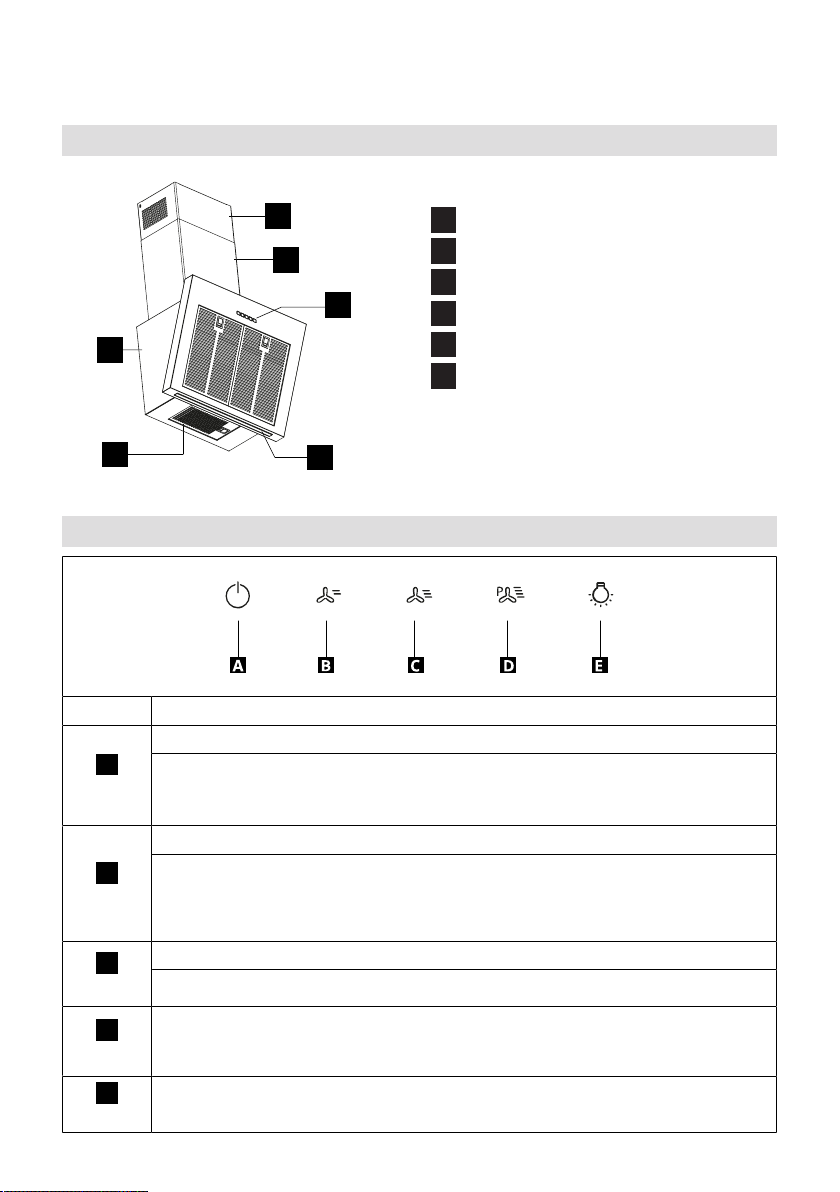

Product description
6
1
4
2
3
5
1Upper chimney
2Lower chimney
3Hood body
4LED Lighting
5Grease filter
6Control panel
Control panel
BUTTON FUNCTION
A
Speed
Turns the motor on/off at speed one.
Attention: the product is with the filter alarm disabled.
Press and hold the button for approximately 2 seconds, with all the loads turned off (Motor+Lights), to turn the
grease filter alarm on. LED (B) flashes twice to confirm.
To turn the alarm off, press the button again and hold for at least 2 seconds. The relevant LED (B) flashes once.
B
Speed
Turns the motor on at speed two / Activate charcoal filter alarm.
Attention: the product is with the filter alarm disabled.
Press and hold the button for approximately 2 seconds, with all the loads turned off (Motor+Lights), to turn the
Activated Charcoal Filter alarm on. LED (A) flashes twice to confirm.
To turn the alarm off, press the button again and hold for at least 2 seconds.The relevant LED flashes once (A).
Only for recirculation mode.
C
Speed
Turns the Motor on at speed three / Reset alarm grease filter saturation.
Press and hold the button for approximately 2 seconds, with all the loads turned off (Motor+Lights), to reset the
grease filter saturation alarm or charcoal filter alarm. LED (A) flashes three times.
D
Speed
Turns the motor on at Booster speed.
This speed is timed to run for 6 minutes. At the end of this time, the system returns automatically to the speed
that was set before. If it is activated with the motor turned off, it will switch to OFF at the end of the time. To de-
activate it, press button D or press button A.
E
Light
Press briefly: Turns the lighting system on and off at maximum intensity.
Press and hold to change the lighting intensity up or down.
ENGLISH 10
