A. General Information:
Manufacture Default Setting:
Default programming code: 123456
Construction code: 0
Keypad instructions:
Press “0-9” for code.
Press “*” for exit, cancel.
Press “#” for confirm,

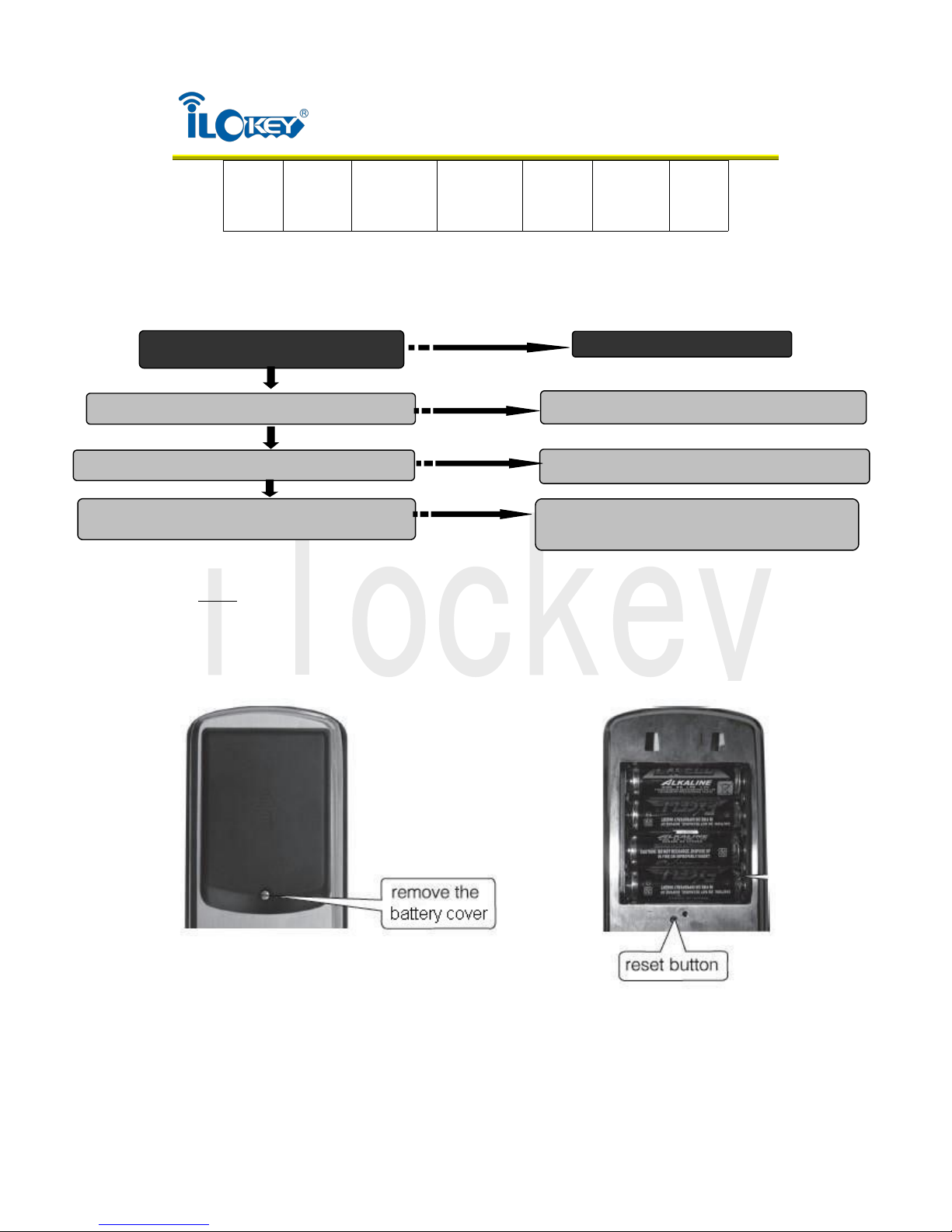

Reset button for recover the manufacture default setting.
Quantity of users:
Programming code( 4-8 digits): 1 group
Code user, card user, code + card user:200 groups
Unlock method: Code, card, mechanical key
Battery : 4×AA standard 1.5V alkaline batteries.
Low Battery Warning: when battery voltage is below 5V, after entering a valid code/card,
the red LED will flash and lock will teet three times. Replace all 4 batteries.

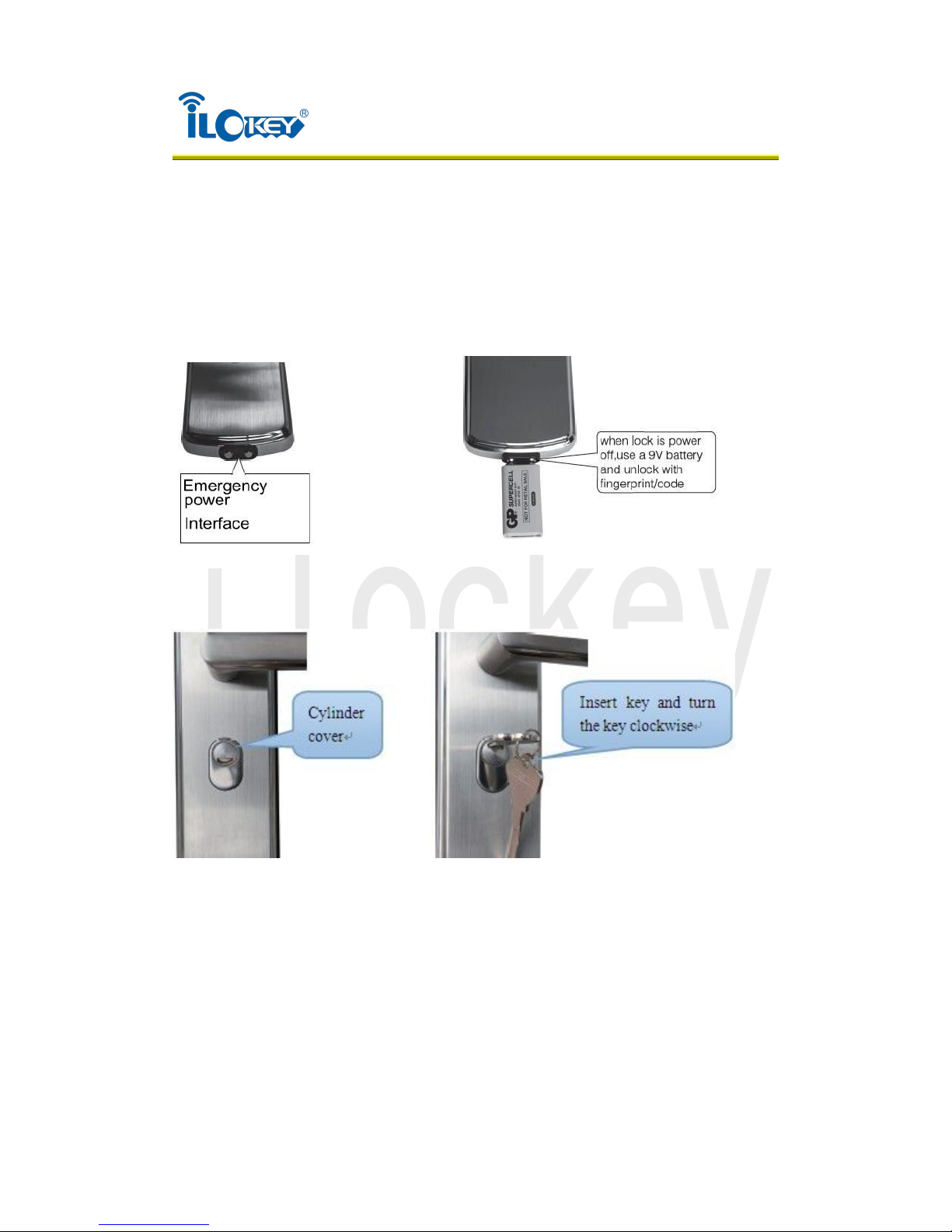

●Emergency power interface: when the lock is power off, use a 9V battery and unlock
with code/card.
Security Lockout: after 4 wrong entry attempts, the lock will teet and flash for 10 seconds
and inactive for 30 seconds.
B. Terms:
Programming code( 4-8 digits):the Programming code puts the lock into a
programming mode. It won’t lock/unlock the lock. When # sign is entered, the blue LED
starts to flash indicating the lock is in programming mode. If more than 5 seconds pass in
between programming entries, the lock will return to normal operational status. For

SHENZHEN
SHENZHEN ILOCKEY ILOCKEY TECHNOLOGY TECHNOLOGY CO.,LTD CO.,LTD
Add: 6F Shuipan building, No 3193Binghe Avenue , Futian District, S henzhen Ci t y . China 518033
TE L : + 86-755-28689800 FAX: [phone] E mail : info @ilockey . com
Http://www.ilockey.com
3
3
maximum security, it is necessary to change the default Programming code.
Construction code: the construction code is a default temporary code (0) for installer to
test the lock. The code will be deleted after the first new user code/card is added to the
lock.
User code(4-8 digits):user code is the normal code for day-to-day operations.
One-time user code(4-8 digits):one-time user code is used for a special purpose such as
maintenance personnel or cleaning staff. One-time user code only grants one time access.
Each lock can set 8 group one- time user code in total.
Index No.: the index no. is from 001 to 200. Each user code/card must be associated with
a unique index number. The index no. of user code and card can’t repeat. (* Please log the
user code/card along with its index no. for deleting reference)
Passage mode: when passage mode is enabled, the lock will stay in unlocked status.
Automatic Locking: automatically locking after 5 seconds.
Lockout mode: Enabling the lockout mode will disables all the user codes and card.
Re-enter the function code 99 to disable the lockout mode, and resume normal operation.
Time format: 0830 = 8:30AM; 1730 = 5:30PM
Schedule Date:
1=Mon, 2=Tue, 3=Wed, 4=Thu, 5=Fri, 6=Sat, 7=Sun
12/01/2013, 8:30am=1301120830 (yymmddhhmm)
3. Door Lock Setting Instruction
3.1 Change Programming Code
Touch keypad, press “#”
Input factory default master code:123456, press
“#”
Lock will teet twice and keypad light blue
Operation Steps
Lock Status Prompt

SHENZHEN
SHENZHEN ILOCKEY ILOCKEY TECHNOLOGY TECHNOLOGY CO.,LTD CO.,LTD
Add: 6F Shuipan building, No 3193Binghe Avenue , Futian District, S henzhen Ci t y . China 518033
TE L : + 86-755-28689800 FAX: [phone] E mail : info @ilockey . com
Http://www.ilockey.com
4
4
Note:.
1) New programming code should be different with the default programming code.
2) When modify programming code, the first input code should be same with the second
input code.
3.2 Change Time
Note:
1）Time format: yy(year)mm(month)dd(date)hh(hour)mm(minute),
e.g. 12/01/2014 , 8:30am = 1401120830
2）The time should be between 01/01/2000 and 31/12/2099;
3）If you don’t want time restriction, you don’t need to change lock time.
3.3 Add User Code
Input programming code, press # within 10
seconds
Lock will teet twice and keypad light blue
Input 11, press # within 10 seconds
Input new programming code with 4-8 digits,
press # to confirm.
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Input new programming code with 4-8 digits
again, press # to confirm.
Lock will teet four times, keypad light off.
Programming code changed successfully.
Touch keypad, press “#”
Input factory default master code:123456, press “#”
Input programming code, press # within 10
seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Operation Steps
Lock Status Prompt
Input 88, press # within 10 seconds
Lock will teet twice and keypad light blue
Input current time(yymmddhhmm）,
press # to confirm within 10 seconds
.
Lock will teet twice, keypad light off.
Time changed successfully.

SHENZHEN
SHENZHEN ILOCKEY ILOCKEY TECHNOLOGY TECHNOLOGY CO.,LTD CO.,LTD
Add: 6F Shuipan building, No 3193Binghe Avenue , Futian District, S henzhen Ci t y . China 518033
TE L : + 86-755-28689800 FAX: [phone] E mail : info @ilockey . com
Http://www.ilockey.com
5
5
Note:
1) Time format: yy(year)mm(month)dd(date)hh(hour)mm(minute),
e.g. 12/01/2014 , 8:30am=1401120830
2) In the user adding status, you can add multiple user code continually.
3) If you don’t want user code with time restriction, don’t input time, press “#” directly.
Touch keypad, press “#”
Input factory default master code:123456, press “#”
Input programming code, press # within 10
seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Operation Steps
Lock Status Prompt
Input 01, press # within 10 seconds
(lock is in the user adding status)
Input index no. and press # within 10 seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Input user code with 4-8 digits,
press # within 10 seconds
Lock will teet twice and keypad light blue
Input start time(yymmddhhmm) , press # within 10
seconds.
Lock will teet twice and keypad light blue
Input end time(yymmddhhmm), press # within 10
seconds
Lock will teet three times, keypad light blue.
Add user code successfully.
Press # or wait for 5 seconds to exit
Keypad light off

SHENZHEN
SHENZHEN ILOCKEY ILOCKEY TECHNOLOGY TECHNOLOGY CO.,LTD CO.,LTD
Add: 6F Shuipan building, No 3193Binghe Avenue , Futian District, S henzhen Ci t y . China 518033
TE L : + 86-755-28689800 FAX: [phone] E mail : info @ilockey . com
Http://www.ilockey.com
6
6
3.4 Add user card
Note:
1) Time format: yy(year)mm(month)dd(date)hh(hour)mm(minute),
e.g. 12/01/2014 , 8:30am=1401120830
2) In the user adding status, you can add multiple user card continually.
3) If you don’t want user card with time restriction, don’t input time, press “#” directly.
Touch keypad, press “#”
Input factory default master code:123456, press “#”
Input programming code, press # within 10
seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Operation Steps
Lock Status Prompt
Input 01, press # within 10 seconds
(lock is in the user adding status)
Input index no. and press # within 10 seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Touch card
Lock will teet twice and keypad light blue
Input start time(yymmddhhmm), press # within 10
seconds.
Lock will teet twice and keypad light blue
Input end time(yymmddhhmm), press # within 10
seconds
Lock will teet three times, keypad light blue.
Add user card successfully.
Press # or wait for 5 seconds to exit
Keypad light off

SHENZHEN
SHENZHEN ILOCKEY ILOCKEY TECHNOLOGY TECHNOLOGY CO.,LTD CO.,LTD
Add: 6F Shuipan building, No 3193Binghe Avenue , Futian District, S henzhen Ci t y . China 518033
TE L : + 86-755-28689800 FAX: [phone] E mail : info @ilockey . com
Http://www.ilockey.com
7
7
3.5 Add user code + card as dual user
Note:
1) Time format: yy(year)mm(month)dd(date)hh(hour)mm(minute),
e.g. 12/01/2014 , 8:30am=1401120830
2) In the user adding status, you can add multiple user code + card continually.
3) If you don’t want user code + card with time restriction, don’t input time, press “#”
directly.
Touch keypad, press “#”
Input factory default master code:123456, press “#”
Input programming code, press # within 10
seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Operation Steps
Lock Status Prompt
Input 01, press # within 10 seconds
(lock is in the user adding status)
Input index no. and press # within 10 seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Input user code with 4-8 digits,
press # within 10 seconds
Lock will teet twice and keypad light blue
Input start time(yymmddhhmm), press # within 10
seconds.
Lock will teet twice and keypad light blue
Input end time(yymmddhhmm), press # within 10
seconds
After lock teet three times and keypad light
blue. Add code + card
user successfully.
Press # or wait for 5 seconds to exit
Keypad light off
Touch card
Lock will teet twice and keypad light blue

SHENZHEN
SHENZHEN ILOCKEY ILOCKEY TECHNOLOGY TECHNOLOGY CO.,LTD CO.,LTD
Add: 6F Shuipan building, No 3193Binghe Avenue , Futian District, S henzhen Ci t y . China 518033
TE L : + 86-755-28689800 FAX: [phone] E mail : info @ilockey . com
Http://www.ilockey.com
8
8
3.6 Delete user code/card
Note: In the deleting user code/card status, you can delete multiple user code/card
continually.
3.7 Disable user code/card
Touch keypad, press “#”
Input factory default master code:123456, press “#”
Input programming code, press # within 10
seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Operation Steps
Lock Status Prompt
Touch keypad, press “#”
Input factory default master code:123456, press “#”
Input programming code, press # within 10
seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Operation Steps
Lock Status Prompt
Input 44, press # within 10 seconds.
(Lock is in the deleting user status)
Input index no., press # to confirm within 10
seconds
Lock will teet twice times and keypad light blue
Lock will teet twice and keypad light blue.
Delete user code/card successfully.
Press # or wait for 5 seconds to exit
Keypad light off

SHENZHEN
SHENZHEN ILOCKEY ILOCKEY TECHNOLOGY TECHNOLOGY CO.,LTD CO.,LTD
Add: 6F Shuipan building, No 3193Binghe Avenue , Futian District, S henzhen Ci t y . China 518033
TE L : + 86-755-28689800 FAX: [phone] E mail : info @ilockey . com
Http://www.ilockey.com
9
9
Note: In disable user code/card status, you can disable multiple user code/card continually.
3.8 Enable user code/card
Note: In enable user code/card status, you can enable multiple user code/card continually.
Input 02, press # within 10 seconds
(lock is in disable user code/card status)
Input index no. and press # within 10 seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Disable user code/card successfully.
Press # or wait for 5 seconds to exit
Keypad light off
Touch keypad, press “#”
Input factory default master code:123456, press “#”
Input programming code, press # within 10
seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Operation Steps
Lock Status Prompt
Input 03, press # within 10 seconds
(lock is in the enable user code/card status)
Input index no. and press # within 10 seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Enable user code/card successfully.
Press # or wait for 5 seconds to exit
Keypad light off

SHENZHEN
SHENZHEN ILOCKEY ILOCKEY TECHNOLOGY TECHNOLOGY CO.,LTD CO.,LTD
Add: 6F Shuipan building, No 3193Binghe Avenue , Futian District, S henzhen Ci t y . China 518033
TE L : + 86-755-28689800 FAX: [phone] E mail : info @ilockey . com
Http://www.ilockey.com
10
10
3.9 Add one-time user code
Note:
1) In the adding one-time user code status, you can add multiple one-time user code
continually.
2) One-time user code must be different from existing user code.
3.10 Delete all of the one-time user code
3.11. Unlock introduction.
3.11.1 Unlock with user code
Touch keypad, press “#”
Input factory default master code:123456, press “#”
Input programming code, press # within 10
seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Operation Steps
Lock Status Prompt
Input 33, press # within 10 seconds
(lock is in the adding one-time user code status)
Input one-time user code with 4-8 digits, press #
within 10 seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light off. Add
one-time user code successfully.
Touch keypad, press “#”
Input factory default master code:123456, press “#”
Input programming code, press # within 10
seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Operation Steps
Lock Status Prompt
Input 23, press # within 10 seconds
Lock will teet three times and keypad light off.
Delete all of the one-time user code
successfully.
Operation Steps
Lock Status Prompt

SHENZHEN
SHENZHEN ILOCKEY ILOCKEY TECHNOLOGY TECHNOLOGY CO.,LTD CO.,LTD
Add: 6F Shuipan building, No 3193Binghe Avenue , Futian District, S henzhen Ci t y . China 518033
TE L : + 86-755-28689800 FAX: [phone] E mail : info @ilockey . com
Http://www.ilockey.com
11
11
3.11.2 Unlock with user card
3.11.3 Unlock with user code + card
3.11.4 Unlock with one-time user code
Note:
Misguide feature: user can enter numbers before and after the code, in order to misguide a person watching
you entering code. The maximum total numbers that can be entered is 20.
(e.g. If password is 1234#, then user can enter 45678123456789# to open the door.
Touch keypad, input user code and press # within 10
seconds
5 seconds later
Keypad light blue, motor rotate to unlock
Keypad light red and teet twice, motor rotate to lock
LED shows:1, add user 2, delete user 3, check
records 4,set the level of security
Put card on card sensor
5 seconds later
Keypad light blue, motor rotate to unlock
Keypad light red and teet twice, motor rotate to lock
LED shows:1, add user 2, delete user 3, check
records 4,set the level of security
Operation Steps
Lock Status Prompt
Put card on card sensor
5 seconds later
Lock will teet twice, keypad light blue
Keypad light blue, motor rotate to unlock
LED shows:1, add user 2, delete user 3, check
records 4,set the level of security
Operation Steps
Lock Status Prompt
Input user code and press # within 10 seconds
Keypad light red and teet twice, motor rotate to lock
LED shows:1, add user 2, delete user 3, check
records 4,set the level of security
Operation Steps
Lock Status Prompt
Touch keypad, input one-time user code and press #
within 10 seconds
5 seconds later
Keypad light blue, motor rotate to unlock
Keypad light red and teet twice, motor rotate to lock
LED shows:1, add user 2, delete user 3, check
records 4,set the level of security

SHENZHEN
SHENZHEN ILOCKEY ILOCKEY TECHNOLOGY TECHNOLOGY CO.,LTD CO.,LTD
Add: 6F Shuipan building, No 3193Binghe Avenue , Futian District, S henzhen Ci t y . China 518033
TE L : + 86-755-28689800 FAX: [phone] E mail : info @ilockey . com
Http://www.ilockey.com
12
12
3.11.5 Unlock with construction code(0)
3.12 Enable passage mode with schedule (lock back when passage mode end)
E.g.: programming code “7890”, set passage mode for Mon., Wed. Fri., from 8:30AM to
5:30PM
#7890# 15# 135# 0830 1730#
Touch keypad, Press “#”
Input factory default master code:123456, press
“#”
Input programming code, press # within 10
seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Operation Steps
Lock Status Prompt
Input 15, press # within 10 seconds
(lock is in the enable passage mode status)
Input weekly schedule,
press # to confirm within 10 seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Input start time(hhmm)
Input end time(hhmm), press # within 10
seconds.
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light off, set
passage mode successfully.
Operation Steps
Lock Status Prompt
Touch keypad, input 0 and press #within 10 seconds
5 seconds later
Keypad light blue, motor rotate to unlock
Keypad light red and teet twice, motor rotate to lock
LED shows:1, add user 2, delete user 3, check
records 4,set the level of security

SHENZHEN
SHENZHEN ILOCKEY ILOCKEY TECHNOLOGY TECHNOLOGY CO.,LTD CO.,LTD
Add: 6F Shuipan building, No 3193Binghe Avenue , Futian District, S henzhen Ci t y . China 518033
TE L : + 86-755-28689800 FAX: [phone] E mail : info @ilockey . com
Http://www.ilockey.com
13
13
Programming
code Function code Schedule Start time End time
Note: after seting passage mode successfully, unlock with user code/card firstly, then the
lock stay in unlocked status.
3.13 Disable passage mode
3.14 Set up valid unlock time for user code
Touch keypad, Press “#”
Input factory default master code:123456, press
“#”
Input programming code, press # within 10
seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Operation Steps
Lock Status Prompt
Input 16, press # within 10 seconds
Lock will teet four times and keypad light off,
set disable passage mode successful.
Touch keypad, Press “#”
Input factory default master code:123456, press
“#”
Input programming code, press # within 10
seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Operation Steps
Lock Status Prompt
Input 45, press # within 10 seconds
Lock will teet twice and keypad light blue.
Input user code, press # within 10 seconds
Lock will teet twice and keypad light blue.
Input weekly schedule day, press # within 10
seconds
Input start time(hhmm)
Input end time(hhmm), press # within 10 seconds
Lock will teet twice and keypad light blue.
Lock will teet twice and keypad light blue.
Lock will teet twice and keypad light blue.
Set up valid unlock time for user code successfully.

SHENZHEN
SHENZHEN ILOCKEY ILOCKEY TECHNOLOGY TECHNOLOGY CO.,LTD CO.,LTD
Add: 6F Shuipan building, No 3193Binghe Avenue , Futian District, S henzhen Ci t y . China 518033
TE L : + 86-755-28689800 FAX: [phone] E mail : info @ilockey . com
Http://www.ilockey.com
14
14
Example: Programming code “7890”, schedule for user code “2222” which will grant
access Mon., Wed. and Fri., from 8:30AM to 5:30PM
#7890# 45# 2222# 135# 0830 1730#
Program
ming
code
Function
code User code Schedule Start time End time
3.15 Set up valid unlock time for user card
Touch keypad, Press “#”
Input factory default master code:123456, press
“#”
Input programming code, press # within 10
seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Operation Steps
Lock Status Prompt
Input 45, press # within 10 seconds
Lock will teet twice and keypad light blue.
Touch user card
Lock will teet twice and keypad light blue.
Input weekly schedule day, press # within 10
seconds
Input start time(hhmm)
Input end time(hhmm), press # within 10 seconds
Lock will teet twice and keypad light blue.
Lock will teet twice and keypad light blue.
Lock will teet twice and keypad light blue.
Set up valid unlock time for user card
successfully.
Press # or wait for 5 seconds to exit
Keypad light off
Press # or wait for 5 seconds to exit
Keypad light off

SHENZHEN
SHENZHEN ILOCKEY ILOCKEY TECHNOLOGY TECHNOLOGY CO.,LTD CO.,LTD
Add: 6F Shuipan building, No 3193Binghe Avenue , Futian District, S henzhen Ci t y . China 518033
TE L : + 86-755-28689800 FAX: [phone] E mail : info @ilockey . com
Http://www.ilockey.com
15
15
Example: Programming code “7890”, schedule for user card 01 which will grant access
Mon., Wed. and Fri., from 8:30AM to 5:30PM
#7890# 45# 01 135# 0830 1730#
Program
ming
code
Function
code User card Schedule Start time End time
3.16 Set up valid unlock time for user code +card
Example: Programming code “7890”, schedule for user code “2222” + card 01 which
will grant access Mon., Wed. and Fri., from 8:30AM to 5:30PM
#7890# 45# 2222# 01 135# 0830 1730#
Touch keypad, Press “#”
Input factory default master code:123456, press
“#”
Input programming code, press # within 10
seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Operation Steps
Lock Status Prompt
Input 45, press # within 10 seconds
Lock will teet twice and keypad light blue.
Input user code, press #, touch user card
Lock will teet twice and keypad light blue.
Input weekly schedule day, press # within 10
seconds
Input start time(hhmm)
Input end time(hhmm), press # within 10 seconds
Lock will teet twice and keypad light blue.
Lock will teet twice and keypad light blue.
Lock will teet twice and keypad light blue.
Set up valid unlock time for user
code+card successfully.
Press # or wait for 5 seconds to exit
Keypad light off

SHENZHEN
SHENZHEN ILOCKEY ILOCKEY TECHNOLOGY TECHNOLOGY CO.,LTD CO.,LTD
Add: 6F Shuipan building, No 3193Binghe Avenue , Futian District, S henzhen Ci t y . China 518033
TE L : + 86-755-28689800 FAX: [phone] E mail : info @ilockey . com
Http://www.ilockey.com
16
16
Program
ming
code
Function
code User code User card Schedule Start time End time
3.17 Enable/Disable lock-out mode (lock out, all users disabled)
24. Reset: Set the lock back to manufacture default.
Remove battery cover, press and hold reset button for about 5 seconds (lock will sound
“beep” and light red for a long time, then sound “beep,beep” and light blue). It will delete
all the code & card users and restore back to factory default setting. (See Picture)
Touch keypad, Press “#”
Input factory default master code:123456, press
“#”
Input programming code, press # within 10
seconds
Lock will teet twice and keypad light blue
Lock will teet twice and keypad light blue
Operation Steps
Lock Status Prompt
Input 99, press # within 10 seconds
Lock will teet twice and keypad light off,
enable/disable lock-out mode successfully.

SHENZHEN
SHENZHEN ILOCKEY ILOCKEY TECHNOLOGY TECHNOLOGY CO.,LTD CO.,LTD
Add: 6F Shuipan building, No 3193Binghe Avenue , Futian District, S henzhen Ci t y . China 518033
TE L : + 86-755-28689800 FAX: [phone] E mail : info @ilockey . com
Http://www.ilockey.com
17
17
25. Emergency power interface
26, Unlock with mechanical key
