IMEON ENERGY IMEON 3.6 User manual

IMEON 3.6
USER GUIDE

USER GUIDE IMEON 3.6
Suivi Indice des modifications
Index
Date
Modified
pages
Modification description
Author
A
30/07/2015
-
Initial drafting
F.M.
Reference
IMEON –3.6
Index
A

IMEON 3.6
Index A 3
FR
FR
EN
IMEON 3.6

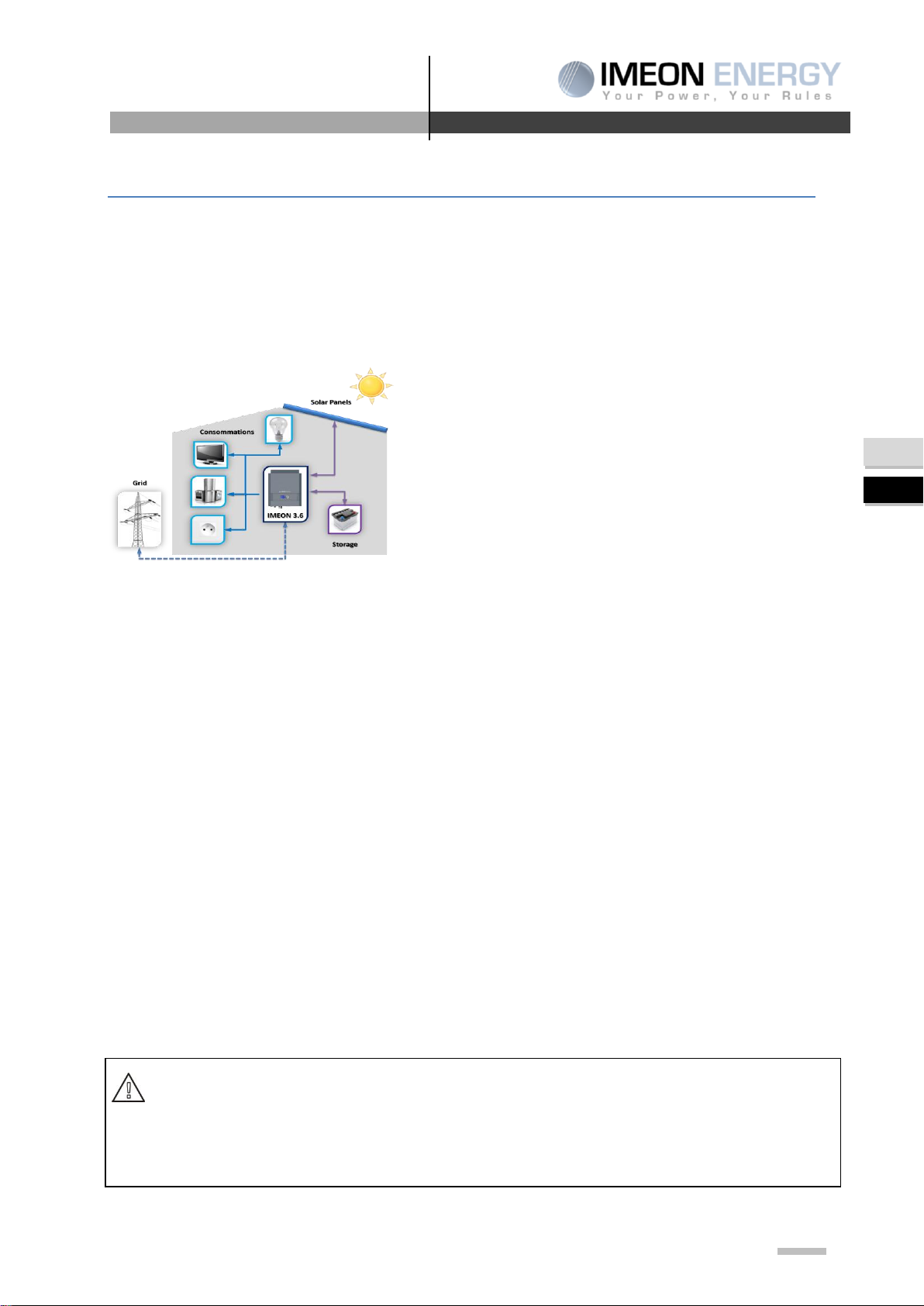

Smart management of all self-consumption solar installations
IMEON is the result of high innovation and technology. The IMEON multi-sources phase coupling
(Phase Coupling Energy, or PCE) is used to couple several energy sources (eg: PV / batteries / grid).
There is no longer a need for source switching, which often leads to micro-cuts of electricity supply.
PCE solves age old renewable energy concerns such as intermittence and fluctuation. IMEON’s PCE
has now made it possible to guarantee constant power supply and optimal solar yields.
Smart self-consumption inverter
Compact “ALL IN ONE” system
Smart Grid / Back-Up / Off-grid / On-grid modes
Smart battery management
Simple and fast Plug & Play installation
Easy to use and configure
Real time local and remote monitoring
SMART GRID
With the smart management and the real time multi-energy phase coupling, IMEON optimises solar
yields by choosing the ideal energy mode: direct consumption (self-use), storing the surplus of
production, drawing from the grid, or injecting the solar surplus to the grid. IMEON adapts
automatically to the installation without complex configurations.
ECONOMIC
There is no longer the need for separate components such as charge controllers or added inverters.
The overall cost of the photovoltaic system can therefore be reduced. IMEON’s innovative Smart-Grid
function allows to lower the storage capacity, reduce battery cycling, as well as further prolonging the
battery life.
ALL IN ONE
The IMEON Smart Grid Inverter is specifically designed for any solar installation, regardless whether
the system is an Of f-Grid, Back-Up, Grid-Tie, or a hybrid power system. IMEON is a complete Plug-
and-Play smart inverter which simplifies the installation process and reduces the overall setup time of
a solar system.
WARNING: Authorized service staff should reduce the risk of electrical shock by disconnecting
AC, DC and battery power from the inverter before attempting any maintenance or cleaning or
working on any circuits connected to the inverter. Turning off controls will not reduce this risk.
Internal capacitors may remain charged for 5 minutes after disconnecting all sources of power.

IMEON 3.6
4 Index A
FR
FR
EN
1- Inverter supervision
1-1 LCD information
Note : To light up the screen, you can press any button.

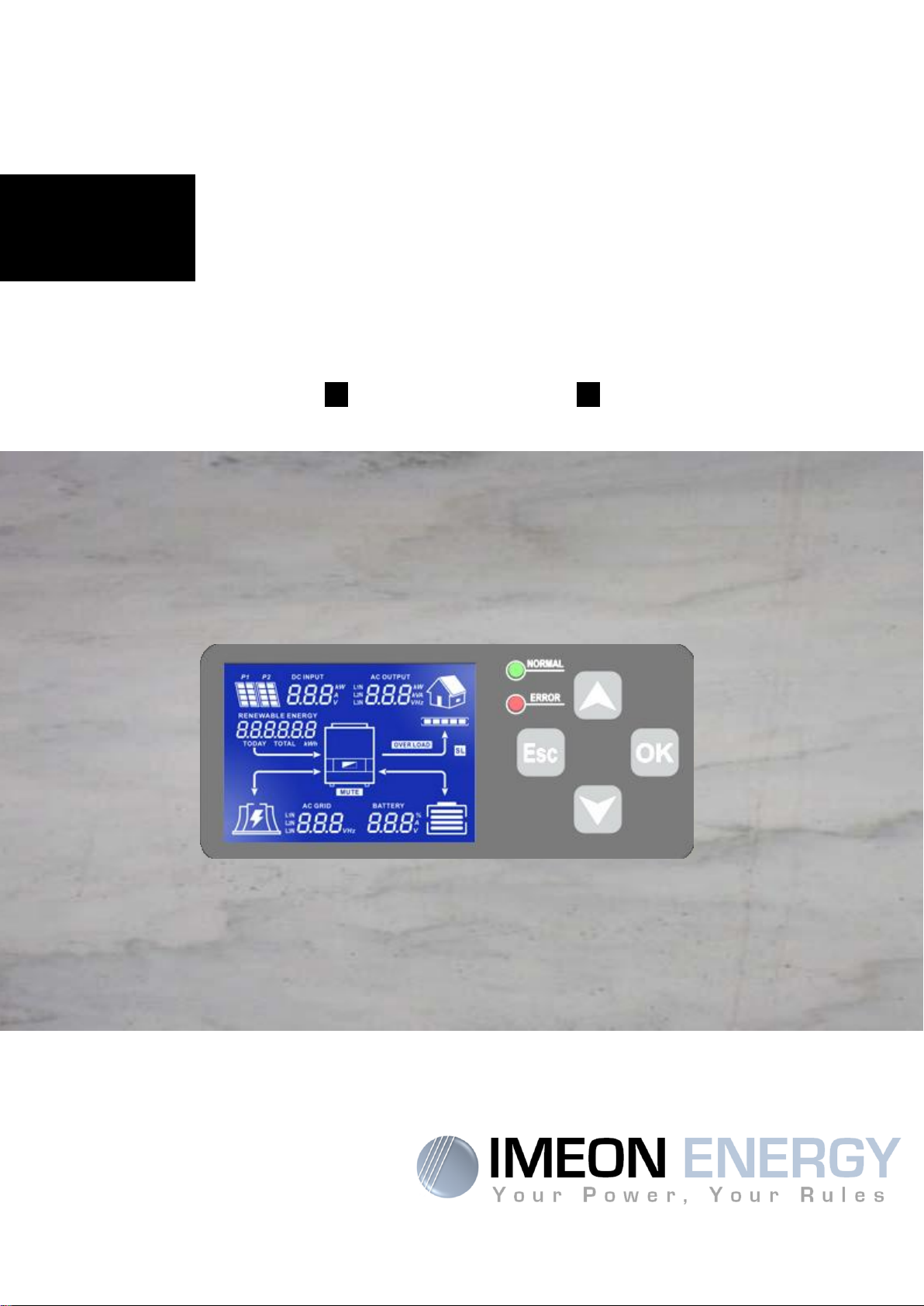

Display screen :
Indicators
Units
Indicates AC OUTPUT active power, apparent
power, frequency and voltage.
kW : Active power.
kVA : Apparent power.
Hz : Frequency.
V : Voltage.
Indicates BATTERY voltage, charge current and
percent of charge.
% : Percentage of charge.
A : Current.
V : Voltage.
Indicates AC GRID input voltage and frequency.
V : Voltage.
Hz : Frequency.
Indicates PV input voltage and frequency.
Today kWh : Today production.
Total kWh : Total production.
Indicates the generated PV production DC
INPUT.
kW : Active power.
A : Current.
V : Voltage.

IMEON 3.6
Index A 5
FR
FR
EN
Indicate the PV.
Indicates the grid.
If the icon flashes, that means the grid is
unavailable.
/ /
Indicates the battery state of charge.
- Left icon : battery fully charged.
- Center icon : If the icon flashes, that means
the batteries is unavailable.
- Right icon : Battery has low voltage.
Indicates the AC OUTPUT is activated and that
loads are delivered.
Indicates the percentage of charge in AC
OUTPUT.
Indiques an overload.
1-2 Display by indicator light
Indicates the IMEON is supplied and functional
Indicates an anomaly in the system
1-3 Button definition
Button
Function

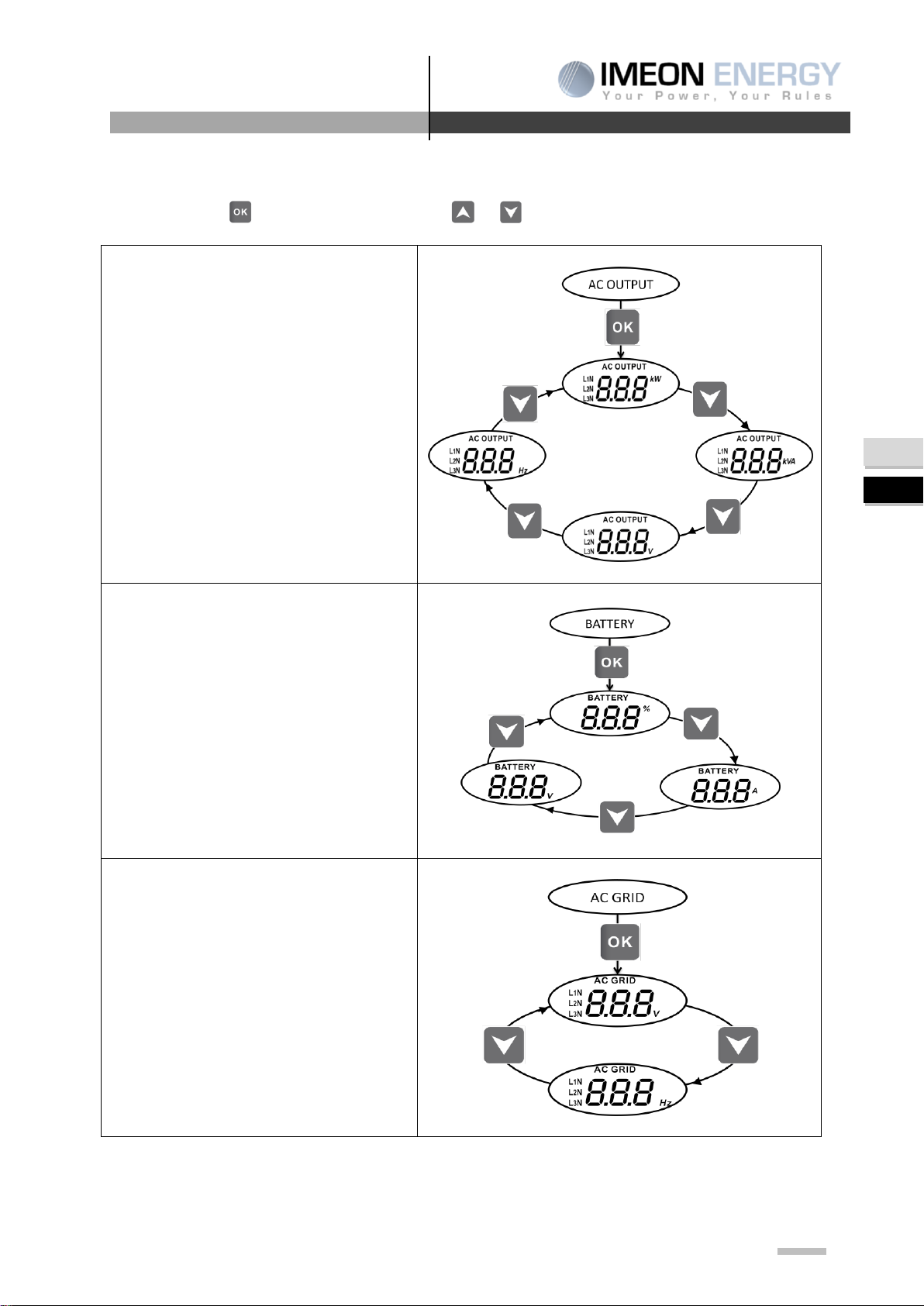

> Change the indicators clockwise.
> Change the unit of the selected indicator.
> Change the indicator counterclockwise.
> Change the unit of the selected indicator.
> Select indicator.
> Confirm the choice of the indicator.
> Hold 3 seconds the button unitl the buzzer emission to activate the AC
OUTPUT.
> Go back to the previous indicator or exit the indicator.
> Hold 3 seconds the button until the buzzer emission to deactivate the AC
OUTPUT.
