Immergas ARES 440 TEC ERP Product manual

ARES 440 TEC ERP
ARES 550 TEC ERP
ARES 660 TEC ERP
ARES 770 TEC ERP
ARES 900 TEC ERP
IE
Instructions and warnings
Installer
Maintenance technician
*1.043689ENG*
*1.043689ENG*
STD.006533/000

STD.006533/000

Warning this manual contains the exclusive instructions for use for professionally qualied
installers and/or maintenance technicians, in compliance with laws in force.
e individual in charge of the system is NOT authorised to work on the boiler.
e manufacturer will not be held liable in the case of damage to people, animals or property
due to the failure to observe the instructions contained in the manuals supplied with the boiler.
INDEX
e manufacturer declines all liability due to printing or transcription errors, reserving the right to make any modications to its technical and
commercial documents without forewarning.
e company IMMERGAS S.p.A., with registered oce in via Cisa Ligure 95 42041 Brescello (RE), declares that the design, manufacturing and
aer-sales assistance processes comply with the requirements of standard UNI EN ISO 9001:2015.
For further details on the product CE marking, request a copy of the Declaration of Conformity from the manufacturer, specifying the appliance
model and the language of the country.
1 General information...................................................................4
1.1 General warnings..........................................................................4
1.2 Symbols used in the manual........................................................5
1.3 Compliant use of the appliance...................................................5
1.4 Information for the system manager..........................................5
1.5 Safety warnings .............................................................................6
1.6 Technical data plate ......................................................................7
1.7 Water treatment ............................................................................8
1.8 Boiler frost protection..................................................................8
2 Technical characteristics and dimensions.................................9
2.1 Technical characteristics..............................................................9
2.2 View of main parts......................................................................10
2.3 Dimensions..................................................................................11
2.4 Operating data / general characteristics..................................12
2.4.1 Technical data according to the ErP directive .......................13
2.4.2 Determining the primary circuit pump or boiler pump.......14
3 Instructions for installation.....................................................16
3.1 General recommendations........................................................16
3.2 Regulations for installation........................................................16
3.3 Preventative checks and adaptation of the system .................16
3.4 Packaging.....................................................................................17
3.5 Operation to unload and remove the packaging ...................18
3.6 Positioning the heating control unit.........................................19
3.7 Flue exhaust pipe connection....................................................20
3.8 Connecting the boiler ................................................................21
3.9 Gas connection............................................................................22
3.10 Connection..................................................................................23
3.11 System lling and emptying......................................................25
3.12 Electrical connections................................................................26
3.13 First ignition................................................................................33
3.14 On-site measurement of the combustion eciency...............34
3.14.1 Enable the calibration function...............................................34
3.14.2 Positioning the probes..............................................................34
3.15 Burner adjustment......................................................................34
3.16 Emergency and safety operations ............................................38
4 Inspections and maintenance ..................................................40
4.1 Instructions for inspection and maintenance.........................40
4.2 Programming the operation parameters .................................46
4.3 Practical connection diagram ...................................................48
4.4 Error code....................................................................................50
Instructions on how to correctly dispose of the product.
At the end of its life, this appliance must not be disposed of as mixed municipal waste.
It is mandatory to separate this type of waste so that the materials making up the appliance can be recycled and reused. Contact
authorised operators for disposal of this type of appliance. Incorrect management of waste and its disposal has potential negative
eects on the environment and on human health. e symbol on the appliance represents the prohibition of disposing of the product as mixed
municipal waste.
STD.006533/000

4
General information
1GENERAL INFORMATION
1.1 GENERAL WARNINGS
ATTENTION!
e heat unit must be installed so as to avoid, under the envisioned operating conditions, the liquid contained in it from
freezing and avoid exposing the command and control parts to temperatures below -15°C and over +40°C.
e heat unit must be protected from climatic/environmental variations by:
- insulating the hydraulic and condensation exhaust pipes
- adopting specic anti-freeze products in the hydraulic system.
e instruction handbook is an integral and essential part of the product
and must be kept safe by the user.
Read the warnings contained in the handbook carefully, as they provide
important instructions regarding installation, user and maintenance
safety.
Keep the handbook safe for future consultation.
e appliance must be installed and maintained in accordance with
regulations in force, pursuant to the instructions of the manufacturer,
the state of the art and by authorised and qualied personnel, in ac-
cordance with the law.
Domestic hot water production systems MUST be built entirely with
compliant materials.
Professionally qualied personnel means sta with specic technical
skills in the sector of heating system parts for civil use, hot water pro-
duction for domestic use and maintenance. is personnel must have
the authorisations required by legislation in force.
Incorrect installation or poor maintenance can cause injury to persons
and animals and damage to objects, for which the manufacturer is not
liable.
Before carrying out any cleaning or maintenance operations, cut the
appliance o from the power mains by acting on the switch on the
system and/or using the cut-o devices.
Do not obstruct the intake/exhaust pipe terminals.
In case of breakdown and/or poor operation of the appliance, switch
it o, and do not attempt in any way to repair it or intervene directly.
Only contact an authorised company that has been authorised in
accordance with the law.
Any repairs to the products must be carried out by an authorised
company only, using original spare parts only. Failure to observe the
above can jeopardise the safety of the appliance and will void the
warranty.
e guarantee the eciency of the appliance and its correct operation
it is essential for authorised company to carry out annual maintenance.
If the appliance is put out of use for downtime, any part that is
susceptible to posing a potential source of danger must be made safe.
Before re-commissioning an appliance that has been put out of use,
proceed to washing the domestic hot water production system, making
water ow through it for the amount of time required to change the
water completely.
If the appliance is sold or transferred to another owner or if the owner
moves, leaving the appliance behind, always ensure the handbook
accompanies the appliance so that it may be consulted by the new
owner and/or installer.
All appliances with optionals or kits (including electric) must only use
original spare parts.
e appliance must only be employed for its expressly foreseen use.
Any other use must be considered improper and therefore dangerous.
STD.006533/000

5
General information
1.3 COMPLIANT USE OF THE APPLIANCE
e ARES Tec ErP appliance was built based on the current technical level and recognised technical safety rules.
Nevertheless, following improper use the safety and life of the user or other people may be exposed to danger, i.e. damage
to the appliance or other objects.
e appliance is designed for operation in hot water circulating heating systems.
Any other use is considered improper.
Immergas will not be held liable for any damage resulting from improper use.
Any use in accordance with the envisioned purposes includes the strict observance of the instructions in this manual.
1.4 INFORMATION FOR THE SYSTEM MANAGER
e user must be instructed in the use and operation of his/her heating system, in particular:
- Deliver these instructions to the user, as well as the other documents relative to the appliance contained in the packaging in
an envelope. e user must keep this documentation safe so that it is available for future consultation.
- Inform the user of the importance of aeration vents and the ue exhaust system, highlighting how essential they are and how
it is strictly forbidden to change them.
- Inform the user on how to control the water pressure in the system as well as the operations required to restore it.
- Inform the user on how to correctly regulate the temperature, control units/thermostats and radiators in order to save energy.
- Remember that in compliance with the laws in force, the equipment must be inspected and maintained according to the re-
quirements and on the basis set down by the manufacturer.
- If the appliance is sold or transferred to another owner or if the owner moves, leaving the appliance behind, always ensure the
manual accompanies the appliance so that it may be consulted by the new owner and/or installer.
e manufacturer will not be held liable in the case of damage to people, animals or property due to the failure to observe
the instructions contained in this manual.
1.2 SYMBOLS USED IN THE MANUAL
When reading this manual, pay special attention to the parts marked with these symbols:
DANGER!
Serious danger to
safety and life
ATTENTION!
Possibly dangerous
situation for the product
and environment
NOTE!
Tips for the user
DANGER!
Scalding hazard!
OBLIGATION!
Wear protective
gloves
STD.006533/000

6
General information
1.5 SAFETY WARNINGS
ATTENTION!
e appliance must not be used by children.
e appliance can be used only by adults who have read the instruction manual for the user / manager with care.
Children must be supervised to ensure they do not play or tamper with the appliance.
ATTENTION!
Installation, adjustment and maintenance of the appliance must be carried out by professionally authorised company, in
compliance with regulations and provisions in force, as incorrect installation can cause damage to people, animals and
property, for which the manufacturer will not be held liable.
DANGER!
NEVER attempt to carry out maintenance or repairs on the boiler of your own initiative.
Any work must be carried out by professionally qualied sta; we advise you to stipulate a maintenance contract.
Poor or irregular maintenance can compromise the operational safety of the appliance and cause damage to people, animals
and property for which the manufacturer will not be held liable.
Changes to parts connected to the appliance (aer installation of the appliance)
Do not make changes to the following elements:
- to the boiler
- to the gas, air, water and power supply lines
- to the ue pipe, safety valve and exhaust pipe
- to the constructive elements that aect the operational safety of the appliance.
ATTENTION!
To tighten or loosen the screw-attached ttings, use suitable wrenches only.
Improper use and/or unsuitable tools can cause damage (for ex. water and gas leaks).
ATTENTION!
Instructions for appliances running on propane gas
Make sure that the gas tank has been deaerated prior to installing the appliance.
For a thorough deaeration of the tank contact the liquid gas supplier and in any case authorised company, in accordance with the law.
Ignition problems can arise if the tank is not thoroughly deaerated.
In this case contact the liquid gas tank supplier.
Smell of gas
In case of the smell of gas observe the following safety instructions:
- do not use electric switches
- do not smoke
- do not use the telephone
- shut o the gas cut-o valve
- aerate the room where the gas leak occurred
- notify the gas supply company or a company specialised in the installation and maintenance of heating systems.
Explosive and easily ammable substances
Do not use or deposit explosive or easily ammable materials (for ex. petrol, paints, paper) in the room where the appliance is
installed.
ATTENTION!
Do not use the appliance as a base to support any object. Specically, do not place receptacles containing liquids (Bottles, Glasses,
Containers or Detergents) on top of the boiler. If the appliance is installed inside a box, do not insert or place other objects inside it
STD.006533/000

7
/
General information

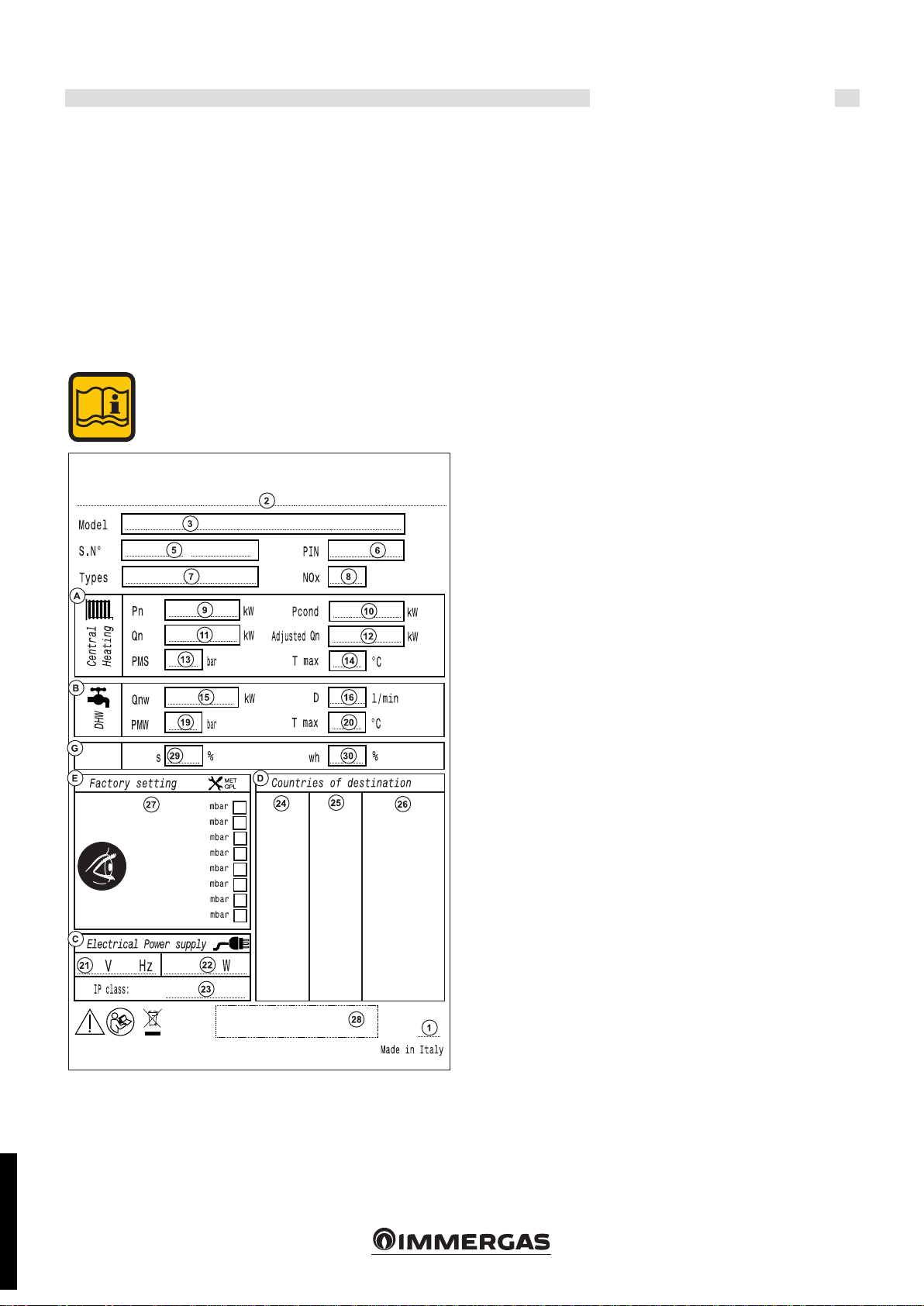

1.6 TECHNICAL DATA PLATE
CE Marking
certies conformity of the appliance with the essential safety require-
ments set down by the directive and applicable European regulations,
and operation in compliance with the technical standards of reference.
e CE marking is applied on each appliance with a label.
e CE declaration of conformity, released by the Manufacturer in
compliance with the international regulations in force, can be found
in the documents enclosed with the product.
e technical data plate is located under the casing, on the front
cross member. ere is a DUPLICATE of the plate
near the temperature control unit.
KEY:
1 = CE supervisory body
2 = Type of boiler
3 = Boiler model
5 = (S.N°) Serial Number
6 = P.I.N. Product Identication Number
7 = Types of approved ue exhaust congurations
8 = (NOx) NOx class
A = Characteristics of the heating circuit
9 = (Pn) Useful heat output
10 = (Pcond) Useful output in condensation
11 = (Qn) Maximum heat input
12 = (Adjusted Qn) Adjusted for useful heat input
13 = (PMS) Max. central heating operating pressure
14 = (T max) Max. central heating temperature
A = Characteristics of the DHW circuit
15 = (Qnw) Nominal heat input in DHW mode (if dierent from Qn)
16 = (D) Specic ow rate for DHW according to EN625-EN13203-1
19 = (PMW) Max. DHW operating pressure
20 = (T max) Max. DHW temperature
C = Electrical features
21 = Electric power supply
22 = Consumption
23 = Degree of protection
D = Countries of destination
24 = Direct and indirect countries of destination
25 = Gas category
26 = Supply pressure
E = Factory settings
27 = Adjusted for gas type X
28 = Space for national brands
G = ErP
29 = Seasonal central heating energy eciency
30 = Seasonal water heating energy eciency.
STD.006533/000

8
General information
1.7 WATER TREATMENT
Treating the supply water allows you to prevent
problems and maintain the functionality and
eciency of the generator over time.
e ideal pH value of the water in the central heating
system must be:
VALUE MIN MAX
PH 6,5 8
HARDNESS (°fr) 9 15
To minimise corrosion, it is essential to use a corrosion
inhibitor. In order for it to work eciently, the metal
surfaces must be clean.
ATTENTION!
Any damage caused to the boiler, due to the formation
of build-up or corrosive water, will not be covered by
the warranty.
ATTENTION!
e models only equipped with central heating are
NOT suitable for hot water production for human
consumption (M.D. 174/2004).
1.8 BOILER FROST PROTECTION
Activated by default
is protection only cuts in when the electric and gas supply are present.
If the electric or gas supply are disconnected and 11 (SM) detects a
temperature of between 2 and 5°C when the supply is restored, the
appliance responds as indicated in the table below, in pos.2.
Antifreeze products with an inhibitor for central
heating systems (specic for multimetal) can be used
to ensure ecient protection of the central heating
against freezing.
Do not use antifreeze products for car engines since
these can damage the water gaskets.
POS
ANTIFREEZE FUNCTION
Supply 11 - SR (*) Status of antifreeze
function Actions
Electric Gas
1ON ON < 7°C ON Burner and Pump ON until T > 15°C
2
ON OFF < 5 ÷ 5°C OFF
INDICATION OF FAULT CODE 16
(see Par. 4.4 ERROR CODES).
Ignition inhibited.
OFF ON OFF Ignition inhibited.
OFF OFF OFF Ignition inhibited.
(*) SR sensor, see Par. 2.2
STD.006533/000

9
General information
2TECHNICAL CHARACTERISTICS AND
DIMENSIONS
2.1 TECHNICAL CHARACTERISTICS
- Heat generator, to heat Low Nox condensation gas
- Comprised of a heat module designed to operate on its own or in a
set
- Can be set up directly outside (IP X5D)
- Low water content
- High response speed to load changes
- Single ue exhaust that can be positioned on 3 sides
- Unied ow and return hydraulic manifolds
- Comprised of 2 or more heating elements (between 2 and 7),
aluminium/silicon/magnesium casting
- Including total irradiation premixing modulating burners
- None of the heating elements have hydraulic cut-o devices
- Single gas supply pipe
- Modulated power between 12 ÷ 50 kW/element.
TEMPERATURE CONTROL DEVICES:
- ROOM NTC sensor (every heating element)
- Room Limit ermostat (every heating element)
- Flow NTC sensor (General)
- Return NTC sensor (General)
- Approved safety thermostat
- BCM global ow probe.
OTHER SAFETY DEVICES according to the R COLLECTION.
POP-UP control panel composed of:
- ON-OFF switch
- HSCP boiler thermoregulation/manager
- BCM (internal cascade management board)
- Protection fuses
- Any limit thermostats > 350kW
- Fan air pressure switch
- Condensation water level sensor
- Gas pressure switch
- Exhaust pressure switch (anti-obstruction).
- e entire heating unit is equipped with global temperature control
NTC sensors on the ow and return manifolds.
-Integral insulation with non-allergenic synthetic wool.
- Total premix burner, modulating, with "metal foam" radiation
combustion chamber. Premixing in the fan. Automatic separating
backow diaphragm from the combustion chamber.
- Sound emissions at maximum power below 52 dBA for models 100-
350, 54 dBA for models 440-770 and 56 dBA for 900.
- Operation during heating: determining the instantaneous power
through a control microprocessor, with preset comparison parameters
between requested temperature (or calculated by the outdoor
thermoregulation) and global ow temperature.
- Logic of operation:
- Possibility of controlling the power of the single heating elements
for calibration and/or assistance with reserved access code.
- Domestic hot water production using a priority NTC probe, for
control by a storage tank loading pump or diverter valve, is done
with an SHC module that is supplied with the boiler.
- Possibility of controlling the power of the single heating elements.
- Heat request control: temperature setpoint and modulation level.
- Monitoring the state of operation and temperatures.
- Alarm notication.
- Parameter setting.
- Control relay to switch on a pump at a xed speed.
- Analogue 0÷10V output to control a modulating pump.
- Emergency operation: this allows you to avoid the system from
stopping due to an interruption in communication with the adjusting
system or possible remote management of the control unit:
- Emergency temperature with maximum power 100%.
- Alarm management.
-Alarm reset input.
-Alarm notication Relay.
- Condensation collection tray with stainless steel exhaust trap.
- Easily removable integral panelling comprised of oven-painted steel
panels suitable for outdoor installation.
- Condensation collection tray with stainless steel exhaust trap and ue
chamber.
- Incorporated deaerator.
e request for heat can be generated by the HSCP thermoregulation/
manager or alternatively by the BCM (Boiler controller).
The management logic envisions simultaneous operation of the
maximum number of heat elements, so as to always obtain the
maximum eciency. Since it guarantees the maximum exchange area
based on the delivered power. e elements are made to operate so as
to equally divide the operating time.
e hot water that is produced is pushed by the pump located on the
return of the primary ring to the ow of the hydraulic separator. From
here a second pump (system - see suggested diagrams) will distribute to
the various utilities. From the system, return the cooled water is taken
in by the pump on the return, through the hydraulic separator, to start
the cycle towards the generator again.
STD.006533/000

10
Technical characteristics and dimensions
2.2 VIEW OF MAIN PARTS
Min. depth 100 mm
ue outlet LEFT, RIGHT, REAR side
ow LEFT side
return LEFT side
Gas inletLEFT side
BCM: under the front casing
KEY
N° Error
code
Wiring
diagram Description
1 HSCP CONTROL PANEL
2VG GAS VALVE
3 BURNER COVER
4 E. ACC. IGNITION
5 E. RIL. IONISATION
7 TL LIMIT THERMOSTAT
8 BURNER
9
SILICON ALUMINIUM EXCHANGER
10 SL LEVEL SENSOR
11 CONDENSATION COLLECTION
PAN / FLUE FITTING
12 FRAME
13 CONDENSATE DRAIN OUTLET
14 DRAINING VALVE
15 SRR RETURN GLOBAL NTC
16 SMG PROBE FLOW GLOBAL NTC
17 AUTOMATIC AIR BLEED VALVE
18 FAN
19 PF min MINIMUM FLUE PRESSURE
SWITCH
20 PF FLUE PRESSURE SWITCH
STD.006533/000

11
L1
287
L
62,5
24
S
1448
39 5
946
235 S
1267
534 327
R
M
G
122
==
Technical characteristics and dimensions
2.3 DIMENSIONS
FRONT VIEW RIGHT SIDE VIEW
TOP VIEW
LEFT SIDE VIEW
ARES Tec ErP 440 550 660 770 900
Dimensions Unit
Heating elements n° 4 5 6 7 8
Height mm 1448 1448 1448 1448 1448
Width "L" mm 1087 1355 1355 1623 1623
Width "L1" mm 1039 1307 1307 1575 1575
Depth mm 946 946 946 946 946
Attachment sizes
G Gas tting mm (inch) 80 (3) 80 (3) 80 (3) 80 (3) 80 (3)
F System ow mm (inch) 100 (4) 100 (4) 100 (4) 100 (4) 100 (4)
R System return mm (inch) 100 (4) 100 (4) 100 (4) 100 (4) 100 (4)
Flue tting mm 250 250 300 300 300
Condensate drain mm 40 40 40 40 40
Flue outlets:
Le side (supply condition)
Right side
Rear side
STD.006533/000

12
Technical characteristics and dimensions
2.4 OPERATING DATA / GENERAL CHARACTERISTICS
(*) Room Temperature = 20°C
CO2(min/max) See “NOZZLES - PRESSURES” table
Seasonal Energy Eciency according to 2009/125 EEC (<=400Kw) ηs - see Table ErP
Losses at shutdown at ∆T 30°C - Pstb - see Table ErP
Electrical consumption in standby - Psb - see Table ErP
(**)See "NOZZLES - PRESSURES" table
(***) e IP X5D degree of protection is obtained with the lid lowered.
ARES Tec ErP 440 550 660 770 900
Boiler category II2H3P II2H3P II2H3P II2H3P II2H3P
Modulation ratio 1 : 19,6 1 : 24,5 1 : 29,4 1 : 34,3 1 : 39,2
Nominal heat input on L.V.C. Qn kW 432 540 648 756 864
Minimum heat input on L.C.V. Qmin kW 22 22 22 22 22
Nominal eective power (Tr 60 / Tf 80 °C) Pn kW 424,3 530,4 636,5 742,6 849,0
Minimum eective power (Tr 60 / Tf 80 °C) Pn min kW 20,6 20,6 20,6 20,6 20,6
Nominal eective power (Tr 30 / Tf 50 °C) Pcond kW 445,0 557,8 670,1 783,2 900,3
Minimum eective power (Tr 30 / Tf 50 °C) Pcond min kW 23,9 23,9 23,9 23,9 23,9
Eciency at nominal power (Tr 60 / Tf 80°C) % 98,2 98,2 98,2 98,2 98,2
Eciency at minimum power (Tr 60 / Tf 80°C) % 93,5 93,5 93,5 93,5 93,5
Eciency at nominal power (Tr 30 / Tm 50°C) % 104,0 104,0 104,0 104,0 104,0
Eciency at minimum power (Tr 30 / Tm 50°C) % 109,0 109,0 109,0 109,0 109,0
Eciency at 30% of the load ( Tr 30°C) % 107,3 107,5 108,3 107,8 107,6
Eciency class according to directive 92/42 EEC -- 4 4 4 4 4
Combustion eciency at nominal load % 97,8 97,8 97,8 97,8 97,8
Combustion eciency at a reduced load % 98,5 98,5 98,5 98,5 98,5
Losses from operating burner casing (Qmin) % 5,04 5,04 5,04 5,04 5,04
Losses from operating burner casing (Qn) % 0,1 0,1 0,1 0,1 0,1
Flue temperature at net of Tf-Ta (min)(*) °C 31,0 31,0 31,0 31,0 31,0
Flue temperature at net of Tf-Ta (max)(*) °C 46,7 46,7 46,7 46,7 45,8
Maximum permitted temperature °C 100 100 100 100 100
Maximum operating temperature: °C 85 85 85 85 85
Mass ue ow rate (min) kg/h 25 25 25 25 25
Mass ue ow rate (max) kg/h 693 866 1040 1213 1386
Air excess % 24,25 24,25 24,25 24,25 24,25
Chimney losses with burner in operation (min) % 1,5 1,5 1,5 1,5 1,5
Flue losses with burner in operation (max) % 2,58 2,53 2,51 2,58 2,58
Minimum pressure of heating circuit bar 0,5 0,5 0,5 0,5 0,5
Maximum pressure of heating circuit bar 6,0 6,0 6,0 6,0 6,0
Water content l 67 80 94 108 122
Methane gas consumption G20 (supp.press. 20 mbar) at Qn m3/h 45,68 57,10 68,52 79,94 91,36
Methane gas consumption G20 (supp.press. 20 mbar) at Qn m3/h 2,33 2,33 2,33 2,33 2,33
Gas consumption G25 (supp.press. 20/25 mbar) at Qn m3/h 53,13 66,41 79,69 92,97 106,25
Gas consumption G25 (supp.press. 20/25 mbar) at Qn m3/h 2,71 2,71 2,71 2,71 2,71
Propane gas consumption (supp.press. 37/50 mbar) at Qn kg/h 33,53 41,92 50,30 58,68 67,01
Propane gas consumption (supp.press. 37/50 mbar) at Qn kg/h 1,71 1,71 1,71 1,71 1,71
Maximum pressure available at ue base Pa 100 100 100 100 100
Max condensate production kg/h 73,4 91,7 110 128,4 146,7
Emissions
CO at maximum heat input with 0% O2 mg/kWh 76,7 76,7 76,7 76,7 76,7
NOx at maximum heat input with 0% O2 mg/kWh 68,8 68,8 68,8 68,8 68,8
NOx class 66666
(***) Sound pressure level dBA 54 54 54 54 56
Electrical data
Frequency/Power supply voltage: V/Hz 230/50 230/50 230/50 230/50 230/50
Supply fuse A (R) 6,3/10 6,3/10 6,3/10 6,3/10 6,3/10
(**) Degree of protection IP X5D X5D X5D X5D X5D
For the adjustment data: NOZZLES - PRESSURES - DIAPHRAGMS - FLOW RATES refer to the paragraph ADAPTATION FOR USE WITH
OTHER GASES.
STD.006533/000

13
Technical characteristics and dimensions
2.4.1 TECHNICAL DATA ACCORDING TO THE ERP DIRECTIVE
ARES TEC ErP 440 550 660 770 900
Element Symbol Unit
Useful heat output Nominal
output kW 424 530 636 743 849
Room central heating seasonal energy eciency ηs %
Central heating seasonal eciency class * * * * *
For boilers for central heating and combination boilers:
useful heat output
Useful heat output in high temperature mode (Tr 60
°C / Tm 80 °C) P4kW - - - - -
Eciency at nominal heat output in high temperature mode
(Tr 60 °C / Tm 80 °C)
η4% - - - - -
Useful heat output at 30% nominal heat output in low
temperature mode (Tr 30 °C)
P1kW - - - - -
Eciency at 30% nominal heat output in low temperature
mode (Tr 30 °C)
η1% -
Boiler with power range adjustment: YES / NO
Auxiliary electricity consumption
At full load elmax kW 0,626 0,783 0,940 1,096 1,252
At partial load elmin kW 0,054
In standby mode PSB kW 0,020
Other items
Heat loss in standby Pstb kW 0,2114 0,2114 0,2114 0,2114 0,2114
Emissions of nitrogen oxides ref. PCI (PCS) NOx Mg/kWh 54 (49)
Annual electrical consumption QHE GJ 1303 1633 1959 2286 2612
For mixed central heating appliances
Stated load prole - - - - -
Water central heating energy eciency ηwh % - - - - -
Daily electrical power consumption Qelec kWh - - - - -
Daily fuel consumption Qfuel kWh - - - - -
Sound power level indoors Lwa dB (A) - - - - -
Annual electrical consumption AEC kWh - - - - -
Annual fuel consumption AFC GJ - - - - -
DHW seasonal eciency class - - - - -
STD.006533/000

14
Technical characteristics and dimensions
e pump is not an integral part of the boiler. It is advisable to choose a
pump with a ow rate and head of approximately 2/3 of its typical curve.
ARES TEC 550 ErP
Maximum ow rate in l/h (t = 15 K) 30.404
Nominal requested ow rate in l/h (t = 20 K) 22.804
ARES TEC 900 ErP
Maximum ow rate in l/h (t = 15 K) 48.647
Nominal requested ow rate in l/h (t = 20 K) 36.487
ARES TEC 440 ErP
Maximum ow rate in l/h (t = 15 K) 24.326
Nominal requested ow rate in l/h (t = 20 K) 18.243
ARES TEC 770 ErP
Maximum ow rate in l/h (t = 15 K) 42.570
Nominal requested ow rate in l/h (t = 20 K) 31.926
ARES TEC 660 ErP
Maximum ow rate in l/h (t = 15 K) 36.487
Nominal requested ow rate in l/h (t = 20 K) 27.365
e boiler pump must have head that can ensure circulator ow rates
according to the circuit’s ∆t.
The pumps must be determined by the installer or
designer based on the data for the boiler and system.
2.4.2 DETERMINING THE PRIMARY CIRCUIT PUMP OR BOILER PUMP
EXAMPLE:
For a T 20K, of an ARES Tec ErP 900 the maximum
required ow rate is 10514 l/h.
From the head loss graph it is possible to deduce that
the pump must ensure a head of at least 1.6 m/H2O.
NOTE:
It is always advisable to set up a hydraulic compensator
between the boiler circuit and the system circuit. It
becomes ESSENTIAL if the system requires greater
ow rates than the maximum allowed by the boiler,
i.e. ∆t below 15K.
STD.006533/000

15
Technical characteristics and dimensions
STD.006533/000

16
Instructions for the installer
3.2 REGULATIONS FOR INSTALLATION
Installation must be carried out by a professionally authorised company,
who is in charge of enforcing observance of all local and/or national
laws published in the Ocial Gazette, as well as all applicable technical
regulations.
3.3 PREVENTATIVE CHECKS AND
ADAPTATION OF THE SYSTEM
When the appliance is installed on existing systems, make sure that:
- e ue is suitable for condensation appliances, for the temperatures
of the combustion products, calculated and built in accordance with
regulations in force. at is it a straight as possible, water-tight and
insulated and does not have any obstructions or constrictions.
- e ue is equipped with an attachment to evacuate the condensation.
e boiler room is equipped with a pipe for the evacuation of the
condensation produced by the boiler.
- e electrical system is built in accordance with specic regulations
and by professionally authorised company.
- e ow rate, head and direction of ow of the circulation pumps is
appropriate.
- e fuel feed line and any existing tanks are set up in accordance with
regulations in force.
- e expansion vessels ensure complete absorption of the dilation of
the uid contained in the system.
- Slurry and build-up have been cleaned out of the system.
3INSTRUCTIONS FOR INSTALLATION
3.1 GENERAL RECOMMENDATIONS
ATTENTION!
is boiler must only be employed for its explicitly
intended use. Any other use must be considered
improper and therefore dangerous.
is boiler is used to heat water to below boiling
temperature in atmospheric pressure.
ATTENTION!
e appliances are designed to be installed inside
buildings only in suitable technical compartments,
and also outdoors in a completely open place.
Before connecting the boiler, have professionally
authorised company:
a) Accurately washing all of the pipes in the system
to remove any residues or sediments could stop
the boiler form running eciently, even in terms
of health and hygiene.
b) Making sure the boiler is set up to operate with the
available type of fuel. e type of fuel is stated on the
packaging and technical characteristics plate.
c) Make sure that the chimney/ue has an adequate
draught, that it is not choked, and that there are no
other exhausts for other appliances, unless the ue
is designed for multiple utilities, in accordance with
standard specications and requirements in force.
Only once this check has been carried out can the
tting between boiler and chimney/ue be set up.
ATTENTION!
In rooms with aggressive vapour or dust, the
appliance must operate independently of the air in
the room of installation!
ATTENTION!
e appliance must be installed by an authorised
company possessing professional-technical
qualications in accordance with the law, who, under
his/her own responsibility, enforces the observance of
regulations according to the rules of good practice.
ATTENTION!
Assemble the appliance in observance of the minimum
required distances for installation and maintenance.
e boiler must be connected to a heating system
compatibly with its specications and power.
STD.006533/000

17
C
BA
Instructions for the installer
3.4 PACKAGING
e ARES Tec ErP boiler is supplied assembled in a sturdy cardboard
box.
Once the two straps have been removed, slide the box
o from the top and make sure the contents are intact.
Packaging materials (cardboard box, straps, plastic
bags, etc.) constitute a potential hazard and must be
kept out of the reach of children.
e manufacturer will not be held liable in case of
damage caused to people, animals or property due to
failure to observe the above.
OBLIGATION!
Wear protective gloves
- Only transport the boiler using appropriate transport
means, for example a trolley with xing strap.
- When the boiler is shipped, it must be secured to the
transport equipment.
- Protect all parts against impacts, if they must be
transported.
- Follow the transport instructions on the package.
- e boilers must always be lied and carried with a
trolley or suitable transport equipment.
To take the boiler o of the pallet it is necessary to use a jib crane, to
avoid damaging it.
- Remove the casings and harness it using slings "A" g. 3 being careful
to pass the slings through the load bearing crossbeams of the frame
- Tie the slings to the jib "B". Perform these operations with caution.
Composition of packaging:
on the le side of the boiler:
- e ue exhaust manifold.
- A cardboard box containing:
- Gasket between pan and terminal
- Collar gasket (Ø 250) Ø 300
- Two bends + one T + plastic cap for condensate drain
- Screws required to secure the ue terminal
- e probes: external, ow, storage tank.
- Flue inspection cap.
- Plate and fairlead for power output.
- A cardboard box containing:
- Flanges
Inside the rear side of the casing:
- Condensate drain trap pipes (1 m).
Above the boiler cover:
- A plastic bag containing:
- Installer and maintenance technician instructions handbook
- HSCP control unit user handbook
- BCM 2.0 user handbook
- SHC book
- Warranty certicate
- Hydraulic test certicate
- Pins to block the set of fans in raised position
Model A (mm) B (mm) C (mm) Gross
Weight (kg)
440
550
660
770
900
1263
1531
1531
1799
1799
1120
1120
1120
1120
1120
1515
1515
1515
1515
1515
585
643
707
806
858
STD.006533/000

18
1
Max.admitted boilers
stacked
Donot turn upside down Do not expose to rain Fragile Donot expose to sunlight Do not store at
temperature:
lowerthan - 5 ° C / 23 °F
superiorthan 50 °C / 122 °F
Tma x
50°C/122° F
Tmin
-5°C/23°F
2
Max.admitted boilers
stacked
Donot turn upside down Donotexpose to rain Fragile Donot expose to sunlight Donotstoreat
temperature:
lowerthan - 5 ° C / 23 °F
superiorthan 50 °C / 122 °F
Tmax
50°C/122°F
Tmin
-5°C/23°F
3
Max.admitted boilers
stacked
Donot turn upside dow n Donot expose to rain Fragile Donot expose to sunlight Donotstore at
temperature:
lowerthan - 5 ° C / 23 °F
superiorthan 50 °C / 122 °F
Tma x
50°C/122°F
Tmin
-5°C/23°F
4
Instructions for the installer
3.5 OPERATION TO UNLOAD AND
REMOVE THE PACKAGING
ATTENTION!
Handle using forkli or hoist and sling.
ATTENTION!
Sling slotting points for liing. e slings must be
assembled on the load bearing crossbeams.
To take the boiler o of the pallet it is necessary to use a jib crane, to
avoid damaging it.
- Remove the casings and harness it using slings, being careful to pass
the slings through the load bearing crossbeams of the frame.
- Tie the slings to the jib. Perform these operations with caution.
STD.006533/000

19
A > 400 mm
B > 400 mm
C = 100 mm
D=500 mm Sifone
AB
D
C
Instructions for the installer
Observe the minimum clearance distances required to
perform normal maintenance and cleaning operations.
3.6 POSITIONING THE HEATING
CONTROL UNIT
Special attention must be paid to local standards and regulations
regarding heating control units, especially the minimum distances
that must be observed.
Installation must be comply with the requirements contained in the
most recent standards and legislation regarding heating control units,
heating system installation and hot water production, ventilation, ues
suitable for condensation boiler combustion product exhaust, and any
other applicable regulation.
e boiler can be placed on a at platform that is suciently sturdy
in size, in plan, no smaller than the boiler measurements and with a
minimum height of at least 100 mm so that the trap for condensate
drainage can be installed. Alternatively, a trap can be built from this
platform, next to the boiler, at a depth of 100 mm so that the trap can
be placed in it (Parag. 3.16).
When installation is complete the boiler should be perfectly horizontal
and rmly stable (to reduce vibrations and noise).
Trap
STD.006533/000

20
B23P
-
C63
Instructions for the installer
3.7 FLUE EXHAUST PIPE CONNECTION
e ue exhaust pipe must comply with local and national regulations.
ATTENTION
For this type of connection, the room follows the same
installation regulations for boilers with natural draught
Connection to a combustion product evacuation pipe outside the
room, the combustion air is taken directly from the room where
the device is installed.
HEAD AVAILABLE AT THE BASE OF THE CHIMNEY
S (Exhaust) A (Intake)
Dp = 100 Pa -
A (Intake)
e maximum permitted length of the pipes is determined by the
head (Dp) available at the base of the chimney.
ATTENTION:
for the type of B23P connection, the room follows
the same installation regulations for boilers with
natural draught.
e boiler is approved for the draining settings described below:
ATTENTION
To congure the C63 you need to order the optional air
intake kit which includes instructions on application.
Separate ducts for combustion air intake and evacuation of combus-
tion products. (Commercial accessories)
HEAD AVAILABLE AT THE BASE OF THE CHIMNEY
S (Exhaust) A (Intake)
Dp = 100 Pa -
e maximum permitted length of the pipes is determined by the
head (Dp) available at the base of the chimney
ATTENTION:
e ue must comply with the standards in force.
3.7.1 FLUE EXHAUST MANIFOLD
CONNECTION
To secure the ue exhaust manifold use the nuts and
washers contained in the bag.
e ue point must be positioned on the rst straight
section, within 1 meter of the boiler.
To set up the ue inspection point, cut a Ø 21 mm hole
in the ue exhaust pipe, and install the inspection point
following the sequence provided.
STD.006533/000
