Impex Marcy Diamond Elite MD-MXM6 User manual

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
MD-MXM6
Retain This
Manual for
Reference
08-3-06
OWNER'S
MANUAL
MARCY DIAMOND ELITE
SMITH CAGE
MD-MXM6
IMPEX®
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: [phone] Fax: [phone]
www.impex-fitness.com
[email protected]

TABLE OF CONTENTS
BEFORE YOU BEGIN...................................................................................... 1
IMPORTANT SAFETY NOTICES..................................................................... 2
HARDWARE PACK….......…..........................................………………………. 4
ASSEMBLY INSTRUCTIONS...........................................……………………. 8
EXPLODED DIAGRAM…………………………………………………………….. 25
PARTS LIST………..……………………………………………………………….. 27
WARRANTY.................................................................................................…. 28
ORDERING PARTS.......................................................................................… 28
BEFORE YOU BEGIN
Thank you for selecting the MARCY DIAMOND ELITE Smith Cage MD-
MXM6 by IMPEX®. For your safety and benefit, read this manual carefully
before using the machine. As a manufacturer, we are committed to provide
you complete customer satisfaction. If you have any questions, or find there
are missing or damaged parts, we guarantee you complete satisfaction
through direct assistance from our factory. To avoid unnecessary delays,
please call our TOLL-FREE customer service number. Our Customer
Service Agents will provide immediate assistance to you.
1
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
[email protected]m

IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire
manual before you assemble or operate your machine. In particular, note the following
safety precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. A spotter is recommended during exercise.
CARE AND MAINTENANCE
1. Lubricate moving parts with WD-40 or light oil periodically.
2. Inspect and tighten all parts before using the machine.
3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
4. Maximum user’s weight: 300 lbs.
5. Maximum weight on Rack: 300 lbs.
6. Maximum weight on Smith Bar: 300 lbs.
7. Maximum weight on Weight Holder: 200 lbs.
8. Maximum weight on Leg Developer: 100 lbs.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS. 2

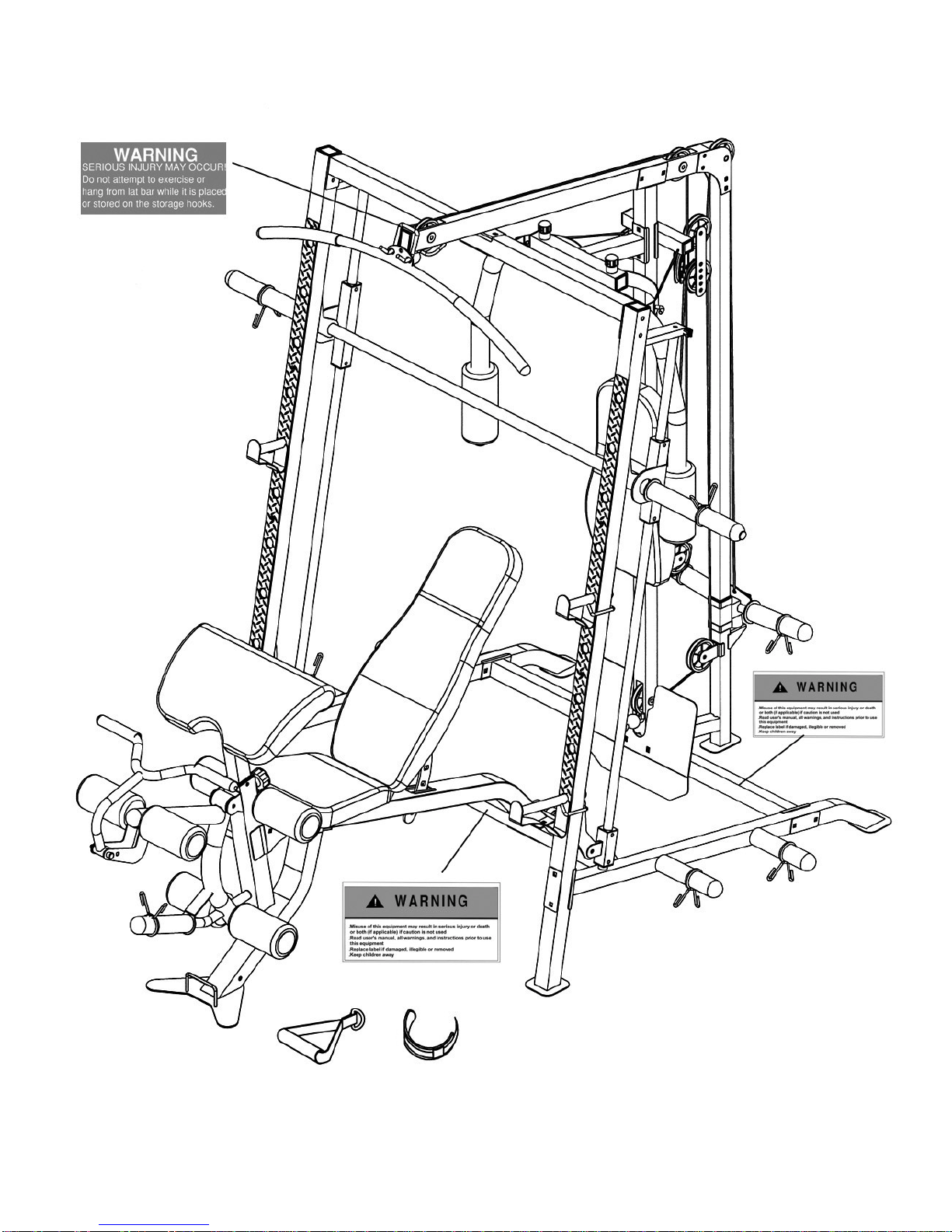

WARNING LABEL REPLACEMENT
The warning labels shown here have been placed on the Cross Brace, Rear Stabilizer, and Upper
Frame. If the labels are missing or illegible, please call customer service at 1-800-888-8899 for
replacements. Apply the labels in location shown.
3

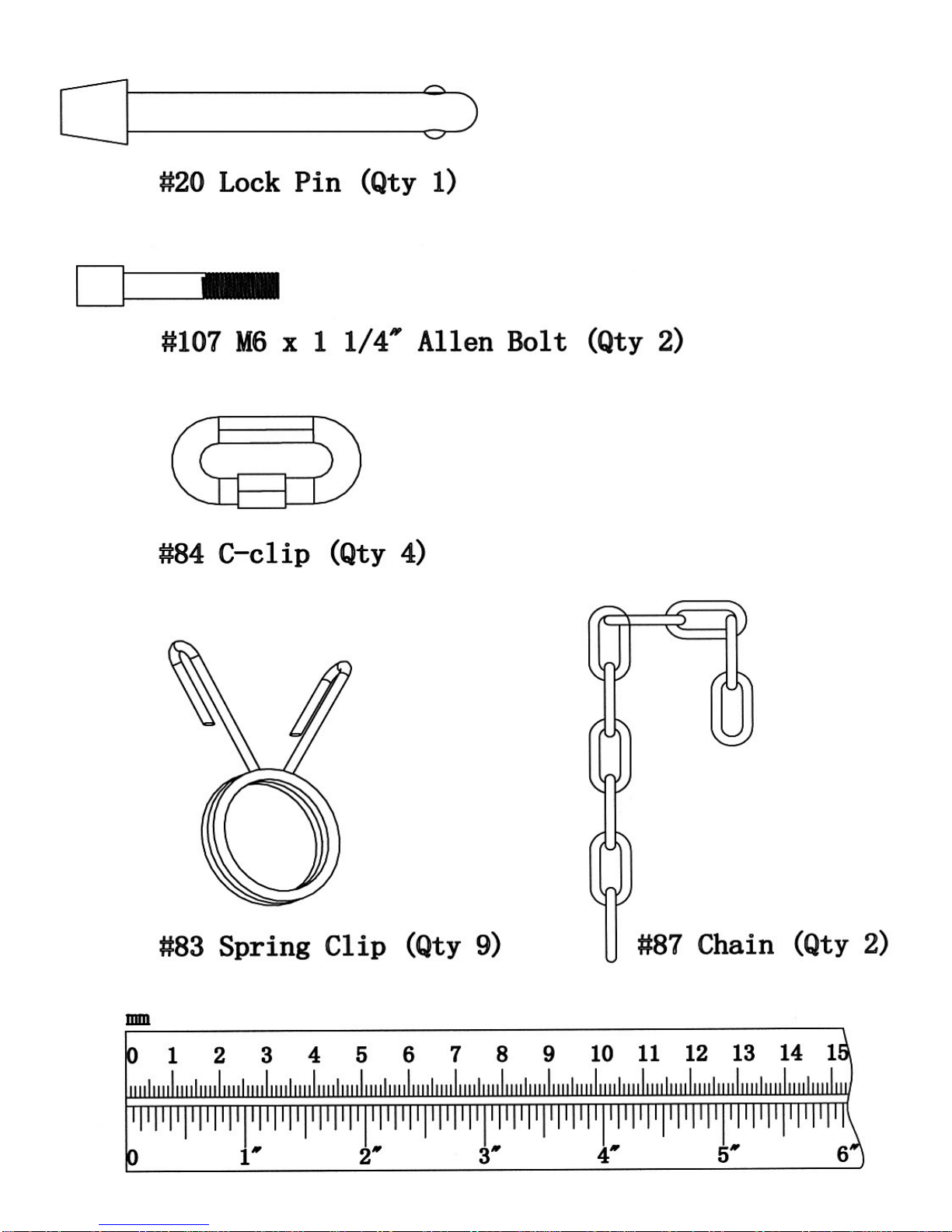

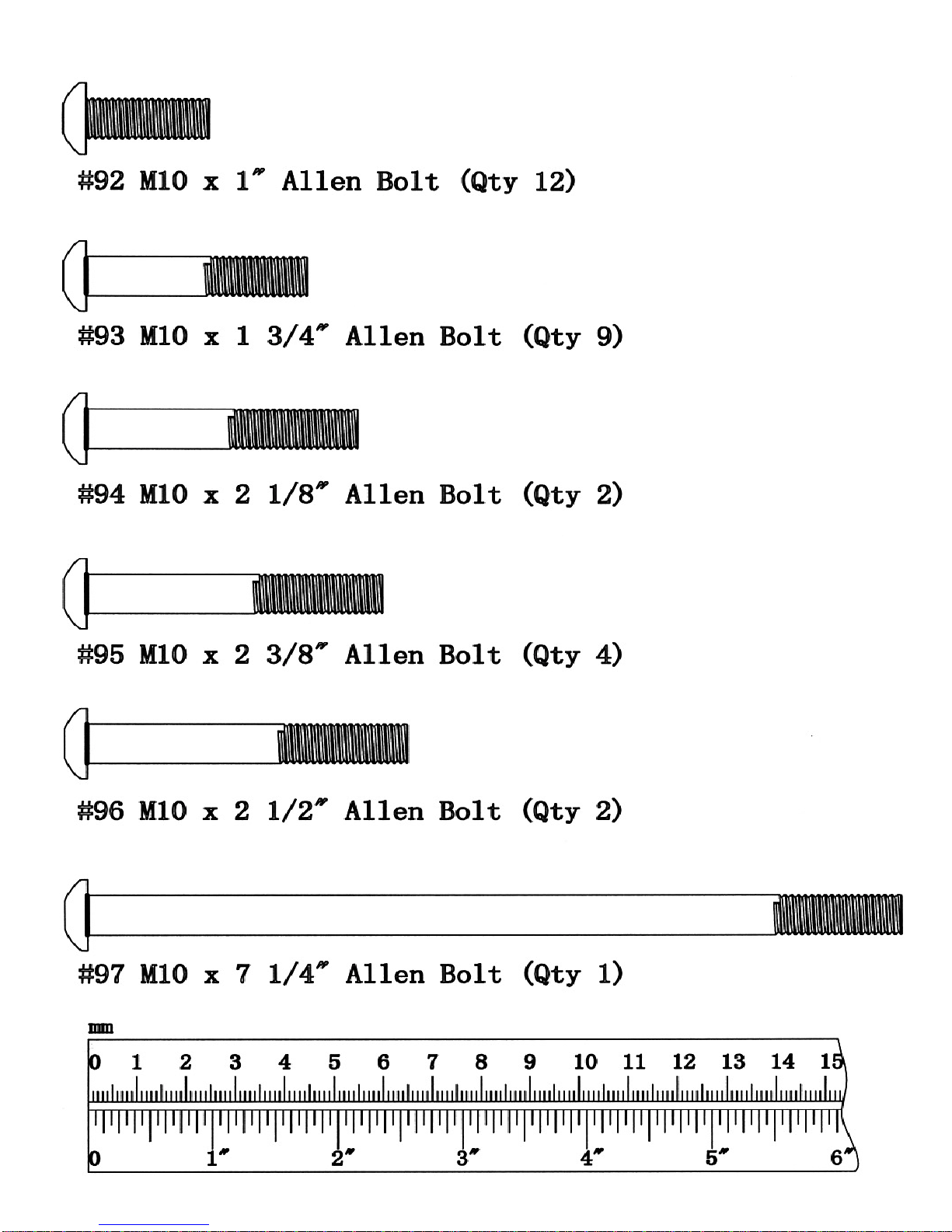

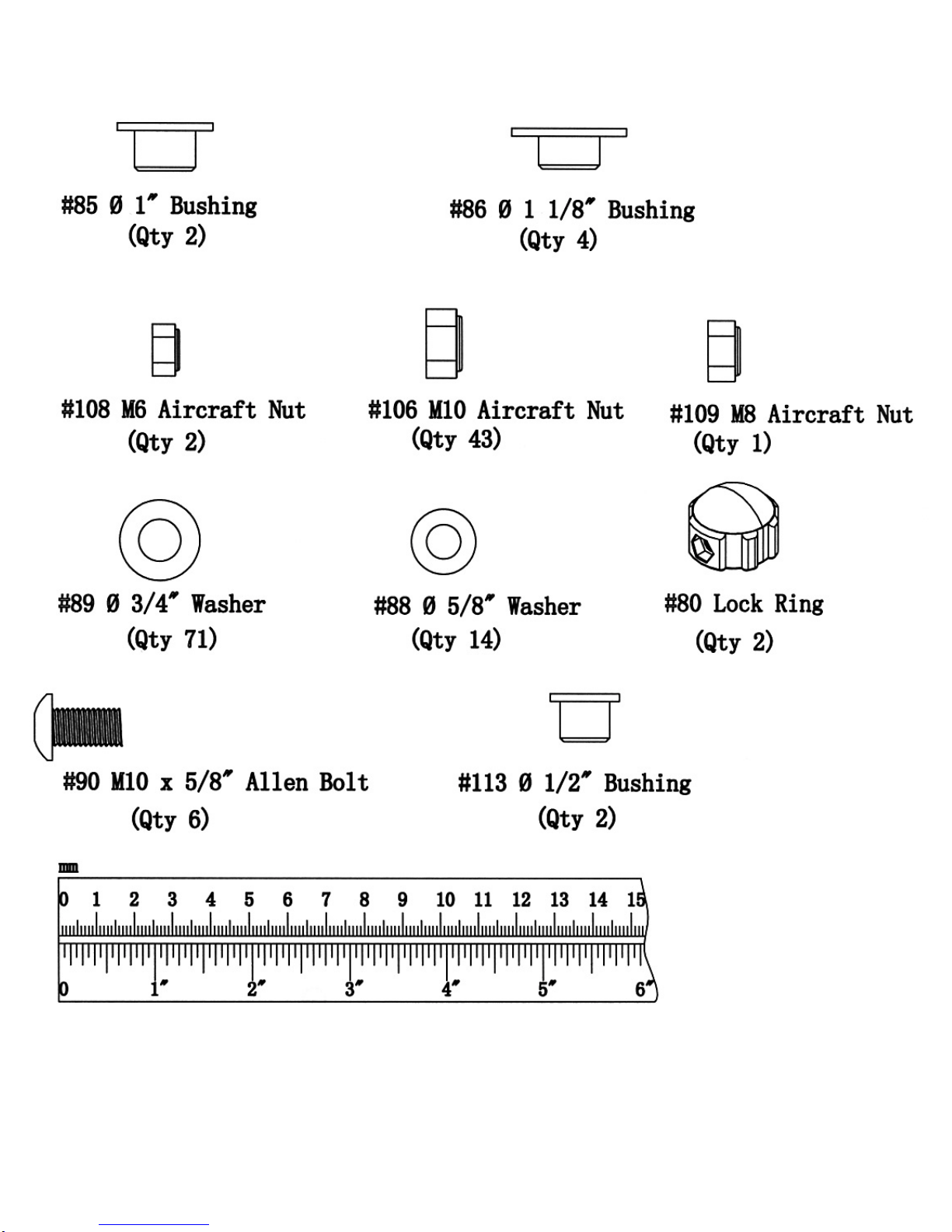

HARDEWARE PACK
4

HARDEWARE PACK
5

HARDEWARE PACK
6

HARDEWARE PACK
7

ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches.
NOTE: It is strongly recommended two or more people assembling this machine to
avoid possible injury.

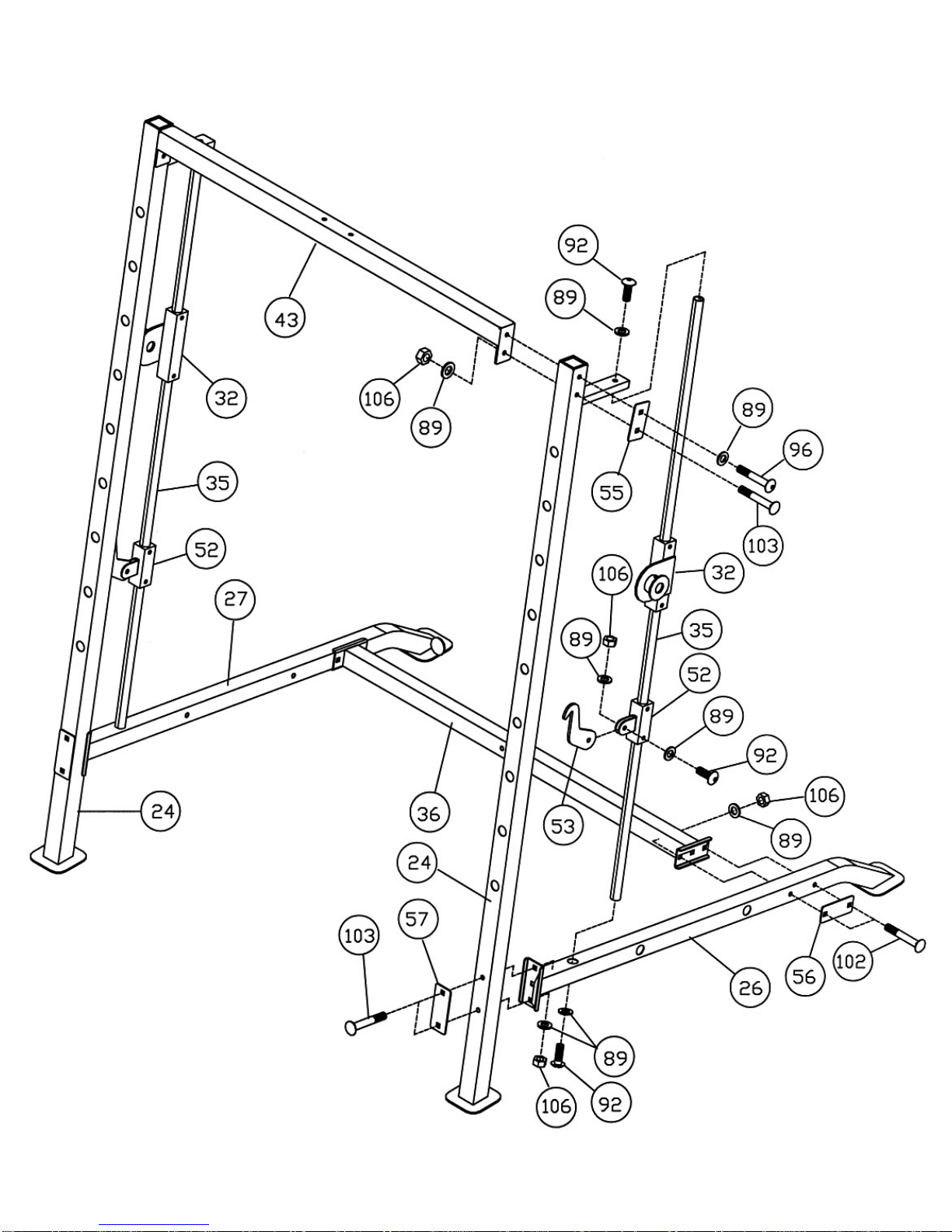

STEP 1 (See Diagram 1)
A.) NOTE: Do not tighten the Nuts and Bolts until instructed to do so.
B.) Connect the Left & Right Base Frames (#26 & #27) by a Cross Brace (#36) in the mid-
span. Secure each end of the Cross Brace with two M10 x 2 ½” Carriage Bolts (#102),
one 4 3/8” x 1 ¾” Bracket (#56), two Ø ¾” Washers (#89), and two M10 Aircraft Nuts
(#106).
C.) Attach a Front Vertical Beam (#24) to the Left Base Frame (#26). Secure it with two
M10 x 2 ¾” Carriage Bolts (#103), one 4 ¾” x 2” Bracket (#57), two Ø ¾” Washers
(#89), and two M10 Aircraft Nuts (#106). Repeat the same procedure to install the
other side.
D.) Attach the Front Top Beam (#43) to the two Front Vertical Beams. Secure each end
with one M10 x 2 ½” Allen Bolt (#96), 4” x 2” Bracket (#55), and Ø ¾” Washer (#89) to
the top hole. Secure the bottom hole with one M10 x 2 ¾” Carriage Bolt (#103), Ø ¾”
Washer (#89), and M10 Aircraft Nut (#106).
E.) Insert a Guide Rod (#35) into the hole on the Left Base Frame (#26). Secure it with
one M10 x 1” Allen Bolt (#92) and ∅¾” Washer (#89) from the bottom.
F.) Slide a Lower Safety Stop Frame (#52) and a Safety Stop Frame (#32) onto the Guide
Rod (#35).
G.) Secure the top of the Guide Rod to the Front Vertical Beam with one M10 x 1” Allen
Bolt (#92) and ∅¾” Washer (#89).
H.) Attach a Safety Hook (#53) to the Lower Safety Stop Frame (#52). Secure it with one
M10 x 1” Allen Bolt (#92), two ∅¾” Washers (#89), and one M10 Aircraft Nut (#106).
I.) Attach the Safety Hook to the selected hole on the Front Vertical Beam.
J.) Repeat procedures E through I above to install the other side.
8

DIAGRAM 1
9

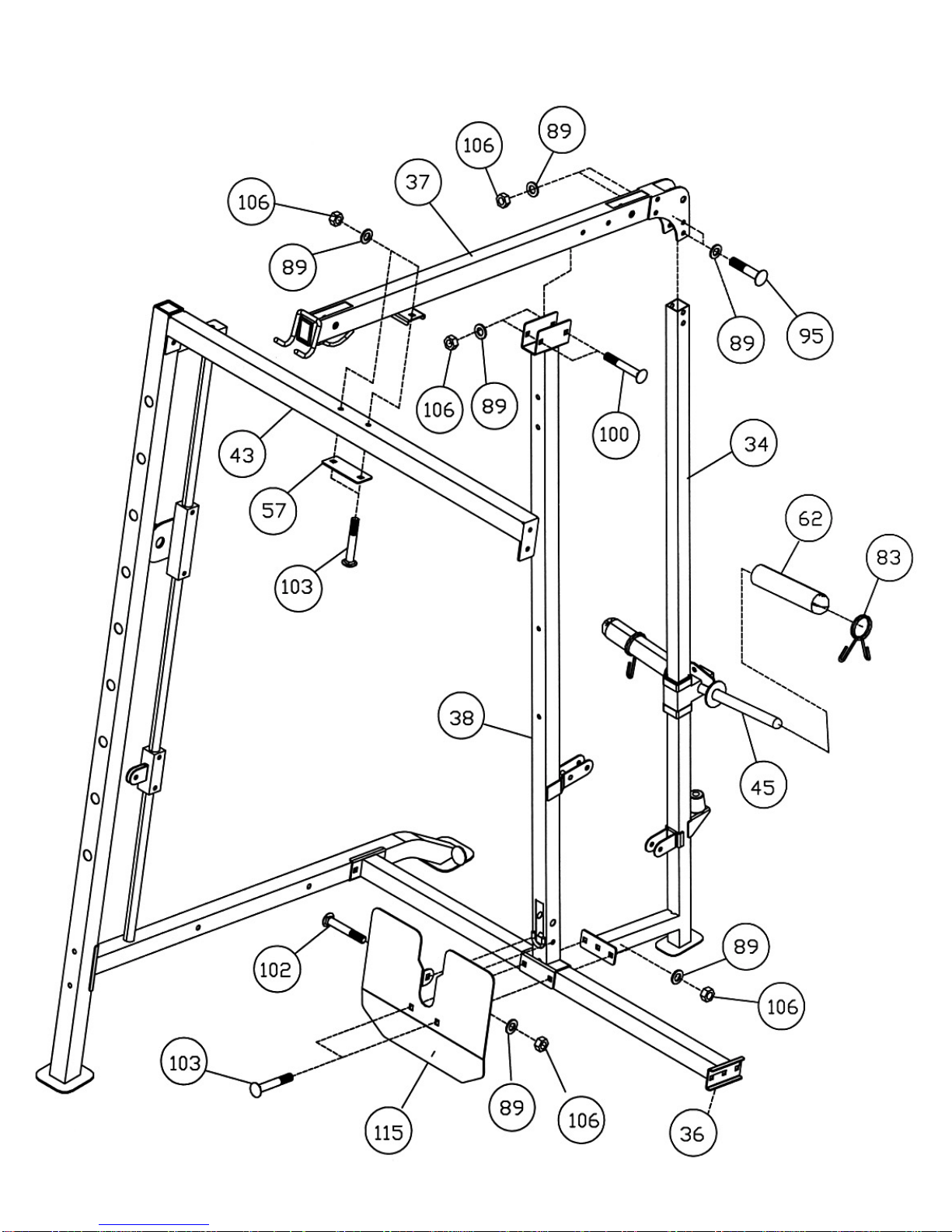

STEP 2 (See Diagram 2)
A.) Attach the Rear Vertical Beam (#38) onto the Cross Brace (#36). Attach the Weight Glide
Post (#34) to the Rear Vertical Beam and Cross Brace. Attach the Foot Plate (#115) to the
Cross Brace. Align the holes and secure them with two M10 x 2 ¾” Carriage Bolts (#103),
∅¾” Washers (#89), and M10 Aircraft Nuts (#106).
B.) Slide the Sliding Weight Post (#45) onto the Weight Glide Post (#34).
C.)Place the Upper Frame (#37) onto the Rear Vertical Beam (#38), Weight Glide Post (#34),
and Front Top Beam (#43).
D.)Secure the Upper Frame to the Weight Glide Post (#34) with two M10 x 2 3/8” Allen Bolts
(#95), four ∅¾” Washers (#89), and two M10 Aircraft Nuts (#106).
E.) Secure the Upper Frame to the Rear Vertical Beam (#38) with two M10 x 2 3/8” Carriage
Bolts (#100), ∅¾” Washers (#89), and M10 Aircraft Nuts (#106).
F.) Secure the Upper Frame to the Front Top Beam (#43) with two M10 x 2 ¾” Carriage Bolts
(#103), one 4 ¾” x 2” Bracket (#57), two ∅¾” Washers (#89), and two M10 Aircraft Nuts
(#106).
G.)Slide two Olympic Sleeves (#62) onto the posts on the Sliding Weight Post (#45). Attach a
Spring Clip (#83) to each Sleeve.
H.)Secure the Foot Plate (#115) to the Rear Vertical Beam (#38) with one M10 x 2 ½”
Carriage Bolt (#102), Ø ¾” Washer (#89), and M10 Aircraft Nut (#106).
I.) Securely tighten all nuts and bolts previously installed.
10

DIAGRAM2
11

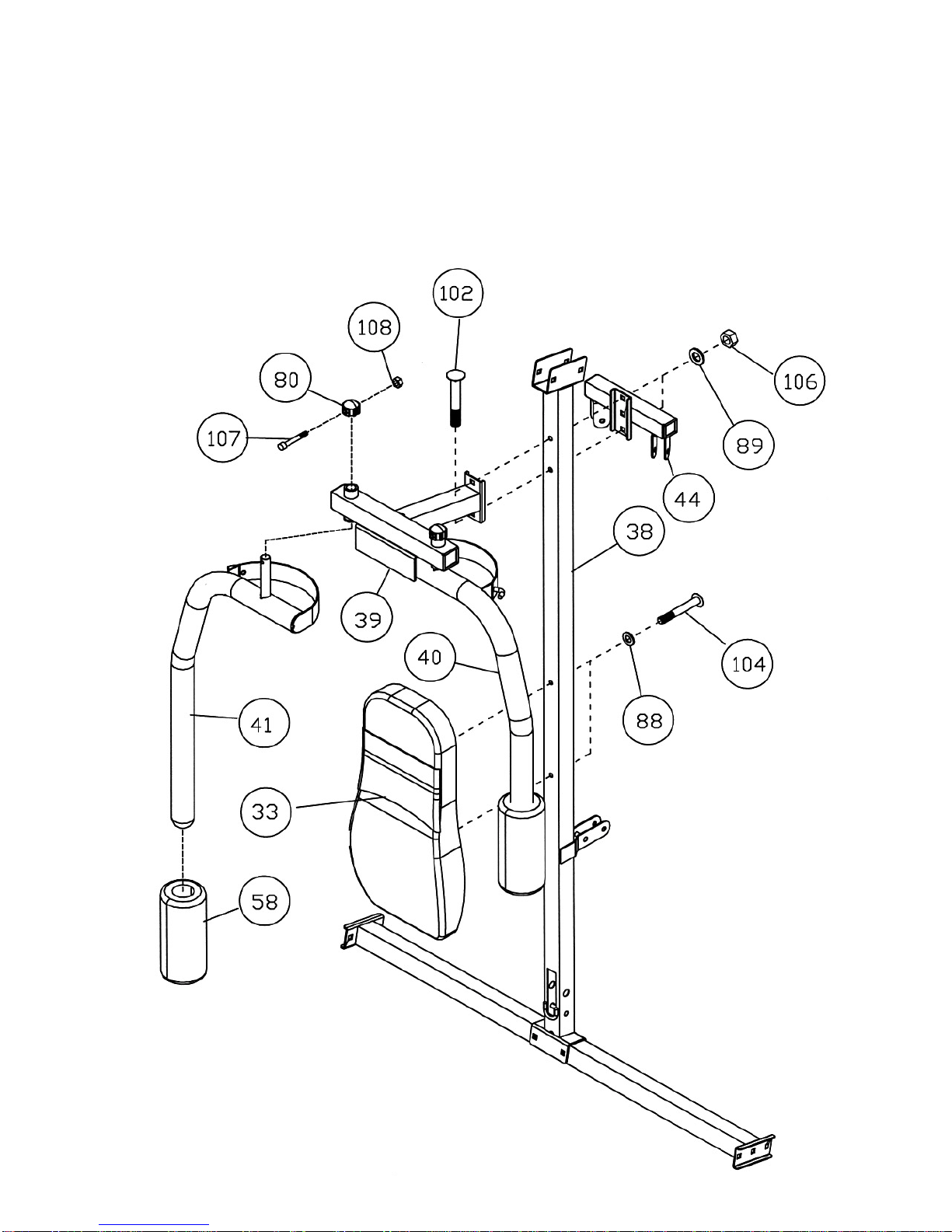

STEP 3 (See Diagram 3)
A.) Attach the Butterfly Base (#39) and Butterfly Pulley Bracket (#44) to the Rear Vertical Beam
(#38). Align the holes and secure them with two M10 x 2 ½” Carriage Bolts (#102), ∅¾”
Washers (#89), and M10 Aircraft Nuts (#106).
B.) Insert the axle on the Right Butterfly (#41) through the hole on the Butterfly Base. Secure it
with one Lock Ring (#80), M6 x 1 ¼” Allen Screw (#107), and M6 Aircraft Nut (#108).
C.)Push a Butterfly Arm Pad (#58) onto the Right Butterfly.
D.)Repeat Procedures B and C above to install the other side.
E.) Attach the Backrest Board (#33) to the Rear Vertical Beam. Secure it with two M8 x 2 3/8”
Allen Bolts (#104) and ∅5/8” Washers (#88).
12

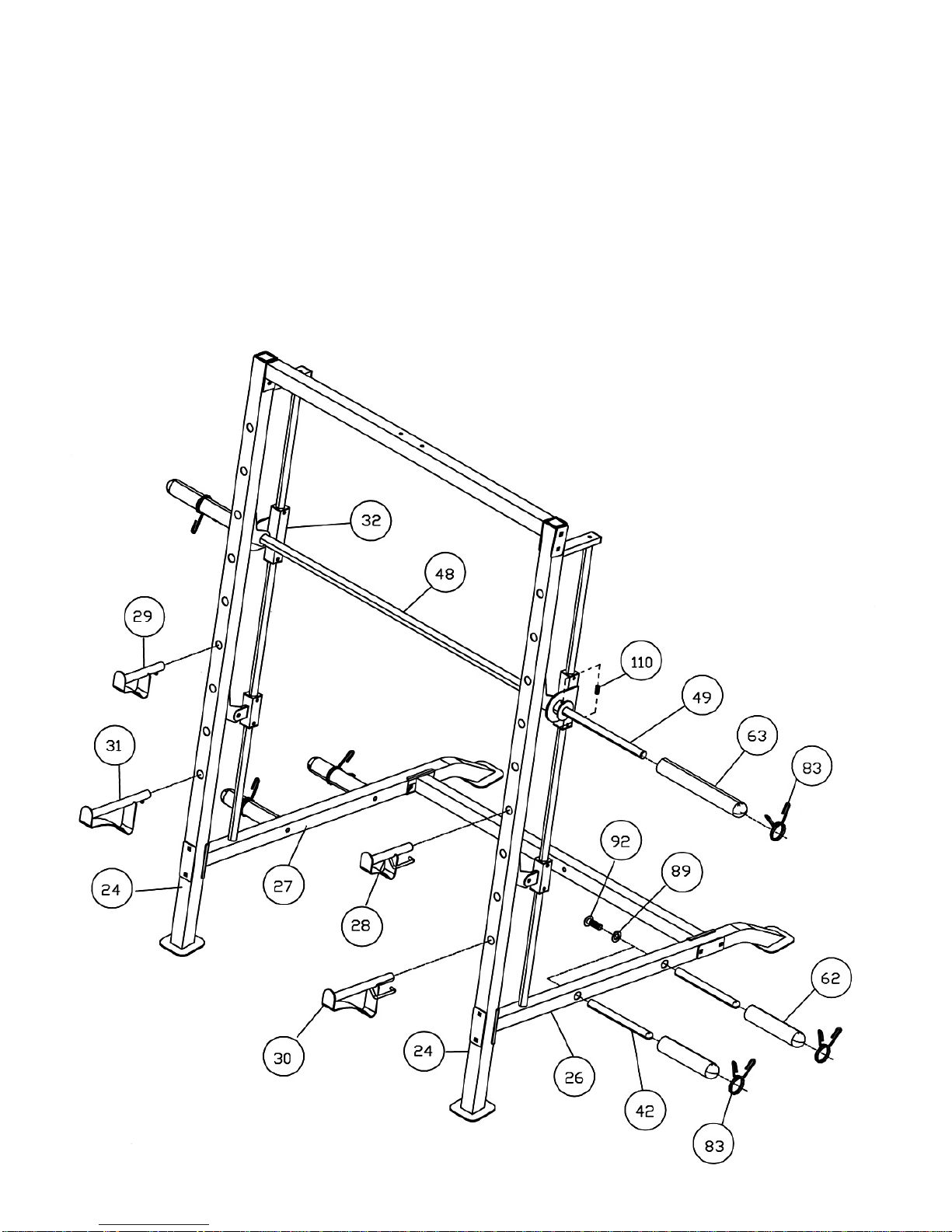

STEP 4 (See Diagram 4)
A.) Note: Help of another person is strongly recommended for this step. Place the Weight Lifting
Sleeve (#48) in between the two Safety Stop Frames (#32). Align the holes and insert the
Weight Bar (#49) into the Safety Stop Frame from one end through the Weight Lifting Sleeve
to the other Safety Stop Frame on the opposite end. Center the bar and secure it to each
Safety Stop Frame with two M8 x 3/8” Allen Bolts (#110) on each end.
B.) Turn the safety hook on the Weight Lifting Sleeve to secure its position on the selected holes
on the Front Vertical Beams. Slide two Long Olympic Sleeves (#63) onto the Weight Bar.
Attach two Spring Clips (#83) to the Olympic Sleeves.
C.)Attach four Weight Posts (#42) to the Left & Right Base Frames (#26 & #27). Secure each
Post with one M10 x 1” Allen Bolt (#92) and ∅¾” Washer (#89).
D.)Attach four Olympic Sleeves (#62) to the Posts. Attach a Spring Clip (#83) to each Sleeve.
E.) Insert the Left & Right Bar Holders (#28 & #29), Left & Right Safety Catches (#30 & #31) into
the selected holes on the two Front Vertical Beams (#24).
13

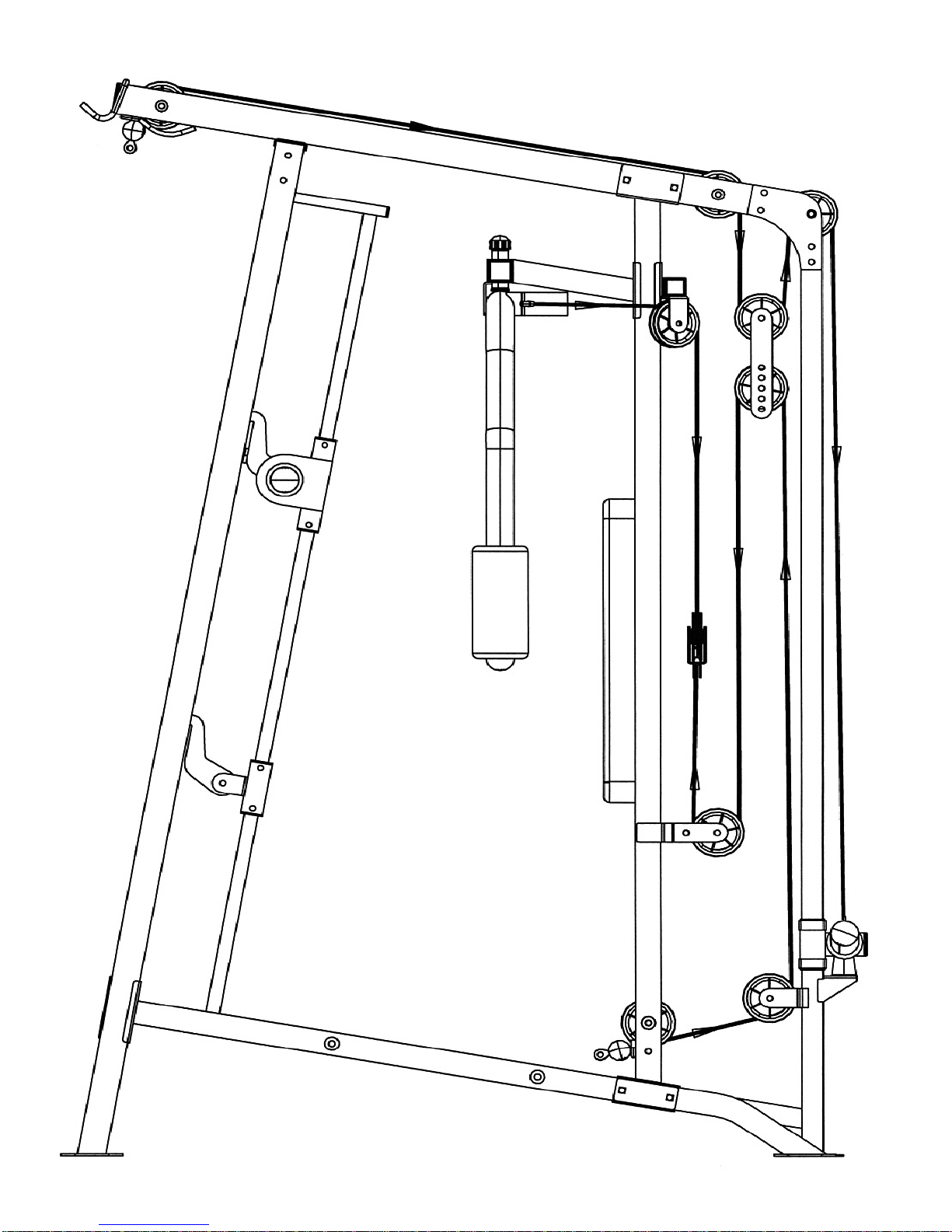

CABLE LOOP DIAGRAM
14

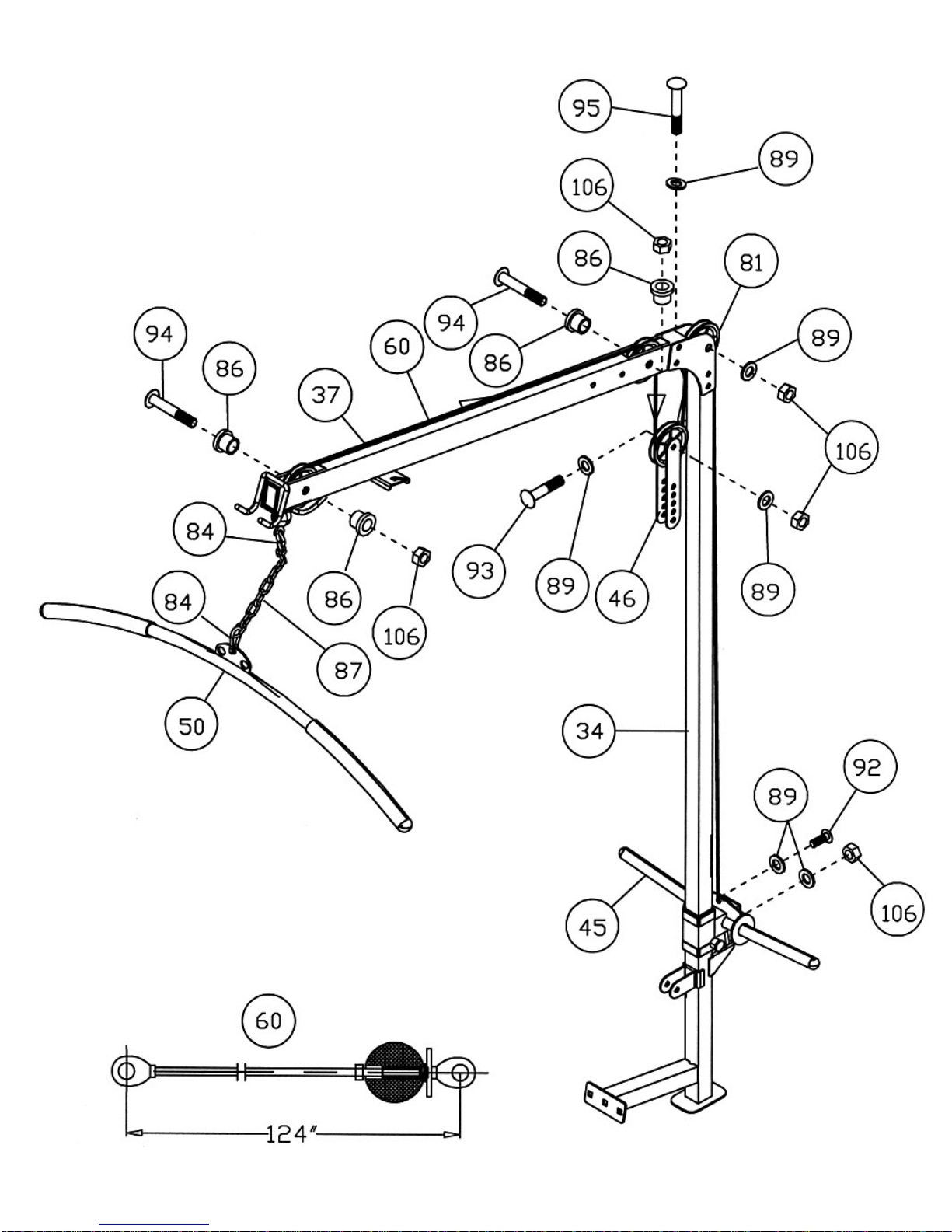

STEP 5 (See Diagram 5 & Cable Loop Diagram)
A.) Attach a 124” Cable (#60) to the front opening on the Upper Frame (#37). Attach a
Pulley (#81) to the opening. Secure it with one M10 x 2 1/8” Allen Bolt (#94), two Ø 1
1/8” Bushings (#86), and one M10 Aircraft Nut (#106). Make sure the ball stopper on
the Cable is underneath the Upper Frame.
B.) Draw the Cable over the Pulley along the Upper Frame to the opening on the rear of
Upper Frame. Attach a Pulley to the opening. Secure it with one M10 x 2 1/8” Allen Bolt
(#94), two Ø 1 1/8” Bushings (#86), and one M10 Aircraft Nut (#106).
C.)Draw the Cable around the Pulley then downward. Install a Pulley to the top holes on
the two Double Floating Pulley Brackets (#46). Secure the Pulley with one M10 x 1 ¾”
Allen Bolt (#93), two Ø ¾” Washers (#89), and one M10 Aircraft Nut (#106). Let the
Brackets hanging for now.
D.)Draw the Cable around the Pulley then upward to the opening on the top of Weight
Glide Post (#34). Attach a Pulley to the opening. Secure it with one M10 x 2 3/8” Allen
Bolt (#95), two Ø ¾” Washers (#89), and one M10 Aircraft Nut (#106).
E.) Draw the Cable around the Pulley then downward to the Sliding Weight Post (#45).
Secure the Cable to the Sliding Weight Post with one M10 x 1” Allen Bolt (#92), two Ø
¾” Washers (#89), and one M10 Aircraft Nut (#106).
F.) Connect the Lat Bar (#50) to the Cable with a Chain (#87) using two C-clips (#84).
15

DIAGRAM 5
16

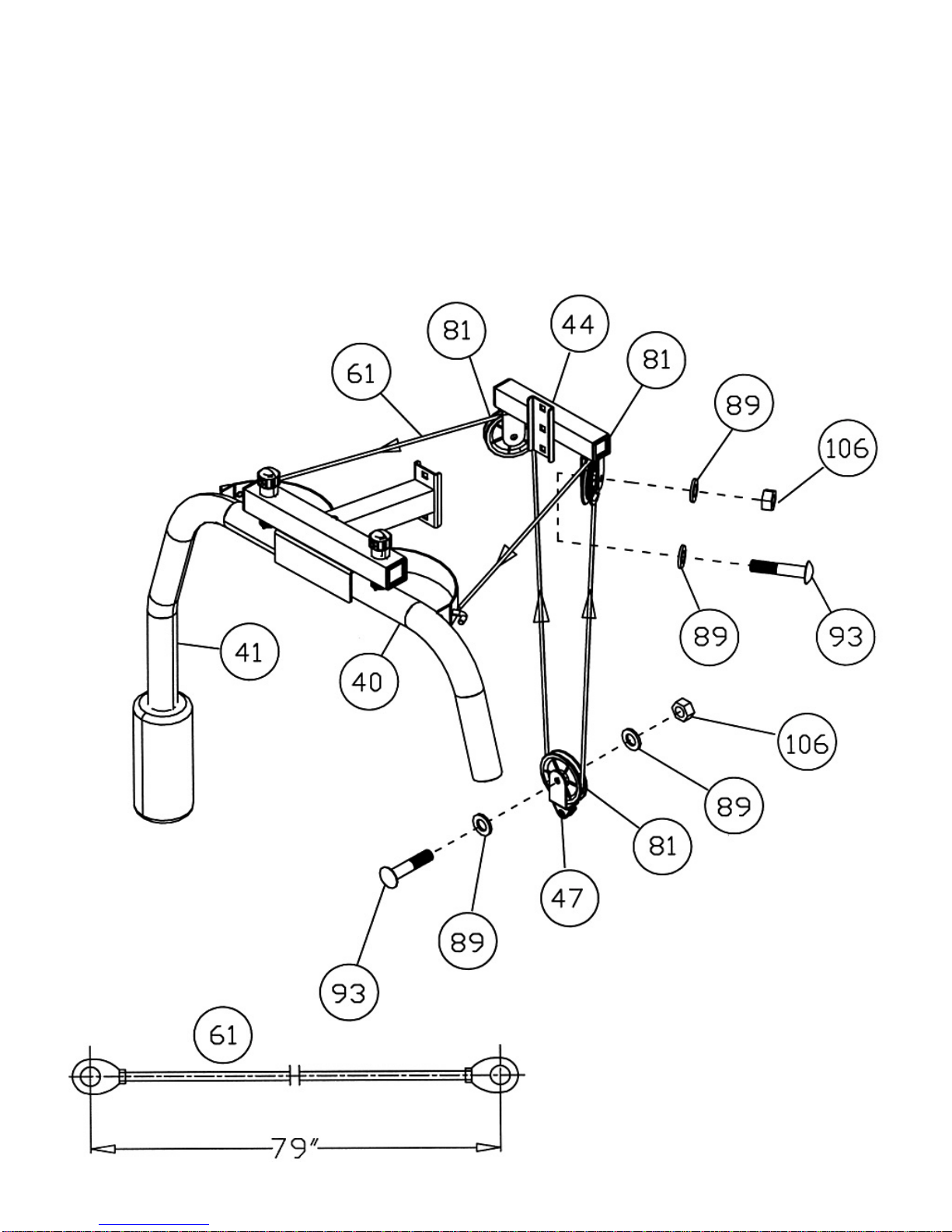

STEP 6 (See Diagram 6 & Cable Loop Diagram)
A.) Attach one end of the 79” Butterfly Cable (#61) to the clip on the Left Butterfly (#40). Draw the
Cable to the left Butterfly Pulley Bracket (#44).
B.) Attach a Pulley (#81) to the Bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#93), two ∅¾”
Washers (#89), and one M10 Aircraft Nut (#106).
C.)Draw the Cable around the Pulley then downward. Attach the Cable to a Single Floating Pulley
Bracket (#47). Install a Pulley to the Bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#93),
two ∅¾” Washers (#89), and one M10 Aircraft Nut (#106). Let the Bracket hanging for now.
D.)Draw the Cable around the Pulley then upward to the right Butterfly Pulley Bracket. Install
another Pulley. Draw the Cable around the Pulley then clip to the Right Butterfly (#41).
DIRGARM 6
17

STEP 7 (See Diagram 7 & Cable Loop Diagram)
A.) Attach one 124” Cable (#60) to the lower opening on the Rear Vertical Beam (#38). Attach
a Pulley to the opening. Secure it with M10 x 2 3/8” Allen Bolt (#95), two Ø 1” Bushings
(#85), and one M10 Aircraft Nut (#106).
B.) Draw the Cable underneath the Pulley to the open bracket on the Weight Glide Post (#34).
Attach a Pulley to the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#93), two ∅¾”
Washers (#89), and one M10 Aircraft Nut (#106).
C.)Draw the Cable around the Pulley then upward to the Double Floating Pulley Bracket
previously installed in Step-5. Install a Pulley.
D.)Draw the Cable around the Pulley then downward to the open bracket on the back of Rear
Vertical Beam. Install a Pulley then draw the Cable upward to the Single Floating Pulley
Bracket (#47) installed in Step-6. Secure the end of the Cable to the bracket with one M10
x 1” Allen Bolt (#92), two ∅¾” Washers (#89), and one M10 Aircraft Nut (#106).
E.) Connect the Shiver Bar (#51) to the Cable with a Chain (#87) using two C-clips (#84).
F.) Check the tension of the Cables. If the Cables are too loose, adjust the tension by moving
up the Pulley on the Double Floating Pulley Bracket (#46). If the Tension is too tight, then
move down the Pulley.
18

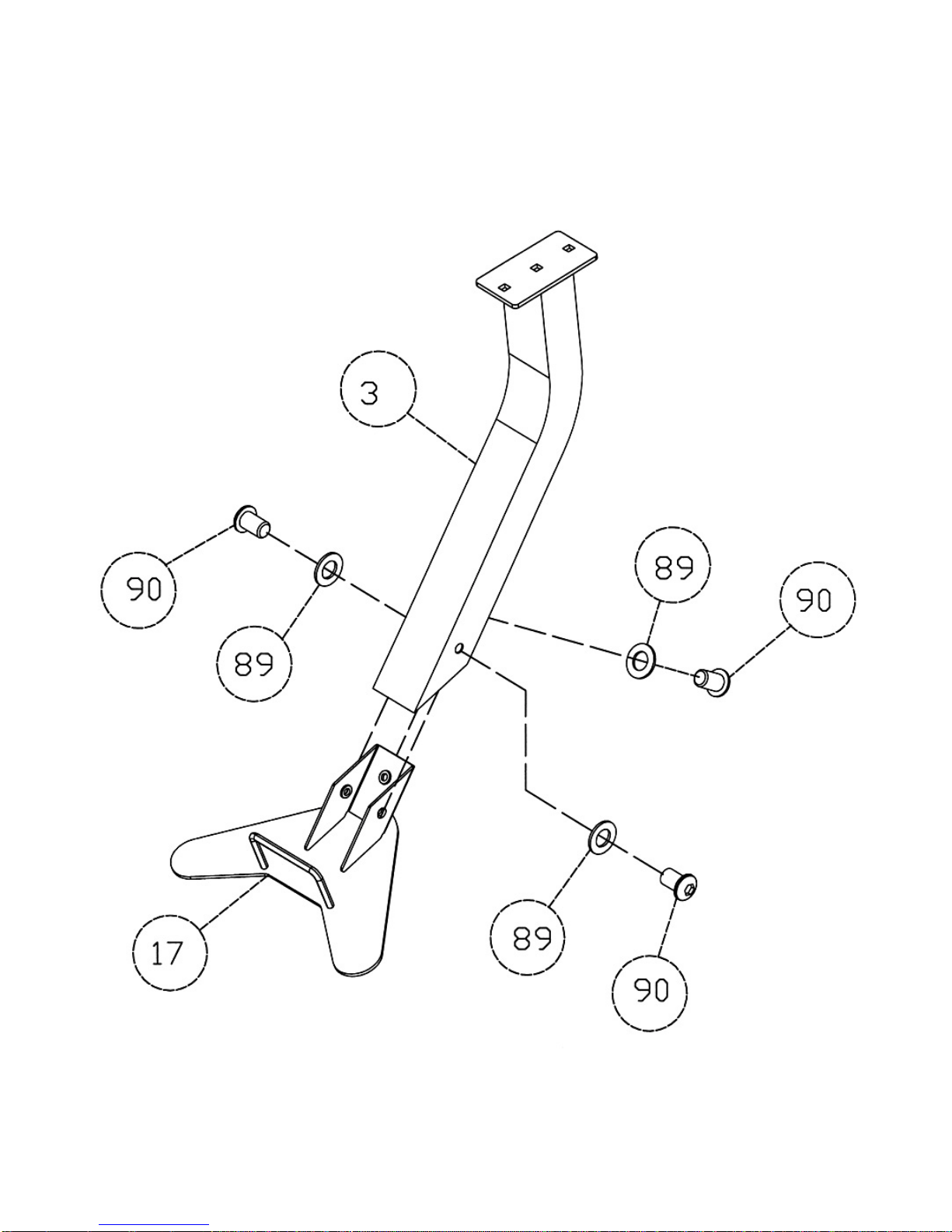

STEP 8 (See Diagram 8)
A.) Attach the Front Post (#3) to the Front Stabilizer (#17).
B.) Secure it with three M10 x 5/8” Allen Bolts (#90) and ∅¾” Washers (#89).
DIAGRAM 8
19
