In-situ Aqua TROLL 600 User manual

Aqua TROLL 600
Information subject to change without notice. In-Situ, In-Situ logo, Baro Merge, BaroTROLL, HERMIT, HydroVu™, iSitu,
Pocket-Situ, RDO, RuggedCable, RuggedReader, SmarTROLL™, TROLL, VuSitu, and Win-Situ are trademarks or registered
trademarks of In-Situ Inc.©2016. All rights reserved. This product may be covered by patents identied at www.in-situ.com/
patents
2020-08-25 | 0096402
Operator’s Manual

21-970-498-1500 www.in-situ.com
Contents
Introduction���������������������������������������������������������������������������������������������������������������������������������������������������� 9
Serial Number Location ��������������������������������������������������������������������������������������������������������������������������������������������������������������� 9
Instrument Description���������������������������������������������������������������������������������������������������������������������������������������������������������������� 9
Document Conventions �������������������������������������������������������������������������������������������������������������������������������������������������������������� 9
Unpacking and Inspection ��������������������������������������������������������������������������������������������������������������������������������������������������������� 9
Obtaining Repair Service������������������������������������������������������������������������������������������������������������������������������������������������������������� 9
Outside the U�S� ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������10
Guidelines for Cleaning Returned Equipment ������������������������������������������������������������������������������������������������������������������10
Decontamination and Cleaning Form����������������������������������������������������������������������������������������������������������������������������������11
Safety������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������11
General Specications ��������������������������������������������������������������������������������������������������������������������������������� 12

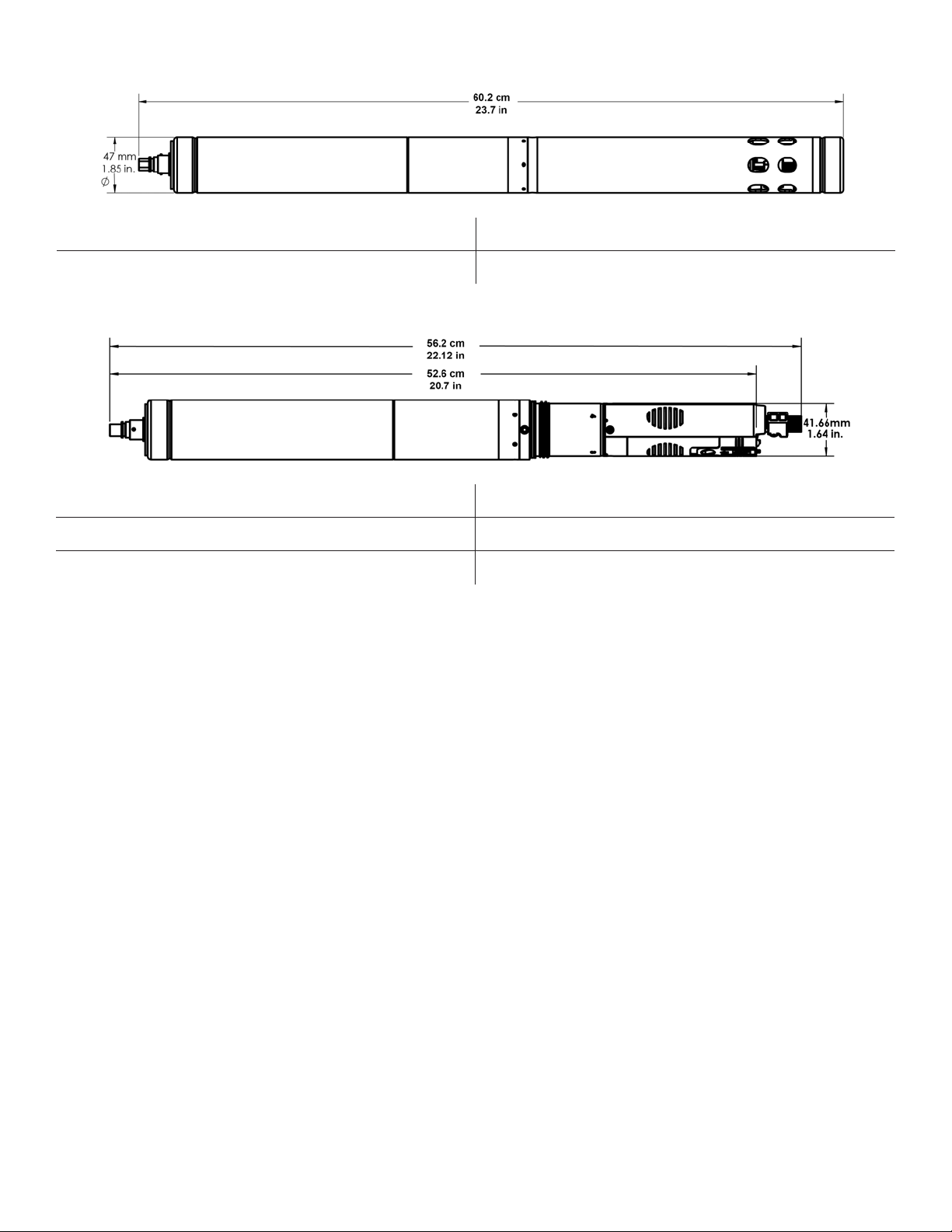

Instrument Dimensions with Restrictor On������������������������������������������������������������������������������������������������������������������������14
Instrument Dimensions with Restrictor O������������������������������������������������������������������������������������������������������������������������14
Sensor Specications ����������������������������������������������������������������������������������������������������������������������������������� 15
Sensor Summary ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������15
Potential Interferents������������������������������������������������������������������������������������������������������������������������������������������������������������������16
RDO Cap Chemical Incompatibility���������������������������������������������������������������������������������������������������������������������������������������16
Conductivity/Temperature Sensor ���������������������������������������������������������������������������������������������������������������������������������������16
Instrument Overview ����������������������������������������������������������������������������������������������������������������������������������� 25
Synopsis�������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������25
System Components������������������������������������������������������������������������������������������������������������������������������������� 26
Base Unit Components ��������������������������������������������������������������������������������������������������������������������������������������������������������������26
RuggedCable System������������������������������������������������������������������������������������������������������������������������������������������������������������������27
Vented or Non-Vented Cable���������������������������������������������������������������������������������������������������������������������������������������������������28
Jacket Options�������������������������������������������������������������������������������������������������������������������������������������������������������������������������������28
Customizable Cable Lengths���������������������������������������������������������������������������������������������������������������������������������������������������28
Cable Termination������������������������������������������������������������������������������������������������������������������������������������������������������������������������28
Instrument Setup������������������������������������������������������������������������������������������������������������������������������������������ 29
Box Contents����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������29
Install the Batteries����������������������������������������������������������������������������������������������������������������������������������������������������������������������30
Desiccant�����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������30
Replace the Desiccant����������������������������������������������������������������������������������������������������������������������������������������������������������������31
Install the Wiper Motor and Sensors�������������������������������������������������������������������������������������������������������������������������������������31
Handling pH and Ion-Selective Electrode Sensors (ISEs) �������������������������������������������������������������������������� 34
Using the RDO Sensor and RDO Fast Cap ��������������������������������������������������������������������������������������������������� 34

31-970-498-1500 www.in-situ.com
Ion-Selective Electrode Sensor (ISE) Requirements ���������������������������������������������������������������������������������� 35
Ammonium Sensor Requirements ����������������������������������������������������������������������������������������������������������������������������������������35
Chloride, Nitrate, and pH/ORP Sensor Requirements�����������������������������������������������������������������������������������������������������35
Removing Sensors �����������������������������������������������������������������������������������������������������������������������������������������������������������������������36
Connecting to the Sonde ����������������������������������������������������������������������������������������������������������������������������� 36
Connect the Instrument to the RuggedCable�������������������������������������������������������������������������������������������������������������������36
Connect TROLL Com Communication Device to the RuggedCable System����������������������������������������������������������36
Connecting with Bluetooth������������������������������������������������������������������������������������������������������������������������������������������������������36
Connecting to VuSitu������������������������������������������������������������������������������������������������������������������������������������������������������������������37
Connecting to a Wireless TROLL Com�����������������������������������������������������������������������������������������������������������������������������������37
Connecting to Win-Situ 5����������������������������������������������������������������������������������������������������������������������������������������������������������37
SDI-12 3-Wire ������������������������������������������������������������������������������������������������������������������������������������������������ 38
Modbus Master��������������������������������������������������������������������������������������������������������������������������������������������� 39
Modbus Master with RS232 (Converter Required) ������������������������������������������������������������������������������������ 40
Modbus PLC Interface ���������������������������������������������������������������������������������������������������������������������������������� 41
LCD Screen ���������������������������������������������������������������������������������������������������������������������������������������������������� 44
Accessing the LCD Menu�����������������������������������������������������������������������������������������������������������������������������������������������������������44
Possible Port Statuses�����������������������������������������������������������������������������������������������������������������������������������������������������������������44
Possible Power Statuses�������������������������������������������������������������������������������������������������������������������������������������������������������������44
Possible Connected Statuses���������������������������������������������������������������������������������������������������������������������������������������������������44
Error Messages������������������������������������������������������������������������������������������������������������������������������������������������������������������������������44
Micro SD Card��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������47
Desiccant ������������������������������������������������������������������������������������������������������������������������������������������������������� 49
Replace the Desiccant����������������������������������������������������������������������������������������������������������������������������������������������������������������49
Sensor Calibration���������������������������������������������������������������������������������������������������������������������������������������� 49
Recommended Calibration Equipment, Accessories and Solutions �������������������������������������������������������������������������49
Laboratory/Oce Calibration��������������������������������������������������������������������������������������������������������������������������������������������������49
Field Calibration����������������������������������������������������������������������������������������������������������������������������������������������������������������������������49
Solution Based Calibration Preparation, Procedure and Rinsing��������������������������������������������������������������������������������50
RDO 100% Saturation Calibration������������������������������������������������������������������������������������������������������������������������������������������51
Option 1 – Water Saturated Air �����������������������������������������������������������������������������������������������������������������������������������������������51
Option 2 – Saturation Bubbler ������������������������������������������������������������������������������������������������������������������������������������������������52
Verication of Calibration Accuracy ��������������������������������������������������������������������������������������������������������������������������������������52
Calibration Frequency Recommendations�������������������������������������������������������������������������������������������������������������������������53
Factory Calibration ����������������������������������������������������������������������������������������������������������������������������������������������������������������������54
Zeroing the Depth Sensor ��������������������������������������������������������������������������������������������������������������������������������������������������������55
Software �������������������������������������������������������������������������������������������������������������������������������������������������������� 57
VuSitu Mobile App�����������������������������������������������������������������������������������������������������������������������������������������������������������������������57

41-970-498-1500 www.in-situ.com
Verify the VuSitu Mobile App Version�����������������������������������������������������������������������������������������������������������������������������������57
Connecting with Bluetooth������������������������������������������������������������������������������������������������������������������������������������������������������57
Connecting to VuSitu������������������������������������������������������������������������������������������������������������������������������������������������������������������57
VuSitu Overview���������������������������������������������������������������������������������������������������������������������������������������������������������������������������57
About VuSitu����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������57
VuSitu Menu Options �����������������������������������������������������������������������������������������������������������������������������������������������������������������58
Menu Options when Connected to Instrument ���������������������������������������������������������������������������������������������������������������58
Selecting with Long-press and Swipe ����������������������������������������������������������������������������������������������������������������������������������58
Long Press���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������58
Swipe Left ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������58
Swipe Right ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������58
Live Readings in VuSitu�������������������������������������������������������������������������������������������������������������������������������� 59
Snapshot Mode�����������������������������������������������������������������������������������������������������������������������������������������������������������������������������59
Live Readings Mode��������������������������������������������������������������������������������������������������������������������������������������������������������������������59
Exporting Data Files��������������������������������������������������������������������������������������������������������������������������������������������������������������������60
Viewing Data Files������������������������������������������������������������������������������������������������������������������������������������������������������������������������60
VuSitu Locations������������������������������������������������������������������������������������������������������������������������������������������� 61
About VuSitu Locations �������������������������������������������������������������������������������������������������������������������������������������������������������������61
Create a New Location ���������������������������������������������������������������������������������������������������������������������������������������������������������������61
Select a Location ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������62
Edit or Delete a Location �����������������������������������������������������������������������������������������������������������������������������������������������������������63
VuSitu Data ��������������������������������������������������������������������������������������������������������������������������������������������������� 64
Downloading and sharing your data������������������������������������������������������������������������������������������������������������������������������������64
VuSitu Calibration and Settings ������������������������������������������������������������������������������������������������������������������ 65
About Calibration and Settings ����������������������������������������������������������������������������������������������������������������������������������������������65
Quick-Cal Multiple Sensor Calibration ���������������������������������������������������������������������������������������������������������������������������������65
Calibrate the Rugged Dissolved Oxygen Sensor (1-Point)��������������������������������������������������������������������������������������������67
100% Water-saturated Air Calibration����������������������������������������������������������������������������������������������������������������������������������68
Option 1 – Water Saturated Air �����������������������������������������������������������������������������������������������������������������������������������������������68
Option 2 - Bubbler �����������������������������������������������������������������������������������������������������������������������������������������������������������������������68
0-point Calibration ����������������������������������������������������������������������������������������������������������������������������������������������������������������������69
Calibrating Using Concentration��������������������������������������������������������������������������������������������������������������������������������������������70
Calibrate the Rugged Dissolved Oxygen Sensor (2-Point)��������������������������������������������������������������������������������������������70
100% Water-saturated Air Calibration����������������������������������������������������������������������������������������������������������������������������������70
Option 1 – Water Saturated Air �����������������������������������������������������������������������������������������������������������������������������������������������70
Option 2 - Bubbler �����������������������������������������������������������������������������������������������������������������������������������������������������������������������71
0-point Calibration ����������������������������������������������������������������������������������������������������������������������������������������������������������������������71
Calibrating the Rugged Dissolved Oxygen Sensor Using Concentration ���������������������������������������������������������������72

51-970-498-1500 www.in-situ.com
RDOSalinity Setting��������������������������������������������������������������������������������������������������������������������������������������������������������������������72
Calibrate the Conductivity Sensor �����������������������������������������������������������������������������������������������������������������������������������������73
Calibrate the Level Sensor ��������������������������������������������������������������������������������������������������������������������������������������������������������76
Calibrate the pH Sensor�������������������������������������������������������������������������������������������������������������������������������������������������������������76
Calibrate the ORP Sensor ����������������������������������������������������������������������������������������������������������������������������������������������������������78
Calibrate the Turbidity Sensor�������������������������������������������������������������������������������������������������������������������������������������������������80
Calibrate the Ammonium Sensor�������������������������������������������������������������������������������������������������������������������������������������������83
Calibrate the Chloride Sensor��������������������������������������������������������������������������������������������������������������������������������������������������85
Calibrate the Nitrate Sensor�����������������������������������������������������������������������������������������������������������������������������������������������������86
Win-Situ 5������������������������������������������������������������������������������������������������������������������������������������������������������ 88
Data Tab�������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������88
Home Tab����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������90
Logging Tab������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������92
Log Information����������������������������������������������������������������������������������������������������������������������������������������������������������������������������92
Log Status ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������93
Log Control Buttons��������������������������������������������������������������������������������������������������������������������������������������������������������������������93
Log Operations �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������93
Sensors Tab�������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������94
Calibrate ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������94
Device Setup Tab��������������������������������������������������������������������������������������������������������������������������������������������������������������������������95
Device Information����������������������������������������������������������������������������������������������������������������������������������������������������������������������95
Manual Time Set���������������������������������������������������������������������������������������������������������������������������������������������������������������������������95
Device Firmware Update�����������������������������������������������������������������������������������������������������������������������������������������������������������95
Device Status ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������95
Factory Reset ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������96
Analog Setup���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������96
SDI-12 Setup ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������96
Alarm Setup �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������96
Modbus Setup�������������������������������������������������������������������������������������������������������������������������������������������������������������������������������96
Win-Situ 5 Logging and Viewing Data����������������������������������������������������������������������������������������������������������������������������������96
About Sites �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������96
Logging Data—Overview���������������������������������������������������������������������������������������������������������������������������������������������������������97
Logging Method Descriptions ������������������������������������������������������������������������������������������������������������������������������������������������97
Logging Methods for Long-Term Monitoring��������������������������������������������������������������������������������������������������������������������97
Linear������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������97
Linear Average ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������97
Event�������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������98
Log Setup����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������98

61-970-498-1500 www.in-situ.com
Starting a Log ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������98
Starting a Pending Log ��������������������������������������������������������������������������������������������������������������������������������������������������������������98
Starting a Manual Log����������������������������������������������������������������������������������������������������������������������������������������������������������������99
Suspending (Pausing) a Log�����������������������������������������������������������������������������������������������������������������������������������������������������99
Resuming a Suspended Log ����������������������������������������������������������������������������������������������������������������������������������������������������99
Stopping a Log������������������������������������������������������������������������������������������������������������������������������������������������������������������������������99
Restarting a Log����������������������������������������������������������������������������������������������������������������������������������������������������������������������������99
Downloading Data to a PC �����������������������������������������������������������������������������������������������������������������������������������������������������100
Viewing Logged Data ���������������������������������������������������������������������������������������������������������������������������������������������������������������100
Exporting Data����������������������������������������������������������������������������������������������������������������������������������������������������������������������������100
Exporting Data to Spreadsheet Format�����������������������������������������������������������������������������������������������������������������������������100
Exporting to Text������������������������������������������������������������������������������������������������������������������������������������������������������������������������101
Graphing Data�����������������������������������������������������������������������������������������������������������������������������������������������������������������������������101
View a Graph of a Downloaded File ������������������������������������������������������������������������������������������������������������������������������������101
View a Graph of Real-Time Data �������������������������������������������������������������������������������������������������������������������������������������������101
Graph Settings ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������101
Graph Templates ������������������������������������������������������������������������������������������������������������������������������������������������������������������������101
Graph Tools�����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������101
Calibration ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������103
Calibrate Sensors������������������������������������������������������������������������������������������������������������������������������������������������������������������������103
Calibrating the Conductivity Sensor�����������������������������������������������������������������������������������������������������������������������������������103
Nominal Stability vs� Full Stability����������������������������������������������������������������������������������������������������������������������������������������105
Calibrating the Pressure Sensor��������������������������������������������������������������������������������������������������������������������������������������������105
Calibrating the RDO Sensor����������������������������������������������������������������������������������������������������������������������������������������������������106
Calibrate 100% Oxygen Saturation �������������������������������������������������������������������������������������������������������������������������������������107
Nominal Stability vs� Full Stability����������������������������������������������������������������������������������������������������������������������������������������107
Calibrate 0% Oxygen Saturation ������������������������������������������������������������������������������������������������������������������������������������������108
Calibrating the pH/ORP Sensor���������������������������������������������������������������������������������������������������������������������������������������������108
Nominal Stability vs� Full Stability����������������������������������������������������������������������������������������������������������������������������������������109
Calibrating the Turbidity Sensor�������������������������������������������������������������������������������������������������������������������������������������������109
Calibrating the Ammonium Sensor�������������������������������������������������������������������������������������������������������������������������������������111
Calibrating the Chloride Sensor��������������������������������������������������������������������������������������������������������������������������������������������112
Calibrating the Nitrate Sensor�����������������������������������������������������������������������������������������������������������������������������������������������112
Calibration Reports��������������������������������������������������������������������������������������������������������������������������������������������������������������������113
BaroMerge ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������114
Using BaroMerge Software�����������������������������������������������������������������������������������������������������������������������������������������������������114
Baro Merge Input—Manual Entry����������������������������������������������������������������������������������������������������������������������������������������114
Baro Merge Input—Fixed Correction ���������������������������������������������������������������������������������������������������������������������������������115

71-970-498-1500 www.in-situ.com
BaroMerge Input—BaroTROLL File��������������������������������������������������������������������������������������������������������������������������������������116
BaroMerge Output���������������������������������������������������������������������������������������������������������������������������������������������������������������������117
Post Level Correction within Baro Merge��������������������������������������������������������������������������������������������������������������������������117
Managing Data from Multiple Sites�������������������������������������������������������������������������������������������������������������������������������������118
Adding a Site��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������118
Editing a Site��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������118
Deleting a Site�����������������������������������������������������������������������������������������������������������������������������������������������������������������������������118
Using Site Groups�����������������������������������������������������������������������������������������������������������������������������������������������������������������������118
Creating a Site Group����������������������������������������������������������������������������������������������������������������������������������������������������������������118
Site-Based Connections�����������������������������������������������������������������������������������������������������������������������������������������������������������119
Creating a Custom Connection���������������������������������������������������������������������������������������������������������������������������������������������119
Using a Custom Connection ��������������������������������������������������������������������������������������������������������������������������������������������������119
Storing Custom Connection for a Site��������������������������������������������������������������������������������������������������������������������������������119
Correcting a Level Reference in Data Files������������������������������������������������������������������������������������������������������������������������119
About Post Correcting Level Data����������������������������������������������������������������������������������������������������������������������������������������119
Open Post Level Correction����������������������������������������������������������������������������������������������������������������������������������������������������120
Select Level Reference Type���������������������������������������������������������������������������������������������������������������������������������������������������120
Set the Level Correction ����������������������������������������������������������������������������������������������������������������������������������������������������������121
View Post Level Corrected Data��������������������������������������������������������������������������������������������������������������������������������������������122
Importing VuSitu Data to Win-Situ ��������������������������������������������������������������������������������������������������������������������������������������122
Win-Situ 5 Troubleshooting����������������������������������������������������������������������������������������������������������������������������������������������������123
Selecting the Correct COM Port��������������������������������������������������������������������������������������������������������������������������������������������123
Steps for Windows 8�1 and Windows 10 systems�����������������������������������������������������������������������������������������������������������123
Steps for Windows 8 systems�������������������������������������������������������������������������������������������������������������������������������������������������123
Steps for Windows 7 systems�������������������������������������������������������������������������������������������������������������������������������������������������123
Steps for Windows XP systems����������������������������������������������������������������������������������������������������������������������������������������������124
Bluetooth Connection��������������������������������������������������������������������������������������������������������������������������������������������������������������124
Care and Maintenance ������������������������������������������������������������������������������������������������������������������������������� 125
Maintenance Schedule ������������������������������������������������������������������������������������������������������������������������������������������������������������125
User-Serviceable Parts��������������������������������������������������������������������������������������������������������������������������������������������������������������125
O-rings �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������125
pH/ORP Sensor Replacement������������������������������������������������������������������������������������������������������������������������������������������������125
RDO Sensor Cap Replacement����������������������������������������������������������������������������������������������������������������������������������������������125
Instrument Storage �������������������������������������������������������������������������������������������������������������������������������������������������������������������125
Short-Term Storage (less than 1 week)�������������������������������������������������������������������������������������������������������������������������������125
Long-Term Storage (more than 1 week) ����������������������������������������������������������������������������������������������������������������������������125
Cleaning the Sonde�������������������������������������������������������������������������������������������������������������������������������������������������������������������126
Cleaning and Storing the pH/ORP Sensor ������������������������������������������������������������������������������������������������������������������������126

81-970-498-1500 www.in-situ.com
Routine Maintenance ���������������������������������������������������������������������������������������������������������������������������������������������������������������126
Replacing the Filling Solution������������������������������������������������������������������������������������������������������������������������������������������������126
Replacing the Junction ������������������������������������������������������������������������������������������������������������������������������������������������������������127
Cleaning ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������127
Short-term Storage��������������������������������������������������������������������������������������������������������������������������������������������������������������������127
Long-term Storage ��������������������������������������������������������������������������������������������������������������������������������������������������������������������128
Storage Recommendations����������������������������������������������������������������������������������������������������������������������������������������������������128
Cleaning and Storing the RDO Sensor �������������������������������������������������������������������������������������������������������������������������������128
Routine Maintenance ���������������������������������������������������������������������������������������������������������������������������������������������������������������128
Cleaning the Optical Window������������������������������������������������������������������������������������������������������������������������������������������������128
Storage�������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������128
Cleaning and Storing the Conductivity Sensor���������������������������������������������������������������������������������������������������������������129
Cleaning ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������129
Storage�������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������129
Cleaning and Storing the Turbidity Sensor�����������������������������������������������������������������������������������������������������������������������129
Routine Maintenance ���������������������������������������������������������������������������������������������������������������������������������������������������������������129
Storage�������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������130
Replacing Wiper Bristles ����������������������������������������������������������������������������������������������������������������������������������������������������������130
Replacing Just the Bristles ������������������������������������������������������������������������������������������������������������������������������������������������������130
Replacing the Entire Brush �����������������������������������������������������������������������������������������������������������������������������������������������������130
Cleaning the Copper Antifouling Restrictor���������������������������������������������������������������������������������������������������������������������130
Declaration of Conformity ������������������������������������������������������������������������������������������������������������������������� 131
Appendix ���������������������������������������������������������������������������������������������������������������������������������������������������� 132
Appendix A: Parameter Discovery ���������������������������������������������������������������������������������������������������������������������������������������132
Appendix B: Parameter Numbers and Locations������������������������������������������������������������������������������������������������������������133
Appendix C: Unit IDs�����������������������������������������������������������������������������������������������������������������������������������������������������������������135
Appendix D: Register Data Formats ������������������������������������������������������������������������������������������������������������������������������������138

91-970-498-1500 www.in-situ.com
Introduction
This manual is intended to describe the characteristics, operation, calibration, and maintenance of the
AquaTROLL 600 Multiparameter Sonde�
The instrument serial number is on the product label axed to the instrument body� Serial numbers for
individual sensors are engraved on the sensor body�
Your equipment was carefully inspected before shipping� Check the equipment for any physical damage
sustained during shipment� Notify In-Situ and le a claim with the carrier if there is any such damage; do not
attempt to deploy or operate the instrument�
Accessories may be shipped separately and should also be inspected for physical damage and fulllment of
your order�
If you suspect your system is malfunctioning and repair is needed, you can help assure ecient servicing by
following these guidelines:
1 Call or email In-Situ Technical Support� Have the product model and serial number available�
2 Be prepared to describe the problem, including how the product was used and the conditions noted at
the time of the malfunction�
3 If Technical Support determines that service is needed, they will ask your company to ll out the RMA
form and pre-approve a specied monetary amount for repair charges� When the form and pre-approval
is received, Technical Support will assign an RMA (Return Material Authorization) number�
The Aqua TROLL 600 Sonde is a multiparameter water quality sonde with LCD screen, internal memory,
and additional SD card storage� The Aqua TROLL 600 uses the latest sensor and electronics technology to
provide laboratory-quality measurements for eld use� The water level/pressure sensor and barometric
pressure sensor are integrated into the sonde� The optical Rugged Dissolved Oxygen (RDO®), conductivity,
temperature, turbidity, pH/ORP sensors and the RDO Sensor Cap are replaceable� It is optional to include a
motorized sensor wiper on the instrument�
The Aqua TROLL 600 can connect wirelessly via Bluetooth to the VuSitu Mobile App or can connect to Win-
Situ 5 Software using cable or Bluetooth�
Serial Number Location
Instrument Description
Document Conventions
Unpacking and Inspection
Obtaining Repair Service
A check mark highlights a tip or feature�
Save packing materials for future storage and shipping of your equipment�
The exclamation point calls your attention to a requirement, safety issue, or important action
that should not be overlooked�

101-970-498-1500 www.in-situ.com
In-Situ
ATTN: Repairs
221 East Lincoln Avenue
Fort Collins, CO 80524
The warranty does not cover damage during transit� In-Situ recommends insurance for all shipments�
Warranty repairs will be shipped back prepaid�
Contact your international In-Situ distributor for repair and service information�
4 Clean the product as described in the manual�
5 If the product contains a removable battery, remove and retain it unless you are returning the system for
a refund or Technical Support states otherwise�
6 Carefully pack your product in its original shipping box, if possible�
7 Mark the RMA number clearly on the outside of the box�
8 Send the package, shipping prepaid, to:
Outside the U�S�
Guidelines for Cleaning Returned Equipment
Please help us protect the health and safety of our employees by cleaning and decontaminating
equipment that has been subjected to potential biological or health hazards, and labeling such equipment�
Unfortunately, we cannot service your equipment without such notication� Please complete and
sign the form on page 11 (or a similar statement certifying that the equipment has been cleaned and
decontaminated) and send it to us with each instrument�
• We recommend cleaning with only mild soaps that are compatible with the product materials� Check the
product specication sheet for a list of wetted materials�
• Clean all cables and remove all foreign matter�
• Clean the cable connectors with a clean, dry cloth� Do not submerge the connectors�
• Clean the instrument including the nosecone, cable head, and protective caps�
If an instrument is returned to our Service Center for repair or recalibration without a
statement that it has been cleaned and decontaminated, or if it is the opinion of our Service
Representatives that the equipment presents a potential health or biological hazard, we
reserve the right to withhold service until proper certication is obtained�

111-970-498-1500 www.in-situ.com
Decontamination and Cleaning Form
Safety
• Use D-cell alkaline batteries�
• Do not use batteries of dierent ages or types�
• Do not submerge the Wireless TROLLCom or your mobile device in liquid�
• Ensure that sensors, or sensor plugs, are completely inserted into the ports, so that no liquid can enter the
instrument�
• Ensure that the RDO Sensor Cap is pressed rmly over the sensor lens and is ush with the instrument
before submerging in liquid�
• Replace the cable if insulation or connectors are damaged�
• Make sure the probe and sensor O-rings are clean and free of damage�

121-970-498-1500 www.in-situ.com
General Specications
Operating temperature -5 to 50° C (23 to 122° F)
Storage temperature Components without uid: -40 to 65° C (-40 to 149° F) pH/ORP probes:
-5 to 65° C
Dimensions
4.7 cm (1.85 in.) OD x 60.2 cm (23.7 in.) with restrictor installed
(including connector)
With bail: 73.9 cm (29.1 in.)
Weight 1.45 kg (3.2 lbs) - includes all sensors, batteries, bail
Wetted materials
(sonde and sensors)
Ceramic, Delrin™, Inconel™, PC, PC alloy, Platinum, Nylon,
Santoprene™,Titanium, Viton™
Environment rating IP68 with all sensors and cable attached. IP67 with sensors removed,
battery cover removed, or cable detached
Max pressure rating Up to 350 PSI
Communication RS485/MODBUS, SDI-12, Bluetooth®
Reading rate 1 reading every 2 seconds for one parameter, no wipe
Internal memory 16 MB
Additional memory, micro SD
card216+ GB included, any size micro SD up to 32 GB accepted
Logging rate 1 minute to 99 hours
Logging modes Linear, Linear Average, Event
Data logging 50 logs (dened, scheduled to run, or stored)
LCD screen Integrated display shows status of sonde, sensor ports, data log,
battery, and connectivity
Internal power
Battery life3
(2) user-replaceable D-cell alkaline batteries
> 6 months typical with wiping
> 9 months typical without wiping
External power voltage4
External power current4
8-36 VDC (required for normal operation)
Sleep:< 0.2 mA typical
Measurement:40 mA typical, 75 mA Max
Interface Win-Situ 5 Software, VuSitu Mobile App on select
mobile devices using Android 4.4 with Bluetooth 2.0
Cable Vented or non-vented polyurethane or vented Tefzel®
Hex screw driver 0.050 in. (1.3 mm)

131-970-498-1500 www.in-situ.com
Software interface
Android: VuSitu through Google Play
Windows: Win-Situ 5
Data Services: HydroVu
Interface Android 4�4, requires BlueTooth 2�0
Certications CE, FCC, WEEE, RoHS Compliant
Warranty 2 year - sonde, sensors (excluding pH/ORP); 1 year - pH/ORP sensor
Other - see warranty policy at www.in-situ.com
Notes
Specications are subject to change without notice� Android is a
trademark of Google, Inc� Bluetooth is a trademark of Bluetooth SIG,
Inc� Delrin and Tefzel are trademarks of E�I� du Pont de Nemours & Co�
Santoprene is a trademark of ExxonMobile� Inconel is a trademark of
Special Metals Corporation� Viton is a registered trademark of DuPont
Performance Elastomers L�L�C�
1For 30 parameters>100,000 data records, > 3 years at 15 minute interval� A single data record includes timestamp, temperature,
RDO, pH, ORP, turbidity, and conductivity logged in Linear or Linear Average mode�
2Log data recorded to SD card in comma delimited variable (CSV) le format�
3Logging all sensors at 15 minute interval on 2 D-cell alkaline batteries� Battery life dependent on site conditions and wiping�
4Dependent on display and wiping

141-970-498-1500 www.in-situ.com
Instrument Dimensions with Restrictor On
Instrument Dimensions with Restrictor O
Total length with connector 60�2 cm (23�7 in)
Diameter 47 mm (1�85 in)
Total length with wiper brush on 60�2 cm (23�7 in)
Total length with wiper brush o 47 mm (1�85 in)
Diameter 41�66 mm (1�64 in)

151-970-498-1500 www.in-situ.com
Sensor Specications
Sensor Summary
Sensors Shelf Life Field Life
Recommended
Calibraiton
Frequency
Pressure
Rating - PSI Usable Depth
Operational
Temperature
Range
pH/ORP 15 months 1 year or greater 10 to 12 weeks 350 200 650 - 5 to 50° C
RDO NA 2 years or
greater 12 months 350 200 650 - 5 to 50° C
Conductivity NA 2 years or
greater
User calibration
only if needed 350 200 650 - 5 to 50° C
Temperature NA 2 years or
greater NA 350 200 650 - 5 to 50° C
Turbidity NA 2 years or
greater
User calibration
only if needed 350 200 650 - 5 to 50° C
Pressure NA 2 years or
greater
User calibration
only if needed
12�8
42�7
108
285
9
30
76
200
30
100
250
650
- 5 to 50° C
Barometric
Pressure NA 2 years or
greater
User calibration
only if needed NA NA NA - 5 to 50° C
Ammonium 6 months 6 to 12 months Monthly 30 25 70 0 to 40° C
Chloride 6 months 1 year or greater Monthly 350 200 650 0 to 50° C
Nitrate 6 months 6 to 12 months Monthly 30 25 70 0 to 40° C
Chlorophyll a NA 2 years or
greater
User calibration
only if needed 350 200 650 - 5 to 50° C
BGA-PC NA 2 years or
greater
User calibration
only if needed 350 200 650 - 5 to 50° C
BGA-PE NA 2 years or
greater
User calibration
only if needed 350 200 650 - 5 to 50° C
Rhodamine NA 2 years or
greater
User calibration
only if needed 350 200 650 - 5 to 50° C
* Shelf life is included in total life of sensor�
** Field life and calibration frequency dependent on site conditions�

161-970-498-1500 www.in-situ.com
Potential Interferents
RDO Cap Chemical Incompatibility
Conductivity/Temperature Sensor
Potential Interferents
pH
Sodium salts
Dissolved Oxygen
Temperature, atmospheric pressure, salinity,
chlorinity
Ammonium
Cesium, Potassium, Thallium, pH, Silver, Lithium,
Sodium
Nitrate
Perchlorate, Iodide, Chlorate, Cyanide, Bromide,
Nitrite, Hydrogen Sulde (bisulte), Hydrogen
Carbonate
(bicarbonate), Carbonate, Chloride, Dihydrogen
Phosphate, Hydrogen Phosphate, Phosphate,
Acetate, Fluoride, Sulfate
Conductivity
Temperature
ORP
Ions that are stronger reducing agents than
hydrogen or platinum, e�g�, chromium, vanadium,
titanium, etc�
Chloride
Hydroxide, Ammonia, Thiosulfate, Bromide, Sulde,
Iodide, Cyanide
BGA-PC, BGA-PE, Chlorophyll a, Rhodamine
Turbidity
The following chemicals will damage the RDOsensing element�
Soaking the Conductivity/Temperature sensor in vinegar for longer than one hour can cause
serious damage�
• Alcohols > 5%
• Hydrogen peroxide > 3%
• Sodium hypochlorite (commercial bleach) > 3%
• Gaseous sulfur dioxide
• Gaseous chlorine
• Do not use in organic solvents (e�g�, acetone, chloroform, methylene chloride, etc�), which may destroy the
sensing element
Ammonium, Chloride, and Nitrate Interferent Concentrations

171-970-498-1500 www.in-situ.com
Ammonium
Chloride
Nitrate
The table below lists concentrations of possible interfering ions that cause 10% error at various levels (in
ppm) of NH4+�
The table below lists concentrations of possible interfering ions that cause 10% error at various levels (in
ppm) of Cl-�
The table below lists concentrations of possible interfering ions that cause 10% error at various levels (in
ppm) of N03-�
Ion 100 ppm NH4+ 10 ppm NH4+ 1 ppm NH4+
Celsium (Cs+) 100 10 1
Potassium (K+) 270 27 2�7
Thallium (TI+) 3100 310 31
pH (H+) pH 1�6 pH 2�6 pH 3�6
Silver (Ag+) 270,000 27,000 2,700
Lithium (Li+) 35,000 3,500 350
Sodium (Na+) 11,100 1,100 110
Ion 100 ppm NH4+ 10 ppm NH4+ 1 ppm NH4+
Hydroxide (OH-) 3,840 384 38�4
Ammonia (NH3) 6 0�6 0�06
Thiosulfate (S2O3
2-) 3 0�3 0�03
Bromide (Br-) 0�68 0�068 6�8 x 10-3
Sulde (S2-) 9 x 10-5 9 x 10-6 9 x 10-7
Iodide (I-) 1�8 x 10-4 1�8 x 10-5 1�8 x 10-6
Cyanide (CN-) 1�5 x 10-5 1�5 x 10-6 1�5 x 10-7
Ion 100 ppm NH4+ 10 ppm NH4+ 1 ppm NH4+
Perchlorate (CIO4
-) 7 x 10-2 7 x 10-3 7 x 10-4
Iodide (I-) 4 0�4 0�04
Chlorate (CIO3
-) 30 3 0�3
Cyanide (CN-) 20 2 0�2
Bromide (Br-) 400 40 4
Nitrite (NO2
-) 230 23 2
Hydrogen Sulde (HS-) 230 23 2

181-970-498-1500 www.in-situ.com
Bicarbonate (HCO3
-) 440 440 44
Carbonate (CO3
2-) 8,600 860 86
Chloride (CI-) 7,600 760 76
Dihydrogen Phosphate
(H2PO4
-)34,640 3,464 346
Hydrogen Phosphate
(HPO4
2-)34,300 3,430 343
Phosphate (PO4
3-) 33,900 3,390 339
Acetate (OAc-) 104,200 10,420 1,042
Fluoride (F-) 81,400 8,140 814
Sulfate (SO4
2-) 685,700 68,570 6,857
Barometric Pressure Sensor Specications
Conductivity Sensor Specications
Accuracy ±1�0 mbar
Range 300 to 1,100 mbar
Resolution 0�1 mbar
Sensor Type Fixed
Response Time T63<1s, T90<1s, T95<1s
Units of Measure psi, kPa, bar, mbar, mmHg, inHg
Methodology Silicon strain gauge
Accuracy
±0�5% of reading plus 1 μS/cm from 0 to 100,000
μS/cm;±1�0% of reading from 100,000 to 200,000
μS/cm; ±2% of reading from 200,000 to 350,000 µS/
cm
Range 0 to 350,000 μS/cm
Resolution 0�1 µS/cm
Sensor Type Removeable
Response Time T63<1s, T90<3s, T95<5s
Units of Measure
Actual conductivity: μS/cm, mS/cm Specic
conductivity: μS/cm, mS/cm Salinity: PSU
Total dissolved solids: ppt, ppm Resistivity: Ohms-
cm
Density: g/cm3
Methodology Std� Methods 2510, EPA 120�1
*Accuracy at calibration points� For greatest accuracy over instrument life, keep the conductivity cell submersed in water for 24-48
hours prior to calibration and deployment�

191-970-498-1500 www.in-situ.com
Total Dissolved Solids
Salinity
TDS is derived from conductivity and temperature�
TDS is derived from conductivity and temperature�
Range 0 to 350 ppt
Resolution 0�1 ppt
Units of Measure ppt, ppm
Range 0 to 350 PSU
Resolution 0�1 PSU
Units of Measure PSU, ppt
Methodology Std� Methods 2520A
Accuracy ±0�1 mg/L from 0 to 8 mg/L
±2% of reading from 20 to 50 mg/L
Range 0 to 20 mg/L
20 to 60 mg/L
Resolution 0�01 mg/L
Sensor Type Removable with replaceable RDO-X Cap
Response Time RDO-X Cap: T63<15s, T90<45s, T95<60s
Units of Measure mg/L, % saturation, ppm
Methodology
EPA-approved In-Situ Methods (under the Alternate
Test Procedure process): 1002-8-2009, 1003-8-2009,
1004-8-2009
Accuracy Typical ±0�1% full scale (FS)
Range
Non-vented or Vented
9�0 m (30 ft) - Burst: 27 m (90 ft) 30 m (100 ft) - Burst:
40 m (130 ft) 76 m (250 ft) - Burst: 107 m (350 ft) 200
m (650 ft) - Burst: 229 m (750 ft)
Resolution ±0�01% FS or better
Sensor Type Fixed
Response Time T63<1s, T90<1s, T95<1s
Dissolved Oxygen RDO Sensor Specications
Level, Depth, Pressure Sensor Specications

201-970-498-1500 www.in-situ.com
Units of Measure Pressure: psi, kPa, bar, mbar, mmHg, inHg, cmH2O,
inH2O Level: mm, cm, m, in, ft, cmH2O, inH2O
Methodology Piezoresistive; ceramic
*Typical performance across full temperature and pressure calibrated range� Typical is dened as all values
within 1 standard deviation�
*At thermal equilibrium�
*Accuracy from standard at 25° C�
**At thermal equilibrium immediately following calibration, measuring from air to +400 mV
ORP Sensor Specications
pH Sensor Specications
Accuracy ±5�0 mV @ 25° C
Range ±1,400 mV
Resolution 0�1 mV
Sensor Type Replaceable pH/ORP combo sensor
Response Time** T63<3s, T90<15s, T95<30s
Units of Measure mV
Methodology Std� Methods 2580
Accuracy ±0�1 pH units or better
Range 0 to 14 pH units
Resolution 0�01 pH unit
Sensor Type Replaceable pH/ORP combo sensor
Response Time** T63<1s, T90<2s, T95<3s
Units of Measure pH units
Methodology Std� Methods 4500-H+, EPA 150�2
Temperature Sensor Specications
Accuracy ±0�1° C
Range -5 to 50° C (23 to 122° F)
Resolution 0�01° C
Sensor Type Replaceable
Response Time** T63<2s, T90<15s, T95<30s
