Indel B FLYINGBAR 115V User manual

Instructions for use
Mode d’emploi
FLYINGBAR 115V
FLYINGBAR 115V_03-10-2018

FLYINGBAR 115V_03-10-2018
ENGLISH
FRANÇAIS
3 - 19
20 - 36
FLYINGBAR 115V

ENGLISH
3
TECHNICAL DATA
MODEL FLYINGBAR 115V
Dimensions (HxWxD) 510x500x200 (mm)
Net weight 21.3 Kg - 47 Lbs
Category (Cellar)
Rated voltage 115 V
Rated current 0,6 A
Rated frequency 60 Hz
Refrigerant Type and Charge R134a 0,038kg
CO equivalent 0,054 t
NOTE: Further information is provided on the technical data label inside the product.
H
P
L

4
FLYINGBAR 115V
FLYINGBAR 115V_03-10-2018
FLYINGBAR 115V
DESCRIPTION
Minibar changes and transforms itself in an elegant piece of furniture for the hotel bedrooms.
FLYINGBAR 115V unies the SMART proven technology of IndelB and leverages the energy-saving
refrigerating system to squeeze it in very small spaces, with a next generation Italian design.
Suspended and with a glass door, FLYINGBAR 115V is the thinnest refrigerator in the world, allow-
ing for a free and functional installation. The hotel client enjoys a better accessibility and usability,
also in case of disability.

ENGLISH
5
WARNINGS
WARNING!
Please read this user manual carefully prior to operating the device.
WARNING!
Please connect the device only to the appropriate power supply.
WARNING!
Do not touch the back of the minibar when it is working, to avoid scald.
WARNING!
Children should be supervised by adults when using the minibar.
WARNING!
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall be made by the user and
not by children without supervision!
CAUTION!
Do not move the device when it is working.
CAUTION!
Always turn o power before cleaning and maintenance.
WARNING!
Always turn o power if the power cable is damaged, and do contact INDEL B.
WARNING!
Do not ll the refrigerant when there is leakage or un-cool, do contact INDEL B.
WARNING!
Do not modify the cooling system and electronic circuit.

6
FLYINGBAR 115V
FLYINGBAR 115V_03-10-2018
WARNING!
The device is designed only for in-room, please do not place the device out-door.
WARNING!
Do not place the device where close to any heat source, for example, heater, oven, and
direct sunshine.
WARNING!
Do not place the device where close to humidity, for example, bath room and swimming
pool.
WARNING!
Never store explosive substances such as petrol and similar items in the minibar.
WARNING!
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING!
This appliance is intended to be used in household and similar applications such as
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.
WARNING!
Do not use mechanical devices or other means to accelerate the defrosting process, other
than those recommended by the manufacturer.
WARNING!
Do not damage the refrigerant circuit.
WARNING!
Do not use electrical appliances inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacturer.
WARNING!
Do not store explosive substances such as aerosol cans with a ammable propellant in this
appliance.

ENGLISH
7
WARNING!
Risk of fire and electrical shock or fire.
WARNING!
If damage occurs to the refrigerant circuit, make sure that there are no ame and
sources of ignition in the room. Ventilate the room.
WARNING!
Do not let hot items to touch the plastic parts of the appliance.
WARNING!
Do not put ammable products or items that are wet with ammable products in,
near or on the appliance.
WARNING!
Do not touch the compressor or the con-denser. They are hot.
WARNING!
Do not use multi-plug adapters and extension cables.
WARNING!
Make sure not to cause damage to the electrical components (e.g. mains plug, mains
cable, compressor). Contact the Service or an electrician to change the electrical
components.
WARNING!
• Use the minibar exclusively for cooling and storing closed beverages and snacks.
• Do not store any perishable food in the minibar.
• Food may only be stored in its original packaging or in suitable containers.
• The minibar is not intended to be brought into contact with food.
• The minibar is not intended for the proper storage of medicines. See the
instructions in the package leaflet for the medicinal product.

8
FLYINGBAR 115V
FLYINGBAR 115V_03-10-2018
INSTALLATION AND FASTENING
FREE INSTALLATION
WARNING!
• Leave at least 20 cm from the ground.
• If you are going to lay the refrigerator on the ground, leave at least 20 cm of free space on both
sides.
BUILTIN INSTALLATION
Min. size of the slot: 25 mm
Min. size of the slot: 25 mm
Min. size of the slot:
25 mm
A
25
Max 10 mm
with optional
distance pieces
WARNING!
• The piece of furniture to contain the refrigerator may have whichever size.
• No min. distances on the sides are required, provided that you respect the minimum measures
of the slots shown in the drawing.
• The upper slot must be positioned in front of the appliance slots.
• The lower slot must be positioned in front of the upper one.

ENGLISH
9
HANGING INSTALLATION
To fasten the optional support bracket, use exclusively 5 dowels having a minimum load
capacity of 14 Kg.
They must be assembled on full masonry work or on hollow bricks.
To fasten the support bracket on plaster board, use dowels specic for such material.
NOTE: To avoid any danger due to instability of the appliance, please fasten it following these
instructions.
WARNING!
Verify that the installation is done in order to prevent various kinds of bottles from falling down
and roll out of the appliance. If required, add shims to give a slight tilt to the product.
5 Screws
for dowels
(not supplied)
5 Screws
to fasten the minibar
(supplied as standard)
Wall bracket
as support
(supplied as option)
Wall dowels
(not supplied)
Bracket distance piece,
thickness 10 mm
(option)

10
FLYINGBAR 115V
FLYINGBAR 115V_03-10-2018
CONNECT TO ELECTRICITY SUPPLY
Please insert the plug into proper socket with earth wire. Upon connection of power supply, the
minibar would start to work. It may take 3 - 5 hours before the minibar reaches the desired tem-
perature setting after the rst plug-in, depends on quantity of item stored and the temperature of
ambient.
WARNING!
Check whether the parameters relating to the voltage and power stated in the label of the minibar
are proper. Otherwise, please contact INDEL B as soon as possible.
WARNING!
The device must be powered by constant power supply.
WARNING!
Do not obstruct the access to the power supply sockets. After the installation, the disconnection of
the power supply must still be possible.

ENGLISH
11
GENERAL INFORMATION
FLYINGBAR 115V have three operations methods:
STANDARD: a switch selects the options of minimum and maximum cold. By
setting the thermostat, the equipment operates like a standard refrigerator, with
electronic defrosting.
TIMER: used to program the compressor operating time.
SMART SYSTEM: it detects the presence of the guest in the room and activates
the compressor when the guest goes out.
FLYINGBAR 115V is set from factory on STANDARD operation method.

12
FLYINGBAR 115V
FLYINGBAR 115V_03-10-2018
DESCRIPTION AND OPERATION

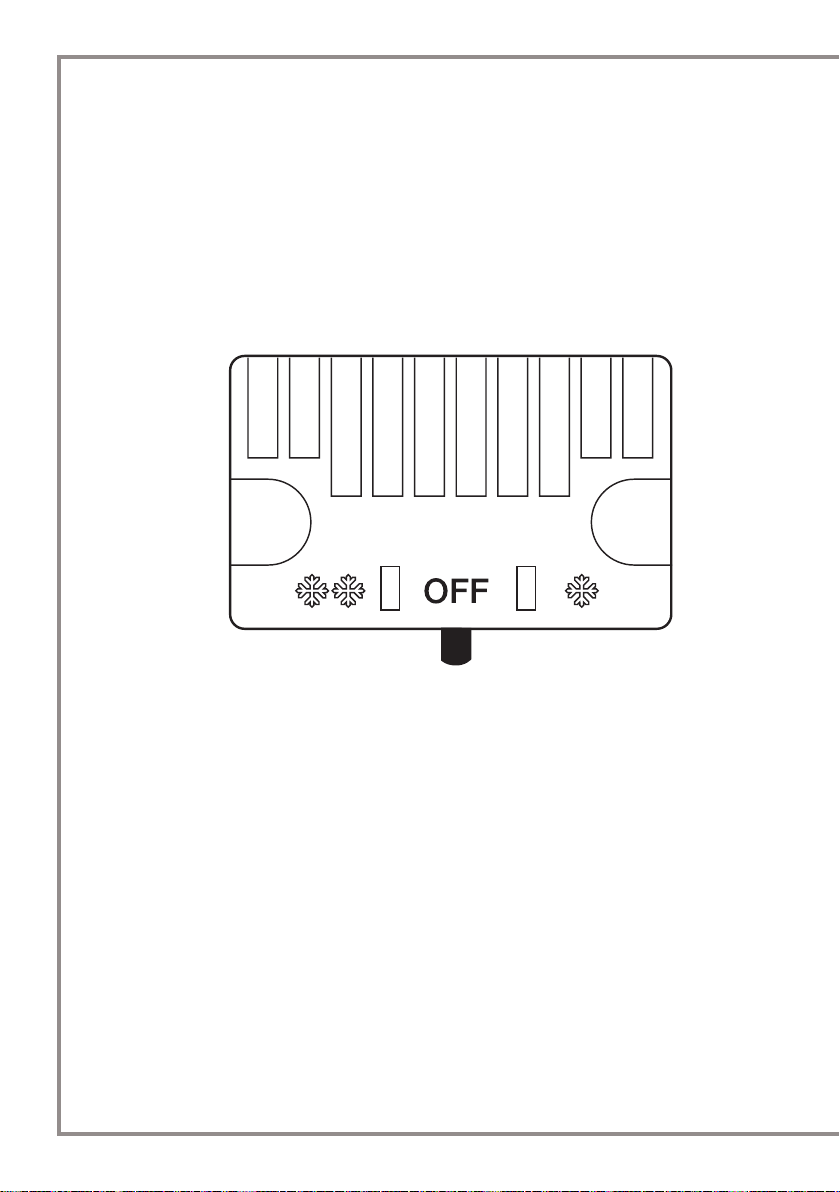

STANDARD OPERATION METHOD: FUNCTIONING
It is possible to adjust this cooling temperature inside the Minibar using the switch on the front of
the Minibar:
-the Minibar is o when in position "0"
-the Minibar operates at a higher (reduced cooling) internal constant temperature when in posi-
tion "*"
-the Minibar operates at a lower (increased cooling) internal constant temperature when in po-
sition "**"
TIMER OPERATION METHOD: FUNCTIONING
See TIMER operation method: USE.

ENGLISH
13
SMART SYSTEM OPERATION METHOD
The SMART SYSTEM controls the turning on and o of the compressor based on the presence
or absence of the guest in the room. The use of the SMART SYSTEM requires the presence in
the room of an Energy Saver device: a card-holder designed to save energy.
The guest enters the room and inserts the card into the card holder; the Energy Saver device
sends a signal to the SMART SYSTEM to indicate that a guest is present in the room and the
minibar compressor stops (the products inside the minibar remain cold for a long time due to
the cold released by the coldholding plate). When the guest leaves the room and removes the
card from the Energy Saver holder, another signal is sent to the SMART SYSTEM and the mini-
bar turns on again. If the guest remains in the room for many hours and the cold accumulated
in the eutectic plate runs out, the minibar turns on automatically to keep the products cold. If
the room is not occupied for a long time, the minibar operates in high energy saving mode.
When the FLYINGBAR 115V is used in SMART mode, its light goes on and stays lit for three
minutes when the guest enters the room.
WARNING!
With the SMART SYSTEM operation method, timer and standard operation methods are not
used.

14
FLYINGBAR 115V
FLYINGBAR 115V_03-10-2018
There are two power supply plugs on the back of the Minibar.
-Connect the “POWER” plug to the socket in the room specically for the Minibar (socket not con-
nected to the energy saving system).
-Connect the “SIGNAL” plug to any socket connected to the energy saving system (Energy saver).
NOTE: The FLYINGBAR 115V operates in STANDARD/TIMER mode when the “SIGNAL” plug is not
connected. Standard mode refers to operation not relative to identication of the Guest in the
room and operation which is regulated by the temperature selected by the Client using the switch
described above.
WARNING!
If the POWER and SIGNAL cables are connected in reverse, the fridge will operate whilst the guest
is in the room and will switch itself o when the guest leaves the room.
To conrm that the connection is correct, check that the light illuminates when opening the Mini-
bar door subsequent to checking that:
1 ) the energy saving system (Energy saver) is not functioning and that the smart card has not
been inserted
2 ) the Minibar is on (the temperature switch at the front of the Minibar must not be in position “0”)
In the instance that the light does not illuminate, invert the connection of the two power cables.

ENGLISH
15
TIMER OPERATION METHOD: USE
The FLYINGBAR 115V are equipped with a pre-set thermostat located on the back of the re-
frigerator (the temperature has already been adjusted to the correct operating levels). You can
select the duration of the cooling cycles using the remote control. When the Minibar is con-
nected to power supply, it automatically turns on using the mechanical thermostat functions.
ON OFF
The compressor is in operation to
cool the contents of Minibar and to
freeze the eutectic plate (6 hours
over 24 hour are sucient).
The compressor is O and the cool-
ing energy stored in the holding
plate maintains the inside Minibar
temperature. The Minibar is com-
pletely noiseless during the night.
PRESET PROGRAMS
PROGRAM WORKING TIME AMBIENT TEMPERATURE
1ST CYCLE 2ND CYCLE
P1 09-14 17-22 ≤ 25°C
P2 08-14 17-23 ≤ 28°C
P3 07-14 17-23 ≤ 30°C
P4 adjustable
OFF switch ON/o

16
FLYINGBAR 115V
FLYINGBAR 115V_03-10-2018
189A1018
P1 P4P2
-P3 +
SET
ON
OFF
The FLYINGBAR 115V equipped with a remote control allows you to set the operation of the com-
pressor to make it work at certain times of day. Each refrigerator has three periods of use which
have already been preset, and one (P4) which can be programmed by the user. One can set a
maximum of two ON/OFF cycles within 24 hours. The remote control is easy to use. After choos-
ing the programme on the remote control, just point the remote control at the receiver on the in-
side of the Minibar (at a distance of about 30-40 cm). Keep the button for the chosen programme
on the remote control pressed for at least two seconds: the Minibar will start to work. The display
will display the following symbol.
THE REMOTE CONTROL
Open

ENGLISH
17
SETTING THE TIME
If you press any button from P1 to P4 several times, the display will show the chosen pro-
gramme and then the time.
To set the time, press P2 and P3 at the same time. The hour digits will start to ash and the
display will show the words “set time”.
Press - (P2) and + (P3) to set the right time.
To set the minutes, press P1 and then - (P2) and + (P3).
Press P4 to save the new time setting. The display will
show the current time.
To set a programme (P1, P2, P3 or P4) on the Minibar, press
the button of the chosen programme for at least 2 seconds.
If the batteries have run out, the display will show this
symbol:
Press ON/OFF to turn the Minibar o. The display will show
“O”. To enable the remote control again, press the ON/OFF
key.
WARNING!
If the mains power supply is cut o for less than 48 hours, the Minibar turns on again using
the previously set program. If the mains power supply is cut o for more than 48 hours, the
Minibar will be operated by the pre-calibrated thermostat. To set a program again, follow the
instructions given on THE REMOTE CONTROL.
WARNING!
If the power supply is voluntarily cut o, wait at least 15 minutes before turning the refrigerator
on again (i.e. before connecting it to mains supply). If not, the compressor could be locked for
few minutes before starting its normal operating.
SET TIME
TIME
OFF

18
FLYINGBAR 115V
FLYINGBAR 115V_03-10-2018
SET TIMEOFF
TIME
ON 1
TIME
ON 2
After installing the battery, the display will show the following picture for 5 seconds.
The display then shows the current hour. if no button is pressed during the following 8 seconds,
the words will disappear on the display until another button is pressed.
If you press the buttons P1, P2 or P3, the display will show the pre-set programmes as in the fol-
lowing images. Attention: the programmes P1-P2 and P3 are pre-set and cannot be changed.
The programme P4 allows the user to set two refrigerator working cycles (the rst cycle Time on1
–Time o1 and the second cycle Time on2 and Time o2).
To customise the programme P4:
press P1 and P4 simultaneously.
“Time On1” will start to ash on the left.
Use the buttons - (P2) and + (P3) to set the starting time of the rst cycle.
Press the button P1 to move ahead to the following elds and then use the - and + buttons again
to change the starting and stopping time of the operation cycles of the compressor.
After completing the customisation of the programme, press P4 to save the new settings.
NOTE: After having used the minibar with the TIMER operation method, to pass again in STAN-
DARD operation method, please set P4 on the remote control with all value at 00:00 and push P4
(see instruction SETTING THE TIME).
NOTE: After having used the minibar with the SMART operation method, to pass again in STAN-
DARD operation method, unplug the SIGNAL cable and st P4 on the remote control with a value
at 00.00 and push P4 (see instruction SETTING THE TIME).
