infaco P9T120B User manual

3
contents EN
Compatible tool 4
Compatible batteries 4
Precautions before use 5
Personal protection equipment 5
Protection of the environment 5
Pole ranges 6
General product view 7
Specifications 8
Starting up 9
User guide 12
Precautions for use and safety 14
Servicing and maintenance 15
Safety instructions 16
Warranty conditions 18
Advice 19
Troubleshooting 20
Coupons to be returned on purchase of the tool 21
Technical information 23
CE declaration of conformity 24

4

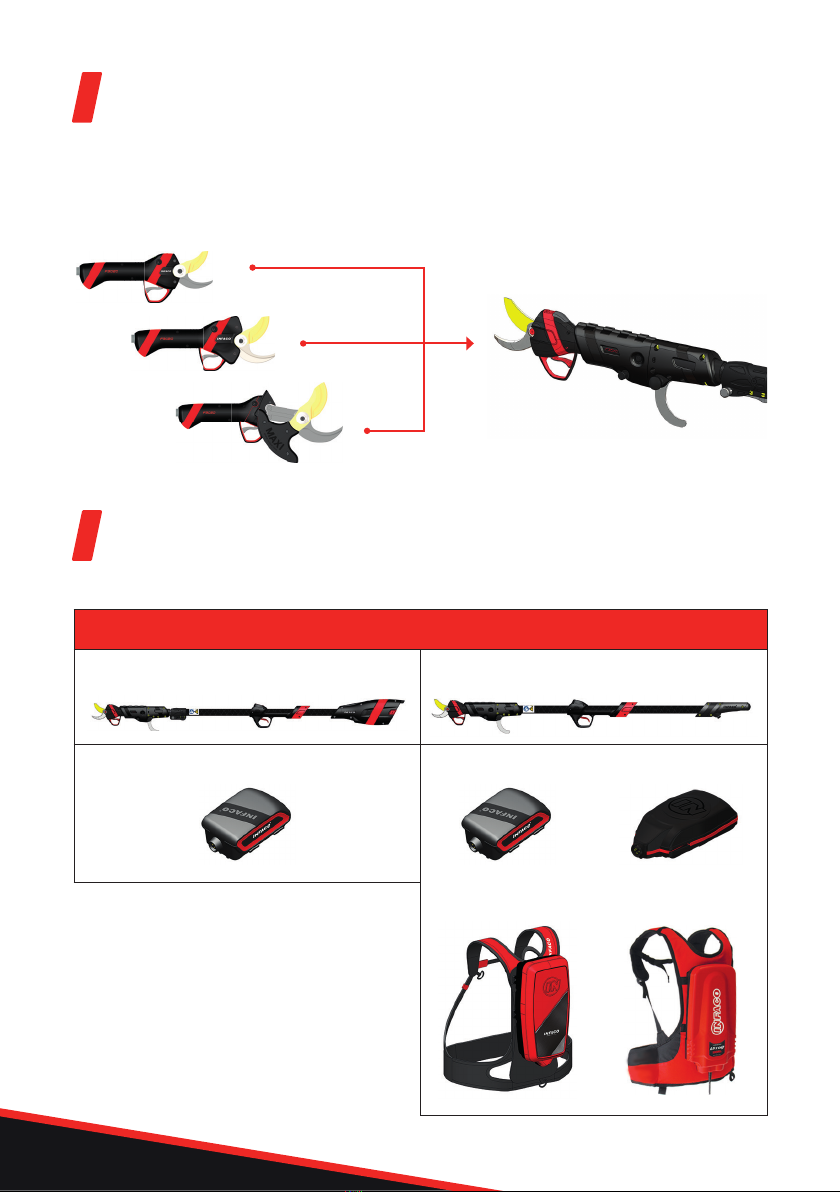

Compatible tool
Compatible batteries
The P9F210, P9T120, P9F120, P9T120B, P9F210B, P9T210B poles are only compatible
with the F3020 electric shears, regardless of the blade kit used.
poles and compatible batteries
P9T120B / P9F210B / P9T210B P9F210 / P9T120 / P9F120
L100B
L100B
831B
L850B L810B
Standard
Medium
Maxi

5
Precautions before use
Protection of the environment
Read the instructions for use carefully, especially the safety instructions.
The wearing of a hard hat, eye and ear protection is MANDATORY
Hand protection using cut-prevention work gloves.
Foot protection using safety footwear.
Face protection using a visor
Body protection, using cut protection overalls.
IMPORTANT! Extensions can be made of conductive materials. Do not use near sources of
electricity or electric wires
IMPORTANT! Do not approach any part of the body to the blade. Do not remove the cut
material or hold the material to be cut while the blades are moving.
WARNING. Read all the safety warnings and all the instructions. Failing to
heed warnings and follow instructions may lead to an electric shock, a fire and/
or serious injury.
Keep all warnings and instructions for future reference. The term “tools” in the warn-
ings refers to your battery-powered electric tool (with power cord), or your tool operating
on a battery (without power cord).
Observe all country-specific waste disposal rules and regulations.
>Power tools must not be disposed of with household refuse.
>The device, accessories and packaging must be taken to a recycling centre.
>Ask the approved INFACO Dealer for up-to-date information on the eco-
compatible elimination of waste.
Personal protection equipment

6
Pole ranges
Cable version
Ref Lengths (in
mm) Images
P9F120 1370
P9T120 From 1475
to 2120
P9F210 2271
Built-in battery version
Ref Lengths (in
mm) Images
P9T120B From 1560
to 2210
P9F210B 2360
P9T210B From 2470
to 4020

7
Length adjustment
Battery unlocking clips
Battery compartment
Power supply socket
General product view
Power supply socket
P9T120B / P9F210B / P9T210B
P9F210 / P9T120 / P9F120
Shear holder Mobile grip
IndicatorBattery box
Control trigger

8
Control grip
Battery CR123A 3V (rechargeable battery not compatible)
Operating voltage 2V – 3.6V
Polarity reversal Protected electronics
Emission/receiving power 8 dbm
Poles
Battery L100B 36V battery or 48V INFACO range battery (see compatible
battery on page 04 )
Operating voltage 30V - 54.6V
Maximum voltage 70V
Tube material Carbon
Weight (pole only)
P9F120 :
P9F210 :
P9T120 :
P9F210B :
P9T120B :
P9T210B :
1,00 kg
1,25 kg
1,40 kg
1,80 kg
2 kg
2,45 kg
These specifications are given as an indication only. Under no circumstances may they be considered as
contractually binding.They are subject to modification without prior notice in the interests of product
development.
Patented equipment
Specifications

9
First use
The first time you use the equipment, we strongly recommend you to ask the advice of your
Dealer, who is qualified to give you all the advice you need for correct use and good output.
It is imperative to carefully read the tool and accessory user manuals before handling or
powering up the tool.
Battery
Before using the equipment for the first time and/or following wintering, fully charge the
battery (see battery manual or the manual for the tool being used)

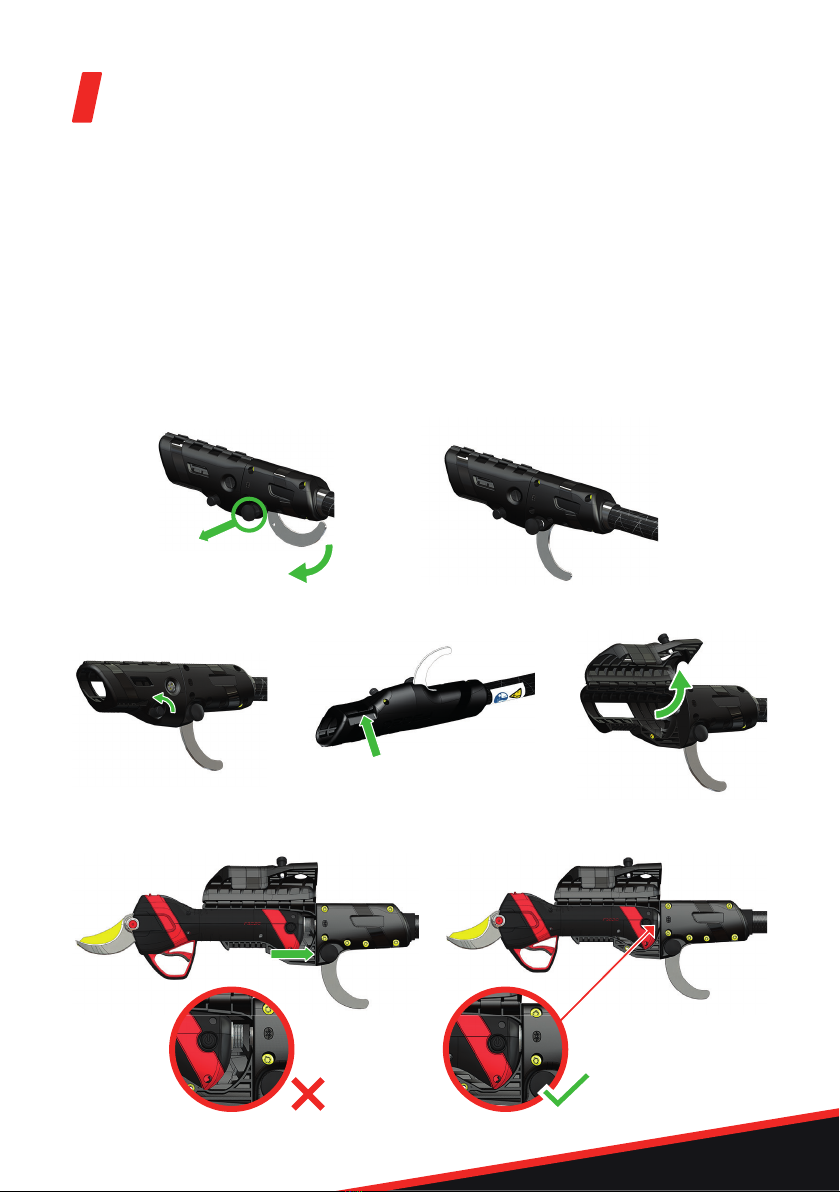

Starting up
> Hook deployment (optional)
> Cover opening
> Insert the shears then connect them
CLICK!

10
> Cover closure
> Battery connection
Built-in battery version Cable version
P9T120B / P9F210B / P9T210B P9F210 / P9T120 / P9F120
CLICK!
CLICK!
CLICK!

11
> Starting the shears with the pole
> Starting the pole control grip
> Starting the shears
Image of the HMI
on standby
1s = ON
1x
2x
1x
Installation complete, the shears are ready to use

12
User guide
Pole HMI description
The pole command grip is started by a first press on the trigger (IMPORTANT, the pole
trigger and not the shear trigger)
The LED lights for a few seconds and indicates the battery capacity as per the following
table:
Visual indication battery level
Green steady from 100% to 10%
Red flashing from 10% to 0%
Red steady CR123A battery to be replaced, the pole
is no longer operational.
The grip turns off automatically:
• if the shears are disconnected from the pole.
• if the shears are powered off using the shear on/off button.
• after 10 minutes without use.
• if the battery is disconnected.

13
Telescopic pole length adjustment:
Models P9T120, P9T120B, P9T210B
When the shears are operating on the pole:
• the ½ opening feature is no longer operational, the shears are forced to maximum
opening regardless of which kit is used (standard, medium or maxi).
• The shears only operate in pulse mode.
• The shear DSES safety system is automatically disabled.
• After powering on, a first press on the pole grip trigger disables the shear trigger.

14
Before starting the working day, make sure the battery is sufficiently charged (3 LEDs on
on the pruning shears).
Always disconnect the shears from the pole during operations other than pruning and
ALWAYS WHEN SHARPENING OR LUBRICATING.
Users must be especially careful when the shears are located at the end of the pole in order
to prevent any risks of accidents.
Before any use of the pole, it is essential to read your shears user manual carefully and to
follow all the safety instructions.
IMPORTANT! The pole is made of carbon, a conductive material. Do not
use near sources of electricity or electric wires.
If the shears jam following a succession of jamming
cuts, wait for the blade to open. Do not make
any lateral movements that could damage both
the pole and the shears.
Do not leave the pole, the battery or the shears
on the ground, and do not expose them to bad weather conditions.
Make sure the battery’s protective plastic casing is not cracked and does not seem to have
suffered impacts or other aggressions.
When working, it is normal for the battery temperature to rise.
The recommended use temperature is between -5°C and 35°C
Use outside this temperature range may reduce tool performances.
After using the tool in the rain or in a damp environment, it is strongly recommended to
store the disconnected device outside its case in a heated and ventilated place.
Between two pruning seasons, you do not need to disconnect the battery from the pole
control grip if it is stored away from freezing temperatures and damp.
Precautions for use and safety

15

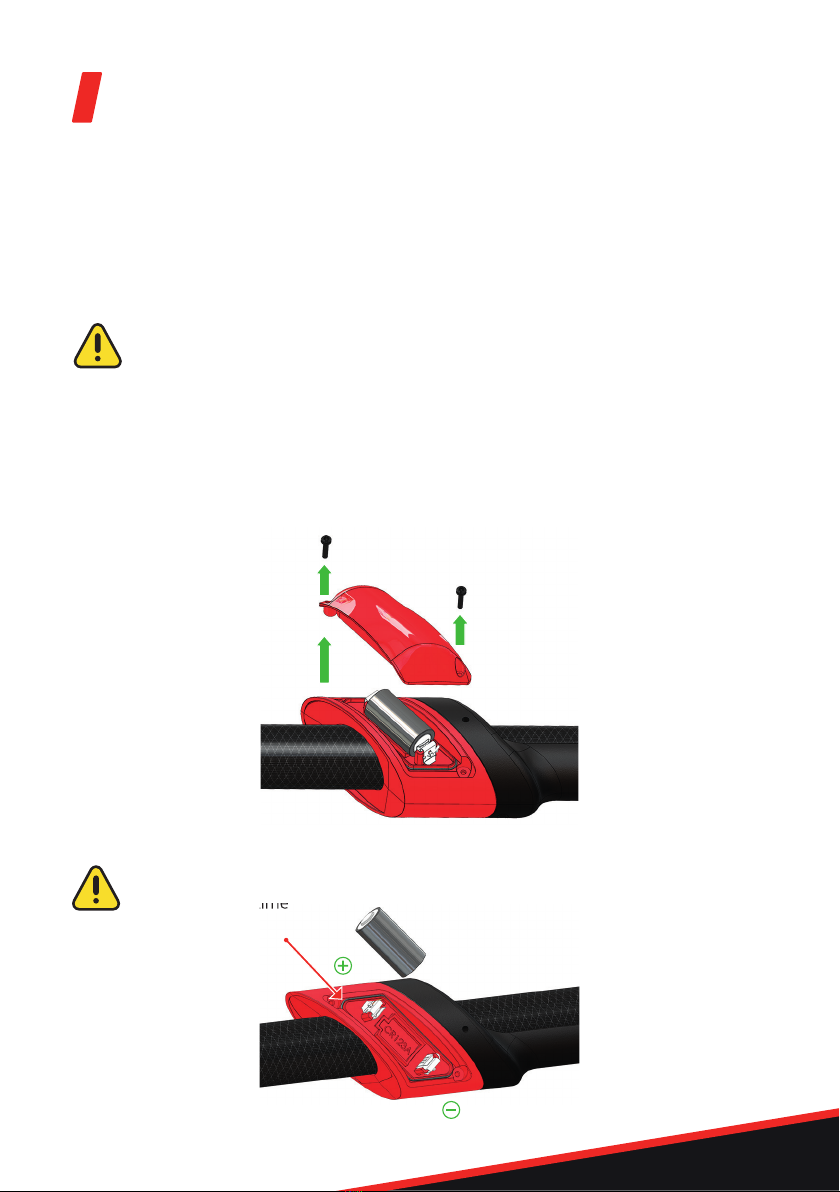

Servicing and maintenance
As soon as the grip’s visual indicator is no longer steady green on powering up, the battery
needs to be replaced.
The batteries compatible with the grip are available from your approved INFACO dealer
Only CR123A 3V max. reference batteries (INFACO ref: 978P) are compatible.
Never use rechargeable batteries.
Replace the O-ring
REF 978J every time
the battery is replaced.
REF 978J every time
Battery replacement (all pole models):

16
General safety warnings concerning the tool.
IMPORTANT. To reduce the risk of electric discharges, injuries and fire when using electric
tools, follow the fundamental safety measures indicated below. Read and follow these
instructions before using the tool, and keep the safety instructions!
Outside operations related to the use of the tool, the pole and its accessories must be
disconnected and stored in their respective packaging.
It is imperative to disconnect the pole from all power sources for the following
operations:
• Servicing.
• Battery charging.
• Maintenance.
• Transport.
• Storage.
Keep all warnings and instructions for future reference. The term” tool” used in warnings
refers to your battery operated tool (with or without a power cord).
1. Work area safety
Keep the work area clean and well lit. Cluttered or dark areas are prone to accidents. Never
use the equipment at night or in poor light without setting up additional lighting.
Do not operate electric tools in explosive atmospheres, in the presence of inflammable
liquids, gases or dust for example. Electric tools produce sparks that can ignite dust or
smoke.
Keep children and other people at a distance when using the tool. Distractions can result in
the loss of control over the tool.
2. Electric safety
The plugs on the electric tool must be adapted to the base. Never alter the plug in any way.
Unaltered plugs and suitable bases reduce the risks of electric shocks.
Safety instructions

17
Caution, the poles are made from carbon, a conductor. Do not use near sources of electricity
or electric wires.
Do not expose tools to rain or damp conditions. Water penetrating inside a tool will increase
the risk of electric shocks.
Do not mistreat the power cord. Never use the power cord to carry, pull or disconnect the
tool. Keep the power cord away from heat sources, lubricants, sharp edges or moving parts.
Damaged or tangled power cords increase the risk of electric shocks.
Never carry the charger by the cord, and do not pull on the cord to disconnect it from the
socket.
3. Safety of persons
When the equipment is in operation, always keep your hands well away from the cutting
head.
Before cutting, anticipate the branch’s trajectory once it has been cut, to avoid it falling into
your work zone.
Keep constantly vigilant when using the tool. Do not work with the machine if you are
tired, feeling unwell, under the influence of drugs, alcohol or medication. A small lapse of
concentration when the device is running can lead to serious injuries.
Wear the specific recommended personal protection equipment for each accessory.
Use safety equipment. Always wear eye protection.
Safety equipment such as dust masks, non-slip safety footwear, hard hats or ear protection
used in the correct circumstances will reduce the risk of injuries.
Not rushing and staying in a vigilant position at all times allows for better tool control in
unexpected situations.
Wear appropriate clothing. Do not wear loose clothing or jewellery.
Keep hair, clothing and gloves away from moving parts.
Loose clothing, jewellery or long hair can become entangled in moving parts.

18
Warranty conditions
Your tool has a two year warranty for manufacturing defects or faults.
The warranty applies to the normal use of the tool and does not cover:
- damage due to poor maintenance or lack of maintenance,
- damage due to incorrect use,
- wear parts,
- tools that have been taken apart by unauthorised repairers,
- external factors (fire, flood, lightning, etc.),
- impacts and their consequences,
- used with a battery or charger other than those of the INFACO brand.
The warranty is only applicable when the warranty has been registered with INFACO
(warranty card or online declaration on www.infaco.com) at your dealership. Do
not hesitate to ask your approved INFACO dealer for assistance in completing your
INFACO international manufacturer’s warranty declaration.
If the warranty declaration was not made when the tool was purchased, the factory
departure date will be used as the warranty start date.
The warranty covers factory labour but not necessarily dealer labour. The repair
or replacement during the warranty period does not extend or renew the initial
warranty.
All failings regarding the storage and safety instructions will void the manufacturer’s
warranty.
Under no circumstances can the warranty entitle to compensation for any immobilisation of
the equipment during the time required for its repair.
All work carried out by a person other than approved INFACO agents will cancel the tool
warranty.
The repair or replacement during the warranty period does not extend or renew the initial
warranty.
If the equipment breaks down, we strongly advise INFACO equipment users to contact the
dealer that sold them the tool.
To avoid all disputes, please note the following procedure:
- If the tool is still under warranty: send it to us carriage paid and we will pay the
return.
- If the tool is no longer under warranty: send it to us carriage paid and the return
will be at your expense by cash on delivery. If the cost of the repair were to
exceed € 80 excluding VAT, you will be supplied with a quote.

19
Advice
Keep your work area tidy. Clutter in work areas increases risks of accidents.
Take into account the work zone. Do not expose electric tools to rain. Do not use electric
tools in a damp or wet environment. Make sure the work area is properly lit. Do not use
electric tools near inflammable liquids or gases.
Protect yourself from electric shocks. Avoid bodily contact with surfaces connected to
the earth, such as battery chargers, electric multi-plugs, etc.
Keep away from children! Do not allow third parties to touch the tool or cable. Keep
them away from your work area.
Store your tools in a safe location. When not in use, tools must be stored in a dry,
locked location in their original packaging and out of the reach of children.
Wear suitable work clothing. Do not wear loose-fitting clothing or jewellery. It could be
caught up in moving parts. When working in the open air, wearing rubber gloves and non-
slip sole footwear is recommended. If your hair is long, wear a hair net.
Wear protective eye-wear. Also wear a mask if the work being carried out generates
dust.
Protect the power cord. Do not carry the tool using its cord and do not pull on the cord
to disconnect it from the socket. Protect the cord from heat, oil and sharp edges.
Maintain your tools carefully. Regularly check the plug and power cord condition and,
if they are damaged, have them replaced by a recognised specialist. Keep your tool dry and
free of oil.
Remove the tool keys. Before starting the machine, make sure the keys and adjustment
tools have been removed.
Check your tool for damage. Before reusing the tool, carefully check that the safety
systems or slightly damaged parts are in perfect working order.
Have your tool repaired by a specialist. This tool is compliant with applicable safety
rules. All repairs must be carried out by a specialist and only using original parts, failure to
do so could result in serious risks to user safety.

20
Disruptions Causes Solutions
The shears will not start up
Battery flat Charge the battery
Bad connection between the
battery connectors and the pole
connectors
Check that the contacts and the
battery compartment are clean.
Bad connection between the
shears and the pole power supply
socket
Check that the contact is clean
and the shears properly inserted in
their support
Shear cable damaged or out of
order
Check the cable operation directly
on the shears. If the shears oper-
ate, contact your INFACO dealer
The grip will not start up Battery flat
Replace the battery (See SERVIC-
ING AND MAINTENANCE section
on page 15). If the grip will still not
start, contact your INFACO dealer
Troubleshooting

21
