infaco Powercoup PW2 User manual

OF1530 / of1830 / OT2650

1 HANDLE = 8 TOOLS
hand tools
Tools with pole
PW2 + THD700
PW2 + TR8 PW2 + SC160 PW2 + THD600
PW2 + PW36RB
PW2 +
PB (Binage)
PW2 +
EP1700
PW2 +
PS (Sarclage)
PW2 +
OT2650
PW2 +
OF1830
PW2 +
OF1530
PW2 +
TR8+PW930
PW2 +
SC 160+PW930
PW2 +
THD700+PW930
PW2 +
THD600+PW930
PW2 +
EC1700

Reference Description
PW2 Universal handle for the POWERCOUP PW2 range.
THD600 Double hedge trimmer, length of the cutting bar 600mm.
THD700 Double hedge trimmer, length of the cutting bar 700 mm.
TR8 Reciprocating saw, max cutting capacity max. Ø150mm.
SC160 Reciprocating saw, max cutting capacity Ø100mm.
PW 930 Carbon extension pole, length 930mm.
PW1830 Carbon extension pole, length 1830mm.
PWT1650 Carbon extension pole, length 1650mm.
P1 Weeder with pole 1480mm.
P2 Cultivator with fixe pole 1430mm.
Pwp36rb Canker kit with rotary burr (cylindrial cutter 36mm).
Pwp25rb Canker kit with rotary burr (cylindrial cutter 25mm).
EP1700 Desuckering tool, telescopic pole 1200mm > 1600mm.
EC1700 Flower Thinner, telescopic pole 1500mm > 1900mm.
OF1530 Olive harvester, fixed pole 2200mm.
of1830 Olive harvester, fixed pole 2500mm.
ot2650 Olive harvester, telescopic pole 2200mm > 2800mm.

SAFETY INSTRUCTIONS ______________________________________________ 4
PERSONAL PROTECTIVE EQUIPMENT__________________________________ 4
ENVIRONMENTAL PROTECTION ______________________________________ 4
GENERAL OVERVIEW ________________________________________________ 5
SPECIFICATIONS_____________________________________________________ 5
VIEWS OF ACCESSORIES ____________________________________________ 5
USER’S MANUAL____________________________________________________ 6
FIRST TIME USE _________________________________________________________________ 6
MOUNTING THE HEAD AND RAKE _________________________________________________ 6
MOUNTING THE RAKE ___________________________________________________________ 8
INSTALLATION AND POWER CONNECTION _________________________________________ 9
USING THE MACHINE ___________________________________________________________ 9
SAFETY PRECAUTIONS______________________________________________ 13
CARE AND MAINTENANCE _________________________________________ 14
GREASING______________________________________________________________________ 15
SAFETY INSTRUCTIONS _____________________________________________ 16
WARRANTY CONDITIONS ___________________________________________ 17
RECOMMANDATIONS ______________________________________________ 18
TROUBLESHOOTING________________________________________________ 19
WARRANTY CARD _________________________________________________ 21
EQUIPMENT MANUFACTURED IN FRANCE ____________________________ 23
DECLARATION OF CONFORMITY CE__________________________________ 24
Contents

Keep all safety warnings and instructions so that you can refer to them at
a later date.
The term “tool” in the warnings refers to your electrical tool run off the main
supply (with supply power cord) or your electrical battery-operated tool (without
a supply power cord).
WARNING. Read all safety warnings and all instructions. Failure to
abide by warnings and instructions could lead to an electric shock, fire
and/or serious injury.
PERSONAL PROTECTIVE EQUIPMENT
ENVIRONMENTAL PROTECTION
Follow the specific instructions for waste elimination in your
country. Electrical appliances should not be thrown in the garbage.
The device, accessories and packaging should be recycled.
Ask your specialist INFACO retailer for the latest information on
eco-compatible waste elimination.
SAFETY INSTRUCTIONS
Read the user manual carefully, especially the safety instructions.
You MUST wear a helmet, eye protection and hearing protection.
Hand protection, for work gloves..
Foot protection by closed toed shoes
Face protection, or visor.
Note: The extensions poles are made of carbon, which conducts electricity. Do not use
the extensions poles near electricity supply points or electrical wires.
10m

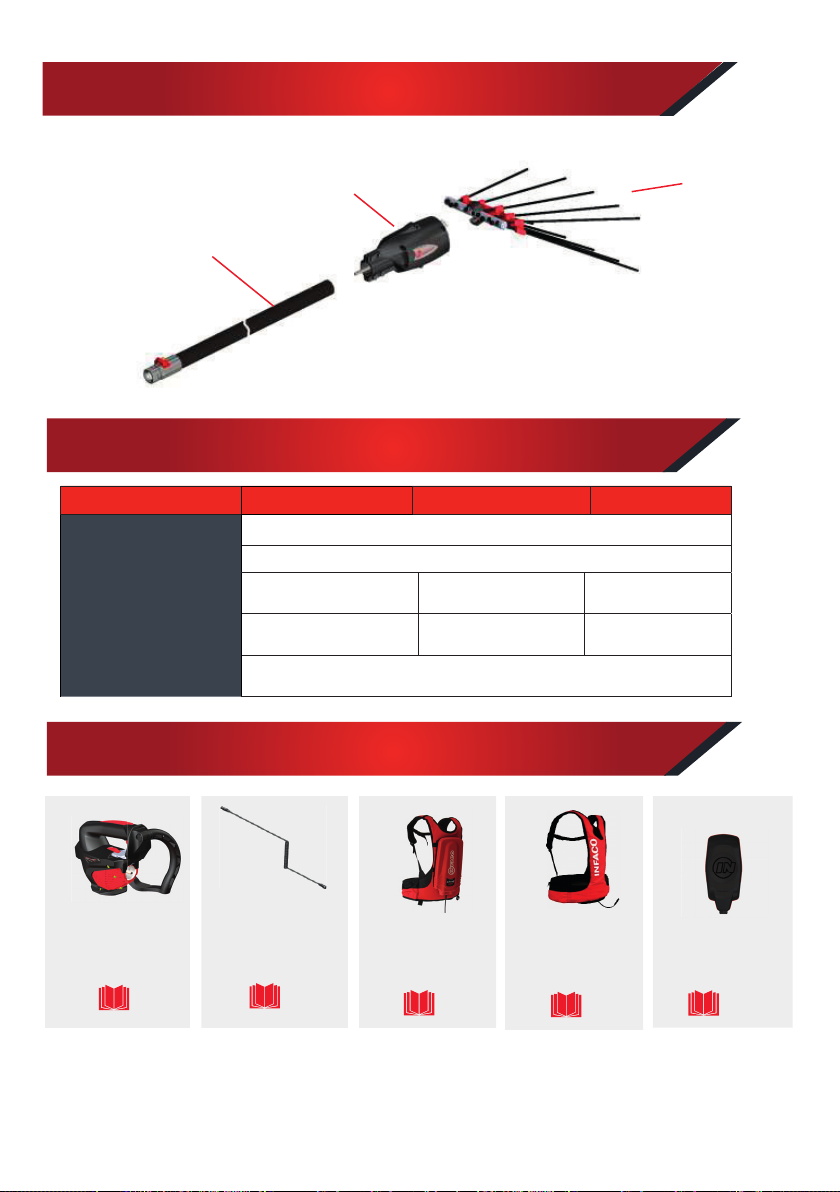

GENERAL OVERVIEW
Harvesting Rake
Olive harvester head
Extension Pole
Reference OF1530 OF1830 OT2650
Voltage 48CC
Power 220W MAX
Weight with handle
2 kg 790 2 kg 890 3 kg 250
Length with handle 2,20 m 2,50 m 2.20 à 2.80 m
Blade speed 1150 oscillations / mn
SPECIFICATIONS
VIEWS OF ACCESSORIES
Battery 500Wh
10,4Amp.
Réf : L810B
Power cord
Réf : PW225S
PW2 handle
Réf : PW2
NOT
L810B
NOT
PW2
NOT
PW2
Battery 150Wh
3,1Amp.
Réf : 731B
NOT
F3010
Battery 120Wh
2,5Amp.
Réf : 831B
NOT
F3015

USER’S MANUAL
FIRST TIME USE

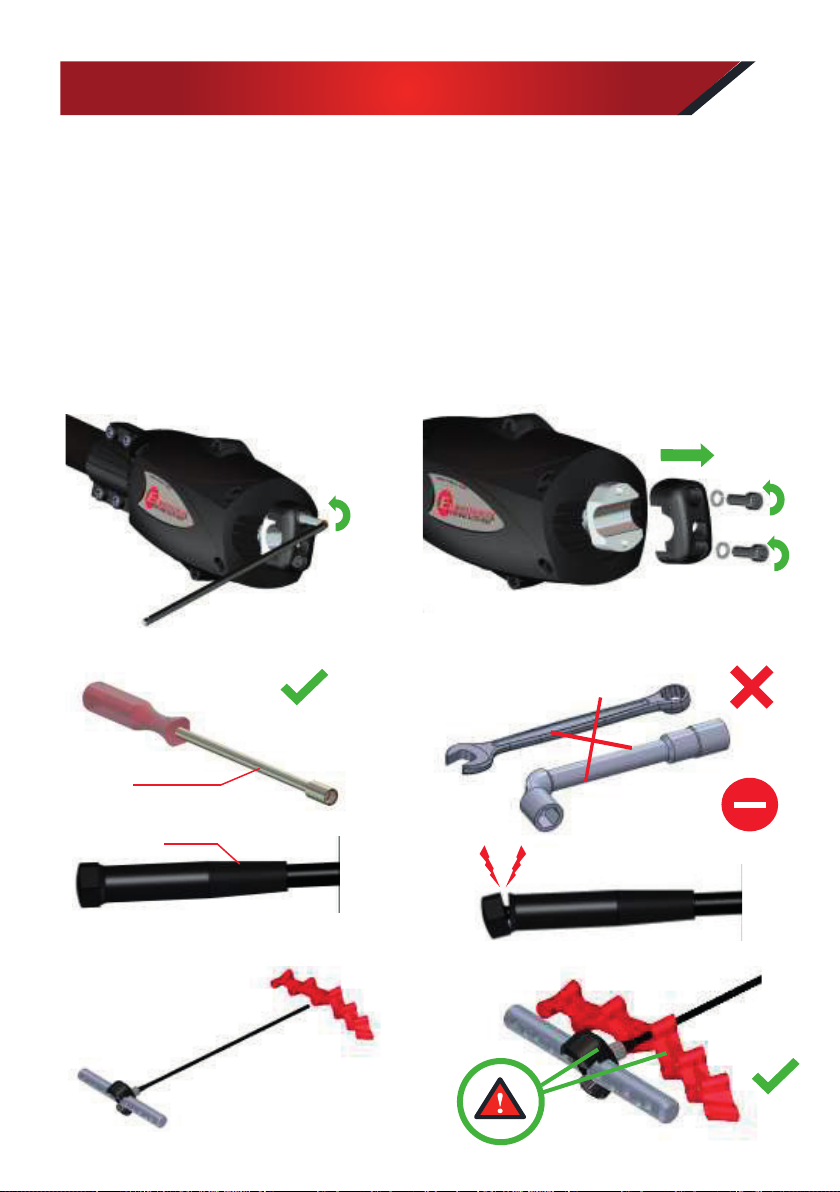

MOUNTING THE HEAD AND RAKE
We strongly recommend that you ask for assistance from your retailer, who
is authorized to give you all the advice you need to use the tool properly and
achieve great results
It is imperative to read the user’s manual carefully before handling the tool.
INFACO Tool
EB325

x4
x6 Détrompeur

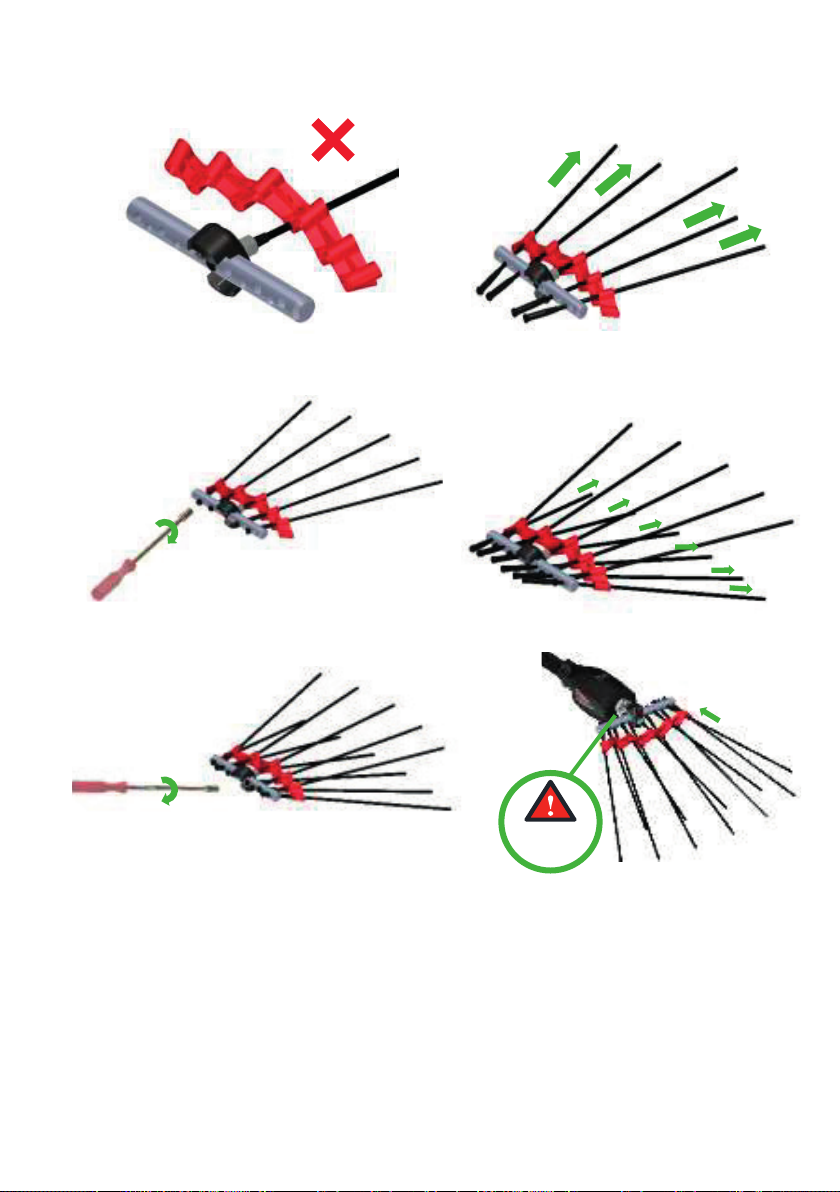

MOUNTING THE RAKE
EB325 (x5) EB325 (x6)
EB325 (x5)
EB325 (x6)
Locating
device
Locating
device

Only use INFACO brand batteries with a supply voltage 48 volts.
If it is raining, the battery vest must be worn underneath waterproof clo-
thing so that the battery unit and control box remain dry.

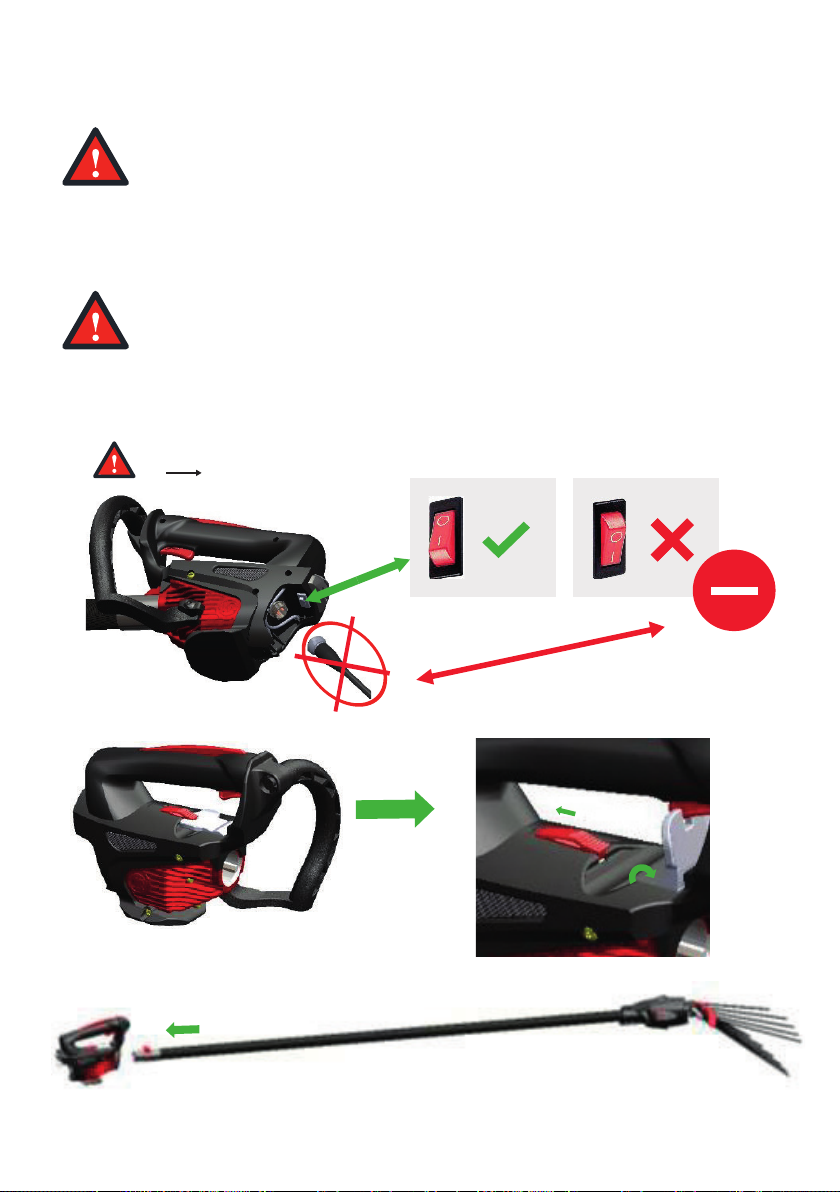

INSTALLATION AND POWER CONNECTION
It is imperative to read the operating instructions for the tools and accessories
before handling or connecting the tool.
USING THE MACHINE
AOFF ON F
2
1
A / B /

C / D /
2
1
E/ F/
G / H /
1
1
2
2
OFF ON
Détrompeur
Locating
device
Locating
device

1
1
2
2
2 (3s)
1
1 Start: 2 short pulls of the trigger = ON
Standby output: 2 short pulls of the trigger = ON
1 short pull of the trigger = ON
1 short pull of the trigger = OFF
1 long pull of the trigger = ON
Releasing the trigger = OFF
2 MODES START
K /
1 /
2 /

The tool is fitted with an electronic protection system. As soon as the rake becomes
blocked due to meeting strong resistance, the electronic system causes the motor to stop.
C/
A/ B/
x10 short pulls
x1 long pull
2
Start the machine To enter the set-up mode, do a long pull
on the trigger.
The machine starts automatically at the
first increment on low speed.
Select the requested speed with successive short pulls on the trigger. 10 speed
increments available.
Validate the requested speed and exit the set-up mode with a long pull on the
trigger until the machine stops completely.
The machine is ready to work, the speed will be locked until the next set-up.
SETTING OF ROTATION SPEED
10 speed increments available between 800 and 1200 r/min
ON

SAFETY PRECAUTIONS
The tool is fitted with an electronic protection system. As soon as the tool beco-
mes blocked due to meeting strong resistance, the electronic system causes the
motor to stop. Restart the tool by carrying out operation «k» in “Using the Tool”
on page 12.
Upon starting the tool, if an unusually large vibration is detected, stop the tool
immediately and check the assembly and tightness of the rake.
If this unusual vibration persists, immediately turn off the tool and contact your
nearest dealer.
We also recommend keeping the tool’s protective tube, in case it needs
to be returned to the factory for after-sales service.
For transportation, storage, maintenance, tool maintenance or any other
operation outside of using the tool, you must unplug the tool.
B /
1
2
OFF
A /
C /
2
1
OFF
+539f20

CARE ET MAINTENANCE
Before starting work
At the end of work daily
Each time the battery is changed
Monthly
Yearly
If faulty If damaged
As required
Weekly
All maintenance operations must be performed
with the tool disconnected from all power sources.
Maintenance of the tool depends on the frequency
of tool use.
Occasional use, space out intervals. Intensive use,
more frequent intervals.
Complete tool
Visual inspection X X
Cleaning X X
Have checked by dealer X X
Securing the rake
Check X
Accessories Cleaning and greasing X
Carbon fingers
Visual inspection X
Cleaning X
Change
X X
Olive harvester
head
Check clearance X
Greasing
X X
Have checked by dealer
X X
Power cord
Visual inspection X X X
Battery
Visual inspection X X X X
Vest
Visual inspection X X X
Handle
Visual inspection X X

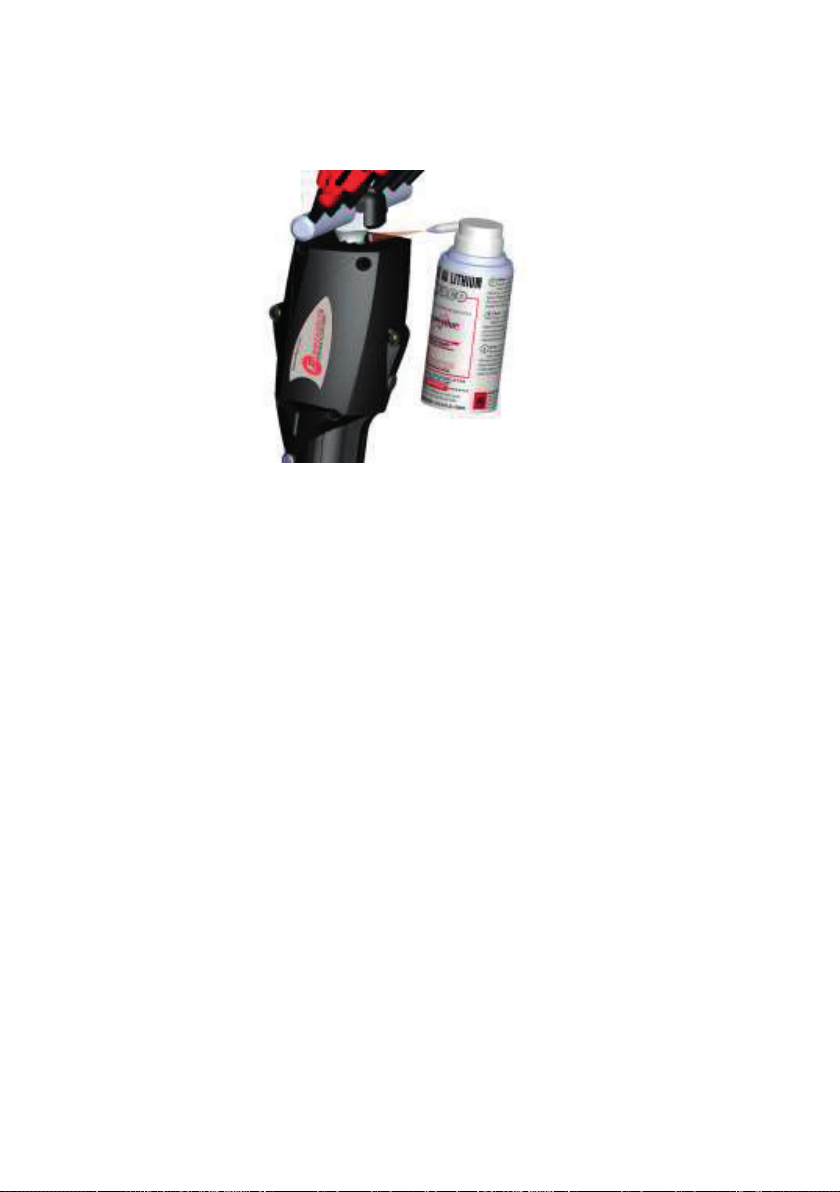

GREASING
Lubricate the olive harvester head at least once per day, in the morning
before starting work
Position the aerosol nozzle towards the ball and socket joint. Hold the aerosol can verti-
cally, then spray. Lubricate the harvester head at least once a day (no need to dismantle
for lubricating).

BEWARE! In order to reduce the risk of electrical discharge, injury and fire during
the use of electrical tools, please observe the following basic safety measures.
Read and follow these instructions before using the tool, and keep these safety
instructions!
When not in operation, the POWERCOUP PW2 handle and its accessories must be
disconnected and stored in their case.
While the tool is in operation, always remember to keep hands away from the
accessory being used.
Do not use the tool if you are tired or feeling unwell.
Wear recommended safety equipment specific to each accessory.
Do not leave the tool within the reach of children or visitors.
Never use the tool at night or in poorly lit conditions without setting up extra
lighting.
While using the tool, make sure you keep both feet on the ground and stay well-
balanced.
- Servicing.
- Charging the battery
- Maintenance.
- Transport.
- Storage.
PW2 POWERCOUP handle must always be disconnected from all power
sources for to the following :
Do not use the tool if there is any risk of fire or explosion- for example in
the presence of flammable liquids or gas.
Never carry the charger by its power cord, and so not pull on the power
cord to unplug it.
BEWARE! – the extension poles and rake are made out of carbon – a
conductive material. Do not use near electrical wires or other power
sources.
Keep the power cord away from heat sources, oil or sharp edges.
SAFETY INSTRUCTIONS

The ELECTROLIV POWERCOUP PW2 has a warranty for a period of two years against all
manufacturing faults and defects.
This warranty corresponds to normal use of the tool and excludes :
- Damage due to poor maintenance or a lack of maintenance,
- Damage due to inappropriate usage,
- Damage due to normal wear and tear,
- Tools which have been dismantled by unauthorized repairers,
- External forces (fire, flooding, lightning, etc.),
- Damage from tool being dropped or from other impact,
- Tools with warranty cards not returned at the time of purchase,
- Tools used with a battery or charger other than those manufactured by INFACO.
INFACO shall not remit payment for any monetary loss incurred for the time the tool is
unavailable during repairs.
All repairs made by a person other than an approved INFACO authorized service provider (ASP)
will invalidate the equipment warranty.
In case of any breakdown, we strongly recommend that users of INFACO equipment either
contact the retailer from whom they purchased the tool, or our after-sales service on
([phone] (France).
Please note our after-sales service shipping policy :
- For equipment submitted to us within the scope of the warranty, you pay to send it to
us and we pay the return postage.
- For equipment which is not within its warranty period, you pay to send it to us and the
return will be made at your cost, cash on delivery. We will send you an estimate if the cost
of the repair is more than 80 € ex-VAT.
WARRANTY CONDITIONS

RECOMMANDATIONS
Keep your work area tidy.
Untidiness in the work area increases the risk of accidents.
Take the work area environment into account.
Don’t expose electrical tools to the rain. Don’t use electrical tools in a humid or wet
environment. Make sure the work area is well lit. Don’t use electrical tools if there
are flammable liquids or gases in the vicinity.
Protect yourself against electrical discharge.
Avoid bodily contact with grounded surfaces, such as, for example: battery charger,
multiway electrical sockets, etc...
Keep children away!
Don’t allow other people to touch either the tool or the power cord. Keep others
well away from your work area.
Store your tools in a safe place.
Tools not in use should be stored in a dry, enclosed place, in their original packaging
and out of the reach of children.
Wear suitable working gear.
Do not wear flowing clothes or jewelry. These could get caught up by moving parts.
When working outdoors, it is recommended that you wear rubber gloves and shoes
with non-slip soles. Use a hairnet if you have long hair.
Wear protective goggles.
Use a mask as well if the work you are doing produces dust or debris.
Take care of the power cord.
Never carry the charger by its power cord and so not pull on the power cord to
unplug it. Keep the power cord away from heat sources, oil or sharp edges.
Take good care of your tools.
Regularly check the condition of the power cord and plug, and have them changed
by an Authorized Service Provider (ASP) if they show any signs of damage. Keep the
POWERCOUP PW2 material dry and free of oil and grease.
Remove the tool keys.
Remove any adjustment keys before switching on the tool.
Check whether your tool is damaged.
Before using the tool again, carefully check that the safety features are in perfect
working order and whether any parts have been even slightly damaged.
Have your tool repaired by a specialist.
This tool is compliant with the safety regulations in force. All repairs must be carried
out by an Authorized Service Provider (ASP) or by INFACO and exclusively using
original parts. Parts which are not original may seriously risk the safety to the user.

TROUBLESHOOTING
Problem Cause Solution
Abnormal heavy vibrations
Improper mounting of the fingers. Reconnect the rake following the
procedure
Loose rake. Tighten the rake.
Olive harvester head wear. Check the clearance on the ball and socket,
and contact your dealer if necessary.
Detect faulty tool. Contact your dealer.
Carbon rake finger breakage Wear. Replace the broken prong.
Noise in the pole Deteriorated pole guide. Contact your dealer.
Tool does not start
Battery drained. Reconnect to power source.
No power to the tool Contact your dealer.
Others. Contacter votre revendeur.
Tool suddenly stops
Too much pressure on the branches. Use an up and down motion to the
tree/branch.
Battery drained. Recharge the battery.
