infaco E50048 User manual

original User guide - EN
other languages
E50048 / E50048T
Olive harvester
(fixeD and telescopic)

3
Precautions before use 4
Personal protection equipment 4
Protection of the environment 4
General product view 5
Specifications 5
Compatible batteries 6
User guide 7

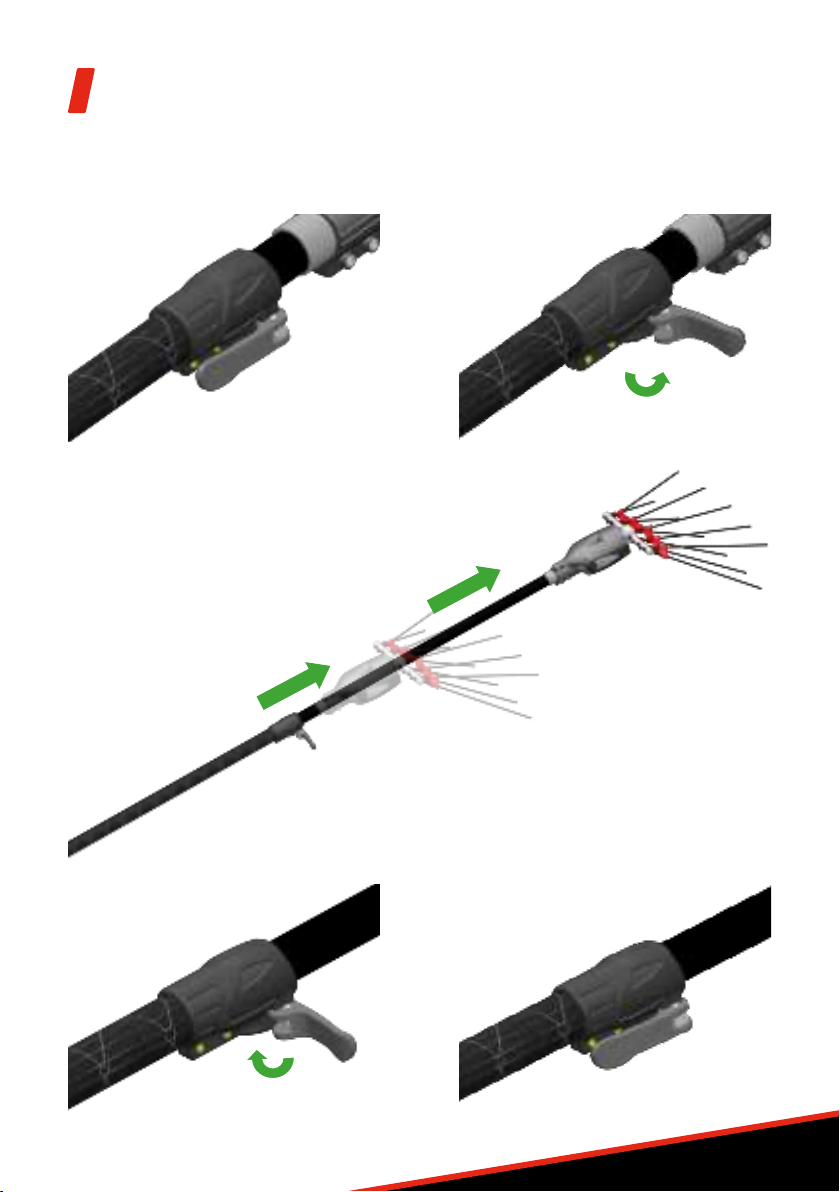

Adjustment of the telescopic pole 11
Precautions for use and safety 12
Servicing and maintenance 13
Safety instruction 15
Warranty conditions 16
Advice 17
Troubleshooting 18
Technical information 21
Contents EN

4
Precautions before use
Protection of the environment
Read the instructions for use carefully, especially the safety instructions.
The wearing of a hard hat, eye and ear protection is MANDATORY
Hand protection using cut-prevention work gloves.
Foot protection using safety footwear.
Face protection using a visor
Body protection, using cut protection overalls.
IMPORTANT! Extensions can be made of conductive materials. Do not use near
sources of electricity or electric wires
IMPORTANT! Do not approach any part of the body to the blade. Do not remove
the cut material or hold the material to be cut while the blades are moving.
WARNING. Read all the safety warnings and all the instructions. Failing to
heed warnings and follow instructions may lead to an electric shock, a fire and/or
serious injury.
Keep all warnings and instructions for future reference. The term “tools” in the war-
nings refers to your battery powered electric tool (with power cord), or your tool operating
on a battery (without power cord).
Observe all country-specific waste disposal rules and regulations.
>Power tools must not be disposed of with household refuse.
>The device, accessories and packaging must be taken to a recycling centre.
>Ask the approved INFACO dealer for up-to-date information on the eco-
compatible elimination of waste.
Personal protection equipment

5
Fixed ou telescopic pole
Vibrating head
Comb
Motorized handle
Reference E50048 E50048T
Rated power supply 48VCC
Max power 350W Max
Weight 3000g 3250g
Length 2,30m 2,30m à 3,30m
Speed 1200 oscillations / mn
These specifications are given as an indication only. Under no circumstances may they be considered as
contractually binding. They are subject to modification without prior notice in the interests of product
development.
Patented equipment
General product view
Specifications
Box contents
1complete comb
13 rods
Manual
Rod assembly tool
Comb assembly tool

6

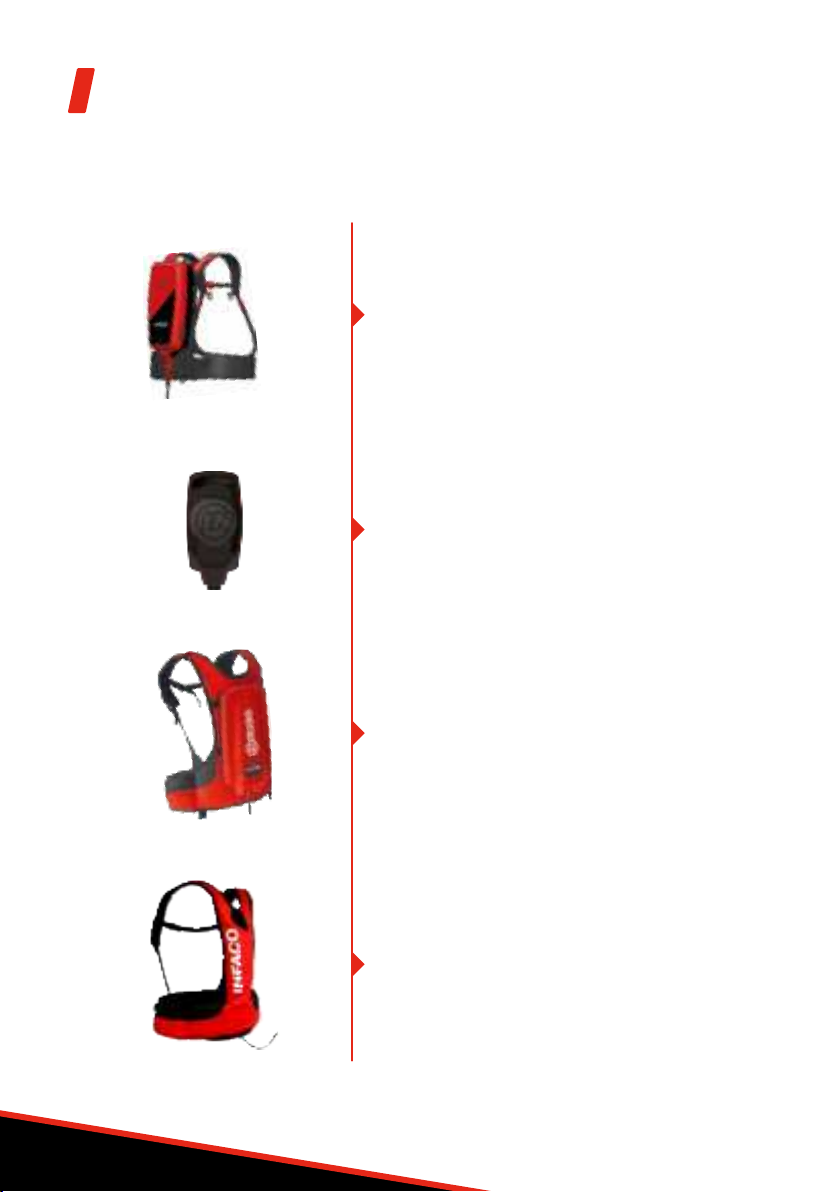

Compatible batteries
120Wh battery
831B
Cable compatibility
825S
500Wh battery
L810B
Cable compatibility
PW225S
150Wh battery
731B
Cable compatibility
PW225S (requires fuse
replacement by 539F20).
820Wh battery
L850B
Cable compatibility
L856CC

7
Ref : E710
First use
The first time you use the equipment, we strongly recommend you to ask the advice of your
dealer, who is qualified to give you all the advice you need for correct use and optimum
performance. It is imperative to carefully read the device and accessory user manuals before
handling or connecting the device.

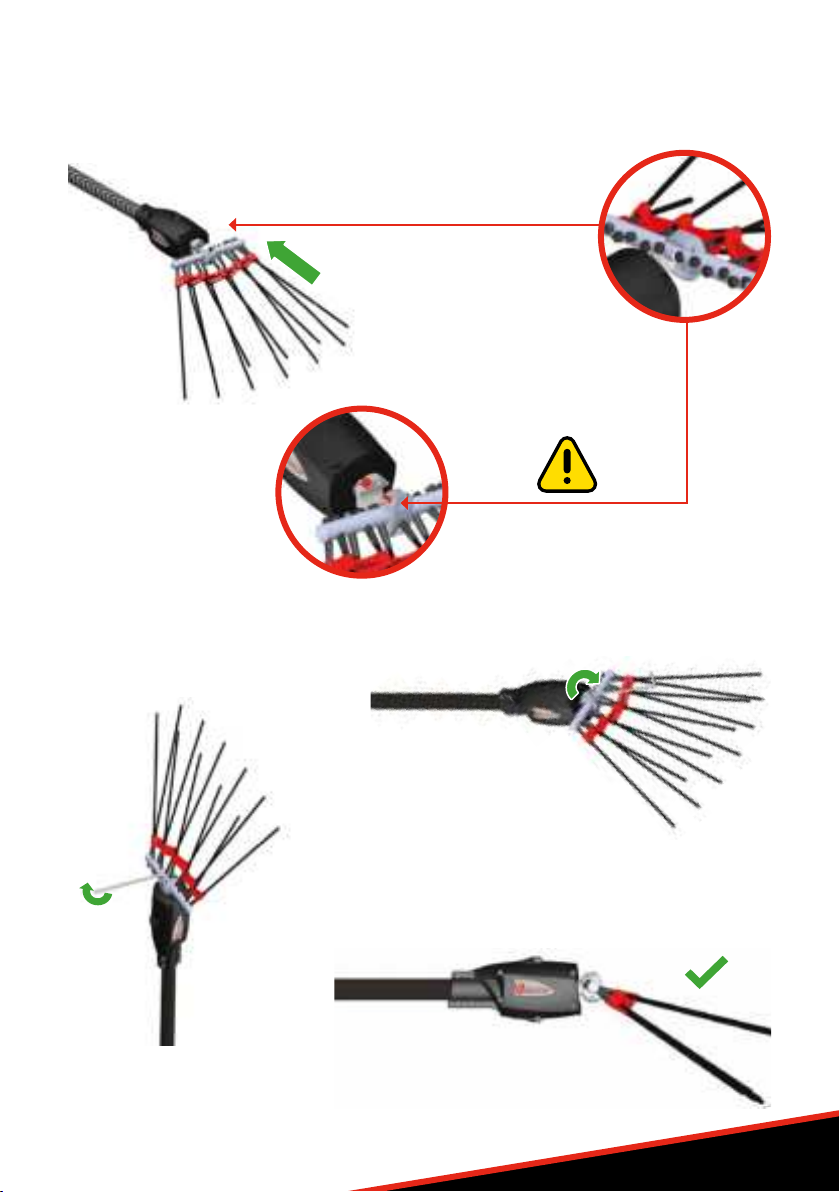

Fitting the comb
VPlease ask your dealer for advice on fitting the comb.
Incorrect assembly can cause wear on the comb or rods
User guide
The use of the INFACO (E710) screwdriver when tightening is strongly recommended
to avoid damaging the tightening tips.

8
Comb assembly:

9
Comb attachment
Failsafe

10
> Connect the battery
> Start-up
> Connect the power cable
ON/OFF
Installation and connection
Only use INFACO brand batteries with a 48 Volt power supply.
Any use with batteries other than INFACO batteries may lead to damage. The
warranty on the motorized handle will be void if batteries other than those
manufactured by INFACO are used.
In wet weather, it is imperative to carry the battery belt under waterproof clothing
to keep the battery unit protected from the rain.
Using the machine
