infaco E500012V2 User manual

Original user guide - EN
other languages
E500012V2 / E500012V2T

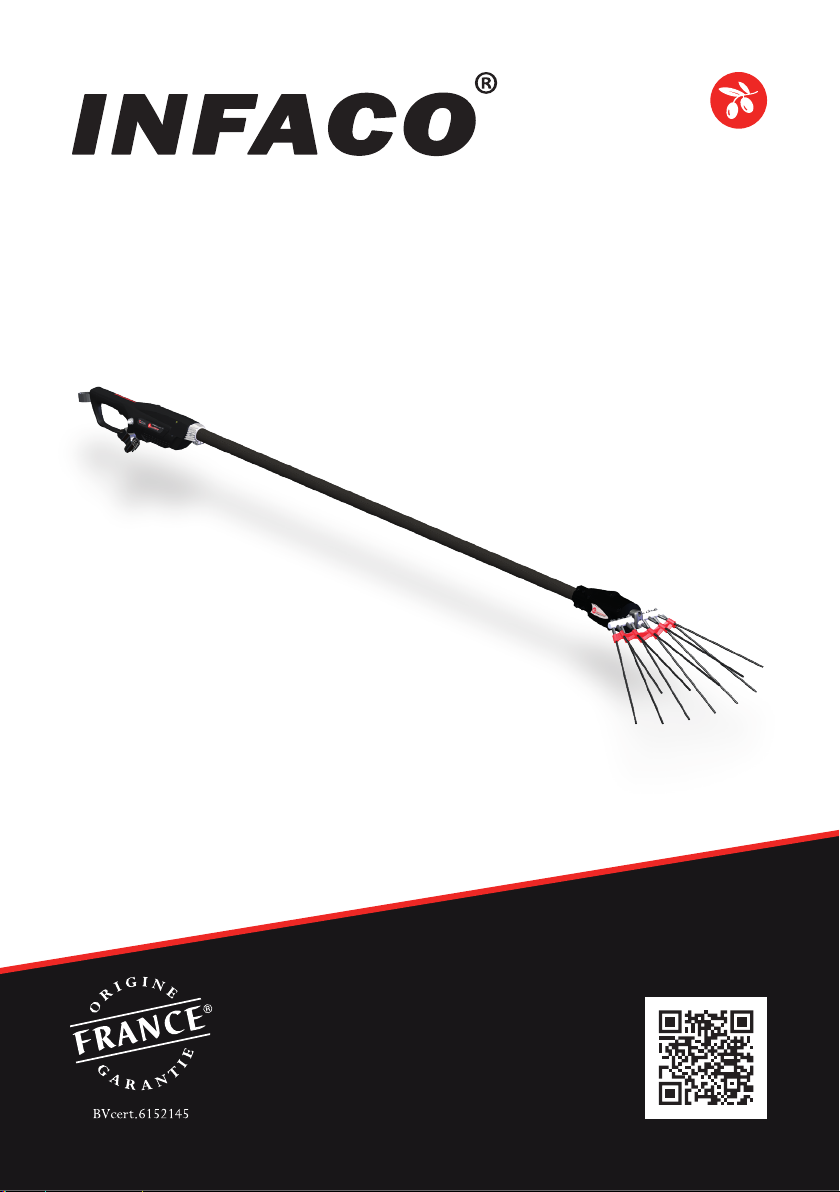

Olive harvester

3
Precautions before use 4
Personal protection equipment 4
Protection of the environment 4
General product view 5
Specifications 5
User guide 6
Adjustment of the telescopic pole 10
Precautions for use and safety 11
Servicing and maintenance 12
Safety instruction 14
Warranty conditions 15
Advice 16
Troubleshooting 17
Technical information 21
Déclaration de conformité CE 22
Contents EN

4
Precautions before use
Protection of the environment
Read the instructions for use carefully, especially the safety instructions.
The wearing of a hard hat, eye and ear protection is MANDATORY
Hand protection using cut-prevention work gloves.
Foot protection using safety footwear.
Face protection using a visor
Body protection, using cut protection overalls.
IMPORTANT! Extensions can be made of conductive materials. Do not use near
sources of electricity or electric wires
IMPORTANT! Do not approach any part of the body to the blade. Do not remove
the cut material or hold the material to be cut while the blades are moving.
WARNING. Read all the safety warnings and all the instructions. Failing to
heed warnings and follow instructions may lead to an electric shock, a fire and/or
serious injury.
Keep all warnings and instructions for future reference. The term “tools” in the war-
nings refers to your battery powered electric tool (with power cord), or your tool operating
on a battery (without power cord).
Observe all country-specific waste disposal rules and regulations.
>Power tools must not be disposed of with household refuse.
>The device, accessories and packaging must be taken to a recycling centre.
>Ask the approved INFACO dealer for up-to-date information on the eco-
compatible elimination of waste.
Personal protection equipment

5
Specifications
Fixed ou telescopic
pole
Vibrating head
Comb
Box contents
1complete comb
13 rods
Connection cable
Rod assembly tool
Comb assembly tool
Manual
Reference E500012V2 E500012V2T
Rated power supply 12VCC
Max power 200W Max
Weight 3000g 3250g
Length 2,30m 2,30m à 3,30m
Speed 1200 oscillations / mn
These specifications are given as an indication only. Under no circumstances may they be considered as
contractually binding. They are subject to modification without prior notice in the interests of product
development.
Patented equipment
Motorized handle
12V battery connection
cable (car)
General product view

6
Ref : E710
First use
The first time you use the equipment, we strongly recommend you to ask the advice of your
dealer, who is qualified to give you all the advice you need for correct use and optimum
performance. It is imperative to carefully read the device and accessory user manuals before
handling or connecting the device.
Fitting the comb
VPlease ask your dealer for advice on fitting the comb.
Incorrect assembly can cause wear on the comb or rods
User guide
The use of the INFACO (E710) screwdriver when tightening is strongly recommended
to avoid damaging the tightening tips.

7

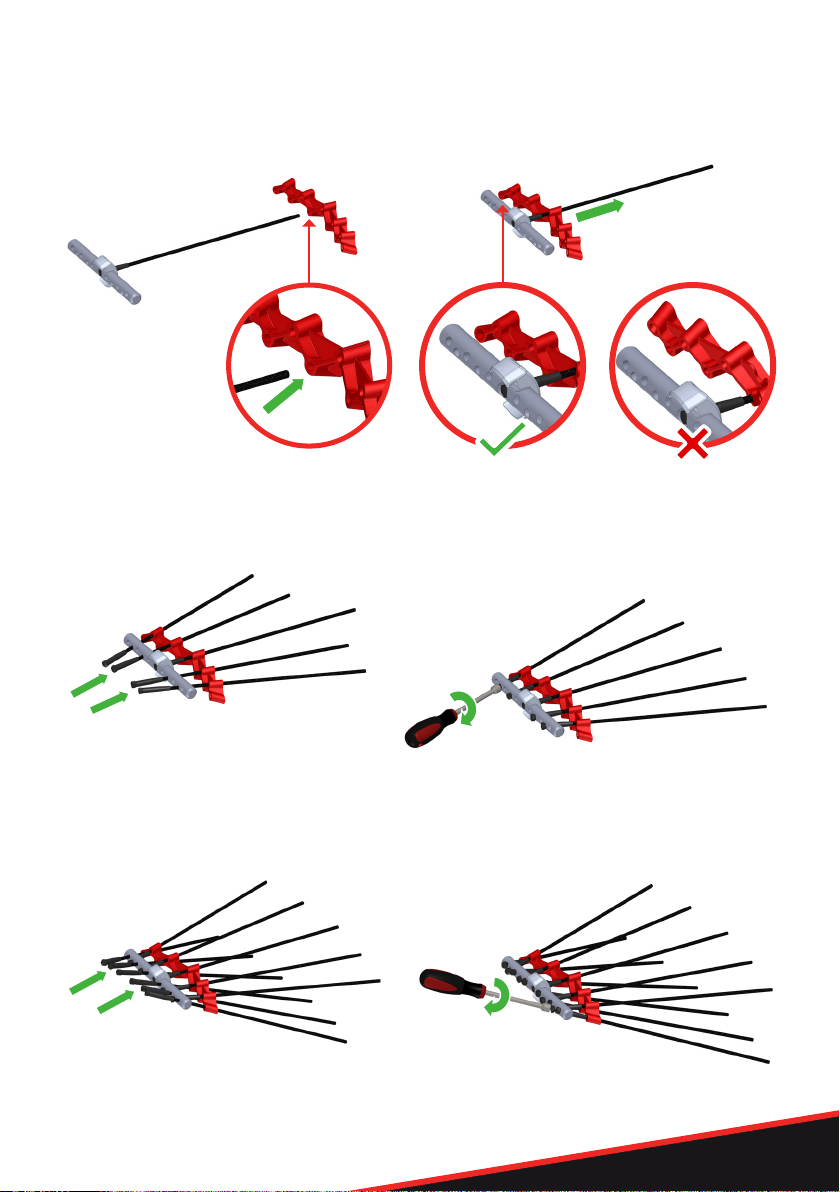

Comb assembly:

8
Comb attachment
Failsafe

9

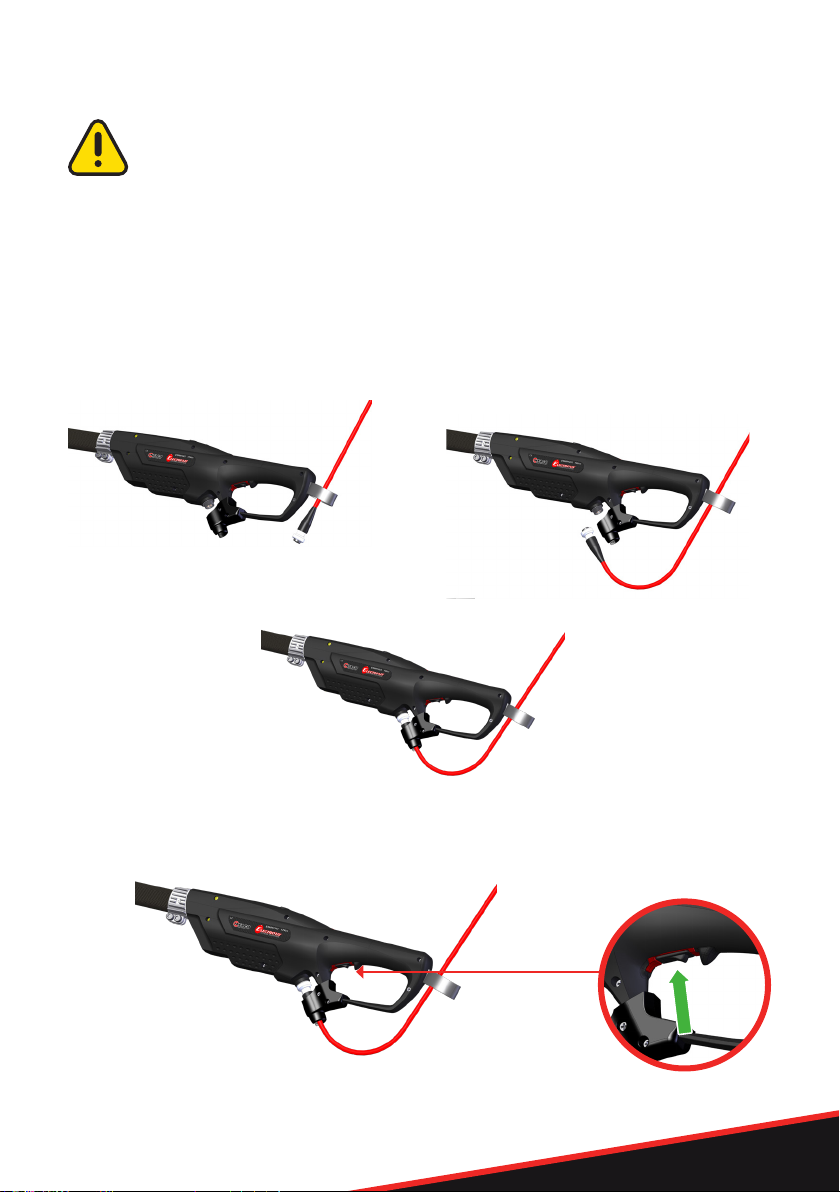

Installation and connection
It is essential to carefully read the user manuals for the devices and accessories
before connecting them.
Using the machine
ON/OFF
> Start-up
> Connect the power cable
> Connect the power cable

10

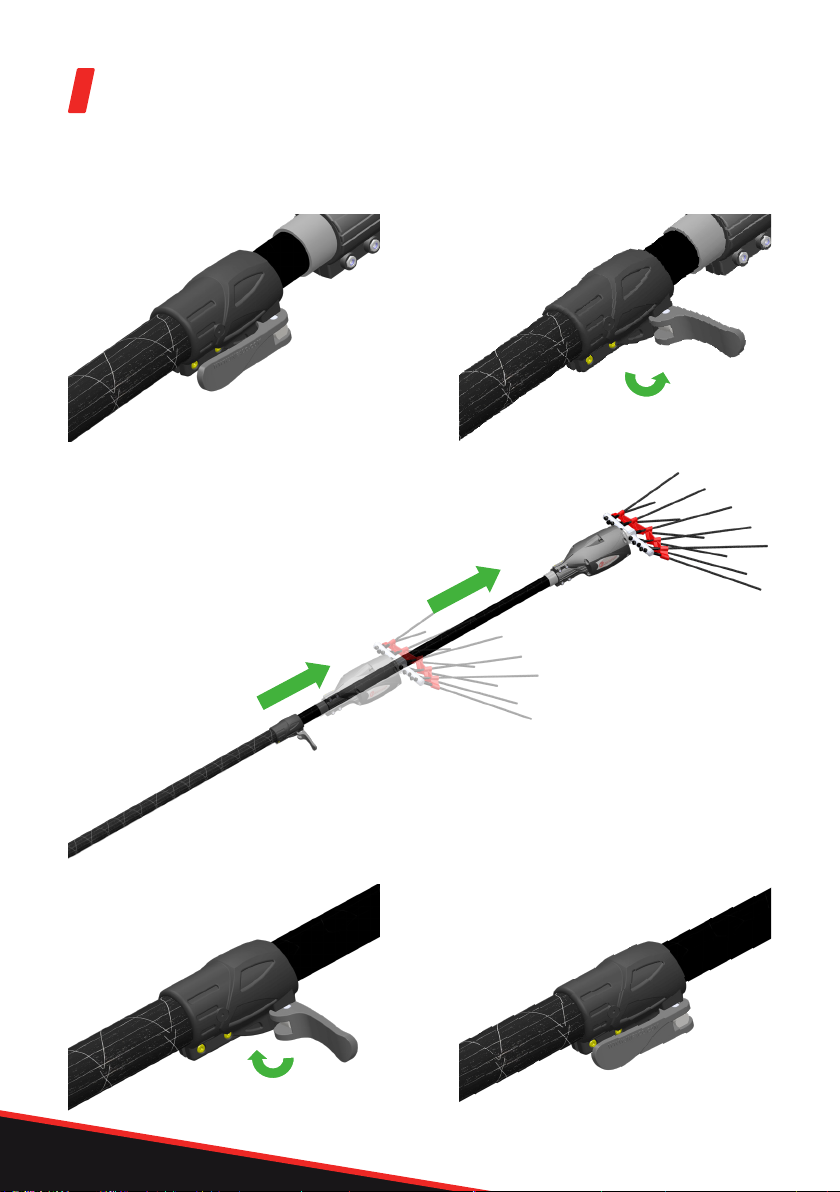

Adjustment of the telescopic pole

11
22
1 OFF1 OFF
The machine is fitted with an electronic board with thermal circuit-breaking.
As soon as the head jams because of too strong resistance, the electronic board cuts the
power to the motor and the red LED lights. To restart, place the switch in the “OFF” position,
then switch it back to “ON”. When the motor temperature is too high, the board cuts the
motor power supply. To restart, carry out the previous operation.
When the machine starts, if there is significant vibration, stop the machine immediately and
check the comb fitting and tightening. If the significant vibration persists, stop the machine
immediately and contact your nearest dealer.
We also recommend that you keep the machine protection packaging for possible returns to
the factory for after-sales operations.
For the transport, storage, servicing, maintenance of the tool, or any other
operations not related to tool function operations, it is imperative to disconnect
the device.

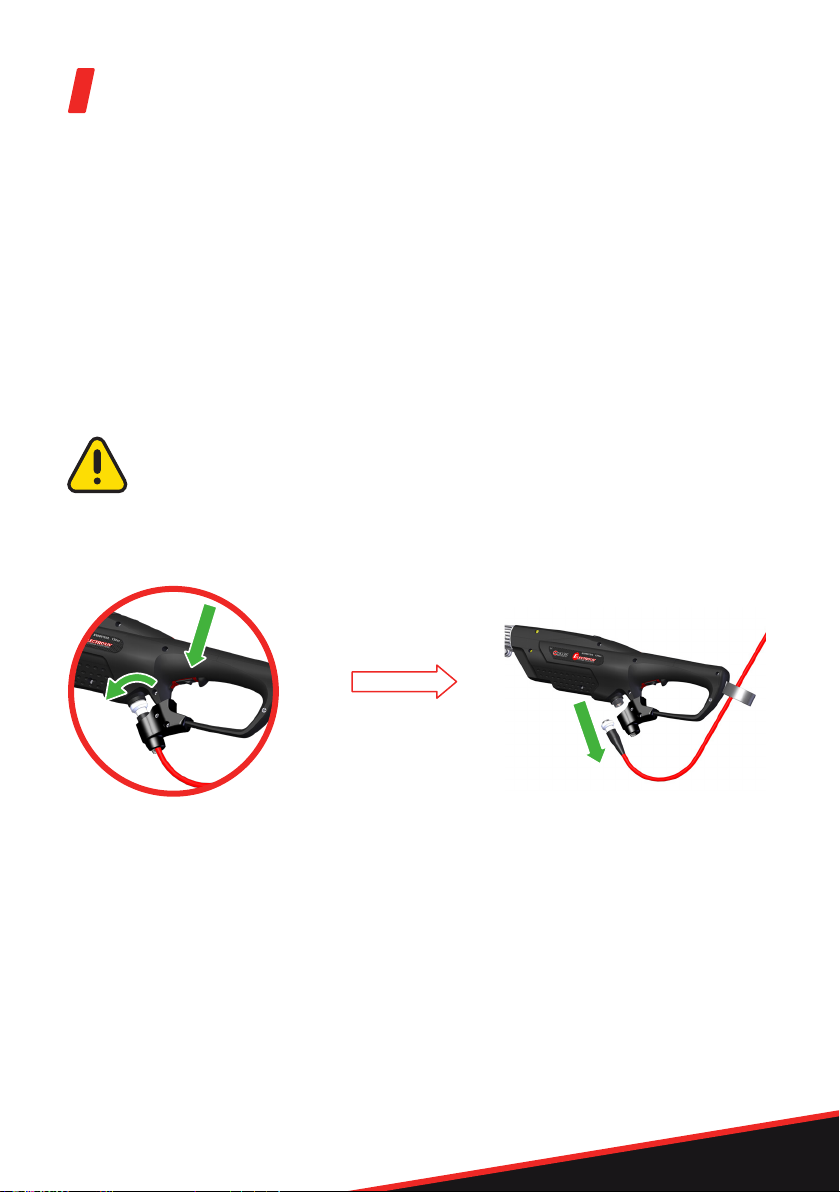

Precautions for use and safety
Disconnect
before transport
and storage

12
All servicing and maintenance operations must be carried
out with the tool disconnected from all power sources:
Adapt the servicing frequencies to your tool use.
Occasional use, space out the frequency. Intensive use,
increase the frequency.
Before starting work At the end of the day Each time the battery is charged Once per week Once per month Once per year In the event of damage In the event of a malfunction When necessary
Complete machine
Visual inspection of its condition
Cleaning
Inspection by the dealer
Comb fixing Inspection
Carbon rod
Visual inspection of its condition
Cleaning
Replacement
Vibrating head
Gap check
Lubrication
Inspection by the dealer
Power cord Visual inspection of its condition
Handle Visual inspection of its condition
Servicing and maintenance

13

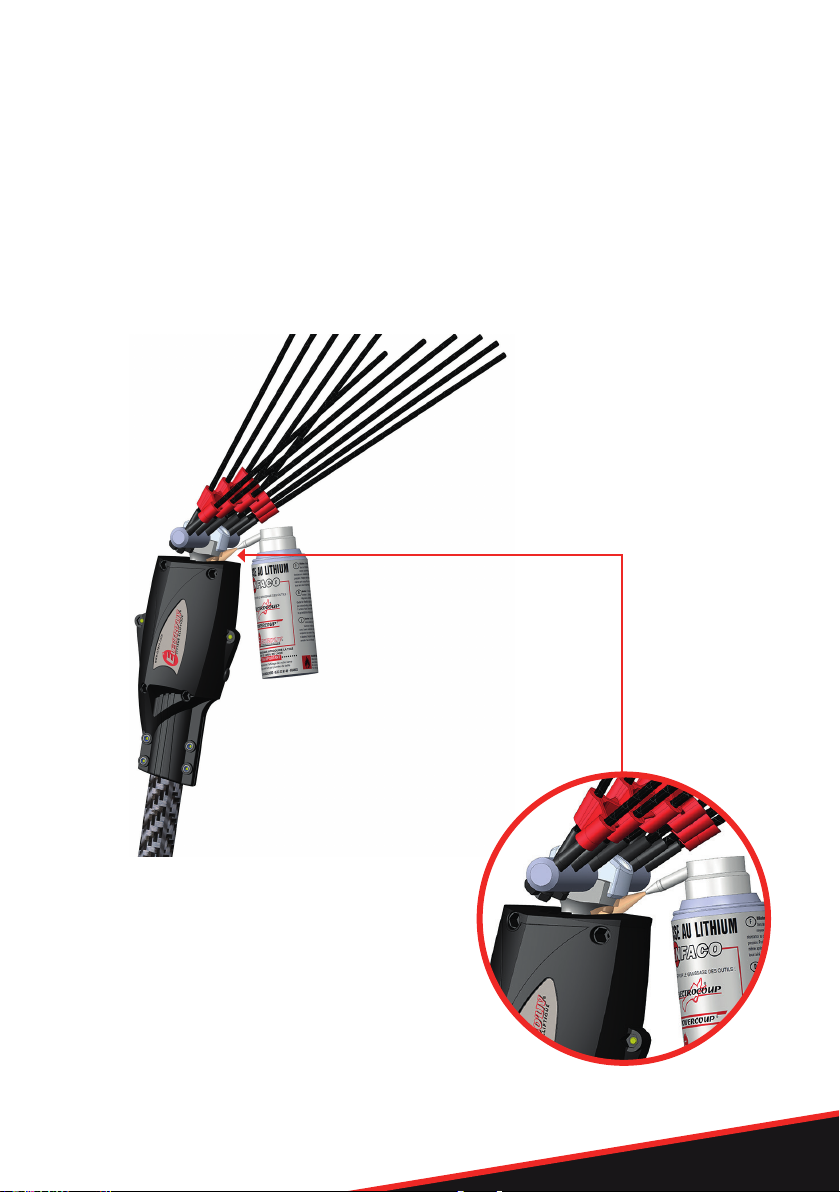

Lubrication
Generously lubricate the vibrating head at least once every day, in the morning before star-
ting to work.
Position the spray nozzle towards the ball and socket. Hold the spray can upright and then
press. Grease the vibrating head at least once per day (lubrication without removing any
parts).

14
IMPORTANT. To reduce the risk of electric discharges, injuries and fire when using electric
tools, follow the fundamental safety measures indicated below. Read and follow these
instructions before using the tool, and keep the safety instructions!
Outside operations related to the use of the tool, your tool and its accessories must
be disconnected and stored in their relevant packaging.
It is imperative to disconnect your tool from all power sources for the following
operations:
- Servicing.
- Battery charging.
- Maintenance.
- Transport.
- Storage.
When the tool is running, always remember to keep the hands away from the accessory head
being used. Do not work with the tool if you are tired or feeling unwell. Wear the specific
recommended personal protection equipment for each accessory. Keep the equipment out
of the reach of children or visitors.
Do not use the tool if there is a risk of fire or explosions, for example in presence of
flammable liquids or gases.
Never carry the charger by the cord, and do not pull on the cord to disconnect it from the
socket.
Keep the cord away from heat, oil and sharp edges.
Never use the tool at night or in bad light without setting up additional lighting. When using
the tool, keep both feet on the ground and keep as much balance as possible.
Caution: extensions can be made of conductive materials. Do not use near sources
of electricity or electric wires.
Safety instruction

15
Your tool has a two year warranty for manufacturing defects or faults.
The warranty applies to the normal use of the tool and does not cover:
- damage due to poor maintenance or lack of maintenance,
- damage due to incorrect use,
- wear parts,
- tools that have been taken apart by unauthorised repairers,
- external factors (fire, flood, lightning, etc.),
- impacts and their consequences,
- ltools used with a battery or charger other than those of the INFACO brand.
The warranty is only applicable when the warranty has been registered with INFACO
(warranty card or online declaration on www.infaco.com).
If the warranty declaration was not made when the tool was purchased, the factory
departure date will be used as the warranty start date.
The warranty covers factory labour but not necessarily dealer labour. The repair
or replacement during the warranty period does not extend or renew the initial
warranty.
All failings regarding the storage and safety instructions will void the manufacturer’s warranty.
The warranty cannot entitle to compensation for:
The possible immobilisation of the tool during repairs.
All work carried out by a person other than approved INFACO agents will cancel the tool
warranty.
The repair or replacement during the warranty period does not extend or renew the initial
warranty.
We strongly recommend INFACO tool users to contact the dealer that sold them the tool in
the event of a failure.
To avoid all disputes, please note the following procedure:
- Tool still under warranty, send it to us carriage paid and we will pay the
return.
- Tool no longer under warranty, send it to us carriage paid and the return
will be at your expense by cash on delivery. If the cost of the repair were to
exceed € 80 excluding VAT, you will be supplied with a quote.
Warranty conditions

16
Keep your work area tidy. Clutter in work areas increases risks of accidents.
Take into account the work zone. Do not expose electric tools to rain. Do not use electric
tools in a damp or wet environment. Make sure the work area is properly lit. Do not use
electric tools near inflammable liquids or gases.
Protect yourself from electric shocks. Avoid bodily contact with surfaces connected to the
earth, such as battery chargers, electric multi-plugs, etc.
Keep away from children! Do not allow third parties to touch the tool or cable. Keep them
away from your work area.
Store your tools in a safe location. When not in use, tools must be stored in a dry, locked
location in their original packaging and out of the reach of children.
Wear suitable work clothing. Do not wear loose-fitting clothing or jewellery. It could be
caught up in moving parts. When working in the open air, wearing rubber gloves and non-
slip sole footwear is recommended. If your hair is long, wear a hair net.
Wear protective eye-wear. Also wear a mask if the work being carried out generates dust.
Protect the power cord. Do not carry the tool using its cord and do not pull on the cord to
disconnect it from the socket. Protect the cord from heat, oil and sharp edges.
Maintain your tools carefully. Regularly check the plug and power cord condition and,
if they are damaged, have them replaced by a recognised specialist. Keep your tool dry and
free of oil.
Remove the tool keys. Before starting the machine, make sure the keys and adjustment
tools have been removed.
Check your tool for damage. Before reusing the tool, carefully check that the safety
systems or slightly damaged parts are in perfect working order.
Have your tool repaired by a specialist. This tool is compliant with applicable safety
rules. All repairs must be carried out by a specialist and only using original parts, failure to do
so could result in serious risks to user safety.
Advice

17
Disruptions Causes Solutions
Significant abnormal
vibrations
Incorrect comb assembly
Refit the comb by following the
procedure and contact the dealer if
necessary.
Incorrect comb tightening Re-tighten the comb by following the
procedure.
Incorrect rod tightening Re-tighten the rods by following the
procedure.
Rod wear
Check that one of the rod is not loose
or damaged.
Contact the dealer if necessary.
Defective tool detection Contact your dealer.
Broken carbon rod Wear Replace the broken and/or worn rod.
Noise in the extension Extension guide damaged Contact your dealer.
The machine will not
start
Battery discharged Recharge the battery.
No power supply Re-connect the machine.
Other Contact your dealer.
Unexpected machine
stoppages
Too strong a pulse
Mechanical jam
Change the work method or ask your
dealer for advice. Restart by pressing
the trigger once.
Battery discharged Recharge the battery.
Troubleshooting

19
Dealer part
Part to be kept by the dealer.
Serial number > ............................................. Ref > .......................................................
Name > ............................................................................................................................
First name > .....................................................................................................................
Company name > ............................................................................................................
Full address > ...................................................................................................................
.........................................................................................................................................
City > ...............................................................................................................................
Postcode > .....................................................
Phone number > ............................................
Purchase date > ............ / ............ / ..............
Remarks > ......................................................
To be returned to infaco
To validate the warranty, REGISTER IMMEDIATELY ONLINE ON :
www.infaco.com, your warranty declaration or send this form filled out
IN BLOCK CAPITALS AS SOON AS THE TOOL IS PURCHASED.
Name > .......................................................... Prénom > ................................................
Company name> .............................................................................................................
Full address > ...................................................................................................................
.........................................................................................................................................
City > ............................................................. Postcode > ..............................................
Phone number > ............................................
Email > ..........................................................
Purchase date > ............ / ............ / ..............
Serial number
>
- Ref > ..................................
Remarks > ......................................................
customer signature
Dealer’s stamp
Orchards Oil production
Vine growing Parks & gardens

Serial number
To be kept by the dealer
for the customer
file
customer file
dealer
