infaco V5000P3E User manual

V5000p3E
olive
harvester
user guide - EN

3
contents EN
PW3, a multi-function handle 4
Compatible tools 5
Precautions before use 6
Personal protection equipment 6
Protection of the environment 6
General product view 7
Specifications 7
Compatible batteries 8
User guide 9
Speed adjustment 14
Tool gap adjustment 15
Precautions for use and safety 16
Servicing and maintenance 17
Safety instruction 19
Warranty conditions 20
Advice 21
Troubleshooting 22
Coupons to be returned on purchase of the tool 23
Technical information 25
CE declaration of conformity 26

4
PW3, a multi-function handle
PW3
+ TR9
PW3
+ SC160P3
PW3
+ THD600P3
PW3
+ THD700P3
PW3
+ PWMP3
+ PWP36RB
PW3
+V5000P3ET
PW3
+V5000P3AT
PW3
+V5000P3AF
PW3
+V5000P3EF
PW3
+ PS1P3 (sarclage)
PW3
+EP1700P3
PW3
+EC1700P3
PW3
+ PB100P3 (hoeing)
+PB150P3 (hoeing)
+PB220P3 (hoeing)
+PN370P3 (sweeping)
PW3
+ PW930P3
+ TR9
PW3
+ PW930P3
+SC160P3
PW3
+ PW930P3
+ THD700P3
PW3
+ PW930P3
+ THD600P3
Pole tools
Hand tools

5
reference description
THD600P3 Double hedge-trimmer, blade length 600mm.
THD700P3 Double hedge-trimmer, blade length 700mm.
TR9 Arborists’ chainsaw, maximum cutting capacity
Ø150mm.
SC160P3 Saw head, max cutting capacity Ø100mm.
PW930p3 Carbon extension, length 930mm.
Pw1830p3 Carbon extension, length 1830mm.
PWT1650p3 Carbon extension, length 1650mm.
Ps1p3 Fixed tying pole 1480mm.
PB100P3 Fixed hoe pole 1430mm Cutting head Ø100mm.
PB150P3 Fixed hoe pole 1430mm Cutting head Ø150mm.
PB220P3 Fixed hoe pole 1430mm Cutting head Ø200mm.
PN370P3 Fixed sweeping pole 1430mm Brush Ø370mm.
PWMP3 + PWP36RB De-cankering tool (mill diameter 36mm)
PWMP3 + PWP25RB De-cankering tool (file diameter 25 mm)
EP1700P3 Desuckering tool (telescopic pole 1200mm to 1600mm).
EC1700P3 Blossom remover (telescopic pole 1500mm to 1900mm).
V5000p3ef Olive harvester (fixed pole 2500mm).
v5000p3et Olive harvester (telescopic pole 2200mm to 2800mm).
v5000p3AF Alternative olive harvester (fixed pole 2250mm)
v5000p3AT Alternative olive harvesters (telescopic pole 2200mm to 3000mm)
Compatible tools

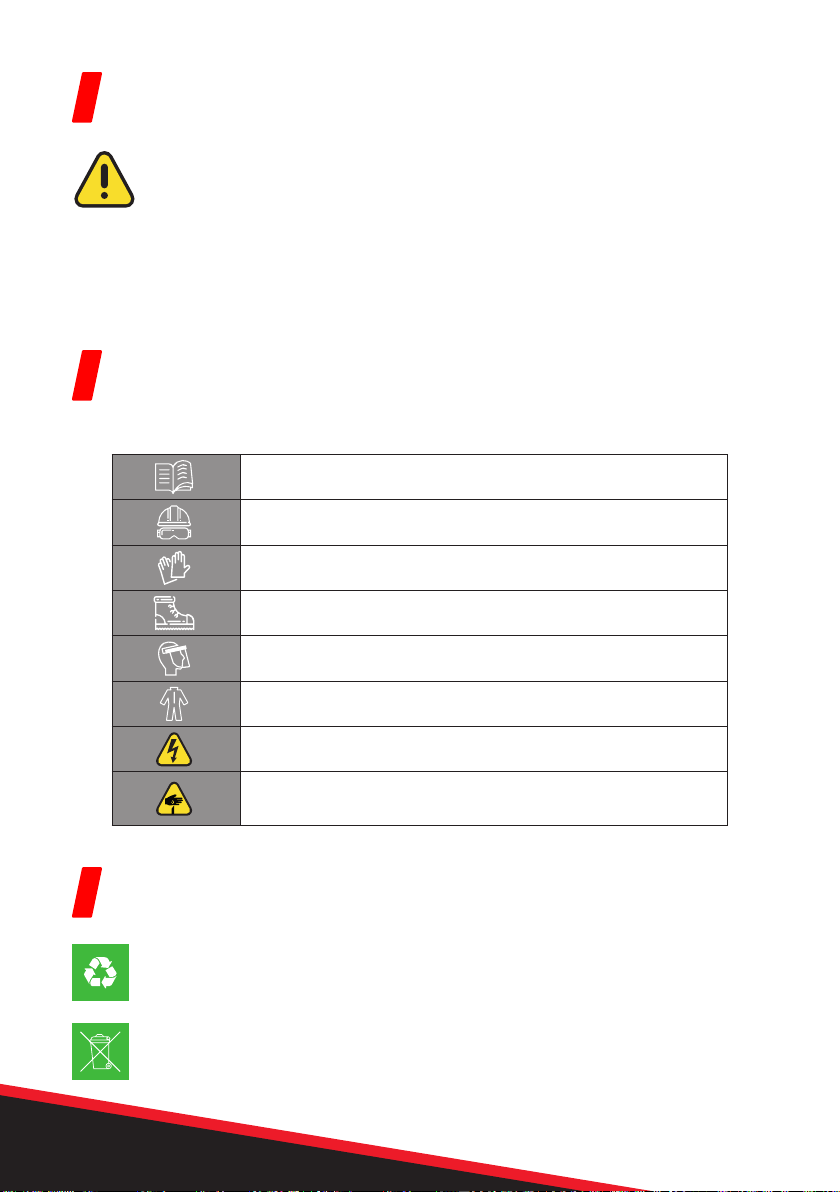

6
Read the instructions for use carefully, especially the safety instructions.
The wearing of a hard hat, eye and ear protection is MANDATORY
Hand protection using cut-prevention work gloves.
Foot protection using safety footwear.
Face protection using a visor
Body protection, using cut protection overalls.
IMPORTANT! Extensions can be made of conductive materials. Do not use
near sources of electricity or electric wires
IMPORTANT! Do not approach any part of the body to the blade. Do not
remove the cut material or hold the material to be cut while the blades are
moving.
WARNING. Read all the safety warnings and all the instructions. Failing
to heed warnings and follow instructions may lead to an electric shock, a fire
and/or serious injury.
Keep all warnings and instructions for future reference. The term “tools” in the
warnings refers to your battery powered electric tool (with power cord), or your tool
operating on a battery (without power cord).
Observe all country-specific waste disposal rules and regulations.
>Power tools must not be disposed of with household refuse.
>The device, accessories and packaging must be taken to a recycling centre.
>Ask the approved INFACO dealer for up-to-date information on the eco-
compatible elimination of waste.
Precautions before use
Protection of the environment
Personal protection equipment

7
Reference v5000p3EF v5000p3ET
Rated power supply 48VDC
Max power 720W
Weight 1740g 2240g
Length 2.5m 2.2m to 2.8m
Speed 850 to 1250 rpm
These specifications are given as an indication only. Under no circumstances may they be considered as
contractually binding.They are subject to modification without prior notice in the interests of product
development.

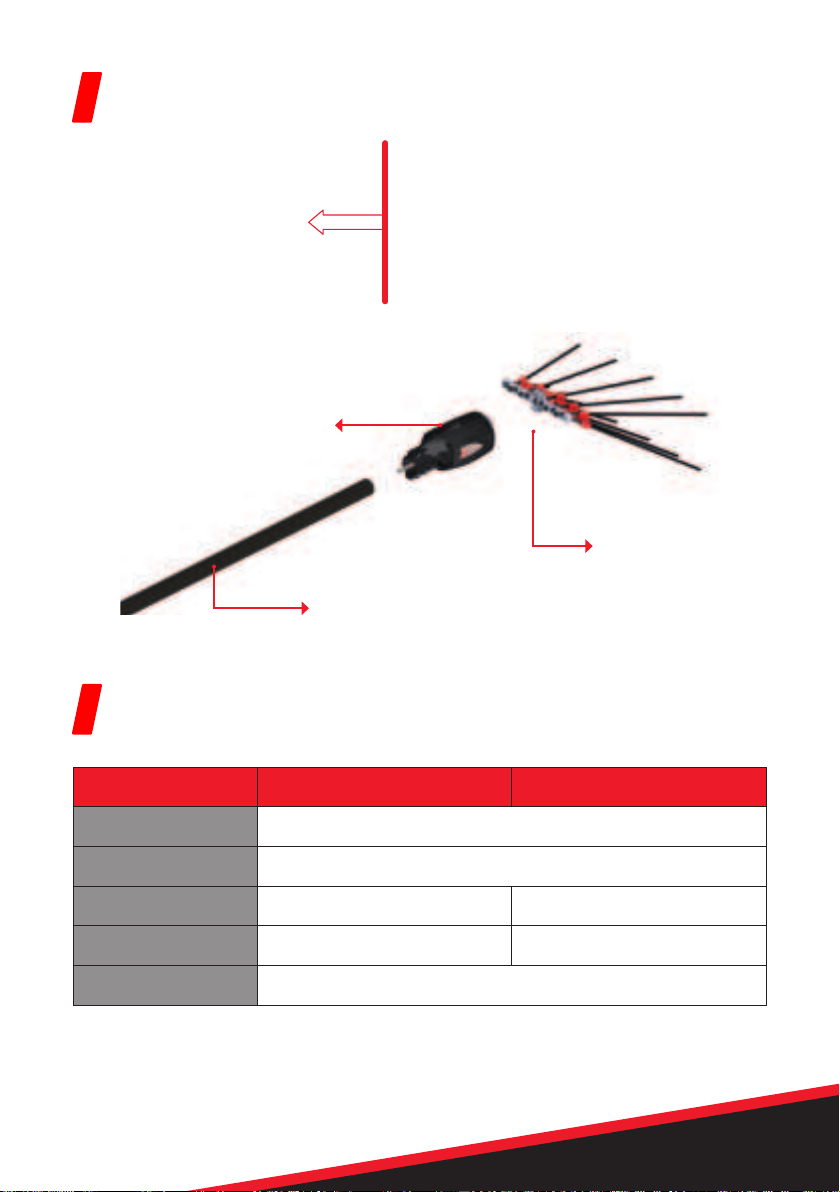

Patented equipment
Pole
Vibrating head
Comb
Box contents
1complete comb
3rods
Manual
Rod assembly tool
Comb assembly tool
General product view
Specifications

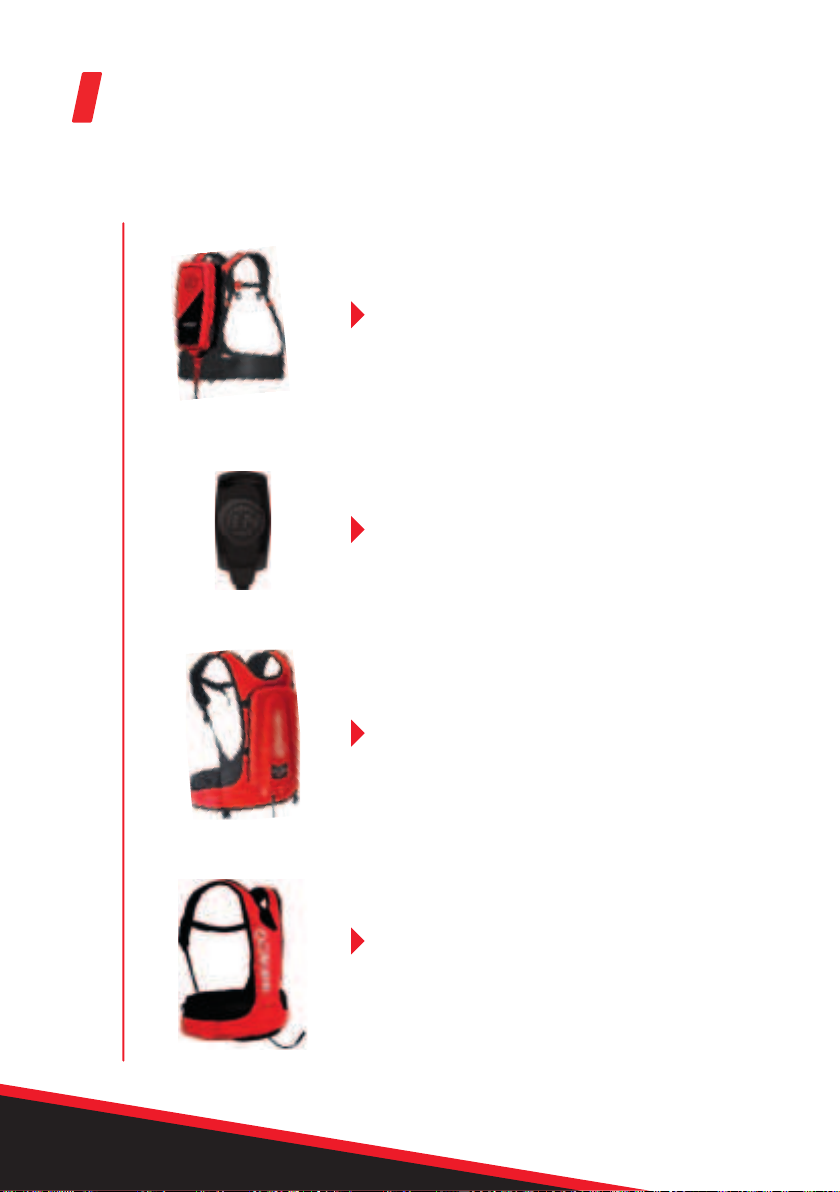

8
120Wh battery
831B
Cable compatibility
825S
500Wh battery
L810B
Cable compatibility
PW225S
150Wh battery
731B
Cable compatibility
PW225S (requires fuse
replacement by 539F20).
820Wh battery
L850B
Cable compatibility
L856CC
Compatible batteries

9
First use
The first time you use the equipment, we strongly recommend you to ask the advice of your
dealer, who is qualified to give you all the advice you need for correct use and optimum
performance. It is imperative to carefully read the device and accessory user manuals before
handling or connecting the device.
Fitting the comb
Please ask your dealer for advice on fitting the comb.
Incorrect assembly can cause wear on the comb or rods.
Ref: E710
The use of the INFACO (E710) screwdriver when tightening is strongly
recommended to avoid damaging the tightening tips.
User guide

10
Comb assembly:
Failsafe

11
Only use INFACO brand batteries with a 48 Volt power supply.
Any use with batteries other than INFACO batteries may lead to damage. The
warranty on the motorized handle will be void if batteries other than those
manufactured by INFACO are used.
In wet weather, it is imperative to carry the battery belt under waterproof clothing
to keep the battery unit protected from the rain.
Installation and connection
Using the machine
> Fit the harvester onto the handle
FAILSAFE

12
> Tighten the wing nut
> Connect the power cable

13

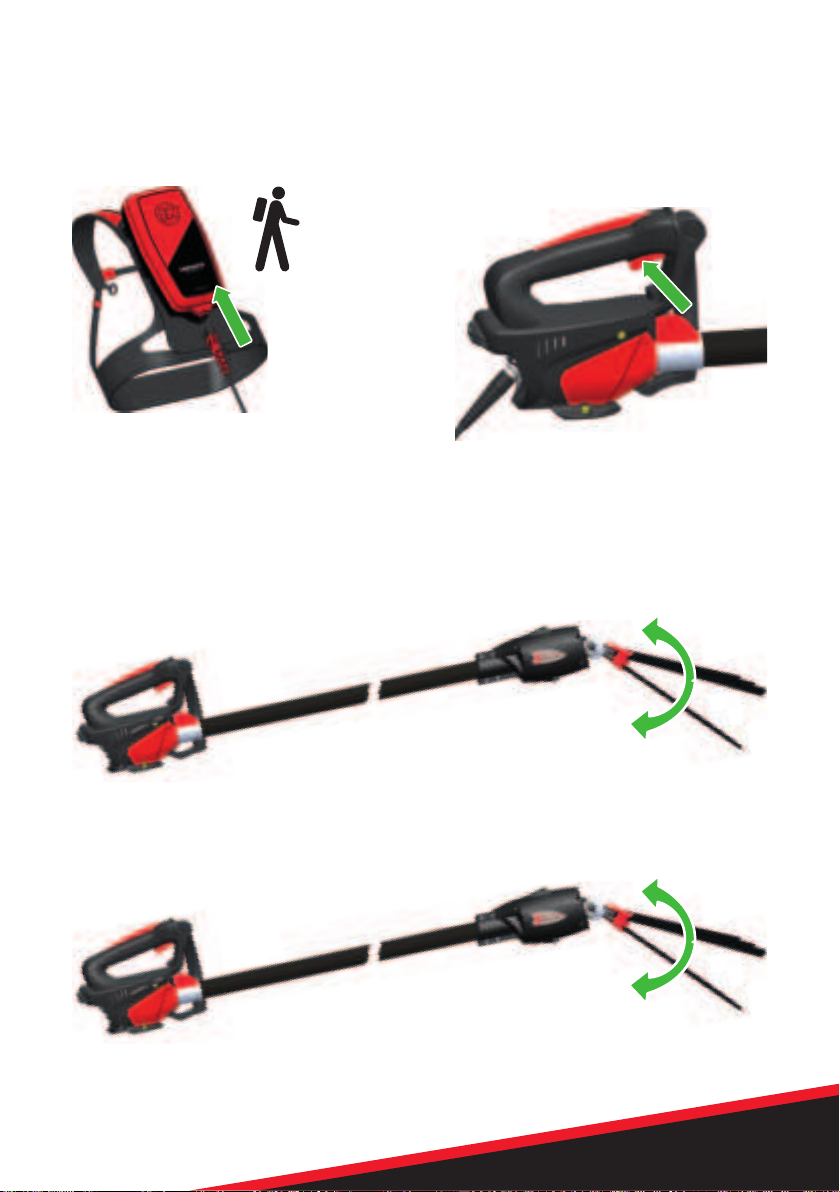

> First power up & Exit from standby mode
2 short presses on the trigger ON
> Connect the battery
> 2 start-up modes
1 short press on the trigger = ON
1 short press on the trigger = OFF
1 long press on the trigger = ON
Release the trigger = OFF
22

14
10 speed settings configurable from 1700 to 2075 rpm
> When powering on
Short presses to access the ten settings (1 press = 1 setting )
Press until the machine stops to validate.
> Required speed is selected using successive short trigger presses.
There are 10 available speed settings.
> Validate the required speed and exit adjustment mode by pressing the trigger until the
machine stops.
The machine is ready to run, the speed will be memorised until the next adjustment. The
machine is fitted with an electronic protection. Whenever the comb encounters too much
resistance, the electronics cut the motor.

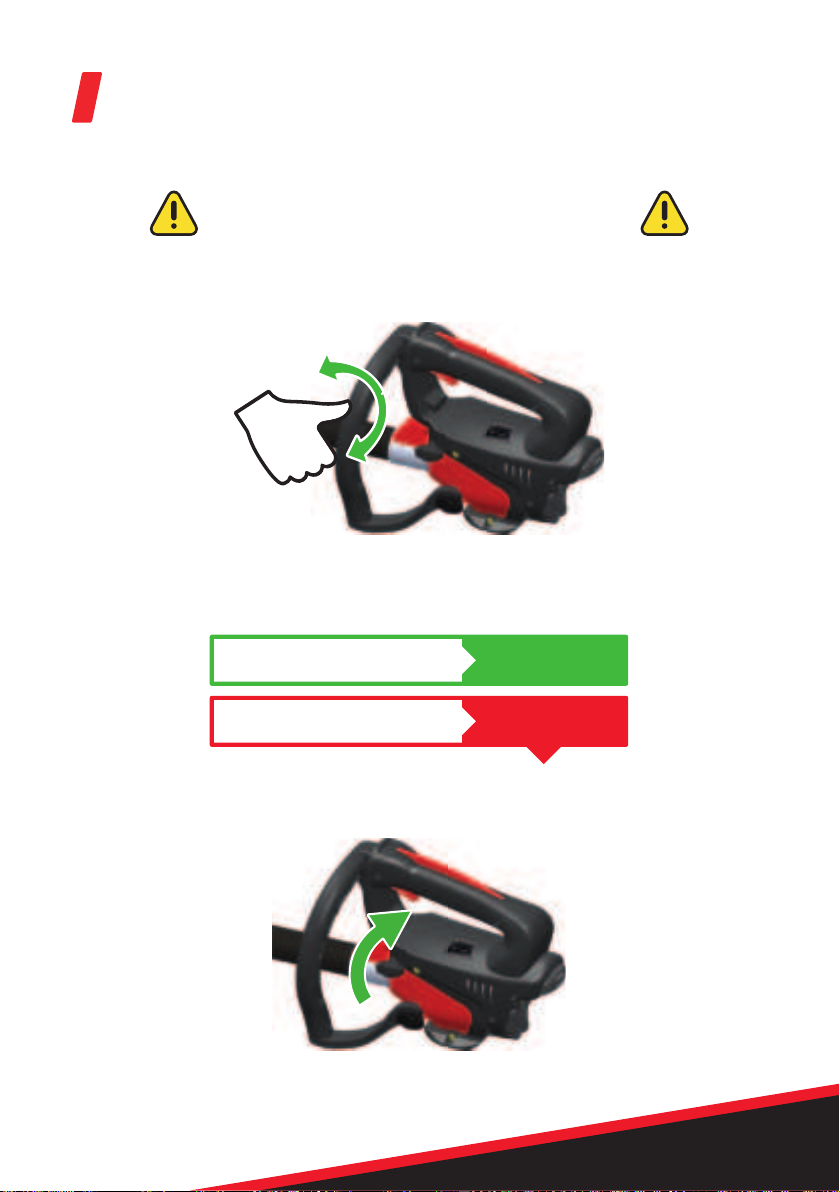

> To switch to speed adjustment mode, press
the trigger until the machine starts
Speed adjustment

15
No movements
Presence of movements
GAP OK
ADJUST THE
GAP
It is imperative to disconnect the machine.
Tool gap adjustment

16
The tool is fitted with an electronic protection system. As soon as the tool jams due to
excessive resistance, the electronic system stops the motor. Restart the tool: see the “User
manual” section.
We also advise keeping the tool’s protective packaging for possible returns to factory
customer service.
For the transport, storage, servicing, maintenance of the tool, or any other
operations not related to tool function operations, it is imperative to disconnect
the device.

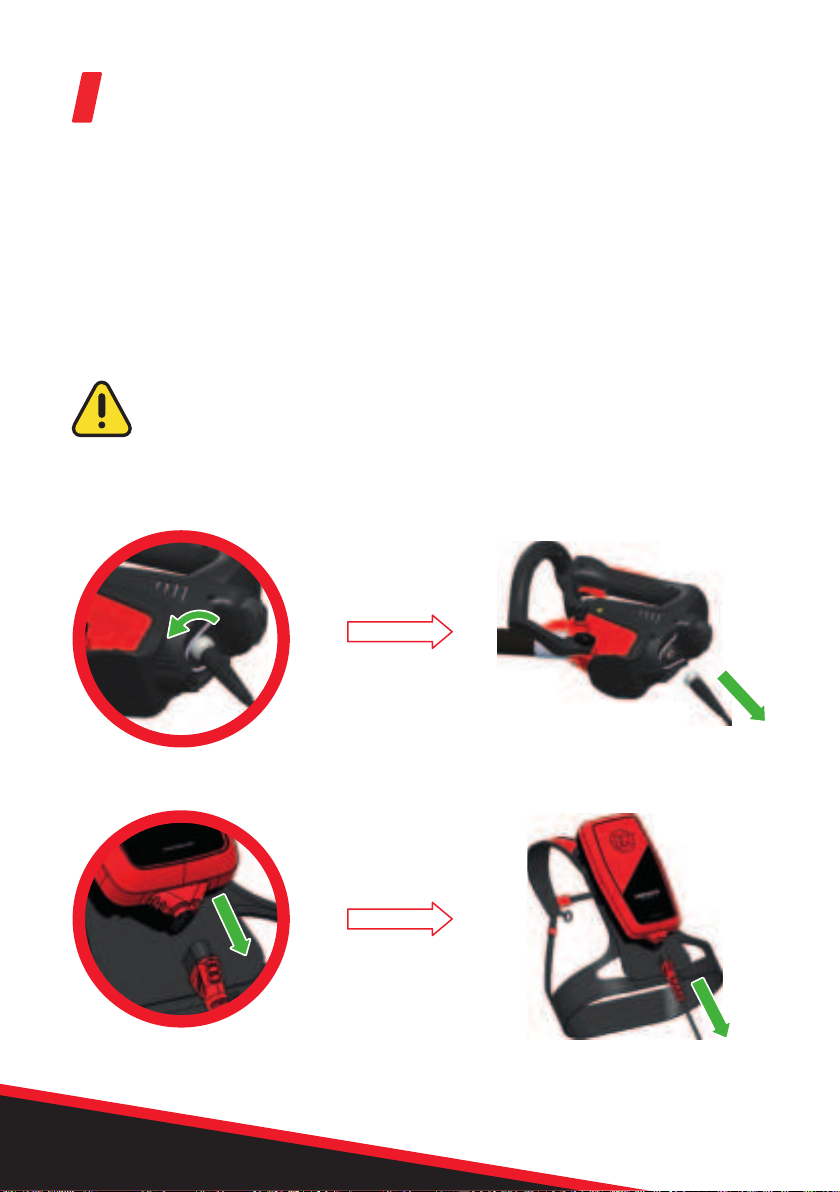

Disconnect
before transporting
and storing
Disconnect
before transporting
and storing
Precautions for use and safety

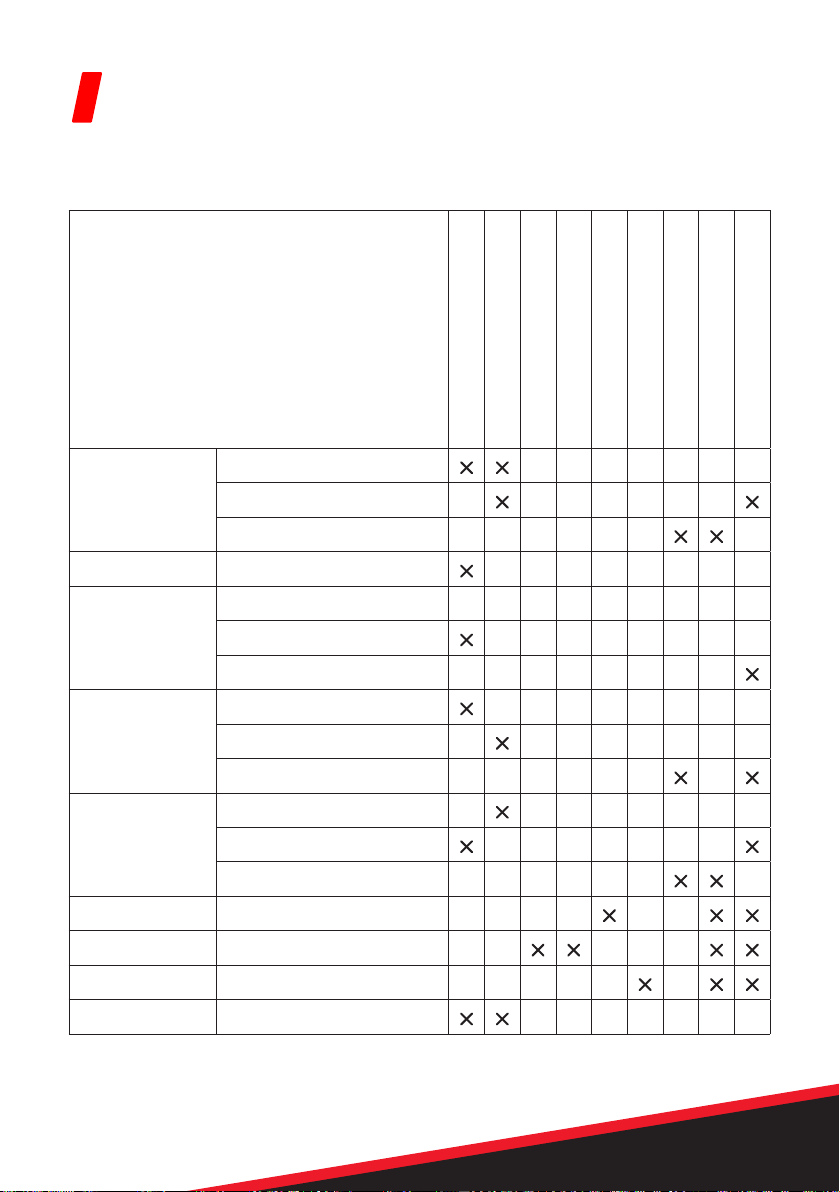

17
All servicing and maintenance operations must be carried
out with the tool disconnected from all power sources:
Adapt the servicing frequencies to your tool use.
Occasional use, space out the frequency. Intensive use,
increase the frequency.
Before starting work At the end of the day Each time the battery is charged Once per week Once per month Once per year In the event of damage In the event of a malfunction When necessary
Complete machine
Visual inspection of its condition
Cleaning
Inspection by the dealer
Comb fixing Inspection
Accessory assembly
Cleaning and lubrication
Gap check
Adjust the gap
Carbon rod
Visual inspection of its condition
Cleaning
Replacement
Vibrating head
Gap check
Lubrication
Inspection by the dealer
Power cord Visual inspection of its condition
Battery Visual inspection of its condition
Vest Visual inspection of its condition
Handle Visual inspection of its condition
Servicing and maintenance

18
Lubrication
Generously lubricate the vibrating head at least once every day, in the morning before start-
ing to work. Use NLGI grade class 2 type grease.
Position the spray nozzle towards the ball and socket. Hold the spray can upright and then
press. Grease the vibrating head at least once per day (lubrication without removing any
parts).
Handle and tip lubrication
Class 2 grease reference
Lubricate at least
once per week

19
IMPORTANT. To reduce the risk of electric discharges, injuries and fire when using electric
tools, follow the fundamental safety measures indicated below. Read and follow these
instructions before using the tool, and keep the safety instructions!
Outside operations related to the use of the tool, your tool and its accessories must be
disconnected and stored in their respective packaging.
It is imperative to disconnect your tool from all power sources for the following
operations:
- Servicing.
- Battery charging.
- Maintenance.
- Transport.
- Storage.
When the tool is running, always remember to keep the hands away from the accessory
head being used. Do not work with the tool if you are tired or feeling unwell. Wear
the specific recommended personal protection equipment for each accessory. Keep the
equipment out of the reach of children or visitors.
Do not use the tool if there is a risk of fire or explosions, for example in presence
of flammable liquids or gases.
Never carry the charger by the cord, and do not pull on the cord to disconnect it from the
socket.
Keep the cord away from heat, oil and sharp edges.
Never use the tool at night or in bad light without setting up additional lighting. When
using the tool, keep both feet on the ground and keep as much balance as possible.
Caution: extensions can be made of conductive materials. Do not use near sources
of electricity or electric wires.
Safety instruction

20
Your tool has a two year warranty for manufacturing defects or faults.
The warranty applies to the normal use of the tool and does not cover:
- damage due to poor maintenance or lack of maintenance,
- damage due to incorrect use,
- wear parts,
- tools that have been taken apart by unauthorised repairers,
- external factors (fire, flood, lightning, etc.),
- impacts and their consequences,
- tools used with a battery or charger other than those of the INFACO brand.
The warranty is only applicable when the warranty has been registered with
INFACO (warranty card or online declaration on www.infaco.com).
If the warranty declaration was not made when the tool was purchased, the factory
departure date will be used as the warranty start date.
The warranty covers factory labour but not necessarily dealer labour. The repair
or replacement during the warranty period does not extend or renew the initial
warranty.
All failings regarding the storage and safety instructions will void the manufacturer’s
warranty.
Under no circumstances can the warranty entitle to compensation for any immobilisation of
the equipment during the time required for its repair.
All work carried out by a person other than approved INFACO agents will cancel the tool
warranty.
The repair or replacement during the warranty period does not extend or renew the initial
warranty.
We strongly recommend INFACO tool users to contact the dealer that sold them the tool in
the event of a failure.
To avoid all disputes, please note the following procedure:
- Tool still under warranty, send it to us carriage paid and we will pay the
return.
- Tool no longer under warranty, send it to us carriage paid and the return
will be at your expense by cash on delivery. If the cost of the repair were to exceed
€ 80 excluding VAT, you will be supplied with a quote.
Warranty conditions
