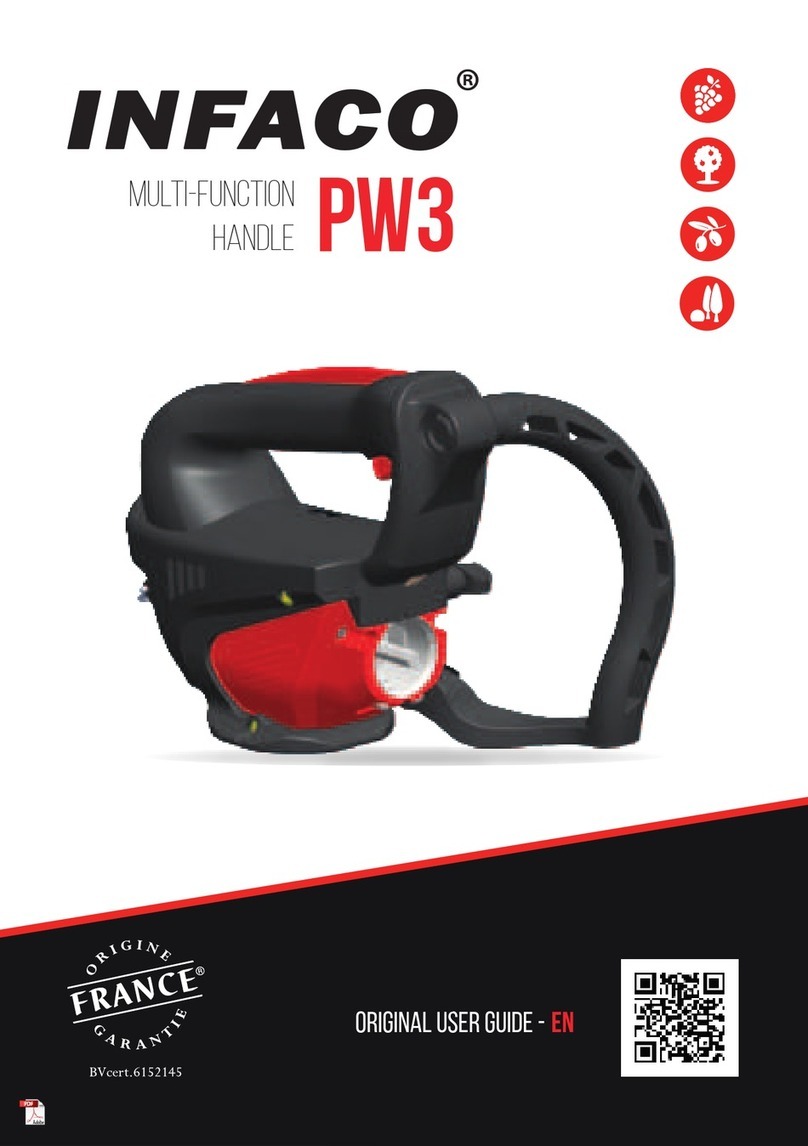

infaco PW3 User manual

pw3
Original user guide - EN
multi-function
handle

32
contents EN
PW3, a multi-function handle 3
Compatible tools 4
Precautions before use 5
Personal protection equipment 5
Protection of the environment 5
General product view 6
Specifications 6
Compatible batteries 7
User guide 8
Tool gap adjustment 11
User interface 12
Precautions for use and safety 13
Servicing and maintenance 14
Safety instruction 15
Warranty conditions 16
Advice 17
Troubleshooting 18
Form to be returned on purchase of the tool 18
Technical information 21
CE declaration of conformity 22
PW3
+ TR9
PW3
+ SC160P3
PW3
+ THD600P3
PW3
+ THD700P3
PW3
+ PWMP3
+ PWP36RB
PW3
+V5000P3ET
PW3
+V5000P3AT
PW3
+V5000P3AF
PW3
+V5000P3EF
PW3
+ PS1P3 (sarclage)
PW3
+EP1700P3
PW3
+EC1700P3
PW3
+ PB100P3 (hoeing)
+PB150P3 (hoeing)
+PB220P3 (hoeing)
+PN370P3 (sweeping)
PW3
+ PW930P3
+ TR9
PW3
+ PW930P3
+SC160P3
PW3
+ PW930P3
+ THD700P3
PW3
+ PW930P3
+ THD600P3
Pole tools
Hand tools
pw3, a multi-function handle

54
compatible tools
Reference Description
THD600P3 Double hedge-trimmer, blade length 600mm.
THD700P3 Double hedge-trimmer, blade length 700mm.
TR9 Arborists chainsaw, maximum cutting capacity
Ø150mm.
SC160P3 Saw head, max cutting capacity Ø100mm.
PW930p3 Carbon extension, length 930mm.
Pw1830p3 Carbon extension, length 1830mm.
PWT1650p3 Carbon extension, length 1650mm.
Ps1p3 Fixed tying pole 1480mm.
PB100P3 Fixed hoe pole 1430mm Cutting head Ø100mm.
PB150P3 Fixed hoe pole 1430mm Cutting head Ø150mm.
PB220P3 Fixed hoe pole 1430mm Cutting head Ø200mm.
PN370P3 Fixed sweeping pole 1430mm Brush Ø370mm.
PWMP3 +
PWP36RB De-cankering tool (mill diameter 36mm)
PWMP3 +
PWP25RB De-cankering tool (file diameter 25 mm)

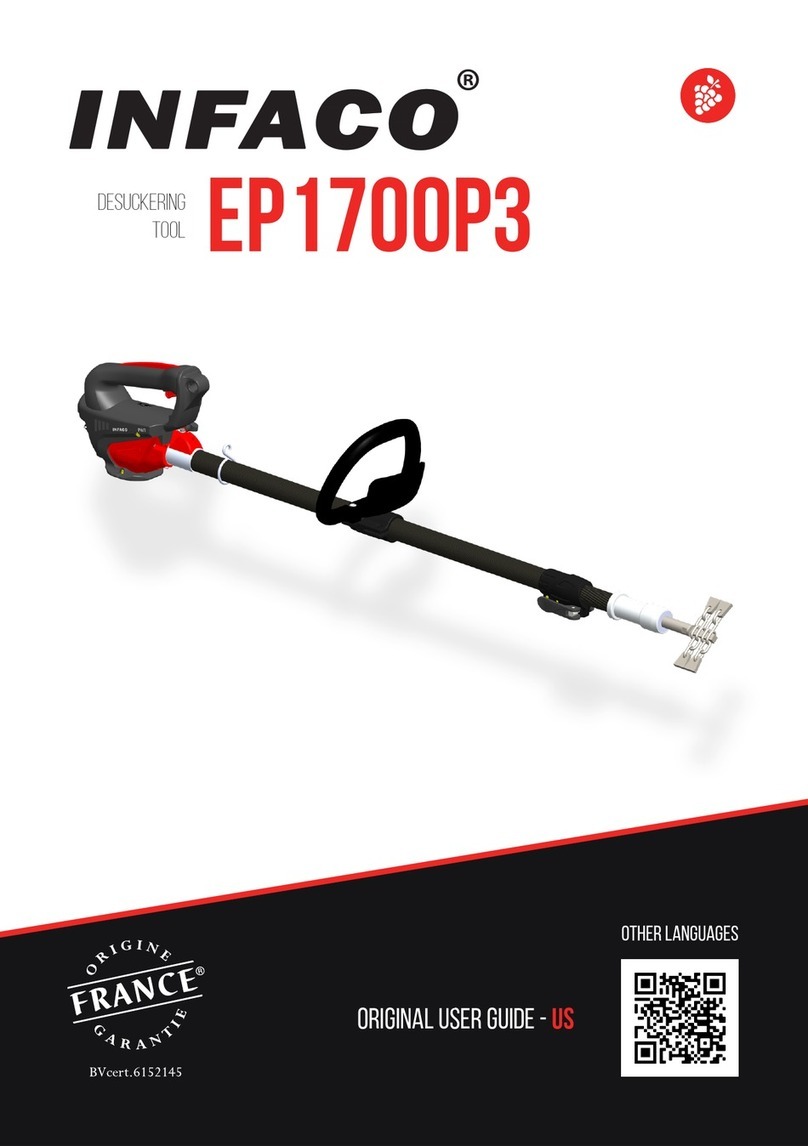

EP1700P3 Desuckering tool (telescopic pole 1200mm to 1600mm).
EC1700P3 Blossom remover (telescopic pole 1500mm to 1900mm).
V5000p3ef Olive harvester (fixed pole 2500mm).
v5000p3et Olive harvester (telescopic pole 2200mm to 2800mm).
v5000p3AF Alternative olive harvester (fixed pole 2250mm)
v5000p3AT Alternative olive harvesters (telescopic pole 2200mm to 3000mm)
PRECAUTIONS BEFORE USE
Personal protection equipment
protection of the environment
Read the instructions for use carefully, especially the safety instructions.
The wearing of a hard hat, eye and ear protection is MANDATORY
Hand protection using cut-prevention work gloves.
Foot protection using safety footwear.
Face protection using a visor
Body protection, using cut protection overalls.
IMPORTANT! Extensions can be made of conductive materials. Do not use
near sources of electricity or electric wires
IMPORTANT! Do not approach any part of the body to the blade. Do not
remove the cut material or hold the material to be cut while the blades are
moving.
WARNING. Read all the safety warnings and all the instructions. Failing
to heed warnings and follow instructions may lead to an electric shock, a fire
and/or serious injury.
Keep all warnings and instructions for future reference. The term “tools” in the
warnings refers to your battery powered electric tool (with power cord), or your tool
operating on a battery (without power cord).
Observe all country-specific waste disposal rules and regulations.
>Power tools must not be disposed of with household refuse.
>The device, accessories and packaging must be taken to a recycling centre.
>Ask the approved INFACO dealer for up-to-date information on the eco-
compatible elimination of waste.

76
Reference Pw3
Power supply 48VCC
Power 260W to 1300W
Weight
1560g
Dimensions
(L x W x H)
227mm x 154mm x 188mm
Electronic tool
detection
Automatic speed, torque, power and operating mode adaptation
These specifications are given as an indication only. Under no circumstances may they be considered as
contractually binding. They are subject to modification without prior notice in the interests of product
development.
Patented equipment
specifications
general product view
Box contents
PW3 motorised handle
PW205P Lateral handle
B400G Powercoup grease
EP20L protection glasses
Manual
Operating
trigger Safety trigger
Tightening
screw
Shock
absorber
Hooking ring
Power supply socket
Ventilation grid
Indicator / LED
Removable
handle
compatible batteries
120Wh battery
831B
Cable compatibility
825S
500Wh battery
L810B
Cable compatibility
PW225S
150Wh battery
731B
Cable compatibility
PW225S (requires fuse
replacement by 539F20).
Batterie 820Wh
L850B
Compatibilité câble
L856CC

98
First use
The first time you use the equipment, we strongly recommend you to ask the advice of your
dealer, who is qualified to give you all the advice you need for correct use and optimum
performance. It is imperative to carefully read the tool and accessory user manuals before
handling or powering up the tool.
Only use INFACO brand batteries with a 48 Volt power supply.
Any use with batteries other than INFACO batteries may lead to damage. The
warranty on the motorized handle will be void if batteries other than those
manufactured by INFACO are used.
In wet weather, it is imperative to carry the battery belt under waterproof
clothing to keep the battery unit protected from the rain.
Installation and connection
Handle assembly
user guide Using the machine
> Fit the tool onto the handle
> Check that the tool is properly inserted all the way in
> Tighten the wing nut

1110
2
2
> First power up & Exit from standby mode
2 short presses on the trigger ON
> Connect the battery
> Starting up
Press the trigger ON
> Stop
Release the trigger OFF
> Connect the power cable
No movements No movements
Presence of movements Presence of movements
GAP OK GAP OK
ADJUST
THE GAP
ADJUST
THE GAP
It is imperative to disconnect the machine.
Do not connect the PW3 handle to the pole.
> Check the tightening by exerting an alternative pressure.
Unlock the lever
Tighten the wing nut
tool gap adjustment

1312
status Display Descriptions
Battery level
Green steady
Battery level between 100% and 80%
Battery level
Green steady Battery level between 80% and 50%
Battery level
Green steady Battery level between 50% and 20%
Battery level
Green flashing Battery level between 20% and 0%
Connection
sequence
Green scrolling
2 cycles when powering on, then
standby mode display
Standby mode
Green flashing Slow flashing battery level
Red steady Battery flat
Red flashing Handle fault, see troubleshooting section
Orange steady Orange indicator = chain saw head
disconnected, signal lost
Bar graph
user interface
The tool is fitted with an electronic protection system. As soon as the tool jams due to
excessive resistance, the electronic system stops the motor. Restart the tool: see the “User
manual” section.
We also advise keeping the tool’s protective packaging for possible returns to factory
customer service.
For the transport, storage, servicing, maintenance of the tool, or any other
operations not related to tool function operations, it is imperative to disconnect
the device.
Disconnect
before transport
and storage
Disconnect
before transport
and storage
Precautions for use and safety

1514
Lubrication
Class 2 grease reference
Grease at least
once per week
All servicing and maintenance operations must be carried out
with the tool disconnected from all power sources:
Adapt the servicing frequencies to your tool use.
Occasional use, space out the frequency. Intensive use,
increase the frequency.
Before starting work At the end of the day Each time the battery is charged Once per week Once per month Once per year In the event of damage In the event of a malfunction When necessary
Complete machine
Visual inspection of its
condition
Cleaning
Inspection by the dealer
Accessory
coupling
Cleaning and lubrication
Gap check
Adjust the gap
Ventilation grid Cleaning
Power
cord
Visual inspection of its
condition
Battery Visual inspection of its
condition
Vest Visual inspection of its
condition
servicing and maintenance
IMPORTANT. To reduce the risk of electric discharges, injuries and fire when using electric
tools, follow the fundamental safety measures indicated below. Read and follow these
instructions before using the tool, and keep the safety instructions!
Outside operations related to the use of the tool, your tool and its accessories must
be disconnected and stored in their relevant packaging.
It is imperative to disconnect your tool from all power sources for the following
operations:
- Servicing.
- Battery charging.
- Maintenance.
- Transport.
- Storage.
When the tool is running, always remember to keep the hands away from the accessory
head being used. Do not work with the tool if you are tired or feeling unwell. Wear
the specific recommended personal protection equipment for each accessory. Keep the
equipment out of the reach of children or visitors.
Do not use the tool if there is a risk of fire or explosions, for example in presence
of flammable liquids or gases.
Never carry the charger by the cord, and do not pull on the cord to disconnect it from the socket.
Keep the cord away from heat, oil and sharp edges.
Never use the tool at night or in bad light without setting up additional lighting. When
using the tool, keep both feet on the ground and keep as much balance as possible.
Caution: extensions can be made of conductive materials. Do not use near sources
of electricity or electric wires.
safety instruction

1716
warranty conditions
Your tool has a two year warranty for manufacturing defects or faults.
The warranty applies to the normal use of the tool and does not cover:
- damage due to poor maintenance or lack of maintenance,
- damage due to incorrect use,
- wear parts,
- tools that have been taken apart by unauthorised repairers,
- external factors (fire, flood, lightning, etc.),
- impacts and their consequences,
- ltools used with a battery or charger other than those of the INFACO brand.
The warranty is only applicable when the warranty has been registered with
INFACO (warranty card or online declaration on www.infaco.com).
If the warranty declaration was not made when the tool was purchased, the factory
departure date will be used as the warranty start date.
The warranty covers factory labour but not necessarily dealer labour. The repair
or replacement during the warranty period does not extend or renew the initial
warranty.
All failings regarding the storage and safety instructions will void the manufacturer’s
warranty.
The warranty cannot entitle to compensation for:
The possible immobilisation of the tool during repairs.
All work carried out by a person other than approved INFACO agents will cancel the tool
warranty.
The repair or replacement during the warranty period does not extend or renew the initial
warranty.
We strongly recommend INFACO tool users to contact the dealer that sold them the tool in
the event of a failure.
To avoid all disputes, please note the following procedure:
- Tool still under warranty, send it to us carriage paid and we will pay the return.
- Tool no longer under warranty, send it to us carriage paid and the return
will be at your expense by cash on delivery. If the cost of the repair were to exceed
€ 80 excluding VAT, you will be supplied with a quote.
Advice
Keep your work area tidy. Clutter in work areas increases risks of accidents.
Take into account the work zone. Do not expose electric tools to rain. Do not use electric
tools in a damp or wet environment. Make sure the work area is properly lit. Do not use
electric tools near inflammable liquids or gases.
Protect yourself from electric shocks. Avoid bodily contact with surfaces connected to
the earth, such as battery chargers, electric multi-plugs, etc.
Keep away from children! Do not allow third parties to touch the tool or cable. Keep
them away from your work area.
Store your tools in a safe location. When not in use, tools must be stored in a dry,
locked location in their original packaging and out of the reach of children.
Wear suitable work clothing. Do not wear loose-fitting clothing or jewellery. It could be
caught up in moving parts. When working in the open air, wearing rubber gloves and non-
slip sole footwear is recommended. If your hair is long, wear a hair net.
Wear protective eye-wear. Also wear a mask if the work being carried out generates
dust.
Protect the power cord. Do not carry the tool using its cord and do not pull on the cord
to disconnect it from the socket. Protect the cord from heat, oil and sharp edges.
Maintain your tools carefully. Regularly check the plug and power cord condition and,
if they are damaged, have them replaced by a recognised specialist. Keep your tool dry and
free of oil.
Remove the tool keys. Before starting the machine, make sure the keys and adjustment
tools have been removed.
Check your tool for damage. Before reusing the tool, carefully check that the safety
systems or slightly damaged parts are in perfect working order.
Have your tool repaired by a specialist. This tool is compliant with applicable safety
rules. All repairs must be carried out by a specialist and only using original parts, failure to
do so could result in serious risks to user safety.

1918
Disruptions Causes Solutions
The machine
will not start
Machine not powered Reconnect it
Fault D01
Battery discharged Recharge the battery.
Fault D02
Too heavy strain
Mechanical jam
Restart by pressing the trigger
once.
If the problem persists, contact
your dealer.
Fault D14
Safety brake acti-
vated
With the chain saw, check that
the chain brake handle is present
and check that the chain brake is
released.
Incorrect tool de-
tection
Disconnect for 5 seconds, then
reconnect.
Check the tool assembly.
If the problem persists, contact
your dealer.
Other Contact your dealer.
Machine stops
when in use
Fault D01
Battery discharged Recharge the battery.
Fault D02
Too heavy strain
Change the work method or ask
your dealer for advice.
Restart by pressing the trigger
once.
Fault D14
Safety brake acti-
vated
Unlock the brake.
Check the tool assembly.
As soon as the green indicator
comes back on, restart by pressing
the trigger twice.
Other Contact your dealer.
The machine stays
on standby
Overheating
Wait for the machine to cool and
restart using two presses on the
trigger.
Incorrect tool de-
tection
Disconnect for 5 seconds, then
reconnect. Check the tool assem-
bly. If the problem persists, contact
your dealer.
troubleshooting Dealer part
Part to be kept by the dealer.
Serial number > ............................................. Ref > .......................................................
Name > ............................................................................................................................
First name > .....................................................................................................................
Company name > ............................................................................................................
Full address > ...................................................................................................................
.........................................................................................................................................
City > ...............................................................................................................................
Postcode > .....................................................
Phone number > ............................................
Purchase date > ............ / ............ / ..............
Remarks > ......................................................
To be returned to infaco
To validate the warranty, REGISTER IMMEDIATELY ONLINE ON :
www.infaco.com, your warranty declaration or send this form filled out
IN BLOCK CAPITALS AS SOON AS THE TOOL IS PURCHASED.
Name > .......................................................... Prénom > ................................................
Company name> .............................................................................................................
Full address > ...................................................................................................................
.........................................................................................................................................
City > ............................................................. Postcode > ..............................................
Phone number > ............................................
Email > ..........................................................
Purchase date > ............ / ............ / ..............
Serial number
>
- Ref > ..................................
Remarks > ......................................................
customer signature
Orchards
Oil production
Vine growing
Parks & gardens
Dealer’s stamp

Serial number
To be kept by the dealer
for the customer
fi l e
customer file
INFACO S.A.S.
Bois de Roziès
81140 CAHUZAC-SUR VERE
France
dealer
21
Manufacturer > INFACO S.A.S. - 81140 CAHUZAC-SUR-VÈRE (FRANCE)
Type > POWERCOUP PW3
Ref > PW3
Handle weight > 1560g
Maximum power > 1300 W
Battery rated voltage > 48 Volts
These specifications are given as an indication only. Under no circumstances may they be
considered as contractually binding. They are subject to modification without prior notice
in the interests of product development.
Technical information or customer service
INFACO S.A.S.
Bois de Roziès
81140 CAHUZAC-SUR VERE France
Phone: [phone] - Fax: [phone]
Email: [email protected]
Technical videos available on the website: www.infaco.com
Materiel fabriqué
en france

22
INFACO s.a.s. déclare que le matériel neuf désigné ci-après :
INFACO S.A.S. declares that the new equipment designated below :
Appareil électrique INFACO
electric device INFACO
“Machines” (directive 2006/42/CEE). appliances” (directive 2006/42/CEE)
“ Emissions sonores machines utilisées en extérieur ” directive 2000/14/CE (arrêté du 18
mars 2002) modifiée par la 2005/88/CE (arrêté du 22 mai2006). Directive 200/14/EC « on
the noise emission by equipment for use outdoors » (order of 18 march 2002) modified by
the directive 2005/88/EC (order of 22 may 2006).
La personne autorisée à constituer le dossier technique au sein d’INFACO est M. ALVAREZ
Grégory. The person authorized to compile the technical file within the company INFACO is
Mr. Gregory ALVAREZ.
DÉCLARATION DE CONFORMITÉ CE
DECLARATION OF CONFORMITY (CE)
INFACO s’engage à fournir aux autorités nationales les informations pertinentes concernant la machine.
INFACO undertakes to provide national authorities with all relevant information concerning the machine.
Cette machine est prévue pour intégrer les quasi-machines : SC160P3, TR9, THD600P3, THD700P3, EP1700P3,
EC1700P3, V5000P3EF, V5000P3ET, V5000P3AF, V5000P3AT, PS1P3, P3
This machine is intended to integrate the partly-completed machines : SC160P3, TR9, THD600P3, THD700P3, EP1700P3,
EC1700P3, V5000P3EF, V5000P3ET, V5000P3AF, V5000P3AT, PS1P3, P3
De marque / brand name > INFACO Modèle / model > POWERCOUP PW3
N°de série / Serial no >
Année de fabrication / Year of manufacture >
Fait à / Signed in > CAHUZAC SUR VERE LE / Date > 01/09/2021
M. DELMAS Daniel, Président de la Société INFACO Signature / Signature
INFACO Managing Director

www.infaco.com
EN - User manual. Multi-function handle PW3 NOT_PW3_EN_09_21
