1 | About this manual INFICON
4 / 18 Test-leak-sniffer-leak-detection-Operating-instructions-lina80en1-07-(2004)
1 About this manual
1.1 General information
The calibration leak must only be operated in the proper
condition and in the condition described in the instruction
manual, and used by trained personnel.
Follow the local regulations for the use of the calibration
leak.
Follow the instructions in this document as well as the
operating instructions of the leak detector.
1.2 Intended use
The test leak, designed as a tabletop device, is used to
calibrate and check sniffer leak detectors, taking into
account the safety regulations. The test leak must be
adjusted to a room temperature of 20 °C at the place of
use 24 hours before use.
1.3 Basic safety instructions
• Observe the relevant protective measures when
handling the calibration gas used, see also safety
data sheets.

INFICON About this manual | 1
Test-leak-sniffer-leak-detection-Operating-instructions-lina80en1-07-(2004) 5 / 18
• The test leak is pressurized. Protect it from solar
heat, temperatures above 40 °C, and damage.
• Calibration gas: Avoid eye-contact and inhalation in
high concentrations.
• Share the security information with other users.
INFICON does not assume any responsibility and
warranty if the operator or third parties
• disregard this document
• use the product for purposes other than those for
which it was intended
• carry out interventions of any kind on the product
(conversions, modifications, etc.).
• Important instructions concerning technical safety
and industrial safety are highlighted by the following
markings.

1 | About this manual INFICON
6 / 18 Test-leak-sniffer-leak-detection-Operating-instructions-lina80en1-07-(2004)
1.4 Warnings
DANGER
Imminent hazard resulting in death or serious
injuries
WARNING
Hazardous situation resulting in potential death or
serious injuries
CAUTION
Hazardous situation resulting in minor injuries
NOTICE
Hazardous situation resulting in damage to property
or the environment

INFICON Description | 2
Test-leak-sniffer-leak-detection-Operating-instructions-lina80en1-07-(2004) 7 / 18
2 Description
2.1 Calibrated test leak
The calibrated test leak is installed in a rectangular
housing.
12
3
4

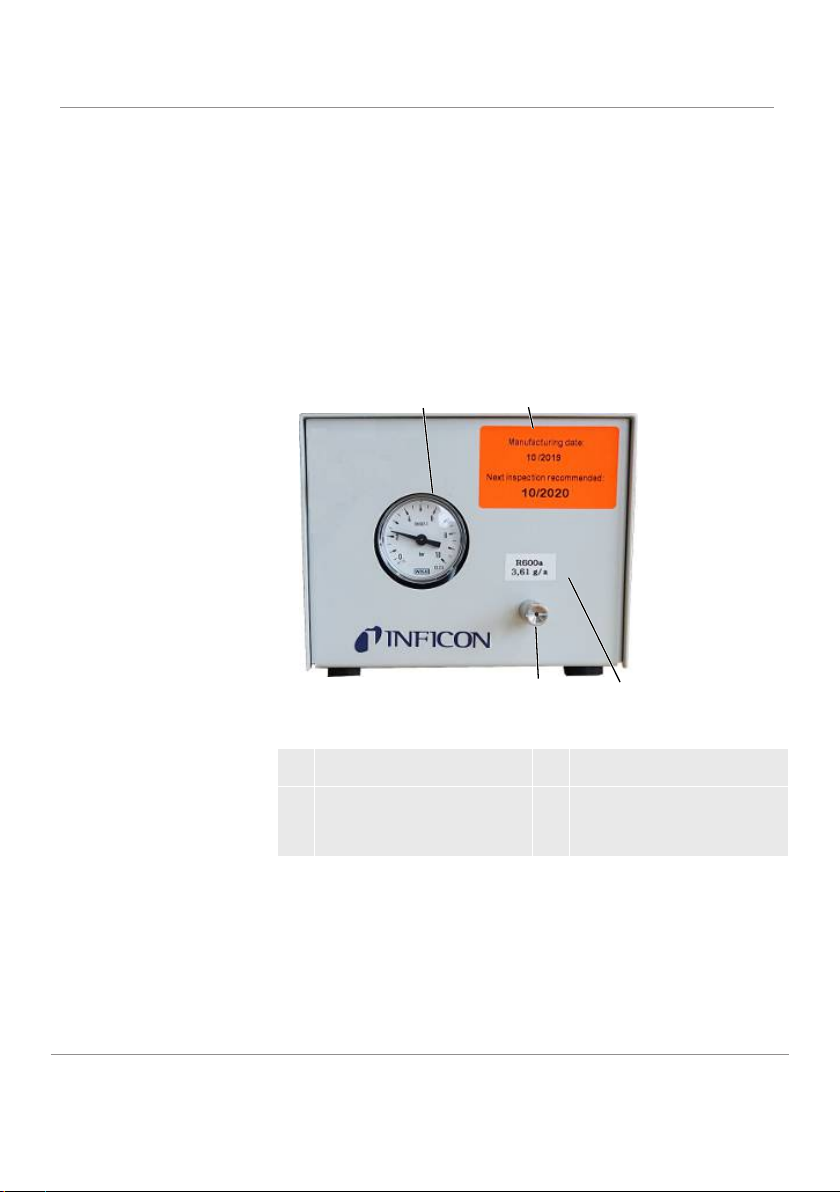

Fig.1: Test leak without proof
1 Manometer 2 Date of calibration
3 Leak rate of the
calibrated test leak.
4 Calibration gas outlet

2 | Description INFICON
8 / 18 Test-leak-sniffer-leak-detection-Operating-instructions-lina80en1-07-(2004)
2.2 Technical specifications
Note that the pressure in the test leaks changes
depending on the temperature.
Smallest deviation from calibration ± 10 %
Cat. No. / Pressure range
122 20, 122 20S, 122 21, 122 21S,
122 22, 122 22S, 122 27, 122 28,
122 28S, 122 29, 122 29S, 122 31,
122 32, 122 33, 122 35, 122 36S,
122 37, 122 37S, 122 38, 122 39
0.5 bar to 7.5 bar
123 00, 123 01, 123 04, 123 05,
123 11, 123 20, 123 21, 123 22,
123 23, 123 24, 123 27, 123 28,
123 39
12275 0.5 bar to 60 bar
Temperature range +15°C to +35°C
(40-122 °F)
Storage temperature 0°C to +40°C
(40-122 °F)
Weight approx. 3.5 kg

INFICON Description | 2
Test-leak-sniffer-leak-detection-Operating-instructions-lina80en1-07-(2004) 9 / 18
WARNING
Highly flammable gases
► Keep gases that are marked with a flame symbol in the
following table away from ignition sources.
Refrigerant
Gas type Cat. no. Leak rate g/a Leak rate oz/y
R 134 a 122 20 2.0 - 5.0 0.07 – 0.18
R 134 a 122 20S 1.) 2.0 - 11.0 0.07 – 0.39
R 600 a 122 21 2.0 - 5.0 0.07 – 0.18
R 600 a 122 21S 1.) 2.0 - 20.0 0.07 – 0.71
R 404 a 122 22 2.0 - 5.0 0.07 – 0.18
R 404 a 122 22S 1.) 2.0 - 10.0
10.0 - 15.0
0.07 – 0.353
0.353 – 0.529
R152a 122 27 2.0 - 5.0 0.07 - 0.18
R 407 c 122 28 2.0 - 5.0 0.07 – 0.18
R 407 c 122 28S 1.) 2.0 - 10
10.0 - 15.0
0.07 – 0.353
0.353 – 0.529
R 410 a 122 29 2.0 - 5.0 0.07 – 0.18

2 | Description INFICON
10 / 18 Test-leak-sniffer-leak-detection-Operating-instructions-lina80en1-07-(2004)
Gas type Cat. no. Leak rate g/a Leak rate oz/y
R 410 a 122 29S 1.) 2.0 - 10.0
10.0 - 15.0
0.07 – 0.353
0.353 – 0.529
R 290 122 31 7.0 - 8.0 0.25 – 0.28
CO2 122 32 2.0 - 3.5 0.07 – 0.123
R1234 YF 122 35 2.0 - 5.0 0.07 – 0.18
R 32 122 36S 2.) 2.0 - 8.0 0.07 – 0.282
R 134 a 122 40 10.0 - 11.0 0.353 – 0.383
R 600 a 122 41 14.0 - 18.0 0.49 – 0.63
R 404 a 122 42 13.0 - 17.0 0.459 – 0.60
CO2 122 75 10 - 14 0.353 – 0.494
SF6 123 00 2.0 - 5.0 0.07 – 0.18
R 1234ze 123 01 2.0 - 5.0 0.07 – 0.18
R 245fa 123 04 2.0 - 5.0 0.07 – 0.18
R 452A 123 05 2.0 - 5.0 0.07 – 0.18
R 448A 123 11 2.0 - 5.0
10.0 - 15.0
0.07 – 0.18
0.353 – 0.529
R 452B 123 20 2.0 – 5.0 0.07 – 0.18

INFICON Description | 2
Test-leak-sniffer-leak-detection-Operating-instructions-lina80en1-07-(2004) 11 / 18
Gas type Cat. no. Leak rate g/a Leak rate oz/y
R 454C 123 21 2.0 - 5.0 0.07 – 0.18
R 454B 123 23 2.0 - 3.0 0.07 – 0.106
R 513A 123 24 2.0 - 5.0 0.07 – 0.18
R 450A 123 27 2.0 - 5.0 0.07 – 0.18
R 438A 123 28 2.0 - 5.0 0.07 – 0.18
To 1.) Test leaks with customer-specific leak rate in the
specified range
To 2.) No customer-specific leak rate possible
Test gases helium and hydrogen
Gas type Cat. no. Leak rate mbar l/s
He/H2 122 33 1.00 - 1.20x10-4 mbar l/s
He 122 37 1.00 - 1.20x10-4 mbar l/s
He 122 37S 1.) 0.06 - 1.20x10-4 mbar l/s
He 122 38 2.00 - 6.00x10-5 mbar l/s
He 122 39 6.00 - 8.00x10-6 mbar l/s
H2 123 22 1.00 - 1.10·10-4 mbar l/s

2 | Description INFICON
12 / 18 Test-leak-sniffer-leak-detection-Operating-instructions-lina80en1-07-(2004)
Gas type Cat. no. Leak rate mbar l/s
H2/He 123 39 1.00 - 1.20·10-4 mbar l/s
To 1.) Test leaks with customer-specific leak rate in the
specified range
Available gases for test leaks
Test leaks are only suitable for specific gases.
► If you want to have a test leak with a gas that is not on
the list please contact us. We will tell you if the test
leak with the gas you request can be build.
► For additional information please see the safety data
sheet of the calibration gas and the quality test
certificate that was added to the test leak.

INFICON Calibrating | 3
Test-leak-sniffer-leak-detection-Operating-instructions-lina80en1-07-(2004) 13 / 18
3 Calibrating
The calibrated test leak constantly emits gas during its
operational readiness.
WARNING
Explosive gas mixtures
Flammable gases can form explosive gas mixtures, see
the gases marked with the flame symbol under
“Technical specifications [}8]“.
► Care for sufficient ventilation and keep away from
ignition source.
► Please also observe the instructions in the safety data
sheet.
üAmbient temperature + 15°C to + 40°C
üIndicated pressure range 0.5 bar to 7.5 bar.
At a pressure of: p < 0.5 bar, the test leak is no longer
operational.
1
Follow the instructions for calibration with an
external test leak as described in the operating
manual of the respective leak detector.
2
Hold the sniffer tip against the exit opening of the
test leak until the measurement result is stable.

4 | Cleaning and maintenance INFICON
14 / 18 Test-leak-sniffer-leak-detection-Operating-instructions-lina80en1-07-(2004)
4 Cleaning and maintenance
4.1 Cleaning the housing
For cleaning the outside of the test leak, a slightly humid
cloth should normally do. Do not use under any
circumstances any aggressive or scouring cleaning
agents.
4.2 Maintenance
Pressure in test leak too low
Test leaks with a pressure < 0.5 bar can no longer be
measured correctly. Proper calibration of the leak
detector is therefore no longer possible.
The calibrated test leak requires no maintenance. When
the calibration gas is used up (pressure < 0.5 bar) the
test leak has to be refilled and calibrated.
Please contact your nearest INFICON Service Center.

INFICON Cleaning and maintenance | 4
Test-leak-sniffer-leak-detection-Operating-instructions-lina80en1-07-(2004) 15 / 18
4.3 Sending for repair or
maintenance
Do not open defective products.
Contact your nearest INFICON service point.
CAUTION
Calibration gas
Test leaks sent for repair may still contain calibration gas.
► Take account of the national regulations for shipping
the respective calibration gas.

5 | Disposal INFICON
16 / 18 Test-leak-sniffer-leak-detection-Operating-instructions-lina80en1-07-(2004)
5 Disposal
WARNING
Environmentally hazardous substances
Products, equipment, etc. may have to be disposed of
specially.
► Contact your nearest INFICON service center for
correct disposal.
