AIROC™ CYW20835 Bluetooth® LE system on
chip hardware design guidelines
About this document
This document discusses the hardware design guidelines for the AIROC™ CYW20835 Bluetooth® LE system on
chip kit.
Scope and purpose
This document provides basic guidelines on layout for AIROC™ CYW20835 Bluetooth® LE system on chip.
Intended audience
This document provides hardware guidance on how to design with CYW20835.

User Guide 2 of 11 002-34024 Rev. **
2021-10-05
AIROC™ CYW20835 Bluetooth® LE system on chip hardware design
guidelines
Table of contents
Table of contents
About this document....................................................................................................................... 1
Table of contents............................................................................................................................ 2
1Basic layout guidelines ........................................................................................................... 3
2Component placement ........................................................................................................... 4
2.1 Antenna placement.................................................................................................................................4
2.2 PCB antenna............................................................................................................................................4
2.3 Crystal placement ...................................................................................................................................4
2.4 Decoupling capacitors ............................................................................................................................5
2.5 Ground vias..............................................................................................................................................5
2.6 Bandpass filter.........................................................................................................................................5
2.7 Analog mic signals...................................................................................................................................5
2.8 Serial flash ...............................................................................................................................................6
2.9 Layer 2, solid ground fill..........................................................................................................................6
2.10 Power traces............................................................................................................................................6
2.11 Avoid routing DC power in a loop............................................................................................................6
2.12 Power inductor........................................................................................................................................7
2.13 Layer 4......................................................................................................................................................8
2.14 Assembly instructions.............................................................................................................................9
Revision history.............................................................................................................................10

User Guide 3 of 11 002-34024 Rev. **
2021-10-05
AIROC™ CYW20835 Bluetooth® LE system on chip hardware design
guidelines
Basic layout guidelines
1Basic layout guidelines
Most Bluetooth® devices use four‐layer boards to minimize thickness. Components are placed on the top layer;
the bottom layer is a solid ground fill. Most signal traces are routed on the top layer.
For RF traces, use a 50‐ohm transmission line to minimize mismatch losses and reflections, and therefore
maximize the power transferred to the load.
There are two types of transmission lines: microstrip and stripline. The reference design uses the microstrip
design.
Transmission lines require a proper geometry. Some parameters are highly dependent on the dielectric
material –trace width, vertical distance to ground plane, and a solid ground plane of sufficient width. Different
height and width solutions perform differently.
For the microstrip layer and its reference ground layer selections, two things should be considered:
1. Thinner traces have higher insertion loss –PCB fabrication requires adequate trace width for reliability and
repeatability. The heights between the microstrip and ground should be thick enough to guarantee
adequate trace width for the microstrip.
2. For microstrip lines, avoid sharp corners; use a smooth radius to change directions. The coplanar ground
follows the contour of these traces with a clearance of two to three line widths (2 W to 3 W). Connect the
outer layer to the reference ground plane using vias so that they surround the microstrip trace.
The microstrip is used in this reference design ison Layer 1. The reference ground is Layer 2. This reference
design uses a four‐layer PCBwith astackup as shown in Figure 1.
•Layer 1: Main signal layer
•Layer 2: Solid ground layer
•Layer 3: Power signal layer
•Layer 4: Digital signal layer. Additional power signals that could not be routed on Layer 3 can be routed here
as well. However, you must ensure that they do not overlap any of the power signals on Layer 3.

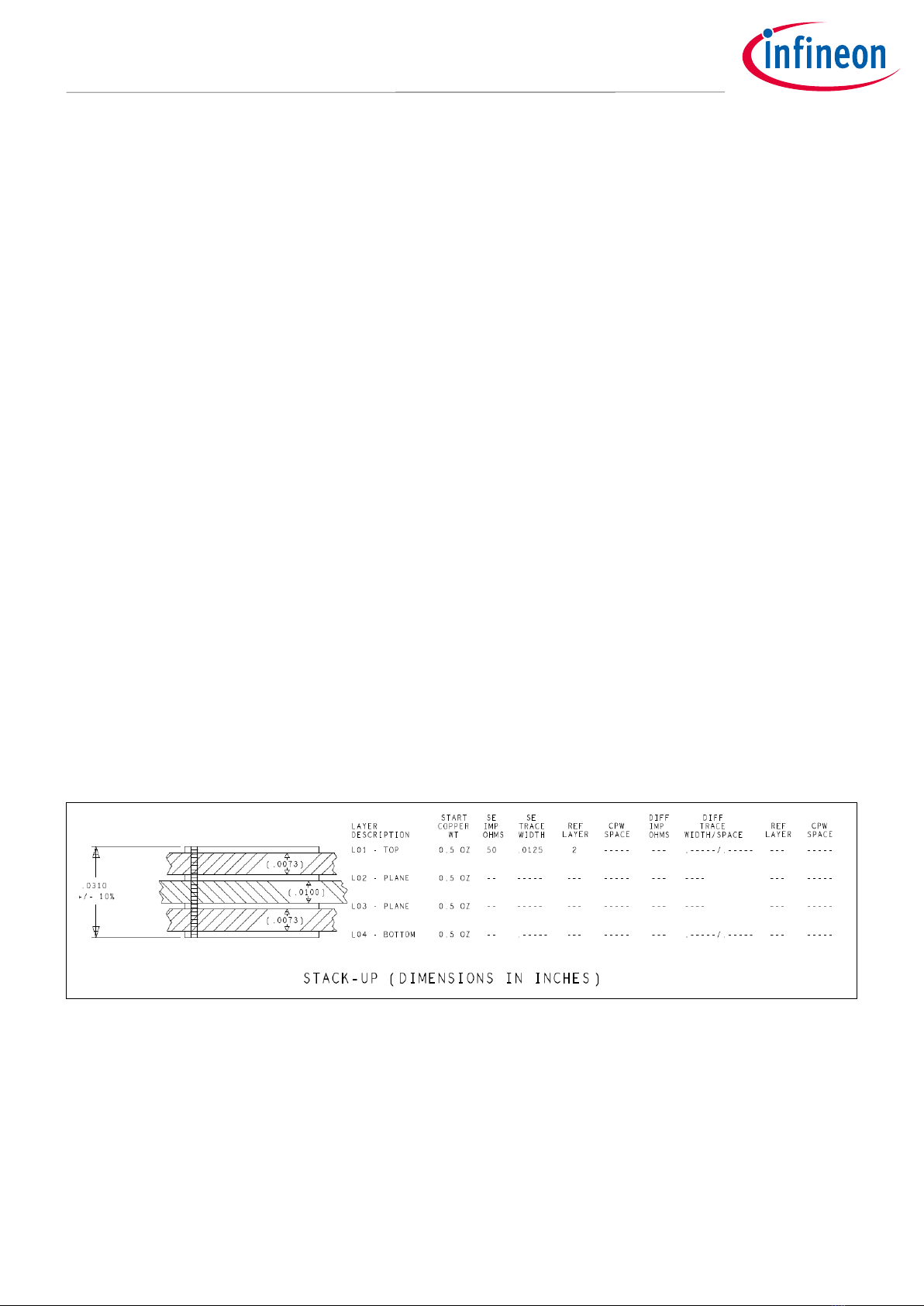

Figure 1 Typical board stackup used for CYW20835

User Guide 4 of 11 002-34024 Rev. **
2021-10-05
AIROC™ CYW20835 Bluetooth® LE system on chip hardware design
guidelines
Component placement
2Component placement
As a rule, follow the receive signal flow from the antenna to the antenna matching and filter circuits, then to the
low-noise amplifier (LNA) chip input. Keep theradio front end(RF), power management unit (PMU), and
baseband (BB) decoupling capacitors next to CYW20835 pin pads.
2.1 Antenna placement
Keep the antenna connection to the device as short as possible. Maintain a solid ground near the antenna and
adequate ground clearance for the layers beneath theantenna.
In the reference design, the antenna is on the top layer on the left of the board next to the CYW20835 chip.
2.2 PCB antenna
For more details on PCB antennas, see AN91445 - Antenna design and RF layout guidelines. For the
associated Gerber file, visit https://www.cypress.com/go/AN91445.
Figure 2 Antenna placement and microstrip clearance
2.3 Crystal placement
Protect the crystal and related traces from noise sources, and use a solid ground to separate the crystal from RF
traces. The crystal ground plane should have direct vias to the reference ground plane.
You can find the crystal specification requirements in the CYW20835 datasheet. See the reference design BOM
for the recommended vendor part numbers.

User Guide 5 of 11 002-34024 Rev. **
2021-10-05
AIROC™ CYW20835 Bluetooth® LE system on chip hardware design
guidelines
Component placement
2.4 Decoupling capacitors
See the reference schematic for decoupling capacitor usage and values on different power domains. Infineon
recommends that you use the vendor and part numbers shown in the reference design BOM. Decoupling
capacitors must be placed as close to its associated pin as possible.
2.5 Ground vias
Do not use long thin traces to connect components to ground vias; doing so adds inductance that can
significantly alter circuit performance.
2.6 Bandpass filter
Place a chip bandpass filter between the antenna matching components and the CYW20835 device to attenuate
harmonics from CYW20835. The chip band pass filter part used in the CYW20835 reference design is Murata,
LFB182G45CL3D178.A microstrip is used for all connections of the bandpass filter.
Insertion loss and out‐of‐bandattenuation performance depend on PCB component layouts and tolerances.
Filter layout should follow general RF layout rules.
2.7 Analog mic signals
Place a series 0.1-µF capacitor for each of the analog MIC signals, MIC_P and MIC_N. MIC_P and MIC_N should
also be routed within the analog ground (GND_A) area as shown in Figure 3. Use net ties to shown in Figure 3
to stitch GND_A to the main ground. The analog MIC is powered by the CYW20835’s MIC_BIAS pad by default.

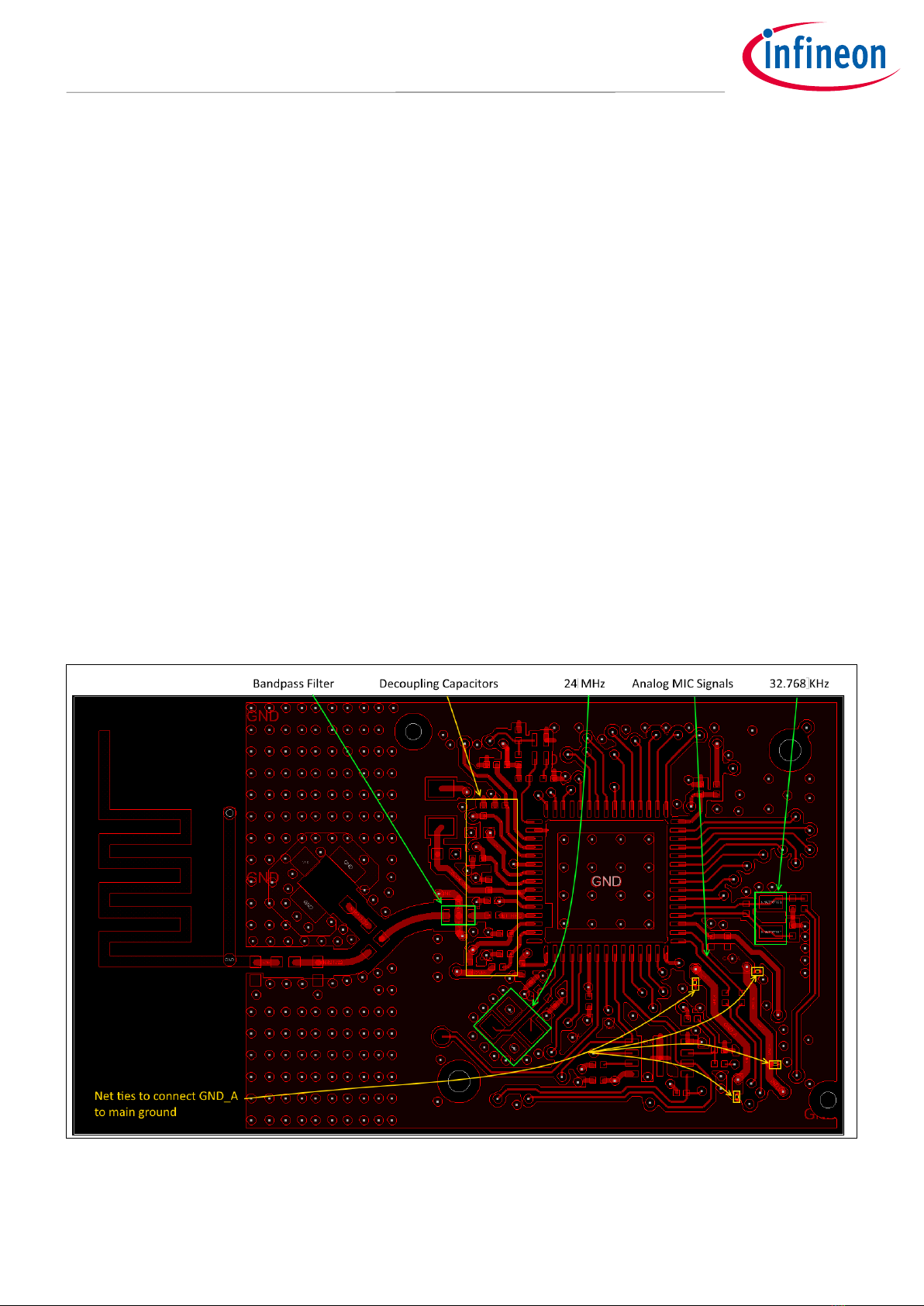

Figure 3 Bandpass filter and decoupling capacitors

User Guide 6 of 11 002-34024 Rev. **
2021-10-05
AIROC™ CYW20835 Bluetooth® LE system on chip hardware design
guidelines
Component placement
2.8 Serial flash
The CYW20835 kit uses the GD25WD80C serial flash from GigaDevice. Place the flash device on the same side as
pins 35–40 of the CYW20835 device so that serial flash signals are relatively short; this helps to minimize
unnecessary crossing with other signals.
2.9 Layer 2, solid ground fill
Fill the layer immediately below the layer where CYW20835 is located (Layer 2), with solid ground for optimal
ground return path. An analog ground (GND_A) cutout for the analog MIC is necessary. The GND_A cutout
should cover all of the analog MIC signal and power traces on Layer 1.

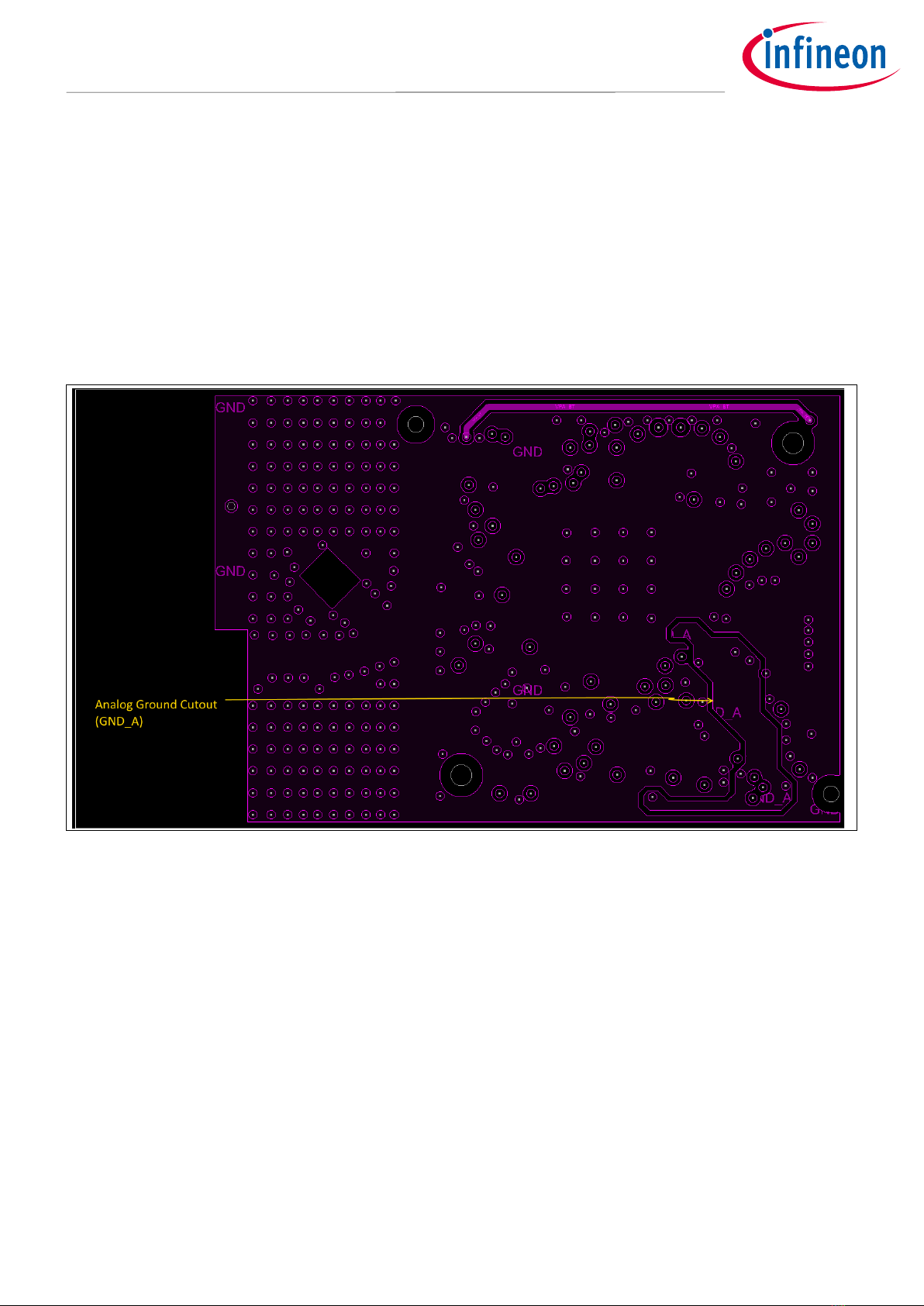

Figure 4 Layer 2, solid ground fill
2.10 Power traces
•Use wide traces for power supply lines. You should calculate the maximum current to be carried on each trace
and make the trace width proportionate to the current
•Route the main DC power supply line up the middle of the board like a spine, branching off left and right as
needed
2.11 Avoid routing DC power in a loop
•Protect the RF power supply from main power, noisy signals, and digital power by separating with ground fill
•Ensure that adequate power trace width and vias are available (or present) to minimize parasitic impedance
−CBUCK_OUT →Minimum 12 mils trace width
−CBUCK_OUT to DIGLDO_VDDIN (pin 25) →Minimum 8 mils trace width
−VDDIO →Minimum 12 mils trace width

User Guide 7 of 11 002-34024 Rev. **
2021-10-05
AIROC™ CYW20835 Bluetooth® LE system on chip hardware design
guidelines
Component placement
−VDDIO to LHL_VDDO (pin 60)/BT_VDDO (pin 36) →Minimum 8 mils trace width
−BT_VDDC →Minimum 10 mils trace width
−BT_VDDC (pin 37) →Minimum 8 mils trace width
−VBAT to SR_VDDBAT3V (pin 22) →Minimum 12 mils trace width
−CBUCK_OUT to RFLDOIN (pin 24) →Minimum 8 mils trace width
−RFLDO_VDDOUT (pin 12) to 1P2VRF →Minimum 8 mils trace width
−VPA_BT →Minimum 12 mils trace width
−PALDO_VDDOUT3V (pin 20) to BT_PAVDD2P5 (pin 26) →Minimum 8 mils trace width
−1P2VRF →Minimum 8 mils trace width
−1P2VRF to IFVDD1P2 (pin 19)/PLLVDD1P2 (pin 21) / VCOVDD1P2 (pin 20) →Minimum 8 mils trace width
−MIC_AVDD (pin 48) →Minimum 8 mils trace width
−MIC_BIAS (pin 45) →Minimum 8 mils trace width
Figure 5 Power supply traces
2.12 Power inductor
Ensure that there is ground isolation between the power inductor and the RF area. The power inductor should
also be placed as close to CBUCK pins as possible. See the “Recommended component”section in the
CYW20835 datasheet, and reference design files for the recommended component.

User Guide 8 of 11 002-34024 Rev. **
2021-10-05
AIROC™ CYW20835 Bluetooth® LE system on chip hardware design
guidelines
Component placement

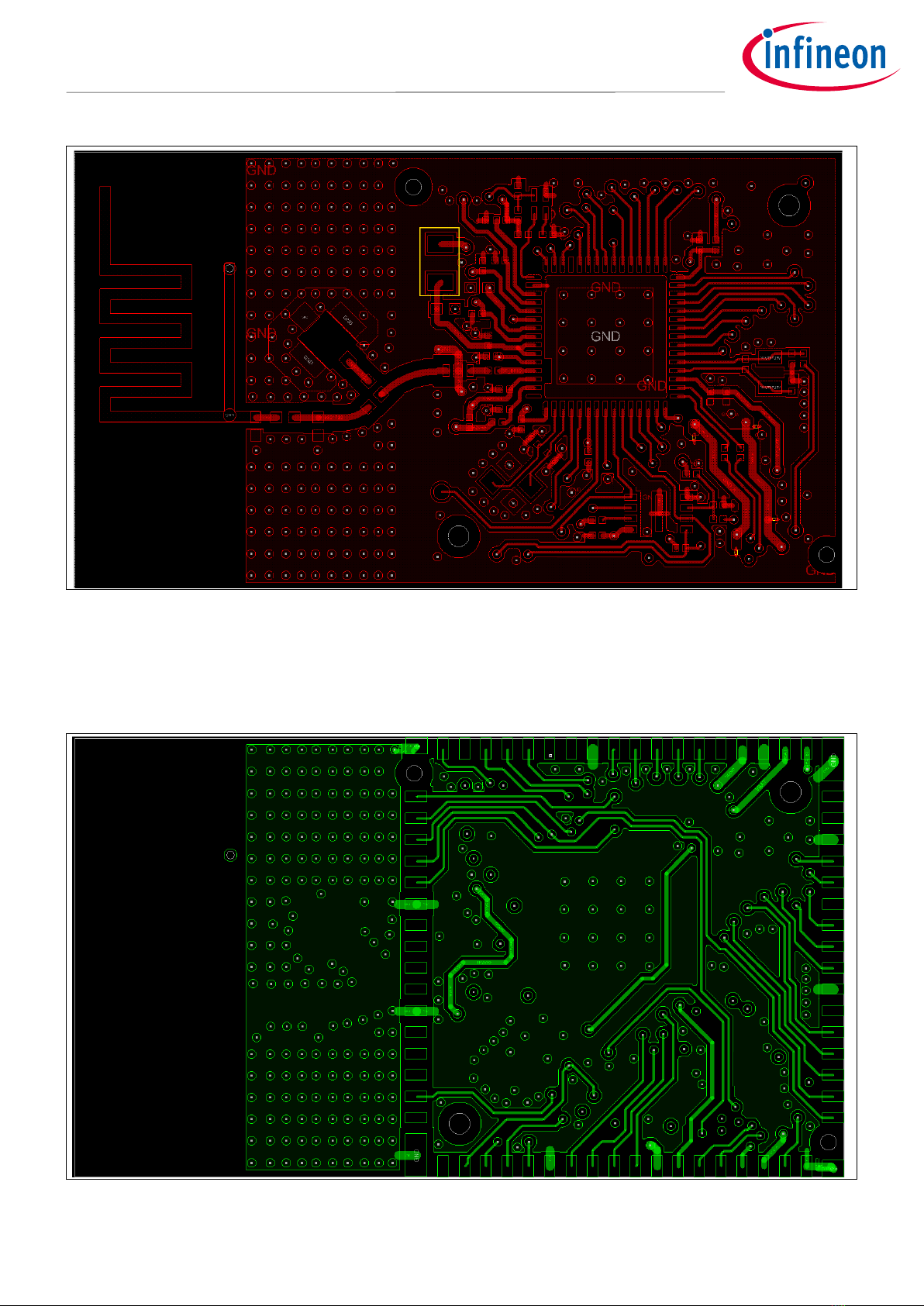

Figure 6 Power inductor routing
2.13 Layer 4
Use Layer 4 for all non-critical signal routing.
Figure 7 Layer 4

User Guide 9 of 11 002-34024 Rev. **
2021-10-05
AIROC™ CYW20835 Bluetooth® LE system on chip hardware design
guidelines
Component placement
2.14 Assembly instructions
CYW20835 is an Infineon standard QFN (quad flat no-lead) package. For additional assembly instructions and
reflow profiles, see AN72845 - Design guidelines for quad flat no-lead (QFN) packaged devices.

User Guide 10 of 11 002-34024 Rev. **
2021-10-05
AIROC™ CYW20835 Bluetooth® LE system on chip hardware design
guidelines
Revision history
Revision history
Major changes since the last revision
Date
Version
Description
2021-10-05
**
Initial release.
