Infineon SCU Reset Detection 1 User manual

AURIX™ TC2xx Microcontroller Training
V1.0.0
SCU_Reset_Detection_1
Detection of reset type
Please read the Important Notice and Warnings at the end of this document

Scope of work
This example shows how to detect the source of the last reset (power-
on reset, watchdog reset, etc.)
The AURIX™ TC2xx devices can be reset by various reset sources. The
application software is able to determine the source of the last reset based
on a routine that evaluates the related reset special function register.
2
2019-10-17 Copyright © Infineon Technologies AG 2019. All rights reserved.

Introduction
›Resets can be configured and determined in the Reset Control Unit
(RCU), belonging to the System Control Unit (SCU).
›There are various reset triggers such as SupplyMonitor, EVRs, PORST,
ESRx, JTAG.
›Consequently, different reset types can be derived, such as Cold-/Warm-
Power-On Reset, System Reset, Application Reset, Debug Reset, Module
Reset.
3
2019-10-17 Copyright © Infineon Technologies AG 2019. All rights reserved.

Hardware setup

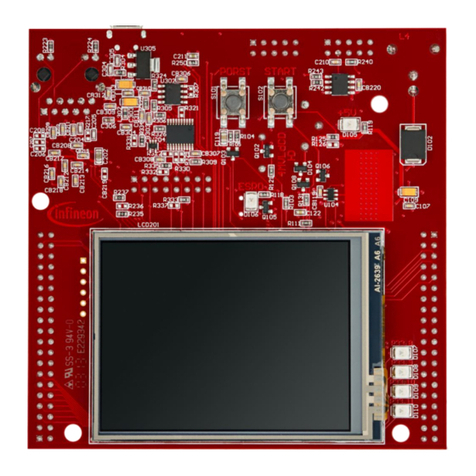

This code example has been
developed for the board
KIT_AURIX_TC297_TFT_BC-Step.
4
2019-10-17 Copyright © Infineon Technologies AG 2019. All rights reserved.

Implementation
startScuResetDetection()
›This function executes the evaluateReset() function, which provides information
about the last occurred reset. The returned value is a data structure comprising
elements such as resetType and resetTrigger.
›The resetType specifies the type of the last reset (e.g. a Cold Power-On Reset,
System Reset, Application Reset or Warm Power-On Reset).
›The resetTrigger specifies the source of the last reset. For instance, the source
can be a Power-On Reset (pressing PORST-Button), a SW triggered reset or a
reset triggered by debugger or any voltage supervision monitor.
›Furthermore, the function evaluateReset() clears the Cold Power-On sticky bits
using the function clearColdPowerOnResetBits(). Those bits are not cleared
automatically and must be explicitly cleared by the application.
›The local variable swReset can be used to specify the type of SW-Reset initiated
by the function triggerSWReset().
5
2019-10-17 Copyright © Infineon Technologies AG 2019. All rights reserved.

Implementation
evaluateReset()
›The function evaluateReset() evaluates both the SCU.RCU.RSTSTAT and
SCU.RCU.RSTCON registers.
›The SCU.RCU.RSTSTAT register is evaluated with regard to which reset bits are
set, respectively, cleared. Firstly, the warm reset status bits comprising ESRx,
SMU,SW, STMx and CBx are evaluated. Secondly, the cold reset status bits
comprising EVR13, EVR33,SWD and STBYR are evaluated if none of the warm
reset status bits are set. Finally, the PORST bit is evaluated.
›The SCU.RCU.RSTCON is evaluated to determine the type of reset, specified for
the warm reset status bits, except debugger related reset sources.
triggerSWReset()
›This function was developed only for testing purposes. Based on the local variable
swReset, it triggers either a SW Application Reset or a SW System Reset.
6
2019-10-17 Copyright © Infineon Technologies AG 2019. All rights reserved.

Run and Test
After code compilation and flashing the device, perform the following steps:
1. Run the code
2. Suspend the code execution
3. Watch the local structure variable lastReset (the elements lastReset.resetType and
lastReset.resetTrigger)
4. Check whether the lastReset.resetType is set to 'application' reset and whether the
lastReset.resetTrigger is set to 'cb3'.
5. Press button 'PORST'
6. Perform steps 1. through 3.
7. Check whether the lastReset.resetType is set to 'warmpoweron' reset and whether
the lastReset.resetTrigger is set to 'porst'.
7
2019-10-17 Copyright © Infineon Technologies AG 2019. All rights reserved.

Run and Test
8. Set the local variable swReset to '1'
9. Perform steps 1. through 3.
10. Check whether the lastReset.resetType is set to 'application' reset and whether the
lastReset.resetTrigger is set to 'sw'.
11. Set the local variable swReset to '2'
12. Perform steps 1. through 3.
13. Check whether the lastReset.resetType is set to 'system' reset and whether the
lastReset.resetTrigger is set to 'sw'.
8
2019-10-17 Copyright © Infineon Technologies AG 2019. All rights reserved.

References
›More code examples can be found on the GIT repository:
›https://github.com/Infineon/AURIX_code_examples
›For additional trainings, visit our webpage:
›https://www.infineon.com/aurix-expert-training
›AURIX™ Development Studio is available online:
›https://www.infineon.com/aurixdevelopmentstudio
›Use the „Import...“ function to get access to more code examples.
›For questions and support, use the AURIX™ Forum:
›https://www.infineonforums.com/forums/13-Aurix-Forum
9
2019-10-17 Copyright © Infineon Technologies AG 2019. All rights reserved.
