1 Introduction
This document describes the features and hardware details of the AURIX™lite Kit V2 equipped with a
32-Bit Single-Chip AURIX™TriCore™-based Microcontroller TC375, TC365, TC275 or TC265 from Infineon
Technologies AG.
It can be used with a range of development tools including Infineon’s free of charge Eclipse based IDE AURIX™
Development Studio or the Eclipse based “FreeEntryToolchain” from Hitecs/PLS/Infineon. AURIX™
Development Studio is a comprehensive environment, including C-Compiler and Multi-core Debugger, Infineon’s
low-level driver (iLLD), with no time and code-size limitations that enables editing, compiling and debugging
application code. The FreeEntryToolchain is a full C/C++ development environment which has a source-level
UDE debugger from PLS included and is also based on Infineon low-level driver (iLLD).
Table 1 shows the overview specifications of the whole board.
Table 1 Overview of the Board Specification
CPU Core AURIX™
Manufacturer Order No.
SAK-TC375TP-96F300W AA
Manufacturer Order No.
SAK-TC365DP-64F300W AA
Manufacturer Order No.
SAK-TC275TP-64F200W DC
Manufacturer Order No.
SAK-TC265D-40F200W BC
Board Dimensions
66.0 x 131.0 mm
Power
on-board miniWiggler Micro-AB USB interface
external powering 5 V…40 V (recommended 7 V...14 V)
Connectors
Most AURIX™ pins available on expansion connectors (X1, X2)
Two Infineon Shield2Go connectors
Arduino compatible connectors for 3.3 V
mikroBUS™ connector
Micro-USB connector
DAP Debug connector
CAN connector
RJ45 connector
Others
CAN transceiver TLE9251VSJ from Infineon
Low Power 10/100 Mbps Ethernet Physical Layer Transceiver DP83825I from TI
1 user push-button, 3 user LEDs
Reset push-button
Potentiometer (10 kOhm) for variable analog input
These boards are neither cost nor size optimized and do not serve as a reference design.

AURIX™lite Kit V2
Hardware Description
Board Users Manual 7 Revision October, 2020
1.1 Block Diagram
The block diagram in Figure 1 shows the main components of the AURIX™lite Kit V2 and their
interconnections.
Figure 1 Block Diagram of the AURIX™lite Kit V2
Aurixä TC375, TC365,
TC275orTC265
Micro
USB2.0 UTMI
PHY
EEPROM
Interface
FTDI
FT2232HL
EEPROM1kB
93LC46B-I/SN
Octal Bus
Buf fer Gate
2xSingle-Bit
BusTranceiver
SingleBus
Buf fer Gate
MPSSE
Channel
A
OCDS
DAP
Connector
Ext. Oscillator
Input
2x LEDs
forOCDS
Power
LDO
Power
Interface Ext.Power
Input
PinHeader X1
2x20,0.1"
PinHeader X2
2x20,0.1"
ArduinoäPinHeader (DIGITAL)
ArduinoäPinHeader(ANALOGIN)
ADC
GPIO
LED1/LED2
Button 1
Reset
Button
3.3V
VDD R35/0R
Ext.
Gate
Ctrl
Dig.Core
Supply
VDD
Ext.Osci
Input
20 MHz
External
Crystal
Port 11,13,
14,15,20,
21,22,23
P00.5/P00.6
PORSTN
Port
32,33
Port 0
Infineon
CANTranceiver
TLE9251VSJ
12 MHz
External
Crystal
CAN0
Node0
CANHeader
1x2,0.1"
QSPI1
I2C0
ASCLIN
MikrobusäConnector
Shield2GOSlot1S2G2
I2C0
ASCLIN1
QSPI2
I2C0
ASCLIN3
QSPI0
UART
Shield2GOSlot1S2G1
I2C0
ASCLIN2
QSPI0
UART
UART
ADC/AN26
ADC/AN16
ADC/AN17
ADC/AN19
ADC/AN18
GPIO
GPIO
GPIO
3.3V
AN36-39
ASCLIN0
I2C0
GPIO
QSPI1
EEPROM2kB
24AA02E48-E/OT
EUI-48äNodeAddress
AN24-25
Ethernet Phy
DP83825IRMQR
RJ45
Power
LDO
DCIN
C39/22µF
L3/3,3µH
Optional Semper
(secure)Flash
Optional F-RAM
MPSSE
Channel B
3.3V
5V
P00.7
DP/DM
ADBUS2
ACBUS4
ADBUS1 DAP1
P21.7

AURIX™lite Kit V2
Hardware Description
Board Users Manual 8 Revision October, 2020
2 Hardware Description
The following chapters give a detailed description of the board hardware and how it can be used. The different
parts of the kits series are shown in Figure 2 and 3.

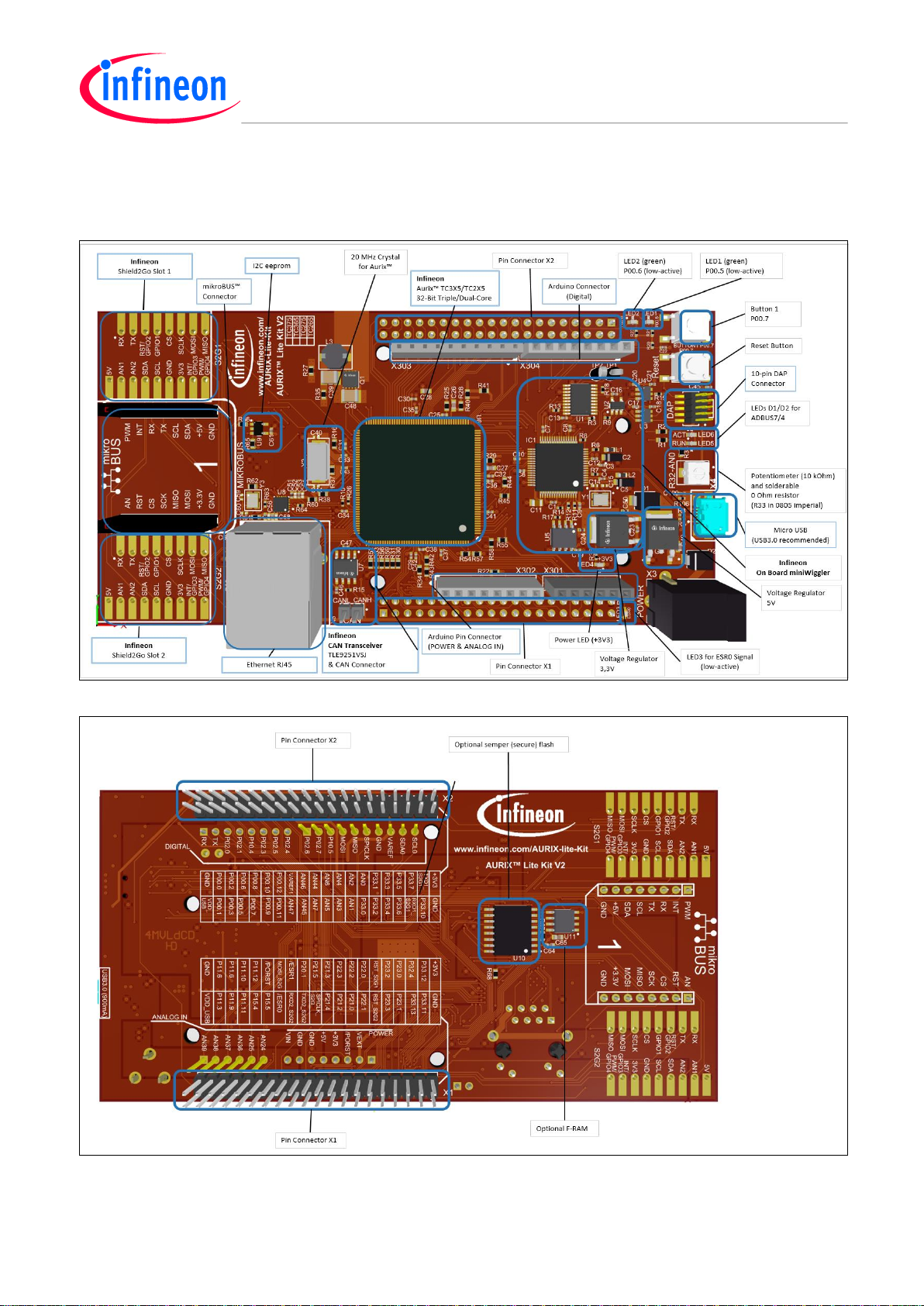

Figure 2 AURIX™lite Kit Board V2 View from the Top
Figure 3 AURIX™lite Kit Board V2 View from the Bottom

AURIX™lite Kit V2
Hardware Description
Board Users Manual 9 Revision October, 2020
2.1 Power Supply
The AURIX™lite Kit V2 must be supplied by an external DC power supply, this can be done via the DC plug X3
(recommended voltage range +7 V…+14 V) or via the micro USB plug X4 (+5 V).
The green Power LED4 indicates the presence of the generated 3.3 V supply voltage.
For X3 you can use a female DC supply plug with outside diameter of 5.5 mm and inside diameter of 2.1 mm or
2.5 mm. The inner contact is positive and the outer contact is ground.
In case that the board is powered via the micro USB plug X4, the used voltage will be always less than 5 V (~4.5
V) because the USB voltage is protected by a schottky diode (D1). Therefore also it is possible to use X3 and X4
on the same time. As long the voltage on X3 is higher than +7 V the board is powered via X3. If the voltage on X3
is less than +5.5 V the board is powered via X4. Between +5.5 V and +7 V on X3 the board is powered from X3
and X4 together.
If the board is powered via a USB plug and/or the DC plug, it’s not recommended to apply an additional power
supply to one of the power pins (VEXT, +5V, +3V3, VDD_USB) on the pin headers X1, X2, the Arduino Power
header X302, the Shield2GO slots or the mikroBus™connectors, because there is no protection against reverse
current into the external power supply. These power pins can furthermore be used, to power an external circuit
and therefore used as an output. But care must be taken to not draw more current than USB can deliver. A PC
as USB2.0 host typically can deliver up to 500 mA current and USB3.0 up to 900 mA. For best performance, we
recommend to use USB3.0. If higher currents are required and in order to avoid damages on the USB host, the
use of an external USB power supply unit, which is able to deliver higher currents, is possible.
Note: The LDO G1, that transfers the 5 V to 3.3 V, and LDO G2, that transfers VIN to 5 V, has a maximum output
current rating of 1 A. Therefore, the maximum current consumption is limited to 1 A. Do not apply any additional
voltage on the supply pins, because they are directly connected to the output of the LDO G1/G2 and further
backwards voltage can damage or destroy the LDO. Furthermore, do not apply multiple sources on the power
pins, otherwise you risk to damage and destroy the board.
However, more options are possible, but therefore, caution is necessary, to avoid any damage to the board and
your supplies. Please ensure that X4 is not supplied by any power source or PC, for all mentioned configurations
below. Otherwise, you risk to damage your source or PC.
Ensuring the mentioned points, following supply options are possible with a +5 V power source:
Option 1: Supply +5 V on the +5V pin at X302 Arduino power connector
Option 2: Supply +5 V on either one of the VDD_USB pins at X1 or X2 connector
Option 3: Supply +7 V…+14 V on the VIN pin at X302 Arduino power connector

AURIX™lite Kit V2
Hardware Description
Board Users Manual 10 Revision October, 2020
LDO
Infineon
IFX27001TFV33
Pin Connector X2
Pin Connector X1
X303 X304
X301ArduinoPower Connector X302
Micro
USB
S2Go Slots
S2G1/S2G2
mikroBusä
VDD_USB
+5V
VEXT
+3V3
VDD_USB
3V3
3V3
5V
5V
G1 X4
R27/0R
D5
Aurixä
TC3X5or TC2X5
Microcontroller
On Board
miniWiggler
Potentiometer
CANTranceiver
Optional
External F-RAM
U1 - U5
IC1
U6
R32
U7
+3V3
VDD_USB
Out
In
+3V3
DAP
Con.
D1
LDO
Infineon
IFX27001TFV50
R39/0R_opt G2
DC
plug
VIN
+3V3
+5VVIN
Optional
External Flash
U10
U11
VEXT
Out In
+3V3
I2CEeprom
U9
10M/ 100M
Ethernet
U8
D2 X3
+5V

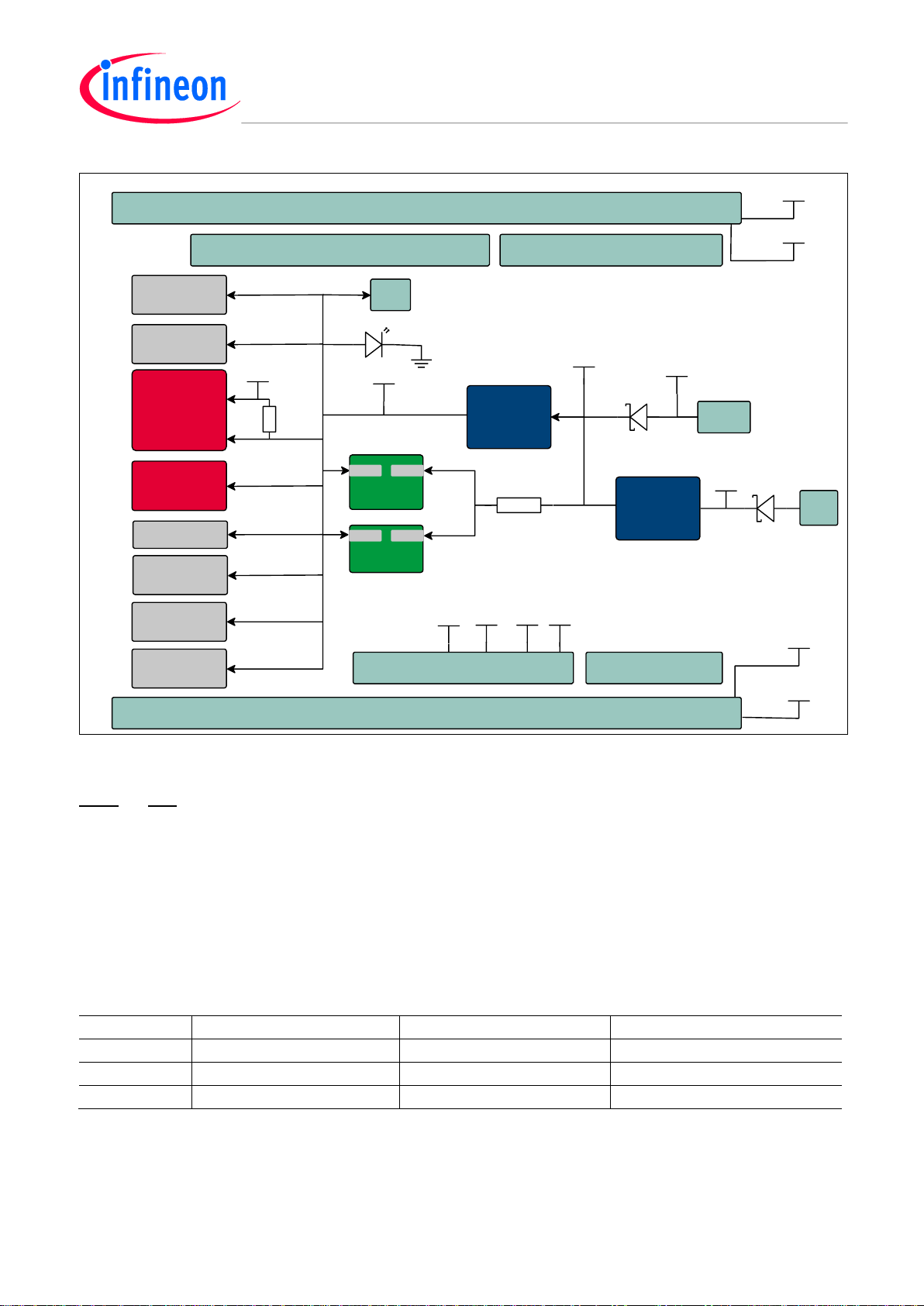

Figure 4 Power Supply Concept
Note: Do not apply any voltage on the mentioned power pins, if the USB is plugged in or any voltage is applied
via DC plug. Furthermore, do not apply multiple sources on the power pins, otherwise you risk to damage and
destroy the board.
2.2 User Push Buttons, User LEDs and Potentiometer
The AURIX™lite Kit V2 provides one user push button, a reset button, two LEDs and one potentiometer.
Additionally, LED3 can be used for visualizing an emergency stop function at ESR0 (emergency service request).
The LEDs LED5 and LED6 are used for visualizing activites via the on-board miniWiggler. The port pins used can
be found in Table 2 and Table 4.
Table 2 AURIX™Pin Mapping for User LEDs
Name
AURIX™Pin
Color
Active
LED1
P00.5
green
Low-active (pull against GND)
LED2
P00.6
green
Low-active (pull against GND)
LED3
ESR0
red
Low-active (pull against GND)

AURIX™lite Kit V2
Hardware Description
Board Users Manual 11 Revision October, 2020
Table 3 miniWiggler Pin Mapping for User LEDs
Name
miniWiggler Pin
Color
Active
LED5
ADBUS4 (ACTIV)
green
Low-active (pull against GND)
LED6
ADBUS7 (RUN)
green
Low-active (pull against GND)
Table 4 AURIX™ Push Buttons and Potentiometer
Name
AURIX™Pin
Active
Button1
P00.7
Low-active (pull against GND)
Reset
/PORST
Low-active (pull against GND)
R32 (10kΩ)*
AN0
-
*Note: Desoldering resistor R33, enables AN0 for other functions, but disables the Potentiometer functionality.
2.3 Debugging and on board miniWiggler
The AURIX™lite Kit V2 supports debugging via 2 different channels:
On-board miniWiggler via the the microUSB X4
10-pin DAP Connector
2.3.1 USB Connector
The USB connector is used for connection to a PC. Via the USB it is possible to power the board, using the
ASCLIN0 as serial connection via USB and Debugging via DAS.
NOTE: Before connecting the board to the PC, make sure that the actual DAS software is installed on
the PC.
For actual DAS software please contact your local FAE.
The software can also be found on: DAS website
2.3.2 Serial Connection to PC
After the first connection of USB to a PC the needed driver will be installed automatically. During this there will
be created a new COM port on PC. This COM port can be used to communicate with the board via ASCLIN0 of
the device and ASCLIN4 (TC3X5 only) if R44 and R45 are assembled. Per default the ASCLIN0 is used on
P14.0 and P14.1 (e.g. Generic Bootstrap Loader). Because ASCLIN0 is used also for the Arduino pins, you can
use here also ASCLIN4 to use it in parallel, make sure that P14.0/P14.1 are not configured in this case.

AURIX™lite Kit V2
Hardware Description
Board Users Manual 12 Revision October, 2020
2.3.3 miniWiggler JDS
The miniWiggler JDS is a low cost debug interface which allows you access to the device via DAP. Make sure
that you have the latest DAS release. Debugging is possible via the DAS Server ‘UDAS‘. Please contact your
preferred debug vendor for support of DAS. If you have connected the board to the PC and there runs the DAS
server, then a working connection is visible via the green LED5 (ADBUS4). The status LED6 (ADBUS7/green) is
switched on/off through the DAS Server, depending on the used debugger (client).
IMPORTANT: Make sure that there is no or a tristated connection on the DAP connector if the LED5
(miniWiggler in use) is on.
2.4 Reset
The power on reset input pin (/PORST) of the AURIX™family is a bi-directional input/output intended for external
triggering of power-related resets. If the PORST pin remains asserted after a power event then the reset will be
extended until it is deasserted. This does not replace the ESR pins functional reset. An internal pull-up resistor
(2.2 kΩ) keeps the PORST# pin high during normal operation. A low level at this pin will force a hardware reset.
In case of a MCU internal reset the PORST# pin will drive a low signal.
A reset signal can be issued by
the on-board Reset Button (“RESET”)
the on-board miniWiggler via IC FT2232HL (IC1.27 –ACBUS1)
the on-board DAP connector (DAP.10)
the Arduino Power Header (X302.3, “/PORST”)
the pin header X1 (X1.30, “/PORST”)
An AURIX™ internal circuit always ensures a save Power-on-Reset. AURIX™ lite Kit V2 does not require any
additional external components to generate a reset signal during power-up. For more informations, please refer
to the datasheet or user manual of the assembled AURIX™ device.
2.5 CAN Transceiver
The AURIX™ lite Kit V2 provides a CAN interface via the CAN connector. The TLE9251V is the latest Infineon
high-speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial
applications. It is designed to fulfill the requirements of ISO 11898-2 (2016) physical layer specification and
respectively also the SAE standards J1939 and J2284. The CAN buses (signals CANH, CANL) are terminated
with by a 120 Ohm resistor. The transceiver is connected to the TriCore™ device. To use the CAN pins see
Table 5.
Table 5 CAN Signals and AURIX™Pin Mapping
Signal
Name
Pin No. at CAN Pin
Header
AURIX ™Pin, AURIX™Function
Ass. Reg./
I/O Line
CANH
1
-
-
CANL
2
-
-
CAN_TX
-
P20.8, CAN node 0 output
TXDCAN0
CAN_RX
-
P20.7, CAN node 0 input
RXDCAN0B
2.6 I2C Eeprom
The AURIX™ lite Kit V2 provide a 2 Kb I2C Serial EEPROM with Pre-Programmed EUI-48™ MAC ID
(Microchip 24AA02E48). The slave address of this EEPROM is fixed 0x50. The upper half of the array (80h-
FFh) is permanently write-protected. Write operations to this address range are inhibited. Read operations are
not affected. This upper half contains the preprogrammed EUI-48™ node address which can be used as MAC
ID for Ethernet. The other 128 bytes are writable and usable by the user.

AURIX™lite Kit V2
Hardware Description
Board Users Manual 13 Revision October, 2020
2.7 Ethernet
The AURIX™ lite Kit V2 provide a RJ45 connector (X5) for twisted pair ethernet connections.The board use a
DP83825I Low Power 10/100 Mbps Ethernet Physical Layer Transceiver from Texas Instruments as physical
interface device. For more information about the ethernet modul see AURIX™User’s Manual, about the PHY
see the DP83825I datasheet from TI website.
For the connection between AURIX™and PHY is used RMII.
For the MD connection (e.g. for PHY configuration) there is used P21.2 and P21.3.
2.8 Optional Cypress Semper™(Secure) Flash
The AURIX™ lite Kit V2 provide the possibility to assemble an external flash. Usable devices are Cypress
Semper™NOR Flash Device Family S25HL and Cypress Semper™Secure NOR Flash Device Family S35HL in
SOIC-16 package. For more information about the flashs please see https://www.cypress.com/products/semper-
nor-flash-memory and https://www.cypress.com/event/semper-secure-nor-flash-memories. If you assemble a
flash then assemble also the ceramic capacitor C64 with 100 nF (size 0603) and the resistor R67 with 0 Ω(size
0603). In case of use a Semper™Secure NOR Flash you can also assemble the resistor R67 with 0 Ω(size 0603)
to connect the interrupt output of the flash to the AURIX™pin P20.9 (SCU_REQ7 on TC3X5; SCU_REQ11 on
TC2X5). The AURIX™support only single SPI protocol, Dual and Quad SPI protocol is not possible.
The flash is connected to P22.0, P22.1, P22.3 (QSPI4 on TC3X5; QSPI3 on TC2X5). Pin P22.2 (Slave Select
Output 3 of QSPI4 on TC3X5; Slave Select Output 12 of QSPI3 on TC2X5) is used as slave select.
Please note that the used QSPI is shared with the optional F-RAM (see Optional F-RAM).
2.9 Optional F-RAM
The AURIX™ lite Kit V2 provide the possibility to assemble an external serial F-RAM. Usable devices are
Cypress F-RAM FM25VN10-G and Cypress F-RAM Serie CY15B in SOIC-8 package. For more information about
the F-RAMs please see https://www.cypress.com/products/f-ram-nonvolatile-ferroelectric-ram.
If you assemble F-RAM then assemble also the ceramic capacitor C65 with 100 nF (size 0603).
The F-RAM is connected to P22.0, P22.1, P22.3 (QSPI4 on TC3X5; QSPI3 on TC2X5). Pin P23.1 (Slave Select
Output 6 of QSPI4 on TC3X5; Slave Select Output 13 of QSPI3 on TC2X5) is used as slave select.
Unfortunately there is no connection on pin 3 (#WP) and pin 7 (#HOLD) of the F-RAM. Please check the datasheet
if the used F-RAM has internal weak pull-up connected or need an external connection to VDD. If external
connection is needed then make such a connection via wire wrap line.
Please note that the used QSPI is shared with the optional flash (see Optional Cypress Semper™(Secure) Flash).

AURIX™lite Kit V2
Hardware Description
Board Users Manual 14 Revision October, 2020
3 Configuration
3.1 Bootmode
Table 6 User Startup Modes 1)2)
HWCFG[5...3]
Type of Boot
R58
R57
R59
XX1
Start-up mode is selected by Boot Mode Index
X
X
NA
110
Internal Start from Flash
NA
NA
A
100
Alternate Boot Mode, Generic Bootstrap Loader on fail
(P14.0/P14.1)
A
NA
A
000
Generic Bootstrap Loader (P14.0/P14.1)
A
A
A
1) The shadowed line indicates the default setting.
2) ‘A’ means assembled, ‘NA’ means not assembled, ’x’ represents the don’t care state.
Please see also Table 8.
3.2 Config Signals
Table 7 Config Signals
Short
Name
Description
Comment
P14.6
HWCFG0 (LDO / DCDC)
Only with TC2X5, resistor R30 (4.7 kΩ/0603
imp) pulls signal against GND (DCDC) and is
assembled initially if board is using TC2X5.
P14.5
HWCFG1 (EVR33ON / EVR33OFF)
Resistor R31 (4.7 kΩ/0603 imp) pulls signal
against GND (EVR33OFF) and is assembled
initially.
P14.2
HWCFG2 (EVRCON / EVRCOFF)
Resistor R52 (4.7 kΩ/0603 imp) must be
assembled if R59 is assembled (GPIOs are set
to tri-state) and TC2X5 is used (TC3X5 has
internal pull-up).
P14.3
HWCFG3 (see boot configuration Table 6)
-
P10.5
HWCFG4 (see boot configuration Table 6)
-
P10.6
HWCFG5 (see boot configuration Table 6)
-
P14.4
HWCFG6 (GPIOs pull-up / tri-state)
Resistor R59 (4.7 kΩ/0603 imp) pulls signal
against GND (GPIOs in tri-state after reset) and
and is not assembled initially.

AURIX™lite Kit V2
Hardware Description
Board Users Manual 15 Revision October, 2020
3.3 Optional resistors
Some resistors/bridges enable/disable or changing functions of specific signals in Table 8.
To disable the signals, the resistors have to be removed. To enable, the resistor has to be assembled.
For example: Desoldering the intialy assembled resistor R33, disables the Potentiometer and the analog Signal
AN0 of the AURIX™, making it usable for other purposes.
Table 8 Signal mapping of the optional resistors
Resistor
Res.
Assembled
Signal
Size
(imperial)
Comment
R33
0 Ω
yes
AN0
0603
Disassemble to disable the potentiometer
R37
0 Ω
yes
XTAL2
0603
Serial resistor to reduce oscillator
amplitude if needed.
R39
0 Ω
no
+5V
0603
Assemble to connect 5V to Mikrobus and
Shield2Go connector
R59
4.7 kΩ
no
HWCFG6/P14.4
0603
Assemble to disable the internal pull-ups
with power on
R52
4.7 kΩ
No
HWCFG2/P14.2
0603
Assemble to enable the EVR13, only
needed with TC2X5 and R59 assembled
R53
4.7 kΩ
no
HWCFG3/P14.3
0603
Assemble to boot from BMI, only needed
with TC2X5 and R59 assembled
R56
4.7 kΩ
no
HWCFG3/P14.3
0603
Assemble to select boot from
HWCFG4/5, valid setting on P10.5/P10.6
needed
R54
4.7 kΩ
no
HWCFG4/P10.5
0603
Set HWCFG4 to high, only needed with
R56 assembled, not with R57
R55
4.7 kΩ
no
HWCFG5/P10.6
0603
Set HWCFG5 to high, only needed with
R56 assembled, not with R58
R57
4.7 kΩ
no
HWCFG4/P10.5
0603
Set HWCFG4 to low, only needed with
R56 assembled, not with R54
R58
4.7 kΩ
no
HWCFG5/P10.6
0603
Set HWCFG5 to low, only needed with
R56 assembled, not with R55
R44
0 Ω
no
P14.1, P00.12
0603
Assemble to use ASCLIN4 (P00.12)
instead of ASCLIN0 (P14.1) via USB,
only with TC3X5, P14.1 not usable in this
case
R45
0 Ω
no
P14.0, P00.9
0603
Assemble to use ASCLIN4 (P00.9)
instead of ASCLIN0 (P14.0) via USB,
only with TC3X5, P14.0 not usable in this
case

AURIX™lite Kit V2
Hardware Description
Board Users Manual 16 Revision October, 2020
4 Connector Pin Assignment
4.1 Pinout of X1 and X2 connectors
The pin headers X1 and X2 can be used to extend the evaluation board or to perform measurements on the
AURIX™TC3X5/TC2X5. Figure 5 shows the available GPIOs / signals at these pin headers. The pin table is also
printed onto the bottom side of the PCB.
Pin Header X1
Pin Header X2
GND
1
2
+3V3
GND
1
2
VDD_USB
P33.11
3
4
P33.12
P00.0
3
4
P00.1
P33.13
5
6
P32.41)
P00.2
5
6
P00.3
P23.1
7
8
P23.0
LED2
P00.6
7
8
P00.5
LED1
P23.3
9
10
P23.2
P00.8
9
10
P00.7
Button1
RST_S2G2
P23.5
11
12
P23.4
RST_S2G1
P00.10
11
12
P00.9
P22.1
13
14
P22.0
P00.12
13
14
P00.11
P21.0
15
16
P22.2
VAREF1
15
16
AN47
MDC
P21.2
17
18
P22.3
AN46
17
18
AN45
P21.4
19
20
P21.3
MDIO
AN44
19
20
AN7
SPICLK_S2G
P20.10
21
22
P21.5
AN6
21
22
AN5
TXD_S2G2
P20.0
23
24
P20.1
AN4
23
24
AN3
RXD_S2G2
P20.3
25
26
/ESR1
ESR1
AN2
25
26
AN1
ESR0
/ESR0
27
28
P20.14
MOSI_S2G
Potentiometer
AN0
27
28
P33.0
P15.5
29
30
/PORST
Reset
P33.1
29
30
P33.2
P15.4
31
32
P11.12
CLK50
P33.3
31
32
P33.4
CRS_DV
P11.11
33
34
P11.10
RX_D0
P33.5
33
34
P33.6
RX_D1
P11.9
35
36
P11.6
TX_EN
P33.7
35
36
P33.8
RXD_S2G1
TX_D0
P11.3
37
38
P11.2
TX_D1
TXD_S2G1
P33.9
37
38
P33.10
VDD_USB
39
40
GND
+3V3
39
40
GND
Figure 5 Signal mapping of the pin headers X1 and X2
Note: 1) Different signal compared with AURIX™ TC275 lite Kit V1.x

AURIX™lite Kit V2
Hardware Description
Board Users Manual 17 Revision October, 2020
4.2 Shield2Go and MikroBus™Pinout
The pin connectors for the Shield2Go Connectors 1 and 2 and the mikroBus™can be used to extend the
evaluation board or to perform measurements on the AURIX™TC3X5/TC2X5. Figure 6 shows the available
signals at these connectors. The pin table is also printed onto the top and bottom side of the AURIX™lite Kit V2.
Shield2Go Connector 1
Shield2Go Connector 2
AURIX
™Pins
AURIX™
Pins
AURIX™
Pins
AURIX
™Pins
1
+5V
5V
1
+5V
5V
2
AN16
AN1
RX
P33.8
10
2
AN18
AN1
RX
P20.3
10
3
AN17
AN2
TX
P33.9
11
3
AN19
AN2
TX
P20.0
11
4
P13.22)
SDA
RST/GPIO2
P23.41)
12
4
P13.22)
SDA
RST/GPIO2
P23.51)
12
5
P13.12)
SCL
GPIO1
P32.2
13
5
P13.12)
SCL
GPIO1
P32.3
13
6
GND
GND
CS
P20.131)
14
6
GND
GND
CS
P20.101)
14
7
+3V3
3V3
SCLK
P20.111)
15
7
+3V3
3V3
SLCK
P20.111)
15
8
P00.4
INT/GPIO3
MOSI
P20.141)
16
8
P10.8
INT/GPIO3
MOSI
P20.141)
16
9
P14.91)
PWM/GPIO4
MISO
P20.121)
17
9
P14.101)
PWM/GPIO4
MISO
P20.121)
17
mikroBus™Connector
1
AN26
AN
PWM
P2.8
16
2
P10.6
RST
INT
P10.7
15
3
P14.71)
CS
RX
P15.1
14
4
P15.81)
SCK
TX
P15.0
13
5
P15.71)
MISO
SCL
P13.12)
12
6
P15.61)
MOSI
SDA
P13.22)
11
7
+3V3
3.3V
5V
+5V
10
8
GND
GND
GND
GND
9

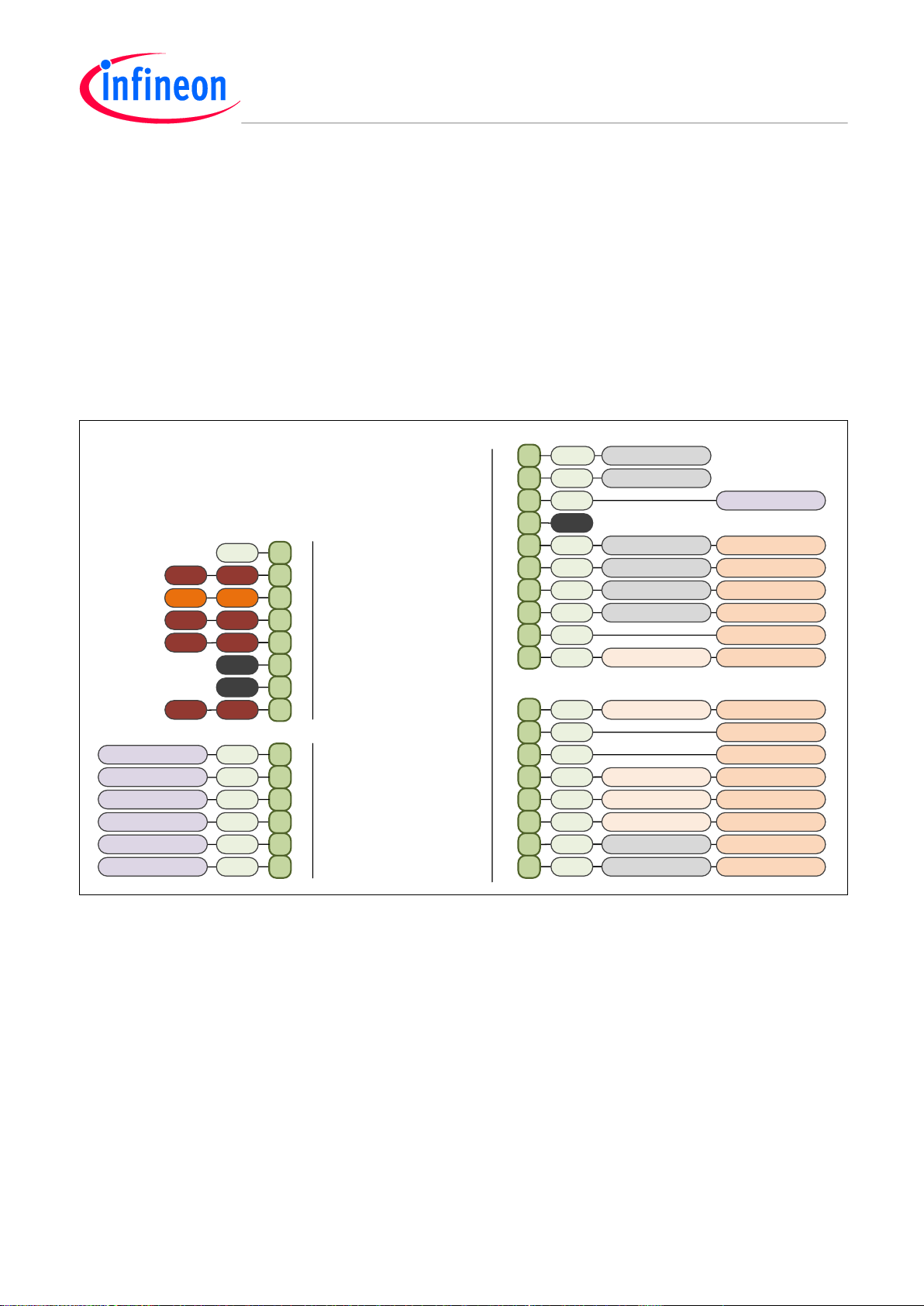

Figure 6 Signal mapping of the pin headers for Mikrobus and Shield2Go Connector 1 and 2
Note: 1) Different signal compared with AURIX™ TC275 lite Kit V1.x
2) The I2C buses SCL and SDA are shared on the Shield2GOs, mikroBus™, Arduino connectors and the I2C eeprom.

AURIX™lite Kit V2
Hardware Description
Board Users Manual 18 Revision October, 2020
4.3 Arduino Compatible Connector
The mapping of GPIOs and AURIX™pin functions to Arduino compatible functions can be found in Figure 6. The
Arduino compatible connector supports
SPI interface (SPI_xxx)
I2C interface (I2C_xxx)
UART interface (UART_xxx)
PWM signal outputs (PWM0-13)
ADC input (ADC0-5)
Interrupt input (INT0-1)
Note that all pins are cabable of offering more functions than mentioned in Figure 6. For more information about
all pin functions, we want to refer you to the corresponding datasheet.
10
9I2C_SDA: I2C0_SDA0
I2C_SCL: I2C0_SCL0
8VAREF AREF: VAREF2/VAREF1
7GND
6P10.2 SPI_CLK: QSPI1.SLK1
P10.1 SPI_MISO: QSPI1.MRST1A
4P10.3 SPI_MOSI: QSPI1.MTSR1 PWM11: GTM.TOUT105
3P10.5 SPI_CS: QSPI1.SLSO19 PWM10: GTM.TOUT107
2P02.7
1P02.6
8P02.4 IO1: P02_IN.P4 / P02_OUT.P4
7P02.5
6P02.3
4P02.1 INT1: ERS2.REQ14 (ERU)
5P10.4
3P02.0
2P15.2
1P15.3
1
3
2
4
P40.6
5
6
P40.7
P40.8
ADC3: AN36 / VADCG4.4
ADC2: AN37 / VADCG4.5
ADC1: AN38 / VADCG4.6
ADC0: AN39 / VADCG4.7 P40.9
7
GND
GND
+5V
3.3V
N.C.
RESET
IOREF
VIN 8
4
6
5
1
2
3
(Top View)
ANALOG IN
POWER
DIGITAL
5
ADC5: AN25 / VADCG3.1
ADC4: AN24 / VADCCG3.0
SPI - Master Mode
PWM4: GTM.TOUT106
PWM7: GTM.TOUT4 /
CCU60.CC62
PWM6: GTM.TOUT5 /
CCU60.COUT62
PWM5: GTM.TOUT3 /
CCU60.COUT61
PWM3: GTM.TOUT1 /
CCU60.COUT60
INT0: ERS3.REQ6 (ERU)
IO0: P10_IN.P4 / P10_OUT.P4
UART_TXD: ASCLIN0.ATX0
UART_RXD: ASLIN0.ARX0B
IO2: P02_IN.P / P02_OUT.P6
X301
X302
X303 X304
PWM12: GTM.TOUT103
PWM13: GTM.TOUT104
PWM2: GTM.TOUT0 /
CCU60.CC60
PWM1: GTM.TOUT73
PWM0: GTM.TOUT74
PWM9: GTM.TOUT7 /
CCU60.CC61
PWM8: GTM.TOUT6 /
CCU60.CC60
VIN
/PORST
+3V3
+5V
VEXT/3.3V
P13.1
P13.2
P40.0
P40.1
Figure 7 Mapping of Arduino Functions to AURIX™Pin Functions
The AURIX™lite Kit V2 works with 3.3 V logic levels. Therefore, any board that works with 5 V logic levels,
cannot be used.
Analog input signals ADC0-5 are limited to a voltage which is smaller or equal than VAREF with
VAREF = VDDM = 3.3 V. Primarily, ADC0 to ADC5 should be used as analog input, because there is no additional
circuit connected to these pins. Parallel operation of I2C and ADC4 / ADC5 is possible, because they don’t share
anymore the same pins at the Arduino connector X301 and X303 as on previous AURIX™lite Kit V1.

AURIX™lite Kit V2
Hardware Description
Board Users Manual 19 Revision October, 2020
4.4 Infineon DAP Debug Connector (10-pin)
Infineon’s 10-pin Device Access Port Debug Connector (DAP) is a two-wire tool access port for microcontrollers
and similar devices. It allows robust high speed connections over a long cable for automotive applications. The
pin assignment of the DAP Debug Connector is shown in Table 9. The board comes with a DAP connector. You
can connect a DAP hardware here. If you use this connector make sure that the miniWiggler JDS is not activ
(LED5 is off). For more information, we refer you to the DAP Connector Manual.
Table 9 Pin Assignment of the DAP Debug Connector
Pin
Name
AURIX™Pin
Direction
Description
1
VREF
VEXT
O
Supply voltage from the target system. The voltage has to be
strong enough to supply the target side of the level shifters within
the tool hardware up to about 20 MHz DAP operating frequency.
The required supply current is in the range of 5 mA, mainly
caused by signal switching. It can be reduced by lowering
frequency and capacitance. Beyond 20 MHz the tool hardware
has to supply the level shifter from another source and use this
pin just as a voltage reference
2
DAP1
TMS
IO
DAP: Data pin.
SPD
IO
SPD: Data pin.
UART
IO
Single-wire UART. Serial communication interface (e.g. used for
Bootstrap Loader BSL).
3
GND
GND
Recommended pin for signal return of DAP1 for high frequency
impedance matching.
4
DAP0
TCK
I
DAP: Clock.
SUP
I
SPD: Optional user pin value for feedback into the target system.
Otherwise reserved
5
GND
GND
Recommended pin for signal return of DAP0 for high frequency
impedance matching.
6
DAP2
P21.7
IO
DAP: Optional second data pin.
USER0
IO/O
Generic signal that can be used for non specified functions.
7
KEY (GND
in cable)
GND
-
If the recommended connector with keying shroud is not used,
this pin provides another option to enforce polarization. In that
instance this pin is removed from the target connector and the
associated jack in the cable connector closed with a plastic pin for
example.
8
DAP3
/TRST
IO
DAP: Optional third data pin.
USER1
IO/I
Generic signal that can be used for non-specified functions.
(DAPEN)
I
Optional indicator that the tool is connected. This can be used to
enable the DAP interface of the device
9
GND
GND
Supply ground.
10
RESET
/PORST
IO
Target reset signal. Open drain active low signal. May be used bi-
directionally to drive or sense the target reset signal. Usually
driven by the tool to reset the target system. The target system is
responsible for providing a pull-up to VREF on this signal to
establish a logic one. The resistor shall not have a value less than
1 kOhms.

AURIX™lite Kit V2
Hardware Description
Board Users Manual 20 Revision October, 2020
5 Schematics and Placement
Figure 8 Schematic: Project Overview
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
D D
C C
B B
A A
1 5
16.10.2020 13:15:09Date: Sheet of
Time:
© Infineon Technologies AG 2020. All Rights Reserved.
Author: H.D.
01_Revision_History.SchDoc
Infineon TechnologiesAG Infineon Technologies AG
Am Campeon 1-15 - 85579 Neubiberg - Germany
V2.0
Title
Size: Rev.
A3 Document Name
01_Revision_History.SchDoc
Rel. H.D.
Variant
AURIX™ Lite Kit V2 [No Variations] Approved <Appr.>
SVN Revision: Not in version control
AURIX™ Lite Kit V2
V2.0
07/2020
Infineon Technologies AG
Infineon Technologies AG
Am Campeon 1-15 - 85579 Neubiberg - Germany
THE INFORMATION GIVEN IN THIS DOCUMENT IS GIVEN FOR ILLUSTRATING PURPOSES ONLY. THE RECIPIENT OF THIS DOCUMENT MUSTVERIFYANY FUNCTION DESCRIBED HEREIN IN THE
REALAPPLICATION. INFINEON TECHNOLOGIES HEREBY DISCLAIMS ANYAND ALL WARRANTIES AND LIABILITIES OFANY KIND (INCLUDING WITHOUT LIMITATION
WARRANTIES OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS OF ANYTHIRD PARTY) WITH RESPECTTO ANYAND ALL INFORMATION GIVEN IN THIS DOCUMENT.
LEGAL DISCLAIMER
01
Page
Cover Sheet / Revision History
Schematics Page Name
03
02
Index
04
OCDS
05
06
07
08
09
10
Revision History
Author DescriptionDateRev. Page(s)Rel.
[No Variations]
V2.0 First new design for A2G06/2020 H.D.
Power_a_Connector
CPU
Ethernet_Memory_Expansion
