InfiRay Tube SE Series User manual

InfiRay Outdoor  Tube SE Series User Manual www.infirayoutdoor.com

InfiRay Outdoor  Tube SE Series User Manual www.infirayoutdoor.com
1
Important Safety Information
Environmental influences
-Never point the lens of the device directly at intense heat sources such
as the sun or laser equipment. The objective lens and eyepiece can
function as a burning glass and damage the interior components.
-Avoid touching the metal surface (cooling fins) after exposure to
sunlight or cold.
Risk of swallowing
Caution: Do not place this device in the hands of small children. Incorrect
handling can cause small parts to come loose which may be swallowed.
Safety instructions for use
-Handle the device with care: rough handling can damage the internal
battery.
-Do not expose the device to fire or high temperatures.
-Always store the device in its carrying bag in a dry, well-ventilated
space.
-Do not expose your device to extreme temperatures lower than - 20°C
and higher than + 50°C.
-If the device has been damaged, send the device to our after-sales
service for repair.
User information on the disposal of electrical and electronic
devices (private households)
2012/19/EU (WEEE directive): Products marked with
this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more
information see: www.recyclethis.info.
For business customers within the European Union
Please contact your dealer or supplier regarding the disposal of electrical
and electronic devices. He will provide you with further information.

InfiRay Outdoor  Tube SE Series  User Manual www.infirayoutdoor.com
2
Information on disposal in other countries outside of the
European Union
This symbol is only applicable in the European Union. Please contact your
local authority or dealer if you wish to dispose of this product and ask for
a disposal option.
Intended use
The device is intended for displaying heat signatures during nature
observation, remote hunting observations and for civil use. This device is
not a toy for children.
Use the device only as described in this operating manual. The
manufacturer and the dealer accept no liability for damages which arise
due to non-intended or incorrect use.
Function test
-Before use, please ensure that your device has no visible damage.
-Test to see if the device displays a clear, undisturbed image.
-Check that the settings for the thermal imaging monocular are correct.
See the notes in the section Power On and Image Settings.
Installing/Removing the battery
The TUBE SE Series Thermal Imaging Scope is equipped with a built-in
a battery pack that cannot be removed.

InfiRay Outdoor  Tube SE Series  User Manual www.infirayoutdoor.com
3
1Specifications
Model
TL25 SE
TL35 SE
Detector Parameters
Type
Uncooled Vox
Resolution
384 × 288
Pixel Size, μm
12
NETD, mk
≤ 25
Frame Rate, Hz
50
Optical Characteristics
Objective Lens, mm
25
35
Field of View, º
10.5 × 7.4
7.5 × 5.3
Linear Field of View (H×V),
m@100m
18.4 ×13.0
13.2 × 9.3
Optical Magnification, ×
2.0
3.0
Digital Zoom, ×
1 ~ 4
1 ~ 3
Eye Relief, mm
50
Exit Pupil Diameter, mm
6
Diopter Adjustment, D
-5 ~ +4
Detection Range, m
(Target Size: 1.7m×0.5m,
P(n)=99%)
1300
1800
Display Parameters
Type
OLED
Resolution
1536×1080 (0.43”)
Power Supply
Battery
Built-in 18650 battery/3350mAh
Max. Operating Time
(t=22ºC), h*
11
External Power Supply
5V (Type C)
Physical Characteristics
Wi-Fi / APP
Support (InfiRay Outdoor)
Photo / Video Recording
Support
Recoil activated video
Support
MIC / Bluetooth
Support
Memory Capacity, GB
32
IP Rating
IP67
Operating Temperature, °C
-20 ~ +50
Weight, g
< 720
Dimension, mm
310 × 70 × 70
Connections and Compatibilities
Max. Recoil Power on
Rifled Weapon (Eo), Joules
6000
Compatible Mounts
25.4mm ring
The actual service time depends on the use frequency of functions like
Wi-Fi, video recording, etc.

InfiRay Outdoor  Tube SE Series  User Manual www.infirayoutdoor.com
4
➢Improvements may be made to the design and software of this product
to enhance its features without prior notice.
➢You can download this User Manual at our official website:
www.infirayoutdoor.com.
2Package
⚫TUBE SE Series Thermal Imaging Scope
⚫Eyeshade
⚫Picatinny rail clamp
⚫Portable bag
⚫Type-C cable
⚫Power adapter (for multiple countries)
⚫Lens cloth
⚫Heated target for zeroing
3Introduction
TUBE SE Series is an infrared scope for outdoor hunting. Designed
based on infrared thermal imaging principles, it requires no external light
sources during the day and at night, in all hard weather conditions (such
as rain, snow, fog, and haze). It can be used without being affected by
strong light and to observe even targets behind obstacles (such as
branches, grass, and shrubs).
TUBE SE Series has a built-in power supply solution for a long operation
duration, and can be widely used for hunting, observation, and
positioning in low visibility conditions.
TUBE SE Series adopts a 25.4mm standard pipe diameter that features
a smaller size and lighter weight, meeting the requirements of the
general clamp interface.
4Features
⚫12μm self-developed detector
⚫High image quality

InfiRay Outdoor  Tube SE Series  User Manual www.infirayoutdoor.com
5
⚫Low power consumption, long battery life
⚫Standard 25.4mm pipe diameter
⚫Long detection range
⚫50Hz frame rate
⚫Built-in 32GB memory space, supporting photographing and video
recording
⚫Built-in Wi-Fi module, supporting App connection
⚫Built-in compass and motion sensor
⚫Expandable laser rangefinder function, with a measuring range up to
999m
⚫PIP (picture-in-picture) function
⚫Pixel defect correction
⚫Convenient operation interface

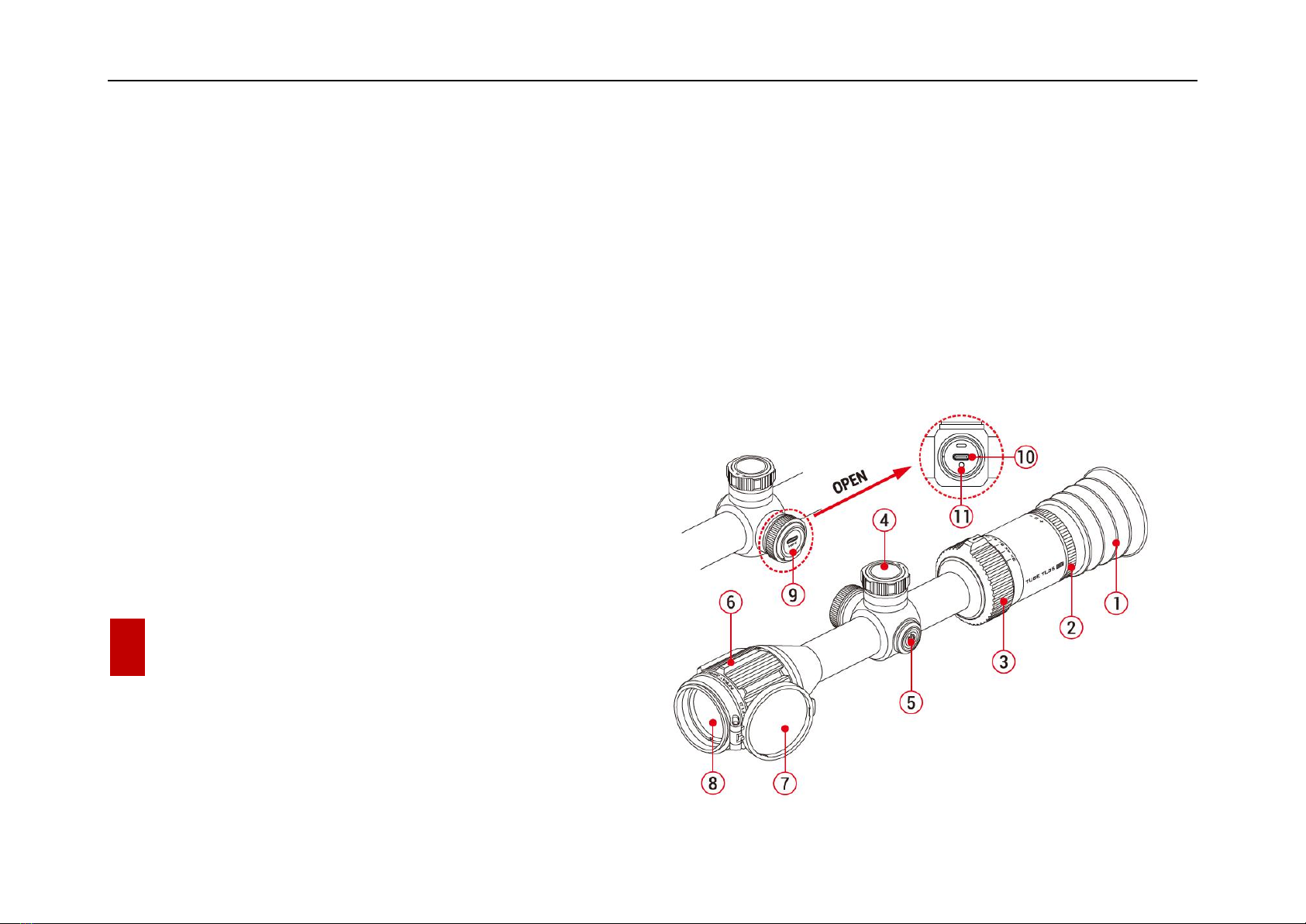

5Components and Controls
1. Eyeshade
2. Eyepiece diopter adjustment ring
3. Zoom handwheel
4. Controller
5. Power button
6. Lens focus ring
7. Lens cap
8. Objective lens
9. USB rubber cover
10. Type C port
11. LED indicator

InfiRay Outdoor  Tube SE Series User Manual www.infirayoutdoor.com
1
6Button Operation
Button
Current Status
Short Press
Long Press
Rotate
Power button
Powered off
——
Power on the device
——
Home screen
Image calibration
Power off / Standby the device
——
Standby mode
Wake up the device
——
——
Single ranging mode
when the laser
rangefinder is connected
Perform single ranging
——
——
Main menu interface
Return to the upper menu
without saving
——
——
Defective pixel
calibration interface
Add / Delete defective pixels
——
——
Zoom
handwheel
——
——
——
Adjust the image magnification
(clockwise - zoom in;
counterclockwise - zoom out)
Power button
+ Controller
Home screen
Switch ranging mode between
continuous ranging and single
ranging when the laser
rangefinder is connected
For 2s: turn on / off the laser
rangefinder function
For 8s: active / hide the reticle
and its functions
——
Zeroing interface
——
Freeze the image
——
Controller
Home screen
One time: enter the shortcut
For more than 2s: enter the
Clockwise - switch the image mode

InfiRay Outdoor  Tube SE Series  User Manual www.infirayoutdoor.com
2
menu interface
Twice: take a photo
main menu interface
Counterclockwise - adjust the
image brightness
Shortcut menu interface
Adjust parameters of the
function
Save and back to the upper
interface
Switch menu options
Main menu interface
Confirm selection / Enter the
submenu
Pixel defect calibration /
Zeroing / Laser
calibration interface
Switch the moving direction
Clockwise - move the reticle
rightward / downward
Counterclockwise - move the reticle
leftward / upward

InfiRay Outdoor  Tube SE Series User Manual www.infirayoutdoor.com
3
7Charging the Built-in Battery
TUBE SE Series is built in a rechargeable 18650 battery pack, with
battery power for up to 11 hours of normal operating time. The battery
should be fully charged before the first use.
⚫Open the USB rubber cover (9) to reveal the Type C port (10).
⚫Plug the Type C end of the supplied USB cable (12) into the Type
C port (10) of the TUBE SE Series.
⚫Connect the other end of the USB cable to the power adapter (13),
and insert the power adapter (13) into a 100-240V power socket
(14) for charging.
⚫When charging, a lightning charging icon appears on the battery
icon , and the LED indicator (11) on the device is red. When
the LED indicator (11) turns green, it indicates that the charging is
completed.
⚫During use, if the battery icon turns red , it indicates that the
battery level is low. Please charge the battery in time to avoid
reducing the service life of the device due to the over discharge of
the battery.
Safety Precautions
⚫When charging, please use
the 5V2A power adapter
compatible with the device.
Using any other type of
power adapter may cause
irreversible damage to the
battery or the adapter itself.
⚫If the device is not used for a
long time, the battery should
be partially charged, not fully
charged or discharged.
⚫Do not charge the device immediately after it is moved to a warm
environment from a cold environment. Wait for 30 to 40 minutes for
preheating.
⚫Do not use the charger if it is modified or damaged.
⚫The device should be charged at a temperature of 0°C to +40°C.
Otherwise, the battery life will be significantly reduced.
⚫When charging, please do not leave the battery unattended.

InfiRay Outdoor  Tube SE Series  User Manual www.infirayoutdoor.com
4
⚫Do not connect the battery to the power supply for more than 24
hours after it is already fully charged.
⚫It is not recommended to connect third-party devices that consume
more energy than the allowed value.
⚫The device is equipped with a short circuit protection system, but
conditions that may lead to a short circuit should be avoided.
⚫Use the device at the recommended operating temperature from -
20°C to +50°C. Do not use the device beyond this temperature
range or it may shorten the battery life.
⚫When the device is used under sub-zero temperature, the battery
capacity drops. This is normal and does not indicate a defect.
8Mounting and Usage
Mounting on the weapon
To ensure aiming accuracy, please fix TUBE SE Series at a proper
position on the weapon.
⚫TUBE SE Series needs to be fixed with an adapter clamp, such as
a simple Picatinny rail clamp provided in the package. TUBE SE
Series is designed with a 25.4mm diameter pipe and can be used
with a standard clamp for 25.4mm diameter pipes. Proper tools can
be used to mount TUBE SE Series according to the supplier's
installation suggestions and steps.
⚫The mounting position should be adjusted according to the
distance between the eye and eyepiece (eye relief) as specified in
the specifications and the sense of use and comfort. If you fail to
follow this suggestion, the eyepiece may hurt the shooter during
the shooting.
⚫It is recommended to mount the scope as low as possible, but keep
it away from the barrel or other devices.
⚫It is recommended to use a torque wrench to tighten the screws of
the mounting clamp, so as to avoid damaging the scope body due
to being over-tightened, and the recommended torque shall not
exceed 2.5Nm.
⚫When the scope is used for hunting, please carry out the zeroing
operation first according to the instructions as specified in Section
Zeroing in this manual.

InfiRay Outdoor  Tube SE Series  User Manual www.infirayoutdoor.com
5
⚫When using the scope at night or in a dark environment, it is
recommended to use an eyeshade to avoid being found.
Power-on and Settings
⚫Remove the lens cap (7).
⚫Press and hold the Power button (5) for 2s to start the device, and
wait for several seconds to enter the home screen to complete the
startup.
Adjust the clarity of icons on the display by rotating the eyepiece
diopter adjustment ring (2).
⚫Rotate the lens focus ring (6) to adjust the focal length;
⚫Set the image mode: On the home screen, turn the Controller (4)
clockwise to set the palette mode, of which the options include
white hot - black hot - pseudo-color - red hot - target highlighting in
order.
⚫Set the screen brightness: On the home screen, turn the
Controller (4) counterclockwise to adjust the display brightness
from level 1 to 5. A short prompt of the corresponding brightness
icon will appear at the bottom of the display.
⚫Set the image sharpness: On the home screen, short press the
Controller (4) to enter the shortcut menu to set the image
sharpness.
⚫Image calibration: On the home screen, short press the Power
button (5) to perform the image calibration, when performing
background correction, please close the lens cap (7) first. The
calibration mode can be set in the main menu.
⚫On the home screen, press and hold the Controller (4) for more
than 3s to enter the main menu interface for more functions.

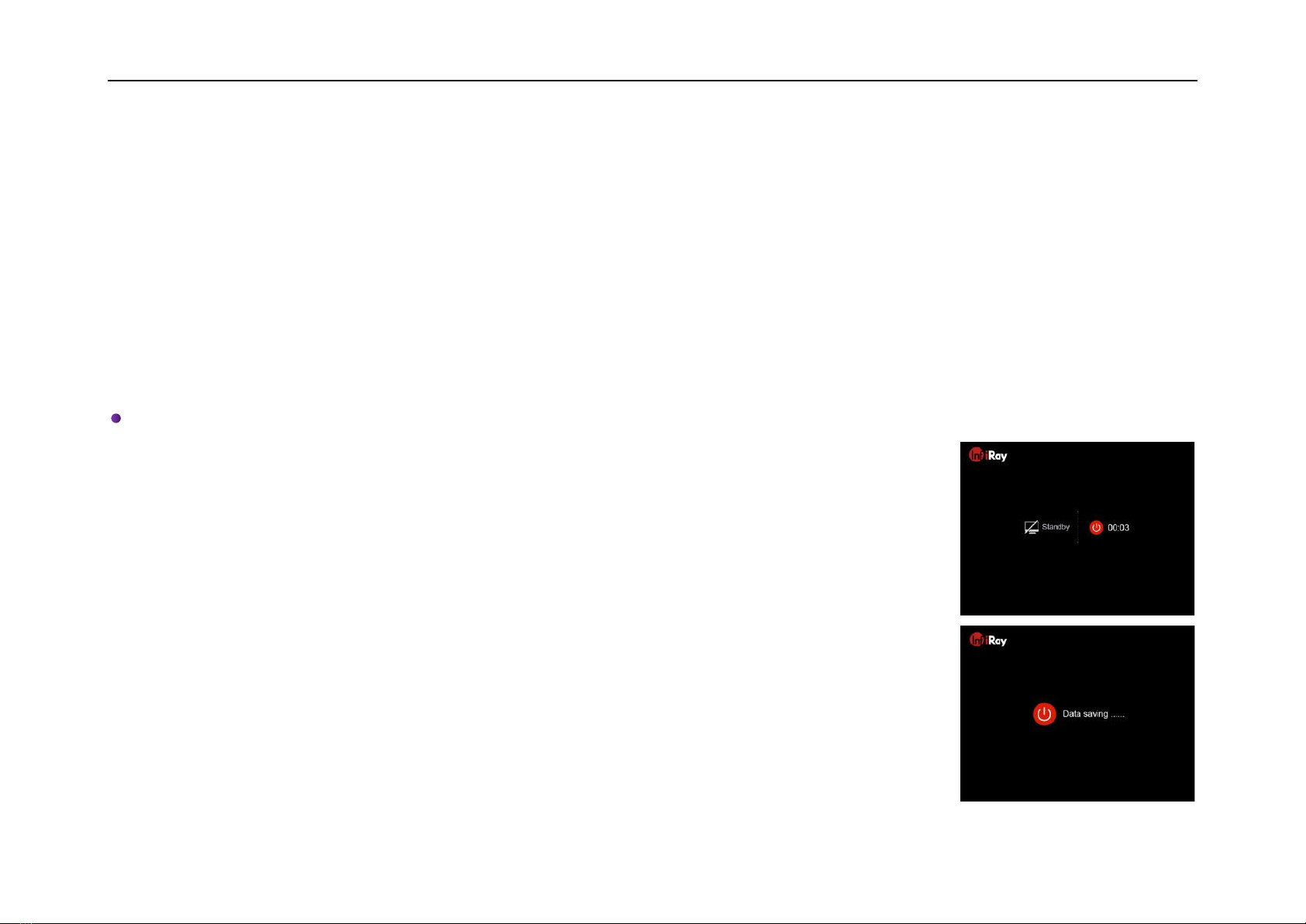

⚫After using, press and hold the
Power button (5) for 3 seconds
to enter the power-off interface.
Release the button until the
countdown icon turns from 3 to
0, then a "Data saving ..."
prompt interface is displayed.
When the data is saved, the
display turns black and the
device is off. When the device

InfiRay Outdoor  Tube SE Series  User Manual www.infirayoutdoor.com
6
is powering off and saving data, do not disconnect it from its
power source. Otherwise, the data cannot be saved.
⚫When releasing the button during the countdown, the device will
enter the standby mode. Press the Power button (5) again to
wake up the device.
9Status Bar
The status bar is located at the top of the image interface, and
displays the information related to the current operating status of the
device.
1. Current image mode ( : white hot; : black hot; : red
hot; : target highlight; : pseudo-color)
2. Current zeroing profile and zeroing distance (e.g., A100m)
3. Ultraclear mode: ( : the Ultraclear mode is off; : the Ultraclear
mode is on)
4. Current visual magnification (TL35 SE: 3.0× to 9.0× adjustable,
TL25 SE: 2.0× to 8.0× adjustable, with an interval of 1.0)
5. Calibration mode (A: Auto Calibration; M: Manual Calibration; B:
Background Calibration). In mode A, the device automatically
performs shutter correction at a certain interval.
6. Compass (displayed when the compass is on)
7. Standby status and time (off by default)
8. Bluetooth status ( : Bluetooth is off. : Bluetooth is on but not
successfully connected to the laser rangefinder module. :
Bluetooth is on and successfully connected to the laser rangefinder
module, the battery icon shows the power status of the
rangefinder module)
9. Wi-Fi status ( : Wi-Fi OFF; : Wi-Fi ON)
10.Clock (Set it in the main menu or in the InfiRay Outdoor App)
11.Power status of the built-in battery pack
Icon
Battery Status
The power is more than 20% and sufficient.
The power is between 10% and 20%.
The power is less than 10%.
The battery is in charging.

InfiRay Outdoor  Tube SE Series  User Manual www.infirayoutdoor.com
7
10 Zeroing
TUBE SE Series uses the “freezing” zeroing method. It is better to
perform zeroing in environments within the operating temperature
range of the scope.
⚫Fix the scope on the weapon with a frock clamp (For details, refer
to Section 8 Mounting and Usage).
⚫When using the scope for the first time, press and hold the
Controller (4) + Power button (5) for more than 8s to enable the
hidden reticle and zeroing functions.
⚫Select a target at a certain distance, such as 100m.
⚫Adjust the scope according to the operating instructions as
described in Section 8 Power-on and Settings.
⚫Select the zeroing profile (refer to Main Menu - Zeroing Profile).
⚫Press and hold the Controller (4) to enter the main menu interface.
⚫Rotate the Controller (4) to select Reset Zeroing Distance item
( ). Briefly press the Controller (4) to enter the submenu.
⚫According to the selected target distance, select or add the new
zeroing distance (refer to Main Menu - Reset Zeroing Distance).

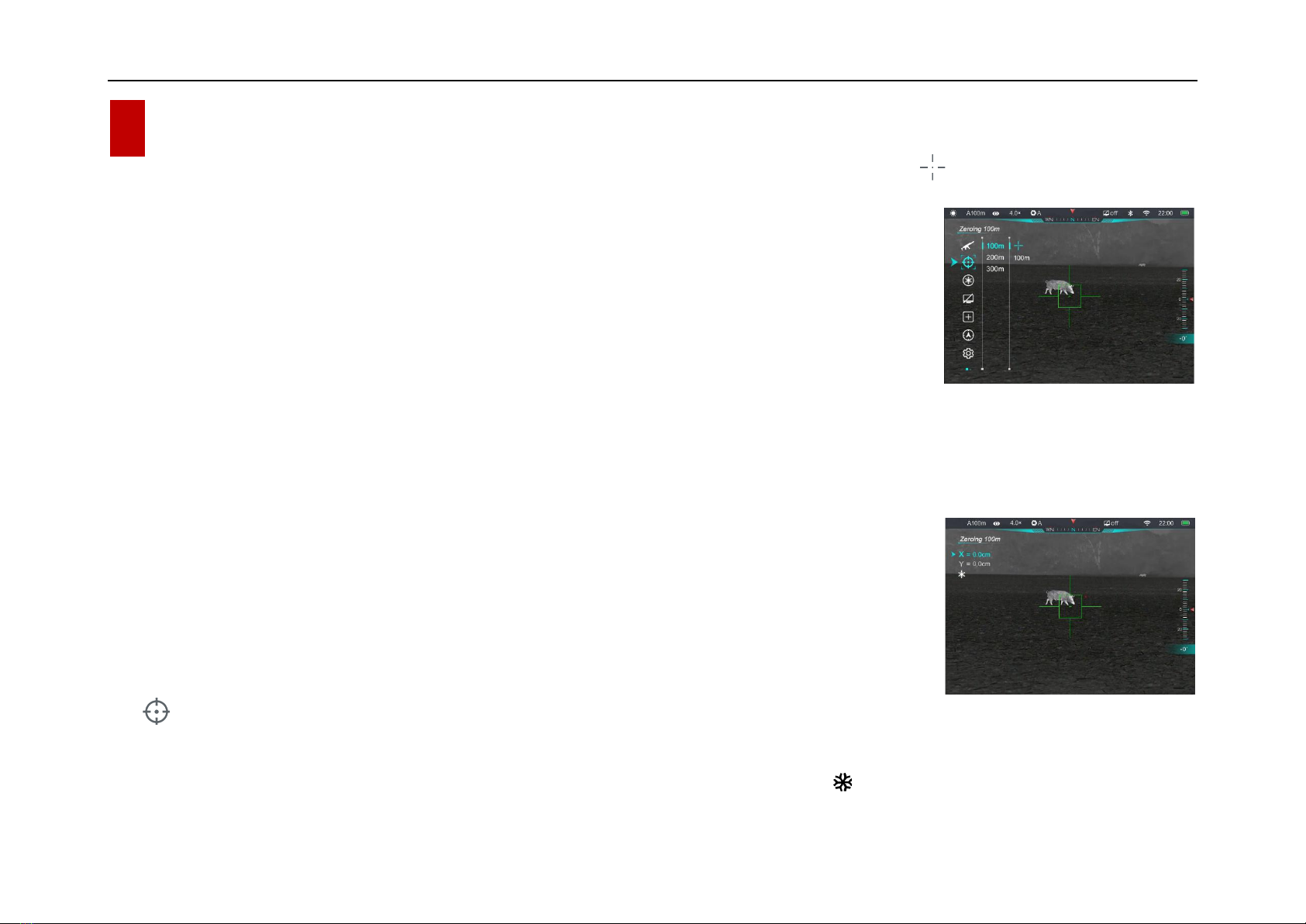

⚫After selecting the zeroing distance, rotate the Controller (4) to
select the Zeroing function ( ), and press the Controller (4) to
enter zeroing interface. The
coordinate positions of the
reticle (X-axis and Y-axis) are
displayed in the upper left
corner of the screen.
⚫Aim and shoot at the target.
⚫Observe the position of the actual point of impact, and assume that
the red mark × in the figure on the right is the position of the point of
impact (This mark is only for illustration. It should actually be a
bullet hole).
⚫If the point of impact and the
aiming point (the center point
of the reticle) do not match,
keep the aiming position still,
and meanwhile, press and hold
the Controller (4) + Power button (5) at the same time until a snow-
like freezing icon appears on the left of the screen, and the image

InfiRay Outdoor  Tube SE Series  User Manual www.infirayoutdoor.com
8
is frozen.

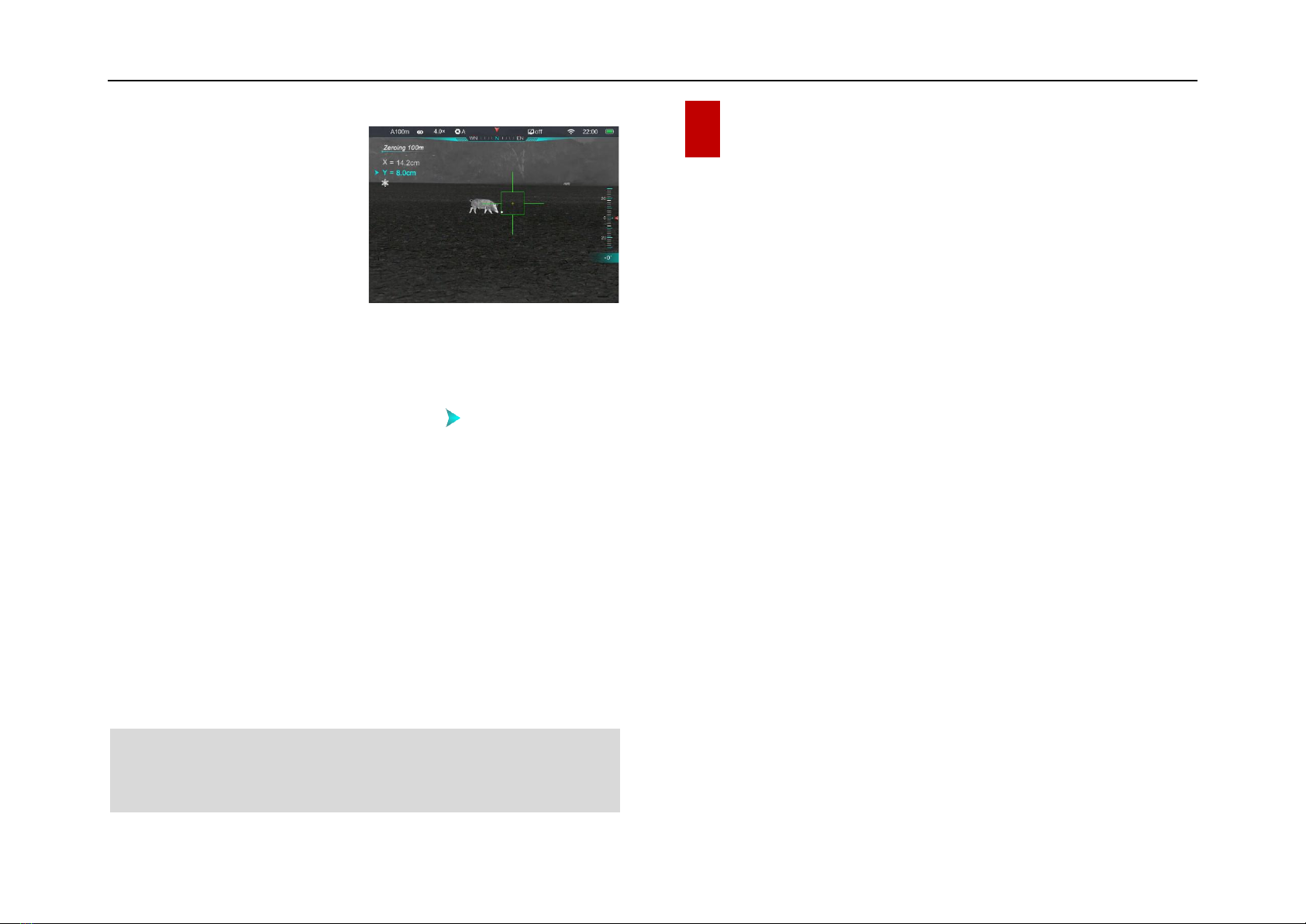

⚫Rotate the Controller (4) to
move the reticle until the reticle
matches the point of impact.
Rotate clockwise to move the
reticle right or down, and rotate
anticlockwise to move the reticle left or up.
⚫Press the Controller (4) to switch the movement direction between
the X and Y. The position of the cursor indicates the current
selected option, with the icon turning blue.
⚫After moving the reticle, a little white dot appears on the screen,
indicating the position of the reticle before moving.
⚫After moving the reticle position to the actual point of impact, press
and hold the Controller (4) to save the reticle position and return to
the home screen.
⚫Repeat aiming and shooting, until the position of the point of impact
is consistent with that of the aiming point.
11 Calibration
When the image is degraded or uneven, it can be improved by
calibration. Calibration can balance the background temperature of the
detector and eliminate the defects in the image.
⚫On the home screen, short press the Power button (5) to perform
the image calibration.
⚫There are three calibration modes: Automatic calibration (A),
Manual calibration (M), and Background calibration (B), that can be
set in the main menu (refer to the Main Menu - Calibration).
⚫Automatic (A): Device will calibrate automatically according to the
software algorithm. There is no need to close the lens cover (the
internal shutter covers the sensor). Before automatic calibration,
there will be a 5 second countdown prompt behind the shutter icon
on the status bar, that can be to cancelled this calibration during
countdown with a short press of the Power button (5). In this
mode, user can also finish the calibration manually with a short
press of the Power button (5).
⚫Manual (M): In this mode, it needs to finish the shutter calibration
Note: After the zeroing position is set up, you can switch the option
through Zeroing Distance in the shortcut menu.

InfiRay Outdoor  Tube SE Series  User Manual www.infirayoutdoor.com
9
manually without closing the lens cap (the internal shutter covers
the sensor).
⚫Background (B): In this mode, the lens cap need be covered
before calibration. After short pressing the Power button (5), a
prompt ‘Cover lens during calibration’ will be displayed for 2s on
the home screen, then finish the background calibration after 2s.
⚫When the device is just started, no matter which calibration mode
is selected, the device will automatically and continuously perform
the shutter calibration.
12 Magnification and Digital Zoom
The TUBE SE Series supports to zoom the image for quickly increase
the basic magnification. The magnification rang is engraved on the
housing of the eyepiece near the Zoom handwheel (3).
⚫On the home screen, turn the Zoom handwheel (3) to align the
indication line of the Zoom handwheel (3) with the corresponding
magnification of the eyepiece to switch the magnification.
⚫The TL35 SE supports the magnification from 3.0 to 9.0, by which
the image can be magnified by 1 time to 3 times. The TL25 SE
supports the magnification from 2.0 to 8.0, by which the image can
be magnified by 1 time to 4 times.
⚫The magnification is displayed on the status bar of the display in
real time.
13 Photographing / Video Recording
TUBE SE Series is equipped with a 32GB built-in memory space,
which can be used for photographing and video recording. The photo
and video files will be named by time, so it is recommended to reset
the system date and time in the main menu before using (refers to
Main Menu - Settings - Date/Time), or synchronize the system date
and time in the InfiRay Outdoor application.
Photographing
⚫On the home screen, short press the Controller (4) twice to take a
photo. The image freezes for 0.5s, and the camera icon appears in
the upper left corner of the screen.

InfiRay Outdoor  Tube SE Series  User Manual www.infirayoutdoor.com
10
⚫Photos are stored in the internal memory space.

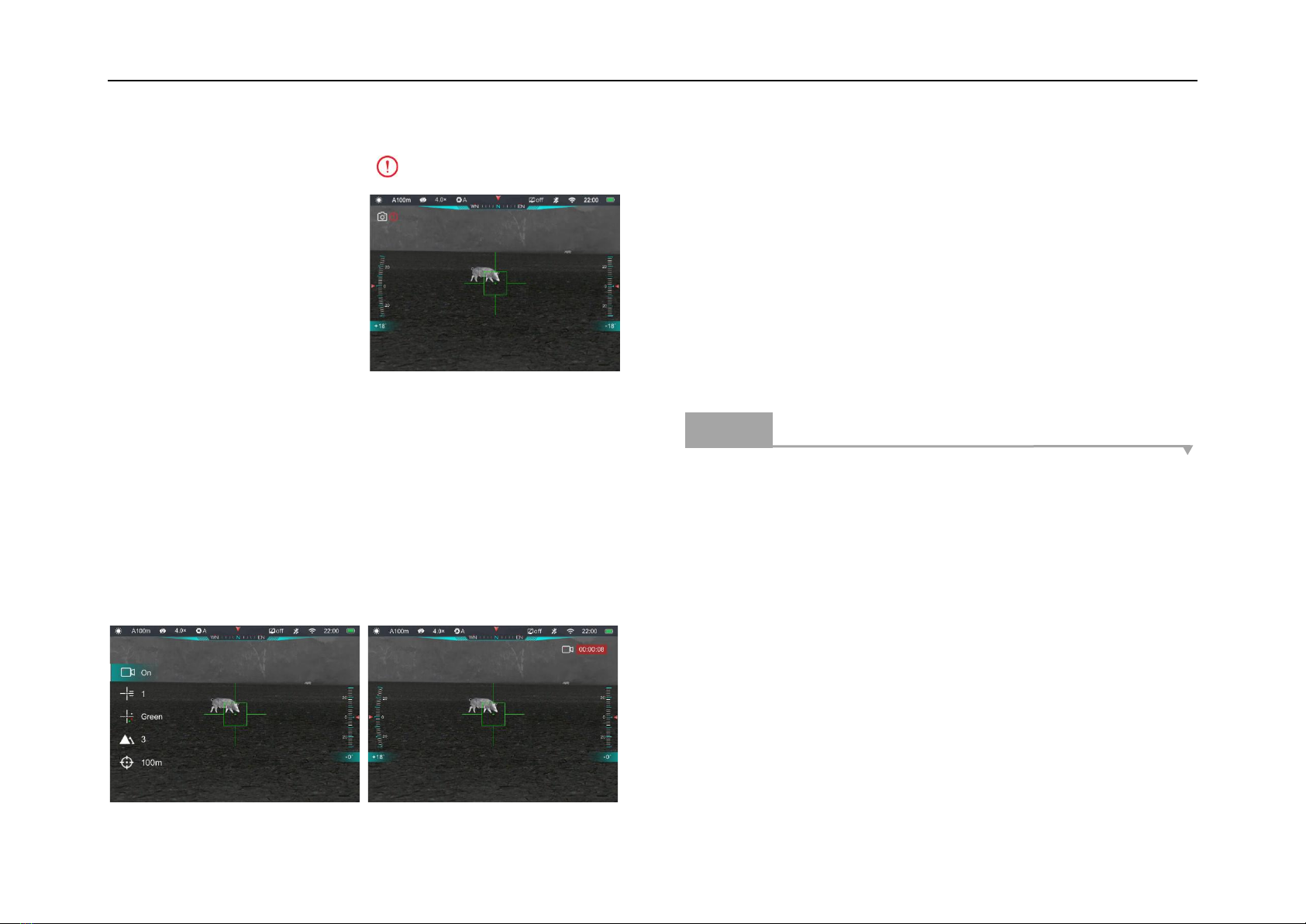

⚫When the exclamation mark icon appears on the right side of
the camera icon, it prompts
that the memory space is
insufficient. Check and
transfer your videos and
images to other media to free
up the space.
Video Recording
⚫On the home screen, briefly press the Controller (4) to open the
shortcut menu function.
⚫Rotate the Controller (4) to select recording option and press the
Controller (4) to turn on and start a video recording.
⚫The recording icon and prompt box showing the recording time
appear in the upper right corner of the display, with the time format
as 00:00:00 (hour: minute: second).
⚫During video recording, it can still take photos and operate the
menu.
⚫On the shortcut menu, select the video recording option and press
the Controller (4) again to turn off and save the video recording.
⚫All videos and photos will be saved in the built-in storage.
Note
-The maximum duration of a video recording file is 30 minutes. When
the duration is more than 30 minutes, the video will be automatically
recorded onto a new file.
-The images taken and the videos recorded are stored in the built-in
memory space in the format of IMG_HHMMSS.jpg (image) and
VID_HHMMSS.mp4 (video), with HHMMSS indicating hour / minute
/ second.
-The number of files is limited by the internal memory space of the
device. Check the remaining space regularly, and transfer your
videos and images to other media to free up the space on the

InfiRay Outdoor  Tube SE Series  User Manual www.infirayoutdoor.com
11
memory card.
Memory Access
When the device is powered on and connected to a computer, it will be
recognized by the computer as a flash memory card. Then, you can
access the memory of the device and copy images and videos.
Perform the following operations to copy images and videos:
⚫Connect the device to a computer through the USB cable.
⚫Power on the device.

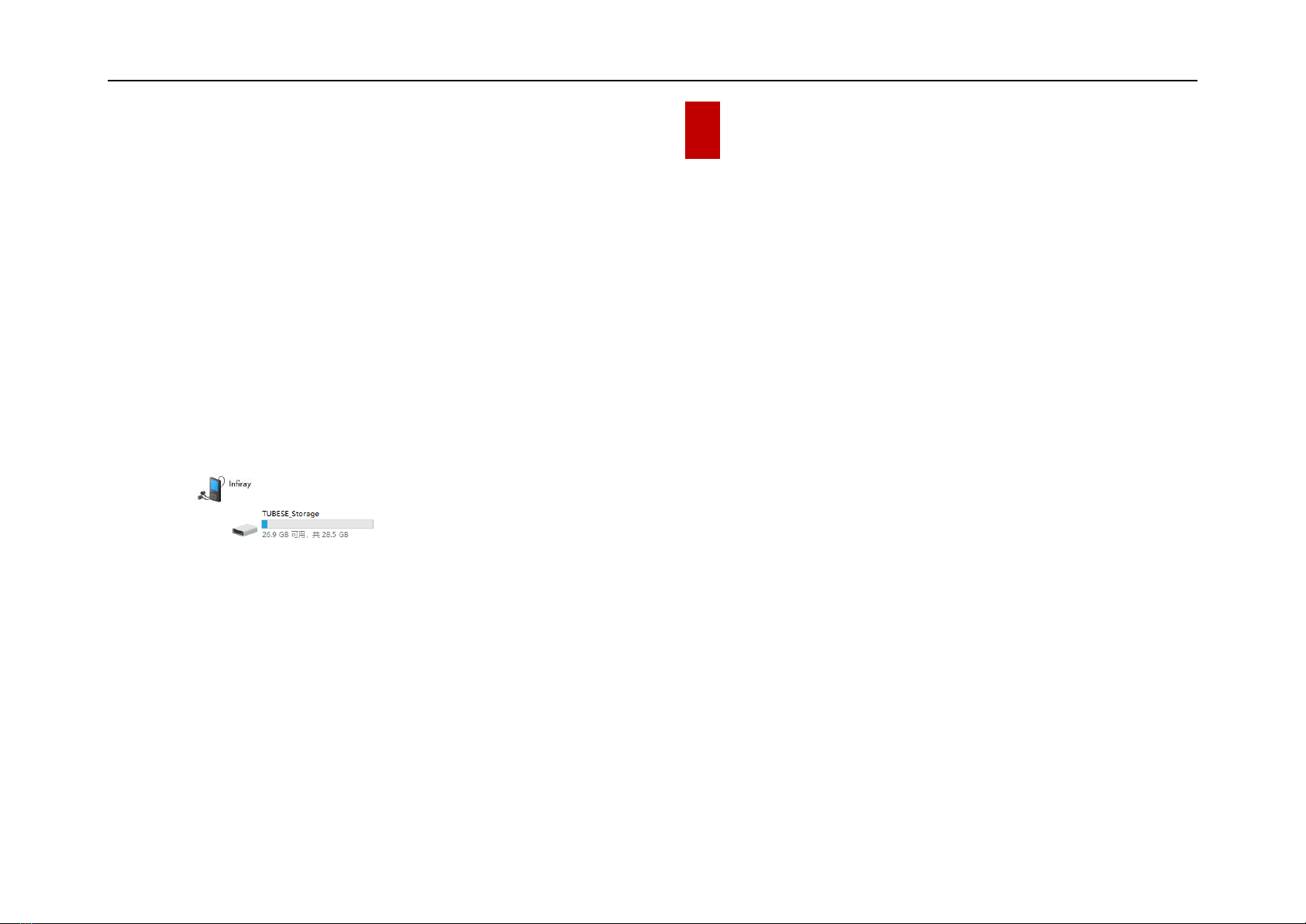

⚫Double-click My Computer - double-click to open the device named
“Infiray” , - double-click to open the device name “TUBE
SE Storage” to access the memory.
⚫There are different folders named by time in the format of xxxx
(year) xx (month) xx (day) in the memory.
⚫Recorded photos and videos in that day are saved in the
corresponding folders
⚫Select desired files or folders to copy or delete.
14 Laser Rangefinder (ILR-1200-1,
purchased separately)
TUBE SE Series supports external laser rangefinder modules (bought
separately).
For detailed description of the Installation and Usage of the laser
rangefinder module, please refer to the manual of the laser rangefinder
in its package.
Compared with stadiametric rangefinder, the laser rangefinder is more
accurate, with no need to find specific target objects.
⚫Press and hold the Power button on the rangefinder module for 3s
to turn on the rangefinder module. The red LED indicator on the
rangefinder module blinks before the module is connected with
TUBE.
⚫Long press the Controller (4) for more than 3s on the Tube SE
series to enter the main menu interface.
⚫Select the Bluetooth option, and make sure the Bluetooth is on.
⚫The laser rangefinder module will automatically connect with Tube
SE series.

InfiRay Outdoor  Tube SE Series  User Manual www.infirayoutdoor.com
12

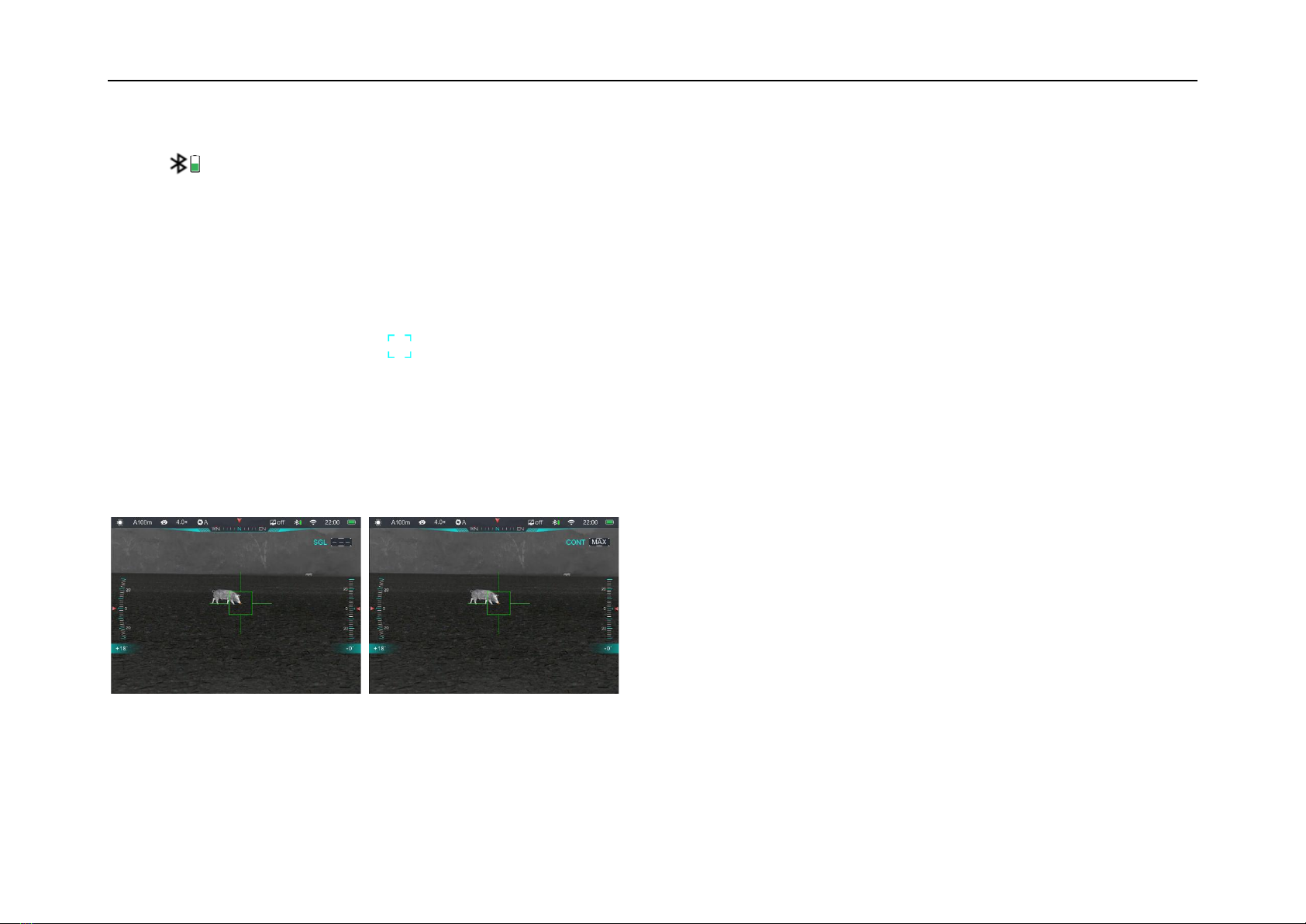

⚫When the battery icon appears on the right side of the Bluetooth
icon on the status bar, it means the Tube is successfully
connected with the laser rangefinder module. The LED indicator on
the laser rangefinder module turns off.
⚫Press and hold the Controller (4) + Power button (5) on the home
screen for 3s at the same time to turn on the laser rangefinder
function. A bule rangefinder cursor appears on the screen.
⚫Press the Power button on the rangefinder module twice to turn
on / off the laser indicator.
⚫There are two ranging modes for selection - continuous ranging
(CON) and single ranging (SGL).
⚫The default mode is the continuous ranging mode. Press the
Controller (4) + Power button (5) at the same time to switch the
ranging mode.
⚫In the continuous ranging mode, the ranging is in real time and
automatic without any operation.
⚫In the single ranging mode, you need to briefly press the Power
button (5) to perform the ranging operation.
⚫The current ranging mode and ranging value are displayed in the
upper right corner of the screen.
⚫When the ranging value shows MAX, it means that the target
distance has exceeded the maximum distance (999m) of the laser
rangefinder.
⚫Switch the measurement unit according to Main Menu - Settings -
Units of Measure.
⚫During continuous ranging, other functions such as photographing
and video recording are not affected.
⚫Press and hold the Controller (4) + Power button (5) at the same
time to turn off the laser rangefinder function.
⚫If the target position pointed by the laser indicator is not aligned
with the center of the rangefinder cursor on the screen, it needs to
calibrate the position of laser rangefinder cursor refering to the
Main Menu - Laser Calibration.

InfiRay Outdoor  Tube SE Series  User Manual www.infirayoutdoor.com
13

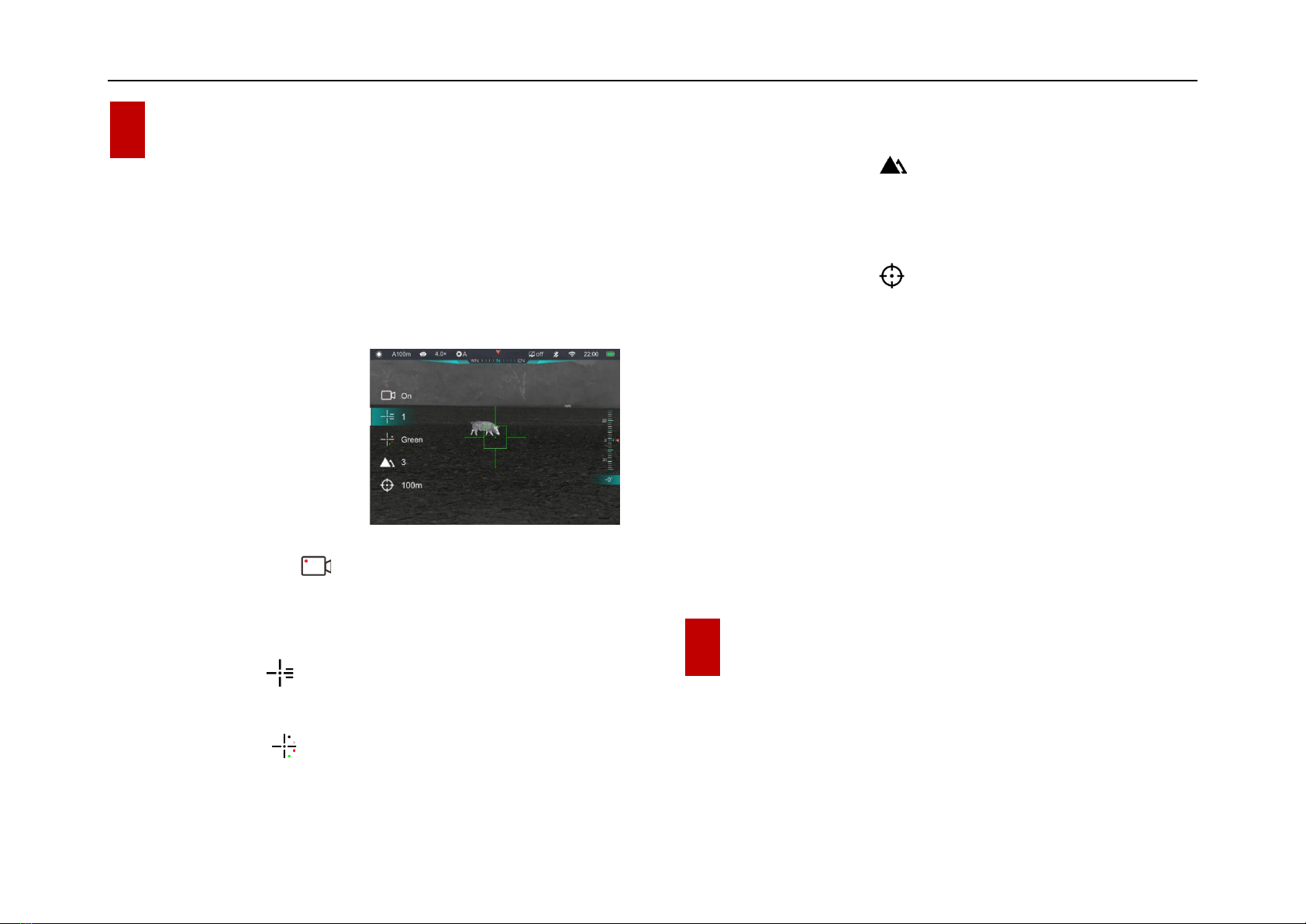

15 Shortcut Menu
The shortcut menu can be used for quickly changing the basic settings
of some common functions, including video recording, reticle style,
reticle color, image sharpness and zeroing distance.
⚫On the home screen, press the Controller (4) to open the shortcut
menu.
⚫Turn the Controller (4) to
switch between the following
options, and the icon
background of the selected
option is highlighted.
-Video Recording ( ): Turn the Controller (4) to select the
video recording option, and press the Controller (4) to turn the
video recording function on/off.
-Reticle Style ( ): Turn the Controller (4) to select the reticle
style, and press the Controller (4) to switch between 6 styles.
-Reticle Color ( ): Turn the Controller (4) to select the
option, and press the Controller (4) to adjust the colors,
including black, white, red, and green.
-Image Sharpness ( ): Turn the Controller (4) to select the
option, and press the Controller (4) to adjust the image
sharpness from levels 1 to 5.
-Zeroing Distance ( ): Turn the Controller (4) to select the
option, and press the Controller (4) to switch between the
distance values saved for the current zeroing profile (e.g. For
firearm type A, when you select the option, only the distance
values saved for type A are available).
⚫Press and hold the Controller (4) or short press the Power button
(5) to save the changes and return to the home screen.
⚫In the shortcut menu, if there is no operation within 5s, the device
will automatically save the changes and return to the home screen.
16 Main Menu
⚫On the home screen, press and hold the Controller (4) for more
than 3s to enter the main menu function.
⚫Rotate the Controller (4) to switch the function options - clockwise

InfiRay Outdoor  Tube SE Series  User Manual www.infirayoutdoor.com
14
rotation to move downward and anticlockwise to move upward.
⚫Press the Controller (4) to adjust the parameters of the current
option or enter its submenu.
⚫The position of the cursor indicates the selected option, the
icon of which turns from white into blue.
⚫The operations for submenus are the same as above.
⚫On any menu interface, press and hold the Controller (4) to save
the changes and return to the home screen. Press the Power
button (5) to return to the upper menu without saving the changes.
⚫If there is no operation within 15s on any menu interface, it will
automatically return to the home screen without saving.
⚫During the continuous operation of the scope (i.e., until the
riflescope is turned off), when exiting from the main menu, the
cursor remains at the position before exiting. When you restart
the scope and enter the main menu for the first time, the cursor
stays at the first menu option.
Main Menu Features and Descriptions
PIP
Turn on/off PIP
⚫Press and hold the Controller (4) to enter the main menu.
⚫Rotate the Controller (4) to select the PIP option (selected by default on the menu
after startup).
⚫Press the Controller (4) briefly to turn on /off the PIP function.
⚫When PIP is on, A separate 'window' is appeared on the top of the display
simultaneously with the main image. The window shows part of the image which is
magnified by 2× in a certain area centered on the reticle of the main image.
⚫After magnifying the image on the home screen by turning the Zoom handwheel (3), the image shown in the PIP window
will also be magnified by 2×.
