Ingersoll-Rand P105WJD User manual

OPERATION and MAINTENANCE
MANUAL
COMPRESSOR MODELS
This manual contains important safety information.
Do not destroy this manual.
This manual must be available to the personnel who operate and maintain this machine.
501 Sanford Ave
Mocksville, N.C. 27028
Book 22478325 (2/05)
P105WJD
CODE:
P130WJD
P160WJD
P175WJD
CODE: D
Doosan purchased Bobcat Company from Ingersoll-Rand Company in
2007. Any reference to Ingersoll-Rand Company or use of trademarks,
service marks, logos, or other proprietary identifying marks belonging
to Ingersoll-Rand Company in this manual is historical or nominative
in nature, and is not meant to suggest a current affiliation between
Ingersoll-Rand Company and Doosan Company or the products of
either.
Revised (10-12)

CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of its constituents are known
to the State of California to cause cancer, birth defects, and other
reproductive harm.

1 - 1
TABLE OF CONTENTS
TITLE PAGE
FOREWORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Foreword. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
DRAWBAR NOTICE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Drawbar Notice - This machine may have been shipped from the factory with the drawbar
positioned upright. To convert from Shipping Position to Towing Position. . . . . . . . . . 2-2
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
General Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
WARRANTY REGISTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17
Complete Machine Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17
NOISE EMISSION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29
Noise Emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
This section pertains only to machines distributed within the United States. . . . . . . . . . . . . . . . . . . 3-30
Noise Emission Control Maintenance Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
Noise Emission Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
GENERAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
General Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
Models: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
COMPRESSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
ENGINE (DIESEL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
FLUID CAPACITIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
UNITS MEASUREMENTS WEIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
EXPENDABLE SERVICE PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
SECTION 5 - OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-39
BEFORE TOWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40

1 - 2
TABLE OF CONTENTS
TITLE PAGE
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-47
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-48
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-48
Scheduled Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-48
Compressor Oil Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-48
Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-48
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-49
Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-49
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-49
Fasteners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-49
Radiator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-50
Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-50
Compressor Oil Cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-51
Compressor Oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-51
Receiver-Separator Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-51
Scavenge Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-52
Exterior Finish Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-52
MAINTENANCE SCHEDULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-54
LUBRICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-56
Portable Compressor Fluid Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-56
TROUBLE SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-57
Trouble Shooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-58
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-58
Action Plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-58
Trouble Shooting Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-59

1
Foreword

Foreword
2
Foreword
Nothing contained in this document is intended to extend any promise, warranty or representation,
expressed or implied, regarding the Ingersoll-Rand products described herein. Any such warranties or
other terms and conditions of sale of products shall be in accordance with the standard terms and
conditions of sale for such products, which are available upon request.
This manual contains instructions and technical data to cover all routine operation and scheduled
maintenance tasks by operation and maintenance staff. Major overhauls are outside the scope of this
manual and should be referred to an authorized Ingersoll-Rand service department.
All components, accessories, pipes and connectors added to the compressed air system should be:
•of good quality, procured from a reputable manufacturer and, wherever possible, be of a type
approved by Ingersoll-Rand.
•clearly rated for a pressure at least equal to the machine maximum allowable working
pressure.
•compatible with the compressor lubricant/coolant.
•accompanied with instructions for safe installation, operation and maintenance.
Details of approved equipment are available from Ingersoll-Rand Service departments. The use of
repair parts other than those included within the Ingersoll-Rand approved parts list may create
hazardous conditions over which Ingersoll-Rand has no control. Therefore, Ingersoll-Rand cannot be
held responsible for equipment in which non-approved repair parts are installed.
Ingersoll-Rand reserves the right to make changes and improvements to products without notice and
without incurring any obligation to make such changes or add such improvements to products sold
previously.
The intended uses of this machine are outlined below and examples of unapproved usage are also
given. However, Ingersoll-Rand cannot anticipate every application or work situation that may arise. If
in doubt, consult supervision.
This machine has been designed and supplied for above ground operation to be used for compression
ofnormal ambientair containingnoadditional gases,vaporsor particleswithinthe ambienttemperature
range specified in the general data section of this manual.
This machine should not be used:
A. For direct or indirect human consumption of the compressed air.
B. Outside the ambient temperature range of minus 20°F to 115°F.
C. When an actual or foreseeable risk of hazardous levels of flammable gases or vapors
exists.
D. With other than Ingersoll-Rand approved components.
E. With guards, or controls or switches missing or disabled.
F. For storage or transportation of materials inside or on the enclosure.
This company accepts no responsibility for errors in translation of this manual from the original English
version.

Foreword
3

Foreword
4

1
Drawbar Notice

Drawbar Notice
2
Drawbar Notice - This machine may have been shipped from the factory with the drawbar
positioned upright. To convert from Shipping Position to Towing Position.
The following tools are required:
Ratchet and 13mm socket to fit ratchet
Torque wrench set to 68 foot pounds (9.4 kg-meters)
16mm socket to fit torque wrench
5 inch extension for torque wrench
Hardware included: (4) 12mm bolts with pre-applied thread lock, (2) 8mm Taptite
bolts, (2) Washers, (2) Safety Chains
1. Remove hardware box from compressor toolbox.
2. Open box and remove the bag containing hardware, safety chains and assembly
instructions.
3. Using the jack, raise the front of the unit so that the legs are approximately 1 inch
above the ground.
4. Remove the temporary retaining bolts from both sides of the frame at the drawbar
connection (See Fig. 1).
5. Carefully lower drawbar to the Level Position.
6. Install the four bolts (with pre-applied thread lock) to the four points inside the
enclosure and torque to 68 ft. lbs. (9.4kg-m) (See Fig.2).
7. Install safety chains by sliding the second link of one chain into the slot in drawbar
plate. Fasten chain to plate using taptite and washer. Repeat for other chain.

3
Section 1 - Safety

Operating & Maintenance Manual Safety
4
Safety Precautions
General
Ensure that the operator reads and
understands the decals and consults the
manuals before maintenance or operation.
Ensure that the Operation and Maintenance
manual, and manual holder if equipped, are
not removed permanently from the machine.
Ensure that maintenance personnel are
adequately trained, competent and have
read the manuals.
Make sure that all protective covers are in
place and that the canopy/doors are closed
during operation.
The specification of this machine is such that
the machine is not suitable for use in
flammable gas risk areas. If such an
application is required then all local
regulations, codes of practice and site rules
must be observed. To ensure that machine
can operate in a safe and reliable manner,
additional equipment such as gas detection,
exhaustsparkarrestors,andintake(shut-off)
valves may be required, dependent on local
regulations or the degree of risk involved.
Air discharged from this machine may
contain carbon monoxide or other
contaminants which will cause serious injury
or death. Do not breathe this air.
Compressed air can be dangerous if
incorrectly handled. Before doing any work
on the unit, ensure that all pressure is vented
fromthesystem and thatthemachinecannot
be started accidentally.
Ensure that the machine is operating at the
rated pressure and that the rated pressure is
known to all relevant personnel.
All air pressure equipment installed in or
connected to the machine must have safe
working pressure ratings of at least the
machine safety valve rating.
If more than one compressor is connected to
one common downstream plant, effective
check valves and isolation valves must be
fitted and controlled by work procedures, so
that one machine cannot accidentally be
pressurized or over pressurized by another.
Compressed air must not be used for a feed
to any form of breathing apparatus or mask.
The discharged air contains a very small
percentage of compressor lubricating oil and
care should be taken to ensure that
downstream equipment is compatible.
If the discharged air is to be ultimately
released into a confined space, adequate
ventilation must be provided.
When using compressed air, always use
appropriate personal protective equipment.
All pressure containing parts, especially
flexible hoses and their couplings, must be
regularly inspected, be free from defects and
be replaced according to the Manual
instructions.
Avoid bodily contact with compressed air.
The safety valve located in the separator
tank must be checked periodicallyfor correct
operation.
Never operate unit without first observing all
safety warnings and carefully reading the
operation and maintenance manual shipped
from the factory with this machine.
Never operate the engine of this machine
inside a building without adequate
ventilation. Avoid breathing exhaust fumes
whenworkingonornearthemachine.Donot
alter or modify this machine.
A battery contains sulfuric acid and can give
off gases which are corrosive and potentially
explosive. Avoid contact with skin, eyes and
clothing. In case of contact, flush area
immediately with water.
Exercise extreme caution when using
booster battery. To jump battery, connect

Safety Operating & Maintenance Manual
5
ends of one booster cable to the positive (+)
terminal of each battery. Connect one end of
other cable to the negative (-) terminal of the
booster battery and other end to a ground
connection away from dead battery (to avoid
a spark occurring near any explosive gases
that may be present). After starting unit,
always disconnect cables in reverse order.
HighPressureAir can cause seriousinjuryor
death. Relieve pressure before removing
filler plugs/caps, fittings or covers.
Air pressure can remain trapped in air supply
line which can result in serious injury or
death. Always carefully vent air supply line at
tool or vent valve before performing any
service.
Thismachineproducesloudnoisewithdoors
open or service valve vented. Extended
exposure to loud noise can cause hearing
loss. Always wear hearing protection when
doors are open or service valve is vented.
Never inspect or service unit without first
disconnecting battery cable(s) to prevent
accidental starting.
Do not remove the pressure cap from a HOT
radiator. Allow radiator to cool down before
removing pressure cap.
Do not use petroleum products (solvents or
fuels) under high pressure as this can
penetrate the skin and result in serious
illness.
Wear eye protection while cleaning unit with
compressed air to prevent debris from
injuring eye(s).
Disconnected air hoses whip and can cause
serious injury or death. Always attach a
safety flow restrictor to each hose at the
sourceofsupplyorbranchlineinaccordance
with OSHA Regulation 29CFR Section
1926.302(b).
Rotating fan blade can cause serious injury.
Do not operate without guard in place.
Use care to avoid contacting hot surfaces
(engine exhaust manifold and piping, air
receiver and air discharge piping, etc.).
Ether is an extremely volatile, highly
flammable gas. USE SPARINGLY! DO NOT
use ETHER if unit has GLOW Plug starting
aid. Engine damage will result.
Never allow the unit to sit stopped with the
pressure in receiver-separator system. As a
precaution, open manual blowdown valve.
Never operate unit with guards, covers or
screens removed. Keep hands, hair,
clothing, tools, blow gun tips, etc. well away
from moving parts.
Make sure wheels, tires and tow bar
connectors are in safe operating condition
and tow bar is properly connected before
towing.
Whenever the machine is stopped, air will
flow back into the compressor system from
devices or systems downstream of the
machine unless the service valve is closed.
Install a check valve at the machine service
valve to prevent reverse flow in the event of
an unexpected shutdown when the service
valve is open. Stop machine to add fuel.
Hazardous Substance Precaution
The following substances are used in the
manufacture of this machine and may be
hazardous to health if used incorrectly.
Avoid ingestion, skin contact and breathing
fumes for the following substances:
Antifreeze, Compressor Oil, Engine
Lubricating Oil, Preservative Grease, Rust
Preventative, Diesel Fuel and Battery
Electrolyte.
:

Operating & Maintenance Manual Safety
6

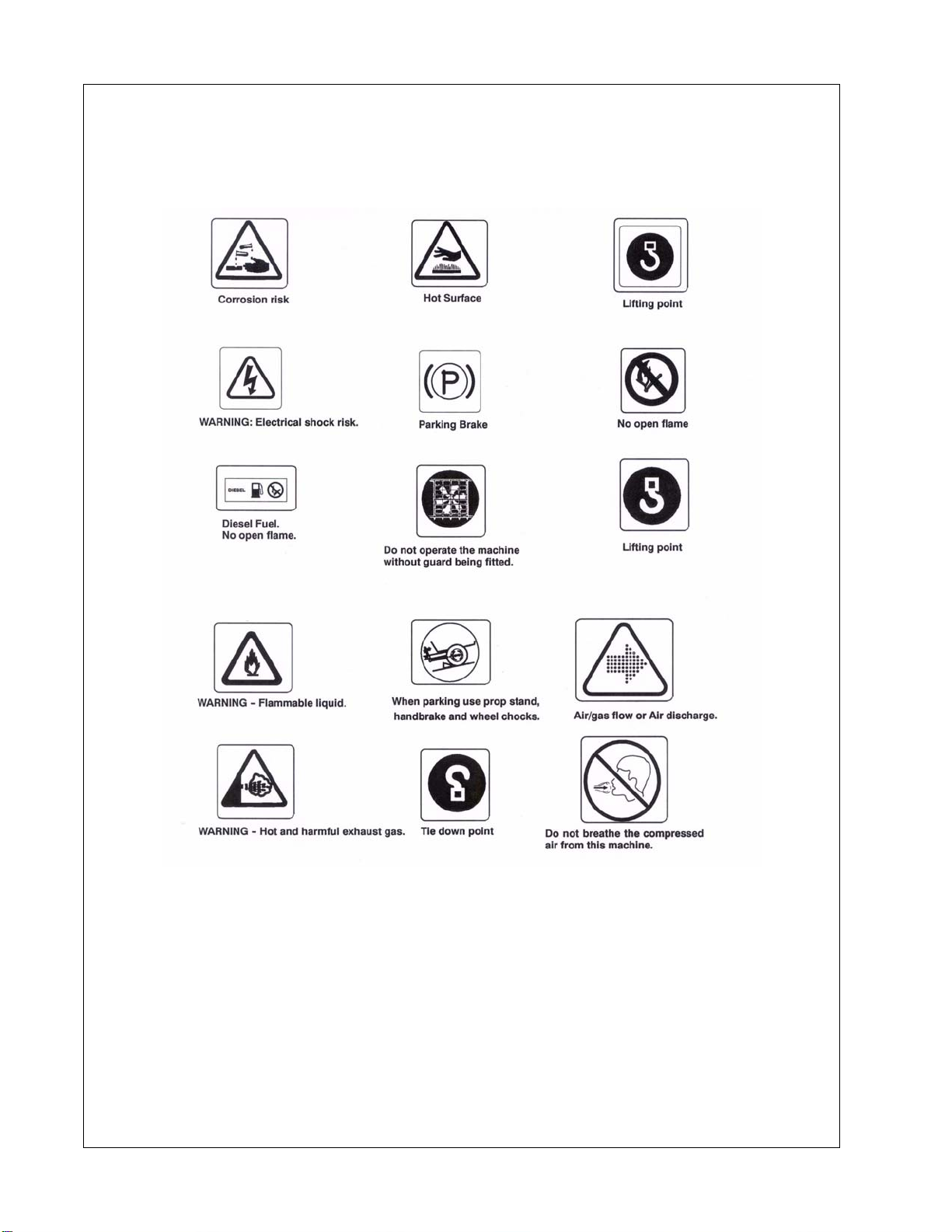

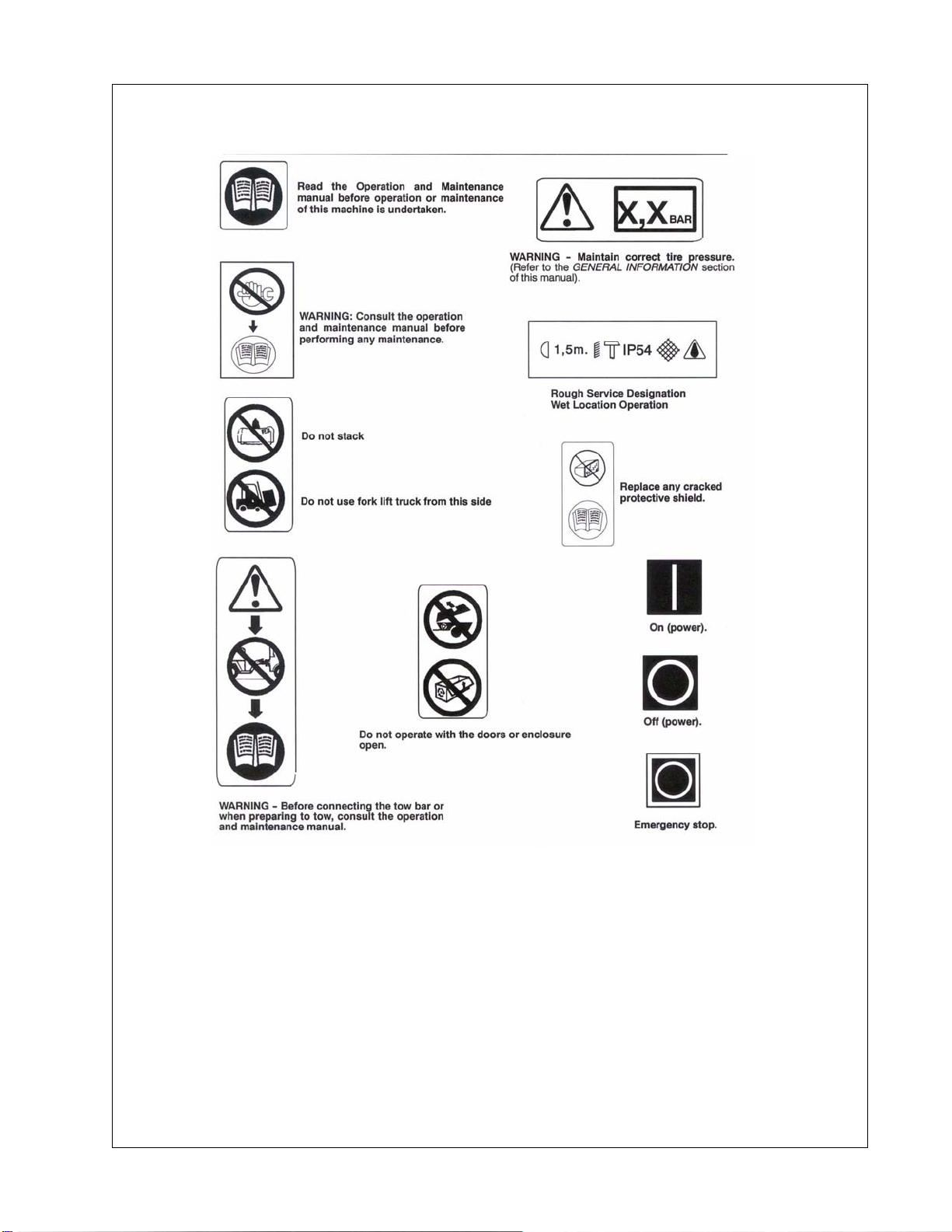

Look for these signs on machines shipped to international markets outside North America,
which point out potential hazards to the safety of you and others. Read and understand
thoroughly. Heed warnings and follow instructions. If you do not understand, inform your
supervisor.

Safety Operating & Maintenance Manual
7

Operating & Maintenance Manual Safety
8

Safety Operating & Maintenance Manual
9
Look for these signs on machines shipped to markets in North America, which point out
potential hazards to the safety of you and others. Read and understand thoroughly. Heed
warnings and follow instructions. If you do not understand, inform your supervisor.
DANGER
!
DANGER (Red Background) indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING
!
WARNING (Orange Background) indicates a potentially hazardous
situation which, if not avoided, could result in death or serious injury.
CAUTION
!
CAUTION (Yellow Background) indicates a potentially hazardous
situation which, if not avoided, may result in minor or moderate injury.
NOTICE
NOTICE (Blue Background) indicates important set-up, operating or
maintenance information.

Operating & Maintenance Manual Safety
10

Safety Operating & Maintenance Manual
11

Operating & Maintenance Manual Safety
12
Table 1:
FREE SAFETY DECALS
Safety Decals are available free of charge. Safety Decals are identified by the decal
heading: DANGER, WARNING, or CAUTION.
Decal part numbers are on the bottom of each decal and are also listed in the
compressor’s parts manual. Submit orders for Safety Decals to the Mocksville Parts
Service Department. The no charge order should contain only Safety Decals. Help
promote safety! Assure that decals are present on the machines. Replace decals that
are not readable.
