Inline Qi-Plate 01477G User manual

Article-No.: 01477G/S/W
8.000mAh Powerbank,
wireless charging
8.000mAh Powerbank,

2
www.inline-info.com
1. Content ..................................................... 2
2. General information.................................. 3
a. Validity ............................................................3
b. Manufacturer..................................................3
c. Date: ...............................................................3
3. Content of delivery ................................... 3
4. Warning symbols and notes .................... 3
5. Technical characteristics ......................... 4
6. Intended use............................................. 5
a. General warnings:..........................................5
7. Improper use ............................................ 6
8. Application / Commissioning .................. 6
a. 7.1 Charging the powerbank itself -
connection to a power supply ......................6
b. 7.2 Charging the powerbank itself -
connection to a notebook.............................6
c. Charging the powerbank itself -
connection to a PC........................................7
d. 7.4 Cordless charging of your
smartphone / tablet.......................................7
e. 7.5 Charging devices via USB ......................8
f. Parallel charging of two devices...................8
g. Parallel charging of two devices:
Application example......................................9
9. Maintenance and cleaning..................... 10
10. Disposal .................................................. 10
11. Accessories ............................................ 11
CONTENT

3
GENERAL INFORMATION
VALIDITY
This user manual applies to the following products:
• 01477G InLine® Qi-Plate Power Bank, wireless
charging, 8000mAh, grey
• 01477S InLine® Qi-Plate Power Bank, wireless
charging, 8000mAh, black
• 01477W InLine® Qi-Plate Power Bank, wireless
charging, 8000mAh, white
MANUFACTURER
INTOS ELECTRONIC AG
Siemensstraße 11
D-35394 Gießen
DATE:
December 2017
CONTENT OF DELIVERY
• InLine® Qi-Plate powerbank
• Micro USB charging cable, appr. 30cm long
• User manual
Please check the content of delivery for completeness.
If individual components are missing, please con-
tact your dealer.
WARNING SYMBOLS AND NOTES
NOTE!
This symbol indicates information that
contributes to a better understanding.
DANGER!
This symbol indicates that there are fun-
damental risks to the health of persons.

4
www.inline-info.com
TECHNICAL CHARACTERISTICS
• Battery: Lithium-polymer
• Battery capacity: 8000mA (the effective capacity
can be about 70-80% of the rated capacity)
• Input voltage: DC5V/2A max.
• Output voltage: DC5V/2.1A max.
• Output voltage wireless charging: DC5V/1A max.
• Interfaces: 1x USB type C, 1x micro-USB, 1x USB-A
• Dimensions: 135x73x19mm (LxWxH)
• Weight: appr. 215g
4 LED to show the residual capacity
USB Typ-C input
Wireless charging
Power LED
USB output
Micro USB input

5
The InLine® Qi-plate powerbank allows you to
recharge compatible smartphones and tablets wi-
relessly. Alternatively, devices can also be charged
by cable. Parallel charging via induction and cable
is also possible. The powerbank itself can be re-
charged by cable (either USB Micro-B or type C)
or induction.
GENERAL WARNINGS:
• Do not expose the InLine® Qi-Plate powerbank
to extreme heat.
• Protect from dust and moisture.
• Do not place the InLine® Qi-Plate powerbank
too close to magnetic strips or smart cards
(identity card, bank cards, etc.) to avoid erasure.
NOTE!
The InLine® Qi-Plate Powerbank includes
a rechargeable lithium-polymer battery.
For the transport of the unit in the bag-
gage please observe the safety instruc-
tions of your airline.
DANGER!
Components included in delivery could
be dangerous for infants.
There is danger of suffocation by swal-
lowing small parts!
DANGER!
Please keep a distance of at least 20cm
between implanted medical devices (car-
diac pacemakers, cochlear implants,
etc.) and the InLine® Qi-Plate powerbank
to avoid potential interference.
INTENDED USE

6
www.inline-info.com
IMPROPER USE
The following shall be deemed to be improper use
within the meaning of a foreseeable misuse:
• Do not use the InLine® Qi-Plate Powerbank
outdoors
• Do not disassemble the InLine® Qi-Plate
Powerbank
APPLICATION / COMMISSIO-
NING
7.1 CHARGING THE POWERBANK ITSELF - CON-
NECTION TO A POWER SUPPLY
Plug the USB power adapter (optional) into the power
outlet. Connect the USB cable to the USB power ad-
apter (optional) and the InLine® Qi-Plate powerbank.
Alternatively, you can also connect the USB cable to
the optional USB power adapter and an optional
wireless charger. Then place the underside of the In-
Line® Qi-Plate powerbank on the wireless charger to
start charging.
As soon as the InLine® Qi-Plate powerbank is
charged, the LED display turns on automatically, the
power LED (PW) lights up red and the 4 blue LEDs
for indicating the remaining capacity flash one after
the other. Once a capacity has been reached in 25%
steps, the respective LED lights up. As soon as all 4
blue LEDs light up, the InLine® Qi-Plate powerbank
is fully charged.
7.2 CHARGING THE POWERBANK ITSELF - CON-
NECTION TO A NOTEBOOK
Connect the USB cable to the USB interface of the
notebook and the InLine® Qi-Plate powerbank.
As soon as the InLine® Qi-Plate powerbank is
charged, the LED display turns on automatically, the
power LED (PW) lights up red and the 4 blue LEDs
for indicating the remaining capacity flash one after
the other. Once a capacity has been reached in 25%
steps, the respective LED lights up. As soon as all 4
blue LEDs light up, the InLine® Qi-Plate powerbank
is fully charged.

7
CHARGING THE POWERBANK ITSELF - CON-
NECTION TO A PC
Connect the USB cable to the USB interface of the
PC and the InLine® Qi-Plate powerbank.
As soon as the InLine® Qi-Plate powerbank is
charged, the LED display turns on automatically,
the power LED (PW) lights up red and the 4 blue
LEDs for indicating the remaining capacity flash
one after the other. Once a capacity has been rea-
ched in 25% steps, the respective LED lights up. As
soon as all 4 blue LEDs light up, the InLine® Qi-Plate
powerbank is fully charged.
7.4 CORDLESS CHARGING OF YOUR SMART-
PHONE / TABLET
Press the On/Off button to turn on the InLine®
Qi-Plate powerbank. The LED display confirms this
by illuminating the red power LED (PW) and the
corresponding number of blue LEDs to indicate the
remaining capacity.
Now place a compatible smartphone or tablet in the
middle on the top of the InLine® Qi-Plate power-
bank to start wireless charging.
As soon as the wireless charging starts, the red power
LED (PW) turns out and the green LED lights up.
Depending on the capacity to be charged, one or
more of the blue LEDs will go off. Your smartphone
or tablet to be charged will also acknowledge the
started charging process. To stop charging, simply
grab your smartphone/tablet from the InLine®
Qi-Plate powerbank.
The green LED, which indicates the wireless char-
ging process, goes off and the red power LED (PW)
lights up.
To switch off the InLine® Qi-Plate powerbank,
press and hold the on / off button for about two
seconds. In case of inactivity, the InLine® Qi-Plate
powerbank shuts off after about 20 seconds.
NOTE!
Please keep the InLine® Qi-Plate power-
bank away from the PC´s power supply.

8
www.inline-info.com
7.5 CHARGING DEVICES VIA USB
Press the On/Off button to turn on the InLine®
Qi-Plate powerbank. The LED display confirms this
by illuminating the red power LED (PW) and the
corresponding number of blue LEDs to indicate the
remaining capacity.
Now connect the charging cable of your device to
be charged with the USB-A interface of the InLine®
Qi-Plate powerbank and the other end with your
device to be charged. Depending on the capacity
to be charged, one or more of the blue LEDs will
go off.
Your device to be charged will acknowledge the
started charging process. To stop charging, turn
off the InLine® Qi-Plate powerbank by holding the
power button for about 2 seconds. Then remove the
cable.
PARALLEL CHARGING OF TWO DEVICES
With the InLine® Qi-Plate powerbank you have the
possibility to simultaneously charge two devices.
Press the On/Off button to turn on the InLine®
Qi-Plate powerbank. The LED display confirms this
by illuminating the red power LED (PW) and the
corresponding number of blue LEDs to indicate the
remaining capacity.
Connect the charging cable of your device to be
charged with the USB-A interface of the InLine®
Qi-Plate powerbank and the other end with your
device to be charged.
Now place a compatible smartphone or tablet in the
middle on the top of the InLine® Qi-Plate power-
bank to start wireless charging.
As soon as the wireless charging starts, the red power
LED (PW) turns out and the green LED lights up.
Depending on the capacity to be charged, one or
more of the blue LEDs will go off. Your devices to
be charged also acknowledge the started charging
process. To stop charging, turn off the InLine®
Qi-Plate powerbank by holding the power button
for about 2 seconds. Then remove the cable.

9
NOTE!
If the InLine® Qi-Plate powerbank does not react as desired or if the LEDs do not light up as
described above, please remove all devices to be charged (wireless and/or by cable), switch off
the InLine® Qi-Plate powerbank by pressing and holding the power button for about 2 seconds
until all LEDs go out. Then turn it on again by briefly pressing the power button before resuming charging.
NOTE!

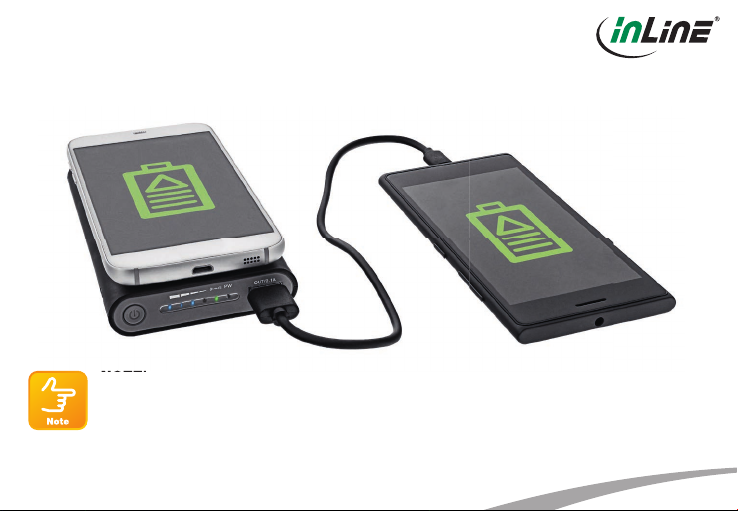

PARALLEL CHARGING OF TWO DEVICES: APPLICATION EXAMPLE

10
www.inline-info.com
MAINTENANCE AND CLEANING
Clean the InLine® Qi-Plate powerbank with a
dry, velvety cloth. Do not use water or other clea-
ning fluids that may damage the electronics.
DISPOSAL
Electrical and electronic equipment and batteries
must not be disposed of with household waste.
The consumer is obliged by law to return electrical
and electronic equipment and batteries at the end
of their service life to the designated public collection
points or to the point of sale.
of their service life to the designated public collection
points or to the point of sale.
10
ANY QUESTIONS?
We will help you to find suitable products for
your needs, we provide support in finding supply
sources, answer technical questions and gladly
help you to install your InLine products e.g. by pro-
viding up-to-date drivers.
Mo. - Fr.: 9am to 5pm
live.inline-info.com

11
31410A InLine® Lightning USB Cable, for
iPad, iPhone, iPod, silver/aluminium, 1m
31420x InLine® Lightning USB Cable, for
iPad, iPhone, iPod, 2m, available in silver/
aluminium and black/aluminium
31505x InLine® USB power adaptor
2-port, 100-240VAC to 5V/2.1A, availa-
ble in the colors black or white
31506x InLine® USB power adaptor,
4ports, 100-240VAC to 5V/6A, 30W,
available in the colors black or white
31508x InLine® Quick Charge 3.0
USB power adapter, charger, USB-A
+ USB-C, 30W, available in the colors
black or white
31509x InLine® Quick Charge 3.0 USB
power adapter, charger, 4x USB A +
USB C, 40W, available in black or white
3571x InLine® USB 3.1 Cable, Type C
male to A male, black, various lenghts
3573x InLine® USB 2.0 Cable, Type C
male to A male, black, various lenghts
3583x InLine® USB 2.0 Cable, Type C
plug to A plug, black/alu, flexible, vari-
ous lenghts
3587x InLine® USB 2.0 spiral cable,
Type C plug to A plug, black/alu, flexib-
le, various lenghts
ACCESSORIES

1. Edition English 50/2017
Documentation © 2017 INTOS ELECTRONIC AG
All rights reserved. No part of this manual may be
reproduced in any form or duplicated or processed
using electronic, mechanical or chemical proces-
ses without the publisher´s written consent. It is
possible that this manual may still contain typogra-
phical defects or printing errors.
However, the information in this manual is reviewed
regularly and corrections will be made in the next
edition. We accept no liability for technical or typo-
graphical errors and their consequences. All trade-
marks and industrial property rights are acknow-
ledged. Changes in the sense of technical progress
can be made without prior notice. Our products,
including packaging, are not toys; they may contain
small parts and sharp objects.
Keep away from children, please.
InLine is a brand of:
INTOS ELECTRONIC AG
Siemensstrasse 11, D-35394 Giessen
www.intos.de
DISCLAIMER
www.inline-info.com
