Innosonian BRAYDEN PRO User manual

Objective Feedback
Insightful Learning
Quality CPR
PRO
Advanced CPR Coaching
Instructions for Use
English

2
Getting started
Thank you for purchasing our product.
The purpose of CPR is to supply oxygen to the brain and heart of a patient whose heart has stopped beating normally. Applying chest compressions correctly achieves this by causing blood to ow,
supplying oxygen to the brain and heart.
‘BRAYDEN PRO’ is the rst CPR training manikin in the world which has a blood circulation display – designed to help the student understand and remember the principles of CPR – including a mobile app.
The student can wirelessly connect this training manikin with a Google Android device (sold separately) to check, analyze, manage, and share the results of performing CPR in real time through the
BRAYDEN PRO app (free of charge).
The product package includes the following components:
Main manikin unit (1)
Face skin (1)
Face shield (10)
Articial lung (1)
Instructions for use (1)
Mat bag (1)
Battery (6)

3
한국어
English

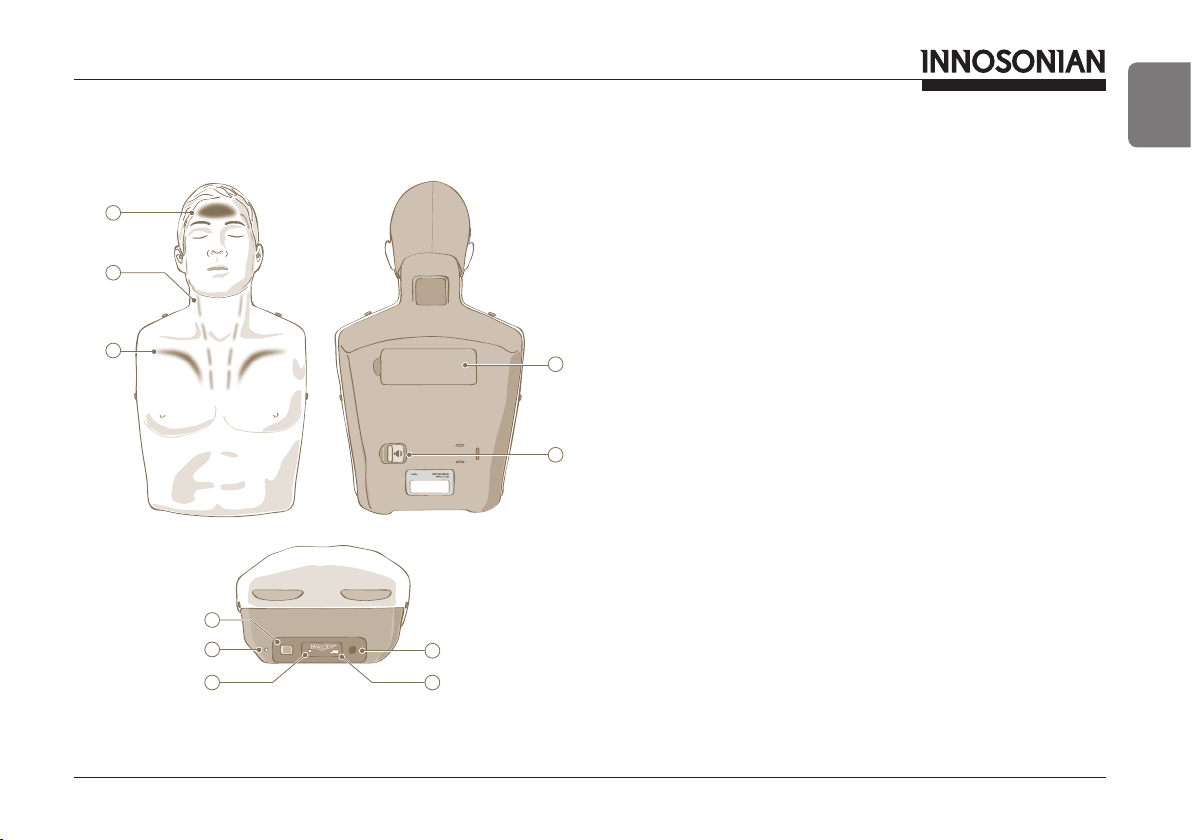

Component names
Normal circulation indication light
When the depth and speed of the compressions are correct, the light will illuminate. With this
light, the student can easily see if the compressions are being performed at the correct depth and
frequency.
Blood circulation indication lights
These illuminate to represent the ow of blood from the heart to the brain through chest
compressions. The speed of the blood ow varies according to the depth and frequency of the
chest compressions.
Compression depth indication lights
These illuminate to represent the volume of blood being circulated by the chest compressions
depending upon the depth of the compressions. Deeper compressions illuminate the lights for a
longer time, shallower compressions illuminate the lights for a shorter time.
Battery cover
If the battery is low, open the battery cover and replace the batteries.
Clicker On/O switch
This turns the clicker on and o.
Power switch
This powers the manikin on and o.
Power status indicator lamp
This indicates the power status. A green light indicates that it is operating normally, while a ashing
red light indicates that the batteries are running low.
Bluetooth button
While connecting, it will ash green every 2 seconds, becoming a solid green once the connection
is made.
Press this button to disconnect.
AC adaptor connection
Connect the optional AC adapter here.
Terminal for inspection
This terminal is used by a professional engineer to inspect the main unit. Users should not touch.
I O
6
79
8 10
1
2
3
4
5

4
Connecting the mobile app

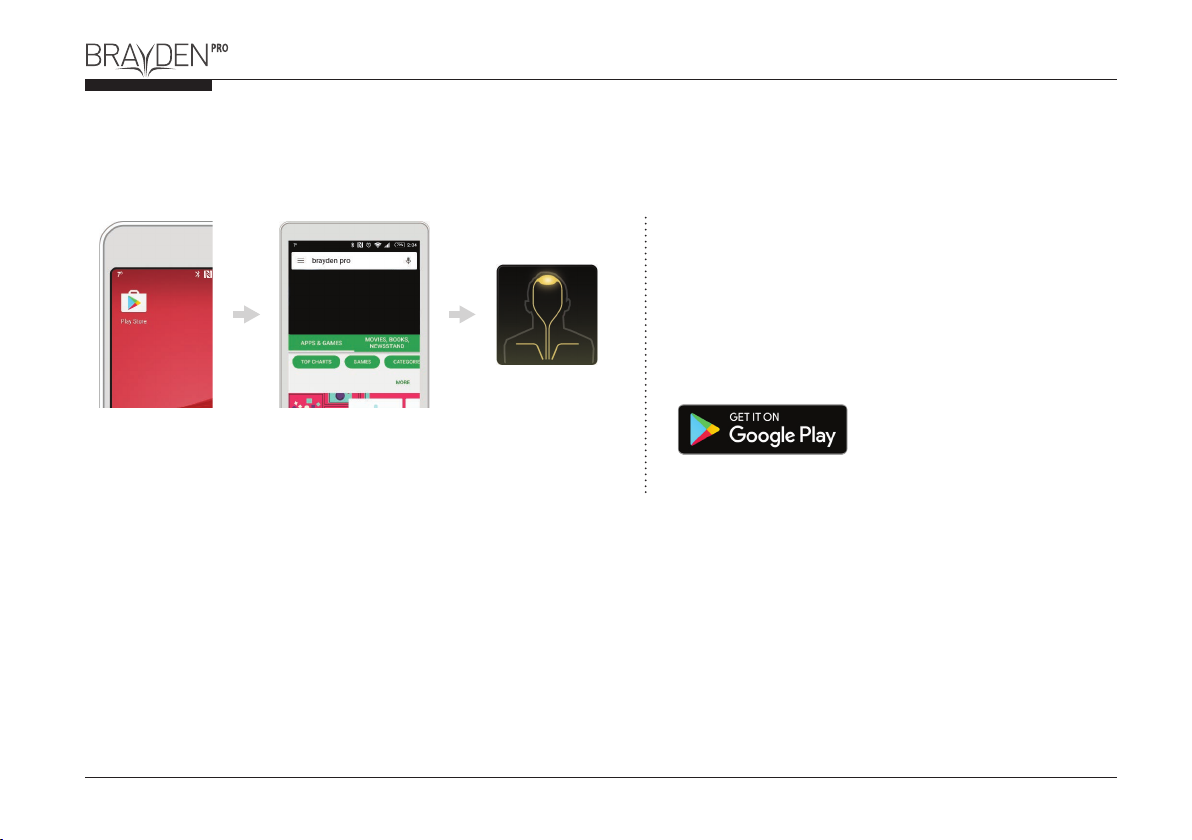

 Installing the mobile app
This mobile app runs on Google Android device.
Accessing Play Store Search for brayden pro Installing BRAYDEN PRO
app
•Should be downloaded under a WiFi environment.
Communication charges may apply in some cases.
•For the smoothest operation of the BRAYDEN PRO app, a Google Android device equipped
with Android operating system version 6.0 or higher and Bluetooth hardware 4.1 or higher
is recommended.

5
한국어
English
Connecting the mobile app
 Connecting with the BRAYDEN PRO manikin
•Opening BRAYDEN PRO
app
•Select Learner mode or
Instructor mode.
Note
•Once the connection is made for the rst time, the manikin and app
will connect automatically.
•For more detailed instructions on use, refer to the instruction
manual provided with the BRAYDEN PRO app.
1. Turn on the manikin’s power
switch. (The Bluetooth
button of the manikin will
ash every 2 seconds.)
2. Click the circular Find a
manikin to connect button.
3. Select the relevant manikin
item from the Bluetooth list.
If the item does not appear,
click the Rescan button.
4. Once the connection is made,
the Bluetooth button of the
manikin will illuminate blue.
1. Turn on the manikin’s power
switch. (The Bluetooth
button of the manikin will
ash every 2 seconds.)
2. A list of 6 items will appear.
Click the Find a manikin to
connect button of the item
you intend to use.
3. Select the relevant manikin
item from the Bluetooth list.
If the item does not appear,
click the Rescan button.
4. Once the connection is made, the
same position on the manikin and
the app will illuminate.
5. The Bluetooth button of the
manikin will illuminate blue.
•Repeat steps 1 to 5 when
connecting to 2 or more
manikins at the same time.
Learner
mode
Instructor
mode

6
Using the manikin

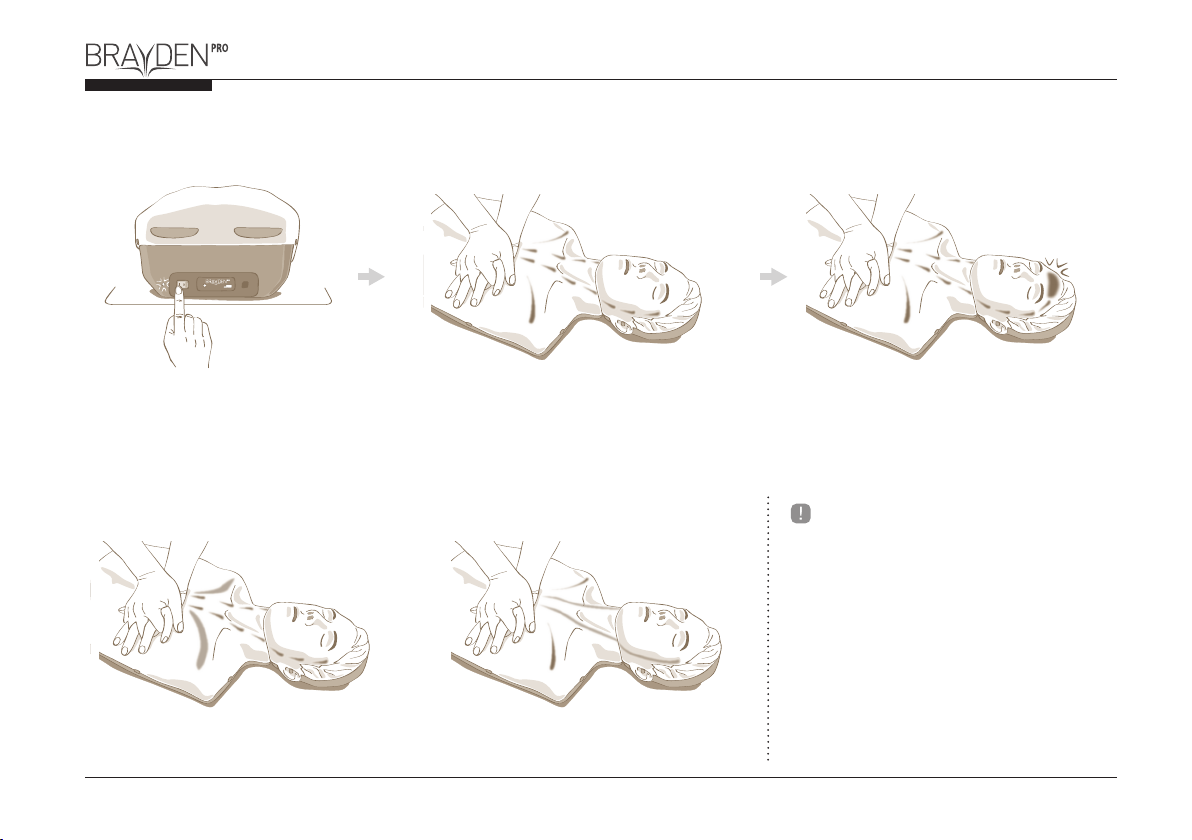

 Chest compression
•Turn on the manikin.
The Power status indicator lamp will illuminate in
green, the ‘blood circulation’ indication light and
'compression depth’ indication light will cyclically
ash once and the ‘normal circulation’ indication
light will illuminate once.
•Once you start compressions, the ‘blood circulation’ and ‘compression
depth’ indication lights will cyclically illuminate.
•Once you are performing compressions at a proper depth
and speed, the ‘blood circulation’ and ‘compression depth’
indication lights will cyclically ash and the ‘normal circulation’
indication light will illuminate.

Excessive compression
When chest compressions of excessive depth are performed, the
‘compression depth’ indication light will illuminate.

Fast compression
When chest compressions are performed rapidly, all of the ‘blood
circulation’ indication lights will illuminate.
Note
•When the BRAYDEN PRO app is connected, the manikin’s
indication lights will not illuminate if the chest compressions are
performed for the purpose of education.
•When the manikin is turned on, a one-time automatic calibration
will be carried out for approximately 2 seconds.
It is recommended that chest compressions on the manikin not
be performed when automatic calibration is being carried out.
•If the battery is low, the power status indicator lamp will ash
red. At this time, replace the battery with a new one.

7
한국어
English
 Change the operation method  Change the clicker setting
At least 3 cm
for 5 seconds
< ON > < OFF >
•When the manikin is turned on, the manikin always operates in <basic operation>. When chest
compressions with a constant depth of compression at least 3 cm for 5 seconds are performed, it will
switch to <specialized operation>.
•In <basic operation>, the ‘normal circulation’ indication light will illuminate when chest compressions
have a depth of compression at least 5cm and a speed between 100 times and 120 times per minute .
In <specialized operation>, the ‘normal circulation’ indication light will illuminate when chest
compressions have a depth of compression between 5cm and 6cm and a speed between 100 times and
120 times per minute.
•Turn the ‘clicker’ on and o using the switch as shown.
When the clicker is <ON>, it makes a “clicking“ sound when the chest is compressed at least 5 cm.
 Articial respiration
•Open the face shield. •Place the mouth part of the
face shield on the mouth of the
manikin.
•Open the airway.
•Hold the nose with your thumb
and index nger, and blow air
through the mouth for 1 second.
•Visually check that the manikin chest is rising.
Or, connect it to the mobile app and check
for a change in the CPR graph.

8
Maintenance of the manikin
 Replacing the articial lung
12
1
2
1
2
1
2
3
 Replacing the battery
Caution
•Keep used batteries out of reach of children and dispose of safely.
•Do not use new batteries and old batteries together. Replace all 6 batteries together.
•If you do not plan to use the manikin for a long period of time, remove and store the batteries.

9
한국어
English
Product specications and optional accessories
 Product specications (IM16 )
Dimensions 32 cm x 59 cm x 21 cm (W x H x D)
Weight 3.2 kg (7.0 lb)
Operating temperature 0 °C – 40 °C (32 °F – 104 °F )
Storage temperature -20 °C – 60 °C (-4 °F – 140 °F )
Humidity Relative humidity between 5 % – 95 %
(without dew condensation)
Power AC adaptor (AC 100 – 260 V, Output DC 9 V 1 A)
Battery C type 1.5 V (6 batteries)

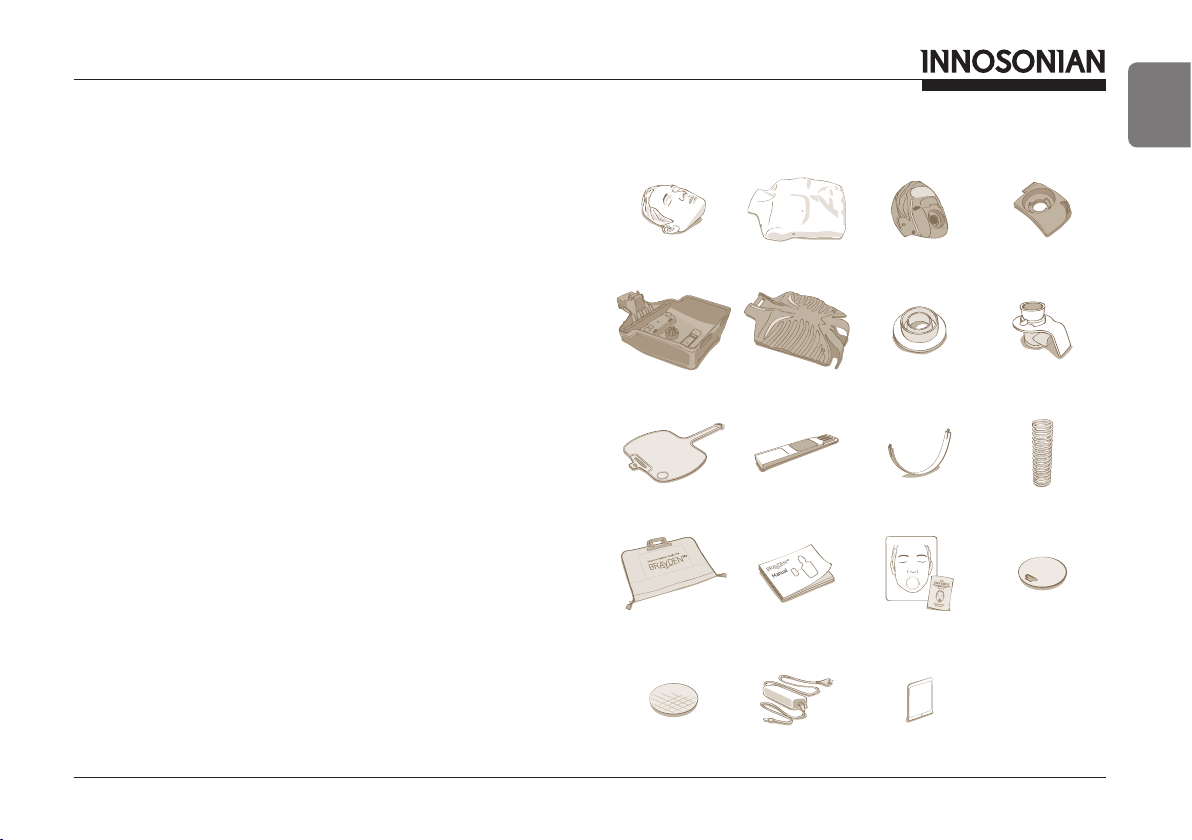

 Components and optional accessories
Face skin
IM16-SA01
Body skin
IM16-SA02
Head unit
IM16-SA03
Chin
IM16-SA04
Body
IM16-SA05
Rib
IM16-SA06
Face connection
IM16-SA07
Airway valve
IM16-SA08
Articial lung
IM16-SA09
Clicker
IM16-SA10
Clicker actuator
IM16-SA11
Spring
IM16-SA12
Mat bag
IM16-SA13
Instructions for use
IM16-SA14
Face shield
IM16-SA15
Respiration backow
prevention lm
IM16-SA16
Air lter
IM16-SA17
AC adapter
IM16-OA01
Google Android device

10
Quality assurance
The manikin is guaranteed against defects for 3 years from the date of purchase. The electronic
components are guaranteed for 2 years from the date of purchase. Consumable items are
excluded from this guarantee. If making a claim, you must enclose a proof of purchase and
details of when and where the manikin was purchased, to check the guarantee period.
In the event that you are not able to supply a proof of purchase, or if it is illegible, free after sales
service may be restricted.
Also, in any of the following cases, after-sales service may be restricted:
- Damage or defect of the manikin due to abnormal use, user's negligence or accident
- Damage or defect of the manikin due to repair of the manikin at a place other than the
company, authorized sales agency or service center or replacement of component with
another company's product which is not provided by us
- Damage or defect of the manikin due to its use or storage in unsuitable environments such as
high temperatures, high humidity, or exposed to chemical compounds or microorganisms
- Damage or defect of the manikin due to natural disasters such as re, earthquake, ood,
lightning, and other events that are beyond the scope of the company's control
- When information such as the date of purchase, customers name, name of supplier and
manufacture's serial number has been modied intentionally
- When there is no proof of purchase with the product guarantee
Service center
Innosonian, Inc.
Homepage www.innosonian.com
Address 3rd oor, 10-11, Seocho-daero 19-gil, Seocho-gu, Seoul, Korea,
(Zip code)06573
Tel [phone]
Fax [phone]
Product purchase and service inquiries
Tel [phone]
E-mail [email protected]
Product name BRAYDEN PRO
Model name IM16
Manufacturer / Country Innosonian, Inc. / Korea
Authenticator identication code MSIP-RMM-InM-IM16
Class B device
(Broadcasting communication
device for home use)
This device has gone through EMC registration for home use (Class
B) which means it is intended mainly for home use. This device can
be used in all areas.
This device may malfunction when operated very close to a
wireless communication device such as a mobile phone, WiFi
connections or a Bluetooth device.
This manikin observes the environmental requirements specied in EMC Guideline 2004/108/EC and EU
Guideline RoHS 2011/65/EU for harmful substances.
Cautions when disposing of battery
Do not dispose of used batteries in a re. Recycle them through your local, free battery return system.
Rev. 1.0
