Getting started
Thank you for purchasing our product.
The purpose of CPR is to supply oxygen to the brain and heart of a patient whose heart has stopped beating normally. Applying chest compressions correctly achieves this by causing blood to ow,
supplying oxygen to the brain and heart.
‘BRAYDEN PRO’ is the rst CPR training manikin in the world which has a blood circulation display – designed to help the student understand and remember the principles of CPR – including a mobile app.
The student can wirelessly connect via Bluetooth the Brayden Pro manikin with a Google Android device (sold separately) to check, analyze, manage, and share the results of performing CPR in real time
through the BRAYDEN PRO app (free of charge).
The product package includes the following components:
Main manikin unit (1)
Face skin (1)
Face shield (10)
Articial lung (1)
Instructions for use (1)
Mat bag (1)
Battery (6)

3
한국어
English
Component names
①Normal circulation indication light
When the compression depth and speed and correct release between compressions are performed,
the light will illuminate. With this light, the student can easily see if the compressions are being
performed at the correct depth and frequency.
②Blood circulation indication lights
These illuminate to represent the ow of blood from the heart to the brain through chest
compressions. The speed of the blood ow varies according to the depth and frequency of the
chest compressions.
③Compression depth indication lights
These illuminate to represent the volume of blood being circulated by the chest compressions
depending upon the depth of the compressions. Deeper compressions illuminate the lights for a
longer time, shallower compressions illuminate the lights for a shorter time.
④Battery cover
If the battery is low, open the battery cover and replace the batteries.
⑤Clicker On/O switch
This turns the clicker on and o.
⑥Power switch
This powers the manikin on and o.
⑦Power status indicator lamp
This indicates the power status. A green light indicates that it is operating normally, while a ashing
red light indicates that the batteries are running low.
⑧Bluetooth button
While connecting, it will ash green every 2 seconds, becoming a solid green once the connection
is made.
Press this button to disconnect.
⑨AC Adapter connection
Connect the optional AC Adapter here.
⑩Terminal for inspection
This terminal is used by a professional engineer to inspect the main unit. Users should not touch.
I O
6
79
810
1
2
3
4
5

4
Connecting the mobile app
▒ Installing the mobile app
This mobile app runs on Google Android device.
Accessing Play Store Search for brayden pro Installing BRAYDEN PRO
app
xShould be downloaded under a WiFi environment.
Communication charges may apply in some cases.
xFor optimal operation of the BRAYDEN PRO app, a Google Android device equipped with
Android operating system version 6.0 or higher and Bluetooth hardware 4.1 or higher is
recommended.

5
한국어
English
Connecting the mobile app
▒ Connecting with the BRAYDEN PRO manikin
xOpening BRAYDEN PRO
app
xSelect Learner mode or
Instructor mode.
Note
xOnce the connection is made for the rst time, the manikin and app
will connect automatically.
xFor more detailed instructions on use, refer to the instruction
manual provided with the BRAYDEN PRO app.
1. Turn on the manikin’s power
switch. (The Bluetooth
button of the manikin will
ash every 2 seconds.)
2. Click the circular Search for
an available manikin button.
3. Select the relevant manikin
from the Bluetooth list.
If the item does not appear,
click the Rescan button.
4. Once the connection is made,
the Bluetooth button of the
manikin will illuminate blue.
1. Turn on the manikin’s power
switch. (The Bluetooth
button of the manikin will
ash every 2 seconds.)
2. A list of 6 minikin options will
appear.
Select the Search for an
available manikin button for
the manikin you intend to use.
3. Select the relevant manikin
from the Bluetooth list.
If the item does not appear,
click the Rescan button.
4. Once the connection is made,
the same light position on the
manikin and that displayed
on the app will illuminate.
5. The Bluetooth button of the
manikin will illuminate blue.
xRepeat steps 1 to 5 when
connecting to 2 or more
manikins at the same time.
Learner
mode
Instructor
mode

6
Using the manikin
▒ Chest compression
xTurn on the manikin.
The Power status indicator lamp will illuminate
in green, the Blood circulation indication lights
and Compression depth indication lights will
cyclically ash once and the Normal circulation
indication light will illuminate once.
xOnce you start compressions, the Blood circulation and Compression
depth indication lights will cyclically illuminate.
xOnce you are performing compressions at the correct depth
and speed and with correct release between compressions, the
Blood circulation and Compression depth indication lights
will cyclically ash and the Normal circulation indication light
will illuminate.
▒
Excessive compression
When chest compressions of excessive depth are performed, the
Compression depth indication lights will illuminate.
▒
Fast compression
When the compressions are performed too rapidly all of the
Blood circulation indication lights will illuminate.
Note
xWhen the BRAYDEN PRO app is connected, the manikin’s
indication lights will not illuminate if the chest compressions are
performed for the purpose of education.
xWhen the manikin is turned on, a one-time automatic calibration
is carried out for approximately 2 seconds. It is recommended
that chest compressions on the manikin are not performed
when the automatic calibration is occurring.
xIf the battery life is low, the Power status indicator lamp will
ash red. When this happens, replace the batteries with new
ones.

7
한국어
English
▒ Change the operation method ▒ Change the clicker setting
At least 3 cm
for approximately
5 seconds
< ON > < OFF >
xWhen the manikin is turned on, the manikin operates in <basic operation>. When the chest is continuously
compressed once to a depth of at least 3cm for approximately 5 seconds then the manikin will switch to
<specialised operation> mode.
xIn <basic operation>, the Normal circulation indication light will illuminate when chest compressions have a
depth of compression at least 5cm and a speed between 100 times and 120 times per minute .
In <specialized operation>, the Normal circulation indication light will illuminate when chest compressions
have a depth of compression between 5cm and 6cm and a speed between 100 times and 120 times per minute.
xTurn the clicker on and o using the switch as shown.
When the clicker is <ON>, it makes a “clicking“ sound when the chest is compressed at
least 5 cm.
▒ Articial respiration
xOpen the face shield. xPlace the mouth part of the
face shield on the mouth of
the manikin.
xOpen the airway. xHold the nose with your thumb
and index nger, and blow air
through the mouth for 1 second.
xVisually check that the manikin chest is rising.
Alternatively, connect the manikin to the
Brayden Pro mobile app and look for a change
in the CPR feedback display.
Note
xConsider adding the following note: The Brayden Pro manikin can also be ventilated using other airway barrier devices such as an Adult sized pocket mask or an Adult sized Bag Valve Mask.

8
Maintenance of the manikin
▒ Replacing the articial lung
12
1
2
1
2
1
2
3
▒ Replacing the battery
Caution
xKeep used batteries out of reach of children and dispose of safely.
xDo not use new batteries and old batteries together. Replace all 6 batteries together.
xIf you do not plan to use the manikin for a long period of time, remove and store the batteries.
Note
xTo see a video of how to change the lung then please go to www.innosonian.eu

9
한국어
English

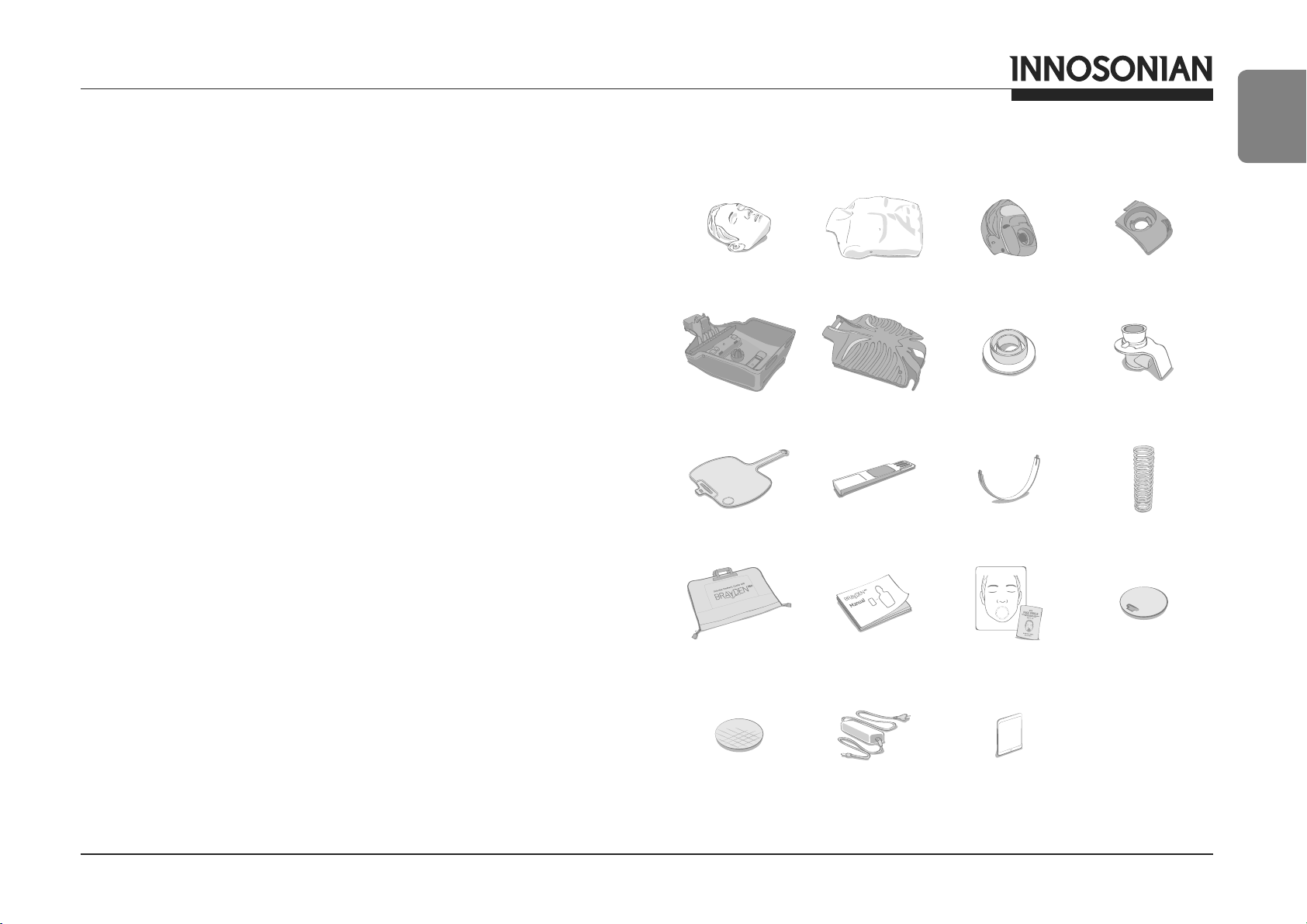

Product specications and optional accessories
▒ Product specications (IM16 )
Dimensions 32 cm x 59 cm x 21 cm (W x H x D)
Weight 3.2 kg (7.0 lb)
Operating temperature 0 °C – 40 °C (32 °F – 104 °F )
Storage temperature -20 °C – 60 °C (-4 °F – 140 °F )
Humidity Relative humidity between 5 % – 95 %
(without dew condensation)
Power AC Adapter (AC 100 – 260 V, Output DC 9 V 1 A)
Battery C type 1.5 V (6 batteries)
▒ Components and optional accessories
Face skin
IM16-SA01
Body skin
IM16-SA02
Head unit
IM16-SA03
Chin
IM16-SA04
Body
IM16-SA05
Rib
IM16-SA06
Face connection
IM16-SA07
Airway valve
IM16-SA08
Articial lung
IM16-SA09
Clicker
IM16-SA10
Clicker actuator
IM16-SA11
Spring
IM16-SA12
Mat bag
IM16-SA13
Instructions for use
IM16-SA14
Face shield
IM16-SA15
Respiration backow
prevention lm
IM16-SA16
Air lter
IM16-SA17
AC Adapter
IM16-OA01
*not included but available
as an optional extra
Google Android device
*not included and needs to
be purchased separately

10
Quality assurance
The manikin is guaranteed against defects for 3 years from the date of purchase. The electronic
components are guaranteed for 2 years from the date of purchase. Consumable items are
excluded from this guarantee. If making a claim, you must enclose a proof of purchase and
details of when and where the manikin was purchased, to check the guarantee period.
In the event that you are not able to supply a proof of purchase, or if it is illegible, free after sales
service may be restricted.
Also, in any of the following cases, after-sales service may be restricted:
- Damage or defect of the manikin due to abnormal use, user's negligence or accident
- Damage or defect of the manikin due to repair of the manikin at a place other than the
company, authorized sales agency or service center or replacement of component with
another company's product which is not provided by us
- Damage or defect of the manikin due to its use or storage in unsuitable environments such as
high temperatures, high humidity, or exposed to chemical compounds or microorganisms
- Damage or defect of the manikin due to natural disasters such as re, earthquake, ood,
lightning, and other events that are beyond the scope of the company's control
- When information such as the date of purchase, customers name, name of supplier and
manufacture's serial number has been modied intentionally
- When there is no proof of purchase with the product guarantee
Service center
Innosonian, Inc.
Homepage www.innosonian.com
Address 3rd oor, 10-11, Seocho-daero 19-gil, Seocho-gu, Seoul, Korea,
(Zip code)06573
Tel [phone]
Fax [phone]
Product purchase and service inquiries
Tel [phone]
E-mail [email protected]
Product name BRAYDEN PRO
Model name IM16
Manufacturer / Country Innosonian, Inc. / Korea
Authenticator identication code MSIP-RMM-InM-IM16
Class B device
(Broadcasting communication
device for home use)
This device has gone through EMC registration for home use (Class
B) which means it is intended mainly for home use. This device can
be used in all areas.
This device may malfunction when operated very close to a
wireless communication device such as a mobile phone, WiFi
connections or a Bluetooth device.
This manikin observes the environmental requirements specied in EMC Guideline 2014/30/EU and EU
Guideline RoHS 2011/65/EU for harmful substances.
Cautions when disposing of battery
Do not dispose of used batteries in a re. Recycle them through your local, free battery return system.
Rev. 1.0
