Innova 31403 User manual

INN
®

Table of Contents
i CarScan+OBD1
INTRODUCTION
WHAT IS OBD? ............................................................................................................................................. 1
YOU CAN DO IT! ......................................................................................................................................................... 2
SAFETY PRECAUTIONS
SAFETY FIRST! ............................................................................................................................................. 3
ABOUT THE SCAN TOOL
VEHICLES COVERED .................................................................................................................................. 5
BATTERY REPLACEMENT .......................................................................................................................... 6
SCAN TOOL CONTROLS

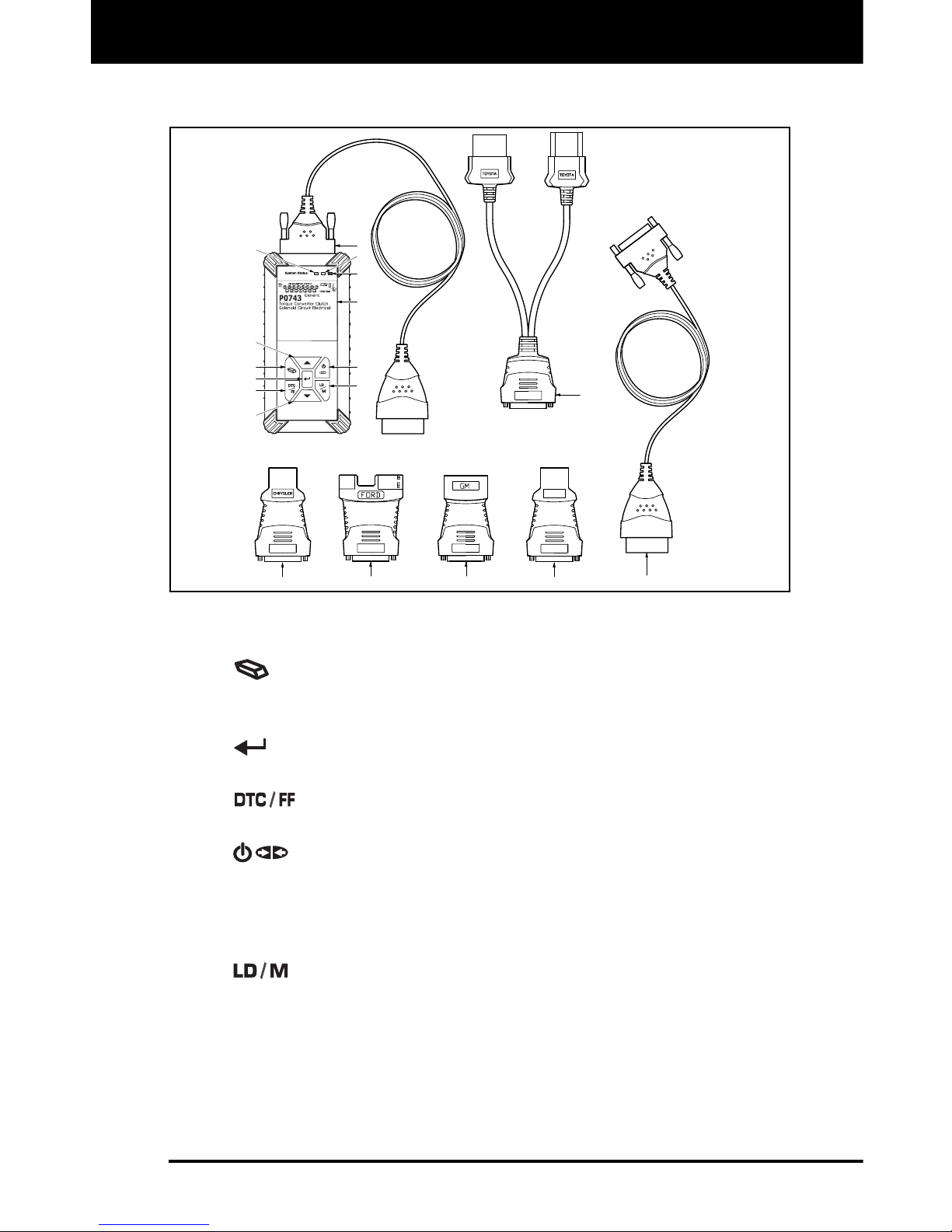

CONTROLS AND INDICATORS ................................................................................................................... 7

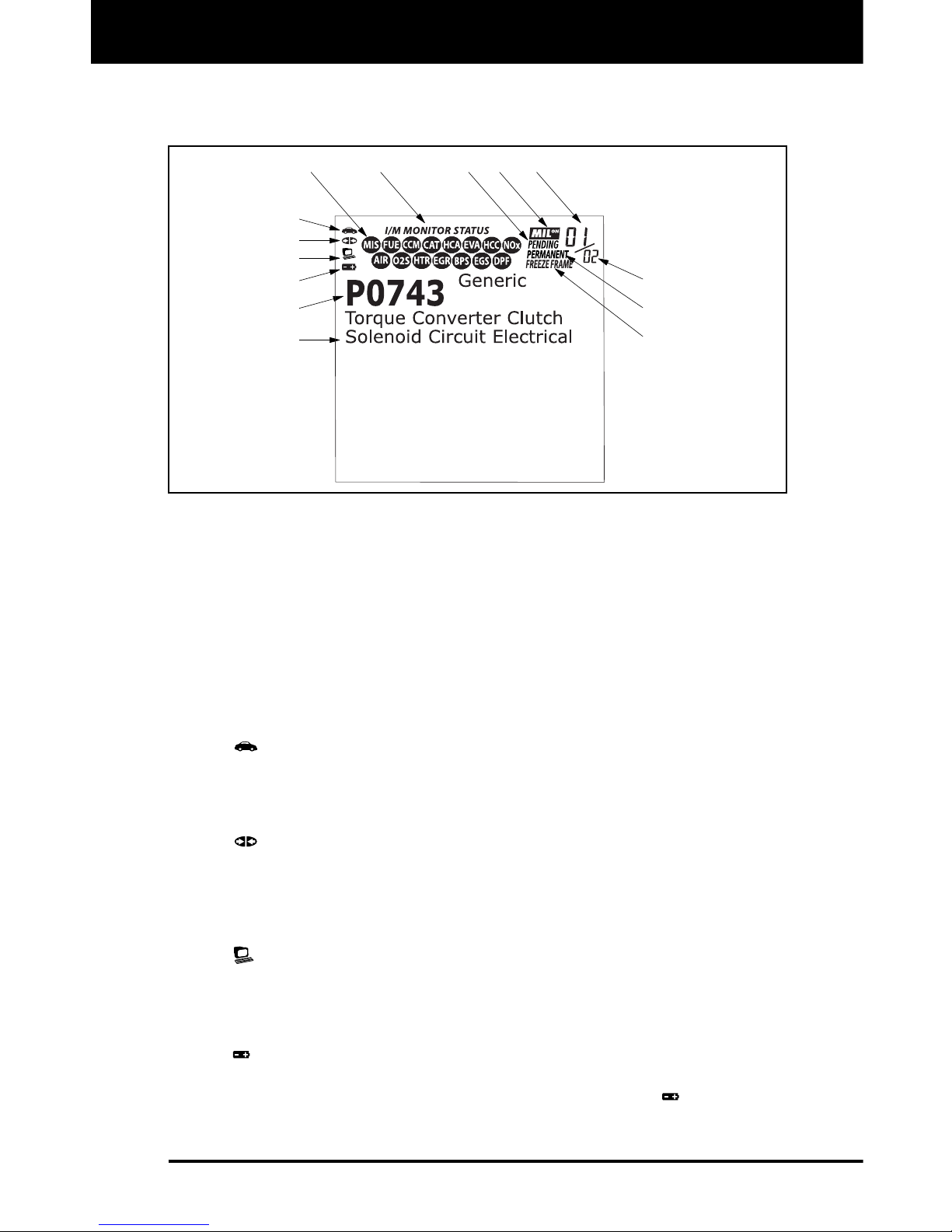

DISPLAY FUNCTIONS .................................................................................................................................. 9
ONBOARD DIAGNOSTICS
COMPUTER ENGINE CONTROLS ............................................................................................................... 11
DIAGNOSTIC TROUBLE CODES (DTCs)..................................................................................................... 16
OBD2 MONITORS ......................................................................................................................................... 19
PREPARATION FOR TESTING
PRELIMINARY VEHICLE DIAGNOSTIC WORKSHEET ............................................................................... 28
BEFORE YOU BEGIN ................................................................................................................................... 31
VEHICLE SERVICE MANUALS .................................................................................................................... 32
USING THE SCAN TOOL
CODE RETRIEVAL PROCEDURE ................................................................................................................ 33
THE ENHANCED MAIN MENU...................................................................................................................... 38
VIEWING ENHANCED DTCs ........................................................................................................................ 40
VIEWING ABS DTCs ..................................................................................................................................... 48
VIEWING SRS DTCs ..................................................................................................................................... 50
ERASING OBD2 DIAGNOSTIC TROUBLE CODES (DTCs)......................................................................... 53
I/M READINESS TESTING ............................................................................................................................ 54
ABOUT REPAIRSOLUTIONS® ..................................................................................................................... 59
CHRYSLER/JEEP OBD1 SYSTEMS
CHRYSLER/JEEP OBD1 SYSTEMS ............................................................................................................ 61
VEHICLES COVERED .................................................................................................................................. 62
INSTRUMENT PANEL INDICATOR LIGHTS ................................................................................................ 62
DATA LINK CONNECTOR (DLC) .................................................................................................................. 62
CODE RETRIEVAL PROCEDURE ................................................................................................................ 63
FORD OBD1 SYSTEMS
FORD COMPUTER SYSTEM OVERVIEW ................................................................................................... 66
VEHICLES COVERED .................................................................................................................................. 66
TEST CONNECTORS ................................................................................................................................... 69
CONNECTING THE SCAN TOOL ................................................................................................................. 70
DIAGNOSTIC TROUBLE CODES (DTCs) .................................................................................................... 70
CODE RETRIEVAL PROCEDURES ............................................................................................................. 71
ADDITIONAL TESTS FOR EEC-IV SYSTEMS ............................................................................................. 80
GM OBD1 SYSTEMS
YOUR VEHICLE'S COMPUTER SYSTEM .................................................................................................... 89
VEHICLES COVERED .................................................................................................................................. 89
ABOUT THE .................................................................................................................................................. 90
DATA LINK CONNECTOR (DLC) .................................................................................................................. 90
MALFUNCTION INDICATOR LIGHT (MIL) ................................................................................................... 90
DIAGNOSTIC TROUBLE CODES (DTC's) ................................................................................................... 90
CODE RETRIEVAL PROCEDURE ................................................................................................................ 91
HONDA OBD1 SYSTEMS
YOUR VEHICLE'S COMPUTER SYSTEM .................................................................................................... 95
VEHICLES COVERED .................................................................................................................................. 95
ABOUT THE SCAN TOOL ............................................................................................................................. 95
DATA LINK CONNECTOR (DLC) .................................................................................................................. 95
MALFUNCTION INDICATOR LIGHT (MIL) ................................................................................................... 95
DIAGNOSTIC TROUBLE CODES (DTC's) ................................................................................................... 96
CODE RETRIEVAL PROCEDURE ................................................................................................................ 96
VIEWING DTCs IN THE SCAN TOOL'S MEMORY ...................................................................................... 98
ERASING DTCs ............................................................................................................................................. 99
TOYOTA/LEXUS OBD1 SYSTEMS
ON-BOARD VEHICLE DIAGNOSTICS (OBD1) ............................................................................................ 101
VEHICLES COVERED .................................................................................................................................. 101
DATA LINK CONNECTOR (DLC) .................................................................................................................. 104
INSTRUMENT PANEL MALFUNCTION INDICATOR LIGHTS (MIL) ........................................................... 104
DIAGNOSTIC TROUBLE CODES ................................................................................................................. 105
CODE RETRIEVAL PROCEDURE ................................................................................................................ 105
SERVICING DTCS
SERVICING DTCs - OBD I ............................................................................................................................ 108
ERASING DTCS
ERASING DTCs (OBD I SYSTEMS) ............................................................................................................. 110
LIVE DATA MODE
VIEWING LIVE DATA .................................................................................................................................... 112
CUSTOMIZING LIVE DATA (PIDs) ............................................................................................................... 113
RECORDING (CAPTURING) LIVE DATA ..................................................................................................... 114
LIVE DATA PLAYBACK.................................................................................................................................. 118
ADDITIONAL TESTS
SPECIAL TEST MENU .................................................................................................................................. 120
VIEWING VEHICLE INFORMATION ............................................................................................................. 124
ADJUSTMENTS AND SETTINGS ................................................................................................................. 126
GENERIC (GLOBAL) OBD2 PID LIST ........................................................................................................................ 131
VEHICLE APPLICATIONS - MAKES COVERED (ABS)
DOMESTIC MAKES ....................................................................................................................................... 136
ASIAN MAKES (OPTIONAL UPGRADE) ...................................................................................................... 136
EUROPEAN MAKES (OPTIONAL UPGRADE) ............................................................................................. 136
VEHICLE APPLICATIONS - MAKES COVERED (SRS)
DOMESTIC MAKES ....................................................................................................................................... 137
ASIAN MAKES (OPTIONAL UPGRADE) ...................................................................................................... 137
EUROPEAN MAKES (OPTIONAL UPGRADE) ............................................................................................. 137
GLOSSARY
GLOSSARY OF TERMS AND ABBREVIATIONS.......................................................................................... 138
WARRANTY AND SERVICING
LIMITED ONE YEAR WARRANTY ................................................................................................................ 141
SERVICE PROCEDURES ............................................................................................................................. 141

Introduction
WHAT IS OBD?
CarScan+OBD1 1
WHAT IS OBD?
The Scan Tool is designed to work on all OBD2 compliant vehicles.
All 1996 and newer vehicles (cars, light trucks and SUVs) sold in
the United States are OBD2 compliant.
One of the most exciting improvements in the
automobile industry was the addition of on-
board diagnostics (OBD) on vehicles, or in more
basic terms, the computer that activates the
vehicle’s “CHECK ENGINE” light. OBD1 was
designed to monitor manufacturer-specific
systems on vehicles built from 1981 to 1995.
Then came the development of OBD2, which is
on all 1996 cars and light trucks sold in the U.S. Like its predecessor,
OBD2 was adopted as part of a government mandate to lower vehicle
emissions. But what makes OBD2 unique is its universal application for
all late model cars and trucks - domestic and import. This sophisticated
program in the vehicle’s main computer system is designed to detect
failures in a range of systems, and can be accessed through a universal
OBD2 port, which is usually found under the dashboard. For all OBD

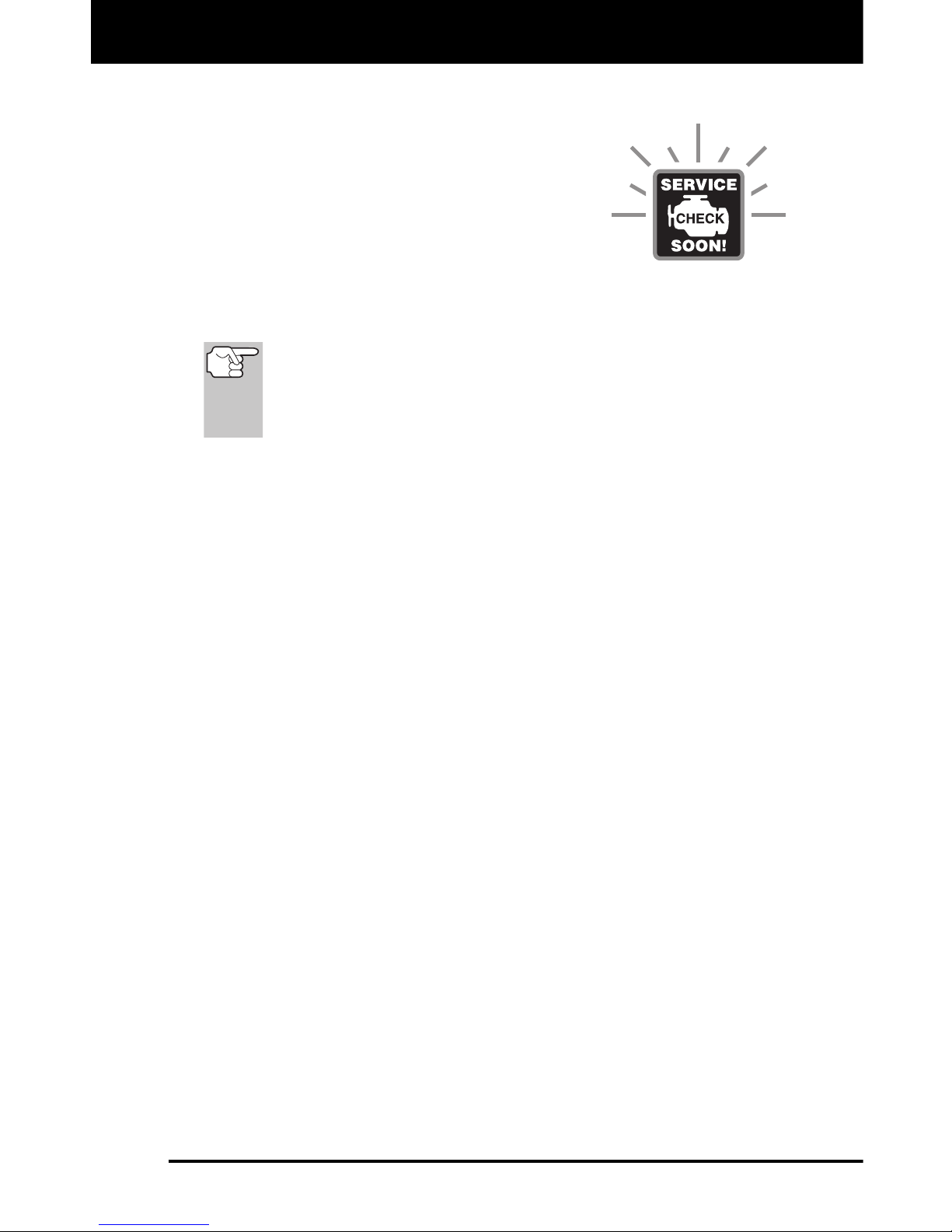

systems, if a problem is found, the computer turns on the “CHECK
ENGINE” light to warn the driver, and sets a Diagnostic Trouble Code
(DTC) to identify where the problem occurred. A special diagnostic tool,
such as the Scan Tool, is required to retrieve these codes, which
consumers and professionals use as a starting point for repairs.
The Scan Tool provides the additional ability to retrieve enhanced DTCs
from most Chrysler/Jeep, Ford/Mazda, GM/Isuzu, Honda/Acura and
Toyota/Lexus vehicles, as well as Anti-Lock Brake System (ABS) DTCs,
Supplemental Restraint System (SRS) DTCs and vehicle information.
The types of enhanced data available depends on the vehicle make.
ABS/SRS functionality is available by upgrading your tool
through the PC-Link software.

You Can Do It!
EASY TO USE - EASY TO VIEW - EASY TO DEFINE
2 CarScan+OBD1

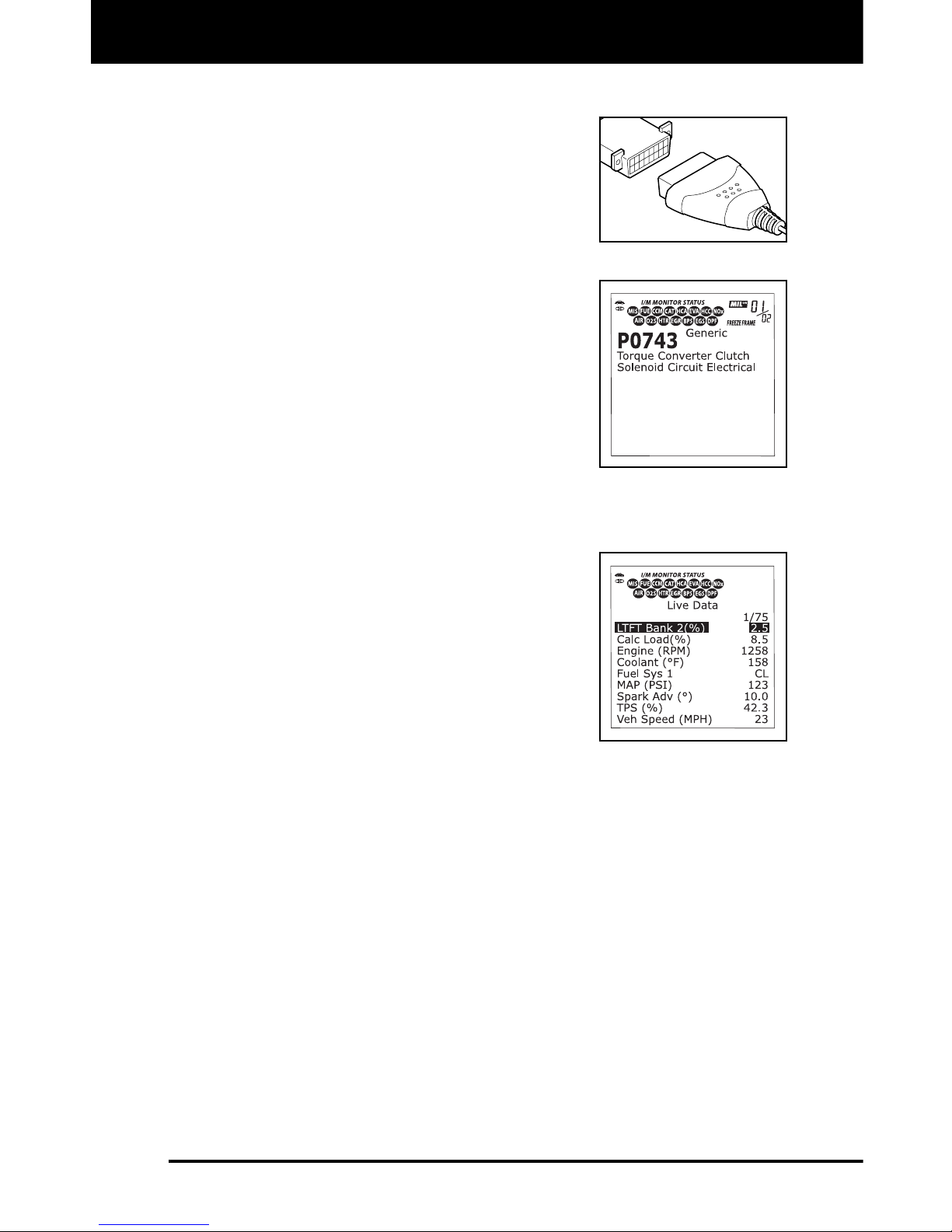

Easy To Use . . . .
Connect the Scan Tool to the vehicle’s test
connector.
Turn the ignition key "On.”
The Scan Tool will automatically link to the
vehicle’s computer.
Easy To View . . . .
The Scan Tool retrieves stored codes,
Freeze Frame data and I/M Readiness
status.
Codes, I/M Readiness status and Freeze
Frame data are displayed on the Scan
Tool’s display screen. System status is
indicated by LED indicators.
Easy To Define . . . .
Read code definitions from the Scan Tool’s
display.
View Freeze Frame data.
View Live Data.
Retrieve and view OBD1 codes.
View Anti-Lock Brake System (ABS) codes
(optional upgrade).
View Supplemental Restraint System
(SRS) codes (optional upgrade).

Safety Precautions
SAFETY FIRST!
CarScan+OBD1 3
SAFETY FIRST!
This manual describes common test procedures used
by experienced service technicians. Many test procedures
require precautions to avoid accidents that can result in
personal injury, and/or damage to your vehicle or test
equipment. Always read your vehicle's service manual and
follow its safety precautions before and during any test or
service procedure. ALWAYS observe the following general
safety precautions:
When an engine is running, it produces carbon monoxide,
a toxic and poisonous gas. To prevent serious injury or
death from carbon monoxide poisoning, operate the
vehicle ONLY in a well-ventilated area.
To protect your eyes from propelled objects as well as hot
or caustic liquids, always wear approved safety eye
protection.
When an engine is running, many parts (such as the
coolant fan, pulleys, fan belt etc.) turn at high speed. To
avoid serious injury, always be aware of moving parts.
Keep a safe distance from these parts as well as other
potentially moving objects.
Engine parts become very hot when the engine is running.
To prevent severe burns, avoid contact with hot engine
parts.
Before starting an engine for testing or troubleshooting,
make sure the parking brake is engaged. Put the
transmission in park (for automatic transmission) or
neutral (for manual transmission). Block the drive wheels
with suitable blocks.
Connecting or disconnecting test equipment when the
ignition is ON can damage test equipment and the
vehicle's electronic components. Turn the ignition OFF
before connecting the Scan Tool to or disconnecting the
Scan Tool from the vehicle’s Data Link Connector (DLC).
To avoid personal inju
r
y
, instrument damage and/or
damage to your vehicle; do not use the Scan Tool before
reading this manual.
N
L
D
R
P

Safety Precautions
SAFETY FIRST!
4 CarScan+OBD1
To prevent damage to the on-board computer when taking
vehicle electrical measurements, always use a digital
multimeter with at least 10 MegOhms of impedance.
Fuel and battery vapors are highly flammable. To prevent
an explosion, keep all sparks, heated items and open
flames away from the battery and fuel / fuel vapors. DO
NOT SMOKE NEAR THE VEHICLE DURING TESTING.
Don't wear loose clothing or jewelry when working on an
engine. Loose clothing can become caught in the fan,
pulleys, belts, etc. Jewelry is highly conductive, and can
cause a severe burn if it makes contact between a power
source and ground.

About the Scan Tool
VEHICLES COVERED
CarScan+OBD1 5

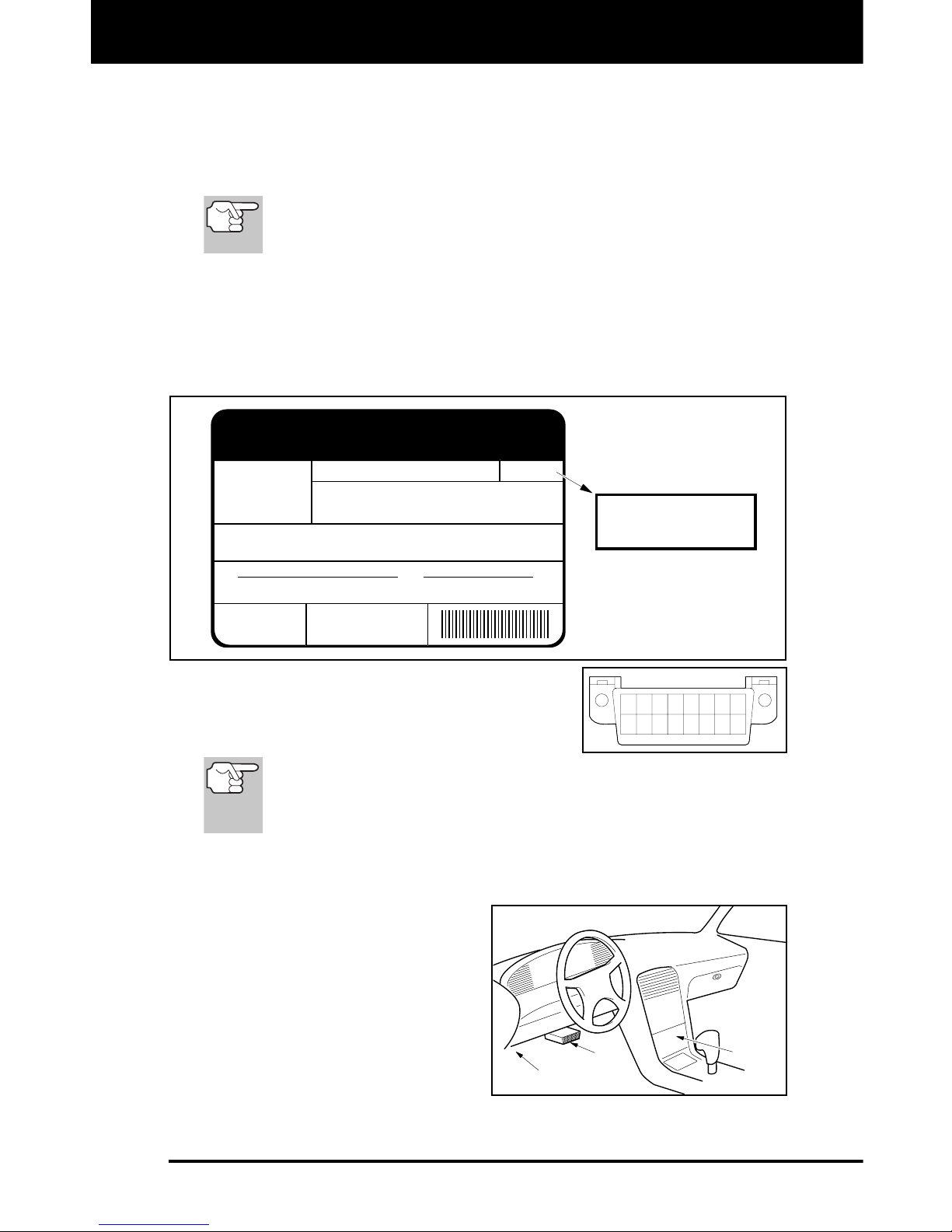

VEHICLE EMISSION CONTROL INFORMATION
VEHICLE
MANUFACTURER
OBD II
CERTIFIED
ENGINE FAMILY EFN2.6YBT2BA
DISPLACEMENT 2.6L
THIS VEHICLE CONFORMS TO U.S. EPA AND STATE
OF CALIFORNIA REGULATIONS APPLICABLE TO
1999 MODEL YEAR NEW TLEV PASSENGER CARS.
REFER TO SERVICE MANUAL FOR ADDITIONAL INFORMATION
TUNE-UP CONDITIONS: NORMAL OPERATING ENGINE TEMPERATURE,
ACCESSORIES OFF, COOLING FAN OFF, TRANSMISSION IN NEUTRAL
SPARK PLUG
TYPE NGK BPRE-11
GAP: 1.1MM
CATALYST
EXHAUST EMISSIONS STANDARDS STANDARD CATEGORY
CERTIFICATION
IN-USE TLEV TLEV INTERMEDIATE
OBD II
CERTIFIED
VEHICLES COVERED
The Scan Tool is designed to work on all OBD2 compliant vehicles. All
1996 and newer vehicles (cars and light trucks) sold in the United States
are OBD2 compliant.
Federal law requires that all 1996 and newer cars and light
trucks sold in the United States must be OBD2 compliant; this
includes all Domestic, Asian and European vehicles.
Some 1994 and 1995 vehicles are OBD2 compliant. To find out if a
1994 or 1995 vehicle is OBD2 compliant, check the following:
1. The Vehicle Emissions Control Information (VECI) Label. This
label is located under the hood or by the radiator of most vehicles. If
the vehicle is OBD2 compliant, the label will state “OBD II
Certified.”
2. Government Regulations require that all
OBD2 compliant vehicles must have a
“common” sixteen-pin Data Link
Connector (DLC).
Some 1994 and 1995 vehicles have 16-pin connectors but are
not OBD2 compliant. Only those vehicles with a Vehicle
Emissions Control Label stating “OBD II Certified” are OBD2
compliant.
Data Link Connector (DLC) Location
The 16-pin DLC is usually
located under the instrument
panel (dash), within 12 inches
(300 mm) of center of the panel,
on the driver’s side of most
vehicles. It should be easily
accessible and visible from a
kneeling position outside the
vehicle with the door open.
12345678
9 10111213141516
NEAR
CENTER
OF DASH
BEHIND
ASHTRAY
LEFT CORNER
OF DASH

About the Scan Tool
BATTERY REPLACEMENT
6 CarScan+OBD1
On some Asian and European vehicles the DLC is located
behind the “ashtray” (the ashtray must be removed to
access it) or on the far left corner of the dash. If the DLC
cannot be located, consult the vehicle’s service manual for
the location.
BATTERY REPLACEMENT
Replace batteries when the battery symbol is visible on display
and/or the 3 LEDS are all lit and no other data is visible on screen.
1. Locate the battery cover on the back of the Scan Tool.
2. Slide the battery cover off (use your fingers).
3. Replace batteries with three AA-size batteries (for longer life, use
Alkaline-type batteries).
4. Reinstall the battery cover on the back of the Scan Tool.
Adjustments After Battery Installation
The first time the Scan Tool is turned on, you must select the desired
display language (English, French or Spanish) and unit of measurement
(USA or Metric) as follows:
1. Press the POWER/LINK button to
turn the Scan Tool “ON.”
The Select Language screen displays.
2. Use the UP and DOWN buttons,
as necessary, to highlight the desired
display language.
3. When the desired display language is
selected, press the ENTER button to
confirm your selection.
The Select Unit screen displays.
4. Use the UP and DOWN buttons,
as necessary, to highlight the desired unit
of measurement.
5. When the desired unit of measurement is
selected, press the ENTER button to
confirm your selection.
After the initial language and unit of measurement selections
are performed, these, as well as other settings, can be
changed as desired. Proceed to “ADJUSTMENTS AND
SETTINGS” on page 126 for further instructions.

Scan Tool Controls
CONTROLS AND INDICATORS
CarScan+OBD1 7
CONTROLS AND INDICATORS
Figure 1. Controls and Indicators
See Figure 1 for the locations of items 1 through 18, below.
1. ERASE button - Erases Diagnostic Trouble Codes (DTCs),
and “Freeze Frame” data from your vehicle’s computer, and resets
Monitor status.
2. ENTER button - When in MENU mode, confirms the selected
option or value.
3. button - Displays the DTC View screen and/or scrolls the
LCD display to view DTCs and Freeze Frame data.
4. POWER/LINK button - When the Scan Tool IS NOT
connected to a vehicle, turns the Scan Tool “On” and “Off”. When
the Scan Tool is connected to a vehicle, links the Scan Tool to the
vehicle’s PCM to retrieve diagnostic data from the computer’s
memory.
5. button – When pressed while linked to a vehicle, displays
the Main menu.
12
1
2
7
8
3
6
4
10
9
5
11
18
17
13 16
14 15
HONDA

Scan Tool Controls
DISPLAY FUNCTIONS
8 CarScan+OBD1
6. DOWN button - When in MENU mode, scrolls DOWN through
the menu and submenu selection options. When LINKED to a
vehicle, scrolls DOWN through the current display screen to display
any additional data.
7. UP button - When in MENU mode, scrolls UP through the
menu and submenu selection options. When LINKED to a vehicle,
scrolls UP through the current display screen to display any
additional data.
8. GREEN LED - Indicates that all engine systems are running
normally (all Monitors on the vehicle are active and performing their
diagnostic testing, and no DTCs are present).
9. YELLOW LED - Indicates there is a possible problem. A “Pending”
DTC is present and/or some of the vehicle’s emission monitors have
not run their diagnostic testing.
10. RED LED - Indicates there is a problem in one or more of the
vehicle’s systems. The red LED is also used to show that DTC(s)
are present. DTCs are shown on the Scan Tool’s display. In this
case, the Malfunction Indicator (“Check Engine”) lamp on the
vehicle’s instrument panel will light steady on.
11. Display - Displays settings Menu and submenus, test results, Scan
Tool functions and Monitor status information. See DISPLAY
FUNCTIONS, following, for more details.
12. CABLE - Connects the Scan Tool to the vehicle’s Data Link
Connector (DLC).
13. CHRYSLER Connector Cable Adaptor - Installs on cable (item 14)
when connecting to a Chrysler OBD1 Data Link Connector.
14. FORD Connector Cable Adaptor - Installs on cable (item 14) when
connecting to a Ford OBD1 Data Link Connector.
15. GM Connector Cable Adaptor - Installs on cable (item 14) when
connecting to a GM OBD1 Data Link Connector.
16. HONDA Connector Cable Adaptor - Installs on cable (item 14)
when connecting to a Honda OBD1 Data Link Connector.
17. OBD II Cable - Connects the scan tool to the vehicle's Data Link
Connector (DLC) when retrieving codes from OBD II systems.
18. TOYOTA Connector Cable Adaptor - Installs on cable (item 14)
when connecting to a Toyota OBD1 Data Link Connector.
