Innova ITM4800 User manual

Heavy Duty Deluxe Inversion Therapy Table
Model ITM4800
Owner’s Manual Version:180315JJ
Questions/Comments
Innova Products Inc. is committed to providing the best quality and customer satisfaction
for all products we distribute. If you are dissatisfied with your purchase or need assistance,
please do not hesitate to contact us. Phone: [phone]
Monday through Friday
8:00 am –4:00 pm Pacific Time
Email: [e-mail]
WARNING:
BE SURE to read this manual in its ENTIRETY prior
to installing and using the inversion table.
DO NOT USE inversion table without the approval
of a licensed physician. Some medical conditions
may not be suitable for use with this product.
CAREFULLY READ all Warnings and Instructions
before using this inversion table. Misuse of this
equipment may result in serious injury.
BODY WEIGHT will put pressure on ankles while
inverting. New users are advised to start at lower
angles (15 or 30) and to wear athletic shoes.
DO NOT let children under the age of 13 use the
inversion table.
DO NOT allow children, bystanders, or pets around
while using this equipment.
DO NOT put hand or fingers inside the Protective
Cover for the Angle Selector Pin.
TO PREVENT unauthorized usage, it is strongly
recommended you purchase a lock to fasten the
Height Adjustment Tube to the Cross Bar.
KEEP BODY, clothing, and hair free of all moving
parts.
ALWAYS USE all basic safety precautions when
using any electrical products.
TIGHTEN ALL nuts, bolts, and screws BEFORE
using equipment.
LEAVE adequate space to invert.
THIS EQUIPMENT is for indoor, household and
non-institutional use only.
Note: This product is
designed to adjust from 4’10”
to 6’6” with a Maximum
User Weight of 300 LBS
Images may be slightly different
from actual product.
Front
Rear

PRODUCT WARRANTY
One-Year Limited Liability
Innova Products Inc. warrants that this product will be free from defects in materials and workmanship for a
period of one year from date of purchase. This warranty applies only to the original purchaser when
purchase of the product is from an authorized retailer and is for personal or household use. Warrantyis
void when the sale of the product is for institutional use. This warranty is non-transferable.
EXCEPT FOR THE LIMITED EXPRESS WARRANTY STATED HEREIN, INNOVA PRODUCTS INC.
DISCLAIMS ALL OTHER EXPRESS OR IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO
THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
Innova Products Inc., will not be liable for any loss or damage, including incidental or consequential
damages of any kind, whether based upon warranty, contract or negligence and arising in connection with
the sale, use or repair of the product.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO
YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
In the event of failure of this product to conform to this warranty during the warranty period, please call
Innova Products Inc. Customer Service Department at [phone] for assistance in the repair or
replacement of the product or any covered part. Innova Products Inc. will repair or replace, at its own
option, the product or any covered part. This warranty does not cover damage caused by but not limited to
accident (including transit), repairs or attempted repairs by any person not authorized by Innova Products
Inc., or by vandalism, misuse, abuse, or alteration. The Warranty Period is based on the purchase date of
the product validated by the Authorized Retailers Register Receipt or valid copy of transaction statement.
If you require service under this warranty, please call or email our Customer Service Department at:
[e-mail] or [phone]
2
WARNINGS AND PRECAUTIONS
DO NOT use inversion table without a licensed physician’s approval. This product
may not be appropriate for use with certain medical conditions. If you believe you
experience any of the following conditions, consult with your physician before using
this product.
PLEASE NOTE: This list is for reference only and it is not a complete listing.
· Acutely swollen joints · Overweight / Extremely Obese
· Bone weakness (osteoporosis) · Pregnancy
· Cerebral sclerosis · Recent or unhealed fractures
· Conjunctivitis · Recent stroke or transient ischemic attack
· Glaucoma · Retinal detachment
· Heart or circulatory disorders · Spinal injury
· Hiatal hernia · Surgically implanted orthopedic supports
· High blood pressure · Use of anticoagulants
· Hypertension (including high doses of aspirin)
· Medullary pins · Ventral hernia
· Middle ear infection · Weak ankles and/or feet
Importer Address: Innova Products Inc.,1289 HammerwoodAvenue, Sunnyvale, CA 94089

WARNINGS AND PRECAUTIONS
To reduce the risk of serious injury:
·All users should read and understand all important precautions, instructions, and warnings
in this manual before using the inversion table. It is your responsibility to familiarize yourself
with the proper use of the inversion table and the inherent risks of the inversion table (ex.
falling on your head/neck, pinching, equipment failure, etc.).
·It is the responsibility of the owner to ensure that all users of the device are fully informed
about the proper use of the equipment and all warnings and safety precautions.
·Users can also read the condensed version of the Warnings and User’s Guidelines on the
back of the Backrest Pad.
·Innova Products Inc. assumes no responsibility for personal injury or property damage
sustained by or through the improper use of the Inversion Table.
3
BEFORE USING THE INVERSION TABLE:
·The empty space surrounding the inversion table should
be at least 2 feet (0.6 meters) on the left and right sides
and at least 3 feet (0.92 meters) on the front and back
sides. This area must also include adequate space for
emergency dismount. See image at the right.
· The inversion table must be free standing on a stable
and leveled surface.
· DO NOT use inversion table if any parts are damaged
or missing.
· Make sure the Safety Pin (Part # 26) is locked into place.
· Make sure the Protective Cover is secured on the right
handlebar.
· Be sure to secure your ankles to the ankle holders so
that your feet are locked snugly into place before
inverting.
· The safety level of the inversion table can be
maintained only if it is examined regularly for
damage and wear and tear from regular usage.
· Please replace all missing or defective
components or worn out parts immediately
and/or keep the inversion table out of use
until item has been replaced or repaired.
· Parts most susceptible to wear and tear:
1) U-Shape Holder (Part #52)
2 ft
3 ft
2 ft
3 ft
WARNING LABELS
Call us to replace warning labels if
damaged, illegible or removed.
Pinch Warning Label
on Side Cover
Angle Selector
Pin Warning
Ankle Lock and
Other Warnings
Height Adjustment
Knob Label
User's Guidelines
& Warning
on the back of
Backrest Pad
“Holes on This
Side” Label
Headrest
Adjustment
Label
Pinch Warning
User's Warning &
Weight Capacity
WARNING: Maximum Weight Capacity is 300 LBS
Item Dimensions:
52 in x 28 in x 59 in
(132 cm x 71 cm x 150 cm)
Item Weight:
56 lbs (25.4 kg)
Front
Rear
Front
Rear

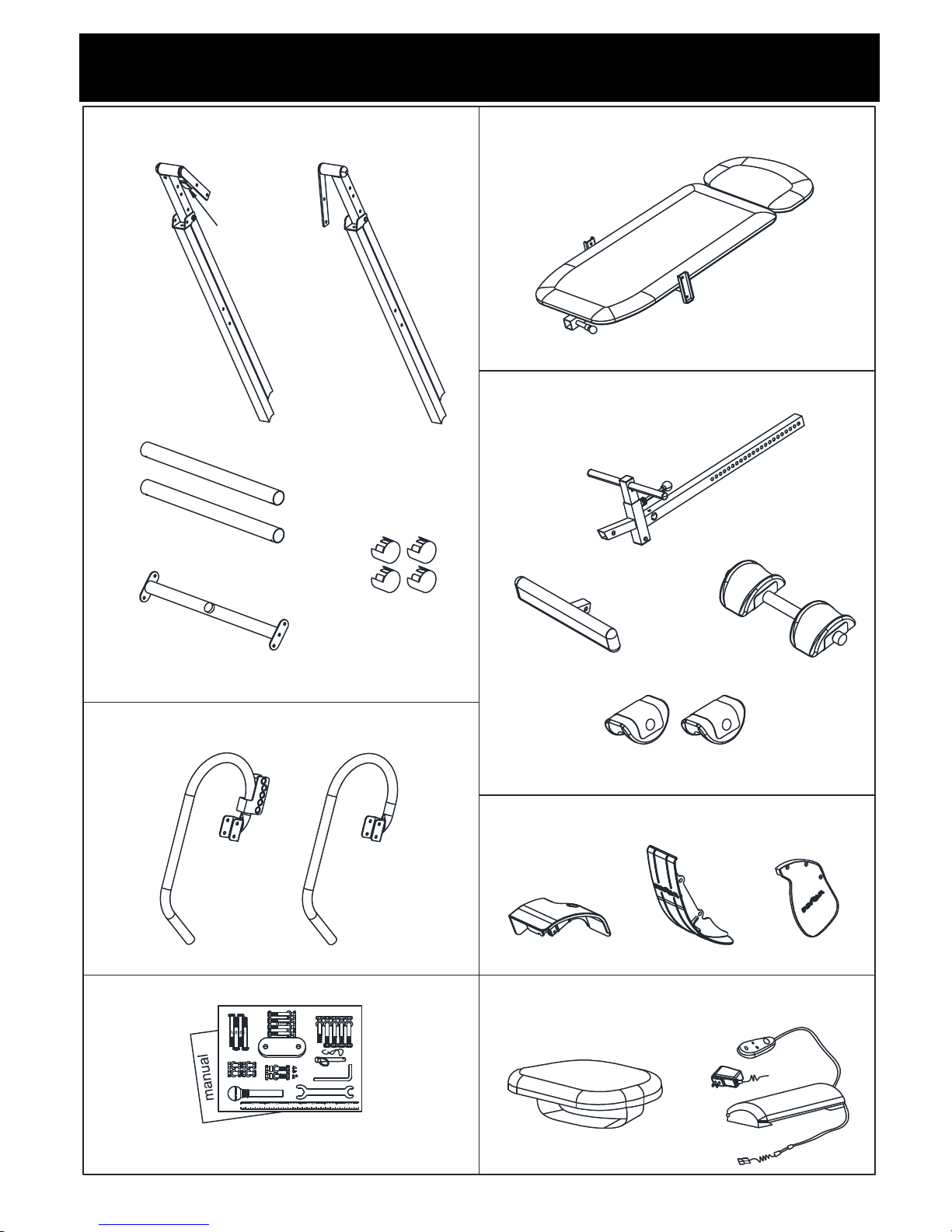

Components For Assembly
4
2/47/47A
8L/9L/11L8R/9R/11R
1
12
31
STEP 6 Components
3/5
4
52/53
10/52/53
59 6063
STEP 3 ComponentSTEP 1 Components
STEP 4 Components
STEP 2 Components
STEP 5 Components
Protruding
Metal
Piece
M8x55
M8x50
STEP2
STEP3
STEP1
M8x20
STEP3 STEP4
Hex Wr enches #5 1PC
Wrench #13#17 2PCS
1 2 3 4 5 6 7 8 9 10 201 2 3 4 5 6 7 8 9 1 2 3 4
1 2 3 4 5 6 7 8 9
0
0cm inch
M8x45
M8x45
Hardware Pack & Manual 13/56/57
48
7
6

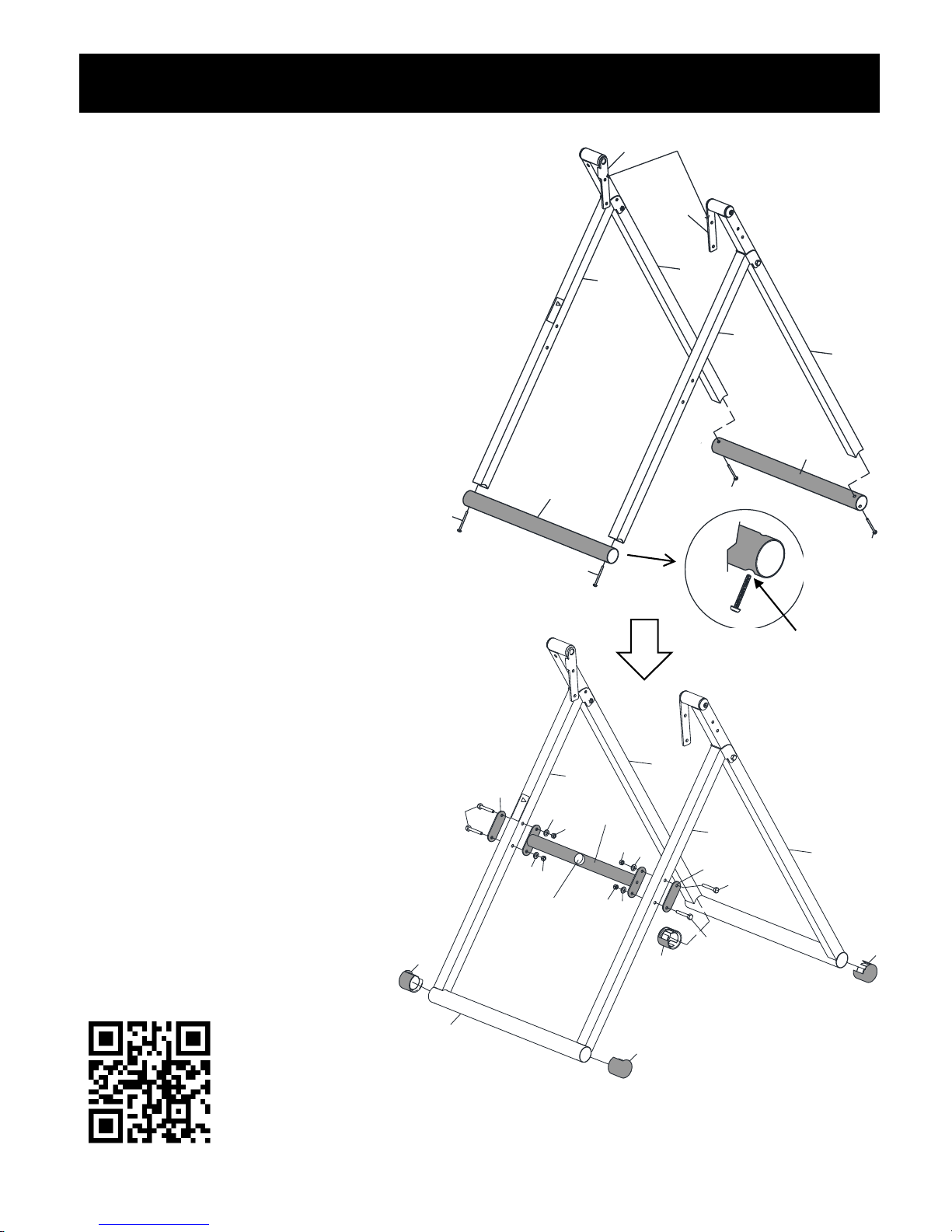

Step 1 –Base Frame Assembly
5
PLEASE NOTE:
RIGHT (R) Indicates right side while using the
inversion table, not facing it.
LEFT (L) Indicates left side while using the
inversion table, not facing it.
NUTS (21) are Nylon Lock Nuts. To tighten,
you need two wrenches.
Lay the Right Base Frame (8R&9R) and
the Left Base Frame (8L&9L) on the floor
with the Connecting Brackets (11R&11L)
facing each other. Make sure the
indented holes on the Bottom Tubes (1)
are facing downward and attach one
Bottom Tube (1) to the Front Base Frame
(9R&9L) using 2 Bolts (32). Attach the
other Bottom Tube (1) to the Rear Base
Frame (8R&8L) using 2 Bolts (32).
DO NOT tighten Bolts (32) until the
Cross Bar (12) is attached.
Make sure the Rubber Stopper (34) on
the Cross Bar (12) is facing out and
attach the Cross Bar (12) to the Front
Base Frame (9R&9L) using 4 Bolts (20)
and 2 Metal Support Plates (54), 4
Washers (19) and 4 Lock Nuts (21).
NOW Tighten all Bolts (32&20).
Insert 4 Base Frame End Caps (31)
into both Bottom Tubes (1).
Unfold the Front Base Frame (9R&9L)
from the Rear Base Frame (8R&8L)
and let it stand on the floor.
Installation Guidance Video DOES NOT replace Owner’s Manual. Please be
sure to read the Owner’s Manual in its entirety.
https://youtu.be/72kV8tdOlC0 or search “Innova ITM4800 Installation Guide” on YouTube.com
Indented
Hole
32
32
32
32
Right Left
1
! Warning
Rear
8L
8R
9R
9L
11R
11L
Front
1
11R&11L
facing each other
31
20 19
21
19
21 19
19
20
Right Left
1
! Warning
Front
Rear
8L
8R
9R
9L
31
31 31
12
54
54
34
Rubber Stopper
is facing out 20
21
21

Secure
Safety
Pin here
Insert
Safety
Pin here
Attach the Right Handlebar (6) to the
Rear Base Frame (8R) using 2 Bolts
(20), 2 Washers (19), and 2 Lock Nuts
(21). Be sure to insert Bolts (20) from
the inside of the frame. The Washers (19)
and Lock Nuts (21) will be on the outside
of the frame.
Do not tighten Bolts 20 until Bolt 22 is
installed. Use Bolt (22) and Flat Washer
(19) to secure the Right Handlebar (6) to
the Rear Base Frame (8R).
Attach the Left Handlebar (7) to the Rear
Base Frame (8L) using 2 Bolts (20), 2
Washers (19), and 2 Lock Nuts (21).
Unlock the chain that comes with the
Safety Pin (26) and secure the Safety
Pin (26) to the Right Handlebar (6) with
the chain provided. Insert the Safety Pin
(26) through the hole on the right side
between the 2 frames (8R&9R) to lock
the Base Frame open. See detailed
picture.
Step 2 –Handlebars Assembly
6
TIGHTEN ALL NUTS AND BOLTS,
AT THIS TIME
20
19
21
19
21
19
19
20
8L
8R
22
7
6
26
19
! Warning
Front
Rear

2
47
Front
Rear
Installed
Correctly
Before Installation, Please NOTE:
Connecting Brackets (11R&11L) MUST
be pointing downward and the Pre-
Installed Backrest MUST be attached from
below and up into the connecting brackets
or the table will not invert properly.
Step 3 –Pre-Installed Backrest to Base Frame
7
TIGHTEN ALL NUTS AND BOLTS
AT THIS TIME
Installed Incorrectly
Attach the Pre-Installed Backrest
(2&47&47A) to the Connecting Brackets
(11R&11L) using 4 Bolts (29), 4 Flat
Washers (19) and 4 Lock Nuts (21).
Screw theAngle Selector Pin (14) into
the Incline Position 15 hole and tighten.
Headrest Adjustment: To adjust the
Headrest (47A), unscrew Bolts (61) and
Washers (51) and remove it from the
Backrest Support Tube (2). Move the
Headrest (47A) to the position desired on
the Backrest Support Tube (2) and screw
2 Bolts (61) and 2 Washers (51) to
secure the Headrest (47A) into place.
Middle Position High PositionLow Position
47A
61
2
47A
61
2
47A
61
2
Connecting Brackets Must Point Downward
WhenAttaching Pre-Installed Backrest
47A
47 2
11R 11L

8

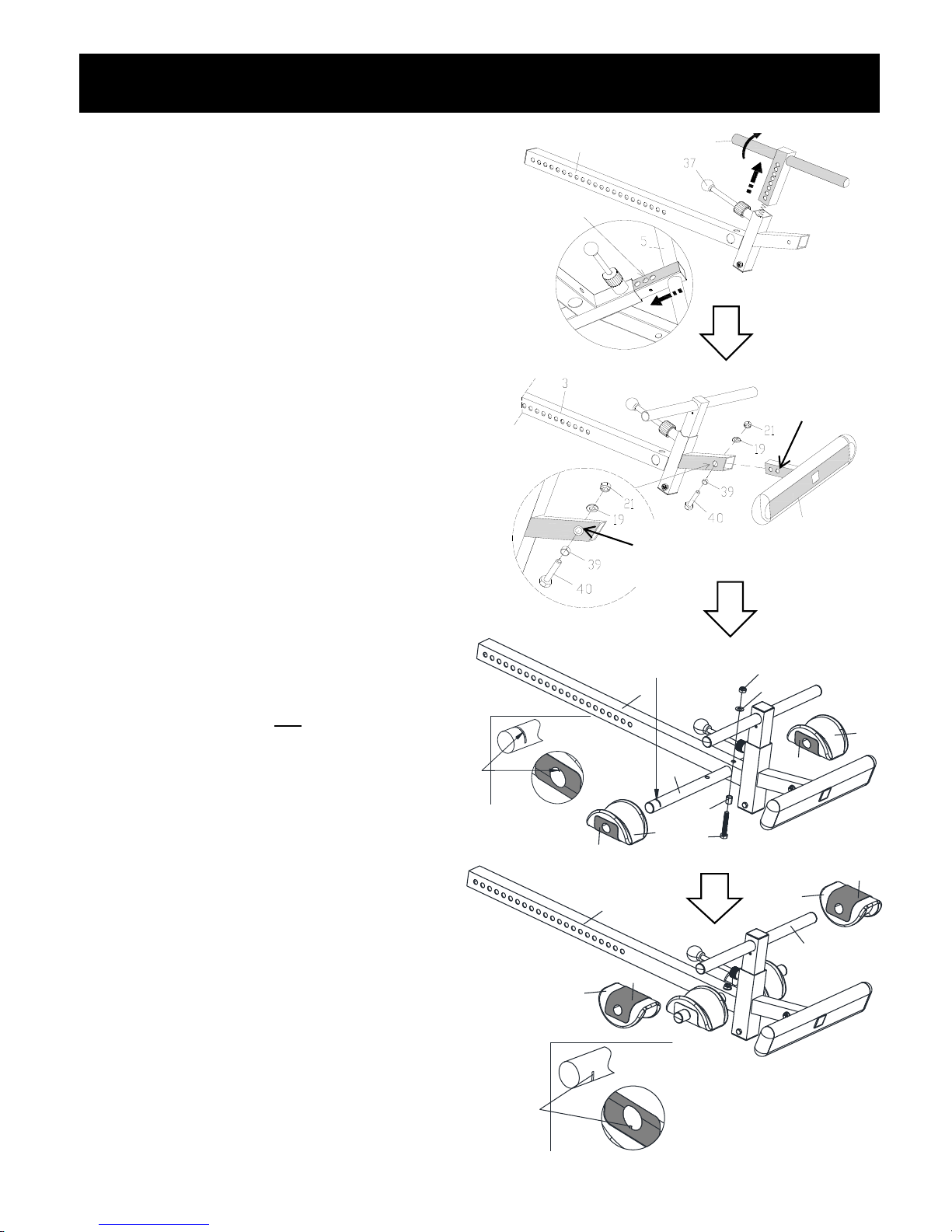

Step 4 –Height Adjustment Tube and Ankle Holders
TIGHTEN ALL NUTS AND BOLTS AT
THIS TIME
1. Pull out the AdjustableAnkle Holding
Tube (5) and turn it 90 degrees and re-insert
it horizontally. Make sure the holes on the
square tube are facing up.
NOTE: There is a spring pre-installed inside
the tube which should not be removed.
2. Install the Footrest (4) into the Height
Adjustment Tube (3) using Bolt (40), Metal
Bushing (39), Washer (19),and Lock Nut (21).
We recommend installing the Footrest (4) using
the lower hole. While in use, if the lower hole
setting is too tight and causes too much
discomfort, adjust to the higher hole.
4. Slide the U-Shape Holder (52) with Metal
Cover (53) onto each end of the Adjustable
Ankle Holding Tube (5). Make sure the Metal
Cover (53) wedges into the slot provided on
AdjustableAnkle Holding Tube (5).
Pull the Ankle Holding Adjustment Knob (37) up
and make sure the AdjustableAnkle Holding Tube
(5) slides smoothly inside the outer tube. Release
the Knob and lock it into one of the holes.
3. The U-Shape Holders (52) with Metal
Cover (53) are pre-installed on the Rear
Ankle Holding Tube (10). You must
squeeze one set (52&53) firmly to loosen it
from the wedge and remove it from the slot
that locks the part into place.
With both slots facing UP, insert the Rear
Ankle Holding Tube (10) into the Height
Adjustment Tube (3). Insert the Bolt (40)
with the Metal Bushing (39) into the bigger
hole at the bottom of the Height
Adjustment Tube (3) and tighten them with
a Flat Washer (19) and a Lock Nut (21).
Re-install the U-Shape Holder (52) with
Metal Cover (53). Make sure the Metal
Cover (53) wedges into the slot provided on
RearAnkle Holding Tube (10). See detailed
drawing.
88
21
19
3
10
52
52
53
53
40
39
Slots face UP
3
53
52
53
52
5
4
Insert
Part 39
into the
large hole.
Lower hole is
recommended
Turn 90
degrees
Holes
face UP
35
Slot
Slot

9
Step 5 –Height Adjustment Tube & Protective Cover Assembly
9
Pull the Height Adjustment Knob (38) and at
the same time slide the Height Adjustment
Tube (3) into the Backrest Support Tube (2) to
your desired height number and release the
HeightAdjustment Knob (38). Make sure the
HeightAdjustment Knob (38) locks securely
into a hole on the HeightAdjustment Tube (3).
To Adjust Height: Pull the Height Adjustment Knob (38) and at the same time slide the
HeightAdjustment Tube (3) up or down to your desired height number and release the
HeightAdjustment Knob (38). Make sure the Height Adjustment Knob (38) locks
securely into a hole on the Height Adjustment Tube (3).
Unlock Locked
Attach the Protective Cover (59) onto the Right Handlebar (6) with 2 Screws (41), one on
each side of the cover. Attach and snap the Front Shield for Cover (63) to the Protective
Cover (59) and secure it onto the Right Handlebar (6) with 2 Screws (41). Then attach the
Side Shield for Cover (60) to the Protective Cover (59) using 3 Screws (55).
59
641
59
41
6
659
63
6
59
63
41
60
55
55
59
41
59
60
63

Front
Rear
10

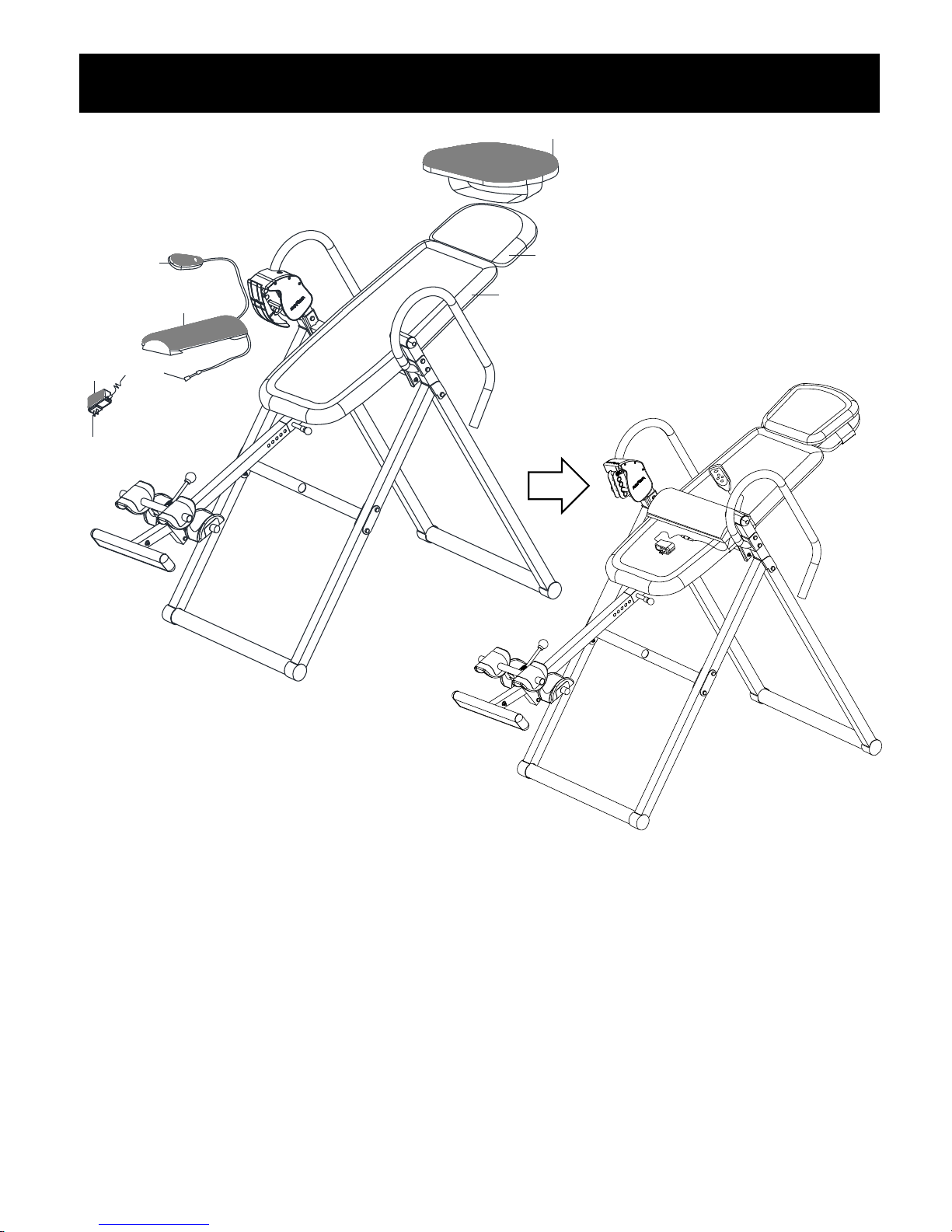

Step 6 –Massage/Heat Lumbar Pad & Headrest Assembly
Attach the Head Pillow (48) to top of the Headrest (47A) to your desired position using
the strap on the Head Pillow (48).
Attach the Massage/Heat Lumbar Pad (13) to lower part of the Backrest Pad (47) to
your desired position using the straps on the Lumbar Pad (13). Attach the
massage/heat lumbar pad’s input jack into the Power Adaptor (57). Plug the Power
Adapter (57) into a suitable power outlet. The Controller (56) can be stored in left side
pocket of the Backrest Pad (47) for easy access.
WARNING: To prevent damage, please pay attention to the power
cord and make sure that it is NOT squeezed or pinched by any parts
of the inversion table.
Rear
48
56
13
57
Adaptor
Input
Jack
47A
47
Front

11
SAFETY INSTRUCTIONS
FOR MASSAGE/HEAT PAD
PLEASE READ ALL INSTRUCTIONS BEFORE USING.
WHEN USING ANY ELECTRICAL PRODUCTS,
BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED,
INCLUDING THE FOLLOWING:
· USE only for its intended use as described in the operating manual.
· DO NOT use attachments not recommended by the manufacturer.
· THIS DEVICE should NOT be used for more than 30 minutes at a time.
· ALWAYS unplug the device from the electrical outlet immediately after using
and before cleaning. To disconnect, turn all controls to the “off” position, then
remove plug from outlet.
· NEVER leave unattended when plugged in. Unplug from outlet when not in use
and before putting on or taking off parts or attachments.
· DO NOT use or place near any liquids. DO NOT operate in a wet or moist
condition.
· NEVER use pins or other metallic fasteners with this device. NEVER drop or
insert any object into any opening.
· CAREFULLY examine the covering before each use. Discontinue use if the
covering shows any sign of deterioration, such as blistering or cracking.
· CLOSE supervision is necessary when used by or near children, invalids or
disabled persons. DO NOT use on infants or a sleeping or unconscious person.
· NEVER use while sleeping and NEVER fall asleep while using device.
· NEVER operate this device if it has a damaged cord or plug, is not working
properly, if it has been dropped or damaged, or dropped into water.
· DO NOT carry this device by supply cord or use cord as handle.
· DO NOT crush or fold any part of the device.
· DO NOT use outdoors. DO NOT operate where aerosol (spray) products are
being used or where oxygen is being administered.
· KEEP cord away from heated surfaces. Use heated surfaces carefully. May
cause serious burns. Do not use over insensitive skin areas or in the presence of
poor circulation. The unattended use of heat by children or incapacitated persons
may be dangerous.
· THIS DEVICE is designed for indoor, household, and non-institutional use only.
· DO NOT use this product as a substitute for medical attention.
· CONSULT your licensed physician before using the device if you have any
concerns regarding your health.
· INDIVIDUALS with pacemakers should consult a licensed physician before use.

12

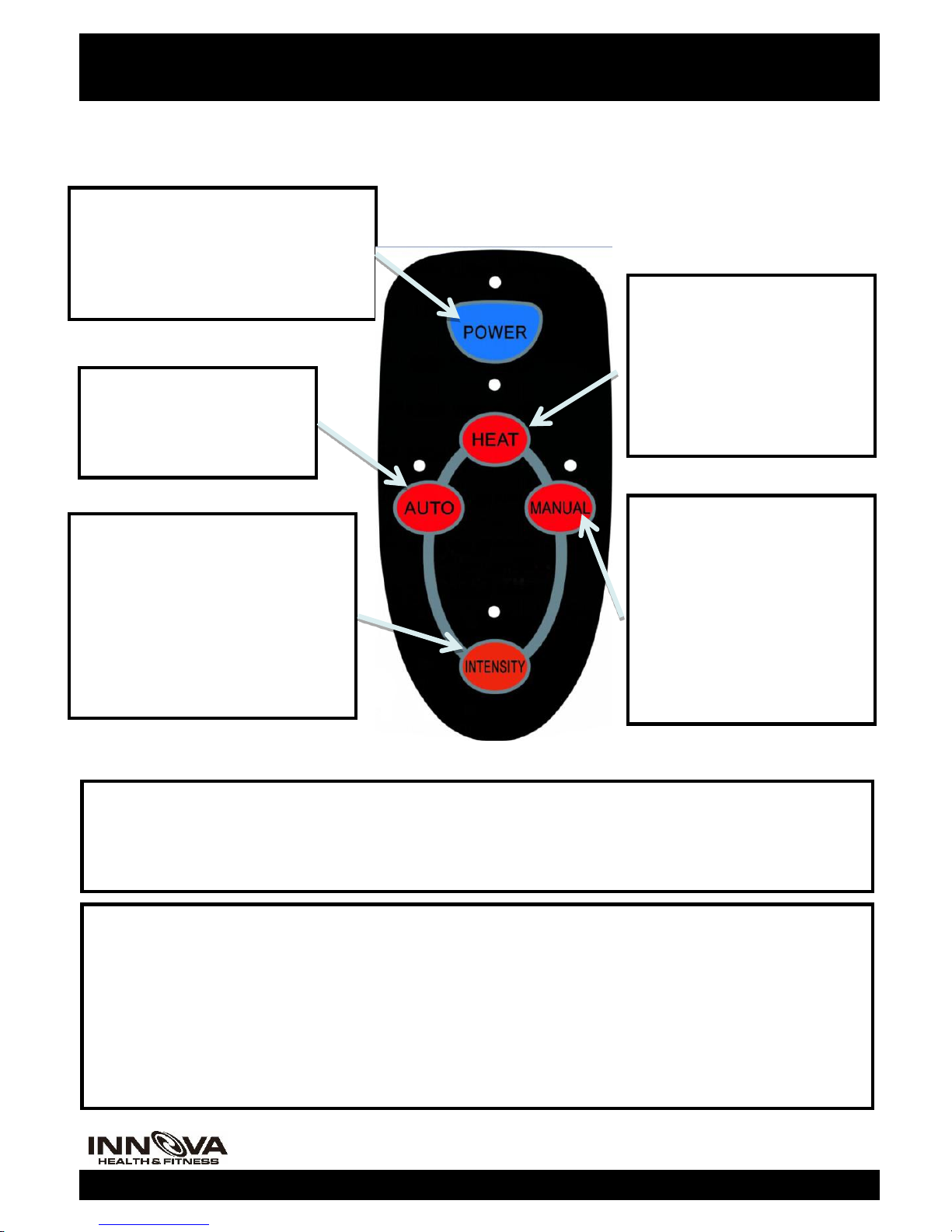

CONTROLLER INSTRUCTIONS
WARNING: FOR YOUR SAFETY
Please DO NOT use this device for more than 30 minutes per session.
If the unit is on and unattended it should auto shut off at 15 minutes.
Connect the Power Adaptor of Heat/Massage Lumbar Pad to a suitable
outlet and the indicator “POWER” light will blink and go into standby mode.
Press the “POWER” button to
start the massage function. The
power indicator light will stop
blinking and the massage
function will start inAUTO mode.
Press the "AUTO"
button and 5 massage
modes will change
automatically.
In Auto or Manual modes,
Press the “INTENSITY”
button to change the intensity
of massage function. There
are 3 intensity levels. The
indicator light of “INTENSITY”
will blink faster when the
intensity is higher.
Press the "HEAT" button
to start the heat function.
The "HEAT" indicator
light is red. Press “HEAT”
again to stop the heat
function and the indicator
light will turn off.
Press the "MANUAL"
button to cancel the auto
mode and start the
manual mode. Press the
“INTENSITY" button to
change the massage
intensities. The
"MANUAL" indicator light
is red.
TO CLEAN: Be sure to unplug the device and allow it to cool prior to cleaning. Using a
soft, slightly damp sponge, wipe only the surface. DO NOT allow the device to contact
or become immersed in water or any other liquid. NEVER clean the device with brushes
or abrasive cleaners, flammable fuels, glass/furniture polish or paint thinner.
TO STORE: Place the device in a cool, dry place –use caution when storing so as not
to damage the internal components. Do not wrap the power cord around the unit or
attempt to hang the device by the Controller cord. Take extra care to avoid contact with
sharp or pointed objects that might puncture the fabric surface.

PREPARING TO INVERT 1:
INVERSION ANGLE AND HEIGHT SETTING
ADJUST TO YOUR HEIGHT SETTING
Photos shown may not represent actual product
13
NOTE: IT IS STRONLY RECOMMENDED THAT SOMEONE BE WITH YOU AT ALL
TIMES DURING INVERSION. ALTHOUGH THE INVERSION TABLE IS EASY TO
USE, HAVING SOMEONE NEARBY TO SPOT YOU WILL PROVIDE EXTRA
SAFETY AND SUPPORT TO THE INVERSION PROCESS.
To Adjust Height: Pull the Height Adjustment Knob (38) and
at the same time slide the Height Adjustment Tube (3) up or
down to your desired height number and release the Height
Adjustment Knob (38). Make sure the HeightAdjustment
Knob (38) locks securely into a hole on the HeightAdjustment
Tube (3).
NOTE: Before starting, ensure that the inversion table
is at the correct setting to match your height and
weight distribution. As each individual’s body type is
different, you will need to find your own height setting.

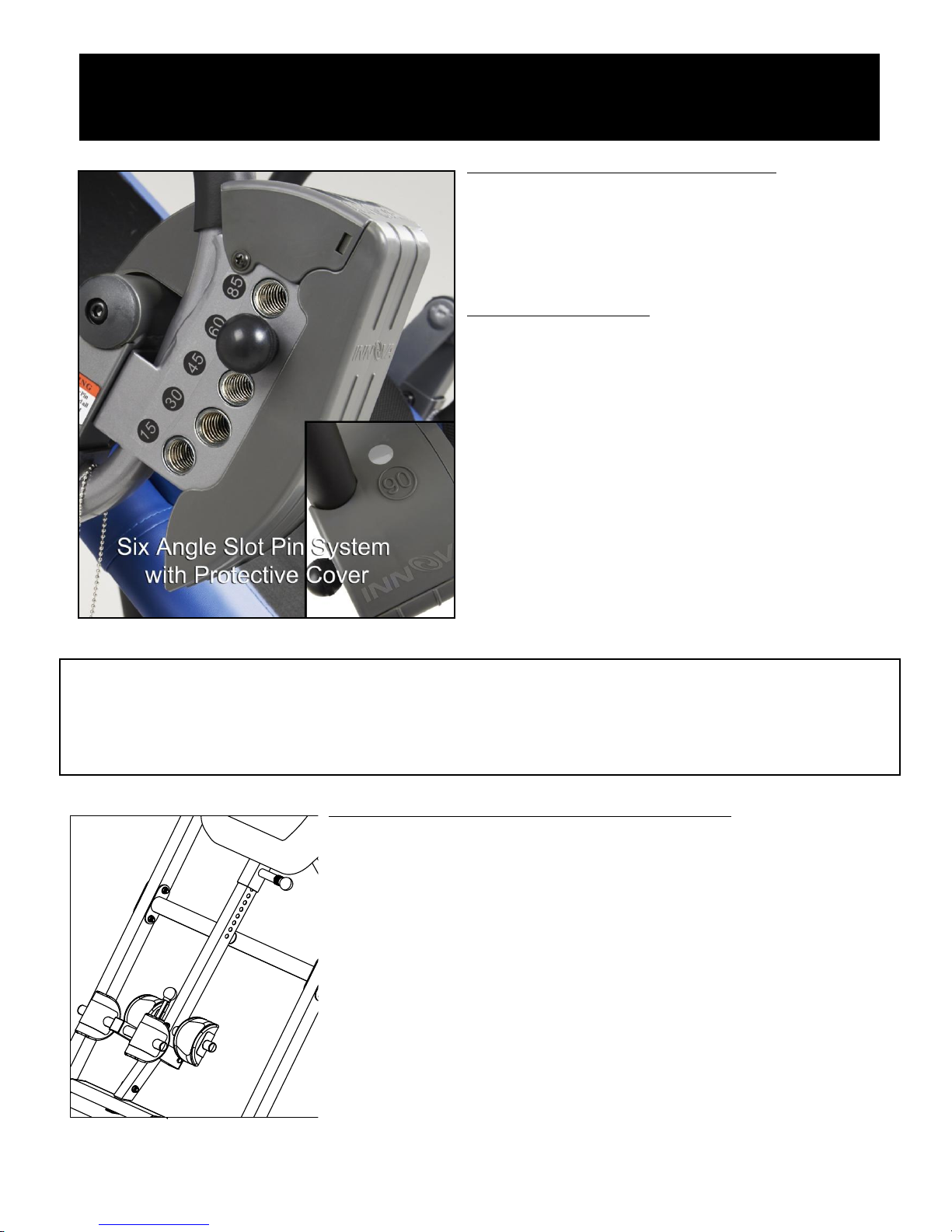

SELECT INVERSION ANGLE
Familiarize yourself with the Angle Selector
Pin located on the Right Side of the Inversion
Table. The positioning of the pin will determine
the degree of the inversion.
The 6 selections are:
15 - Slight Inversion
30 - Moderate Inversion
45 - Intermediate Inversion
60 - Enhanced Inversion
85 - Intense Inversion
90 - Vertical inversion (Insert the Angle
Selector Pin into the hole on top of the Cover)
For your safety, the Angle Selector Pin
MUST be in secured in one of the Angle
Slots at all times.

PREPARING TO INVERT 2:
SECURING YOUR ANKLES
WARNING: ALWAYS WEARATHLETIC SHOES WITH TOP LACES TO
HELP SECURE YOUR ANKLES IN THE INVERSION TABLE AND FOR
FOOT PROTECTION WHILE EXERCISING.
ALWAYS MAKE SURE THAT THE U-SHAPE HOLDERS ARE SECURED
SNUGLYAGAINST YOUR ANKLES AND THAT THE ANKLE HOLDING
ADJUSTMENT KNOB IS FULLY TIGHTENEDAND LOCKED INTO PLACE
BEFORE YOU USE THE INVERSION TABLE.
Step 1- Expand theAdjustableAnkle Holding Tube by
pulling up on theAnkle Holding Adjustment Knob with
one hand and pushing the AdjustableAnkle Holding
Tube outward with the other hand.
Step 2- Slide your feet
between the U-Shape Holders.
NOTE: The back of your
ankles MUST lean all the way
back and touch the rear U-
Shape Holders.
Step 3- Contract Front U-Shape Holders so it is snugly against your ankles
by pulling up on the Ankle Holding Adjustment Knob and making sure it
securely “Locks” into place as photo A.
Photo’s shown may not
represent actual product AB14
NO GAP

15
Before inversion, you should:
1) Adjust the Height Adjustment Tube to your height number,
2) Tighten the Angle Selector Pin,
3) Make sure your feet are secured snugly,
4) Lie flat on the backrest pad.
TO INVERT the inversion table, slowly raise one arm and move it up and
over your head. The inversion table should begin to tilt back slowly. Then,
slowly raise your other arm and move it up over your head. The inversion
table will safely invert to the set degree. Rest your arms over the head and
relax.
If the inversion table does not invert, set the Height Adjustment Tube
upwards one position at a time. If the inversion table inverts too quickly, set
the Height Adjustment Tube downwards one position at a time until you find
the desired height setting.
With the proper inversion and height settings, the inversion table should
safely invert.
TO RETURN to upright position, slowly move your arms back to your thighs
and bend your knees a little. To prevent dizziness, do not return to the
upright position too quickly. Be sure to move your arms slowly and pause
for a while at the horizontal level to allow your body to re-adjust to the
upright position.
Try to rely on your center of gravity to return upright. DO NOT lift your head,
try to sit up, or just rely on the handlebars to return upright.
NOTE: It is recommended that beginners use the setting marked 15 for
partial inversion. Starting at a lower position may also help you get use to
the pressures applied to your feet/ankles while inverting
CAUTION: By slowly moving your arms back to the starting
position, the inversion table should return to the upright position. If
it does not, use the built-in handlebars to slowly help pull yourself
back upright. Lower the Height Adjustment Tube downward one
position at a time to accommodate your height and body type.
Photos shown may not represent actual product
To be able to invert smoothly and easily, you will need to find your personal
center of gravity. To help each individual find his/her center of gravity and
for the most comfortable inversion, there are three adjustable settings: 1)
the Height Adjustment Tube, 2) the Headrest, and 3) the Footrest.
NOTE: The center of gravity may vary from person to person due to height
and weight distribution. Your height setting may or may not be your actual
height.
NOTE: Body weight will put pressure on ankles while inverting.
New users are advised to start at lower angles (15 or 30) and to
wear athletic shoes.
HOW TO INVERT

16
To Store, Insert the Safety
Pin (26) at tip of right
Base Frame (9R)
STORAGE & MAINTENANCE
Remove Safety Pin (26) from the tip of
the Base Frame (8&9). Pull up on the
Handlebars (6/7) to fold the Base Frame
(8&9). Re-insert Safety Pin into the hole
near the tip of the Base Frame (9).
Be sure to leave the Base Frame (8&9)
wide enough to remain stable or secure it
to a wall to prevent tipping.
There are other storage options for this
inversion table. Be sure the inversion
table is stored safely and make sure it
does not slam, fall, or tip over.
WARNING: Do not allow anyone to
use the inversion table while it is in
storage mode. Use the inversion table
only when the base frame is fully
extended. Be sure all parts of the
inversion table are not left unstable
(easily moved) when not in use. Be sure
the device is completely secured to
prevent tripping or blocking.
NOTE: Use a lock (NOT included) to
secure the Height Adjustment Tube (3) to
the Cross Bar (12) to prevent
unauthorized usage of the inversion
table.
89
9
To CLEAN, wipe your inversion table with
a damp cloth. DO NOT use abrasive
cleaners or solvents 9

17
1. How can I tell which is the Right Base Frame (8/9R) vs. Left Base Frame (8/9L)?
There is a Warning sticker on the Right Front Base Frame (9R). There is also a protruding
metal piece on the Right Connecting Bracket (11R). In this manual, Right indicates the right
side while using the inversion table, not facing it. Left indicates the left side while using the
inversion table, not facing it. When installing the inversion table, the Connecting Brackets
(11R/11L) will need to face each other in the middle.
2. My bolts do not tighten. What is wrong?
We use Nylon Lock Nuts to provide extra security for the inversion table. You will not be able to
fully tighten the bolts using just your hands (it will only go a couple of threads). You will need to
use two wrenches to tighten the nuts. Use one wrench to hold the bolt into place and use the
second wrench to turn the nut.
3. I cannot invert or return. How do I find my Center of Gravity for a smoother inversion?
To be able to invert smoothly and easily, you will need to find your personal center of gravity.
The center of gravity may vary from person to person due to height and weight distribution.
Your height setting may or may not be your actual height. Please thoroughly read the “How to
Invert” page in the Owner’s Manual for additional information. Contact us if it still doesn’t work.
4. What Inversion Setting (angle) should I use?
We highly recommend all new users begin at a low setting (15 or 30). For many, this is
something you will need to gradually get use to doing. Starting at a lower position may also help
you get use to the pressures applied to your feet/ankles while inverting. Based on reviews and
customer feedback, many users suggest that using the Inversion Setting of 30 or 45 provides
sufficient results.
5. How long should I invert?
A general rule of thumb is to listen to your body. Do not overexert yourself and only do what you
are comfortable with. Most people start with 1-2 minutes per session. As your body gets use to
inverting, you may choose to slowly add more minutes to each session. Frequency is typically
more important than duration. If you still have additional questions, you should contact your
doctor for additional information.
6. My feet / ankles feel discomfort while I’m inverting. What can I do?
Hanging upside-down or in a position where your feet are above your head will put a lot of
pressure to your ankles. For many, this is something you will need to gradually get use to doing.
Starting at a lower Inversion Setting (angle) and inverting for shorter periods of time may also
help the body get use to the pressures applied to the feet/ankles while inverting. Here are a
couple of tips that can help:
-Wear proper footwear with top laced shoes can help provide extra cushion and support for
your feet / ankles.
-Adjust the Ankle System so that it is snug enough to secure you. Do not tighten the Ankle
System too tight against your ankles / legs. This can restrict your blood flow and cause
discomfort.
-Contact us and we will help you.
7. My feet move from the Footrest when I invert. Is this normal?
As gravity works, you will move a little and your shoes may no longer touch the Footrest. Your
feet / ankles will then hold your entire body weight. You may need to start at a lower Inversion
Setting to allow your body (and yourself) to get use to inverting and hanging upside-down.
Frequently Asked Questions (FAQs)

18
Parts Listing
Part# Description QTY Part# Description QTY
1 Bottom Tube 2 31 Base Frame End Caps 4
2 Backrest Support Tube 1 32 Hexagonal Bolt-M8x65mm 4
3 Height Adjustment Tube 1 33 Square End Cap-Height Adjustment 1
4 Footrest 1 34 Rubber Stopper 1
5 Adjustable Ankle Holding Tube 1 35 EVA Space Pad 1
6 Right Handlebar 1 36 Round End Caps-Ankle Tube 4
7 Left Handlebar 1 37 Ankle Holding Adjustment Knob 1
8L Base Frame - Rear - Left 1 38 Height Adjustment Knob 1
8R Base Frame - Rear - Right 1 39 Metal Bushing 2
9L Base Frame - Front - Left 1 40 Bolt-M8x45mm 2
9R Base Frame - Front - Right 1 41 Screw-M6x10mm 4
10 Rear Ankle Holding Tube 1 42 Bolt-M6x40mm 1
11L Connecting Bracket - Left 1 43 Washer ø12xø6.5x1.2 1
11R Connecting Bracket - Right 1 44 Nut-M6 1
12 Cross Bar 1 45 Plastic Washer-ø20xø9.5x1.2 4
13 Heat & Massage Lumbar Pad 1 46 Round End Cap-Handlebar 2
14 Angle Selector Pin 1 47 Backrest Pad 1
15 Round Spring Insert 1 47A Headrest 1
16 Spring 1 48 Head Pillow 1
17 Spacer-Base Frame 4 49 Wrench-#13/#17 2
18 Round End Cap-Base Frame 2 50 Hex Wrenches 1
19 Flat Washer ø16xø8.5x1.5 17 51 Flat Washer -ø22xø8.5x1.5 6
20 Bolt-M8x55mm 8 52 U-Shaped Holder 4
21 Lock Nut-M8 16 53 Metal Cover 4
22 Bolt-M8x50mm 1 54 Metal Support Plate 100x38x2.5mm 2
23 Bolt-M8x30mm 4 55 Screw - M4x16mm 3
24 Square End Cap-Backrest Tube 5 56 Hand Controller 1
25L Left Handlebar Grip 1 57 Power Adaptor 1
25R Right Handlebar Grip 1 58 Square End Cap - 25mm 1
26 Safety Pin-ø8 x 65mm 1 59 Protective Cover 1
27 Bolt-M8x60mm 2 60 Side Shield for Cover 1
28 Hexagonal Bolt-M8x20mm 2 61 Bolt - M5 x 16mm 2
29 Bolt-M8x20mm 4 62 Square End Cap - 33.4mm 1
30 Oval End Caps-Footrest Plate 2 63 Front Shield For Cover 1

19
Exploded View
41
24
47A
59
41
55
60
63
41
19
19
19
31
31
31
31
05
39
40
37
03
21
19
20
21
19
07
21
19
20
22
06
25L
25R
51
61
24
24
47
19
21
24
23
51
24
19
21
8L
9R
02
17
11L
17
18
28
11R
17
18
17
28
29
29
27
45
19
21
19 21
27
14
45
26
15
16
44
42
43
23
51
51
23
33
46
46
04
30
30
32
32
1
32
32
54
20
19
19
21
19
19
21
12
34
54
20
1
8R
9L
50
49
48
58
35
36
52
53
36
5253
36
52
53
36
52
53
10
56
13
57
38
62
39
40
19 21

© Copyrighted 2013-2018 Innova Products Inc.
Customer Service Address:
Innova Products Inc.
1289 Hammerwood Avenue,
Sunnyvale, CA 94089
Email: [e-mail]
Phone: [phone]
www.innovaproductsinc.com
When contacting customer service, please provide the following information:
1) Model Number for your item
2) PC Code for your item (front page of this manual)
3) Part number or installation step number in question
Installation Guidance Video DOES NOT replace Owner’s Manual. Please be
sure to read the Owner’s Manual in its entirety.
https://youtu.be/72kV8tdOlC0 or search “Innova ITM4800 Installation Guide”
