Innova 201 Wired User manual

1-10
CONTENTS
Advisory
Setup and Installation
Innova Wired Hand Control
1-2-10 year Warranty
Adjustable Base
#201 Wired
Owner Manual

2-10
WARNING
Attention: Read the following information
before using this product . Failure to use a
surge protection device could compromise safety
or cause product malfunction could void
the electrical portion of your warranty.
and
Electrical surges are by far the biggest cause of problems with
electrical circuits.
In order to help protect your investment in case of a power surge or
outage, use an electrical surge protection device (not included).
WARRANTY WARNING!
Do not open or tamper with the transformer, control box, motors, or
remote control (with the exception of battery compartments). The
product warranty will be void if these components are tampered
with.
SMALL CHILDREN AND PETS:
Immediately dispose of all packing materials as they can smother
small children and pets. Do not allow any person or pets under the
bed. Children, convalescents and disabled person should not operate
the bed without adult supervision.
HOSPITAL OR CONVALESCENT USE DISCLAIMER:
Adjustable beds are designed and engineered for a life style of
in-home comfort and are not intended for hospital use or for a
bed-ridden patient on an extended recovery. Adjustable beds are not
equipped with bars to help patients get safely in and out of bed and
are not intended to be used around tent type oxygen therapy or
explosive gases.

10-10
PRODUCT RATINGS:
The bed lift motors are not designed for continuous use of more than
2 minutes in an 18 minutes period, or approximately 10% duty cycle.
Any attempt to circumvent or exceed this rating will shorten the
life expectancy of the product and may void the warranty.
WEIGHT UNITS:
The limitation for this adjustable bed is 750 lbs. The bed will
structurally support these weights, provided evenly
distributed across the bed base . This product is not designed to
support or lift this amount in the head or foot section alone.
Exceeding this weight restriction could damage the bed and/or
cause injury and void the warranty. Enter or exit the bed in a flat
position and do not sit on the head or foot sections while in the
raised position.
LOCATION ENVIRONMENT:
place a
piece of carpet or rubber casters cups under the legs. The rubber
caster cups also prevent the bed sliding when located on smooth or
hard surface flooring.
the bed
LIFTING AND LOWERING MECHANISMS
It is normal for the raising and lowering feature on this bed to emit
a minimal humming sound during operation.
The level of sound experienced in a room is directly related to the
environment within that location. To reduce the resonance,
TO REDUCE THE RISK OF SHOCK, BURNS, FIRE OR INJURY:
Always unplug the base from the electrical outlet before
cleaning or servicing the base. If the cord or plug is damaged,
discontinue use of the bed base and contact qualified service
personnel for examination and repair.
Make sure the base is in a flat position before unplug from power
source.
3-10
of this warranty. This limited warranty does not include
reimbursement for inconvenience, removal, installation, setup time,
loss of use, shipping, or any other costs of expenses, Innova and/or
its service technicians shall not be responsible for moving furniture
or any other items not attached to the adjustable bed in order to
perform service on the adjustable bed. It is the sole responsibility
of the purchaser to provide adequate space and accessibility to the
adjustable bed. In the event that the technician is unable to perform
service due to lack of accessibility, the service call will be billed to
the purchaser and the service will have to be rescheduled. Innova
makes and all implied
warranties of merchantability and fitness for a particular purpose
are disclaimed by Innova and excluded from this agreement. Some
states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may
not apply to every purchaser. This warranty gives the purchaser
specific legal rights, and the purchaser may also have other rights,
which may vary from state to state. This warranty is valid in all 50
states, Puerto Rico, and Canada.
no other warranty expressed or implied,

4-10
SETUP and INSTALLATION
Important: We strongly recommend
able-bodied adults setup and
assemble this product.
two
Step 1:
Check and verify all parts are included before discarding any
packing materials.
All electronics and components that need to be installed are located
in boxes under the base or attached to the frame.
A)Wired Remote Control (1)
B)Mattress Retainer Bar (1)
C)Legs (4)
D)Power Cord (1)
E)Transformer (1)
F)Control Box (1)
G)Registration Form
Step 2:
With the help of your able-bodied assistant, place carton on floor
with arrows point downwards.
Step 3:

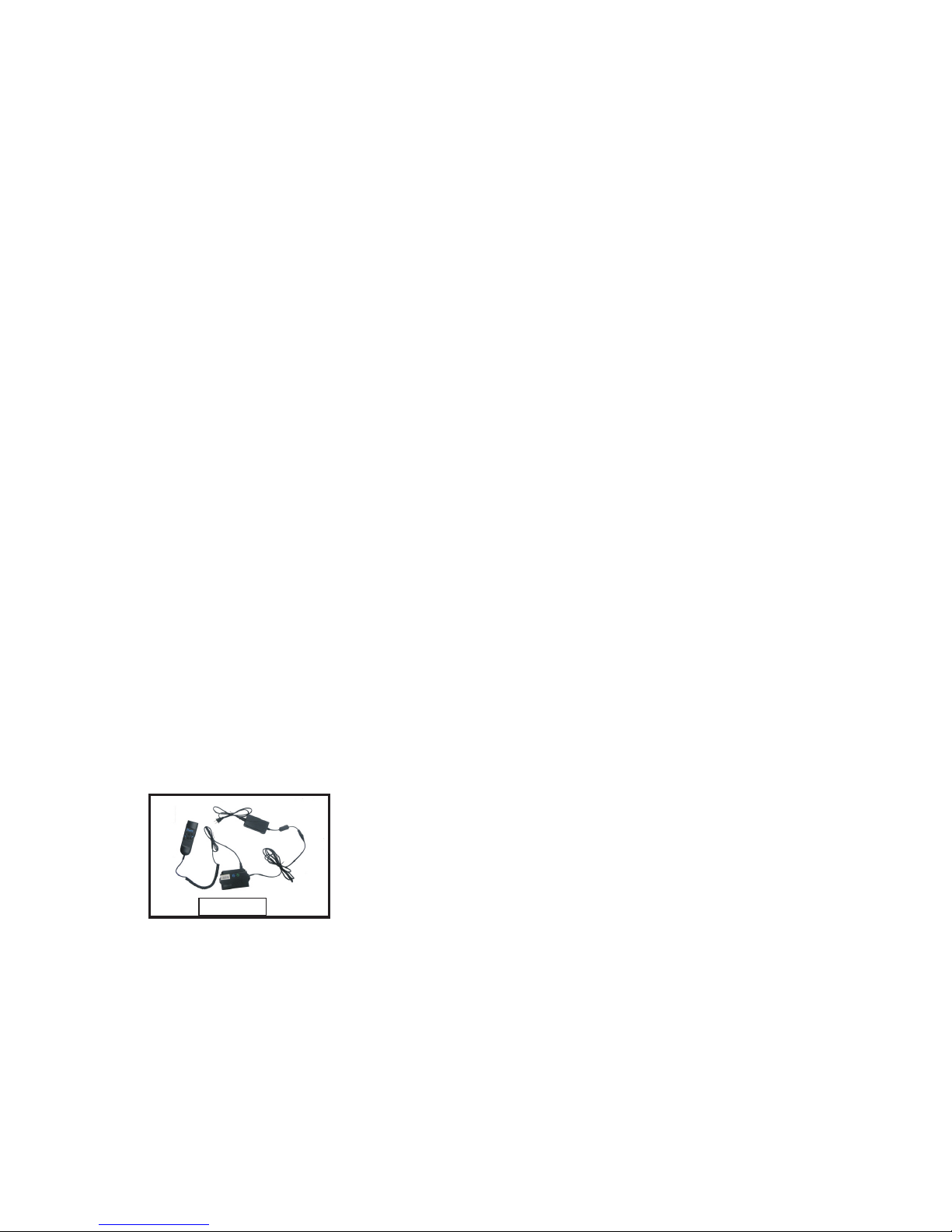

Connect the Transformer “E” to Control Box “F” : The Control Box
is the Black Box attached to the bottom of the bed . Extend the
Power Cord from the Control Box “F” and attach to the short
electrical output cord on Transformer “E” . Extend the Power Cord
“D” and plug it into the Transformer “E” . (See Figure 1)
(1)
F
A
E
Figure 1
9-10
5 YEAR LIMITED WARRANTY
Upon written notice during the third year through the year
from the warranty commencement date, INNOVA will replace, upon
terms and conditions set forth in this paragraph, any mechanical
bed part found to be defective. Electronics, electrical components,
drive motors and massage motors are excluded . This limited
warranty shall not apply unless the defective part is returned to
INNOVA
. purchaser shall pay all service and
transportation costs related to the replacement of the defective part
and required to pay 1/20 of the current replacement cost of the
parts times the number of year used .
ADDITIONAL TERMS AND CONDITIONS
This warranty does not apply; (a) to any damage caused by the
purchaser; (b) if there has been any repair or replacement of
adjustable bed parts by an unauthorized person; (c) if the adjustable
bed has been mishandled (whether in transit or by other means),
subjected to physical or electrical abuse or misuse, or otherwise
operated in any manner inconsistent with the operation and
maintenance procedures outlined in the Owner’s Manual and this
warranty; (d) to damage to mattresses, fabric, cables, electrical
cords or items supplied by dealers. Contact the dealer for warranty
information on these items; (e) if there has been any modification
of the adjustable bed without prior written consent by Innova; (f)
to costs for unnecessary service calls, including costs for in-home
service calls solely for the purpose of education the consumer about
the adjustable bed or finding an unsatisfactory power connection;
(g) if the recommended weight restriction is not followed (refer to
the advisory section of this manual), the warranty will be void.
Repairs to or replacement of an adjustable bed or its components
under the terms of this limited warranty will apply to the original
warranty period and will not serve to extend such period. The
decision to repair or to replace defective parts under this warranty
shall be made, or cause to be made, by INNOVA at its option and in
its sole discretion. Repair or replacement shall be the sole remedy
of the purchaser. There shall be no liability on the part of Innova for
any special, indirect, incidental, or consequential damages or for
any other damage, claim, or loss not expressly covered by the terms
5th
and INNOVA receive all service and transportation cost for
validation In years 3 - 5 years,

5-10
WE STRONGLY RECOMMEND :In order to help protect your
investment in case of a power surge or outrage , use an electrical
surge protection device with a battery backup system (not included)
then plug it in to a grounded outlet .
Step 4:
Plug electrical cord into a grounded electrical outlet.
- Using the Wired Remote, push the Head Up button, Foot Up button
for a momentary test . If the motor is working , skip to step 5.
NOTE; The actuator is a gravity down motor which needs weight to
come down.
Step 5:
-Unplug the Power Cord.

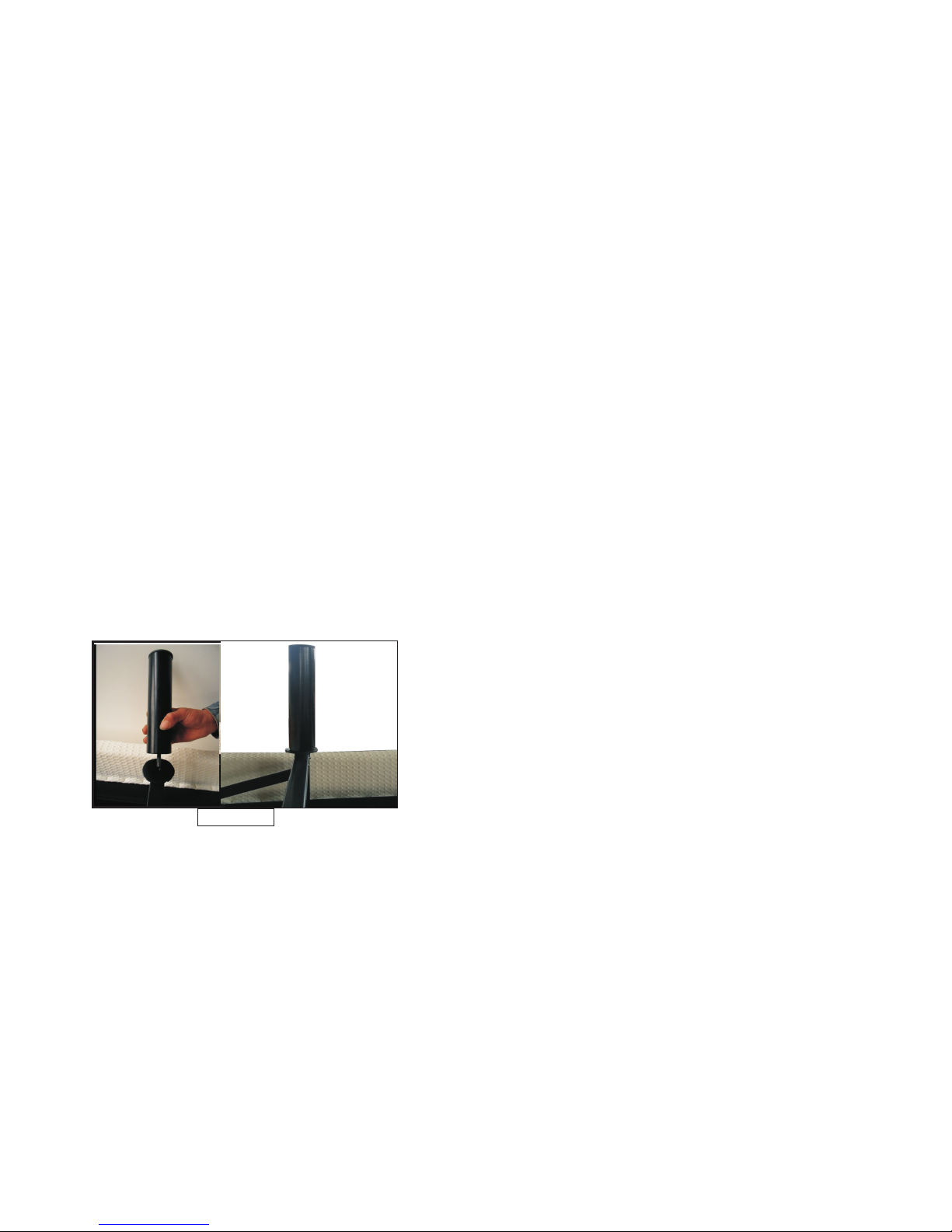

-Install the four legs firmly into the base of the frame. The legs screw
into the threaded holes in each corner of the adjustable base frame
(See Figure 2).
-Do not over tighten
Figure 2
8-10
INNOVA SLEEP PRODUCT
1, 2 & 10 YEAR LIMITED WARRANTY
Innova Sleep , Inc. (“Innova”) warrants this adjustable bed
to the consumer who is the original purchaser (the “purchaser”),
subject to the terms and conditions set forth herein. This warranty
begins on the “warranty commencement date”which is the date of
purchase for new unused beds and the date of manufacture for beds
that have been used as floor or display models. Thus, on a floor
model bed, the warranty is a portion of the limited 20 year warranty.
FULL 1 YEAR WARRANTY
This adjustable bed is warranted against defects in the workmanship
or materials for a period of one (1) year from the warranty
commencement date. Upon notice during the first year after the
warranty commencement date, Innova will repair or replace (at no
cost to the purchaser) any defective adjustable bed part, and INNOVA
will pay all authorized labor and transportation costs associated
with the repair of replacement of any parts found to be defective .
When the adjustable bed at hand is found to be DAMAGED, not
DEFECTIVE, all costs incurred to inspect and/or correct the
requested issue will be the financial responsibility of the requesting
party.
2 YEAR LIMITED WARRANTY
During the second year from the warranty commencement date,
upon receipt of written notice, INNOVA will replace any adjustable
bed part found to be defective. Purchaser shall pay all service and
transportation costs related to the replacement of the defective part.
This limited two (2) year warranty shall not apply unless the defective
part is returned to INNOVA and INNOVA receive all service and
transportation cost
Systems
for validation.

7-11
6-10
Figure 3 Figure 4
Step 6:
With the help of your able-bodied assistant , carefully lift the
adjustable bed frame and set it in place upright on its legs . Excessive
pressure may damage the legs. Remove all protective plastic covering.
Note: check and make sure that all power cords clear and do not
interfere with any Adjustable Bed Mechanisms; Dispose of covering
to avoid injury.
Step 7:

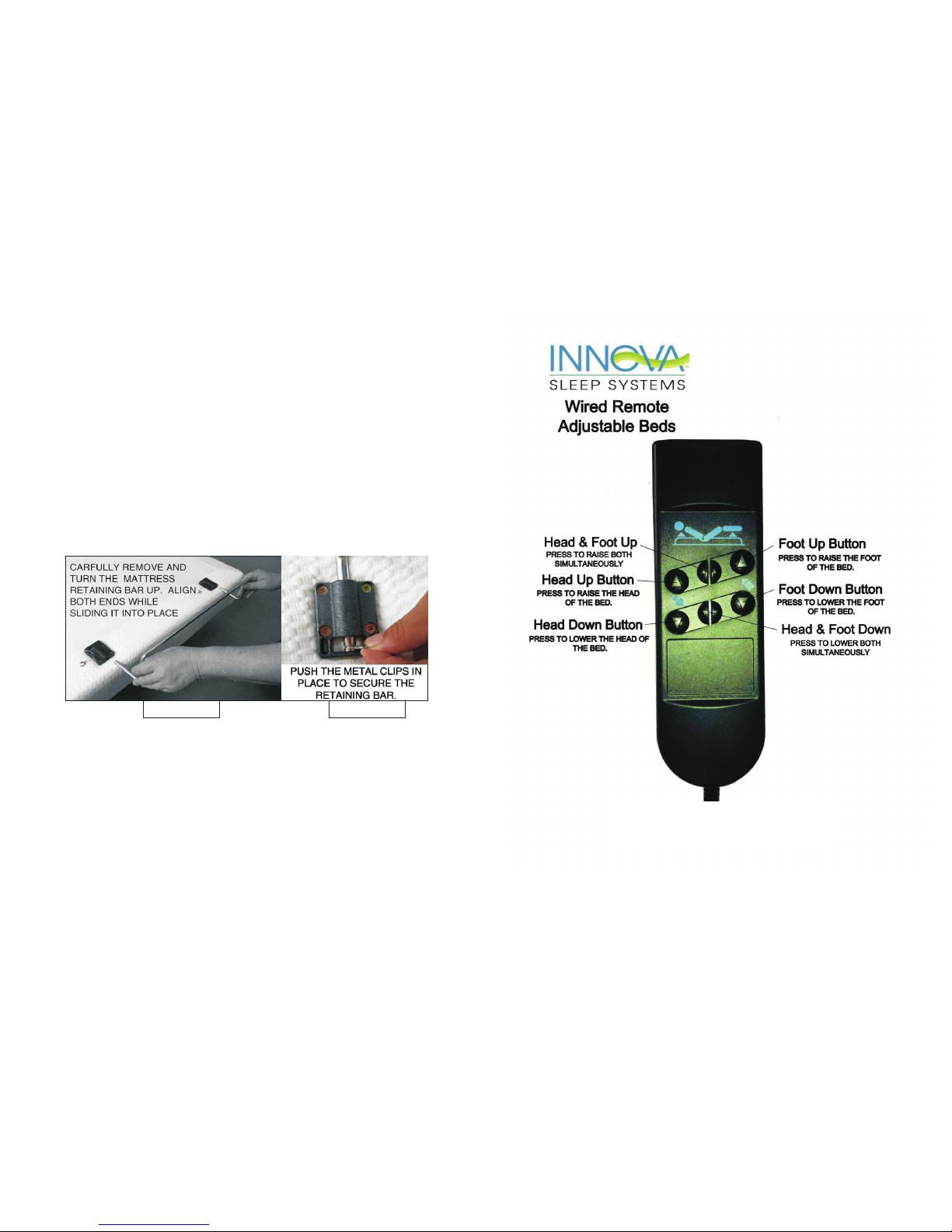

Note : The Mattress Retaining Bar is mounted upside down for
shipping only . Remove the Mattress Retaining Bar on the foot of the
bed and turn the bar upright and reinstall by carefully aligning and
pushing the bar into place . the retaining clips to secure the
bar into place . (See Figures 3 & 4. )
properly
Insert
Setup is now complete. Plug it in and enjoy. For toll-free customer service, call 1-877-386-1373
email us: [e-mail]
Please tell us your name, phone, address , serial No.
( ),
and the problem when you call/email.
found on the foot beam of the bed
