Innovative K7i User manual

User Manual
Color and appearance may differ with the icons in this manual,product
specifications may vary due to the improved performance without notice
V 1.0
3D
innovative
.
K7i
www.innovative.com.sg

Features…………………………………………………………………………………….1
Safety Instructions… … … … … … … … … … … … … … … … … … … … … … … … … .2
List of Items… ……… ………………………………………… ……… …………….10
Projector Exterior View… … … … … … … … … … … … … … … … … … … … … … .11
Remote Instructions………………………………………………………………….12
Projection Distance and Size… … … … … … … … … … … … … … … … … … … .13
Operations Instructions… … … … … … … … … … … … … … … … … … … … … … ….13
Multimedia Function…………………………………………………………….14
Connecting to Video Device… … … … … … … … … … … … … … … … … … … .15
Connecting to Audio Device ……… ……… … ……… ……… … ……… …….16
Connecting to HDMI Device…………………………………………………….17
Connecting to PC…………………………………………………………………….18
OSD MENU… … … … … … … … … … … … … … … … … … … … … … … … … … .19
Multimedia Menu………………………………………………………………….22
PPT/PDF Document Play …………………………………………………………….27
3D Function………………………………………………………………………….28
Trouble Shooting………………………………………………………………………….31
Technical Specification…………………………………………………………….33
Content

1
Thank you for using our LED mini projector!
After you reading this manual, you will know how to use the projector. The projector is
designed for home entertainment, and it will project a big screen as you like at any time.
1 Features
The projector integrates high performance optical engine and friendly interfaces with high
reliability. Driven by RGB LED and DLP, it provides you with vivid images.
● 1280×800 Resolution;
● R/G/B LED, over 20000 hours lamp life;
● Support AV/HDMI/VGA sources;
● Built-in multimedia, support 1080P, 3D video/Music/Photo/E-book;
● Video playback breakpoint memory function；
● Built-in TV(optional);built-inli-ion battery(optional);built-in FM audio transmitter(optional);
● 100％ offset, easy to use and install;
● Instant ON/OFF, without waiting for the machine to cool;
● Display 16.7 million color.
Support DLP-LINK 3D READY
HDMI port can supply power for smart dongle; Coaxial audio
output for multi-channel surround sound;

2
1.1 Safety Instructions
● To ensure the safety of using this product, please follow the using instructions.
● Please use the adaptor specified by the company, other company products may damage
the machine.

3
● Do not disassemble, modify, throw, drop the projector, otherwise it may cause damage;
● Projector failure can only be repaired by professionals;
● The battery is integrated device, not to cover up and modify. The battery can only be replaced by
qualified service person;

4
● Do not drop metal objects into the projector vents, or fall into the projector, otherwise it will result in
machine damage; if any foreign objects into, please turn off the power quickly, contact the after-sales
service person to deal;
Do not place liquids near or on the projector. If liquid has been spilled into the machine, immediately
turn off the power, and then call the authorised service center to maintain the projector.
●

5
● Please use the projector in a well-ventilated, temperature 0-35℃/humidity 0~85%/Elevation 0~2000M
of the environment;
● Please do not block the air outlet vents, do not use the projector on the bedding, blankets and other soft
surface; Do not cover the whole with a cloth or other objects; If the projector ventilation holes are serious
disrupted, excessive internal temperature may damage the projector, or may cause a fire hazard;

6
● Do not use the projector under high light or high magnetic field;
● Do not use the projector under dirty or dusty environment;

7
● Do not look directly in the source of lens while the projector is running;
● This product and the user manual for further improvement or supplementsed without notice.

8
Attention for viewing 3D movie
● Long close watch will affect vision;
● Wear stereo glasses watch program or game for long time will cause dizziness or eye fatigue;
● Pregnant women, elderly, patients with heart disease or prone to vomiting, to avoid excessive viewing;
● May make viewing three-dimensional images as reality frightened or excited。
● Do not place fragile or dangerous goods around when viewing stereo movie;
● The illusion of viewing stereo movie may cause people have suddenly action to injure other person;
● Prohibit children under 5 years old to view stereo movie. May affect the normal visual development;
● Photosensitive (light anaphylactic) allergy warning
1.Some people see specific things or flashing screen or certain mode screen in video or game,
there will be an exception. Viewer or a loved one has epilepsy, photosensitive allergy history, please
consult with a doctor before watching. Such as the viewing of the following symptoms immediately
terminate and rest.
2.Dizziness, visual disorders, eyes or facial instability, as unconscious, convulsions, loss of
consciousness, confusion, disorientation, nausea. If the above phenomenon continues, please consult your
doctor.
● Taking the following measures to reduce the risk of allergies and other photosensitive when view 3D movie
1.Please rest 5-15 minutes when watch an hour.

9
2.If the vision of two eyes are different, please watch after correction.
3.The eye height aim the 3D image, positive watch.
4.Please stop watching when feel headache or fatigue, dizziness.
5.Do not watch long when hardship, fatigue or illness.
● Children watch in the guardian care.
Please confirm when watching 3D
1.Please watch 3D image in effective audition angle and distance.
2.May not see the screen outside the valid audition or distance. You can not see the screen when prone
position.
3.There is a short adaption time to re-watch screen when divert attention in watch halfway.
4.Under fluorescent lights(50 Hz ~ 60 Hz), 3-wavelenth lights, window around, the image may flick when
watching.Recommend use the curtain to block the lights, to maintain indoor dim.
5.Must use the active 3D glasses support the DLP-LINK.
6.Can not see the image when there is a obstacle between the projector and glasses.
7.The position of the projector should keep a distance as far as possible with other machines.
● Product and user manual may vary due to the improved performance without notice.

10
Please unpack the box carefully, and check below items. If there is lack one or some of the
them, please contact the distributor.
1.3 List of items
Projector Remote TF card
(optional)
Power Cable
Adaptor
AV CABLE
active
(optional)
3D
3
456
789
0-/--
12
PG+ PG-

11
2 Projector Exterior View
Lens
Touch Panel(optional)
Infrared receiver window
Focus
Coaxial audio output
Outlet
Speaker
AV
VGA
HDMI
Support tripod
Inlet
Lifting screw
Headphone/
Power ON/OFF
USB
Charging indicator
TF card
TV
Power
(optional)

3
456
789
0-/--
12
PG+ PG-
12
Body touch keys instructions
3 Remote control instructions
Photo Broadcast
OSD Menu
Mute
Left
OK
Down
Movie Broadcast
Mode Selection
TV digit switch
TV 0-9
Input channel switching
Left/V-(long press)/FB
UP/Prev
OK/Menu(long press)
Right/V+(long press)/FF
Down/Next
Right
Power ON/OFF
Input channel switching
Exit
V-
V+
Stop
Play/Pause
UP
Return
Audio broadcast
4:3/16:9
Return

13
4 Projection size and distance table(just for reference)
Turn the focal wheel to adjust the focal length to obtain a more clear picture.
5 Projector operations
Note: When there is no signal for 15 minutes, it will shutdown automatically.
Connect one side of the projector to the AC plug,
the other side to the projector DC port, then press the
power for 3 seconds, the indicator flash till normally
on, then access signal, select the corresponding channel
can get the required image.
The projector may be equipped with battery, charging indicator light, said charging;
charging indicator off, suggesting the power is full, completely full of power will take
1-4 hours. When using the battery, the remote boot is disabled, you can only press the
body switch key to start the projector.
20 0.50-0.53
40 1.04-1.08
50 1.30-1.34
60 1.56-1.62
80 2.09-2.17
100 2.60-2.70
120 3.16-3.28
16:10
0.53-0.55
1.06-1.10
1.33-1.37
1.59-1.65
2.12-2.20
2.65-2.75
3.22-3.34
16:9
0.57-0.61
1.16-1.20
1.46-1.50
1.75-1.81
2.33-2.41
2.91-3.01
3.49-3.61
4:3
0.63-0.66
1.27-1.31
1.59-1.63
1.92-1.95
2.56-2.59
3.20-3.25
3.84-3.90
Distance(unit:m) Series number with H
16:10
Size(unit:inch)
Remark: The suggested projection is between
40 inches and 100 inches.

14
TF
U-flash memory or mobile HDD
This projector support the following signals, and output to display images:
Multimedia------- built-in multimedia function;
TV ----- connect to TV to receive analog signal(optional);
AV ----- connect to external AV equipment;
HDMI ---- connect to external HDMI device;
VGA ----- connect to PC VGA port directly.

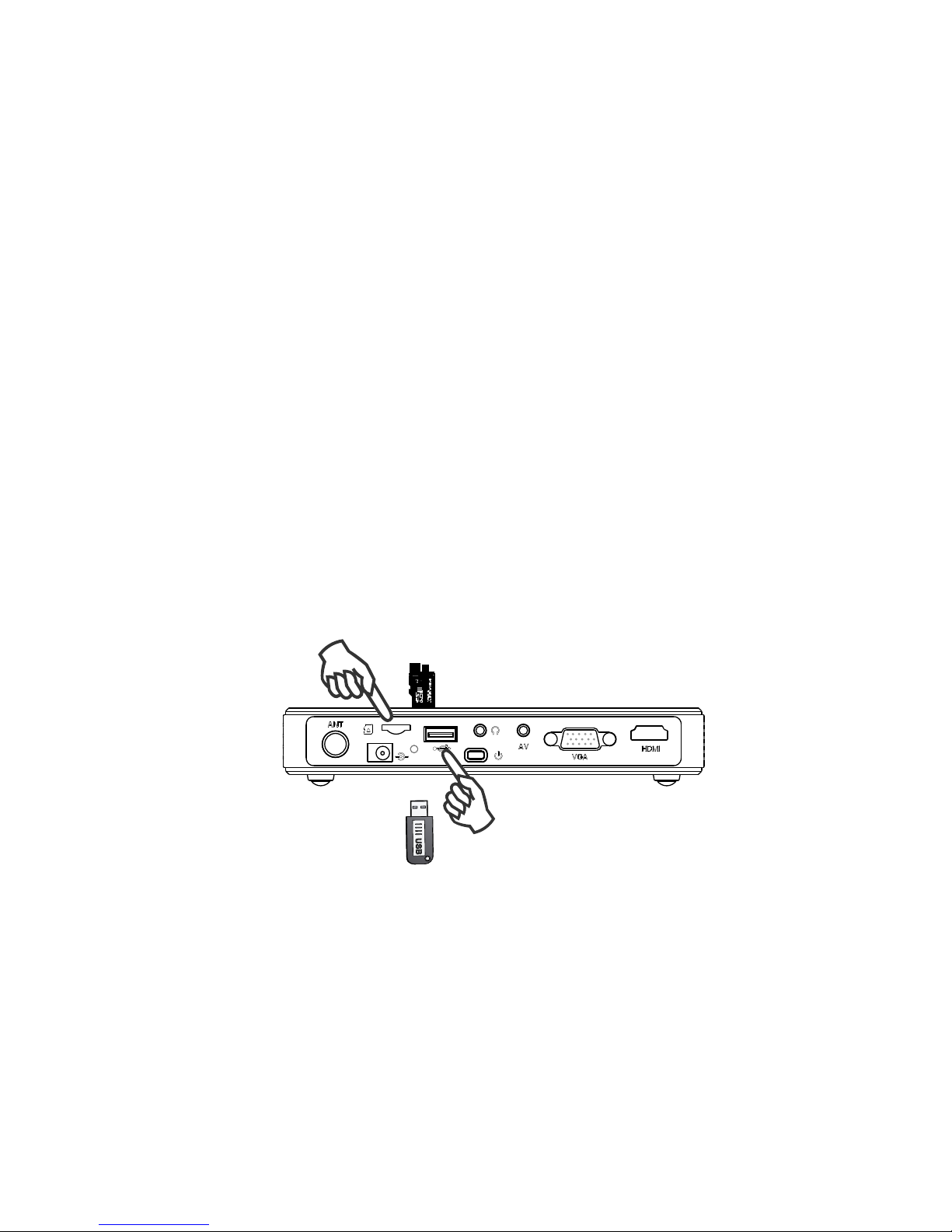

5.1Multimedia
Operating the projector into multimedia system
Connecting U-disk or TF card, insert U-disk or TF card into the marked direction of the
projector, select the media type in the main menu, enter the file fold of the USB or TF,
choose the corresponding file to play.

15

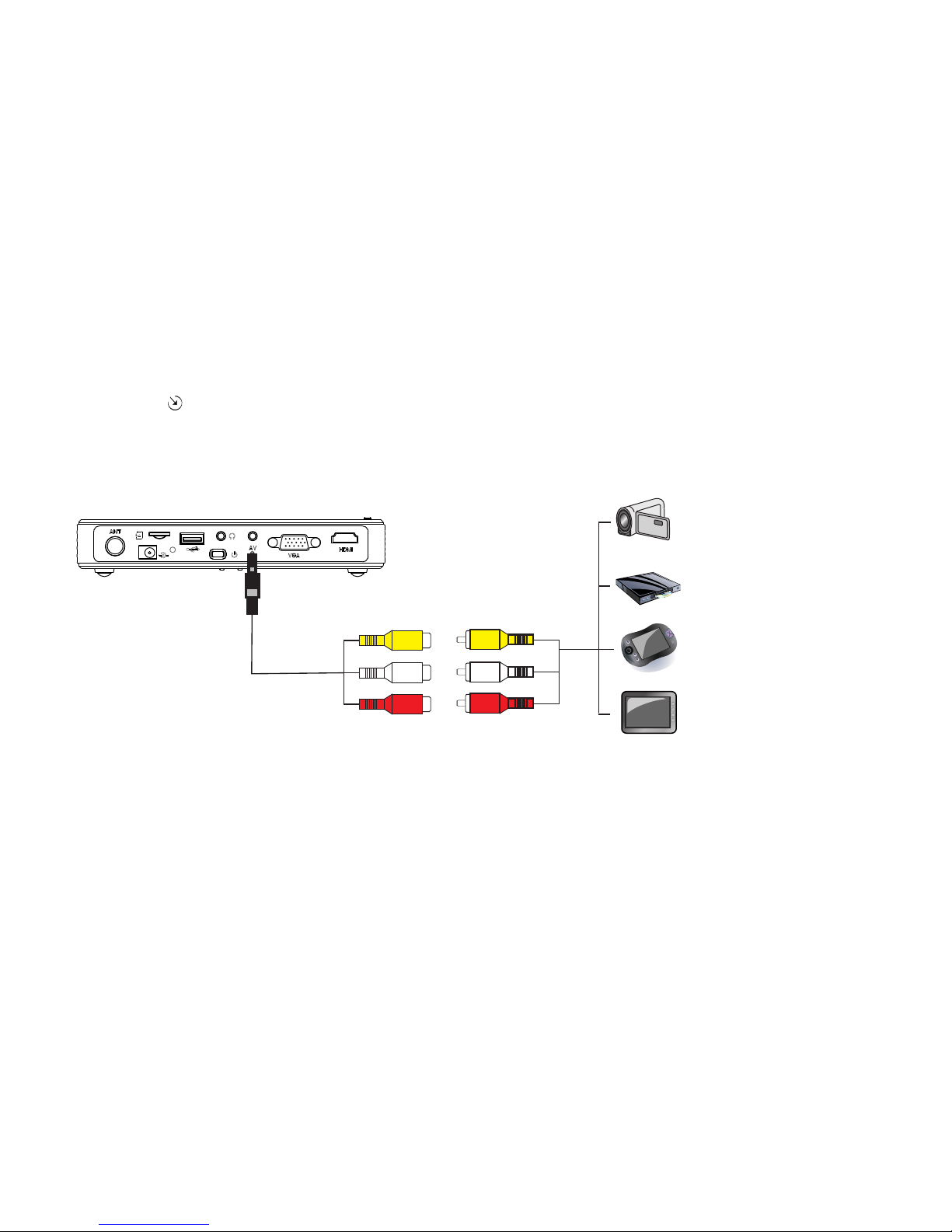

5.2Connecting to video device
Connect one end of the AV cable to the projector, the other end to the AV equipment corresponding
hole. press on the panel or Source on the remote to change AV channel.
The complete connection should be like shown below.
Note: There is different definition of the AV port, please use the AV cable in the packing.
DVD player/SAT
Game console
Portable media player
DV
Composite AV cable
Projector AV
input cable
yellow
white
red
yellow
white
red

16
5.3 Connecting to Audio device
Plug one end of the coaxial audio cable into the projector, the other end to the audio device that support
AC-3/DTS decoding, you can enjoy 5.1 multi-channel surround sound, or plug in the stereo
headphones to appreciate 2.0 stereo.
The complete connection should be like shown below.
Note: There is different definition of the coaxial audio out pine, please use out dedicated coaxial
audio output line.
Headphone
Dedicated coaxial audio output line()optional)
AC-3\DTS decoder
Amplifier support AC-3\DTS decoding

HD M I
HDMI
17
5.3 Connecting to HDMI device
Connect one end of the HDMI cable to the projector, the other end to the HDMI device.
Press on the panel or Source on the remote to change to HDMI channel.
The complete connection should be like shown below.
Note: Laptop with HDMi, press Fn+OSD button to switch, some laptop with automatic HDMI
identification HDMI output, others need to set external display.
DVD player
PC
Laptop
Game console
HDMI can supply power for android stick

18
Note: If the projector can not display the VGA when boot and select the VGA channel, please
follow the following steps to check and set the computer.
1 Check the VGA cable is connected properly, the input channel change to VGA channel;
2 Set the computer resolution to 1280×720；
3 Turn on the computer external video port. Press the Fn and the screen switching key, to
copy or switch the computer display information to the projector;
4 There is copy and expand display to the external display device function in the computer
setting, if it can not confirm whether the projection display, please check the setting.
5.4 Connecting to PC
Connect one end of the VGA cable to the projector, the other end to the pc or laptop.
Press on the panel or Source on the remote to change to VGA channel.
The complete connection should be like shown below.
