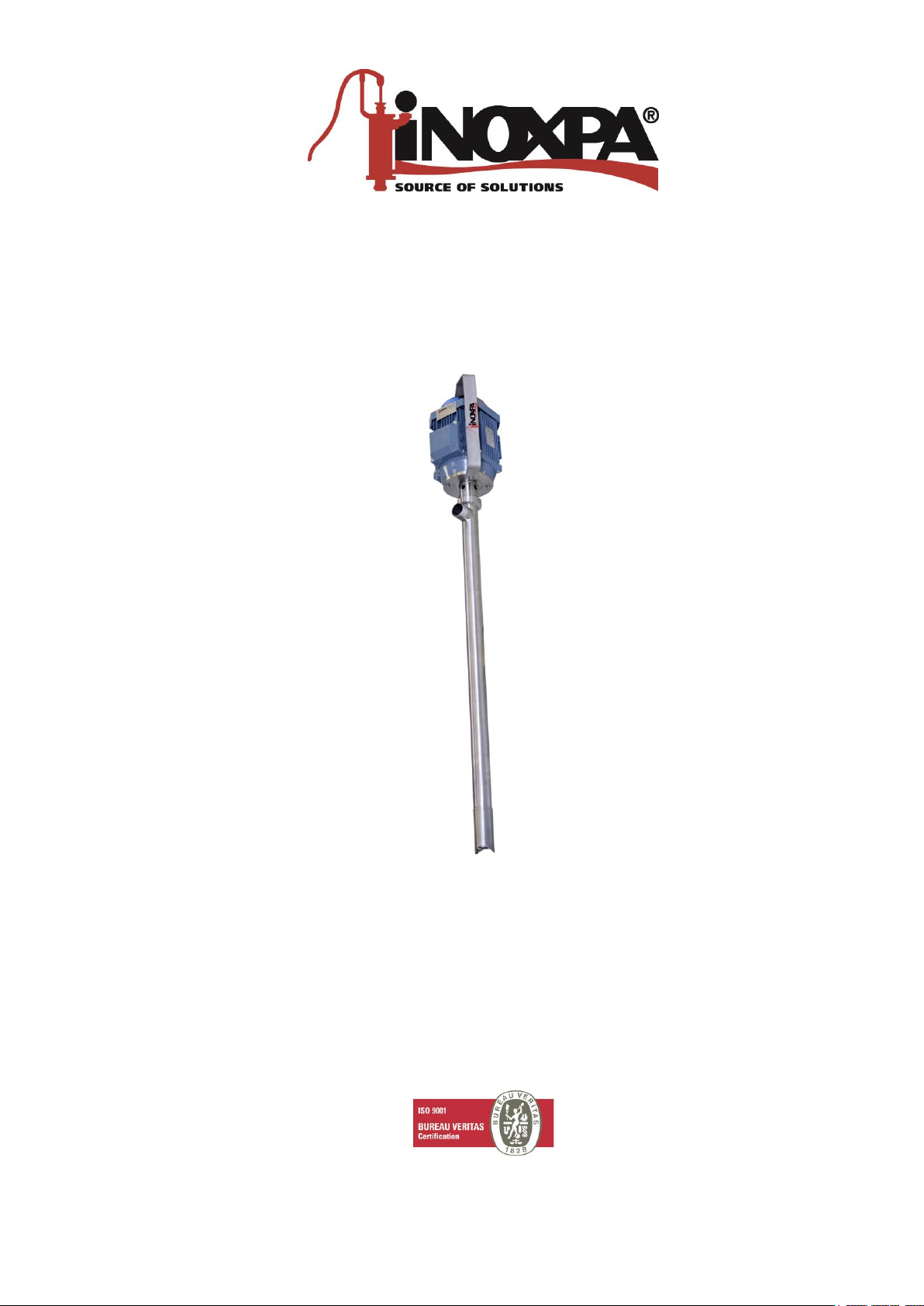

INOXPA KIBER KVB-25 Manual

INSTALLATION, SERVICE AND
MAINTENANCE INSTRUCTIONS
KIBER KVB-25
INOXPA, S.A.
c/Telers, 54 Aptdo. 174
E-17820 Banyoles
Girona (Spain)
Tel. : (34) 972 - 57 52 00
Fax. : (34) 972 - 57 55 02
Email: [e-mail]
www.inoxpa.com
Original Manual
01.631.30.00EN
(D) 2021/11

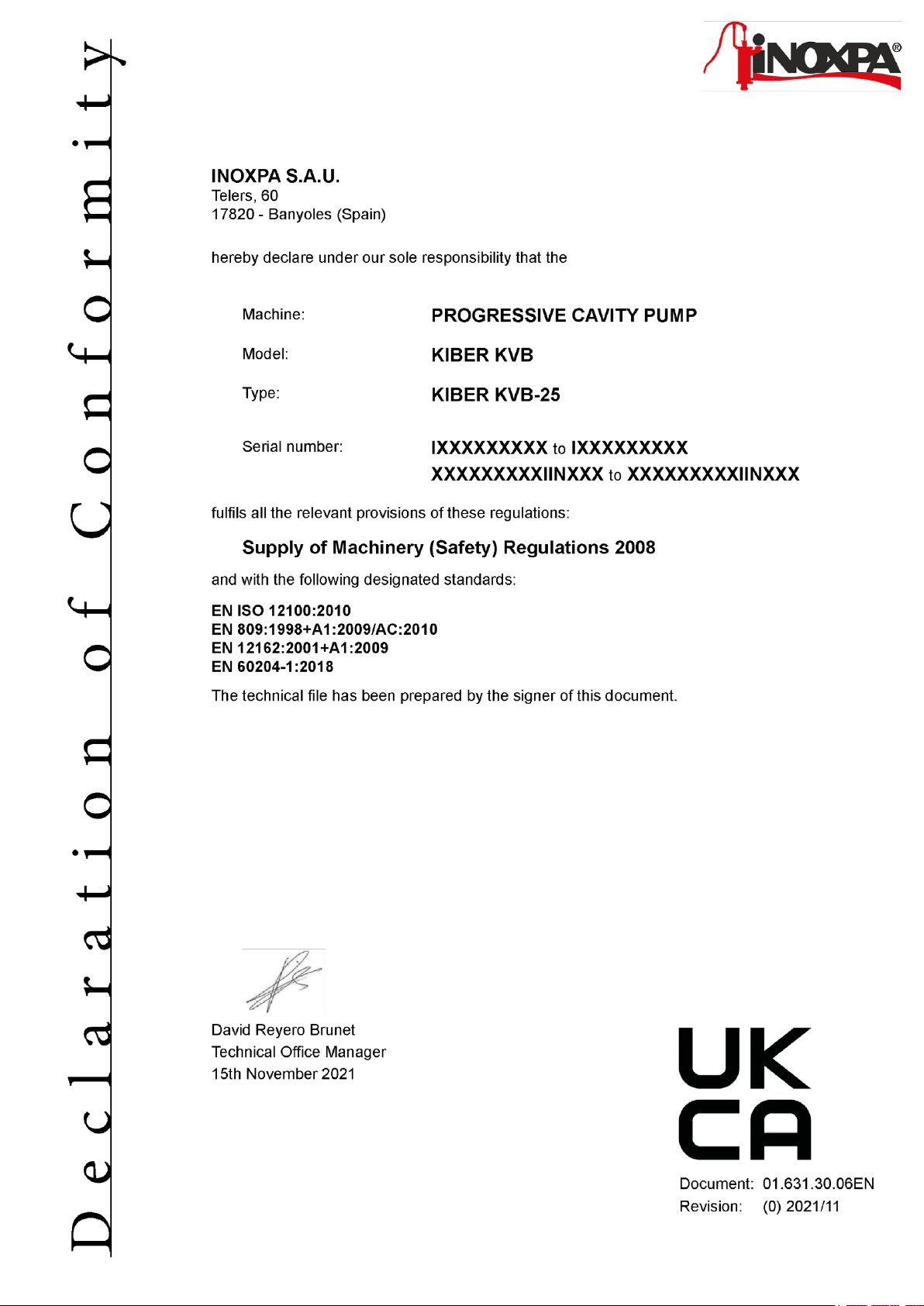

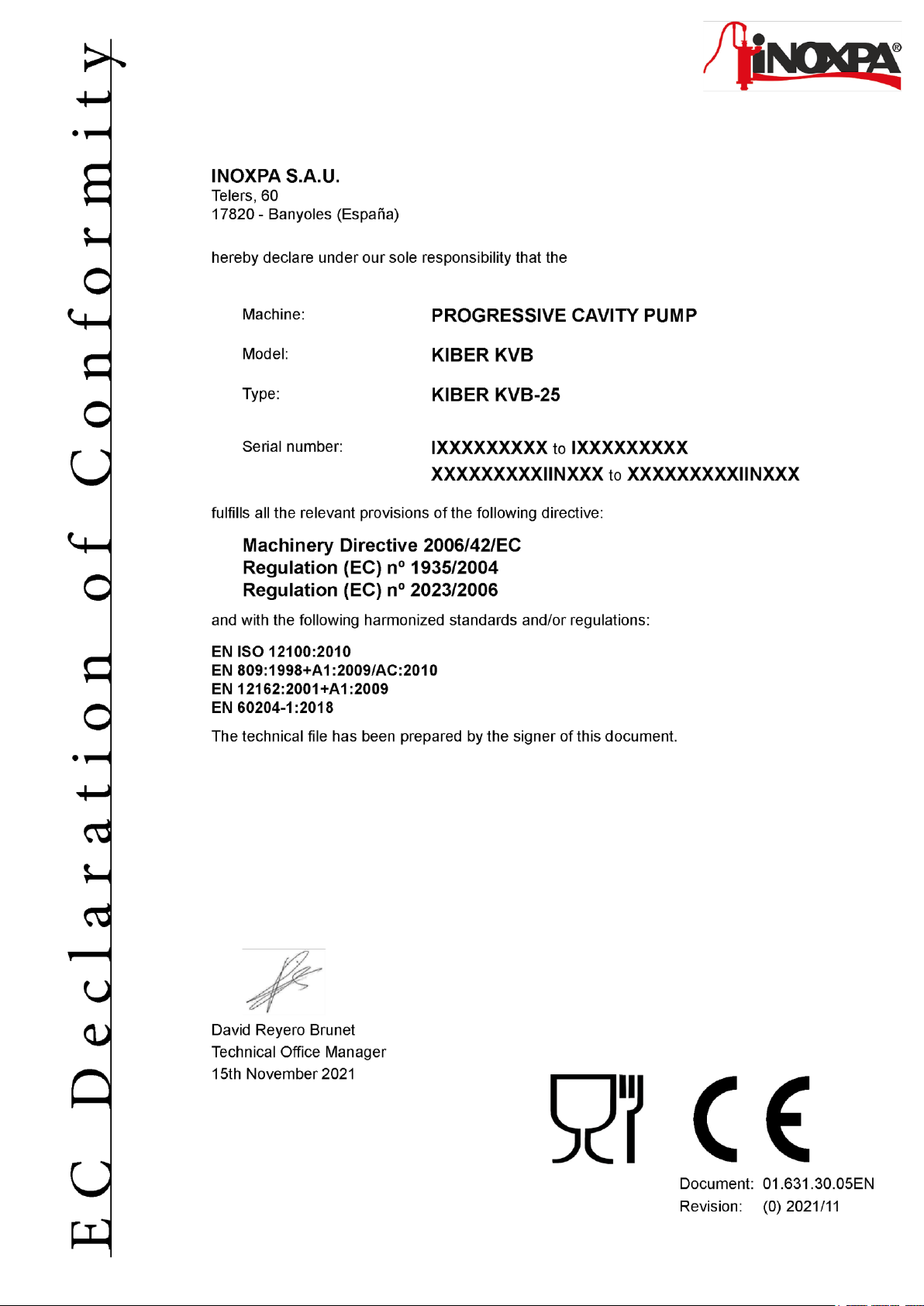

2021/11 1.Safety 3
1. Safety
1.1. INSTRUCTIONS MANUAL
This instruction manual contains information on the reception, installation, operation, fitting, stripping and maintenance for the
kiber KVB pump.
The information given herein is based on the most up-to-date data available.
INOXPA reserves the right to modify this instructions manual without having to give prior notice.
1.2. START-UP INSTRUCTIONS
This instruction manual contains vital and useful information for properly operating the pump and for keeping it in good
running condition.
Not only should the safety instructions set forth in this chapter be carefully read before putting the pump into operation, but
those concerned must also familiarise themselves with the operating features of the pump and strictly adhere to the
instructions given herein. It is extremely important that these instructions be kept in a set place near the installation.
1.3. SAFETY

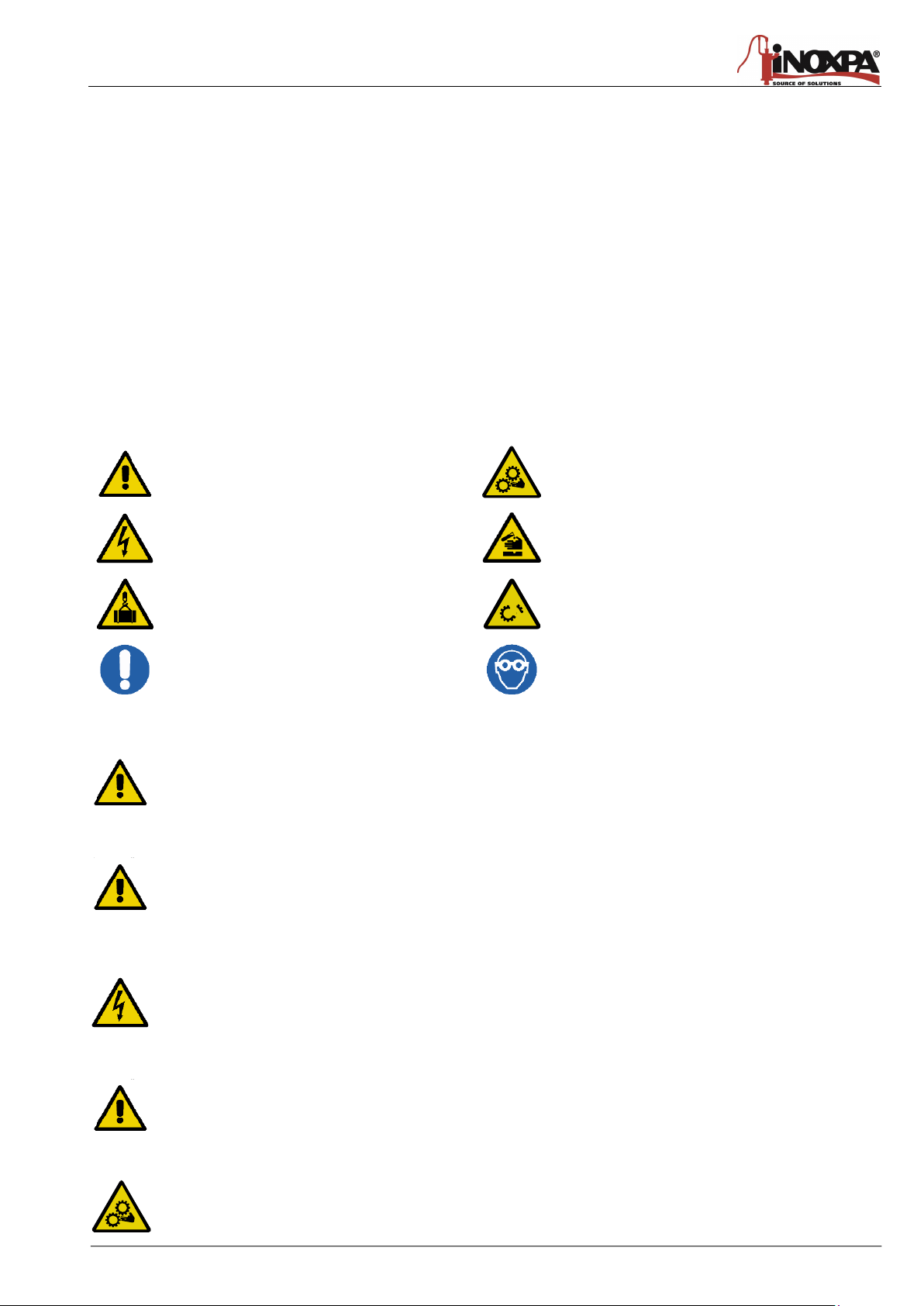

1.3.1. Warning signs
Danger for people in general.
Danger of injury caused by rotating parts
of the equipment.
Danger! Electricity.
Danger! Caustic or corrosive agents.
Danger! Suspended loads.
Danger to the proper operating of the
machine.
Obligation to ensure safety at work.
Use of safety goggles obligatory.
1.4. GENERAL SAFETY INSTRUCTIONS
Please read the instruction manual carefully before installing and commissioning the pump. Should
you have any doubts or queries, contact INOXPA.
1.4.1. During the installation
You must always bear in mind the Technical Specifications set forth in Chapter 8.
Do not put the pump into operation before connecting it to the pipes.
Check that the motor specifications are correct, especially if there is a special risk of explosion due
to the work conditions.
During the installation procedure, all the electrical work must be carried out by duly authorised
personnel.
1.4.2. During operation
You must always bear in mind the Technical Specifications set forth in Chapter 8. The limit values that
have been set must NEVER be exceeded.
NEVER touch the pump or pipes whenever the pump is being used to decant hot liquids or during the
cleaning procedure.
The pump has moving parts. Do not put your fingers into the pump when it is operating.

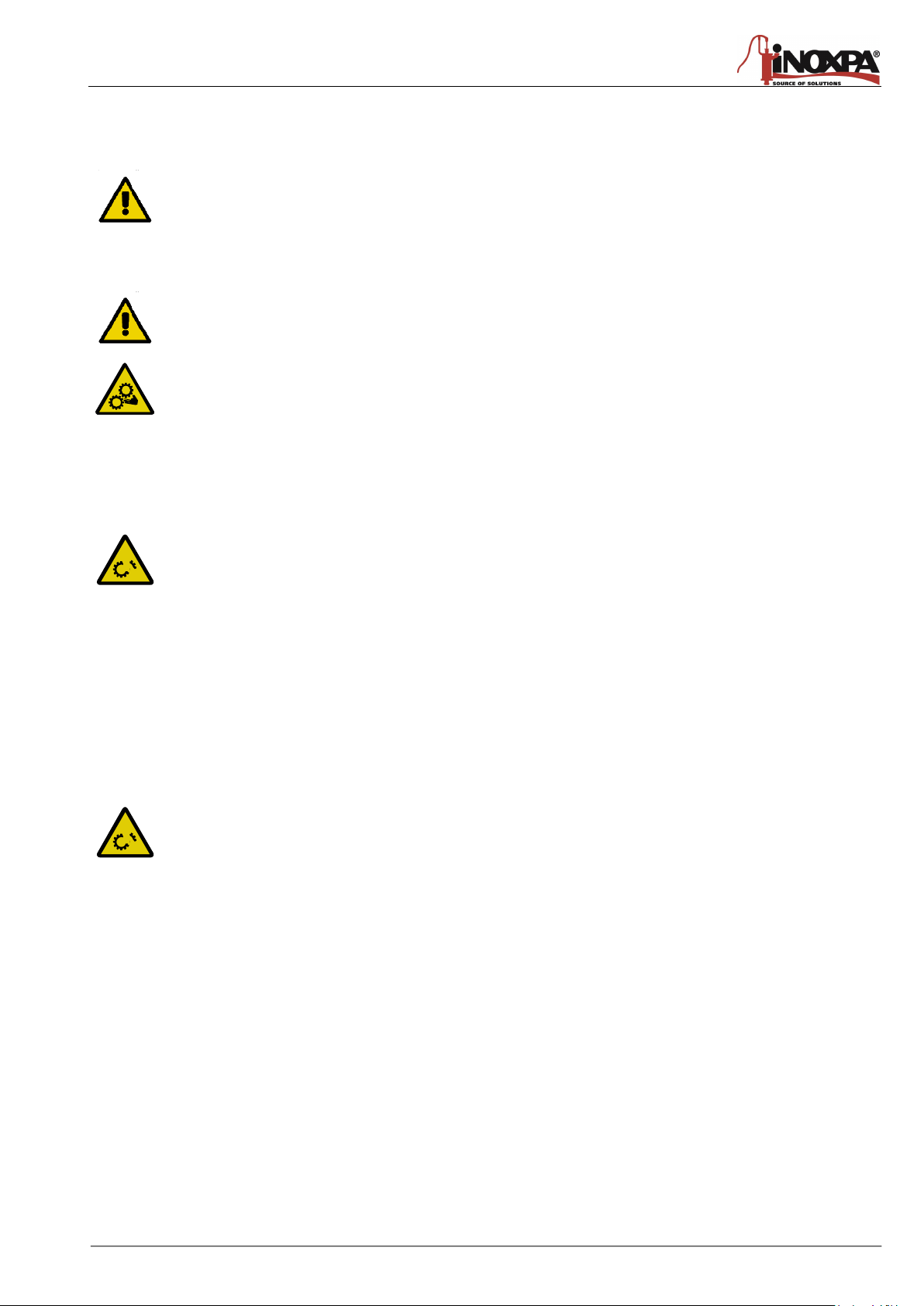

4 1.Safety 2021/11
NEVER work with the suction and the delivery valves shut off.
NEVER directly sprinkle the electric motor with water. Standard motor protection is IP-55: dust and
water sprinkling protection.
1.4.3. During maintenance
You must always bear in mind the Technical Specifications set forth in Chapter 8.
NEVER strip the pump down until the pipes have been drained. Remember that there will always be
some liquid left in the pump casing (if it has not been fitted with a drain). Always remember that the
liquid that has been pumped may be dangerous or subject to high temperatures. For situations of
this type, please consult the prevailing regulations in the country in question.
Do not leave loose parts on the floor.
ALWAYS turn the power supply to the pump off before embarking on maintenance work. Take out
the fuses and disconnect the wires from the motor terminals.
All electrical work must be carried out by duly authorised personnel.
1.4.4. In accordance with the instructions
Any failure to comply with the instructions could lead to a hazard for the operators, the atmospheric conditions of the room,
and the machine, and it could lead to a loss to any right to make a claim for damages.
Such non-compliance could bring with it the following risks:
•Important operating failures of the machine / plant.
•Failure to comply with specific maintenance and repair procedures.
•Potential electrical, mechanical and chemical hazards.
•Atmospheric conditions in the room could be hazardous due to the release of chemical substances.
1.4.5. Warranty
We wish to point out that any warranty issued will be null and void and that we are entitled to an indemnity for any civil liability
claim for products which might be filed by third parties if:
•Operation and maintenance work has not been done following the corresponding instructions; the repairs have not
been made by our personnel or have been made without our written authorization;
•Modifications are made to our material without prior written authorization;
•The parts or lubricants used are not original INOXPA parts/lubricants;
•The material has been improperly used due to error or negligence or have not been used according to the indications
and the intended purpose.
•The parts of the pump have been damaged as a result of having been exposed to strong pressure as there was no
safety valve.
The General Delivery Terms which you have already received are also applicable.
No modification can be made to the machine without the prior consent of the manufacturer. For your
safety, use spare parts and original accessories. The use of other parts exempts the manufacturer
from any and all responsibility.
Any change in operating conditions can only be done with the prior written consent of INOXPA.
In the event of doubt or should you require a fuller explanation on particular data (adjustment, assembly, disassembly...),
please do not hesitate to contact us

2021/11 2.Index 5
2. Index
1. Safety 3
1.1. Instructions manual....................................................................................................... 3
1.2. Start-up instructions ...................................................................................................... 3
1.3. Safety .......................................................................................................................... 3
1.4. General safety instructions ............................................................................................. 3
2. Index 5
3. General Information 6
3.1. Description ................................................................................................................... 6
3.2. Range of applications .................................................................................................... 6
4. Installation 7
4.1. Pump reception............................................................................................................. 7
4.2. Transport and storage ................................................................................................... 7
4.3. Location ....................................................................................................................... 8
4.4. Electrical installation ...................................................................................................... 8
5. Start-up 9
5.1. Start-up ....................................................................................................................... 9
6. Operating problems 10
7. Maintenance 11
7.1. General maintenance................................................................................................... 11
7.2. Storage ...................................................................................................................... 11
7.3. Cleaning..................................................................................................................... 11
7.4. Pump disassembly/ Assembly ....................................................................................... 12
8. Technical Specifications 14
8.1. Technical specifications................................................................................................ 14
8.2. Weight ....................................................................................................................... 14
8.3. Dimensions................................................................................................................. 15
8.4. Pump section.............................................................................................................. 16
8.5. Parts list..................................................................................................................... 17

6 3.General Information 2021/11
3. General Information
3.1. DESCRIPTION
INOXPA’s KVB-25 progressive cavity pump forms part of our range of positive-displacement pumps with helical rotor, intended
for viscous fluids. This pump is specially designed for emptying closed barrels with the connection diameter of 60mm or wider.
The hydraulic parts that form the pump are the rotor and the stator. The rotor is a round-section worm. The stator has two ribs
and its pitch doubles that of the rotor, thus allowing empty cavities between the stator and the rotor. These cavities are used
to transport the fluid. When the rotor turns within the stator, the cavities move longitudinally from the suction area to the
discharge nozzle.
This kind of pumps is suitable for pressures from 6 bar.
All pump parts in contract with the pumped product are manufactured in AISI 316L stainless steel. The stator is manufactured
in NBR, according to the FDA norm, and the standard sealing is EN 12756 mechanical seal.
This equipment is suitable for his use in food process.
3.2. RANGE OF APPLICATIONS
Q/Flow
m /h
3UK US
GPM GPM
[min ]
-1
[kW] [HP]
P
Each pump has a limited field of application. The pump in question was selected for certain pumping
conditions at the time the order was made. INOXPA is not liable for any damages that might arise if
the information furnished by the purchaser is incomplete (nature of the liquid, RPM…).

2021/11 4.Installation 7
Serial number
4. Installation
4.1. PUMP RECEPTION
INOXPA is not responsible for any deterioration of the material as a result of its transportation or
unpacking. Visually check that the packing has not suffered any damage.
The pump will be accompanied by the following documentation:
•Dispatch notes.
•Pump Instruction and Service Manual.
•Motor Instruction and Service Manual (*).
•(*) If the pump has been supplied with a motor from INOXPA.
Unpack the pump and check the following:
•The pump suction and delivery connections, removing the remains of any packing material.
•Check that the pump and the motor have not suffered any damage.
•Should the pump not be in proper condition and/or does not have all the parts, the haulier
must draw up a report as soon as possible with regard to the same.
4.1.1. Pump identification and marking
Qm /h
kW
3
MODEL
min-1 V
Hm
Nº
YEAR
Hz
Tel.[phone] Fax.[phone]
17820 BANYOLES GIRONA (SPAIN)
C. Telers, 54 P.O. BOX 174
INOXPA S.A.
www.inoxpa.com .
..
Pump plate
4.2. TRANSPORT AND STORAGE

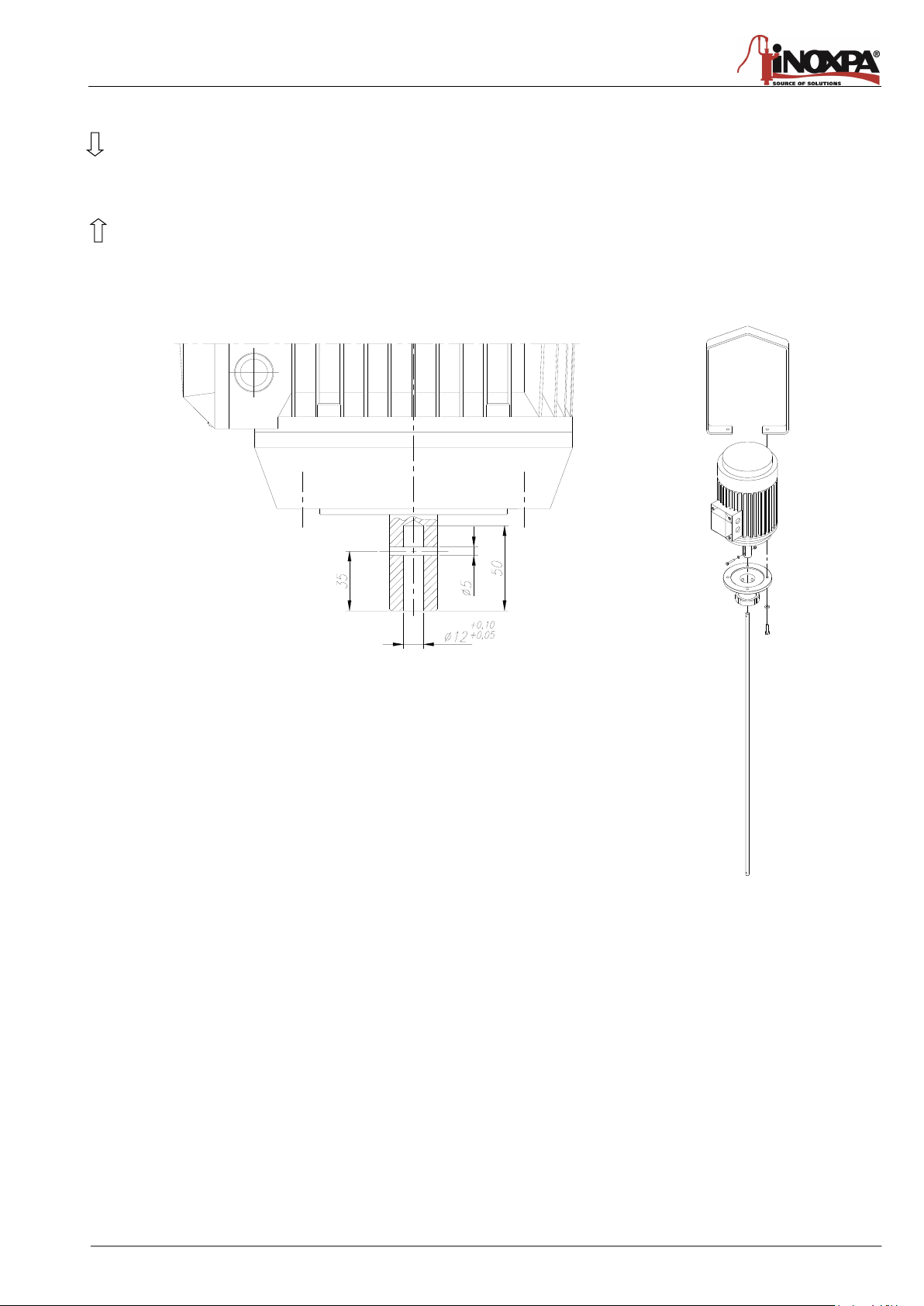

Lift the pump through the drive support as is shown below:

8 4.Installation 2021/11
4.3. LOCATION
Position the pump into the barrel, always having the stator submerged.
Make sure that the pump does not work in dry because the stator will be deteriorated quickly.
4.4. ELECTRICAL INSTALLATION
Leave the connecting of the electrical motors to qualified personnel. Take the necessary measures to
prevent any breakdowns in the connections and wires.
The electrical equipment, the terminals and the components of the control systems may still carry an
electric charge even when disconnected. Contact with them may put the safety of operators at risk,
or cause irreparable damage to the material.
Before manoeuvring the pump, make sure that the electric box is switched off.
•Connect the motor in accordance with the instructions supplied by the manufacturer of the same.
•Check the direction of the rotation (see the signaling label on the pump).
Put the pump motor into operation momentarily. Make sure, by looking at the pump from
above, that the motor’s ventilator is rotating in a clockwise direction.
Check ALWAYS the direction of the motor’s rotation with liquid inside the pump.

2021/11 5.Start-up 9
5. Start-up
Before putting the pump into operation read carefully the instructions on installation given in
Chapter 4. Installation .
5.1. START-UP
Read Chapter 8. Technical Specifications carefully. INOXPA will not assume responsibility for any
improper or incorrect use of the equipment.
Do not touch the pump or the piping while it is pumping products at a high temperature.
5.1.1. Checks to be carried out before putting the pump into operation
•Fully open the cut-off valve on the discharge pipe.
•Check that the stator is submerged.
The pump must NEVER rotate without liquid.
•Check that the rotation direction of the motor is correct.
•Check that the power supply matches the rating indicated on the motor plate.
5.1.2. Checks to be carried out on putting the pump into operation
•Check to make sure that the pump is not making any strange noises.
•Check to see if the absolute inlet pressure is sufficient, in order to avoid cavitations in the pump. Consult the curve for the
minimum required pressure above the steam pressure (NPSHr).
•Monitor the delivery pressure.
•Check that there are no leaks in the sealed areas.
Monitor motor consumption in order to avoid a circuit overload.

10 6.Operating problems 2021/11
6. Operating problems
The table given below provides solutions to problems that might arise during pump operation. With respect to the same, it is
assumed that the pump has been properly installed and has been correctly selected for the application in question.
Should there be a need for technical service please contact INOXPA.
Operating problems
Probable causes
Overloading of motor.
3.
Insufficient flow rate or pressure in pump.
1, 2, 3, 4, 9, 10.
Irregular discharge flow rate / pressure.
1, 3.
Noise and vibrations.
2, 3, 4, 7, 10.
The pump gets clogged.
3, 4, 7.
Overheating of the pump.
3, 4, 7.
Abnormal wear.
4, 7, 10, 11.
Leak in mechanical seal.
5, 6, 8.
Probable causes
Solutions
1
Wrong rotation direction.
Change the direction of the rotation.
2
Delivery pressure is too high.
If necessary, decrease the load losses by increasing the diameter
of the piping, for example.
3
The viscosity of the liquid is too high.
Decrease the viscosity by heating the liquid, for example.
4
The temperature of the liquid is too high.
Decrease the temperature of the liquid by cooling it.
5
Mechanical seal either damaged or worn.
Replace the seal.
6
Unsuitable stator or O-ring for the liquid in question.
Fit more suitable O-ring by consulting the supplier with respect to
the same.
7
There are foreign bodies in the liquid.
Place a filter at the suction piping.
8
The tension of the mechanical seal spring is too low.
Adjust in accordance with the instructions given herein.
9
The pump speed is too low.
Increase the speed.
10
The stator is worn out.
Replace the stator.
11
Very abrasive liquid.
Mount the more suitable material of stator (check with the
supplier).
If the problems persist stop using the pump immediately. Contact the pump manufacturer or his
representative.

2021/11 7.Maintenance 11
7. Maintenance
7.1. GENERAL MAINTENANCE
This pump, as with any other machine, needs to be maintained. The instructions contained in this manual deal with the
identification and replacement of the spare parts. These instructions have been drawn up by maintenance staff and are
destined for those people who are responsible for supplying spare parts.
Read carefully Chapter 8. Technical specifications .
All the parts or materials that are changed must be duly eliminated/recycled in accordance with the
prevailing directives in each area.
ALWAYS disconnect the pump before starting out on any maintenance work.
7.1.1. Check the mechanical seal
Periodically check that there are no leaks in the shaft area. Should there be any leaks in the mechanical seal area, replace the
same pursuant to the instructions given in the section entitled Stripping and Assembly of the pump.
7.2. STORAGE
Before being stored the pump must be completely emptied of liquids. Avoid, as far as possible, the exposure of the parts to
excessively damp atmospheres.
7.3. CLEANING
The use of aggressive cleaning products such as caustic soda and nitric acid may give rise to skin
burns.
Use rubber gloves during the cleaning process.
Always use protective goggles.
To clean the pump manually, disassemble the pump as indicated in the Pump disassembly/assembly instructions.
In order to remove any remains of cleaning products, ALWAYS rinse the element in question with clean water after completing
the cleaning process.

12 7.Maintenance 2021/11
7.4. PUMP DISASSEMBLY/ ASSEMBLY
7.4.1. Stator, rotor
Disassembly
Insert a rod into the hole in the stator and unscrew the stator (22). Mind that it is left-threaded. Pull out
the pump casing (01) loosening the nut of the flange support (04), mind that it is also left-threaded.
Remove the rotor (21) pulling out the hexagonal screw (52) and the hexagonal nut (54).
The stator and the upper part of the casing are left threaded.
Assembly
Attach the rotor (21) to the shaft (05) and fasten it with the hexagonal screw (52), flat washer (53) and
hexagonal nut (54). Place the O-ring (80) into the casing (01) and assemble it on the flange support (04)
with a left-threaded hexagonal nut. Place the seal stop ring (31A) to the stator (22) and with help of the
rod in the hole of the stator screw it to the casing (01) till it stops, remember that it is left threaded.
7.4.2. Mechanical seal
Disassembly
Continue disassembling the pump in the horizontal position. Loosen the pin (55) of the seal stop ring (31) and slide it, pull it out
together with the rotating part of the mechanical seal (08). Remove the seal cover (09) with the stationary part of the
mechanical seal.
Assembly
Place the stationary part of the mechanical seal (08) into the housing of the seal cover (09) and then assemble it on the centre
of the flange support (04). Slide the rotating part of the mechanical seal along the shaft and the seal stop ring (31) and fix with
the pin (55) the seal stop ring (31) according to the following assembly dimensions.

2021/11 7.Maintenance 13
7.4.3. Change of drive
Disassembly
First, follow the disassembly procedure as indicated in the above section.
Remove the hexagonal screw (52A), hexagonal nut (54) and the shaft (05). Then loosen the hexagonal screws (52B and 52C)
to pull out the flange support (04) and the drive support (06).
Assembly
Drill a hole in the drive shaft (93) as indicated on the figure below. Mount the shaft (05) in the hole of the drive and fix it with
the hexagonal screw (52A) and hexagonal nut (54). Place the flange support (04) and the drive support (06) to the flange of
the drive, fasten the hexagonal screws (52B and 52C) and flat washers (53A).

14 8.Technical Specifications 2021/11
8. Technical Specifications
8.1. TECHNICAL SPECIFICATIONS
Flow at 900 rpm. ..................................................................
28 l/min.
Flow at 750 rpm. ..................................................................
23 l/min.
Flow at 500 rpm. ..................................................................
16 l/min.
Flow at 300 rpm. ..................................................................
10 l/min.
Maximum operating pressure ................................................
6 bar (87 PSI)
Maximum viscosity ................................................................
40.000 mPas
Operating temperature .........................................................
-10 ºC a +85ºC
14 ºF a 185 ºF
Sound level ..........................................................................
60-80 dB(A)
Discharge connection ...........................................................
R 1 ½”
Pump tube diameter .............................................................
54 mm.
Materials
Stator ......................................................................................
NBR black according FDA
Parts in contact with the product ...............................................
AISI 316L
Other parts in stainless steel .....................................................
AISI 304
Gaskets in contact with the product ...........................................
NBR
Other optional stator materials ..................................................
NBR white, EPDM
Surface finish ...........................................................................
Standard polished
Mechanical seal
Type of seal .........................................................................
Single inside seal
Stationary part material ........................................................
Silicon
Rotary part material .............................................................
Silicon
Seals material ......................................................................
Viton
Whenever the noise level in the area of operation exceeds 85 dB(A) use special protection.
8.2. WEIGHT
Pump type
Weight
without drive
[Kg]
Weight with
motor
[Kg]
Weight with
gear motor
[Kg]
KVB-25
8
36
33

2021/11 8.Technical Specifications 15
8.3. DIMENSIONS

16 8.Technical Specifications 2021/11
8.4. PUMP SECTION

2021/11 8.Technical Specifications 17
8.5. PARTS LIST
Position
Description
Quantity
Material
01
Pump casing
1
AISI 316L
04
Flange support
1
AISI 304
06
Drive support
1
AISI 304
08
Mechanical seal
1
-
09
Seal cover
1
AISI 316L
21
Rotor
1
AISI 316L
22
Stator
1
AISI 316L + black NBR
24
Connecting rod
1
AISI 316L
31
Seal stop ring
1
AISI 316L
31A
Washer
1
AISI 316L
52
Hexagonal screw
1
A2
52A
Hexagonal screw
1
A2
52B
Hexagonal screw
2
A2
52C
Hexagonal screw
2
A2
53
Flat washer
2
A2
53A
Flat washer
4
A2
54
Hexagonal nut
2
A2
55
Pin
1
A2
80
O-ring
1
NBR
93
Drive
1
-

NOTES

INOXPA, S.A.
DELEGACIÓN NORD-ESTE /
ARAGÓN
c/ Telers, 54 –PO Box 174
BARBERÀ DEL VALLÈS (BCN)
ZARAGOZA
17820 BANYOLES (GIRONA)
Tel: [phone]
Tel: [phone]
Tel: [phone]
Fax: [phone]
Fax: [phone]
Fax: [phone]
e-mail: inoxpa.nordest[email protected]
e-mail: [e-mail]
e-mail: [e-mail]
www.inoxpa.com
DELEGACIÓN LEVANTE
DELEGACIÓN CENTRO
DELEGACIÓN STA
PATERNA (VALENCIA)
ARGANDA DEL REY (MADRID)
GALDACANO (BILBAO)
Tel: [phone]
Tel: [phone]
Tel: [phone]
Fax: [phone]
Fax: [phone]
Fax: [phone]
e-mail: inoxpa.lev[email protected]
e-mail: inoxpa.cent[email protected]
e-mail: [e-mail]
DELEGACIÓN SUR
LA CISTÉRNIGA (VALLADOLID)
LOGROÑO
JEREZ DE LA FRONTERA (CÁDIZ)
Tel: [phone]
Tel: [phone]
Tel / Fax: [phone]
Fax: [phone]
Fax: [phone]
e-mail: [e-mail]
e-mail: [e-mail]
e-mail: [e-mail]
INOXPA SOLUTIONS LEVANTE
INOXPA SOLUTIONS FRANCE
PATERNA (VALENCIA)
GLEIZE
CHAMBLY (PARIS)
Tel: [phone]
Tel: [phone]
Tel: [phone]
Fax: [phone]
Fax: [phone]
Fax: [phone]
e-mail: [e-mail]
e-mail: [e-mail]
e-mail: [e-mail]
INOXPA AUSTRALIA PTY (LTD)
ST. SEBASTIEN sur LOIRE
WAMBRECHIES
MORNINGTON (VICTORIA)
Tel/Fax: [phone]
Tel: [phone]
Tel: [phone]
e-mail: [e-mail]
Fax: [phone]
Fax: [phone]
e-mail: [e-mail]
e-mail: [e-mail]
INOXPA ALGERIE
INOXPA SOUTH AFRICA (PTY) LTD
INOXPA USA, Inc
ROUIBA
JOHANNESBURG
SANTA ROSA
Tel: [phone]
Tel: [phone]
Tel: [phone]
Fax: [phone]
Fax: [phone]
Fax: [phone]
e-mail: [e-mail]
e-mail: sale[email protected]
e-mail: [e-mail]
INOXPA UK LTD
S.T.A. PORTUGUESA LDA
INOXPA ITALIA, S.R.L.
SURREY
VALE DE CAMBRA
BALLO DI MIRANO –VENEZIA
Tel: [phone] / 079
Tel: [phone]
Tel: [phone]
Fax: [phone]
Fax: [phone]
Fax: [phone]
e-mail: [e-mail]
e-mail: [e-mail]
e-mail: [e-mail]
INOXPA SKANDINAVIEN A/S
IMPROVED SOLUTIONS
PORTUGAL LDA
INOXPA INDIA PVT. LTD.
HORSENS (DENMARK)
VALE DE CAMBRA
Maharashtra, INDIA.
Tel: [phone]
Tel: [phone] / 138
Tel: [phone]
Fax: [phone]
Fax: [phone]
[e-mail]
e-mail: [e-mail]
e-mail: isp.[email protected]m
INOXPA SPECIAL PROCESSING
INOXRUS
EQUIPMENT, CO., LTD.
MOSCOW (RUSIA)
SAINT PETERSBURG (RUSIA)
JIAXING (China)
Tel / Fax: [phone]
Тel: 78 126 221 626 / 927
Tel.: [phone] / 036
e-mail: [e-mail]
Fax: [phone]
Fax: [phone]
e-mail: [e-mail]
INOXPA WINE SOLUTIONS
INOXPA UCRANIA
VENDARGUES (FRANCE)
KIEV
Tel: [phone]
Tel: [phone]
Fax: [phone]
e-mail: [e-mail]
e-mail: [e-mail] /
npourtau[email protected]
[e-mail]
INOXPA products are available from our branch offices and through a network of independent distributors covering more than 50 countries
around the World. For more information, visit our Web site: www.inoxpa.com
This information is for guidance only. We reserve the right to modify any material or characteristic without prior notice.
